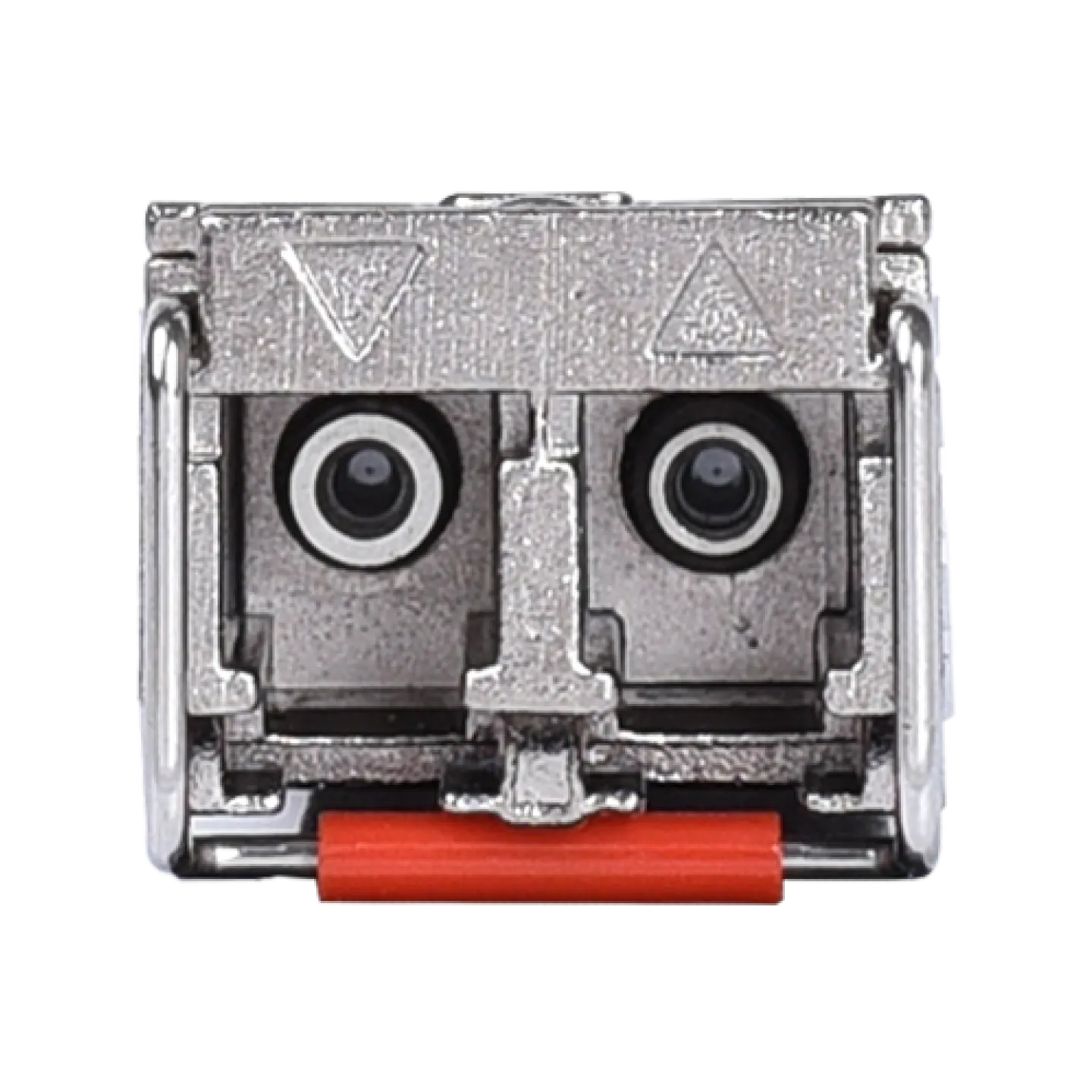

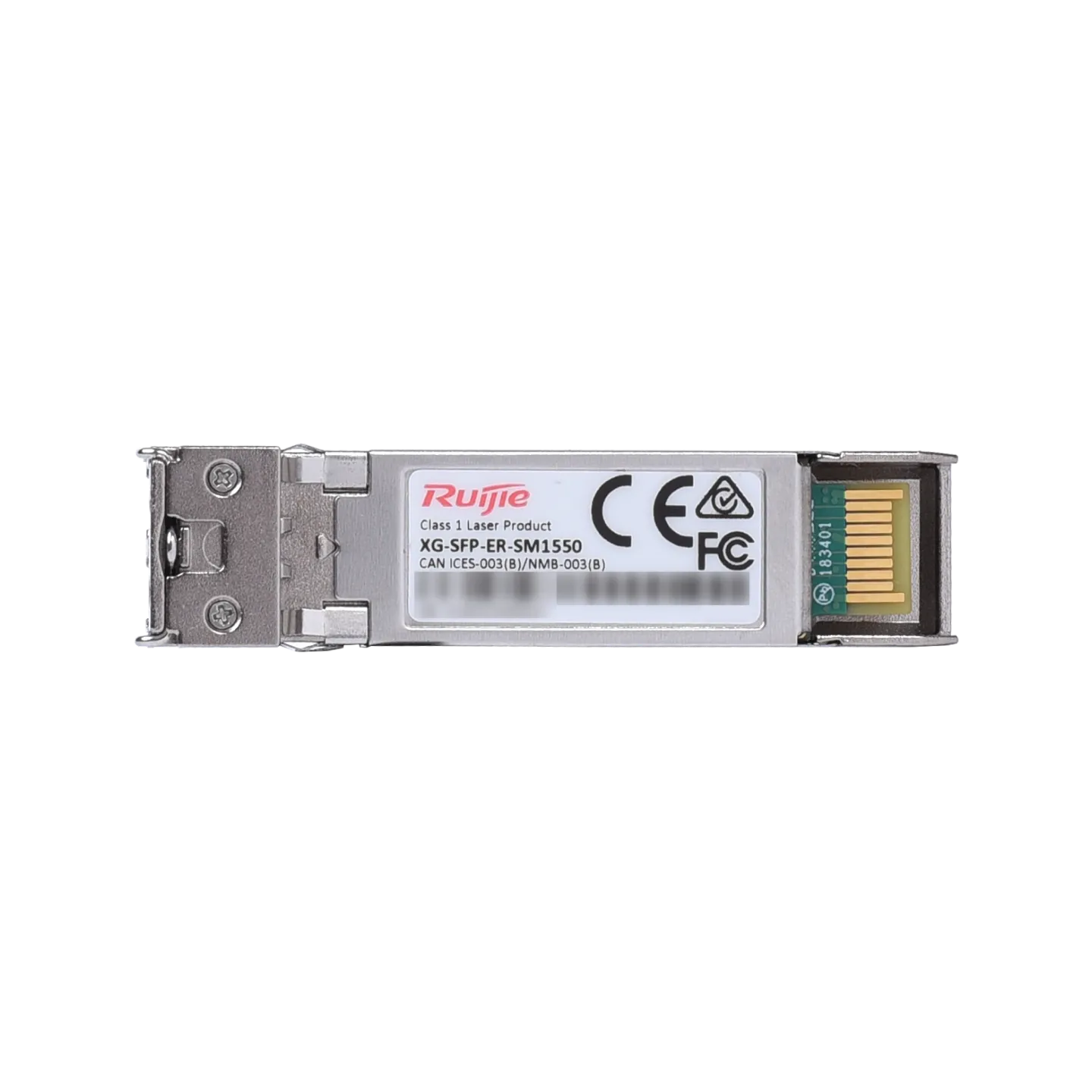

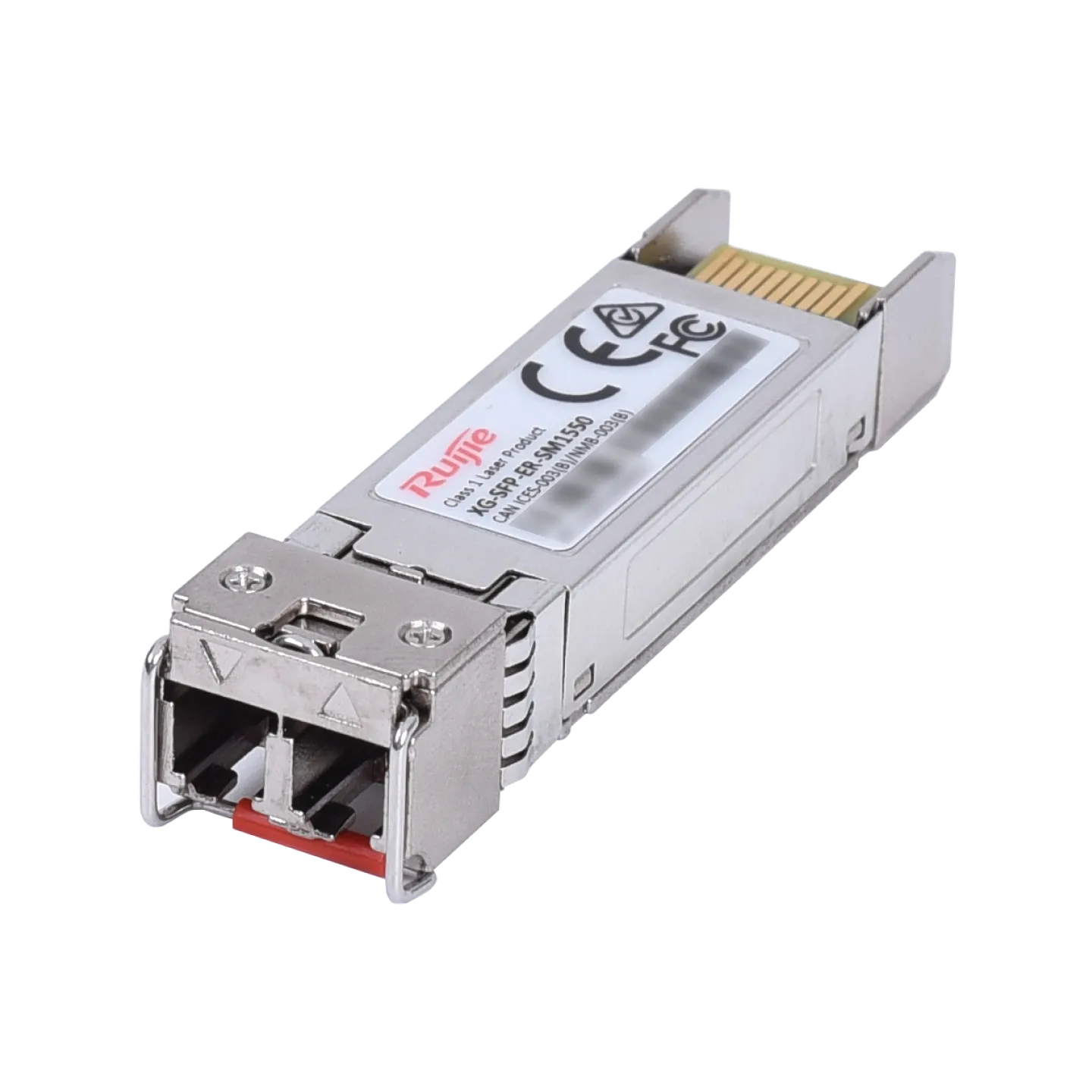

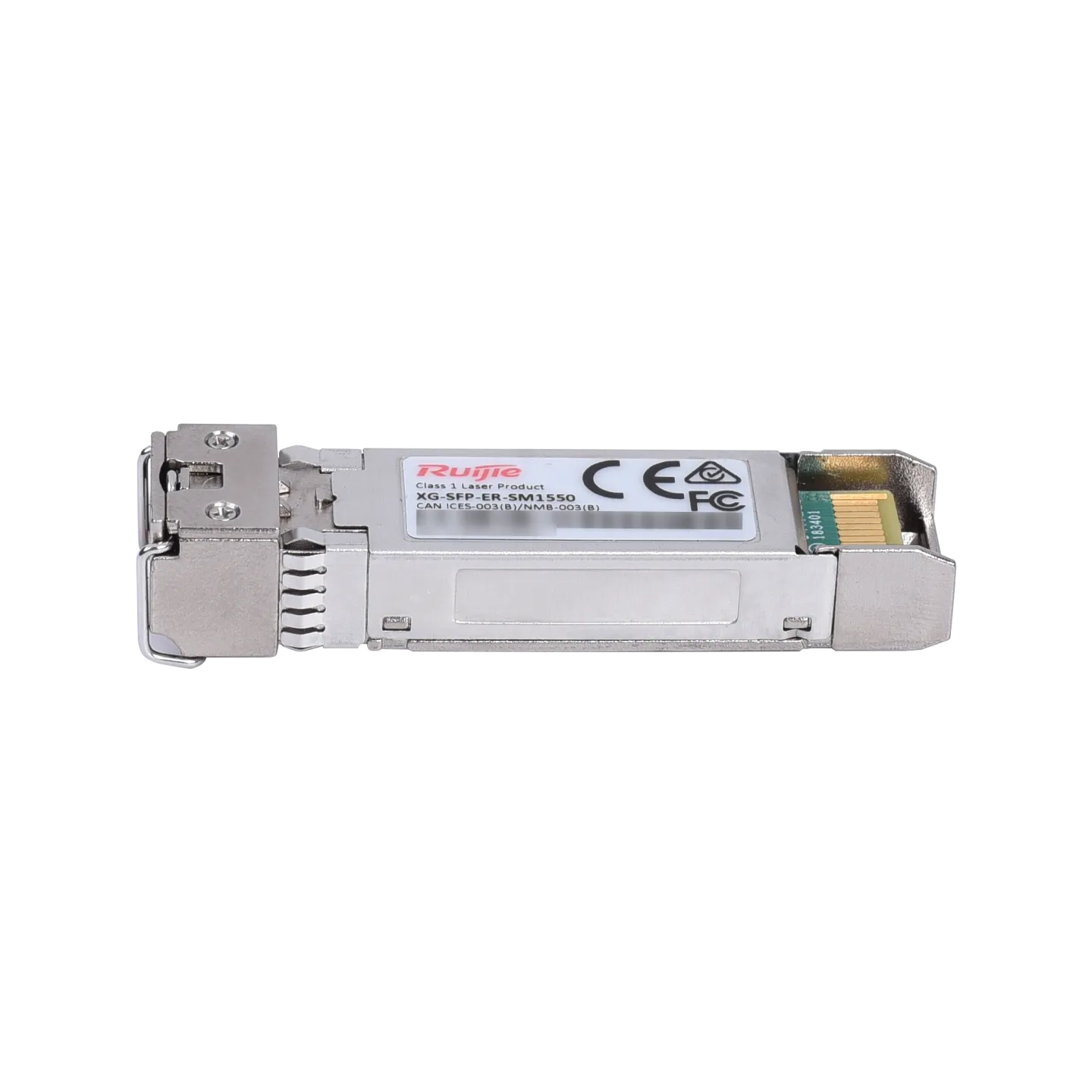

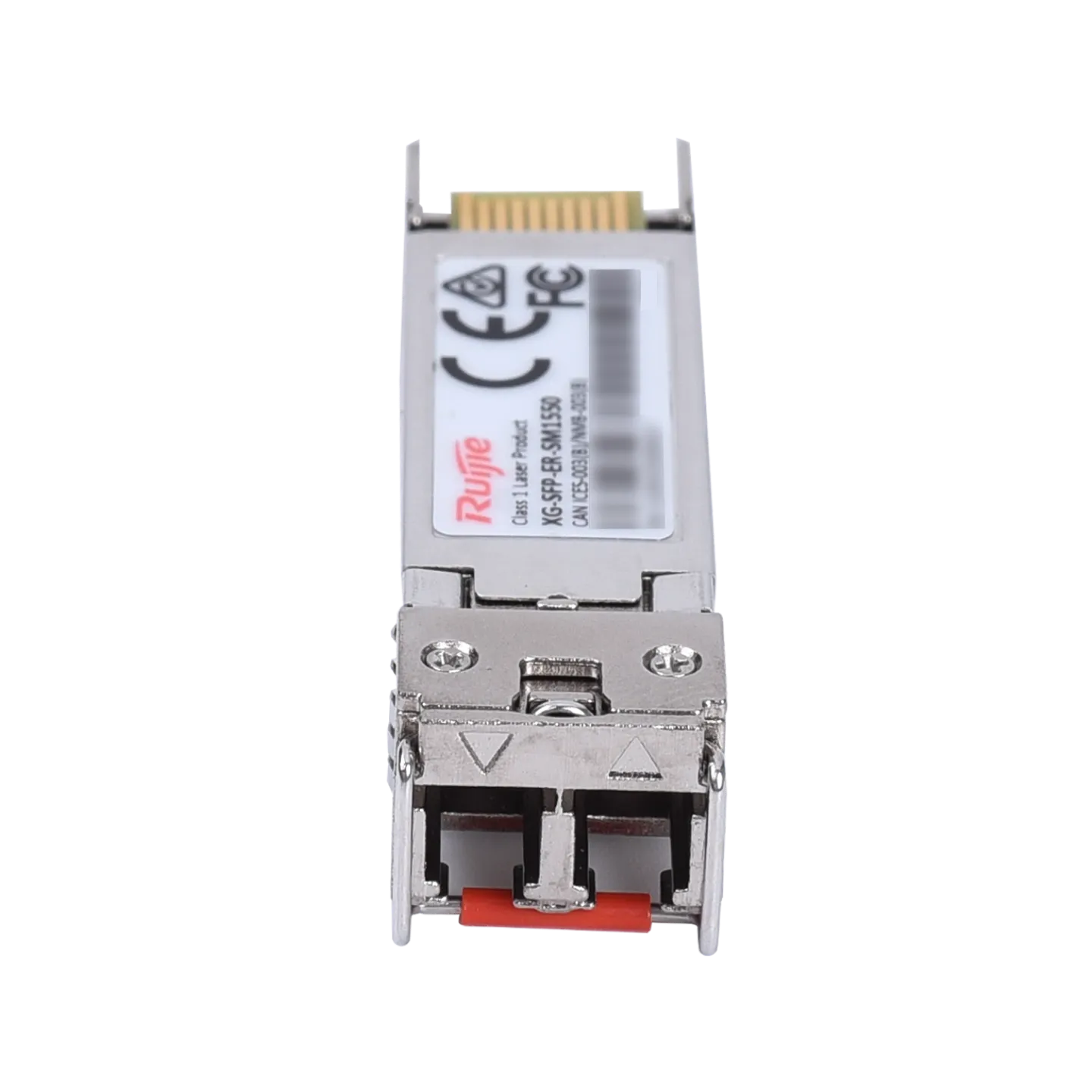

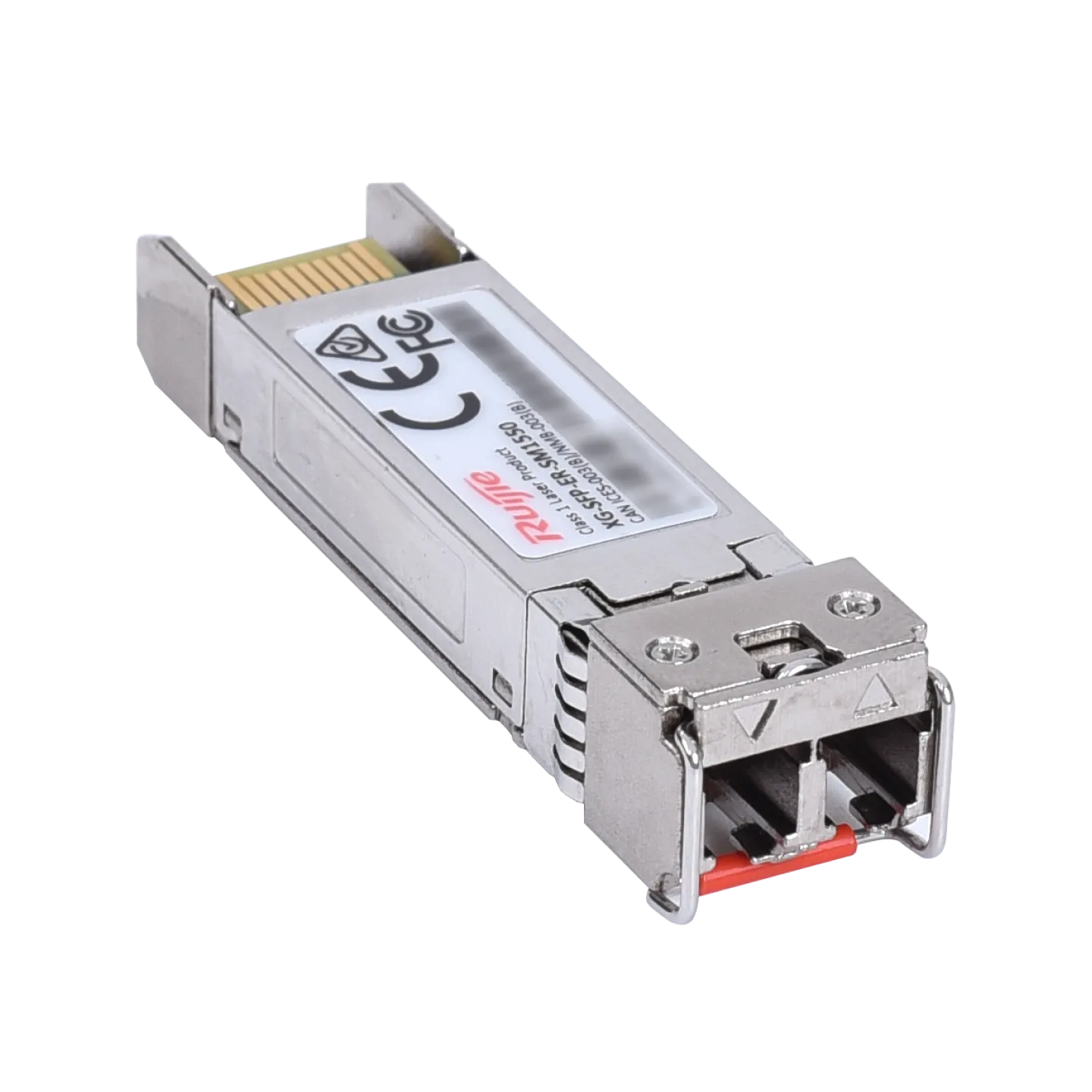

10G SFP+ Optical Transceiver, ER 1550nm Single-mode 40km
Stok 25
Highlight Features:• 10G SFP+ ER Transceiver (Single Mode, 1550nm).• Supports extended range up to 40km over SMF.• Optimized for metropolitan and long-haul campus links.• High sensitivity receiver for reliable signal detection.
Ruijie XG-SFP-ER-SM1550: Solusi 10G Ultra-Jarak Jauh hingga 40 Kilometer
Ketika jarak 10km tidak lagi mencukupi, XG-SFP-ER-SM1550 hadir sebagai solusi. Modul transceiver Extended Reach (ER) ini mampu mentransmisikan data 10Gbps hingga radius 40 kilometer melalui kabel Single-Mode, menjadikannya pilihan utama untuk koneksi antar kawasan industri.
Fitur Unggulan:
- Kapasitas Extended Reach: Mengatasi tantangan jarak fisik yang luas tanpa memerlukan repeater tambahan di tengah jalur.
- Efisiensi Sinyal 1550nm: Menggunakan panjang gelombang yang memiliki redaman rendah untuk memastikan integritas data tetap terjaga.
- Reliabilitas Tinggi: Memenuhi standar industrial untuk performa nonstop di lingkungan data center yang sibuk.
- Manajemen Energi Cerdas: Konsumsi daya yang rendah membantu menjaga suhu operasional switch tetap stabil.
| brands |
|---|
Technical Specifications
| Type | 10G SFP+ Extended Range Transceiver |
| Form Factor | SFP+ |
| Speed | 10 Gbps |
| Wavelength | 1550 nm |
| Fiber Type | Single-mode Fiber (SMF) |
| Connector | Duplex LC |
| Max Distance | 40 km |
| Operating Temp | 0°C to 70°C |
| DDM/DOM | Supported |
| Transmit Power | -4.7 to 4 dBm |
| Receiver Sensitivity | < -15.8 dBm |
| Voltage | 3.3V |
| Standards | IEEE 802.3ae 10GBASE-ER |
| Laser Type | EML Laser |
| Hot Swappable | Yes |
| Housing | High Durability Metal |
| Power Consumption | < 1.5W |
| Receiver Overload | -1 dBm |
| Application | Long-haul Data Center Interconnect |
| Fiber Size | 9/125μm SMF |
| Extinction Ratio | > 3 dB |
| Side Mode Suppression | > 30 dB |
| Certification | CE, RoHS, FCC |
| MTBF | > 800,000 hours |
| Warranty | 1 Year |
