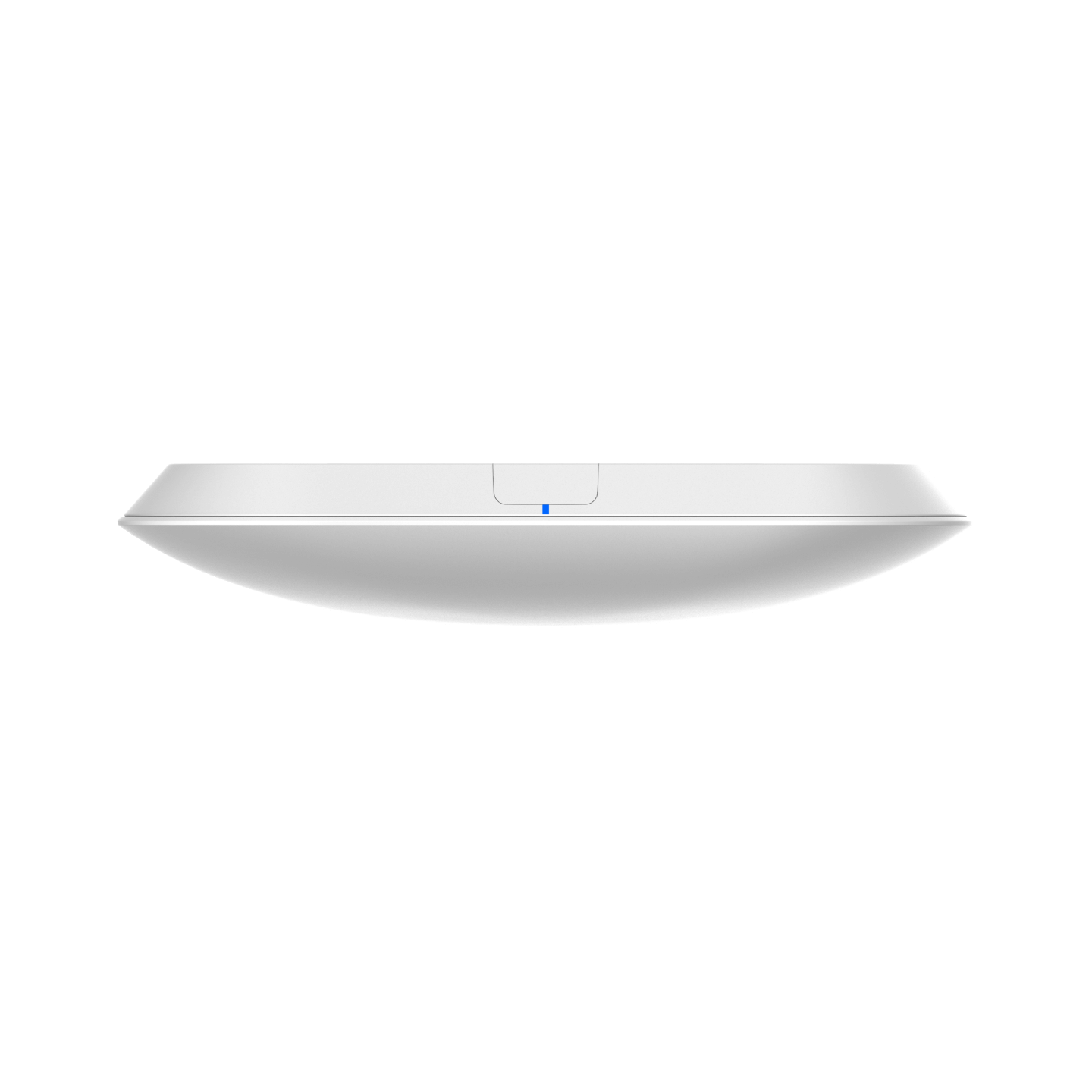

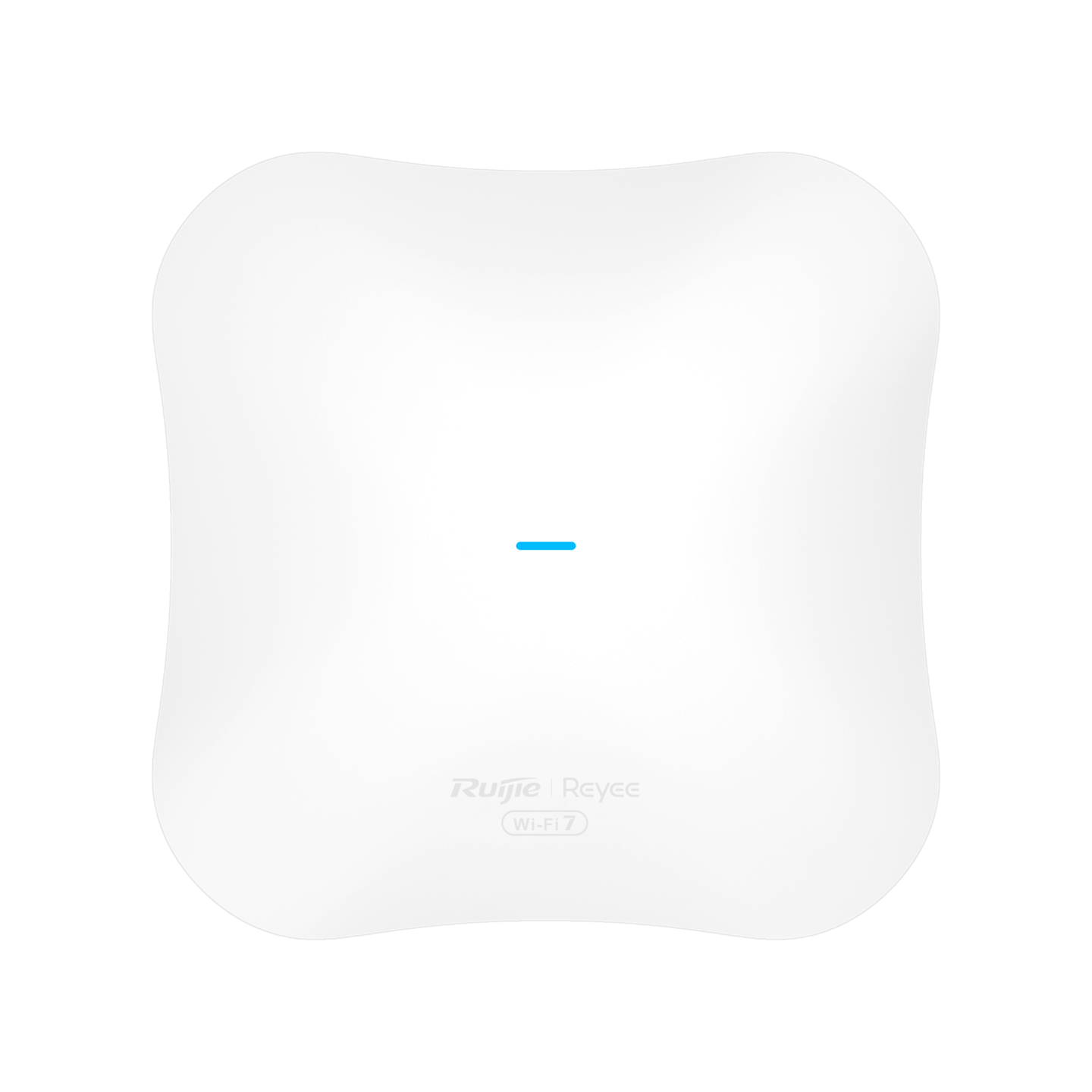

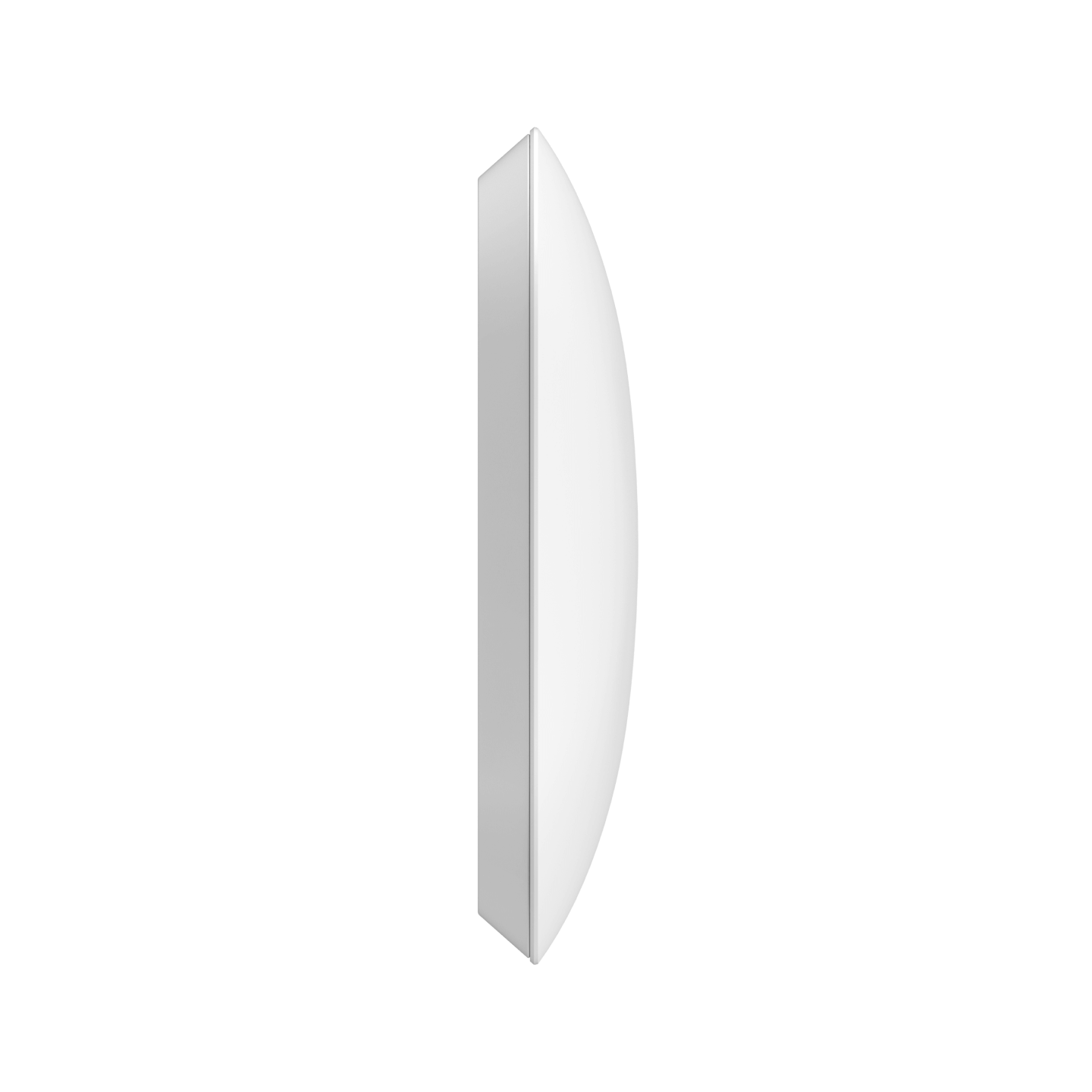

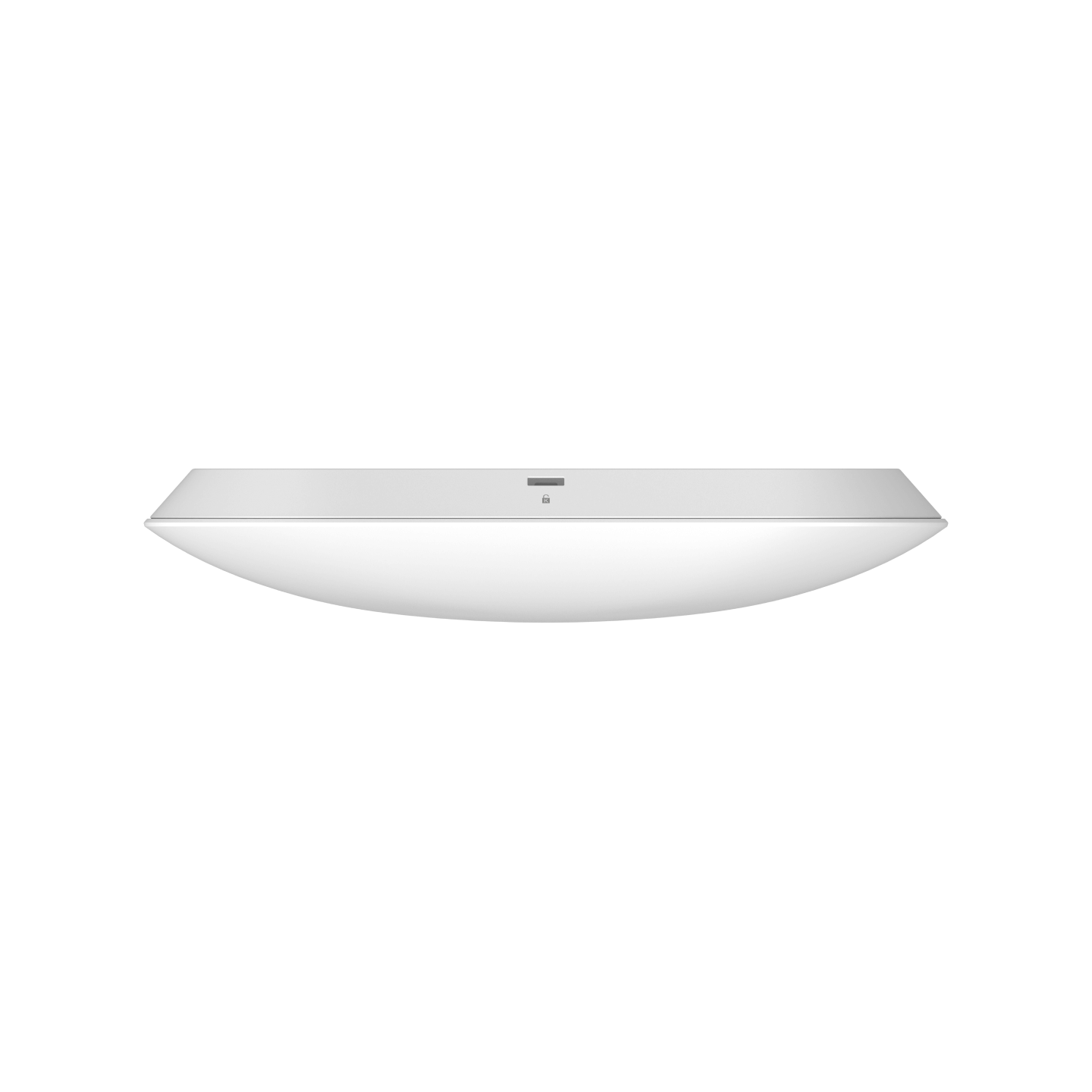

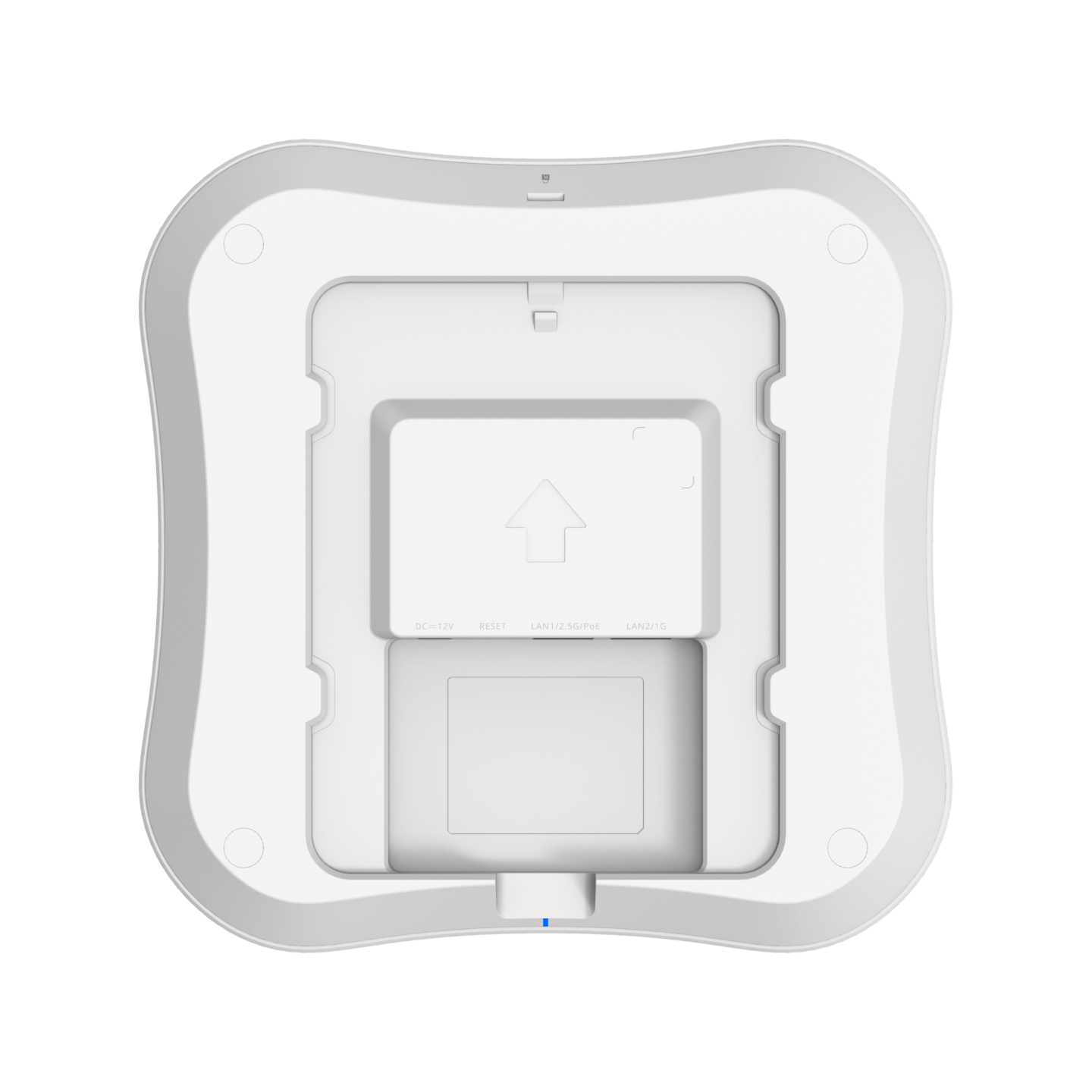

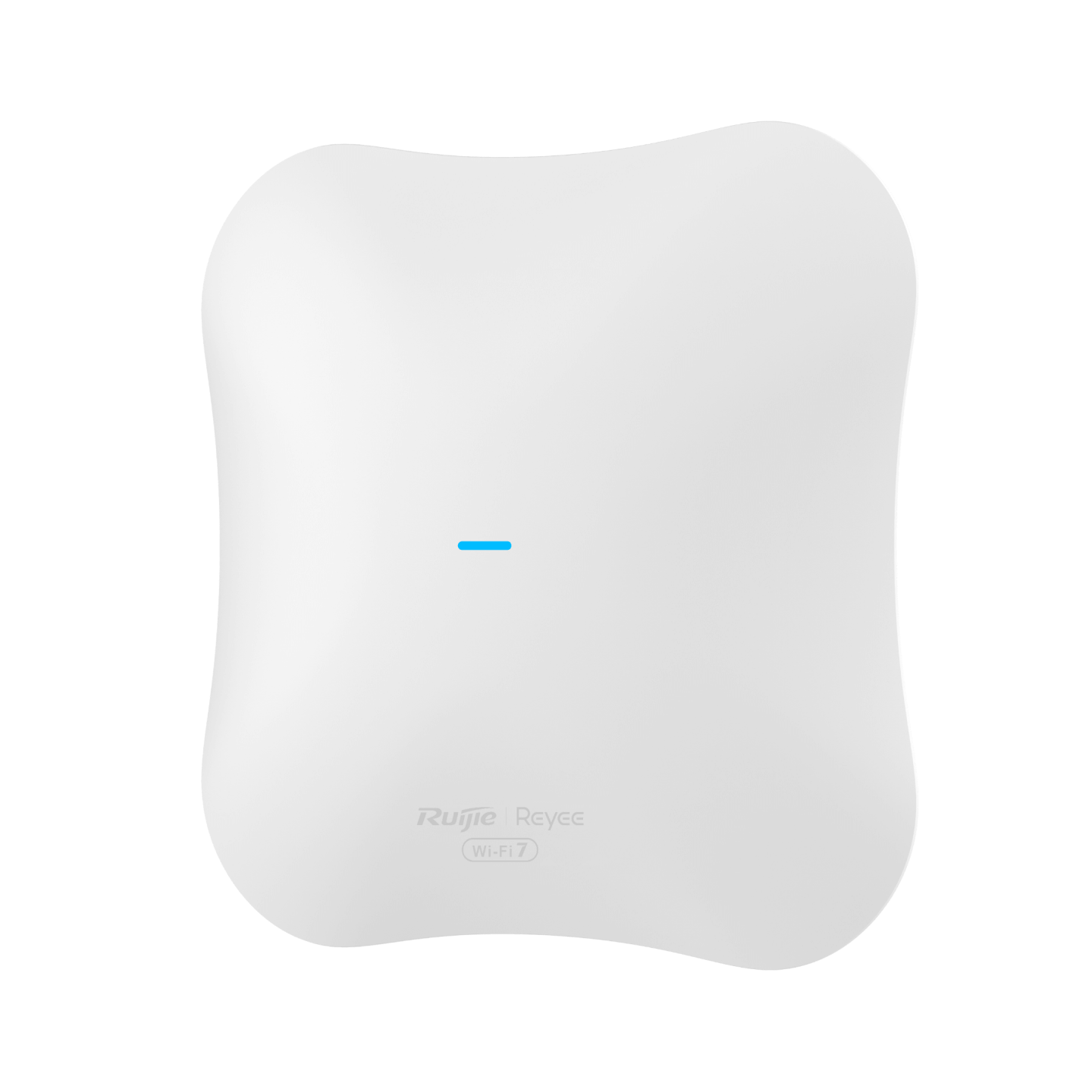

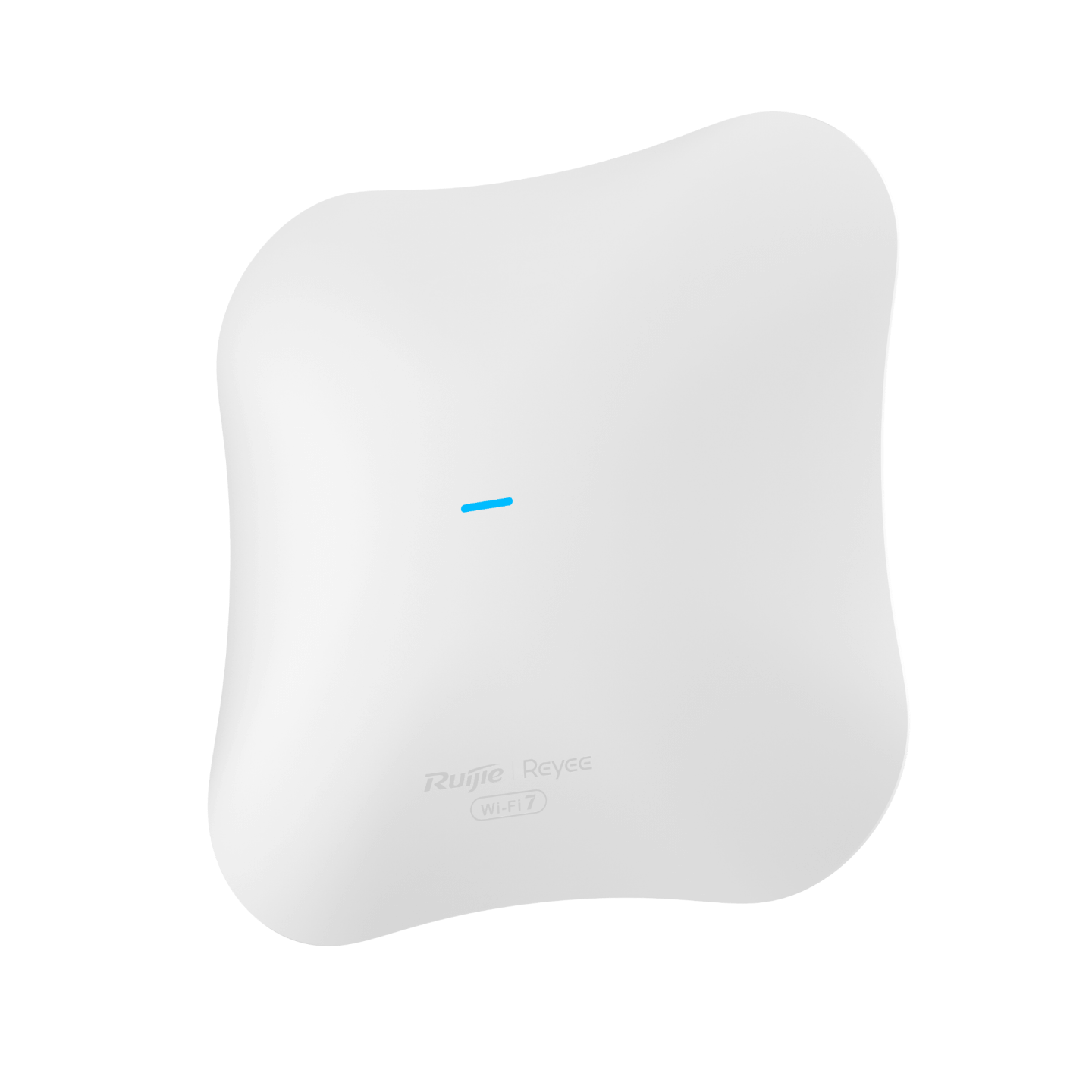

Ruijie Ceiling AP RG-RAP72Pro
Stok 25
Wi-Fi7 BE5040 dual-band ceiling access point;2.4GHz/5GHz dual-radio, high throughput with 5 spatial streams; 1 x 100/1000/2500BASE-T port;1 x 100/1000BASE-T port; Support AP and routing mode. Unified networking and Ruijie Cloud APP management. Maximum power consumption ＜ 30W; Support 802.3at PoE and 12V DC power supply
Rp5.368.000
Stok 25
Wi-Fi7 BE5040 dual-band ceiling access point;2.4GHz/5GHz dual-radio, high throughput with 5 spatial streams; 1 x 100/1000/2500BASE-T port;1 x 100/1000BASE-T port; Support AP and routing mode. Unified networking and Ruijie Cloud APP management. Maximum power consumption ＜ 30W; Support 802.3at PoE and 12V DC power supply
| brands |
|---|
Product Overview
Wi-Fi 7 (802.11be) Dual-Band Gigabit Indoor Ceiling Access Point. Flagship model featuring Multi-Link Operation (MLO) and 4K-QAM for ultra-high-speed enterprise connectivity.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-RAP72Pro |
| Product Type | Indoor Ceiling Access Point |
| Wi-Fi Standard | Wi-Fi 7 (802.11be), 802.11ax, 802.11ac Wave2, 802.11n |
| Frequency Band | Dual-Band (2.4 GHz + 5 GHz) |
| Spatial Streams | 5 Streams |
| 2.4 GHz Speed | Up to 688 Mbps |
| 5 GHz Speed | Up to 4323 Mbps |
| Maximum Data Rate | 5011 Mbps |
| Wireless Technology | MU-MIMO, OFDMA, 4K-QAM, Multi-Link Operation (MLO) |

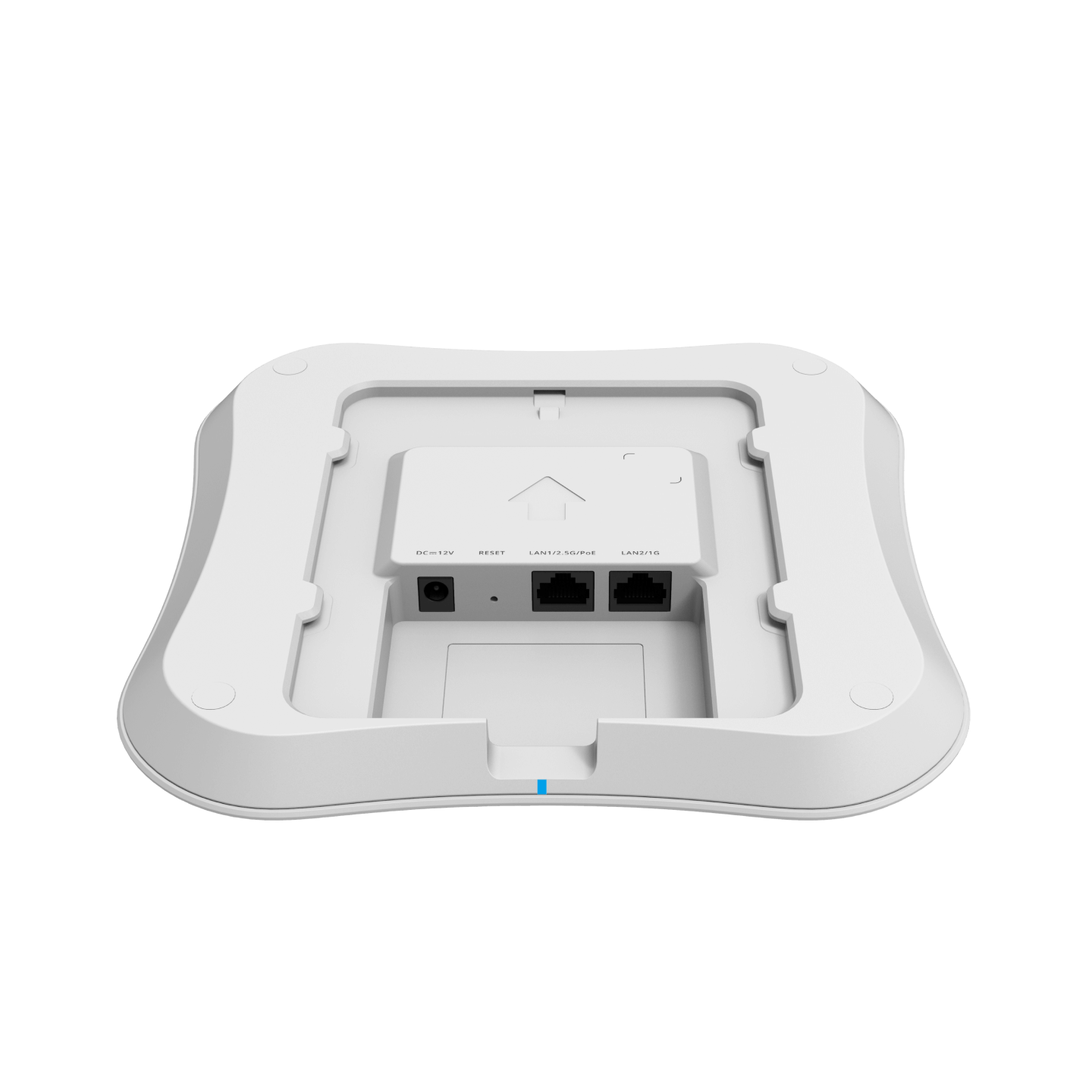

| Ethernet Port | 1 x 2.5GE (10/100/1000/2500Base-T) |
| Additional Port | 1 x 10/100/1000Base-T |
| Power Supply | 802.3at PoE+ or DC 12V |
| Maximum Power Consumption | ≤ 30 W |
| Maximum Clients | Up to 511 Clients |
| Dimensions | 208 x 208 x 40 mm |
| Weight | ≤ 0.75 kg |
| Mounting | Ceiling / Wall Mount |
| Operating Temperature | 0°C – 40°C |
| Protection Rating | IP41 |
| Management | Ruijie Reyee Cloud Management |
