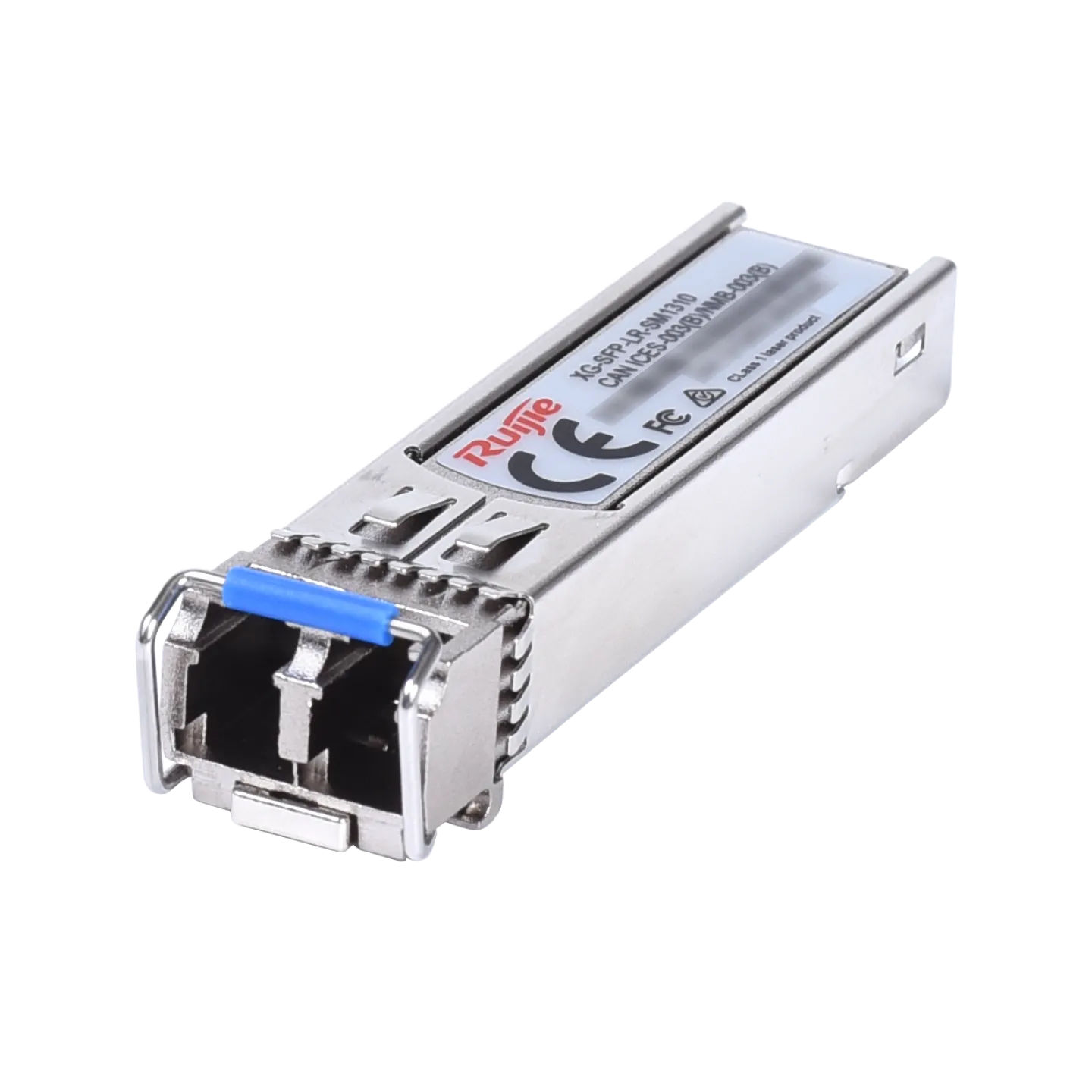

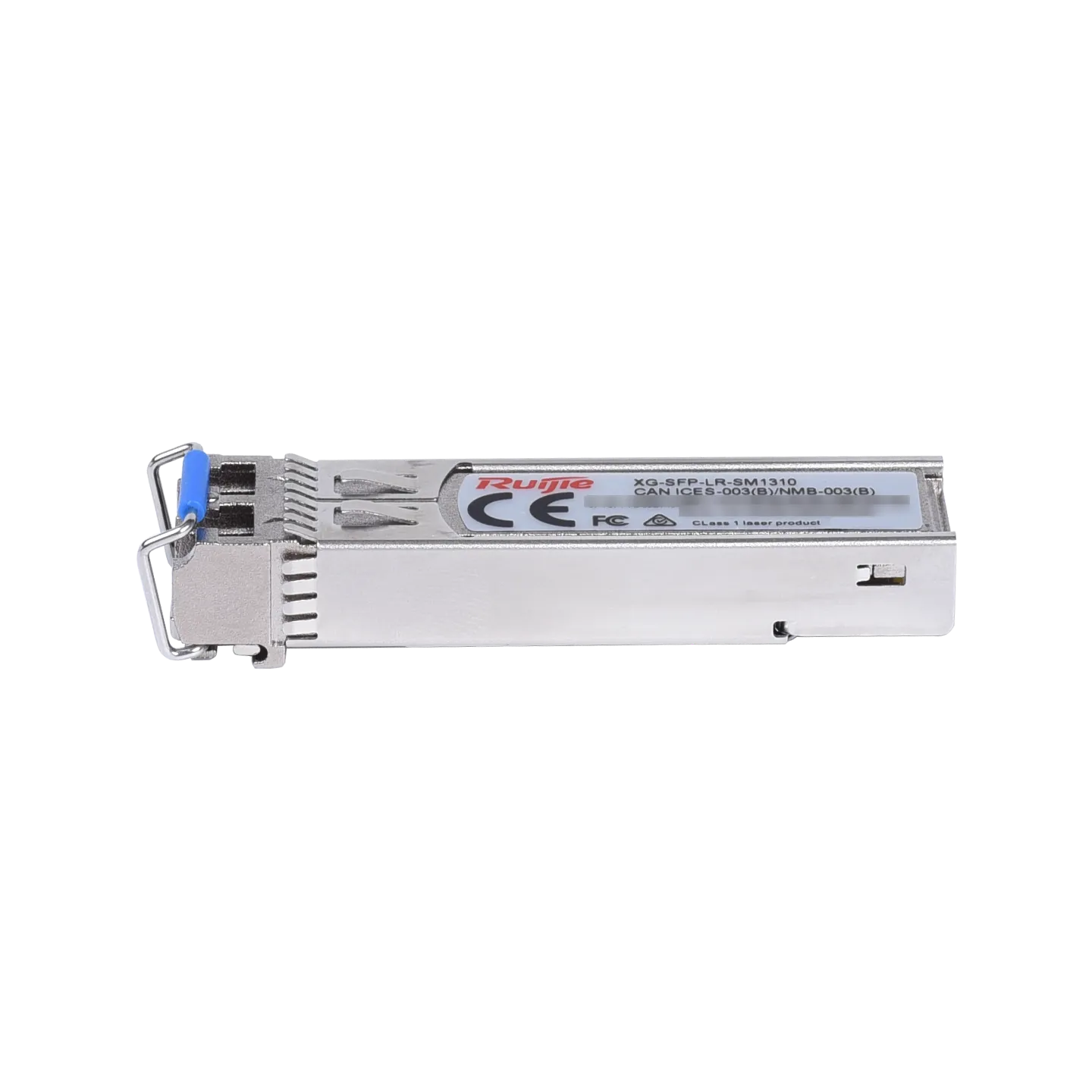

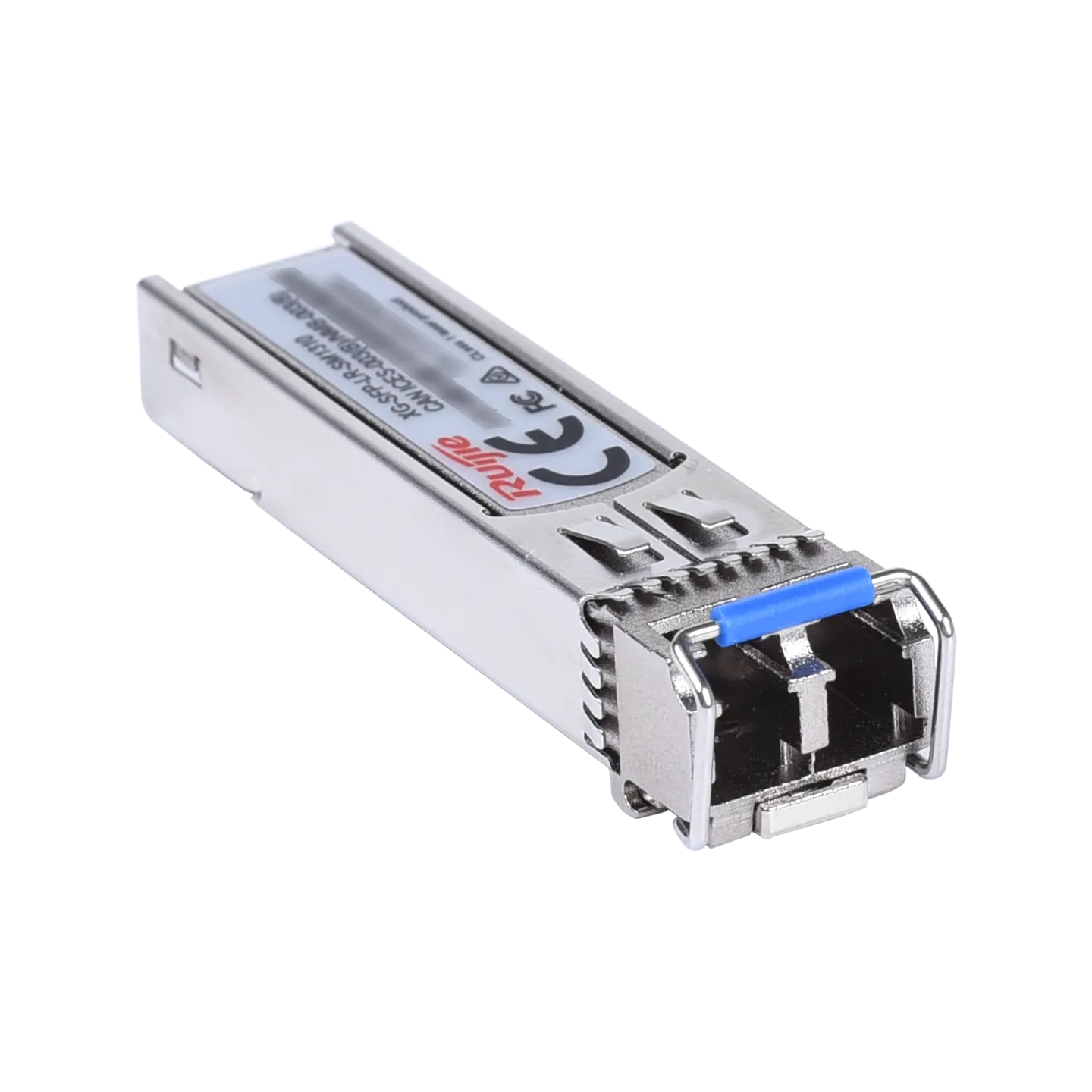

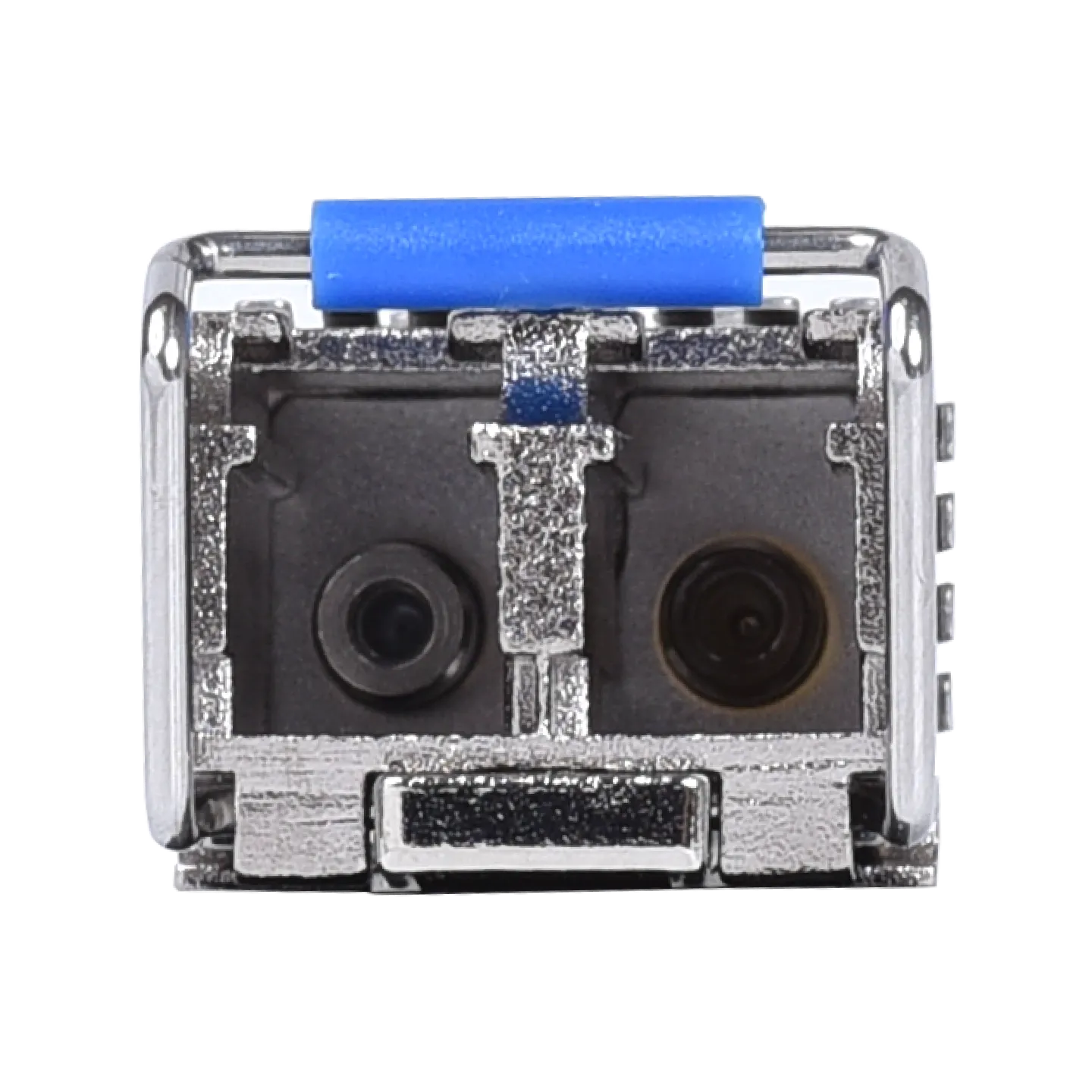

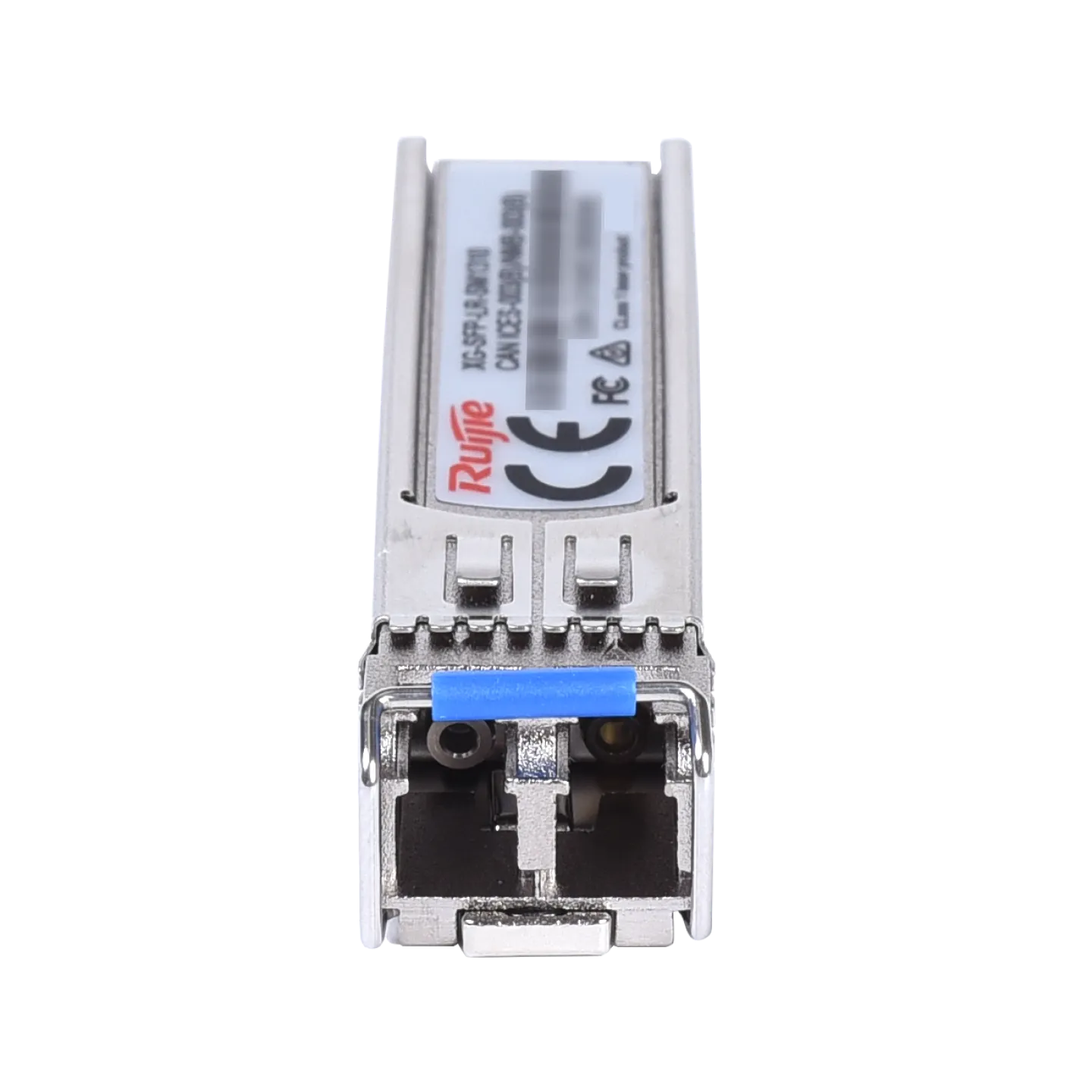

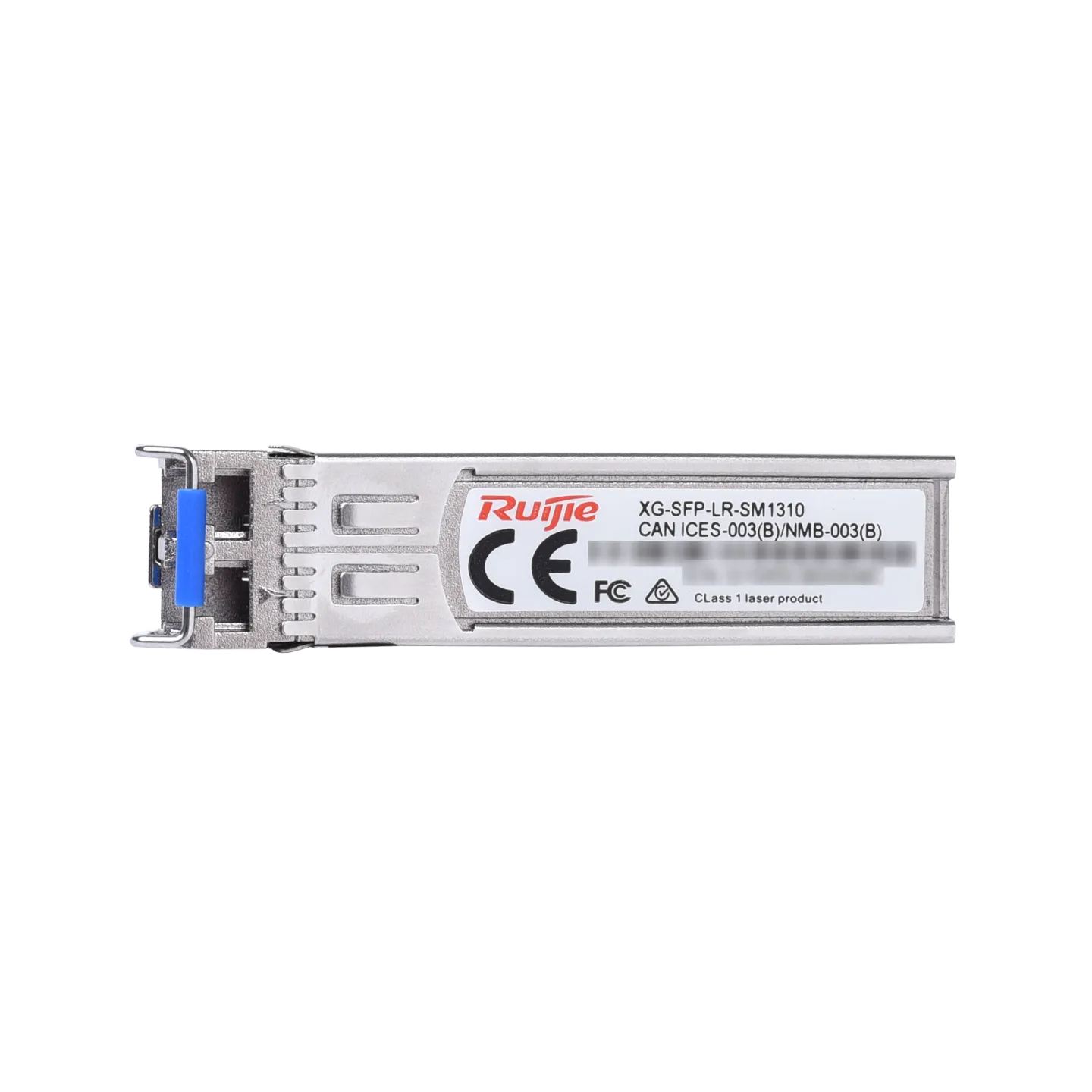

10G SFP+ Optical Transceiver, LR 1310nm Single-mode 10km
Stok 25
Highlight Features:• 10G SFP+ LR Transceiver (Single Mode, 1310nm).• Supports up to 10km transmission over single-mode fiber.• High-performance laser for stable long-distance data.• Hot-swappable with Digital Diagnostic Monitoring (DDM).
Ruijie XG-SFP-LR-SM1310: Konektivitas 10G Jarak Jauh untuk Backbone Perusahaan
Optimalkan jaringan antar gedung Anda dengan modul XG-SFP-LR-SM1310. Transceiver SFP+ 10G ini dirancang untuk bekerja melalui media fiber optik Single-Mode, memungkinkan transmisi data berkecepatan tinggi hingga jarak 10 kilometer tanpa kehilangan kualitas sinyal.
Keunggulan Utama:
- Bandwidth 10Gbps: Menjamin jalur komunikasi utama (Backbone) perusahaan Anda tetap lancar untuk aplikasi kritis.
- Jangkauan 10KM: Solusi ideal untuk menghubungkan kantor pusat dengan gudang atau cabang yang berada dalam area perkotaan.
- Teknologi Long Reach (LR): Menggunakan panjang gelombang 1310nm yang sangat stabil untuk transmisi data jarak menengah.
- Kompatibilitas Luas: Dirancang khusus agar sinkron sempurna dengan seluruh jajaran switch enterprise Ruijie.
| brands |
|---|
Technical Specifications
| Type | 10G SFP+ Long Range Transceiver |
| Form Factor | SFP+ |
| Speed | 10 Gbps |
| Wavelength | 1310 nm |
| Fiber Type | Single-mode Fiber (SMF) |
| Connector | Duplex LC |
| Max Distance | 10 km |
| Operating Temp | 0°C to 70°C |
| DDM/DOM | Supported |
| Transmit Power | -8.2 to 0.5 dBm |
| Receiver Sensitivity | < -14.4 dBm |
| Voltage | 3.3V |
| Standards | IEEE 802.3ae 10GBASE-LR |
| Laser Type | DFB Laser |
| Hot Swappable | Yes |
| Housing | Zinc Alloy Metal |
| Power Consumption | < 1.2W |
| Storage Temp | -40°C to 85°C |
| Humidity | 0% to 85% RH |
| Application | Campus Backbone, Metro Network |
| Fiber Size | 9/125μm SMF |
| Extinction Ratio | > 3.5 dB |
| Dispersion | Supported for 10km link |
| Certification | CE, RoHS, FCC |
| MTBF | > 1,000,000 hours |
| Warranty | 1 Year |
