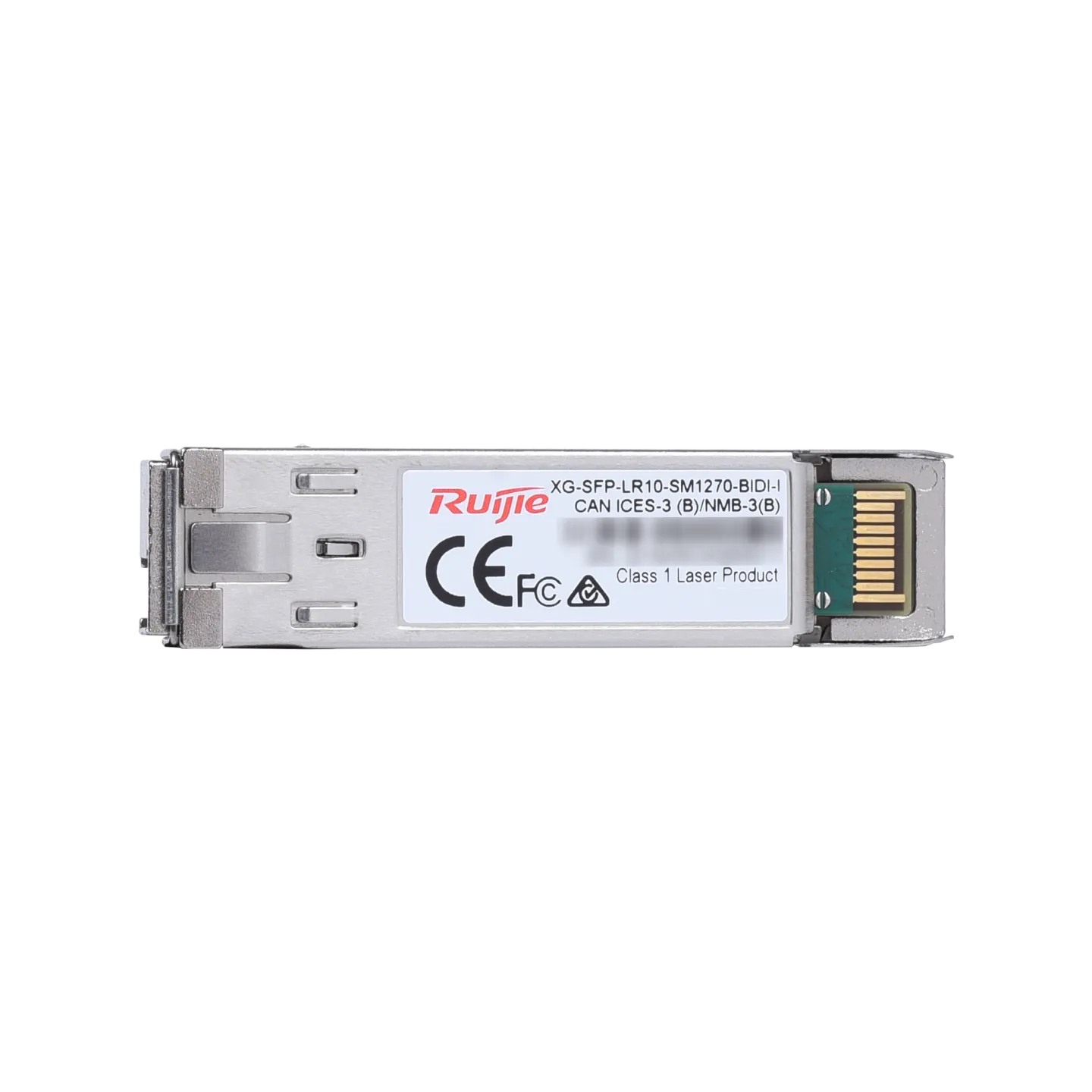

10G SFP+ Optical Transceiver, LX 1270nm BiDi 10km (Industrial)
Stok 25
Highlight Features:• 10G BIDI SFP+ Transceiver (Single Mode, 1270nm).• 10km transmission over a single fiber strand.• Industrial-grade design for wide temperature ranges.• Efficiently doubles fiber capacity for 10G links.
Ruijie XG-SFP-LR10-BIDI (1270nm): Efisiensi Satu Kabel untuk 10G
Tingkatkan kapasitas kabel fiber optik Anda hingga dua kali lipat dengan teknologi Bi-Directional (BIDI). Modul ini memungkinkan pengiriman dan penerimaan data 10Gbps hanya melalui satu helai core fiber, menghemat biaya pengabelan infrastruktur Anda secara signifikan.
Kelebihan Produk:
- Teknologi BIDI Single-Core: Mengurangi biaya sewa atau instalasi fiber optik hingga 50% dengan hanya menggunakan satu jalur kabel.
- Kecepatan 10G SFP+: Menghadirkan performa enterprise untuk koneksi jarak jauh hingga 10 kilometer.
- Keandalan Industrial: Dirancang untuk tahan terhadap fluktuasi suhu di dalam ruang server yang padat.
| brands |
|---|
Technical Specifications
| Type | 10G BIDI SFP+ Transceiver (Industrial) |
| Form Factor | SFP+ |
| Speed | 10 Gbps |
| Wavelength (TX) | 1270 nm |
| Wavelength (RX) | 1330 nm |
| Fiber Type | Single-mode Fiber (SMF) |
| Connector | Simplex LC |
| Max Distance | 10 km |
| Operating Temp | -40°C to 85°C (Industrial Grade) |
| DDM/DOM | Supported |
| Transmit Power | -8.2 to 0.5 dBm |
| Receiver Sensitivity | < -14.4 dBm |
| Voltage | 3.3V |
| Standards | SFF-8431, IEEE 802.3ae |
| Hot Swappable | Yes |
| Housing | Metal for low EMI |
| Power Consumption | < 1.5W |
| Pairing Model | Pair with 1330nm BIDI model |
| Application | Single-core Fiber Transmission |
| Industrial Reliability | Supported (Shock & Vibration) |
| Certification | CE, RoHS, FCC |
| MTBF | > 1,000,000 hours |
| Warranty | 1 Year |
