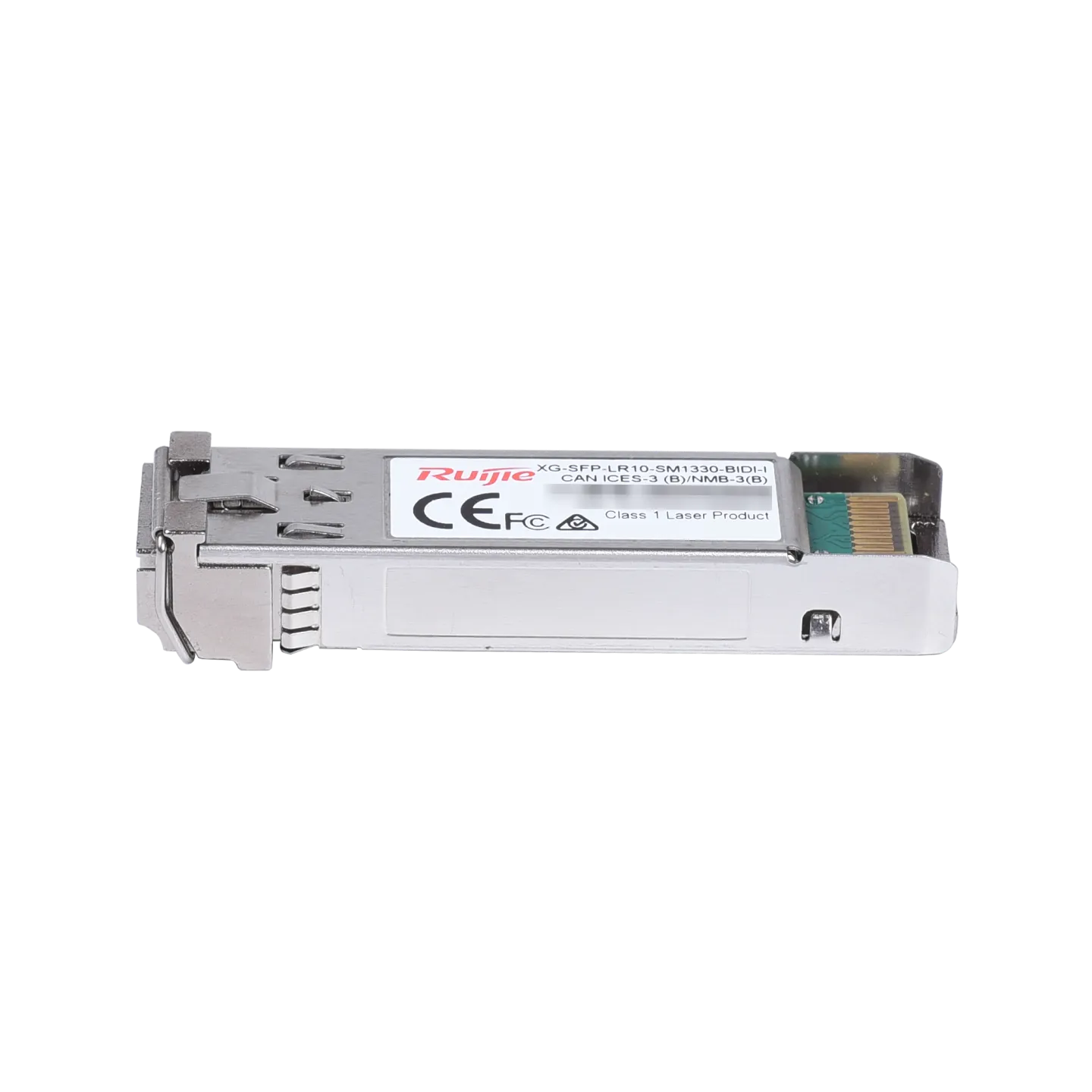

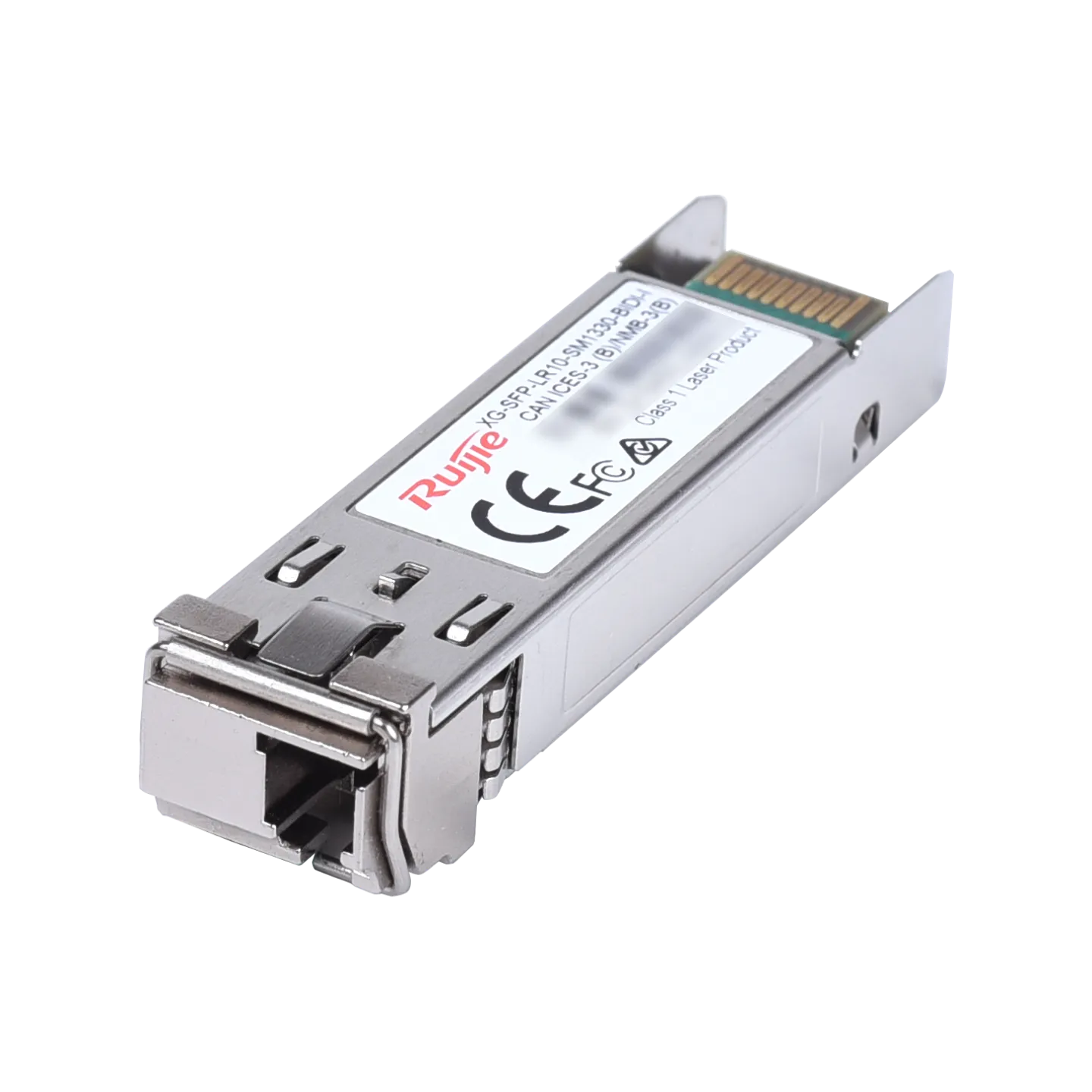

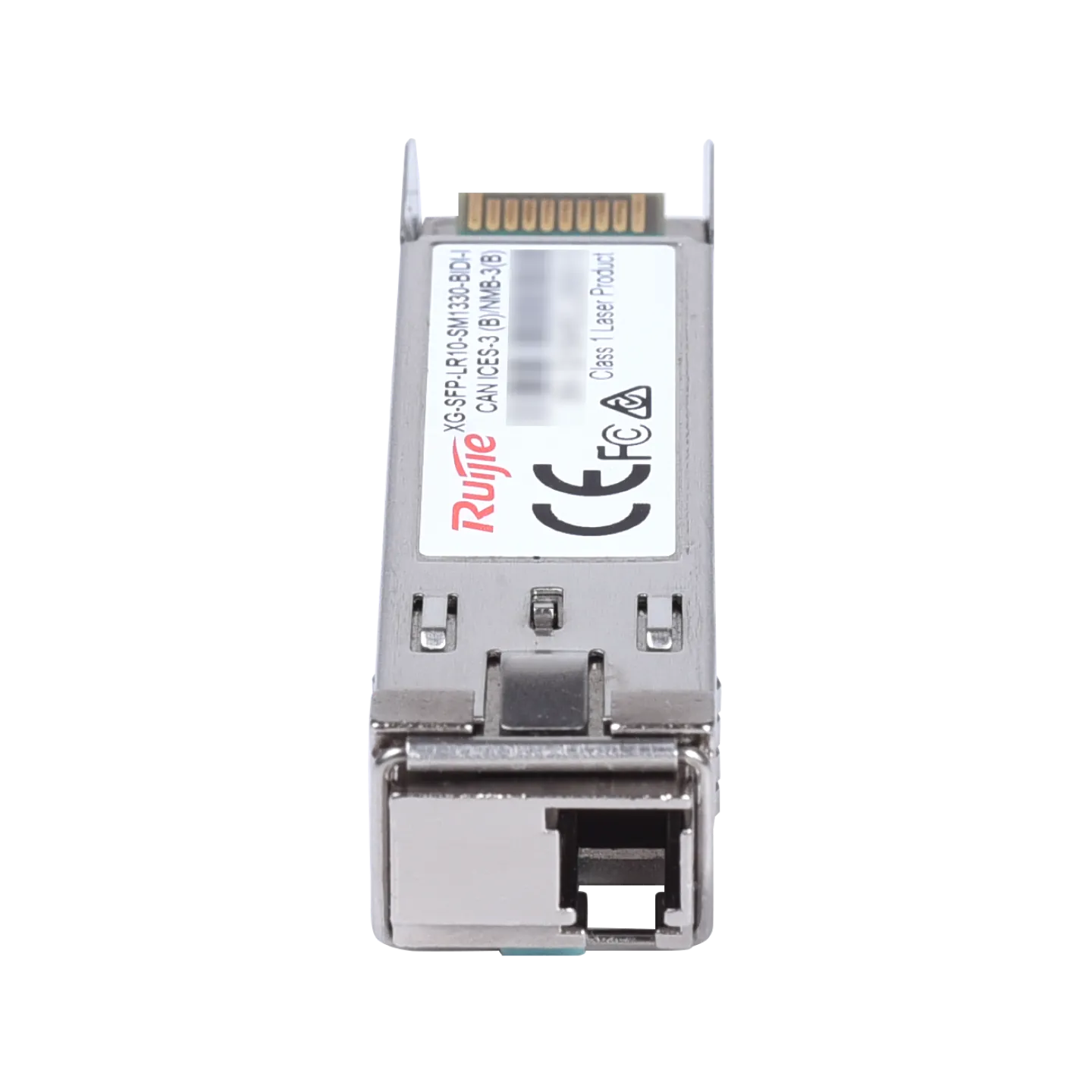

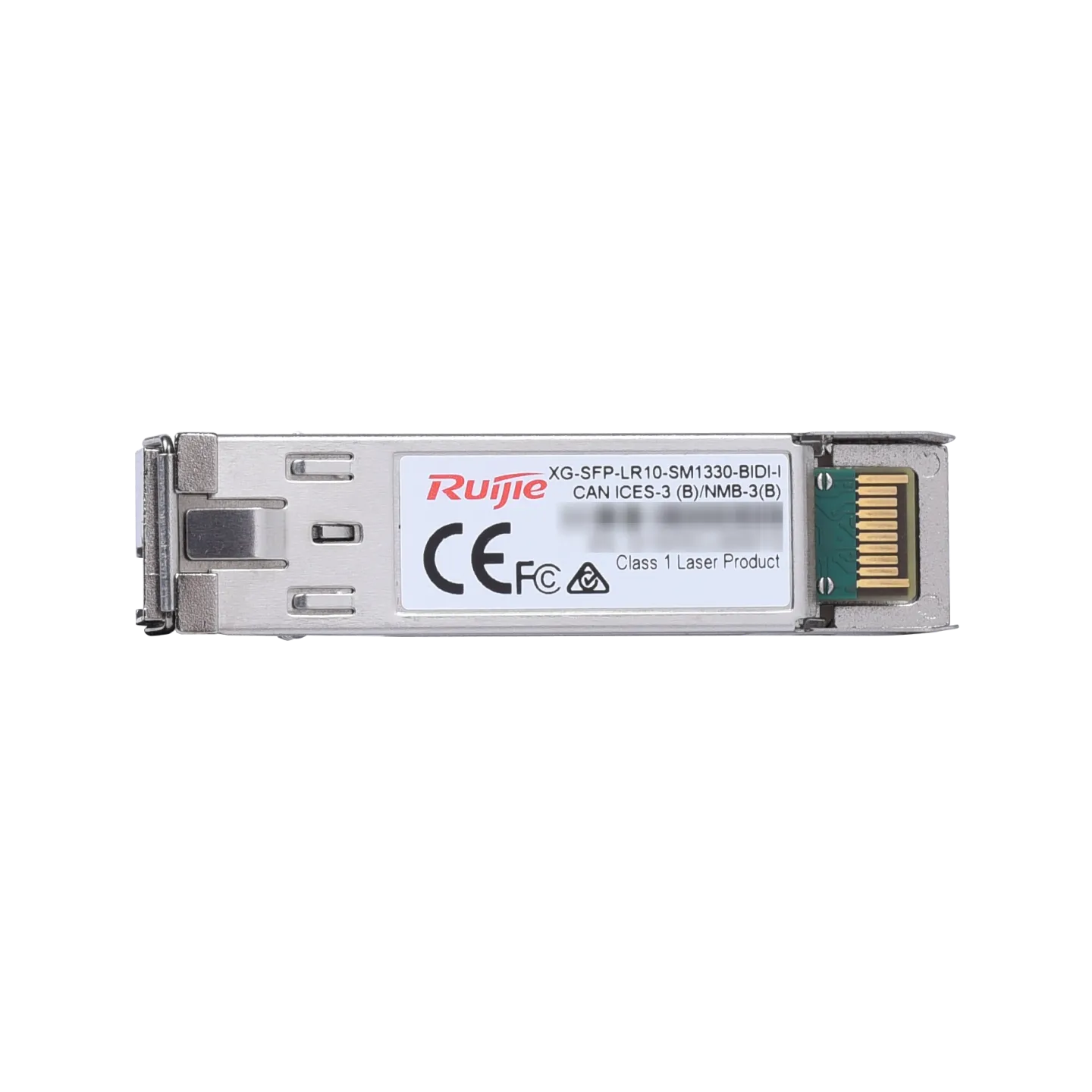

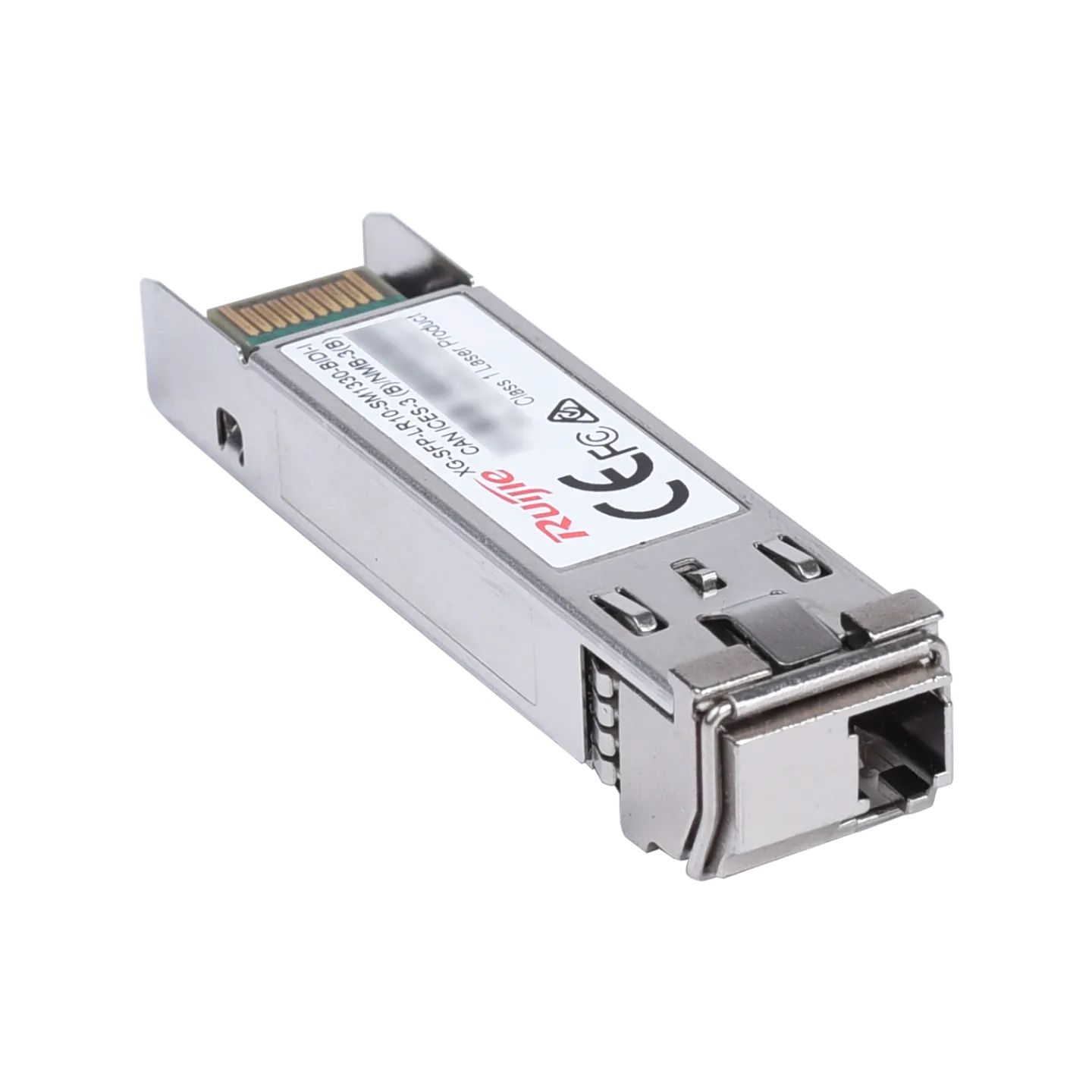

10G SFP+ Optical Transceiver, LX 1330nm BiDi 10km (Industrial)
Stok 25
Highlight Features:• 10G BIDI SFP+ Transceiver (Single Mode, 1330nm).• Pairs with 1270nm BIDI for bidirectional 10G link.• High-reliability fiber optic communication module.• Hot-swappable with standard SFP+ port compatibility.
Ruijie XG-SFP-LR10-BIDI (1330nm): Pasangan Transceiver untuk Jalur Tunggal 10G
Modul ini merupakan pasangan wajib untuk tipe 1270nm dalam sistem komunikasi Bi-Directional Ruijie. Dengan bekerja pada panjang gelombang yang berbeda pada satu helai kabel, pasangan ini menciptakan jalur data 10G yang efisien dan stabil.
Fitur Kunci:
- Sinergi Sempurna: Gunakan bersama modul 1270nm untuk membangun link 10G fungsional melalui satu helai fiber optik.
- Plug & Play: Deteksi otomatis oleh sistem Ruijie Cloud untuk pemantauan kesehatan link secara real-time.
- Investasi Masa Depan: Cara termudah untuk menambah kapasitas jaringan tanpa harus menarik kabel fiber baru di dalam gedung.
| brands |
|---|
Technical Specifications
| Type | 10G BIDI SFP+ Transceiver (Industrial) |
| Speed | 10 Gbps |
| Wavelength (TX) | 1330 nm |
| Wavelength (RX) | 1270 nm |
| Distance | 10 km |
| Operating Temp | -40°C to 85°C |

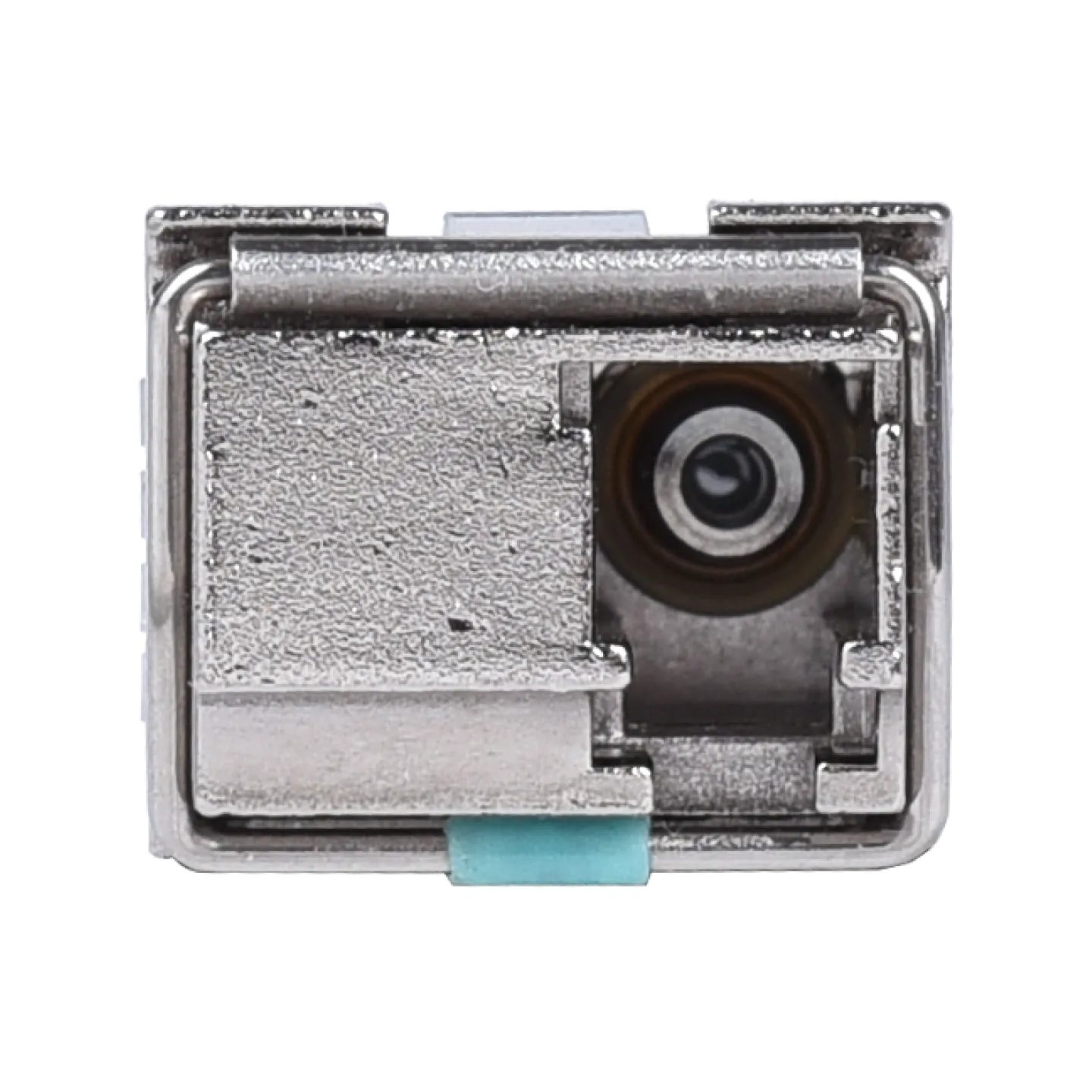

| Connector | Simplex LC |
| Fiber Type | Single-mode Fiber (SMF) |
| DDM/DOM | Supported |
| Voltage | 3.3V |
| Transmit Power | -8.2 to 0.5 dBm |
| Receiver Sensitivity | < -14.4 dBm |
| Standards | SFP+ MSA, IEEE 802.3ae |
| Hot Swappable | Yes |
| Power Consumption | < 1.5W |
| Pairing | Use with 1270nm BIDI model |
| Safety | Class 1 Laser Safety |
| MTBF | > 1,000,000 hours |
| Certification | CE, RoHS, FCC |
| Warranty | 1 Year |
