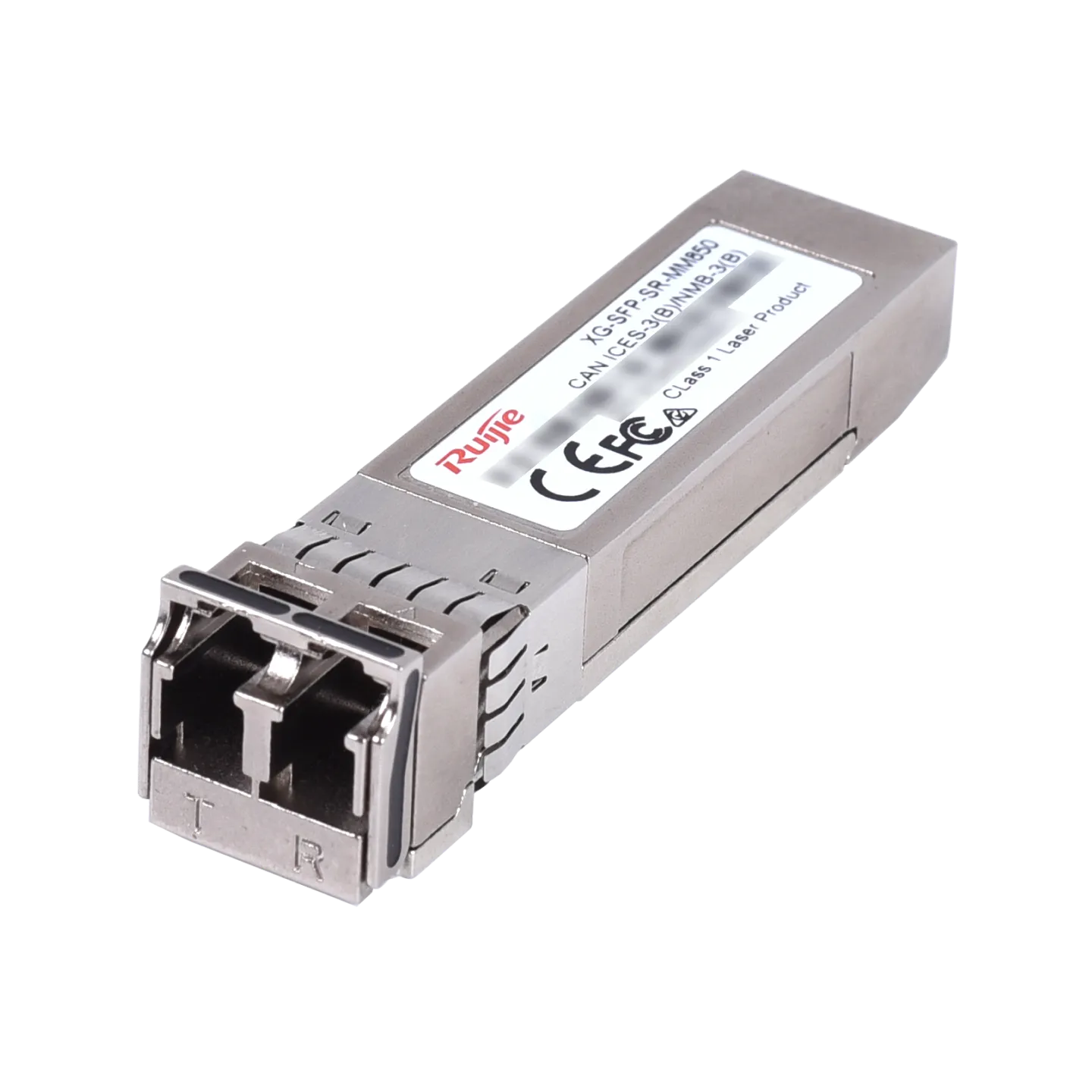

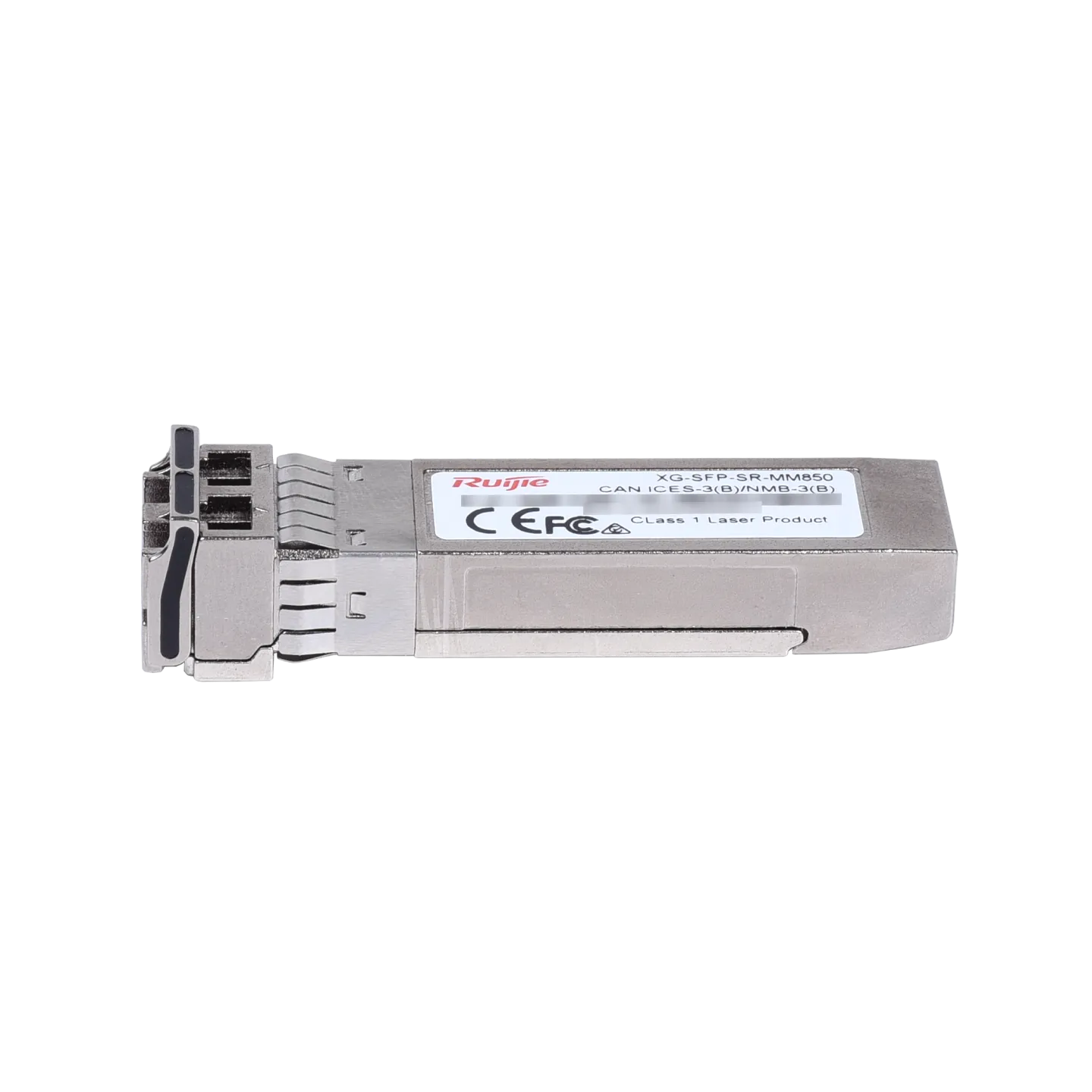

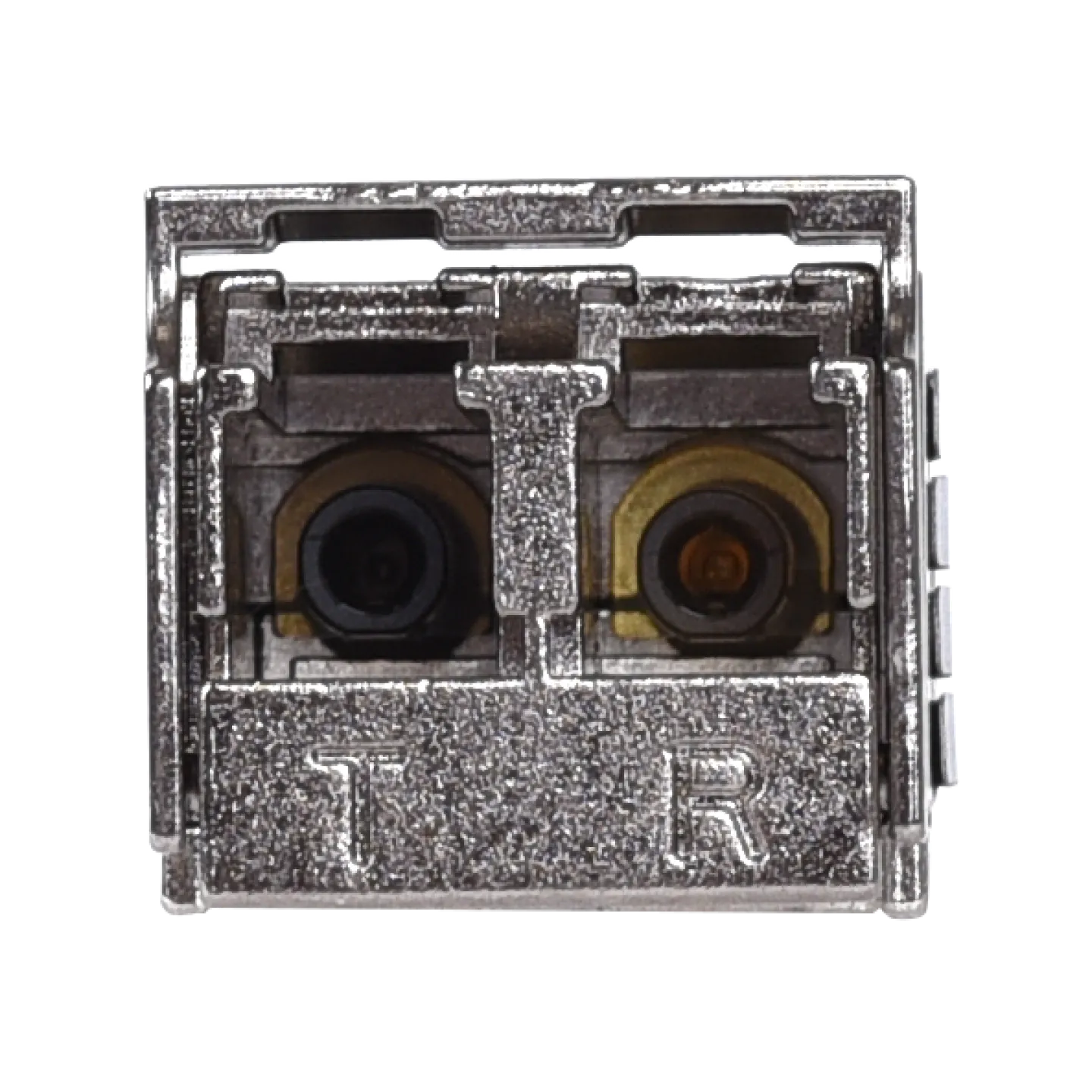

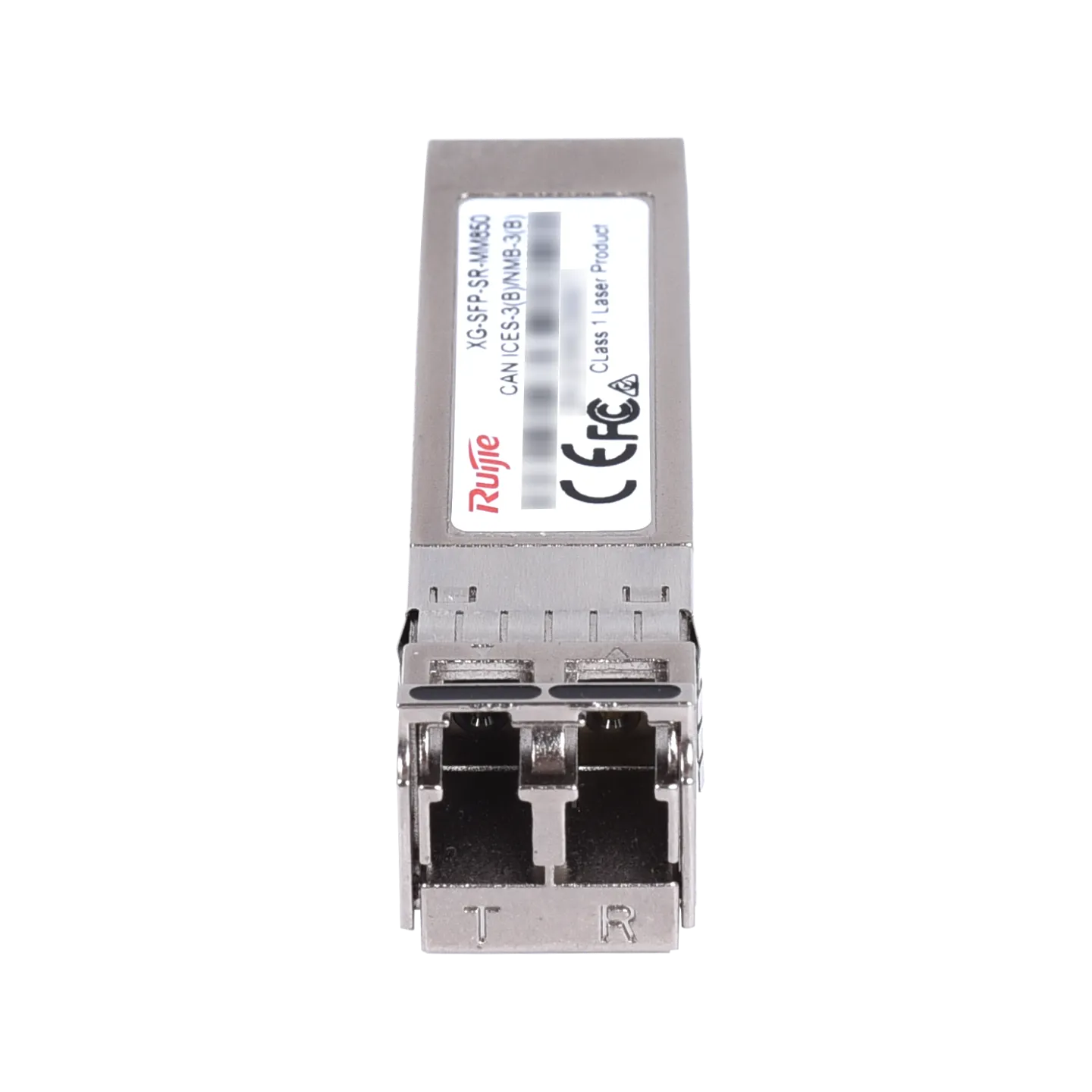

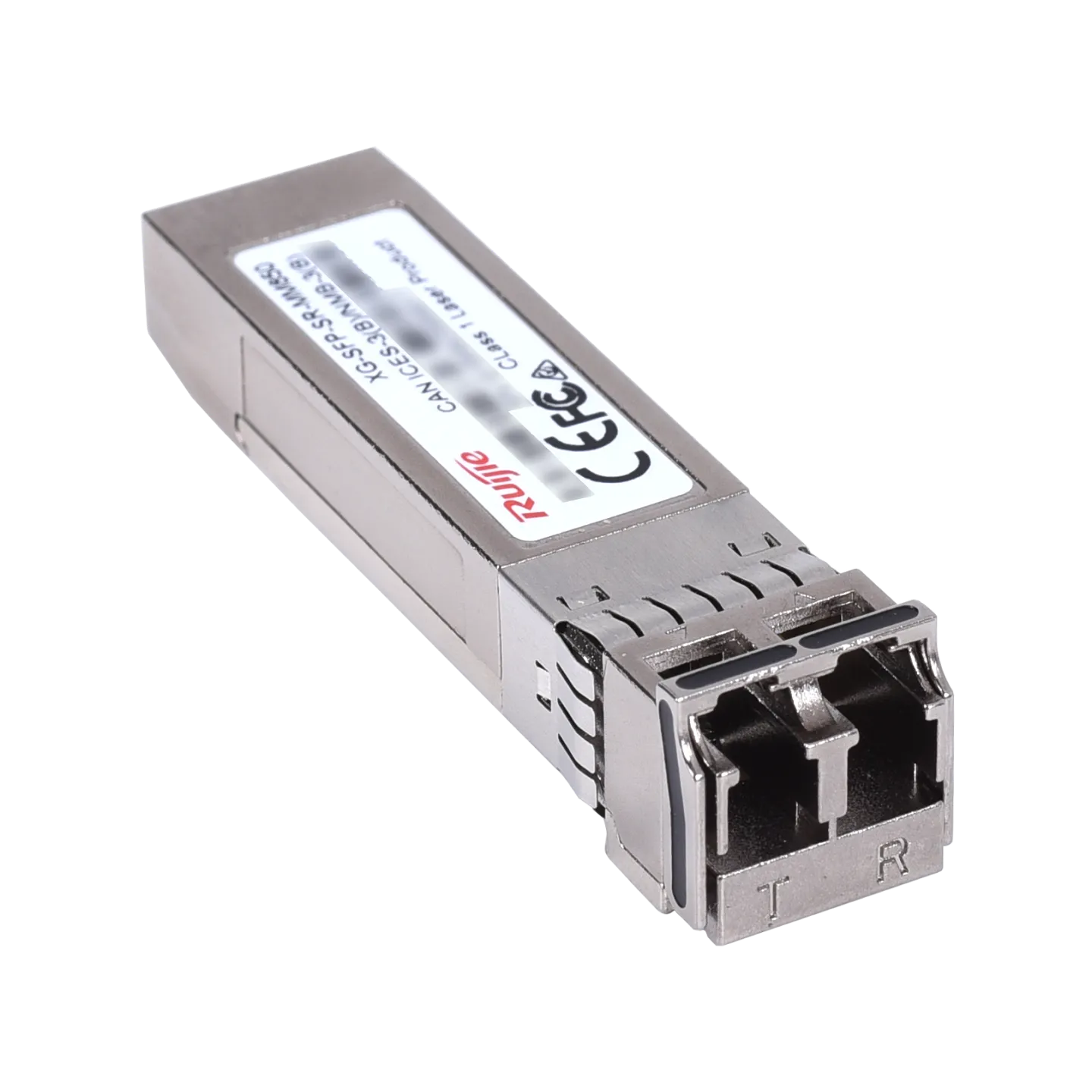

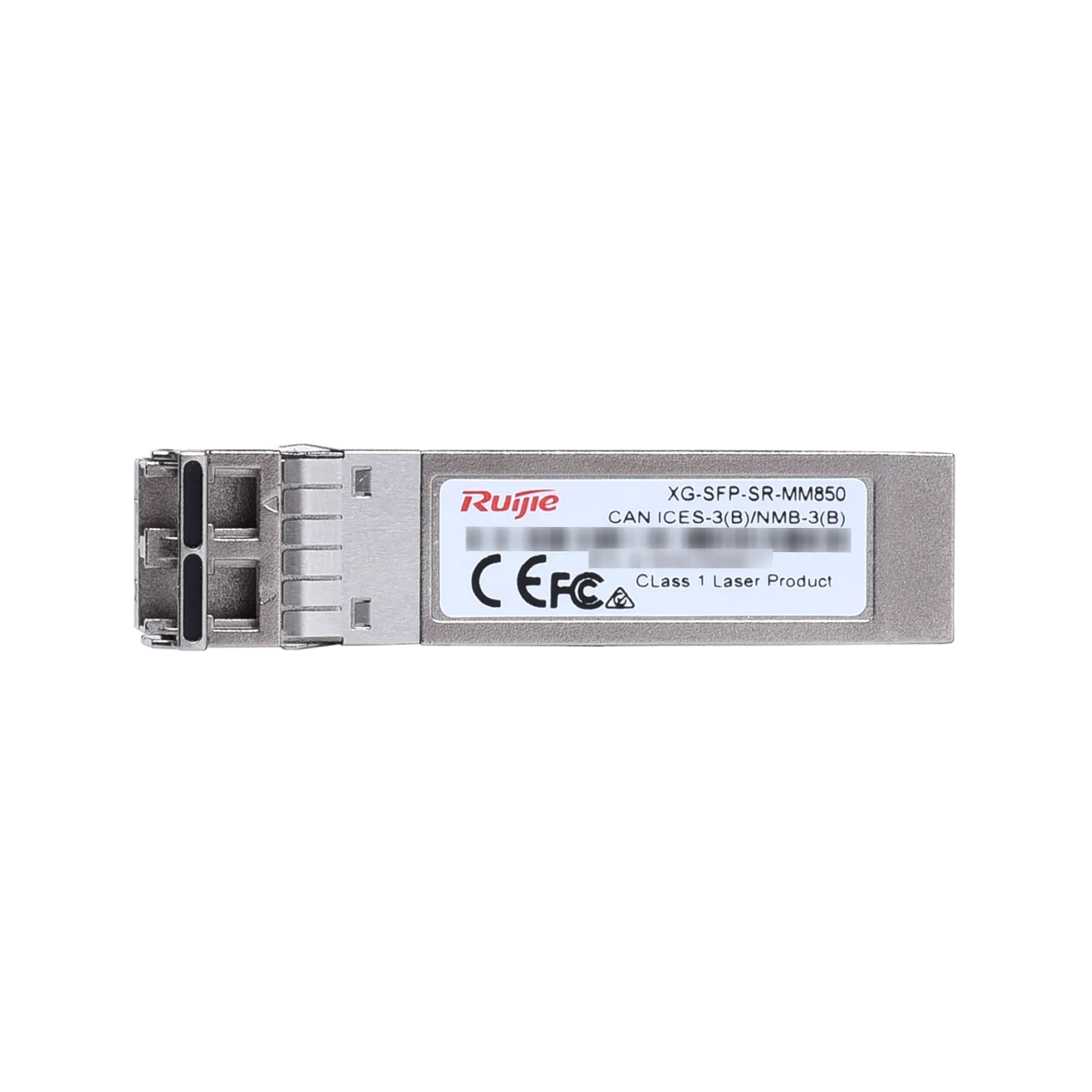

10G SFP+ Optical Transceiver, SR 850nm Multi-mode 300m
Stok 25
Highlight Features:• 10G SFP+ SR Transceiver (Multi-Mode, 850nm).• Supports up to 300m transmission over OM3 fiber.• Low power consumption and high reliability.• Ideal for short-range data center and campus links.
Ruijie XG-SFP-SR-MM850: Transceiver 10G Multi-Mode untuk Kecepatan Cahaya
Hubungkan switch core dan server Anda dengan kecepatan 10Gbps menggunakan modul transceiver SFP+ standar industri ini. Menggunakan media serat optik Multi-Mode, modul ini adalah solusi paling populer untuk konektivitas jarak dekat (hingga 300m) di dalam satu gedung atau antar rak data center.
Fitur Utama:
- Kecepatan 10Gbps SFP+: Menghilangkan segala bentuk hambatan data pada jalur utama jaringan perusahaan Anda.
- Teknologi Multi-Mode 850nm: Solusi koneksi fiber optik yang paling umum dan hemat biaya untuk penggunaan di dalam lingkungan gedung.
- Low Power Consumption: Dirancang dengan efisiensi daya tinggi untuk membantu menjaga suhu switch tetap dingin.
- Reliabilitas Enterprise: Telah melalui uji ketat untuk memastikan kompatibilitas penuh dengan seluruh jajaran switch 10G Ruijie.
| brands |
|---|
Technical Specifications
| Type | 10G SFP+ Short Range Transceiver |
| Form Factor | SFP+ |
| Speed | 10 Gbps |
| Wavelength | 850 nm |
| Fiber Type | Multi-mode Fiber (MMF) |
| Connector | Duplex LC |
| Max Distance | 300 m (OM3) / 400 m (OM4) |
| Operating Temp | 0°C to 70°C (Commercial) |
| DDM/DOM | Supported (Digital Diagnostic) |
| Transmit Power | -7.3 to -1 dBm |
| Receiver Sensitivity | < -11.1 dBm |
| Voltage | 3.3V |
| Standards | SFF-8431, SFF-8432, IEEE 802.3ae |
| Safety | Class 1 Laser, FDA, EN 60825 |
| Hot Swappable | Yes |
| Housing | Metal for low EMI |
| Power Consumption | < 1W |
| Storage Temp | -40°C to 85°C |
| Humidity | 5% to 95% RH |
| Application | Data Center, Enterprise Core Link |
| Fiber Size | 50/125μm / 62.5/125μm |
| Extinction Ratio | > 3 dB |
| Protocols | 10G Ethernet, CPRI, Fibre Channel |
| Certification | CE, RoHS, FCC |
| MTBF | > 1,500,000 hours |
| Warranty | 1 Year |
