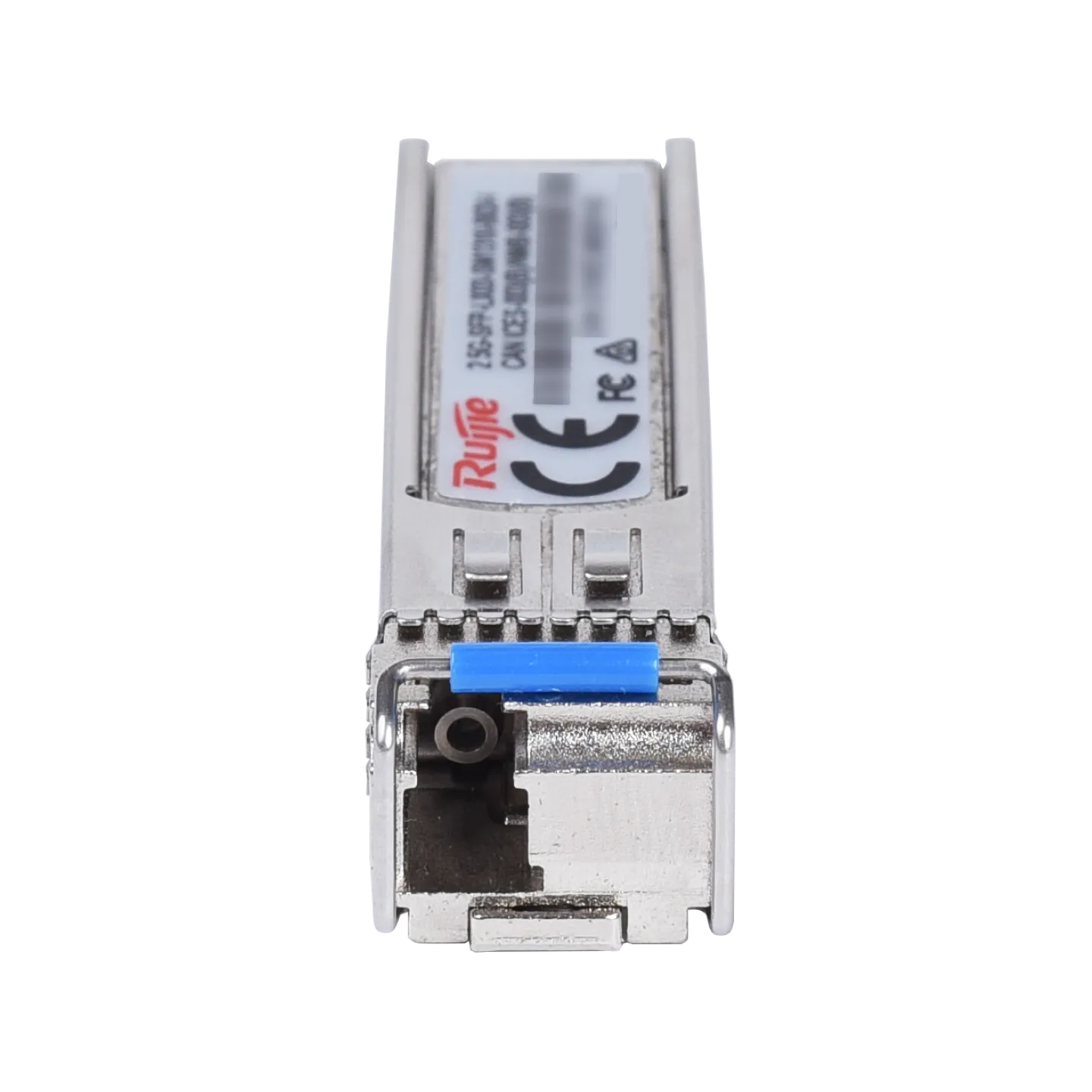

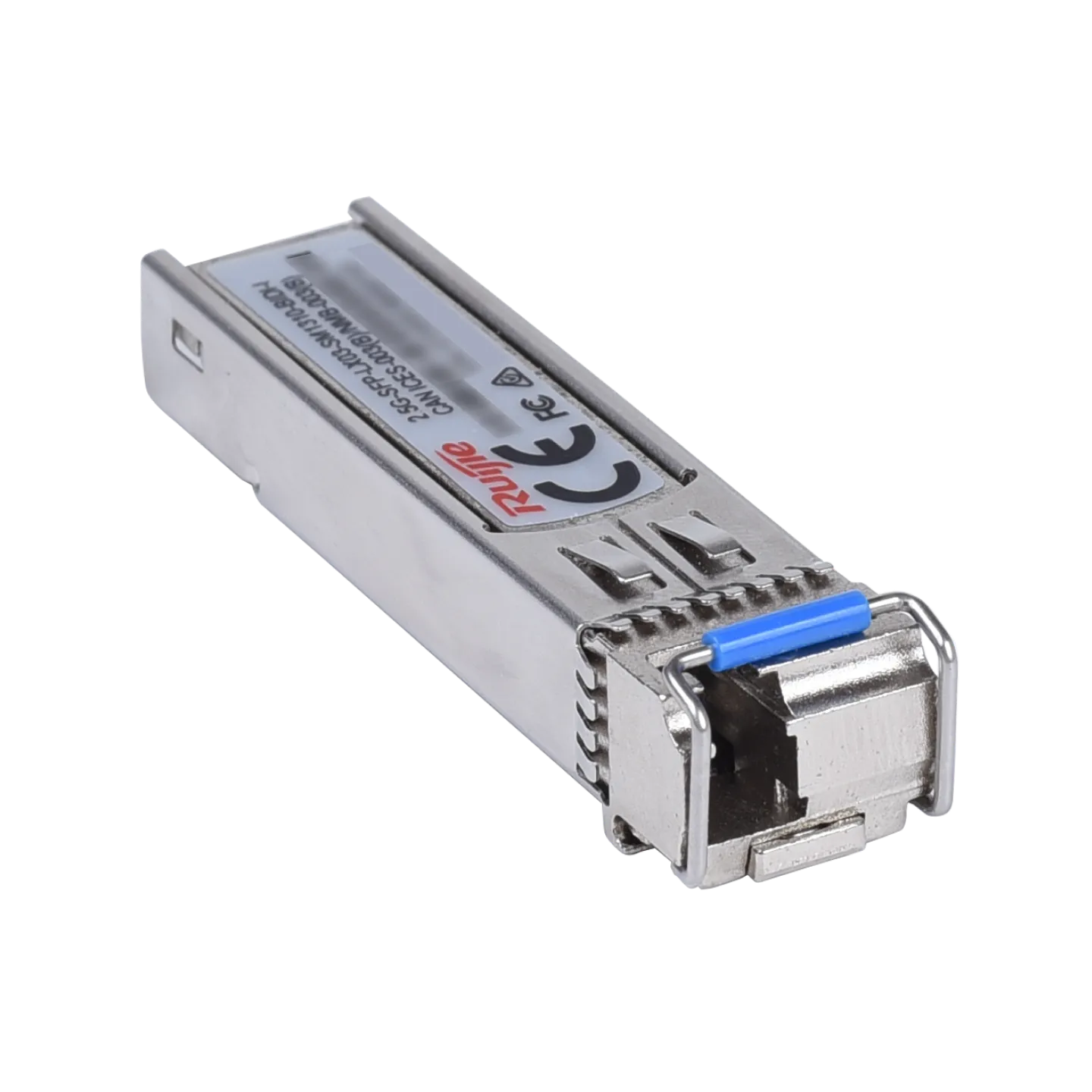

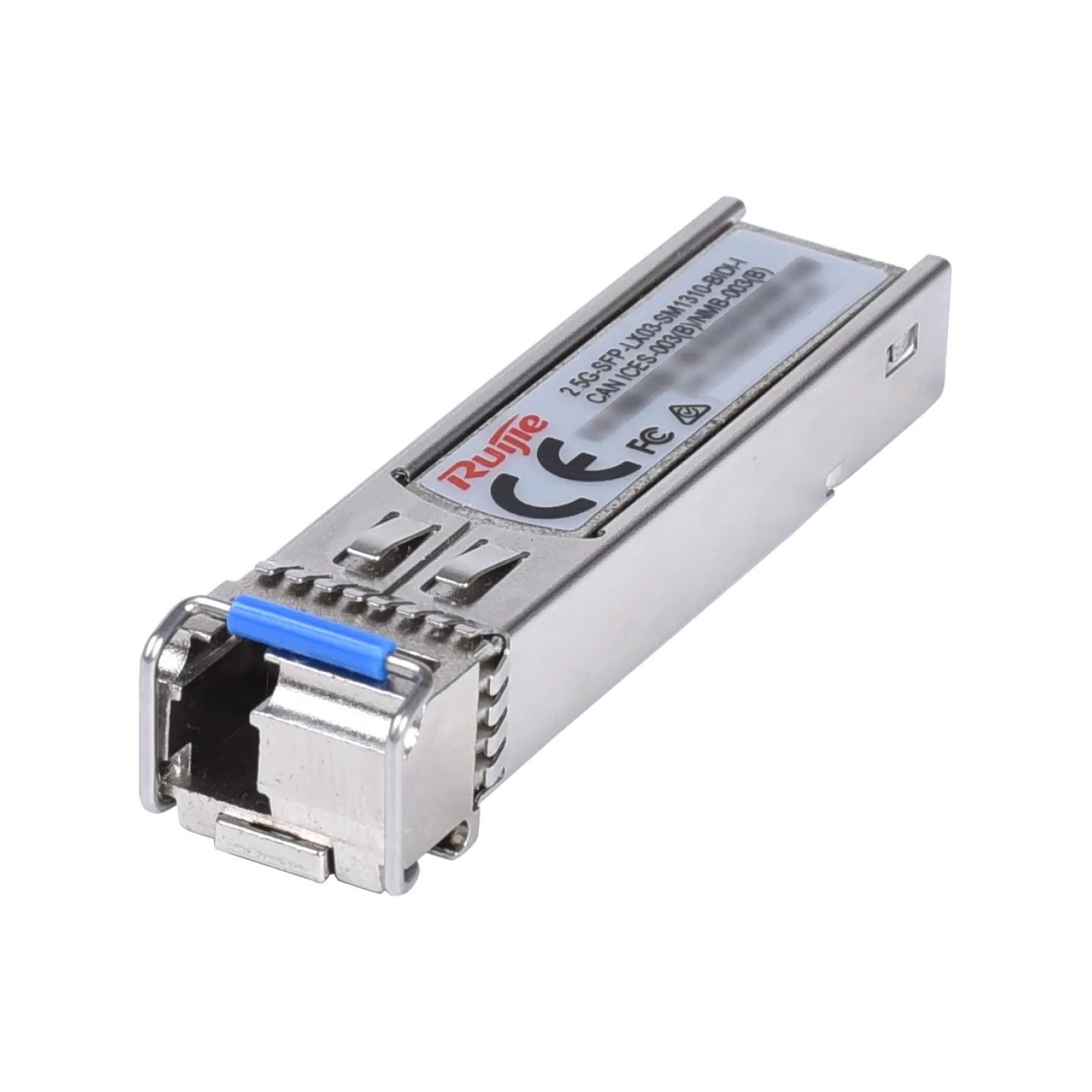

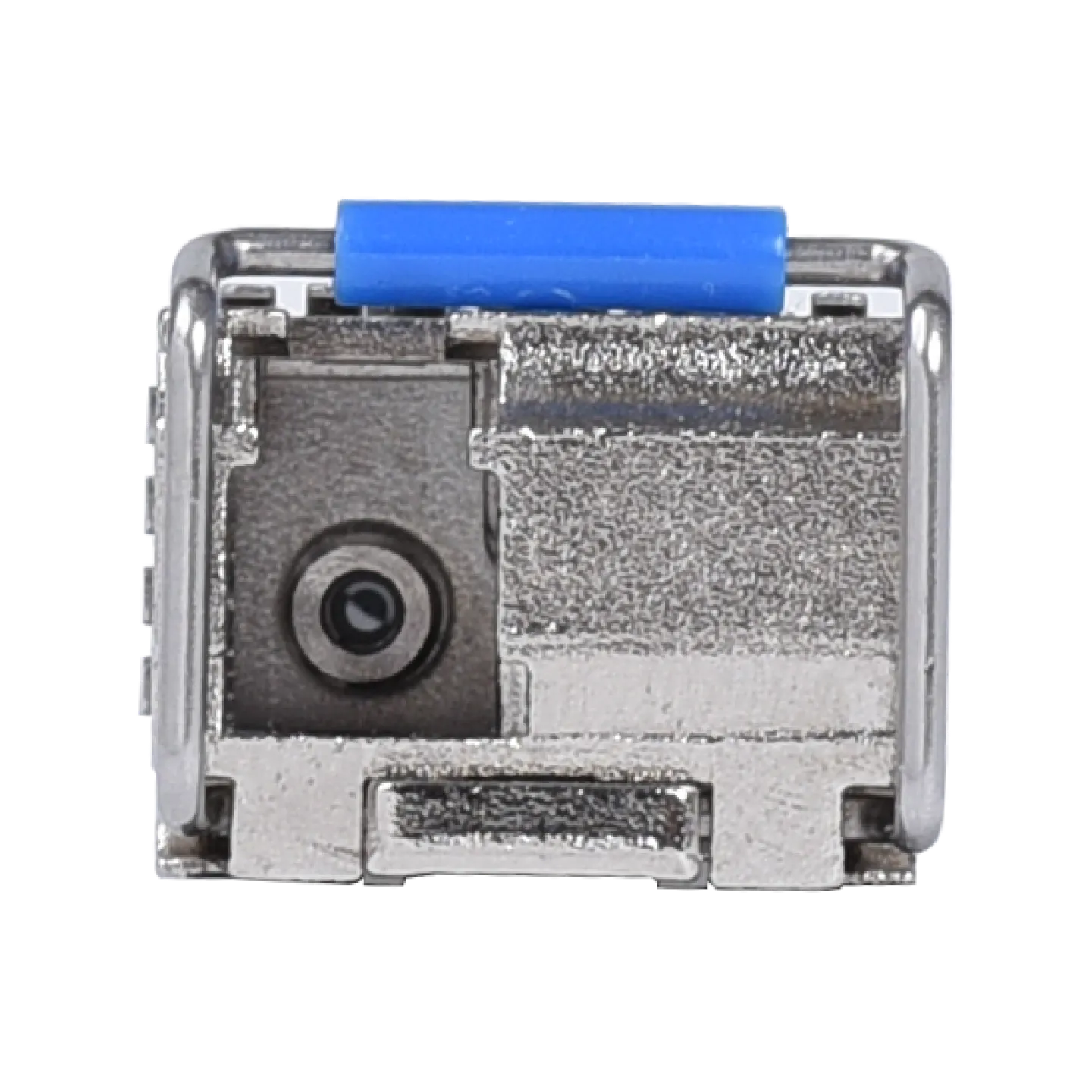

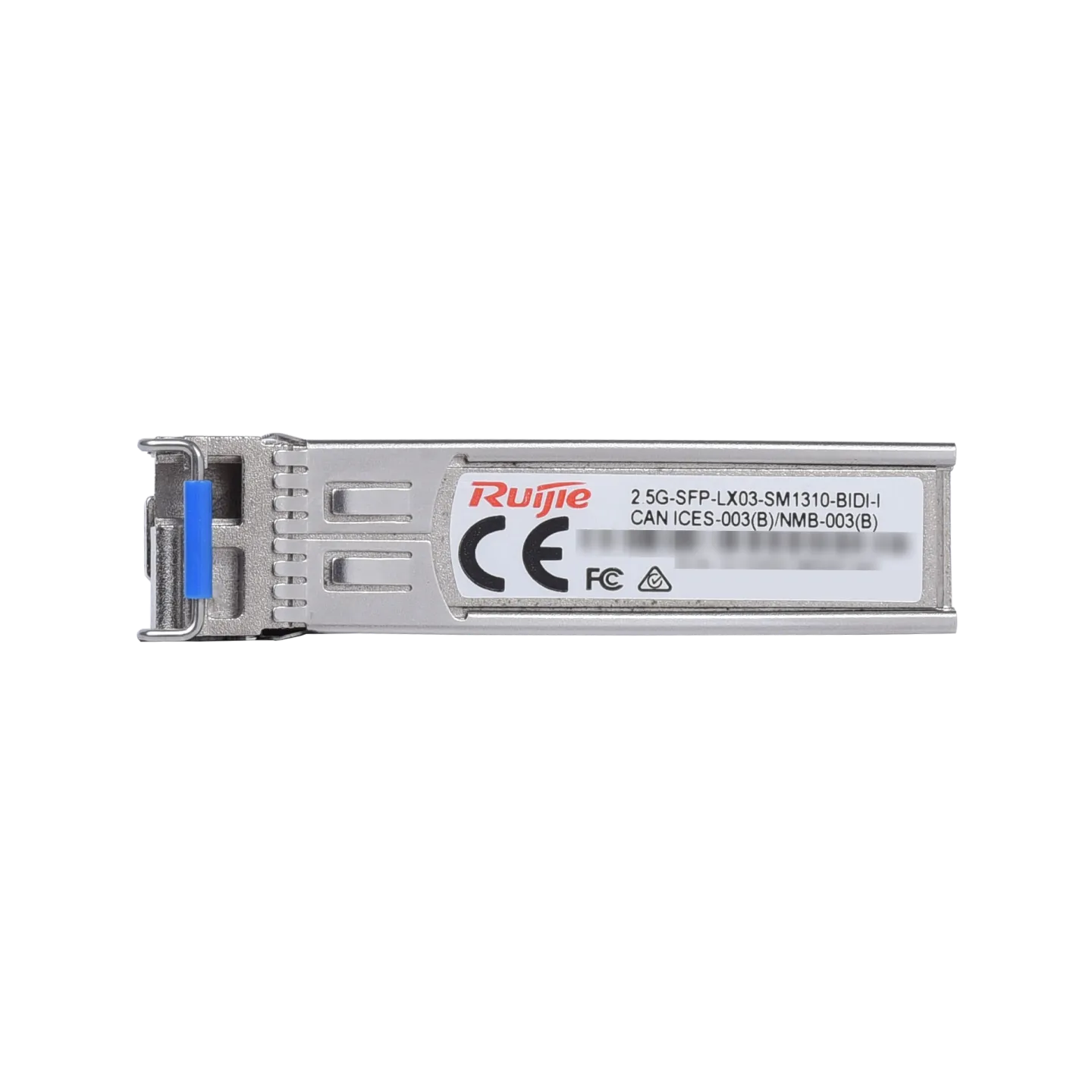

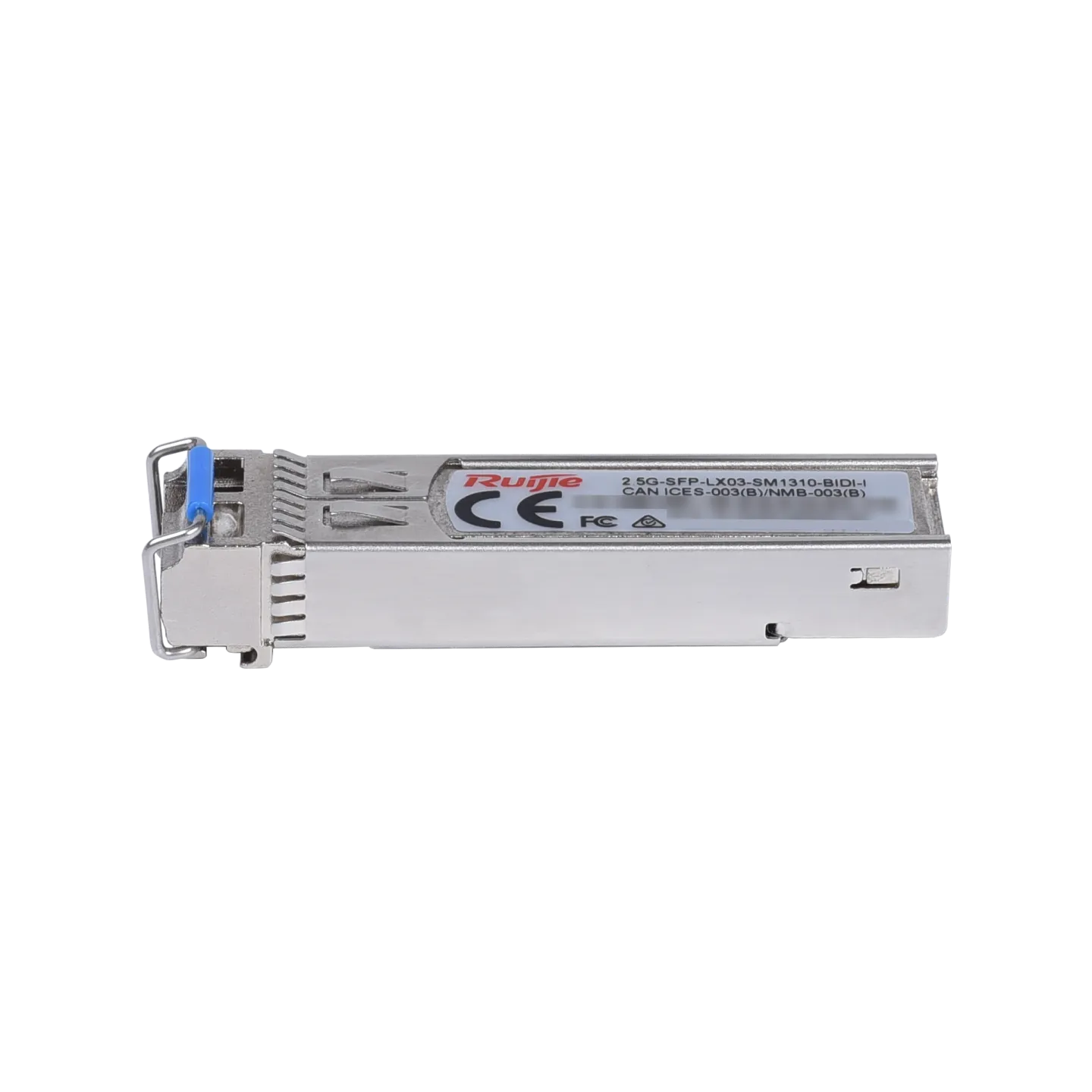

2.5G SFP Optical Transceiver, LX 1310nm BiDi 3km (Industrial)
Stok 25
Highlight Features:• 2.5G BIDI SFP Transceiver (Single Mode, 1310nm).• Supports up to 3km transmission over a single fiber.• Industrial temperature grade for harsh environments.• Hot-pluggable for easy maintenance and upgrades.
Ruijie 2.5G SFP BIDI Transceiver: Solusi Fiber Optik Jalur Tunggal yang Efisien
Optimalkan infrastruktur fiber optik Anda dengan modul 2.5G BIDI Transceiver. Teknologi BIDI (Bi-Directional) memungkinkan pengiriman dan penerimaan data dilakukan melalui satu helai core fiber saja, sehingga menghemat biaya pengabelan hingga 50% tanpa mengurangi kecepatan.
Fitur Unggulan:
- Kecepatan 2.5Gbps: Mendukung uplink berkecepatan tinggi untuk switch akses modern atau AP Wi-Fi 6.
- Hemat Infrastruktur: Menggunakan hanya satu kabel fiber untuk komunikasi dua arah, mengurangi kekacauan di panel distribusi fiber Anda.
- Jangkauan Stabil: Dirancang untuk transmisi data jarak jauh dengan kualitas sinyal yang terjaga.
- Plug & Play: Kompatibilitas tinggi dengan berbagai switch Ruijie untuk instalasi yang instan dan mudah.
| brands |
|---|
Technical Specifications
| Type | 2.5G BIDI SFP Transceiver (Industrial) |
| Form Factor | SFP |
| Speed | 2.5 Gbps |
| Wavelength (TX) | 1310 nm |
| Wavelength (RX) | 1550 nm |
| Fiber Type | Single-mode Fiber (SMF) |
| Connector | Simplex LC |
| Max Distance | 3 km |
| Operating Temp | -40°C to 85°C (Industrial Grade) |
| DDM/DOM | Supported (Digital Diagnostic Monitoring) |
| Transmit Power | -9 to -3 dBm |
| Receiver Sensitivity | < -18 dBm |
| Voltage | 3.3V Support |
| Standards | SFP MSA, IEEE 802.3z |
| Safety | Class 1 Laser, FDA, EN 60825 |
| Hot Swappable | Yes |
| Housing | Metal for low EMI |
| Power Consumption | < 1W |
| Storage Temp | -40°C to 85°C |
| Humidity | 5% to 95% RH |
| Application | Campus Network, Multi-Gigabit Links |
| Certification | CE, RoHS, FCC |
| MTBF | > 1,000,000 hours |
| Warranty | 1 Year (Standard Accessory) |
