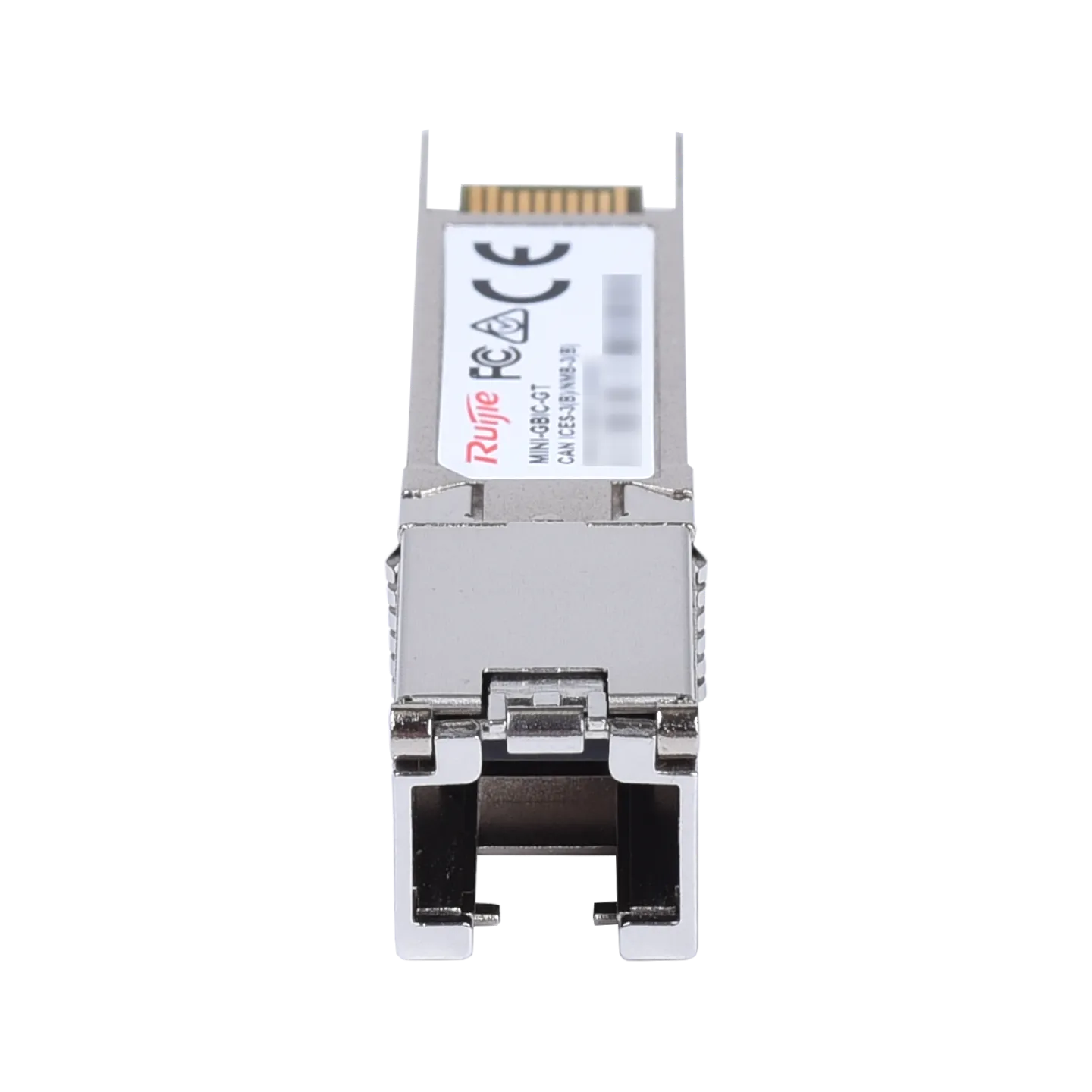

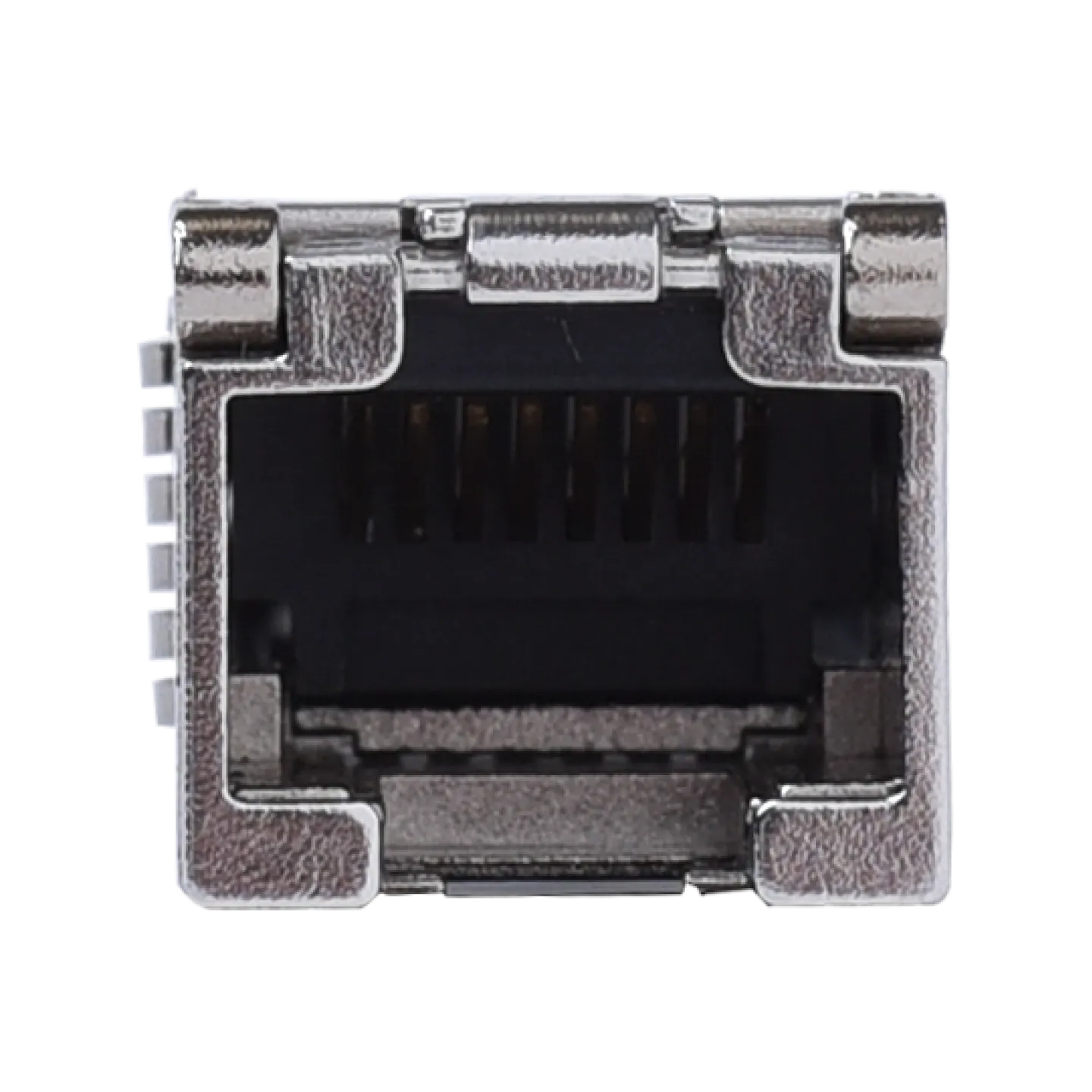

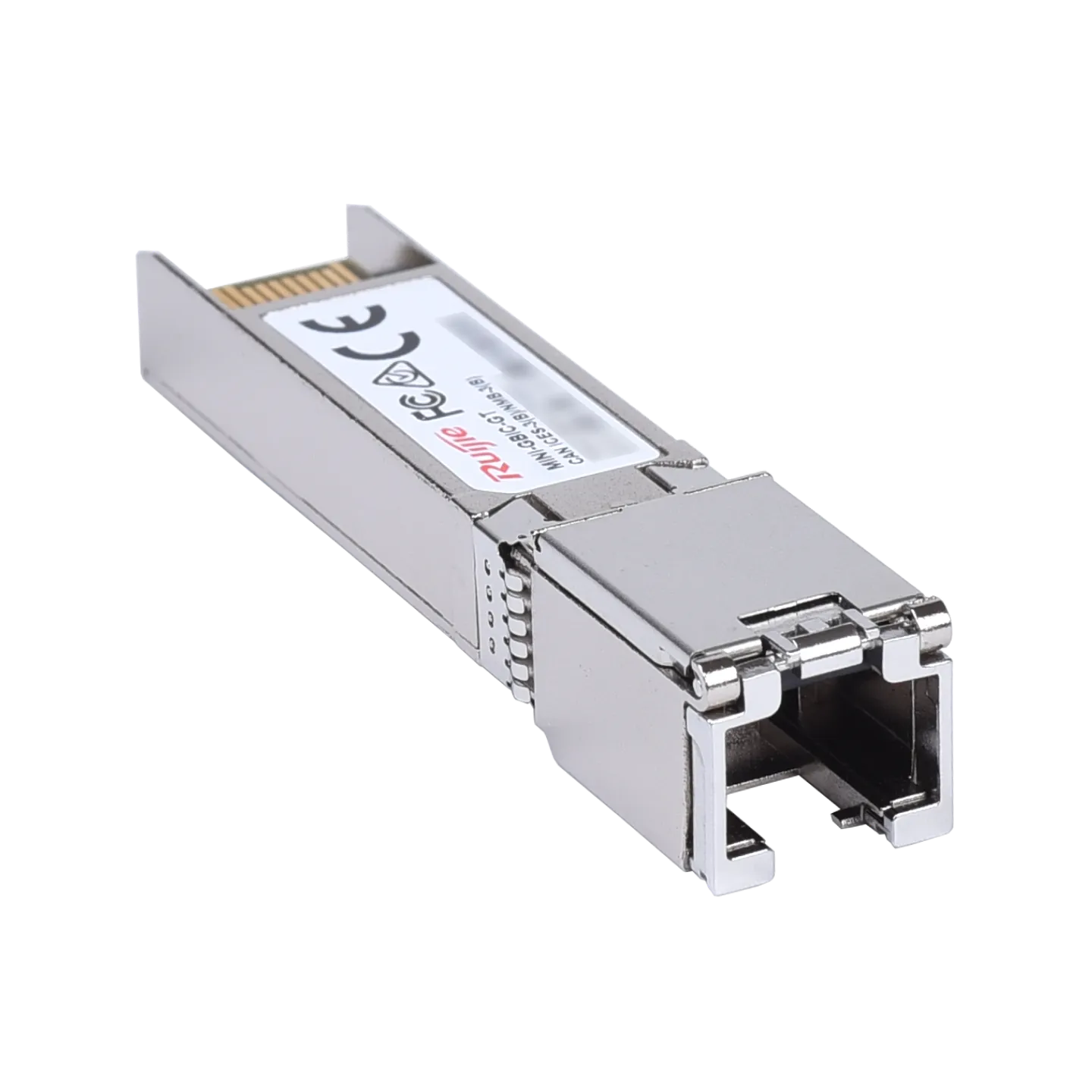

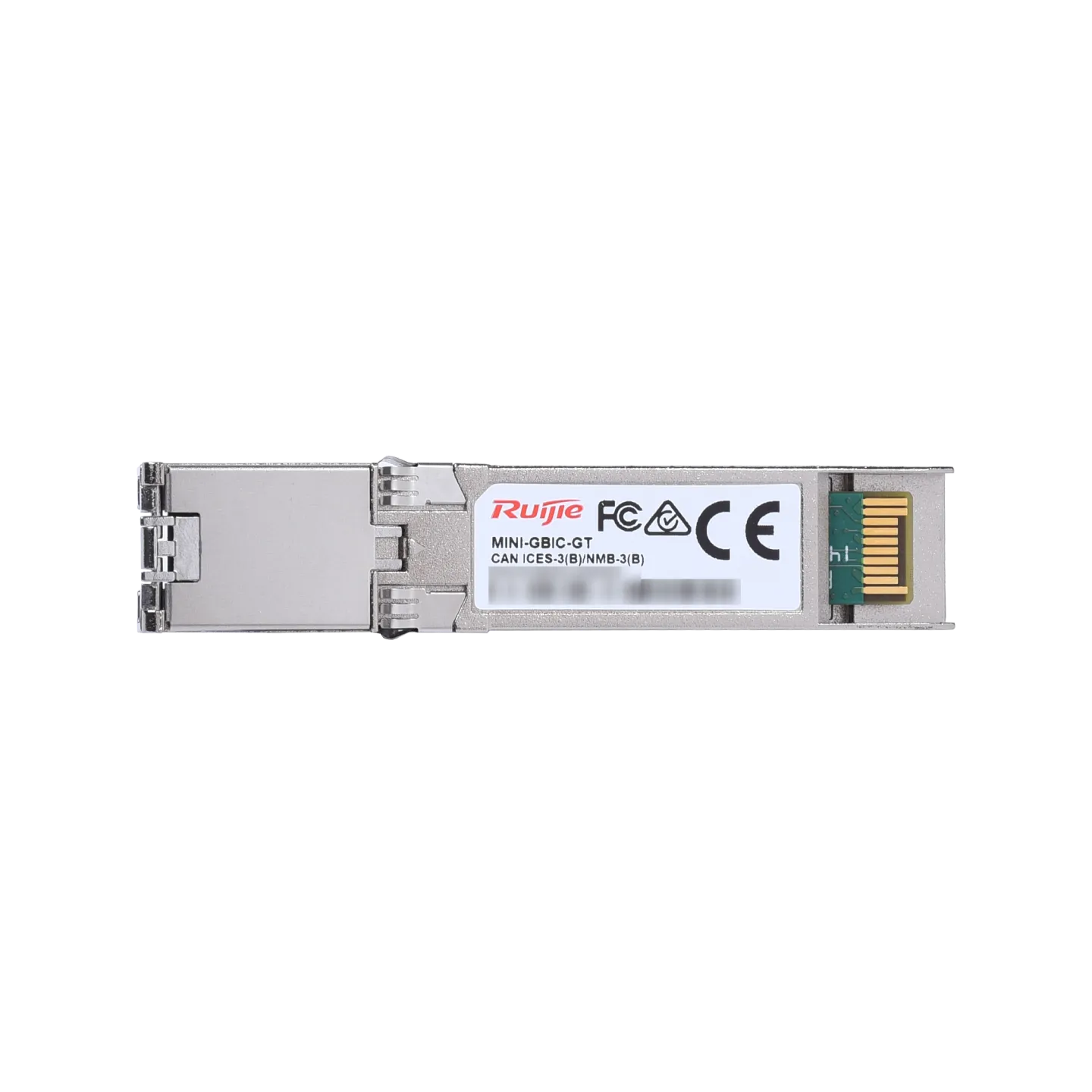

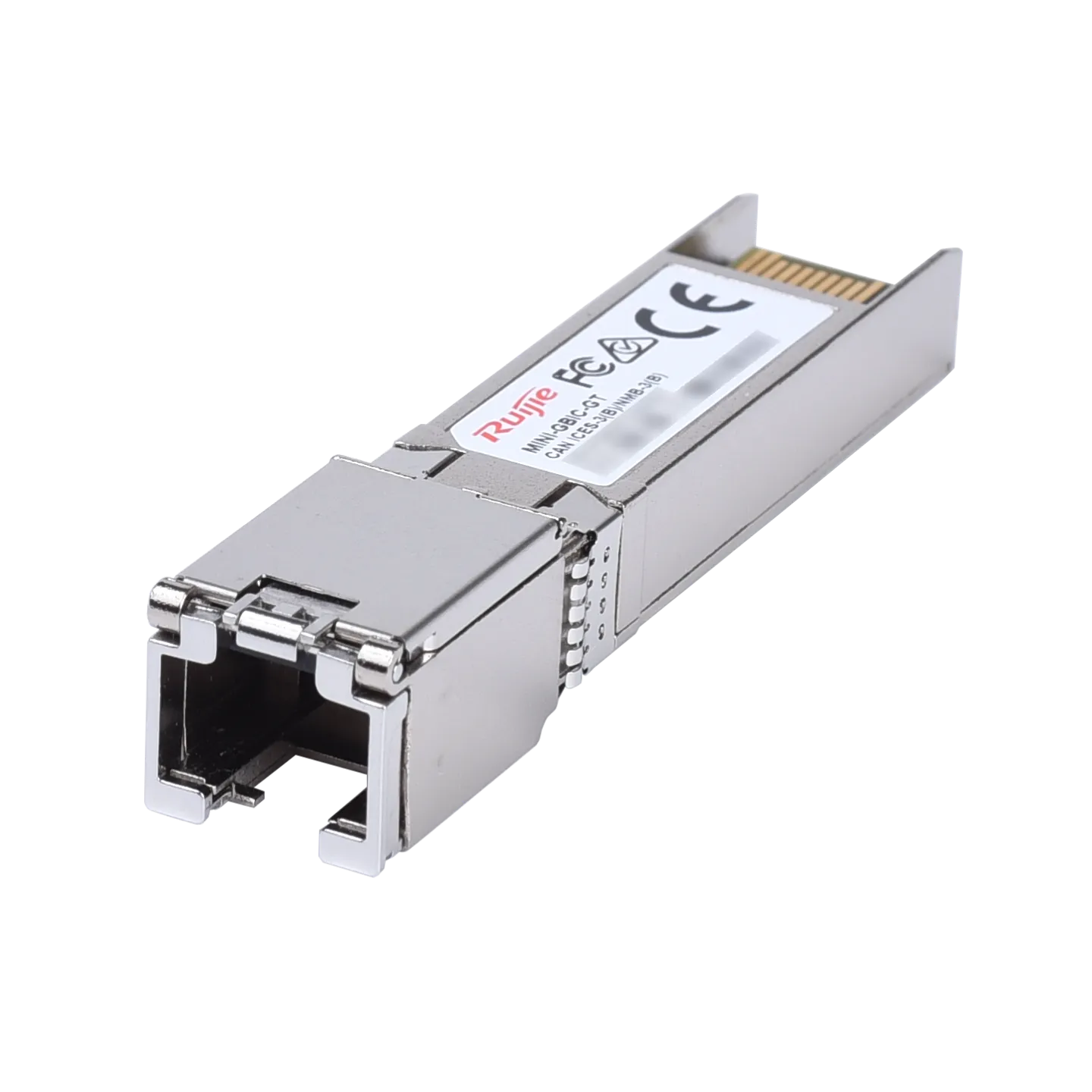

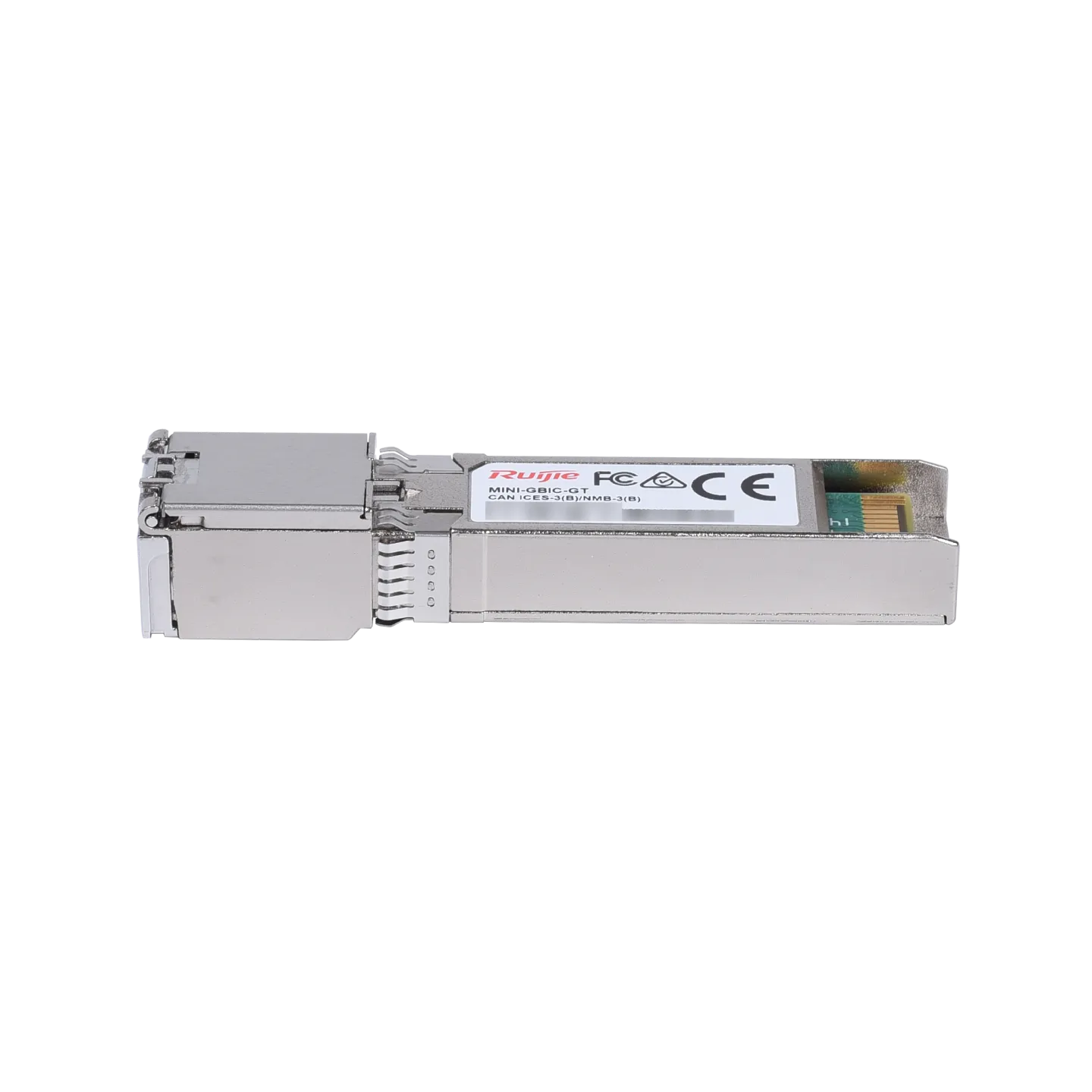

GE-SFP-GT RJ45 Connector SFP Transceiver, 1000BASE-T 100m
Stok 25
Highlight Features:• 1000BASE-T RJ45 SFP Transceiver module.• Supports up to 100m over standard Cat5e/6 copper cables.• Hot-swappable with low power consumption.• Compatible with all Ruijie switches with SFP slots.
Ruijie MINI-GBIC-GT: Modul Transceiver Tembaga Gigabit RJ45
Ubah slot SFP Anda menjadi port Gigabit Ethernet standar dengan MINI-GBIC-GT. Modul ini memungkinkan Anda menggunakan kabel LAN tembaga (Cat5e/Cat6) pada slot SFP switch, memberikan fleksibilitas tambahan tanpa perlu membeli switch baru.
Fitur Kunci:
- Konektivitas Gigabit RJ45: Mendukung kecepatan hingga 1000Mbps melalui kabel tembaga standar.
- Instalasi Plug & Play: Cukup colokkan ke slot SFP dan sambungkan kabel LAN Anda, langsung siap digunakan.
- Jangkauan hingga 100 Meter: Ideal untuk koneksi antar perangkat dalam satu rak atau ruangan.
- Kompatibilitas Penuh: Bekerja sempurna dengan semua slot SFP pada switch Ruijie dan Reyee.
| brands |
|---|
Technical Specifications
| Module Type | 1000BASE-T Copper SFP |
| Interface | RJ-45 |
| Data Rate | 10/100/1000 Mbps |
| Max Distance | 100 meters |
| Cable Type | Category 5/5e/6 UTP |
| Form Factor | SFP MSA Compliant |
| Hot Swappable | Yes |
| Supply Voltage | 3.3V |
| Operating Temp | 0°C to 70°C |
| Power Consumption | < 1.0W |
| Auto-MDI/MDIX | Supported |
| Auto-Negotiation | Supported |
| ESD Protection | Contact: 6KV, Air: 8KV |
| Case Material | Zinc Alloy (Metallic) |
| Storage Temp | -40°C to 85°C |
| MTBF | > 1,000,000 hours |
| DDM Support | N/A (Copper Module) |
| Safety | UL, TUV |
| EMI/EMC | FCC Class B, CE |
| RoHS | Compliant |
| Weight | 0.03 kg |
| Dimensions | 13.7 x 12.7 x 71 mm |
| Humidity | 5% to 95% RH |
| Connectivity | Standard RJ-45 Connector |
| Protocol | IEEE 802.3ab |
| Transmission | Full Duplex |
| Error Rate | < 10^-12 |
| Brand Compatibility | Ruijie / Reyee Series |
| Mating Cycles | > 500 times |
| Warranty | 3 Years |
