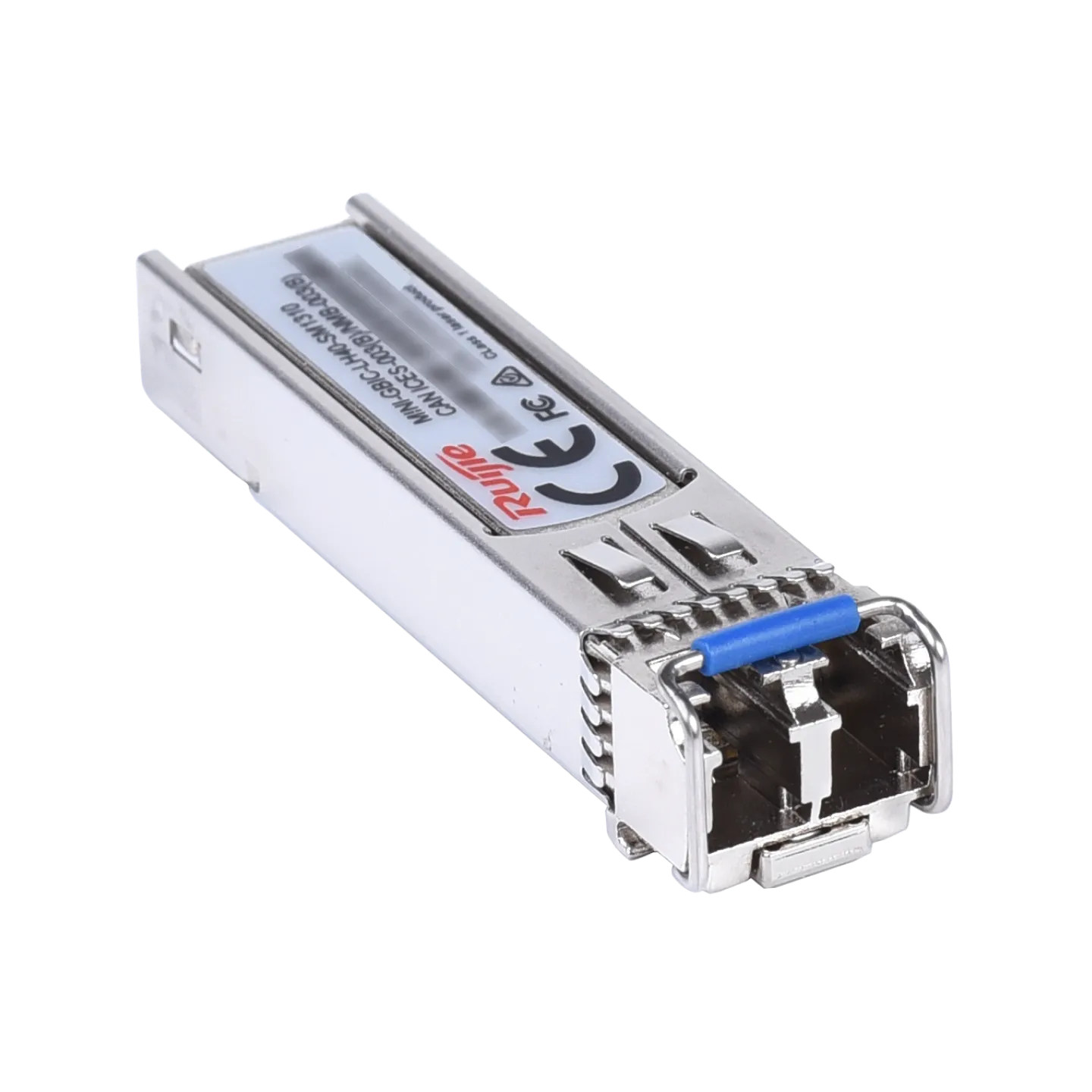

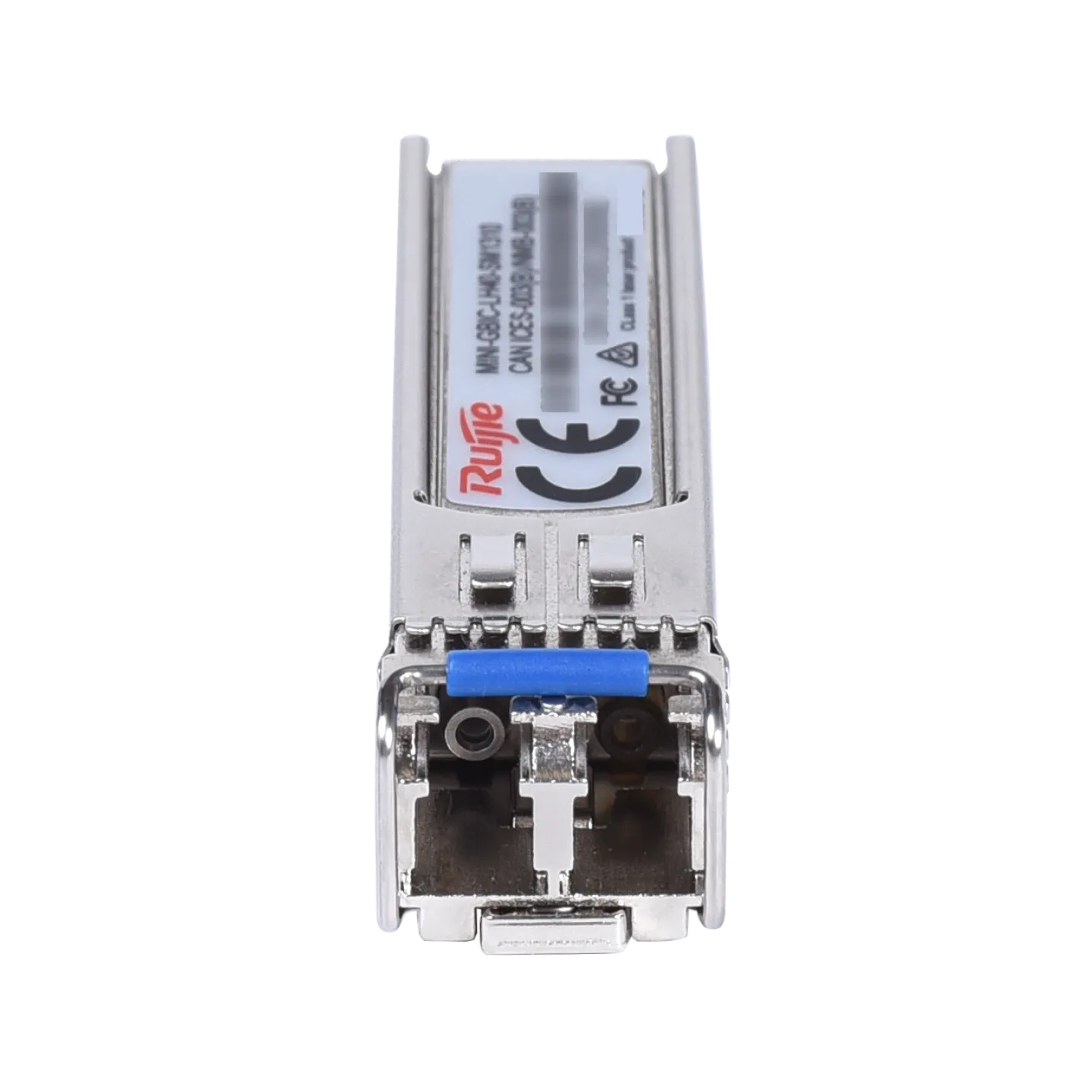

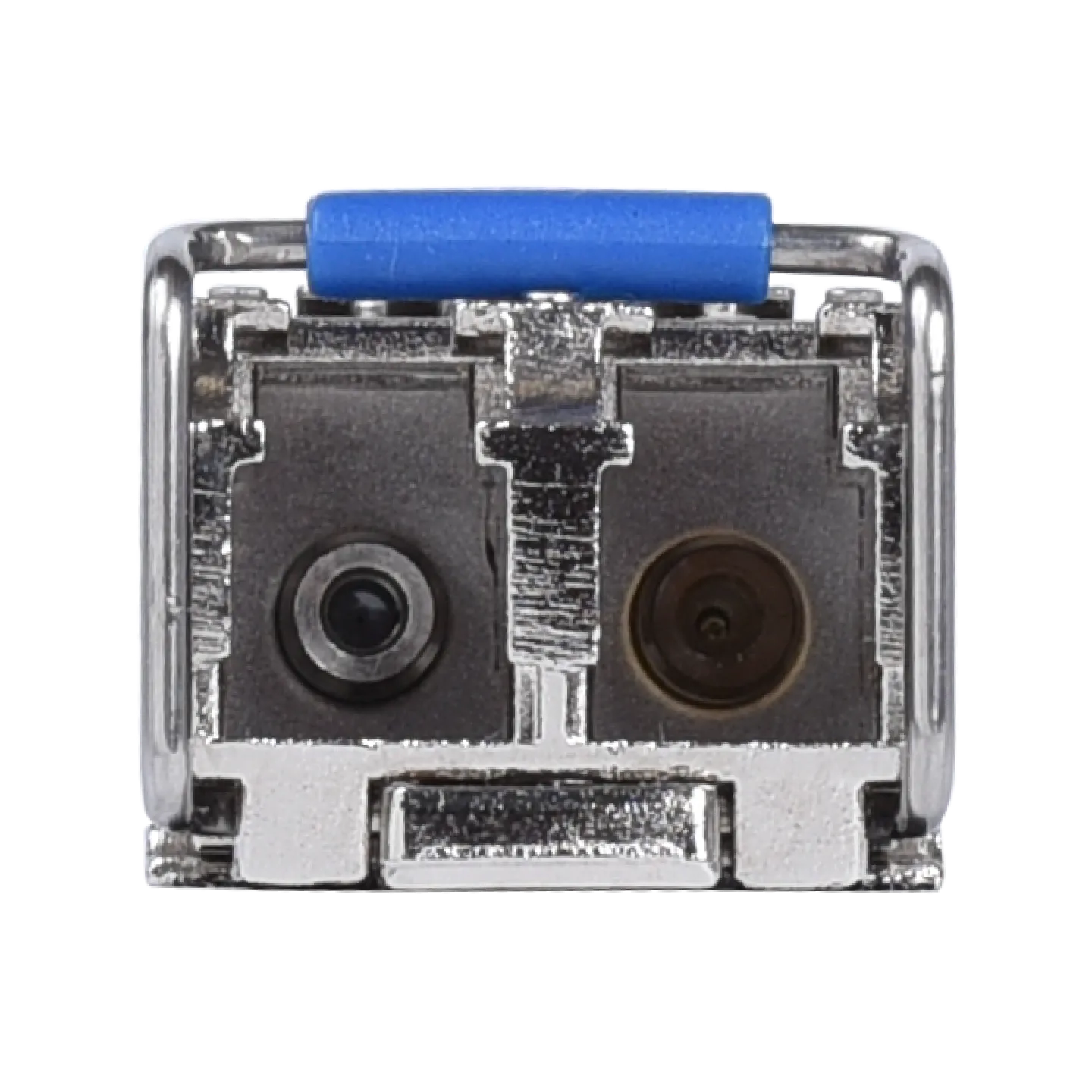

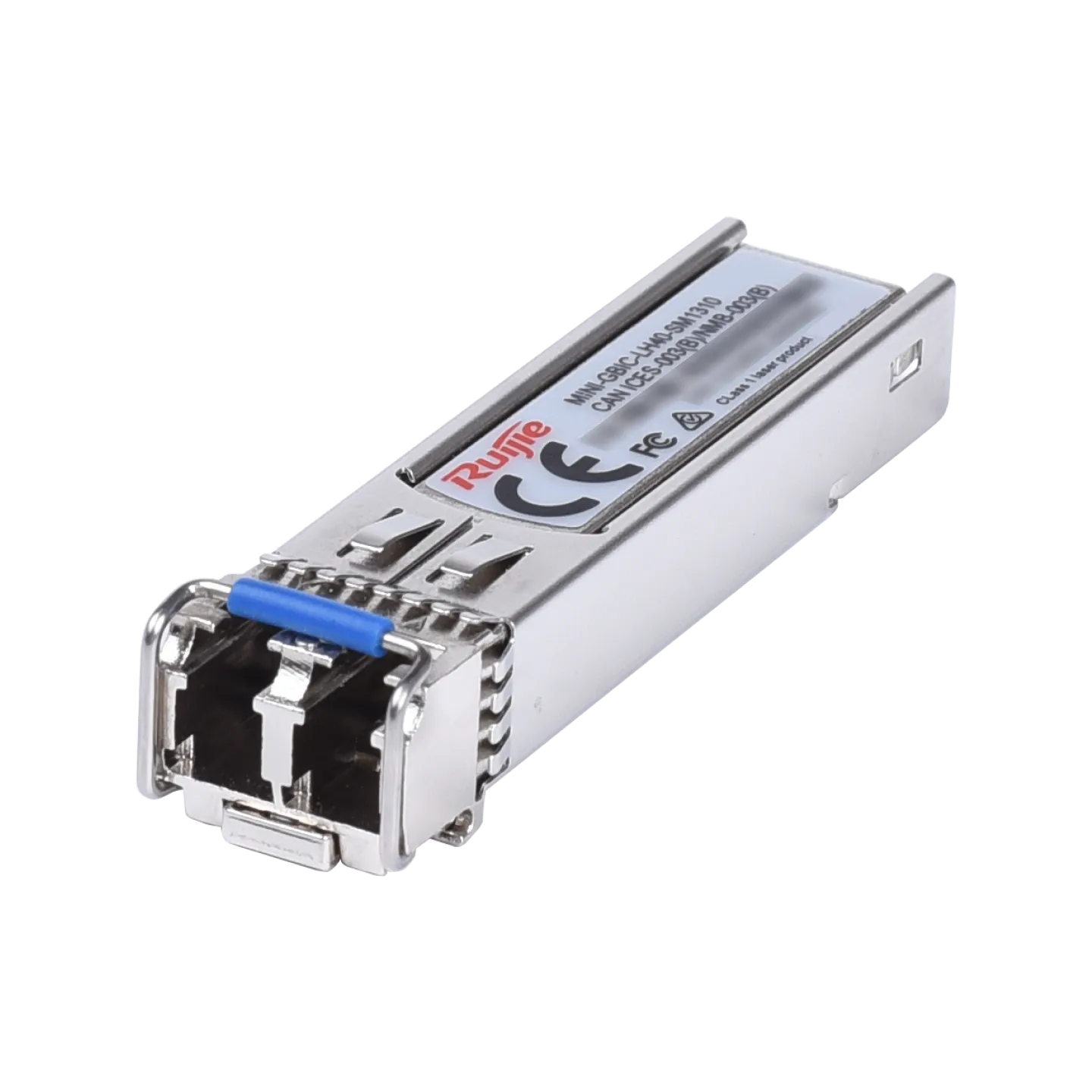

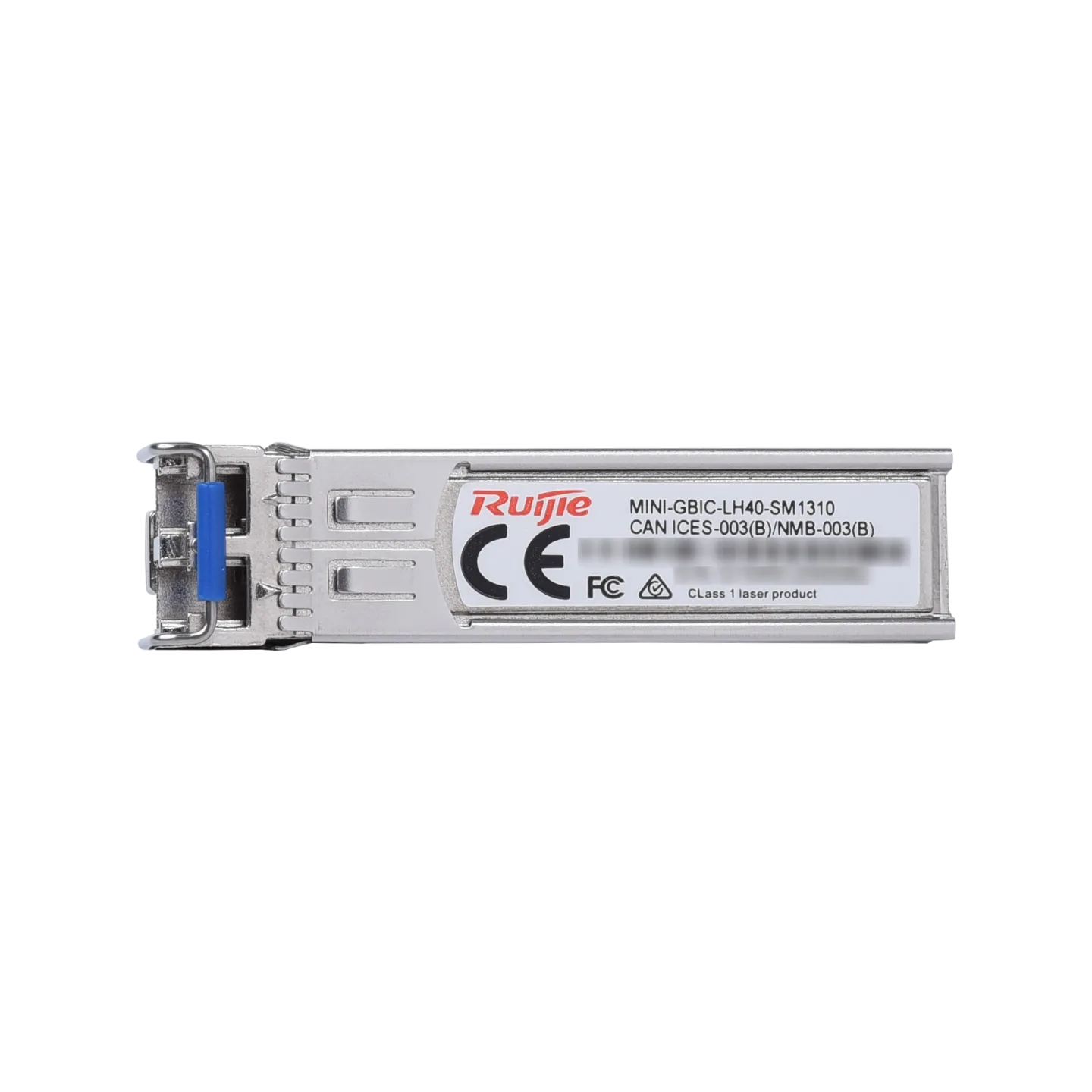

GE-SFP-LH40-SM1310 Optical Transceiver, 1.25G 1310nm 40km
Stok 25
Highlight Features:• 1000BASE-LH SFP Transceiver (Single Mode, 1310nm).• Supports mid-range transmission up to 40km.• High sensitivity receiver and stable optical performance.• Ideal for metropolitan area networks and campus cores.
Ruijie MINI-GBIC-LH40: Solusi Gigabit Fiber untuk Jarak 40 KM
Sempurnakan jangkauan jaringan fiber optik Anda dengan modul MINI-GBIC-LH40. Transceiver ini menawarkan performa stabil untuk transmisi data Gigabit hingga jarak 40 kilometer, memberikan fleksibilitas luas bagi penyedia layanan dan perusahaan besar.
Manfaat Strategis:
- Kapasitas Long-Haul 40KM: Jembatani jarak antar kawasan industri dengan satu koneksi fiber yang solid.
- Kualitas Sinyal Presisi: Menggunakan teknologi laser 1310nm berkualitas tinggi untuk mencegah error pada pengiriman data.
- Hemat Ruang: Form factor SFP yang ringkas memudahkan manajemen densitas port pada switch core Anda.
| brands |
|---|
Technical Specifications
| Module Type | 1000BASE-LH SFP |
| Wavelength | 1310nm |
| Media Type | Single Mode Fiber (SMF) |
| Max Distance | 40 km |
| Data Rate | 1.25 Gbps |
| Connector | Duplex LC |
| TX Power | -5 ~ 0 dBm |
| RX Sensitivity | < -23 dBm |
| Laser Type | DFB Laser |
| Form Factor | SFP Multi-Source Agreement |
| Supply Voltage | 3.3V |
| Operating Temp | 0°C to 70°C |
| Storage Temp | -40°C to 85°C |
| DDM Support | Yes |
| Hot Swappable | Yes |
| Power Consumption | < 0.8W |
| Extinction Ratio | > 9 dB |
| Fiber Diameter | 9/125μm |
| Link Budget | 18 dB |
| Safety | Class 1 Laser Safety |
| ESD Protection | Contact: 6KV, Air: 8KV |
| Housing | Zinc Alloy Shell |
| RoHS | Compliant |
| MTBF | > 1,000,000 hours |
| Certification | CE, FCC, RoHS |
| Packet Mode | Full Duplex |
| Bit Error Rate | < 10^-12 |
| Weight | 0.025 kg |
| Dimensions | Standard SFP Size |
| Warranty | 3 Years |
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Produk Terkait
-
Accessories

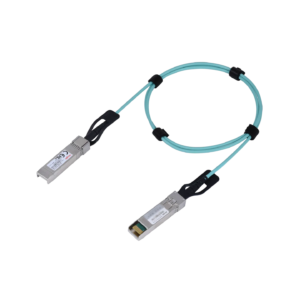

XG-SFP-AOC1M 10G SFP+ Active Optical Cable, 1m
Highlight Features:• 10G SFP+ Active Optical Cable (AOC), 1 meter.• Integrated transceiver modules for easy plug-and-play.• Lower power consumption and weight than copper cables.• Ideal for high-density rack-to-rack interconnects.
SKU: XG-SFP-AOC1M -
Accessories

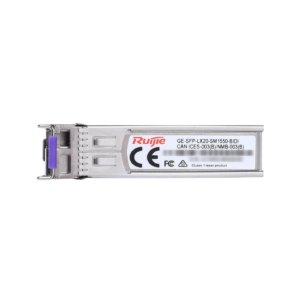

GE-SFP-LX20-SM1550-BIDI Optical Transceiver, 1.25G 1550nm 20km
Highlight Features:• 1000BASE-LX BIDI SFP Transceiver (Single Mode, 1550nm).• Supports up to 20km transmission over single-fiber.• High-reliability laser with industrial protection.• Simplifies fiber cabling by using only one strand.
SKU: GE-SFP-LX20-SM1550-BIDI -
Accessories
10G SFP+ Optical Transceiver, LX 1330nm BiDi 10km (Industrial)
Highlight Features:• 10G BIDI SFP+ Transceiver (Single Mode, 1330nm).• Pairs with 1270nm BIDI for bidirectional 10G link.• High-reliability fiber optic communication module.• Hot-swappable with standard SFP+ port compatibility.
SKU: XG-SFP-LR10-SM1330-BIDI-I -
Accessories

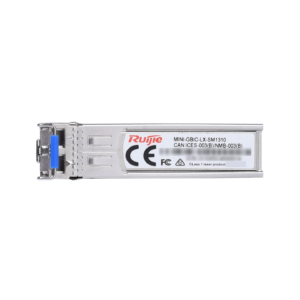

GE-SFP-LX-SM1310 Optical Transceiver, 1.25G 1310nm 10km
