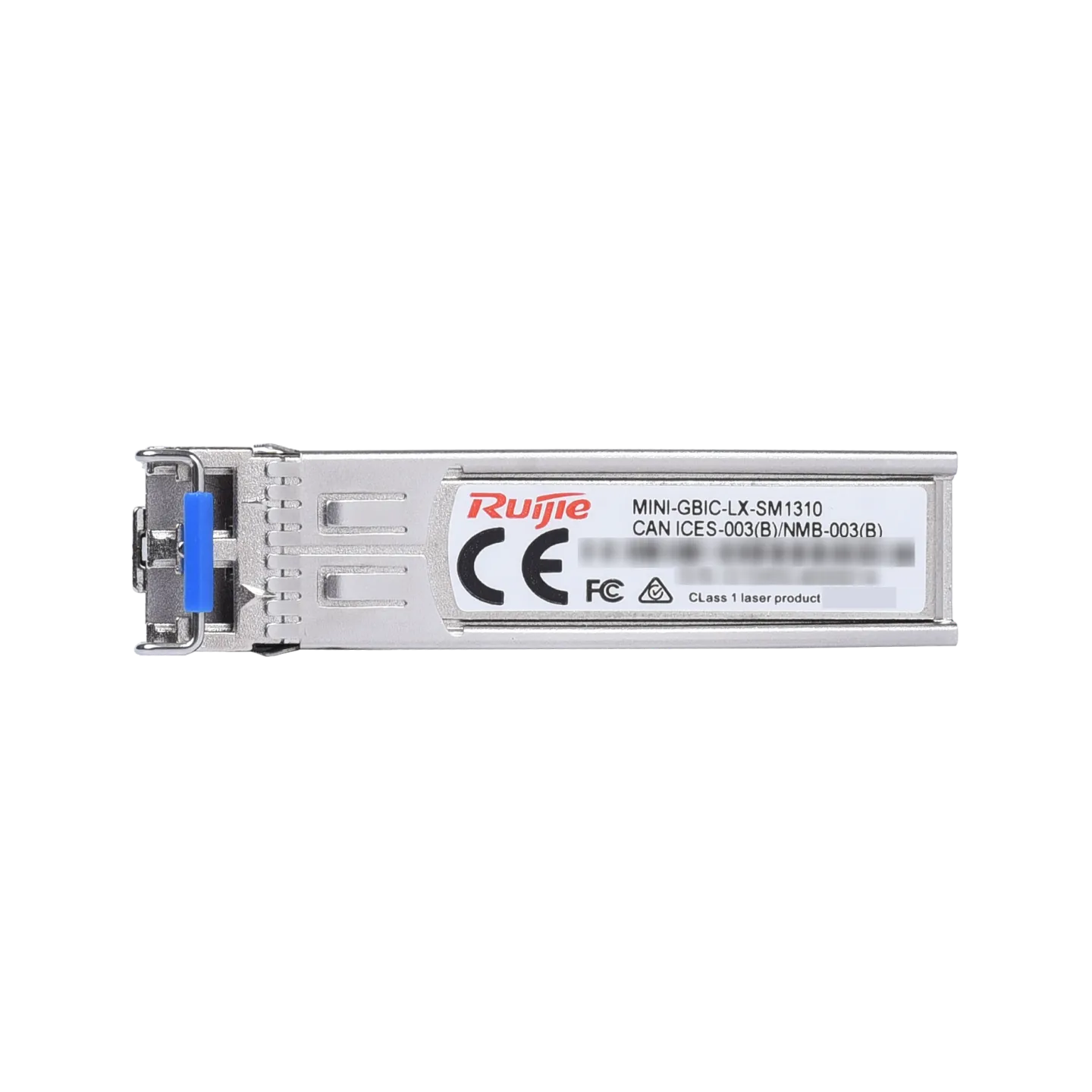

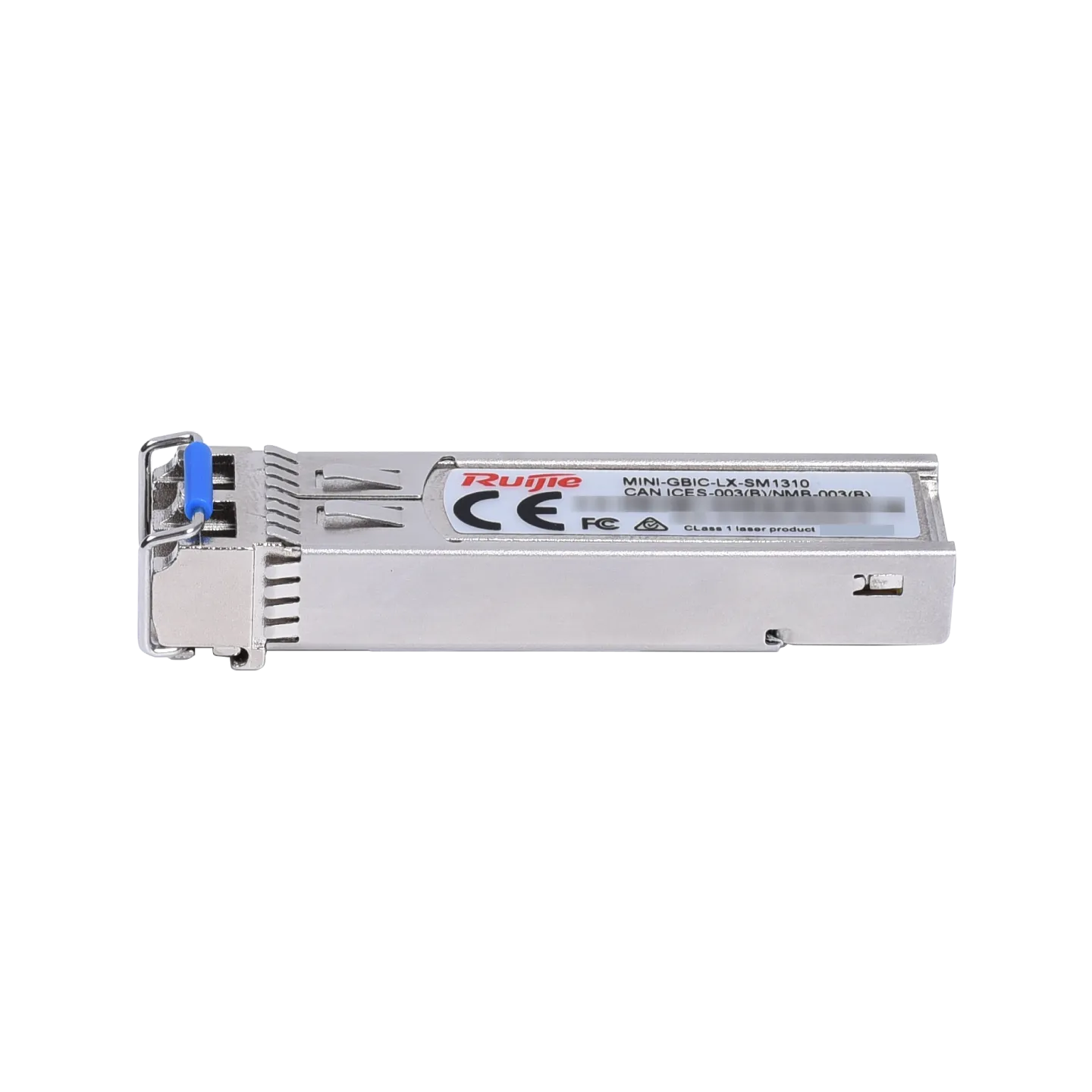

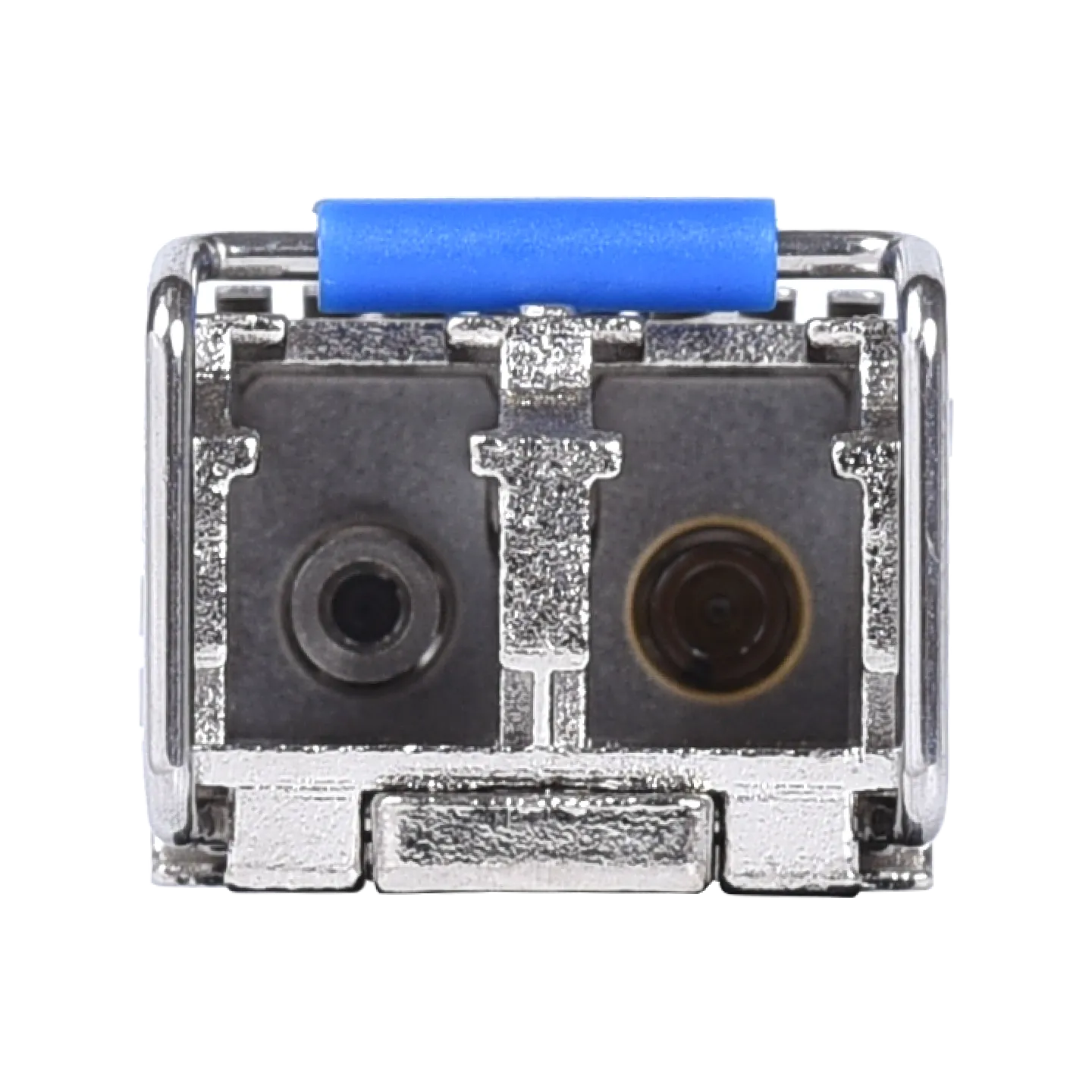

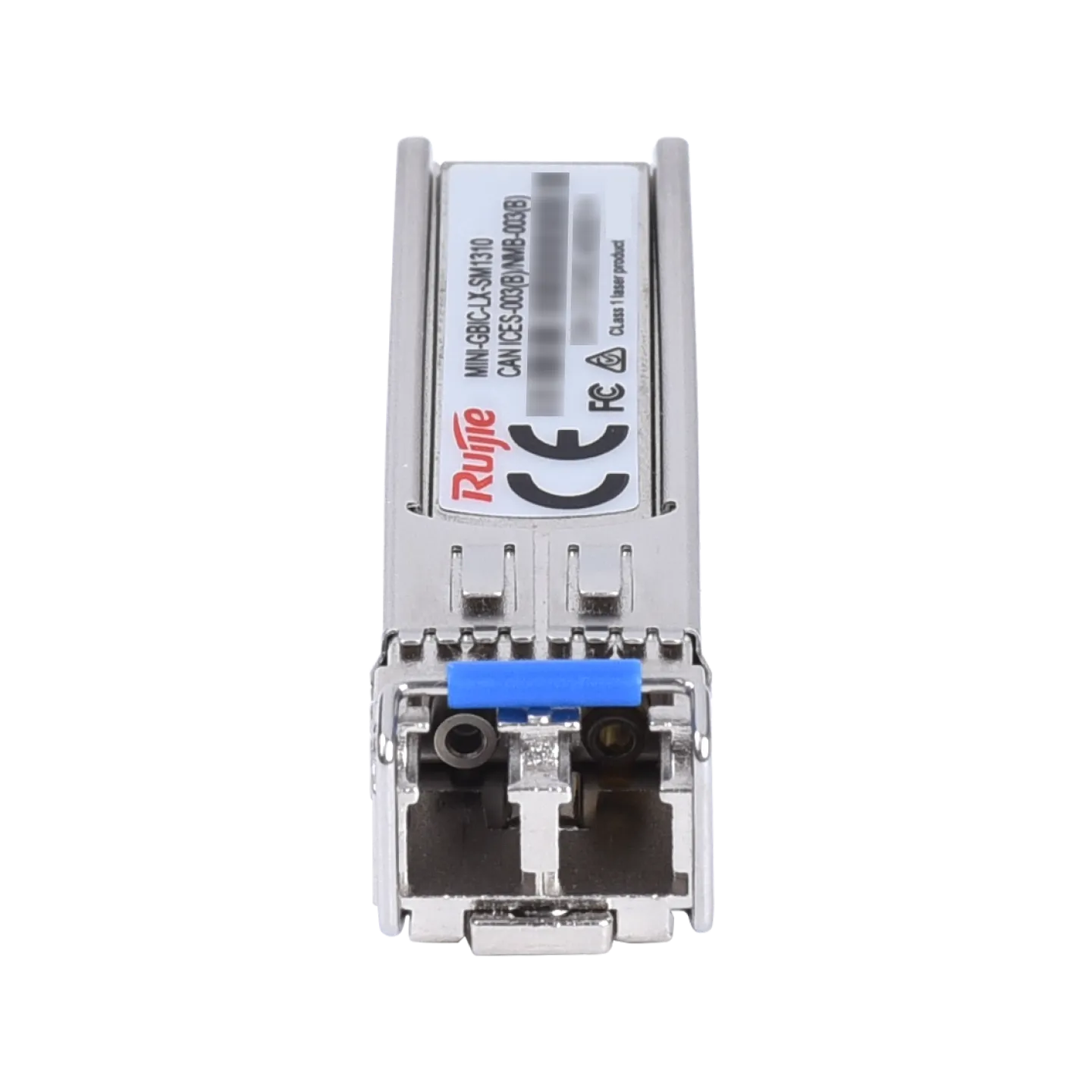

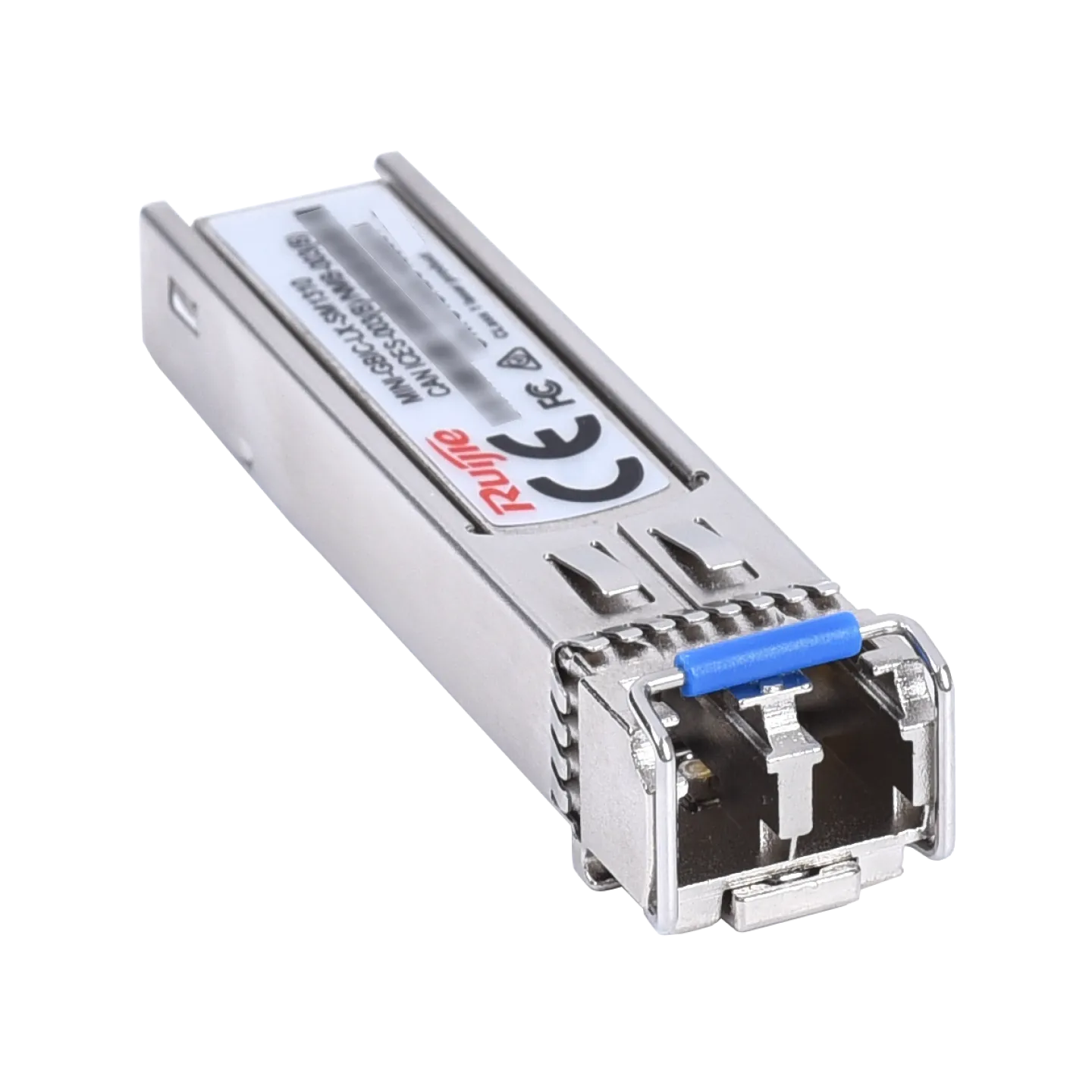

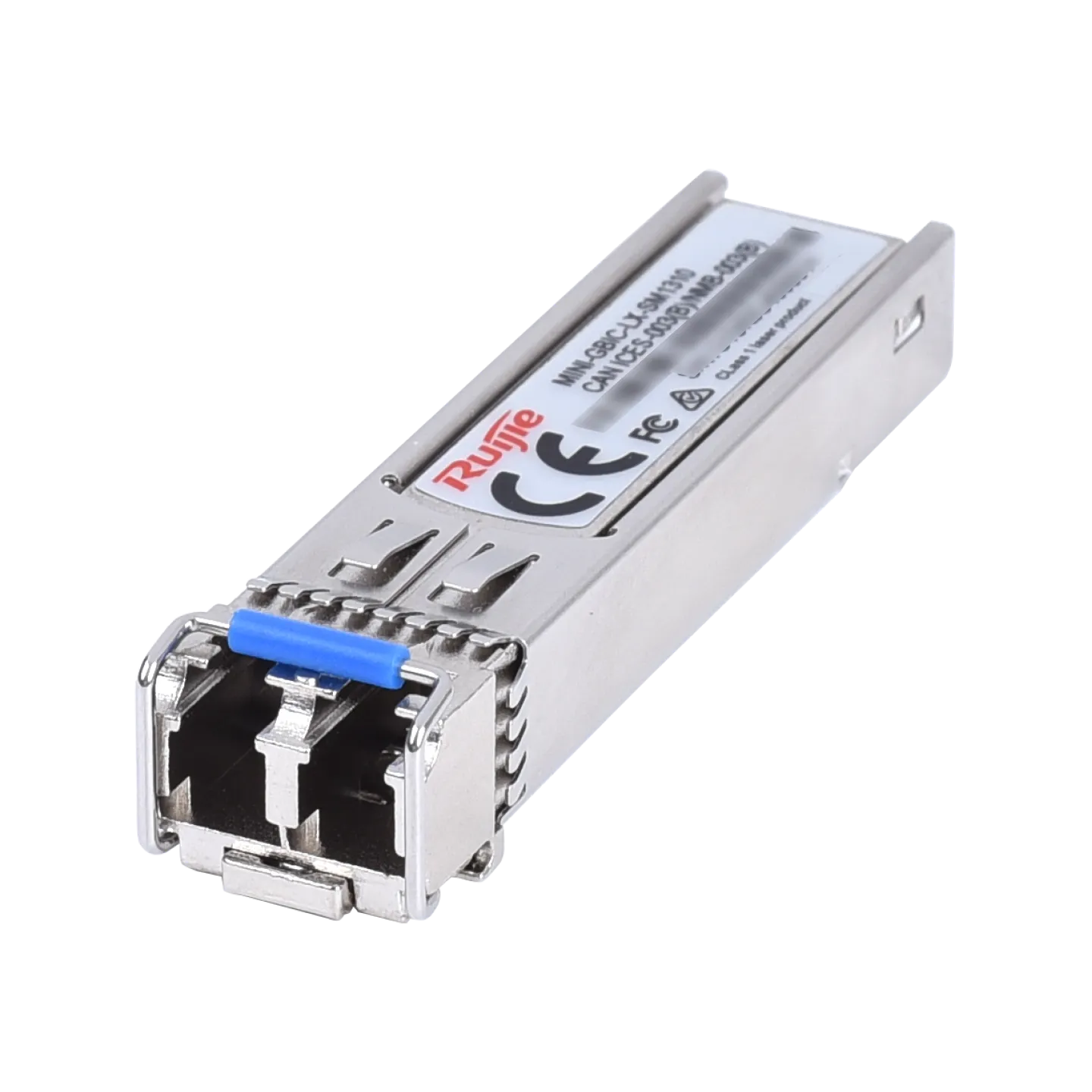

GE-SFP-LX-SM1310 Optical Transceiver, 1.25G 1310nm 10km
Stok 25
Highlight Features:• 1000BASE-LX SFP Transceiver (Single Mode, 1310nm).• Supports up to 10km transmission over single-mode fiber.• Standard fiber module for reliable gigabit connectivity.• Robust design for industrial and enterprise applications.
Ruijie MINI-GBIC-LX: Standar Emas Koneksi Fiber 10 KM
Modul MINI-GBIC-LX adalah solusi paling populer untuk konektivitas Gigabit jarak menengah. Dirancang untuk kabel Single-Mode, transceiver ini memberikan jangkauan hingga 10 kilometer, sangat pas untuk menghubungkan gedung-gedung dalam satu kompleks atau area kampus.
Fitur Utama:
- Jarak Standar 10KM: Memberikan cakupan yang luas untuk sebagian besar kebutuhan infrastruktur perusahaan.
- Instalasi Instan: Desain hot-swappable memungkinkan pemasangan dan penggantian tanpa mengganggu operasional jaringan.
- Durabilitas Tinggi: Dibuat dengan standar Ruijie untuk menjamin umur pakai komponen yang panjang di berbagai kondisi suhu.
| brands |
|---|
Technical Specifications
| Module Type | 1000BASE-LX SFP |
| Wavelength | 1310nm |
| Media Type | Single Mode Fiber (SMF) |
| Max Distance | 10 km |
| Data Rate | 1.25 Gbps |
| Connector | Duplex LC |
| TX Power | -9.5 ~ -3 dBm |
| RX Sensitivity | < -20 dBm |
| Saturation | -3 dBm |
| Laser Type | FP Laser |
| Supply Voltage | 3.3V |
| Operating Temp | 0°C to 70°C |
| Storage Temp | -40°C to 85°C |
| DDM Support | Yes |
| Hot Swappable | Yes |
| Power Consumption | < 0.8W |
| Extinction Ratio | > 9 dB |
| Fiber Diameter | 9/125μm |
| Link Budget | 10.5 dB |
| Safety | Class 1 Laser |
| Standards | IEEE 802.3z, SFP MSA |
| Housing | Metallic Shell |
| RoHS | Compliant |
| MTBF | > 1,000,000 hours |
| Certification | CE, FCC |
| Dimensions | Standard SFP |
| Weight | 0.02 kg |
| Humidity | 5% to 95% |
| Interface Type | SFP |
| Warranty | 3 Years |
