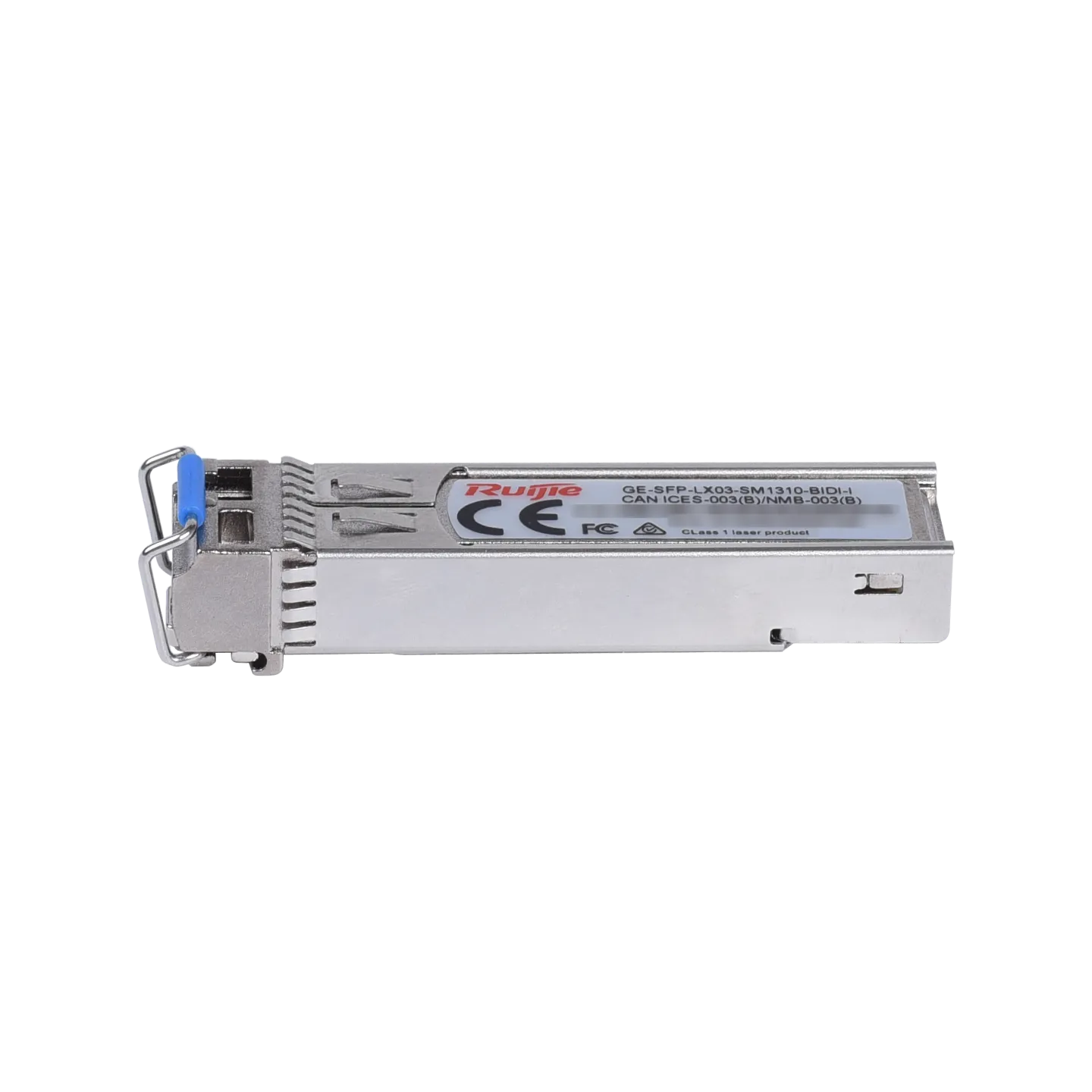

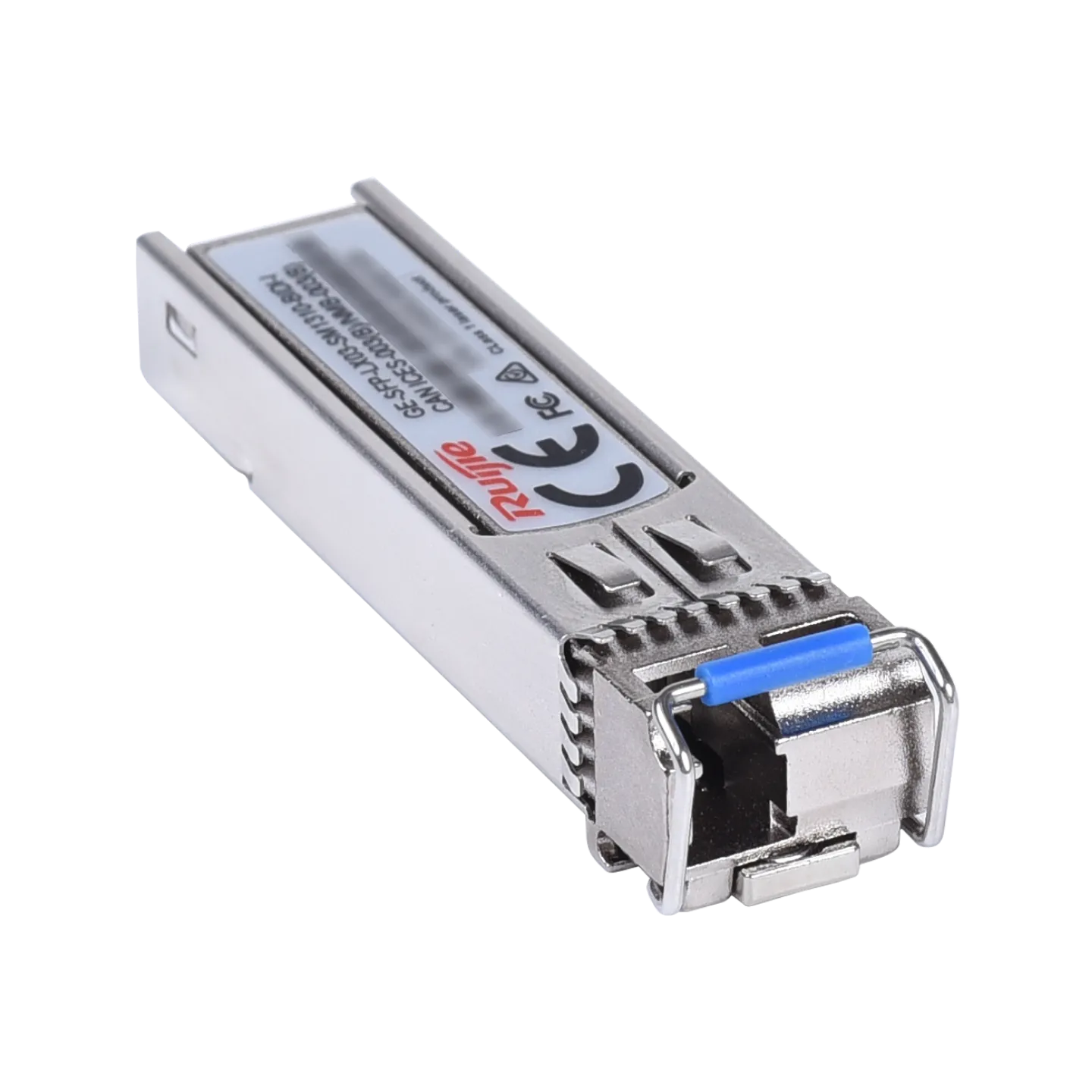

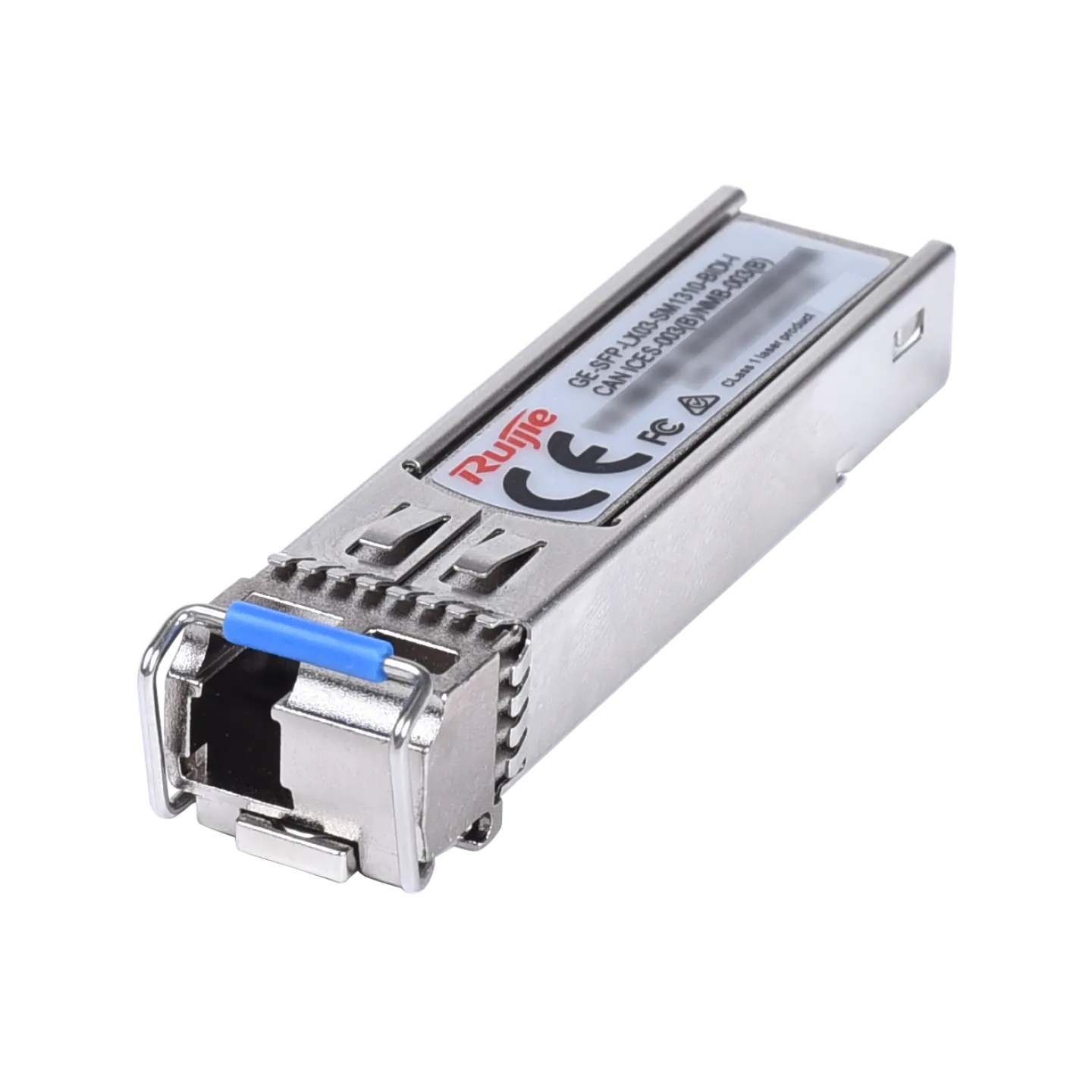

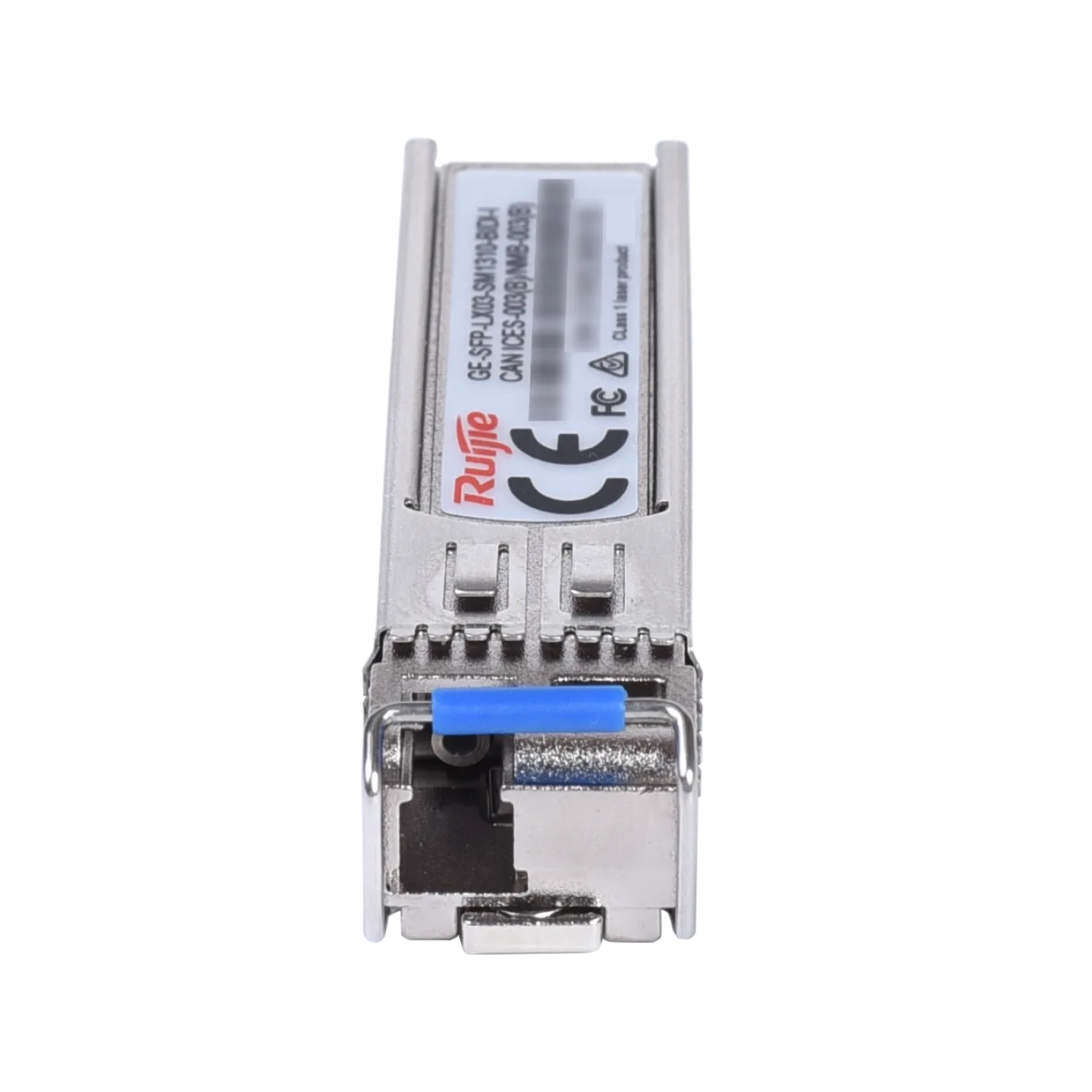

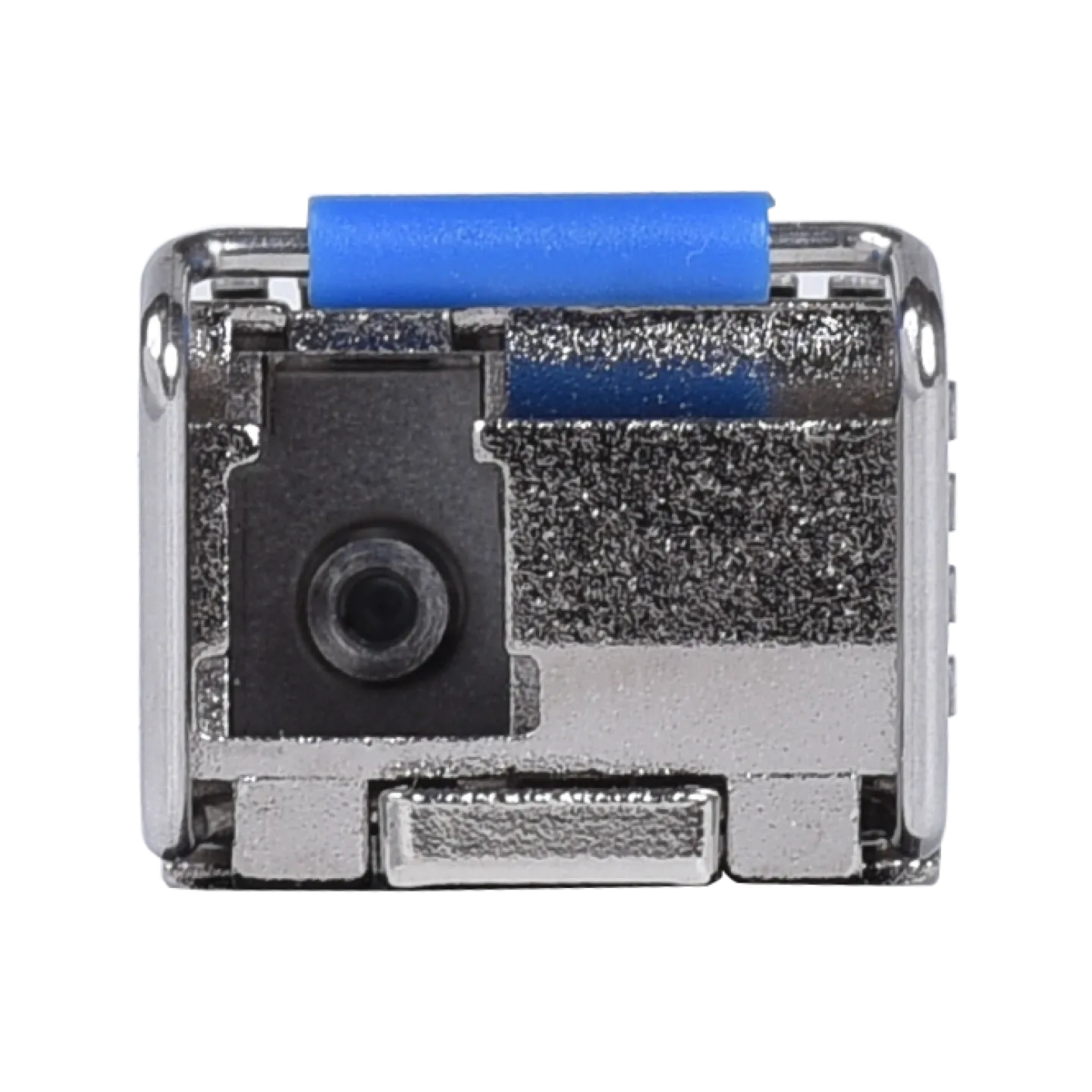

GE-SFP-LX03-SM1310-BIDI-I 1.25G 1310nm 3km (Industrial)
Stok 25
Highlight Features:• Gigabit BIDI SFP Transceiver (Single Mode, 1310nm).• 3km transmission over a single fiber strand.• Optimized for industrial outdoor switch deployments.• Pairs with 1550nm BIDI for full-duplex communication.
Ruijie GE-SFP-LX03-BIDI (1310nm): Solusi Fiber Satu Inti Kelas Industri
Optimalkan infrastruktur fiber optik Anda dengan modul transceiver BIDI (Bi-Directional) kelas industri. Modul ini memungkinkan transmisi data Gigabit dua arah hanya melalui satu helai core fiber, memberikan efisiensi biaya hingga 50% untuk penarikan kabel jarak dekat hingga 3km.
Keunggulan Utama:
- Efisiensi Kabel Maksimal: Menggunakan hanya satu core fiber untuk kirim dan terima data, menghemat ruang di panel distribusi.
- Standar Industri: Dirancang untuk bekerja stabil pada lingkungan dengan suhu yang fluktuatif, ideal untuk instalasi luar ruangan atau pabrik.
- Panjang Gelombang 1310nm: Memberikan kualitas sinyal yang konsisten dan handal untuk koneksi antar gedung.
- Plug & Play: Pemasangan instan tanpa konfigurasi rumit pada semua perangkat Ruijie/Reyee.
| brands |
|---|
Technical Specifications
| Module Type | Industrial BiDi SFP Transceiver |
| Wavelength | TX 1310nm / RX 1550nm |
| Media Type | Single Mode Fiber (SMF) |
| Max Distance | 3 km |
| Data Rate | 1.25 Gbps |
| Operating Temp | -40°C to 85°C (Industrial Grade) |
| Connector | Simplex LC |
| TX Power | -10 ~ -3 dBm |
| RX Sensitivity | < -22 dBm |
| Saturation | -3 dBm |
| Laser Type | FP Laser |
| Supply Voltage | 3.3V |
| DDM/DOM | Supported |
| Hot Swappable | Yes |
| Power Consumption | < 1W |
| Extinction Ratio | > 9 dB |
| Fiber Diameter | 9/125μm |
| Compliance | IEEE 802.3z, SFP MSA |
| Safety | Class 1 Laser Safety |
| EMI/EMC | FCC Class B, CE |
| RoHS | Compliant |
| MTBF | > 1,000,000 hours |
| Application | Outdoor Switching, Industrial Automation |
| Storage Temp | -40°C to 85°C |
| ESD Protection | 6KV Contact / 8KV Air |
| Weight | 0.02 kg |
| Housing | Zinc Alloy for EMI Shielding |
| Interface | SFP |
| Mating Cycles | > 500 times |
| Warranty | 3 Years |
