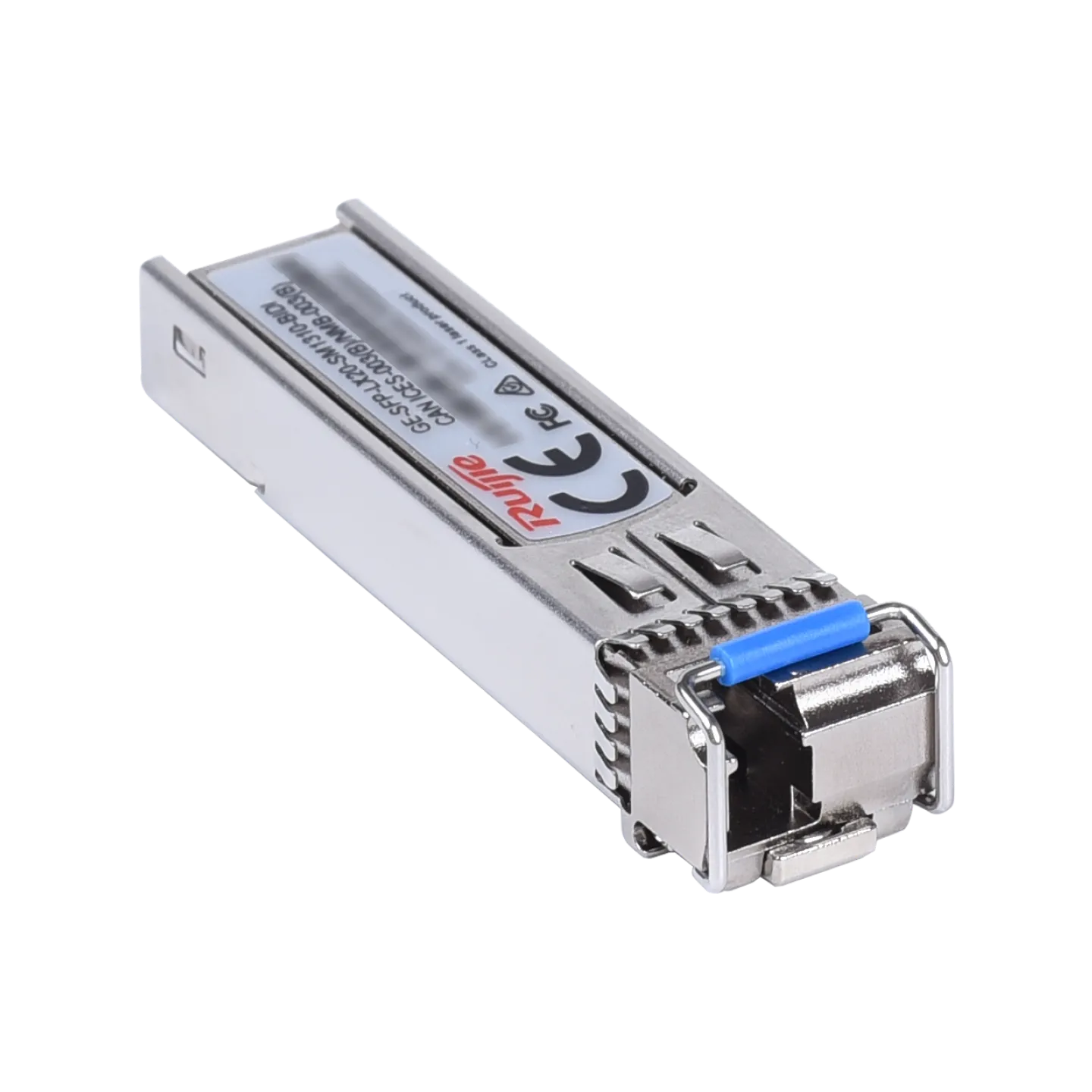

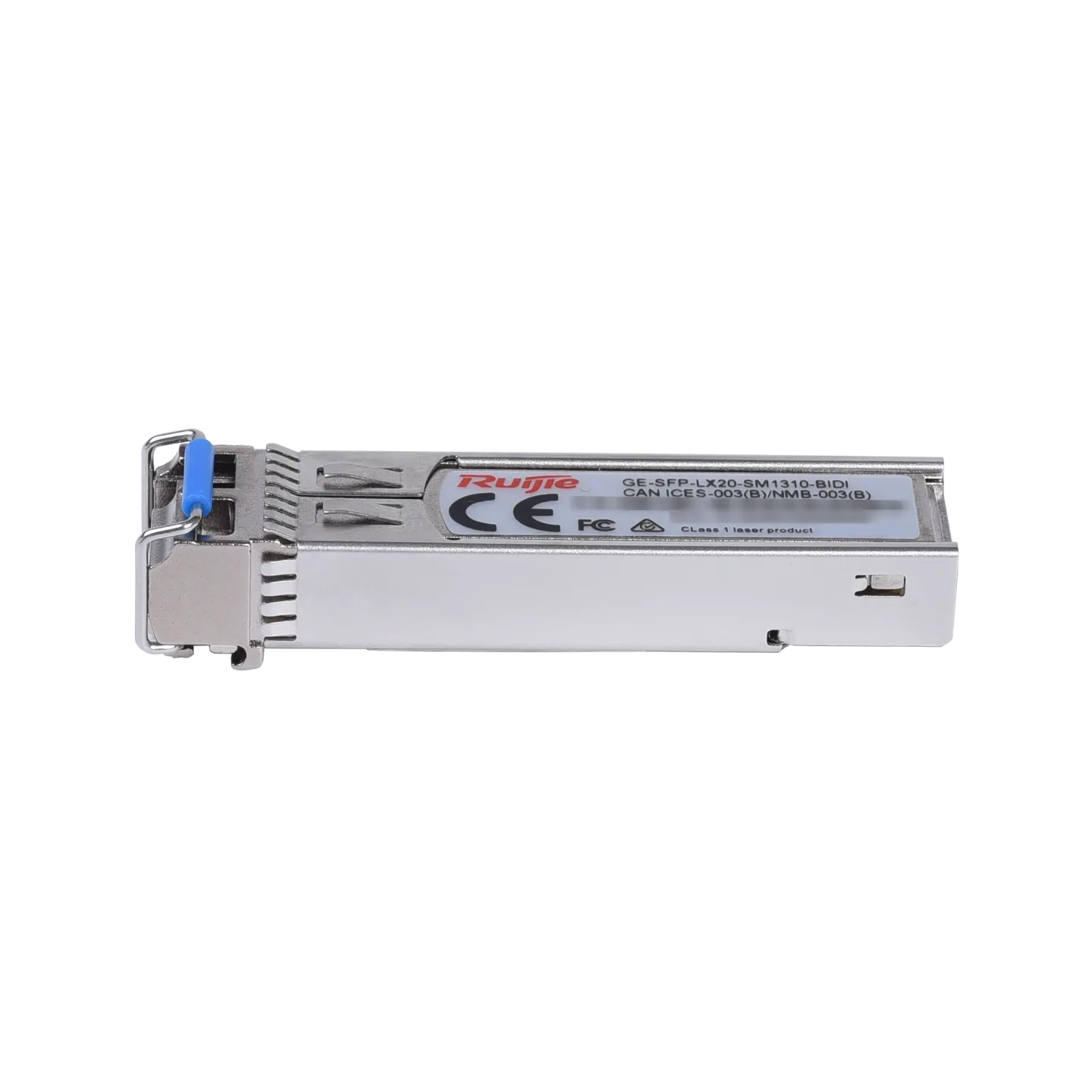

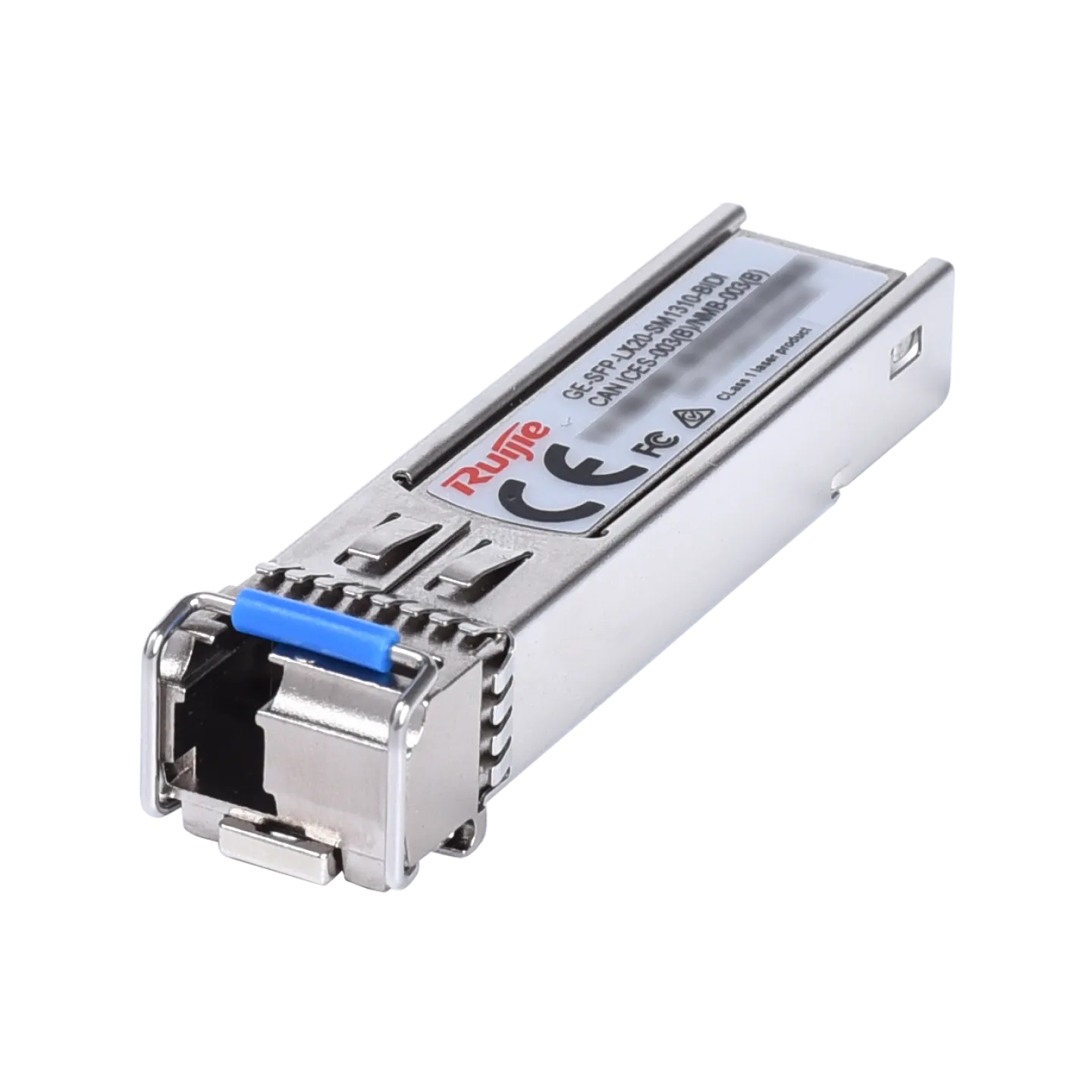

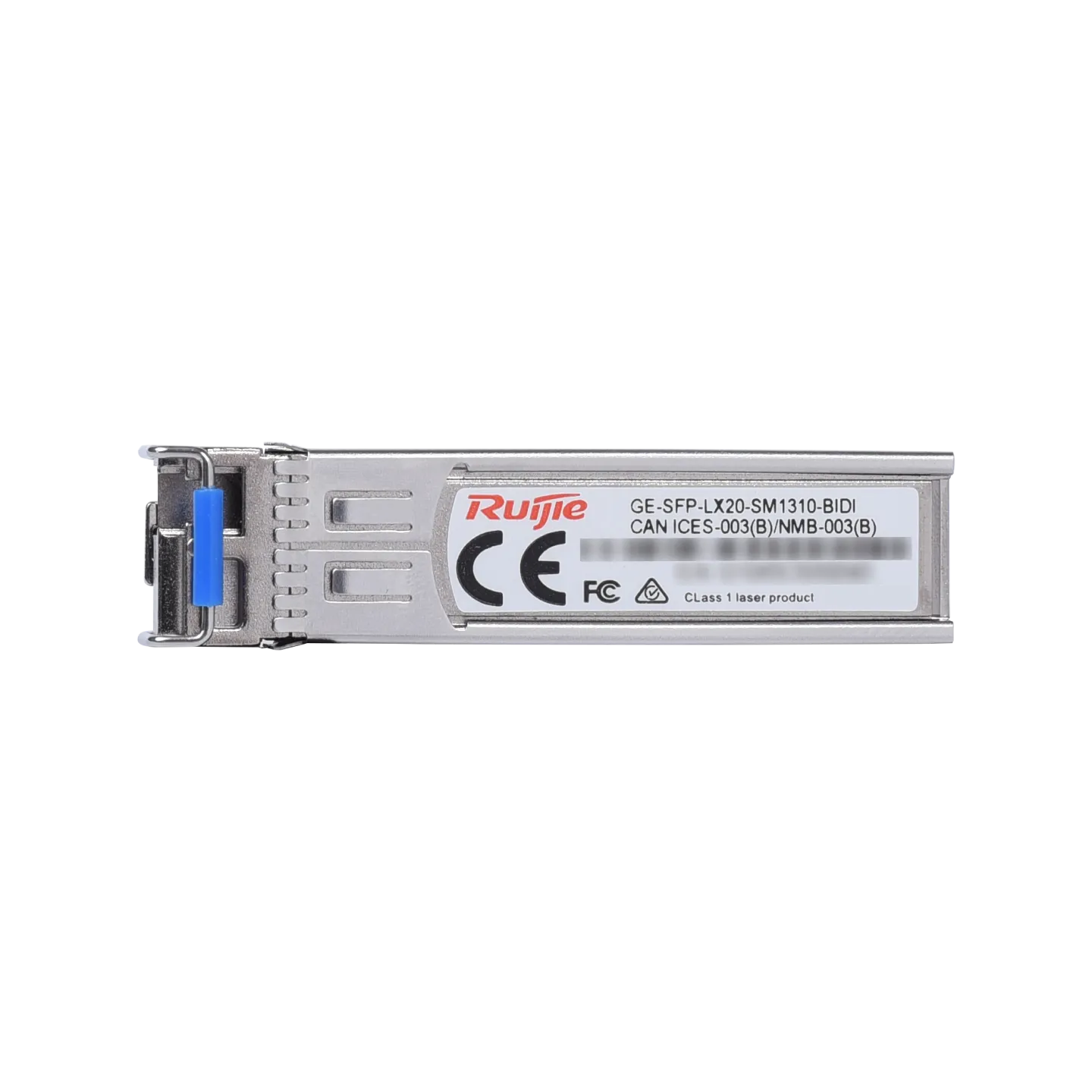

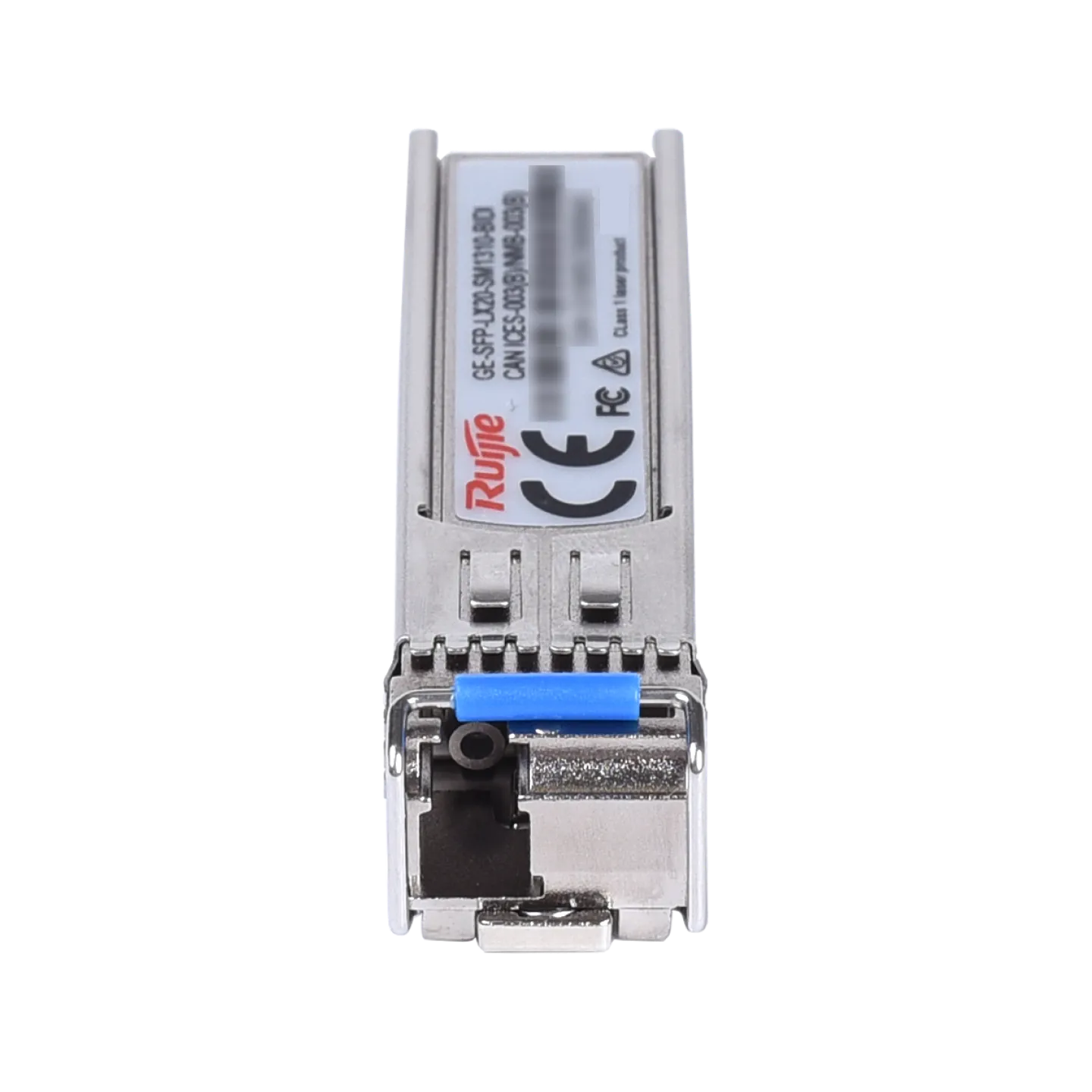

GE-SFP-LX20-SM1310-BIDI Optical Transceiver, 1.25G 1310nm 20km
Stok 25
Highlight Features:• 1000BASE-LX BIDI SFP Transceiver (Single Mode, 1310nm).• Supports up to 20km transmission over a single fiber strand.• Cost-effective solution for long-range point-to-point links.• Hot-pluggable with Digital Diagnostic Monitoring (DDM).
Ruijie GE-SFP-LX20-BIDI: Efisiensi Fiber Satu Inti hingga 20KM
Optimalkan penggunaan kabel fiber optik Anda dengan teknologi Bi-Directional (BIDI). Modul ini memungkinkan transmisi data Gigabit dua arah hanya melalui satu helai core fiber Single-Mode, menghemat biaya pengabelan hingga 50% untuk jarak hingga 20 kilometer.
Keunggulan Utama:
- Satu Kabel, Dua Arah: Mengurangi kebutuhan core fiber, sangat menghemat biaya instalasi jaringan luar ruangan.
- Jangkauan 20 KM: Solusi handal untuk menghubungkan kantor cabang atau area publik yang berjauhan.
- Transmisi Stabil: Menggunakan panjang gelombang 1310nm untuk memastikan kualitas data yang konsisten.
| brands |
|---|
Technical Specifications
| Type | SFP BiDi Transceiver |
| Wavelength | TX 1310nm / RX 1550nm |
| Media Type | Single Mode Fiber (SMF) |
| Max Distance | 20 km |
| Data Rate | 1.25 Gbps |
| Connector | Simplex LC |
| TX Power | -9 ~ -3 dBm |
| RX Sensitivity | < -22 dBm |
| Saturation | -3 dBm |
| Operating Temp | 0°C to 70°C |
| Hot Swappable | Yes |
| DDM/DOM | Supported |
| Supply Voltage | 3.3V |
| Power Consumption | < 1W |
| Laser Type | FP Laser |
| Receiver Type | PIN-TIA |
| Compliance | IEEE 802.3z, SFP MSA |
| Extinction Ratio | > 9 dB |
| Storage Temp | -40°C to 85°C |
| Fiber Diameter | 9/125μm |
| Weight | 0.02 kg |
| Safety | Class 1 Laser Safety |
| EMI/EMC | FCC, CE |
| RoHS | Compliant |
| Application | FTTH, Gigabit Ethernet |
| MTBF | > 1,000,000 hours |
| Link Budget | 13 dB |
| Reliability | Telcordia GR-468 |
| Housing | Metal Shell |
| Warranty | 3 Years |
