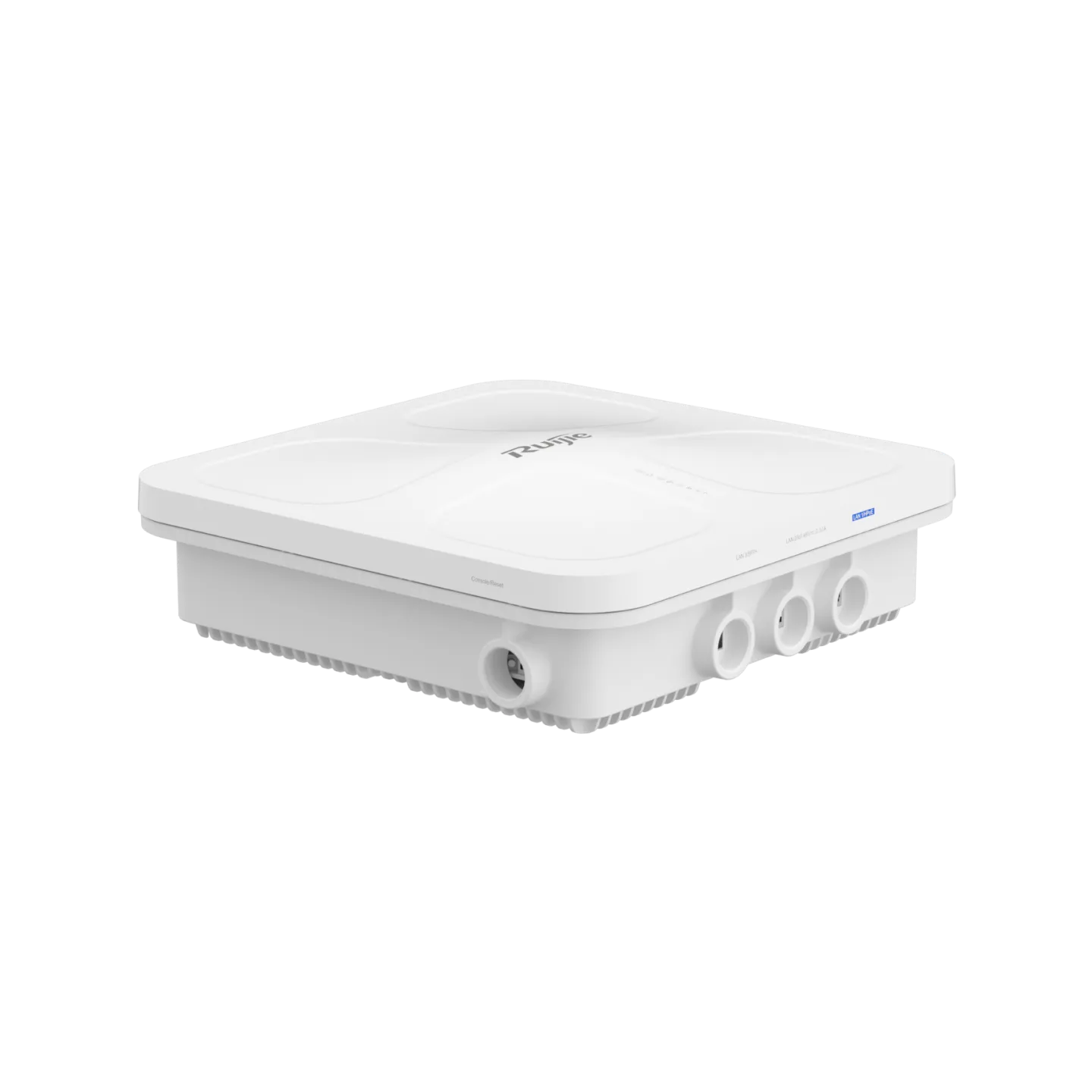

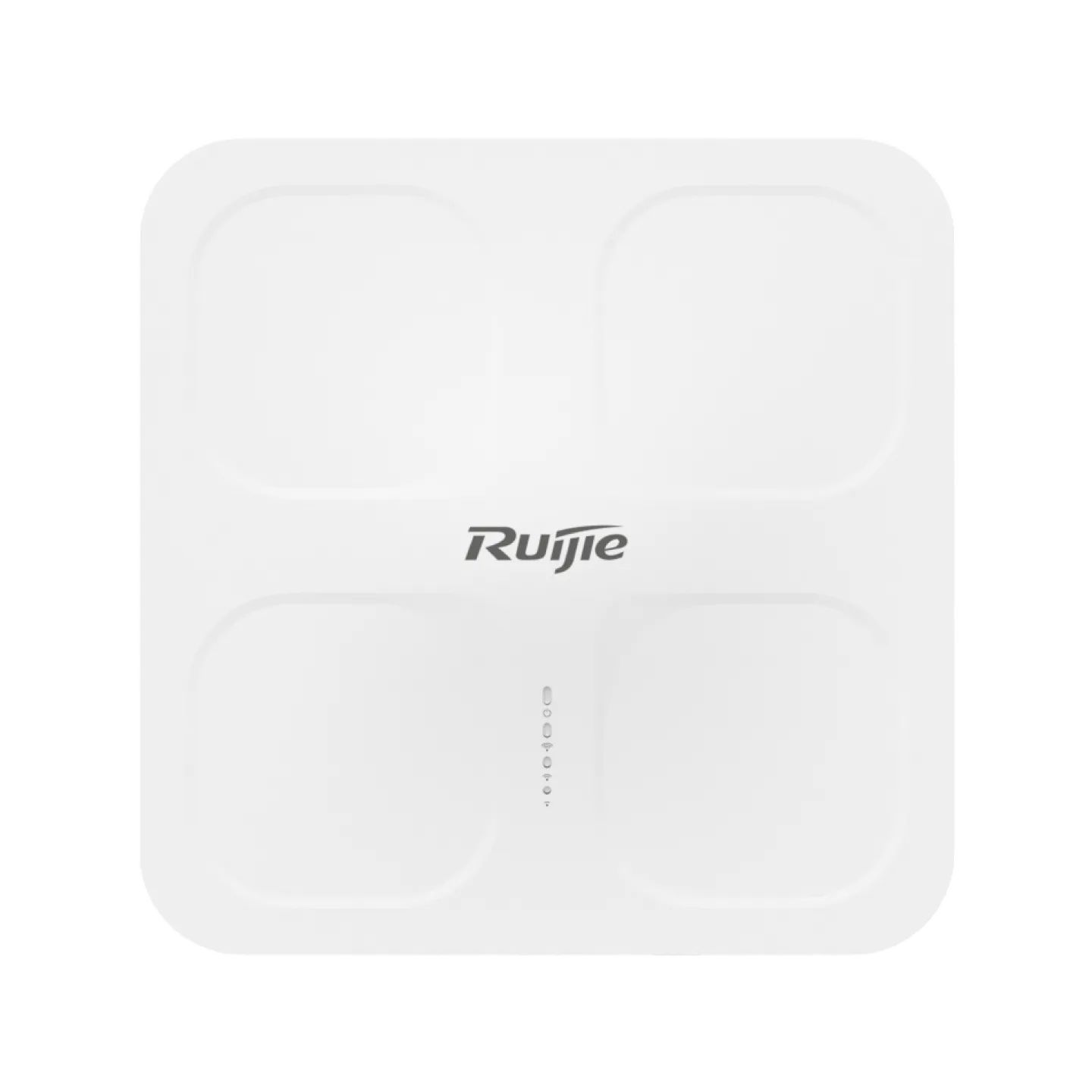

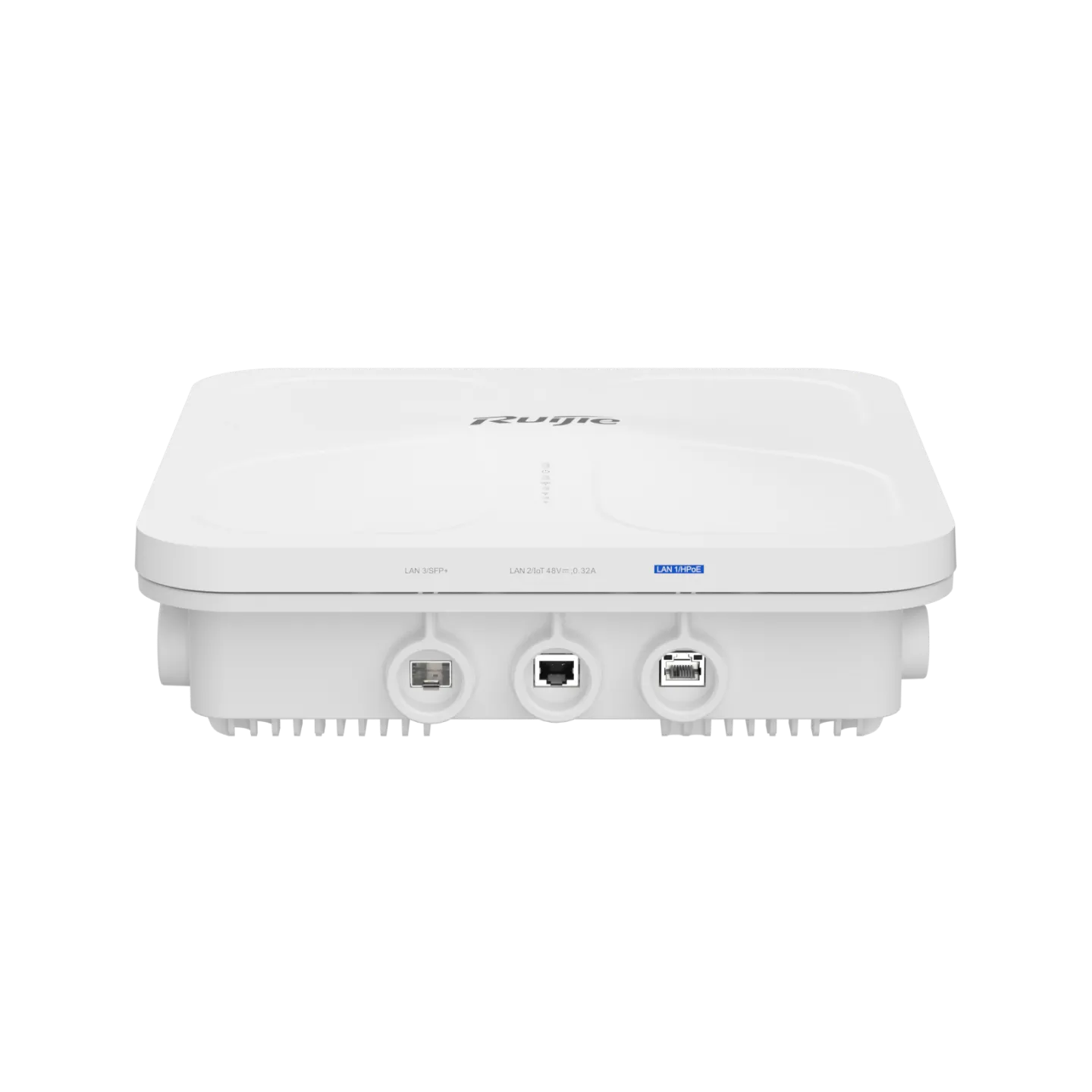

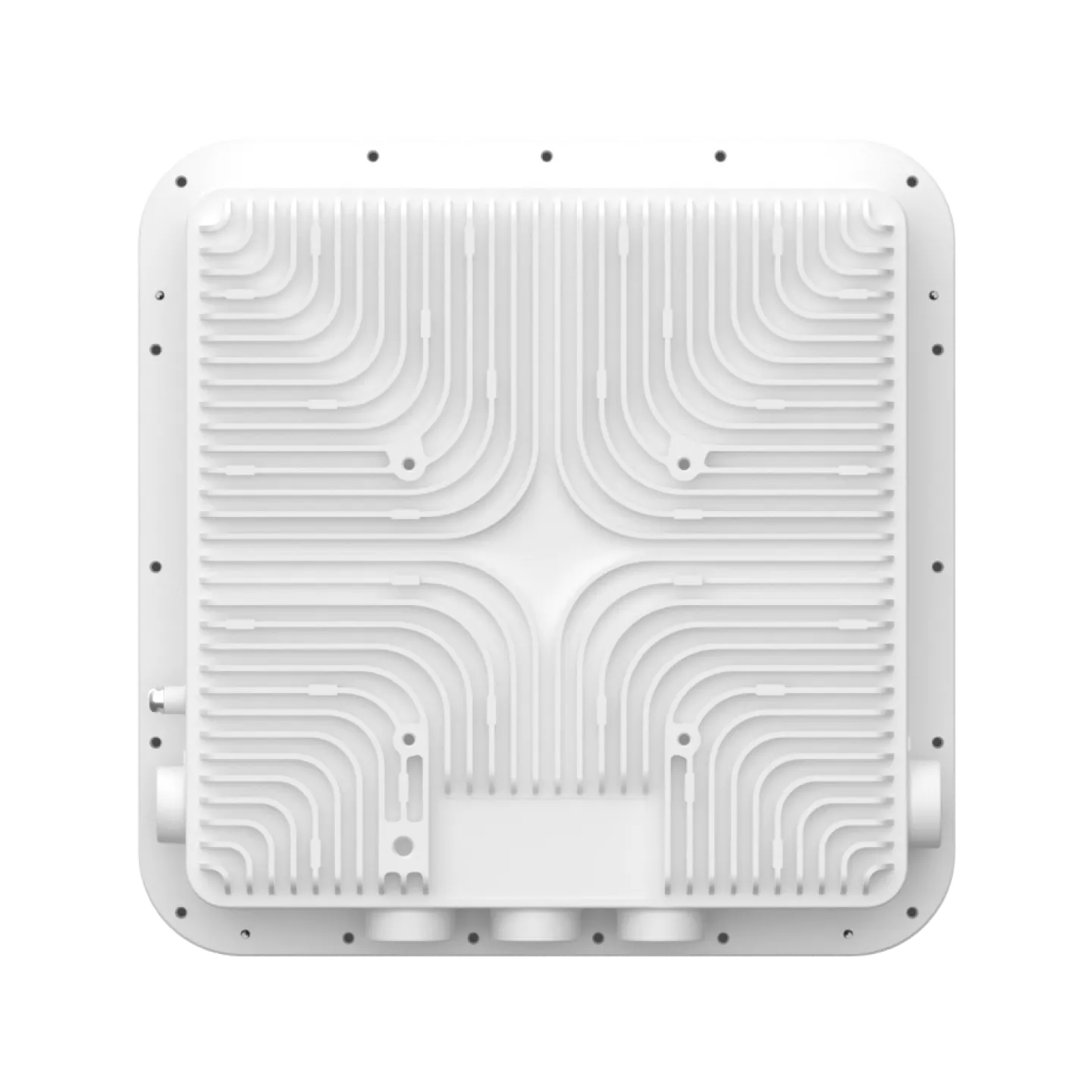

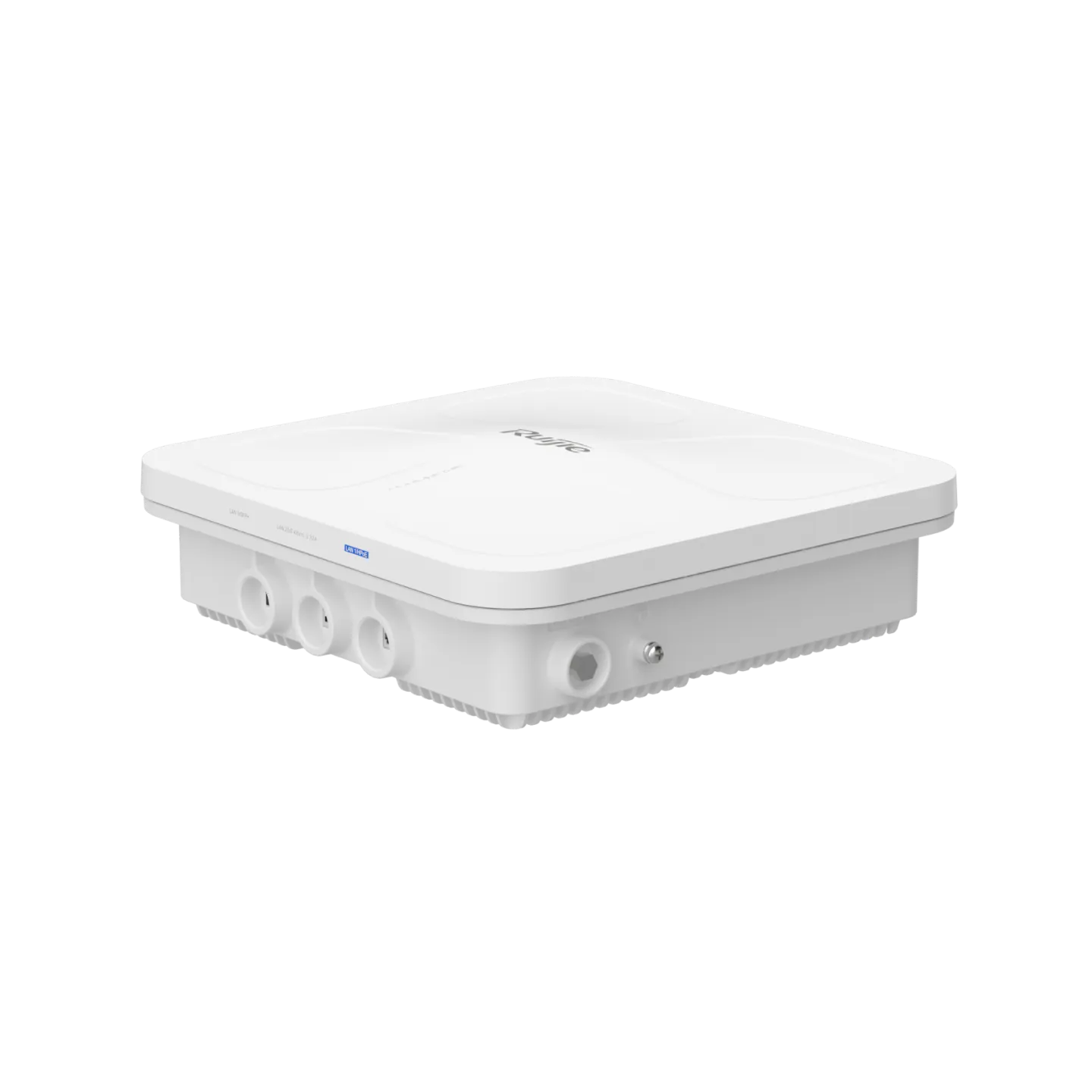

RG-AP680-IO Wi-Fi 6 Outdoor Access Point, External Antenna Support
Stok 25
Highlight Features:• Industrial Wi-Fi 6 Outdoor AP with external antenna support.• IP68-rated and -40°C to 65°C operating range.• Integrated 6KV lightning protection for safety.• Supports high-power mesh for wide-area coverage.
Ruijie RG-AP680-IO: Access Point Outdoor dengan Fleksibilitas Antena
Hadapi tantangan konektivitas luar ruangan dengan RG-AP680-IO. Access Point Wi-Fi 6 outdoor ini menawarkan fleksibilitas antena (Internal/External) untuk menyesuaikan pola sebaran sinyal sesuai dengan kontur area terbuka Anda, seperti taman kota, pelabuhan, atau area pertambangan.
Kelebihan Utama:
- Sertifikasi IP68: Perlindungan total terhadap debu dan air, menjamin perangkat tetap bekerja meski di bawah cuaca ekstrim.
- Throughput Wi-Fi 6: Memberikan kecepatan internet Gigabit di area terbuka bagi ratusan pengguna secara bersamaan.
- Instalasi PoE yang Praktis: Cukup satu kabel LAN untuk daya dan data, memudahkan pemasangan di tiang tinggi atau dinding luar.
| brands |
|---|
Technical Specifications
| Type | Industrial Outdoor Wi-Fi 6 Access Point |
| Standard | 802.11ax (Wi-Fi 6) |
| Max Throughput | 1775 Mbps (Dual-band) |
| Radio | 2.4 GHz & 5 GHz Dual-radio |
| Antenna | Internal Directional (Horizontal 90°, Vertical 90°) |
| IP Rating | IP68 (Extreme Weatherproof) |
| Operating Temp | -40°C to 70°C |
| Service Port | 1 x 10/100/1000M PoE Port, 1 x SFP Port |
| Surge Protection | 9KV (Industry Leading) |
| Power Supply | 802.3at PoE / DC 12V |
| Power Consumption | < 18W |
| Spatial Streams | 2×2 MU-MIMO |
| Modulation | 1024-QAM |
| BSS Coloring | Supported |
| Security | WPA3-SAE, WIDS/WIPS, ACL |
| Bluetooth | Internal BLE 5.0 for Management |
| Dimensions | 251 x 168 x 64 mm |
| Weight | 2.5 kg |
| Housing | Die-cast Aluminum (Salt-spray resistant) |
| Management | Ruijie Cloud / Wireless Controller / Web |
| Mesh | Reyee Mesh / Cloud Mesh Support |
| Max Clients | 1024 Users |
| Mounting | Pole / Wall Mounting Kit Included |
| Diagnostic | Spectrum Analysis via Cloud |
| Jumbo Frame | Supported |
| MTBF | > 400,000 hours |
| Warranty | 3 Years |
