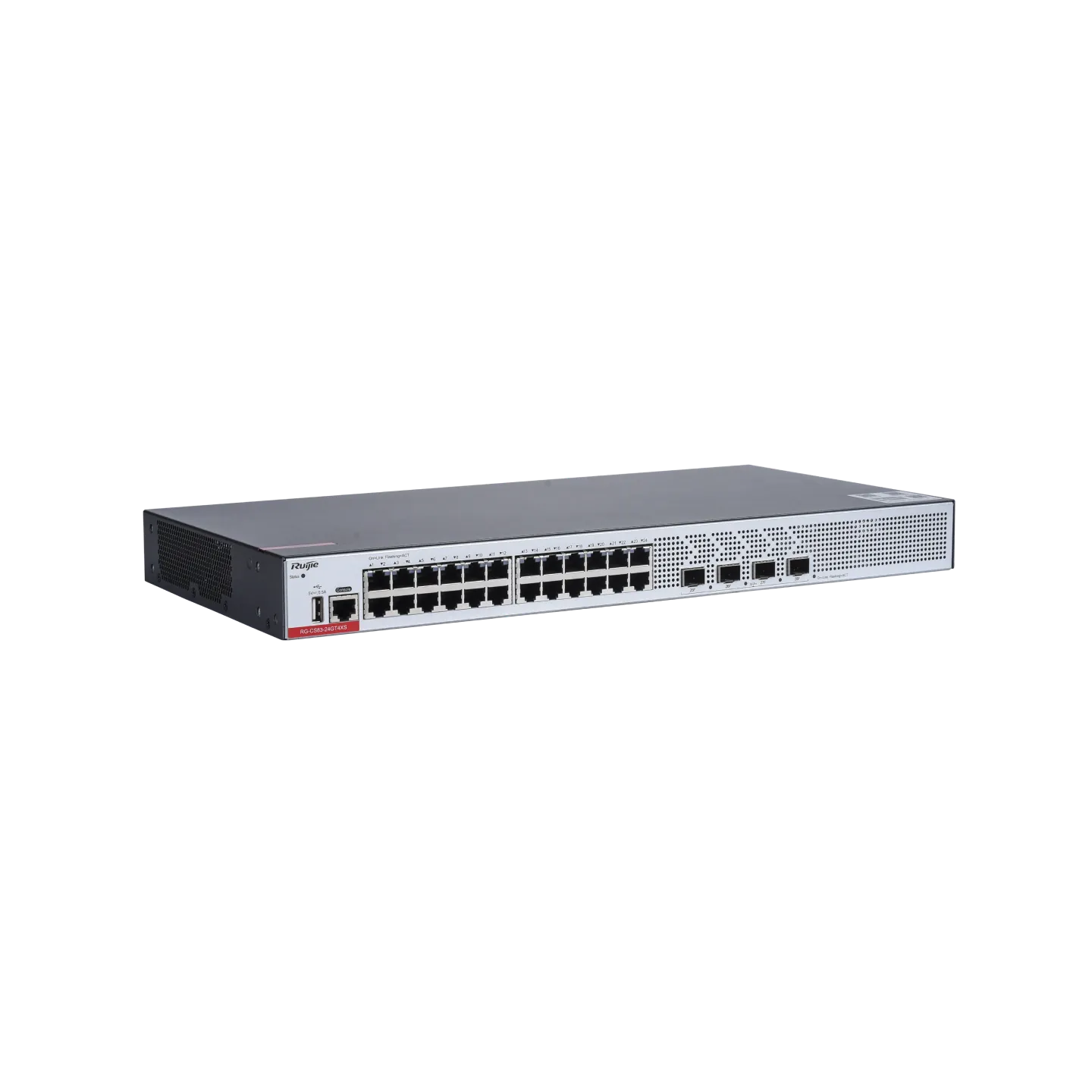

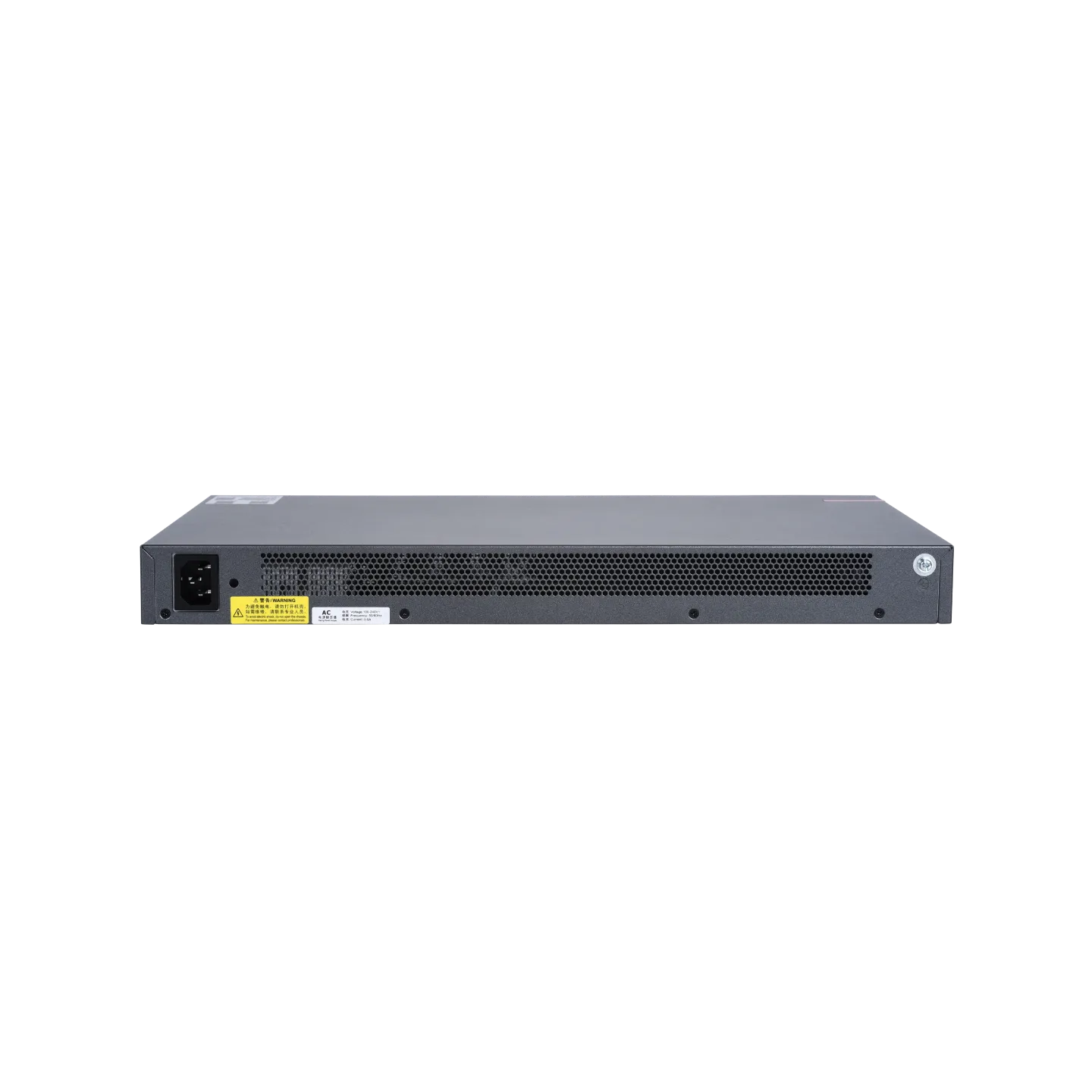

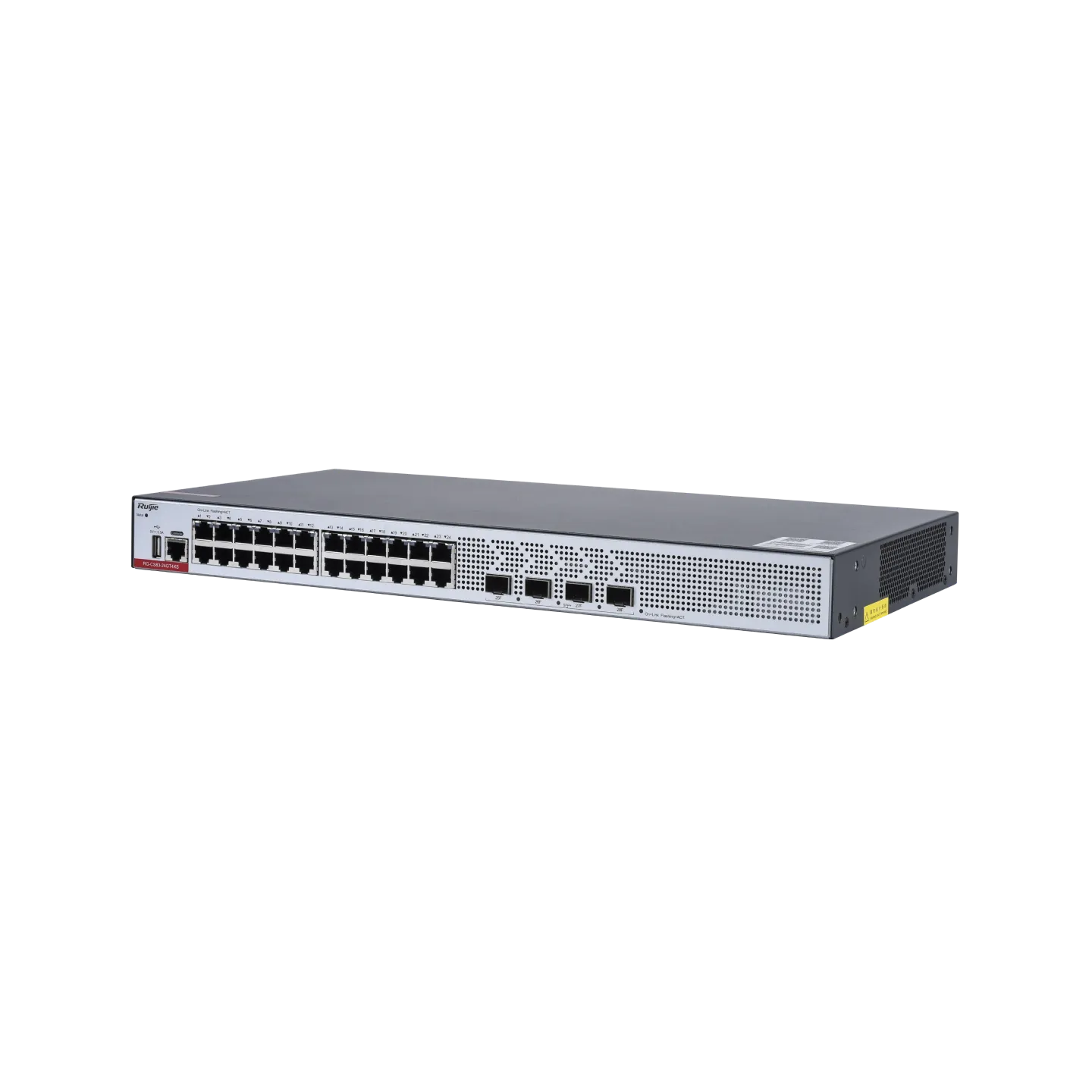

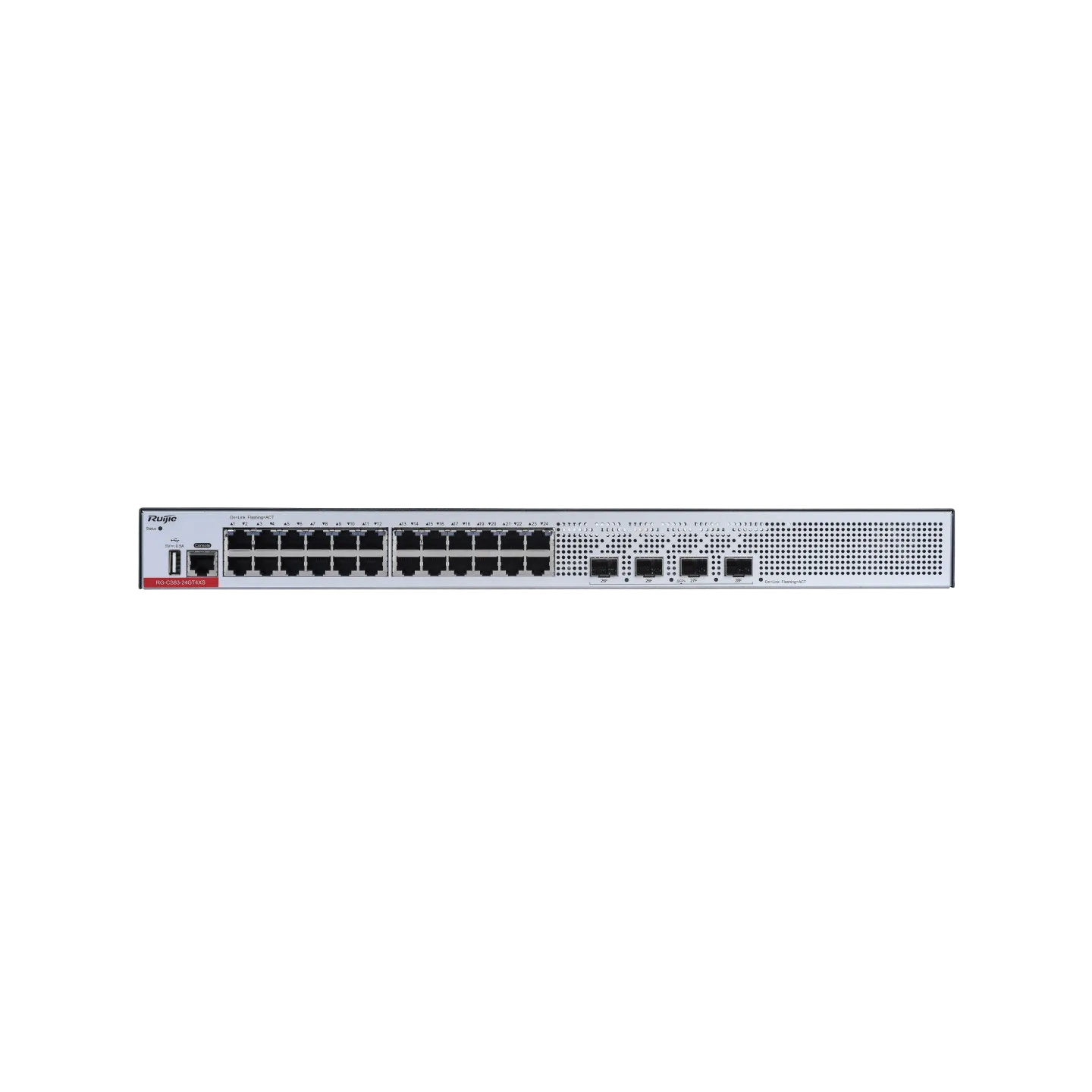

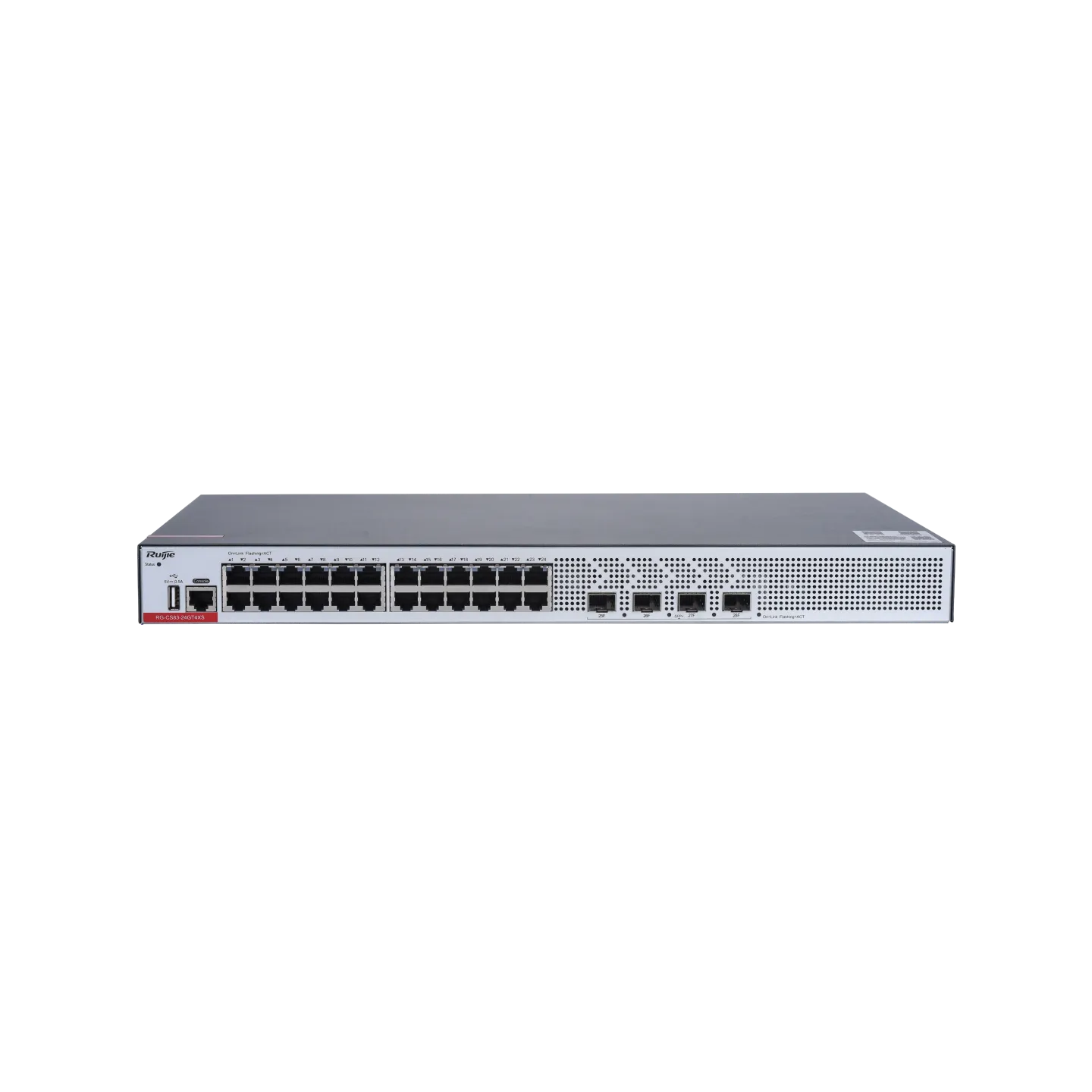

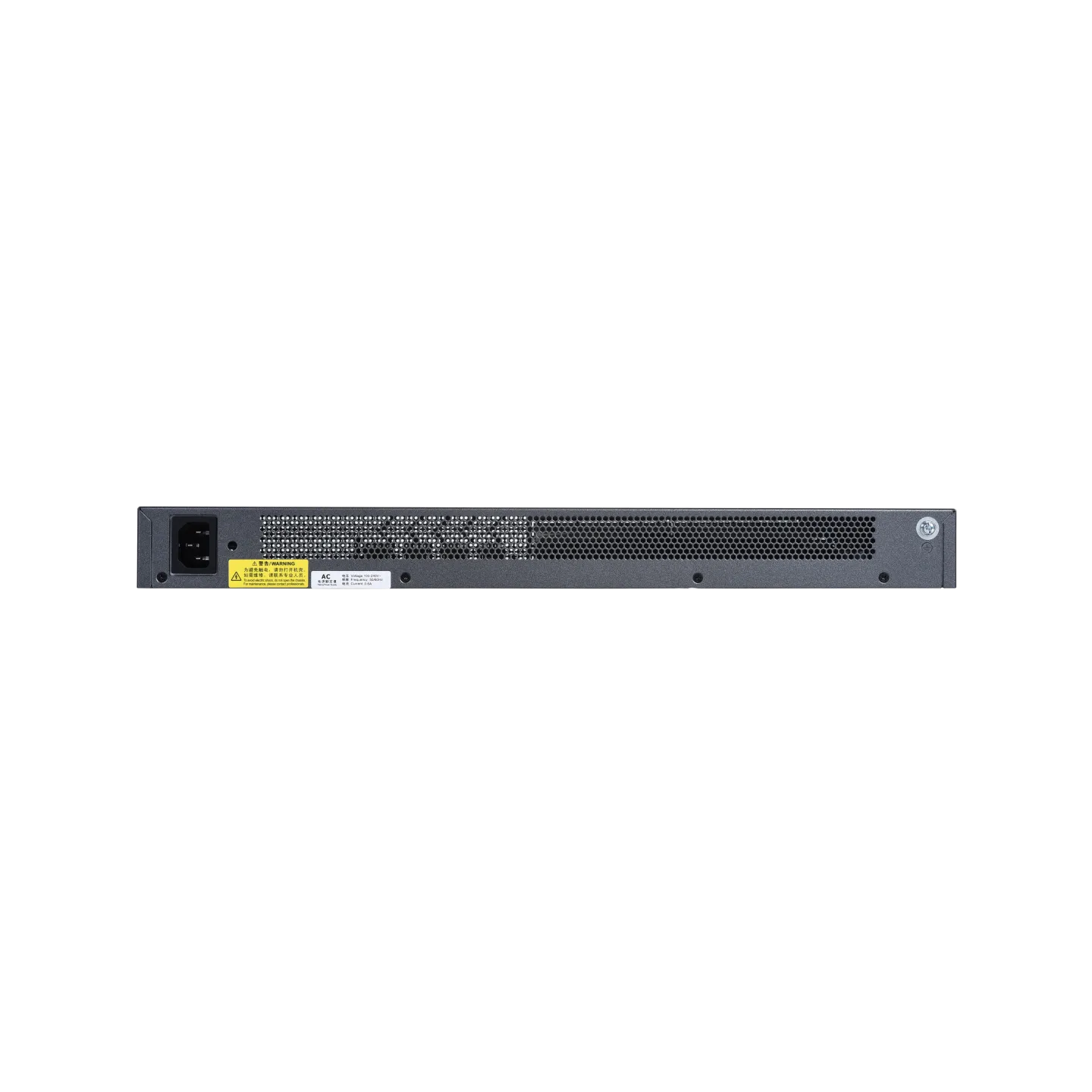

RG-CS83-24GT4XS L3 Managed Switch, 24 x Gigabit, 4 x 10G SFP+
Stok 25
Highlight Features:• 24 x Gigabit RJ45 ports and 4 x 10G SFP+ uplinks.• Advanced L3 features (Static, OSPF, RIP).• VSU stacking for high network resiliency.• Energy-efficient design with smart fan control.
Ruijie RG-CS83-24GT4XS: Switch Akses Gigabit untuk Efisiensi Perkantoran
Bangun infrastruktur jaringan kantor yang stabil dengan RG-CS83-24GT4XS. Dengan 24 port Gigabit dan 4 uplink 10G, switch ini memberikan keseimbangan antara kapasitas port fisik yang banyak dan kecepatan transmisi data tingkat tinggi untuk kebutuhan bisnis harian.
Manfaat Strategis:
- Konektivitas Gigabit Murni: Menjamin transfer file dan akses aplikasi cloud antar karyawan berjalan tanpa lag.
- Virtual Switch Unit (VSU): Memungkinkan manajemen beberapa switch sebagai satu kesatuan untuk redundansi jalur.
- Hemat Energi: Desain sirkuit yang efisien untuk menekan biaya operasional listrik kantor Anda.
| brands |
|---|
Technical Specifications
| Type | L3 Managed Gigabit Switch |
| Fixed Ports | 24 x 10/100/1000Base-T Ports |
| Uplink Ports | 4 x 10G SFP+ Slots |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address | 16K Entries |
| L3 Features | OSPF, BGP, ISIS, Static Route |
| Virtualization | VSU Stacking Support |
| Management | Web GUI, CLI, Cloud, RMON |
| Packet Buffer | 1.5 MB |
| VLAN | Voice, Super, Private, 802.1Q |
| ACL | Time-based ACL, Standard, Extended |
| Security | DAI, Port Security, Anti-DDoS |
| QoS | 8 Queues per port, SP, WRR |
| Power Supply | Built-in AC 100-240V |
| Power Consumption | < 30W |
| Dimensions | 440 x 200 x 44 mm (1U) |
| Weight | 3.0 kg |
| Operating Temp | 0°C to 50°C |
| Storage Temp | -40°C to 70°C |
| Surge Protection | 10KV |
| Housing | Full Metal Shell |
| Cooling | Fanless Design (Silent) |
| Energy Saving | IEEE 802.3az |
| IPv6 | Dual Stack Support |
| Multicast | IGMP v1/v2/v3, PIM-SM |
| Certification | CE, RoHS, FCC |
| Warranty | 3 Years |
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
