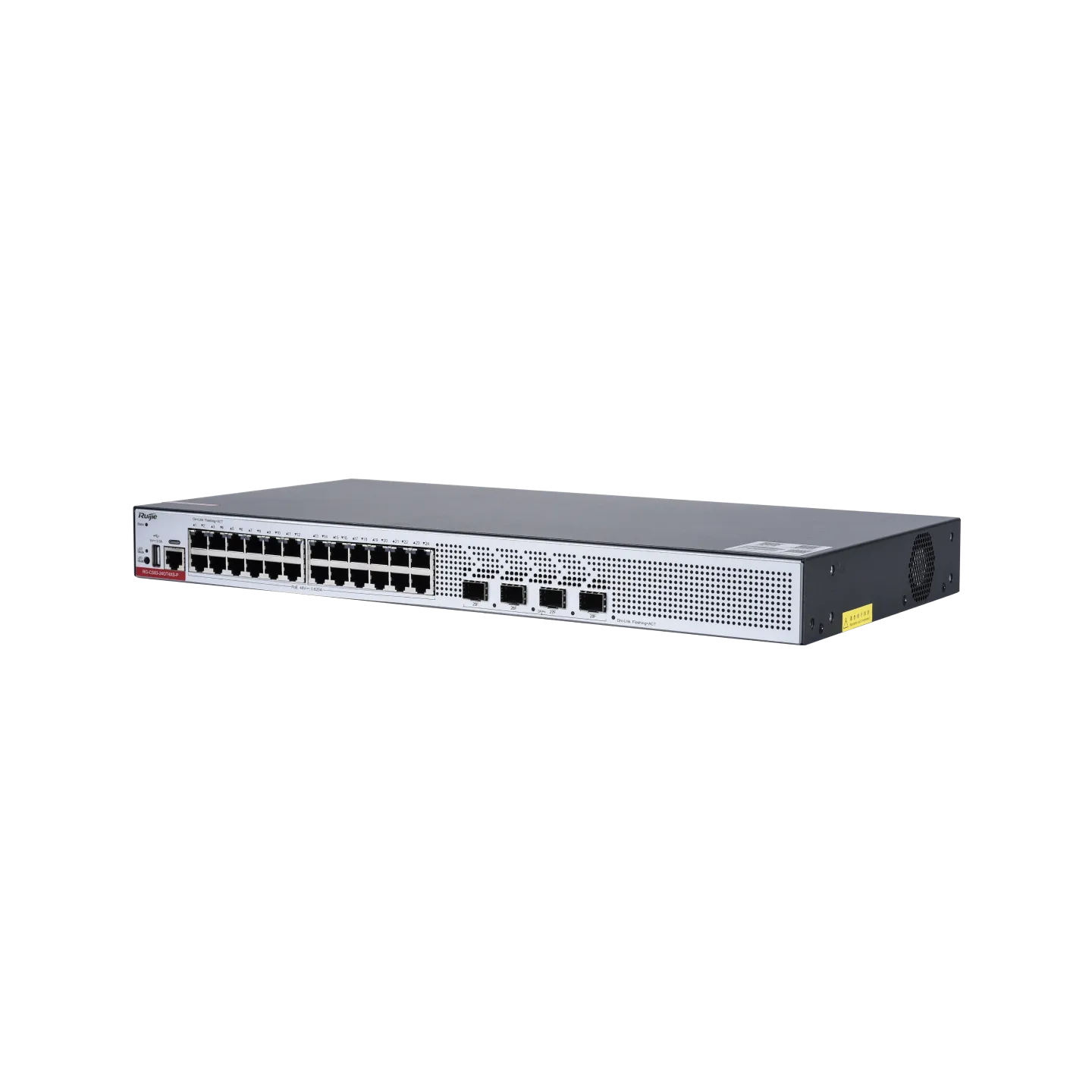

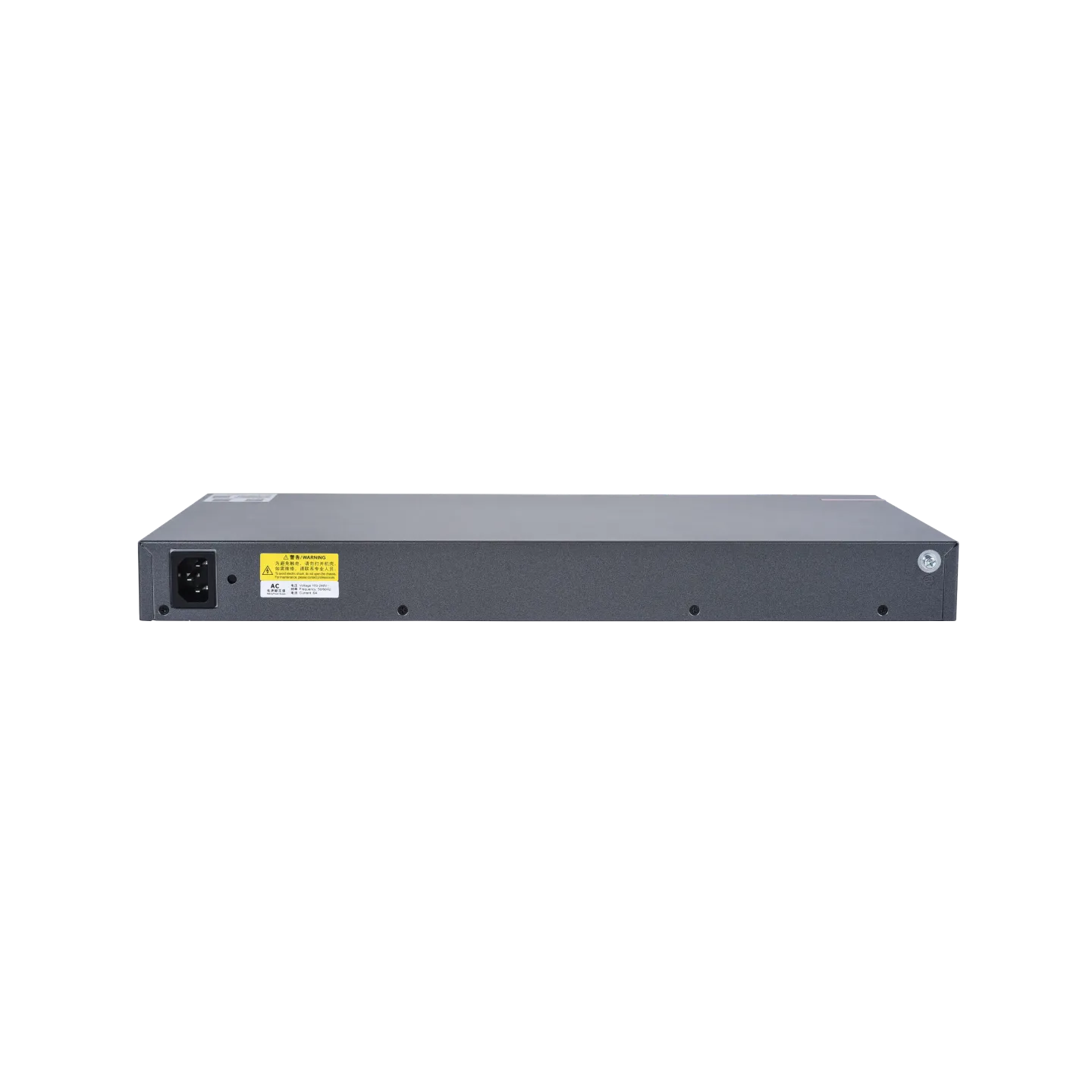

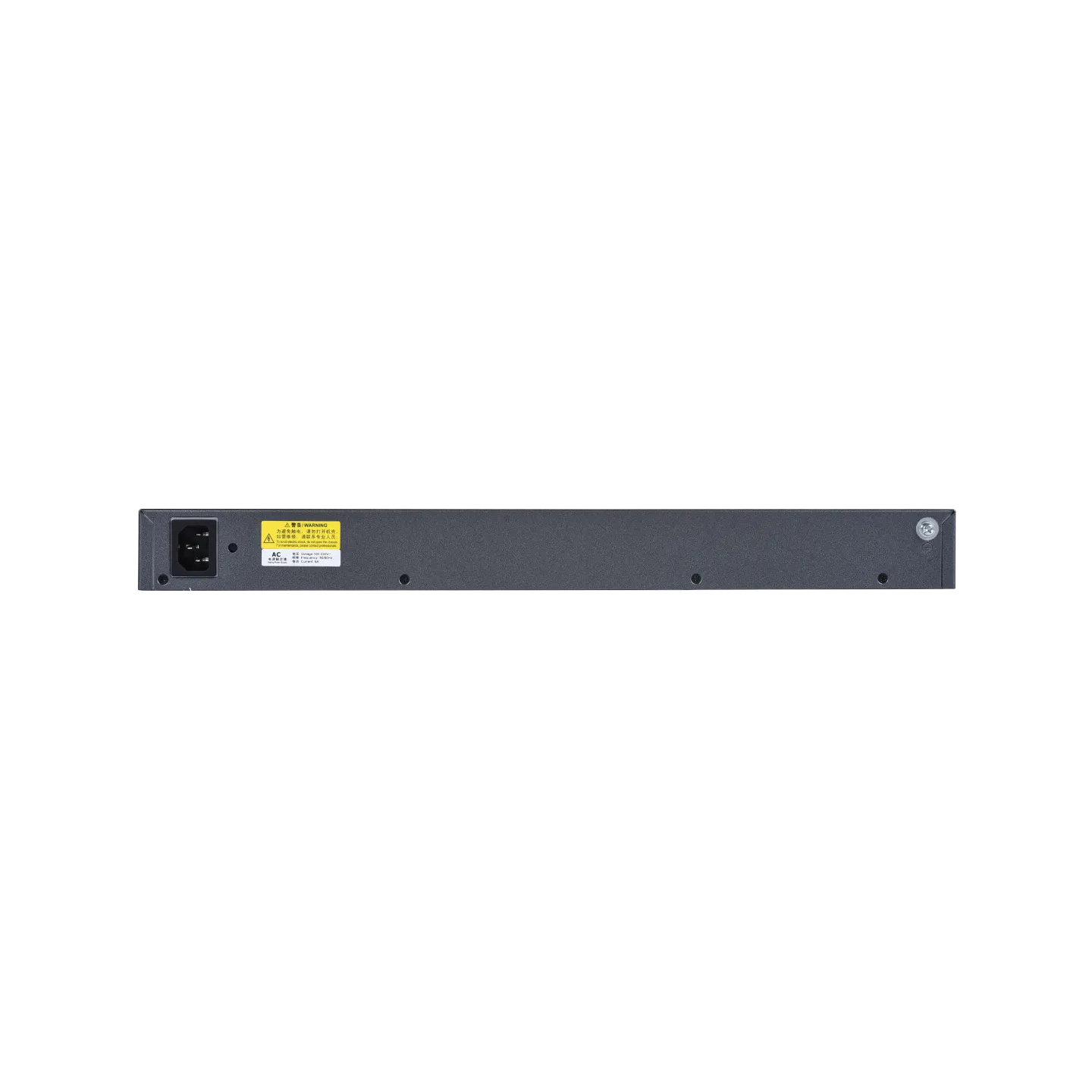

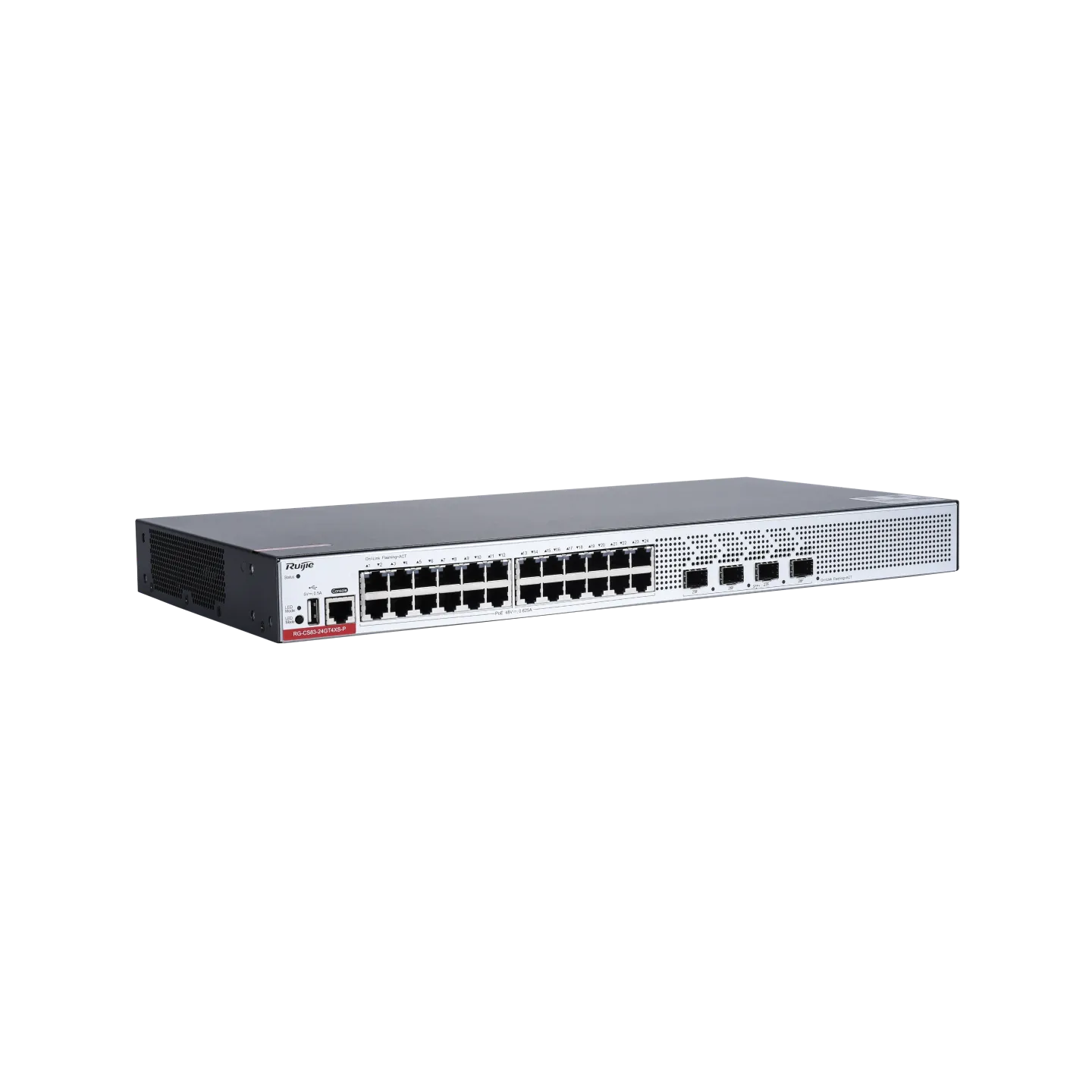

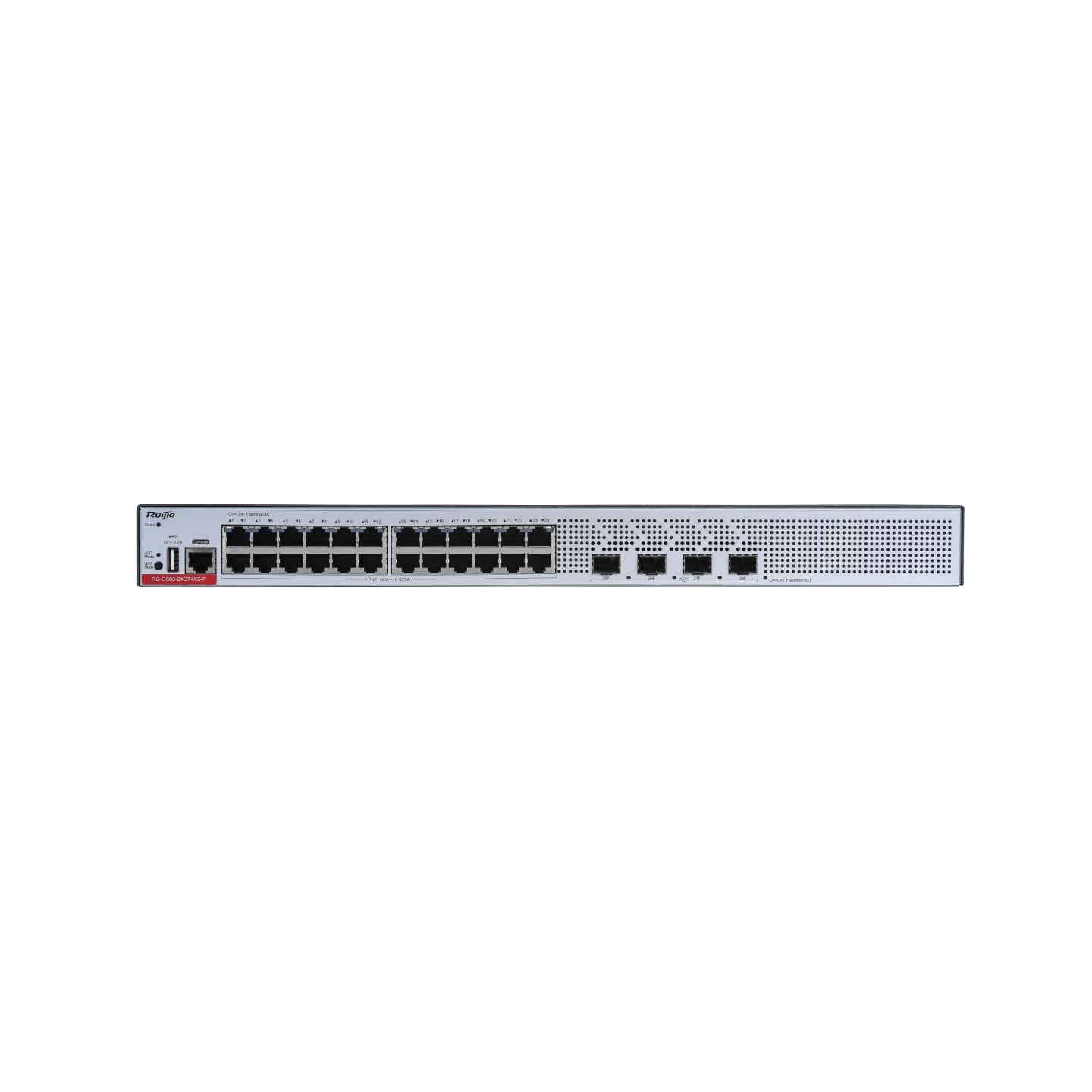

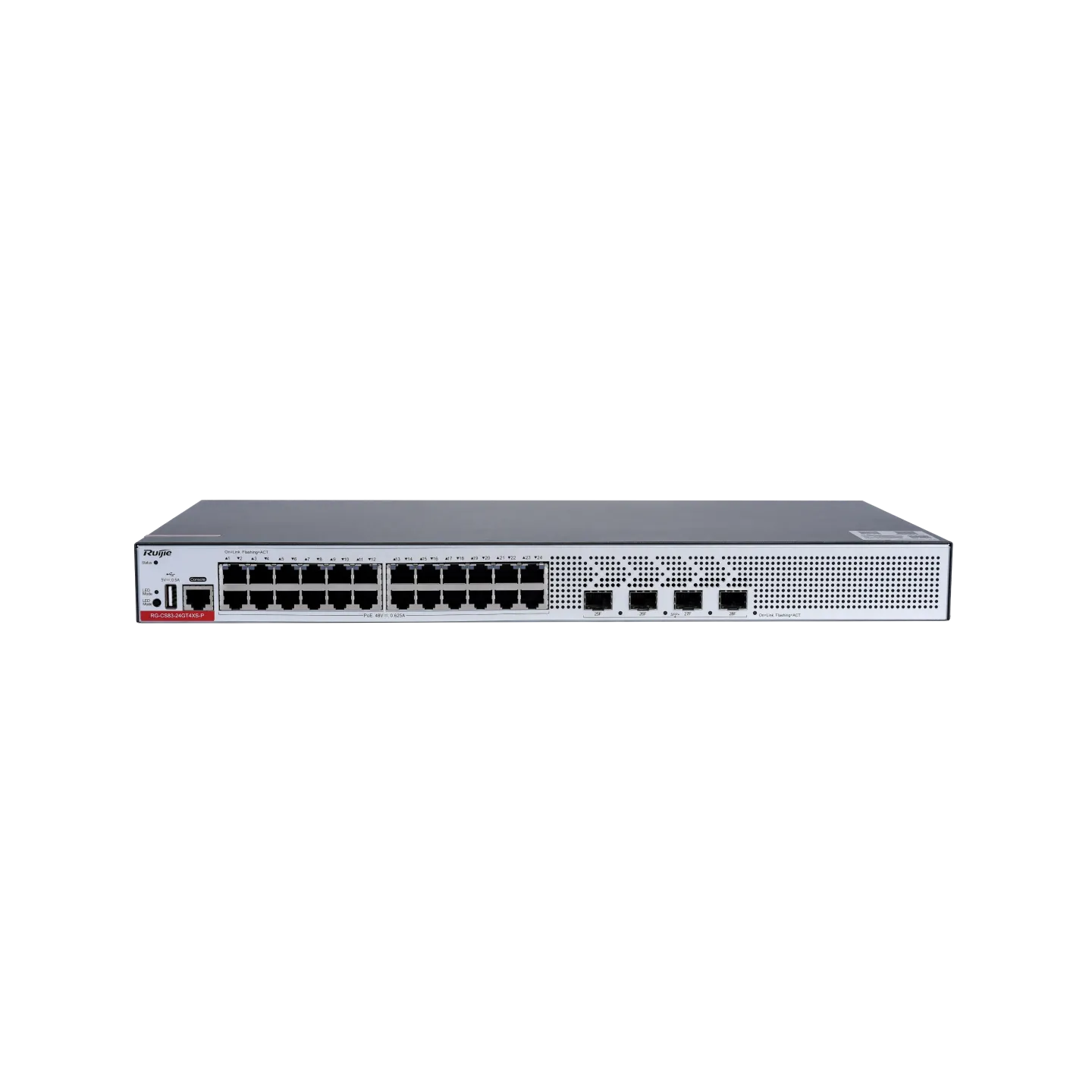

RG-CS83-24GT4XS-P L3 Managed Switch, 24 x Gigabit (PoE+), 4 x 10G SFP+
Stok 25
Highlight Features:• 24 x Gigabit PoE+ ports and 4 x 10G SFP+ uplinks.• High total PoE budget for APs and IP cameras.• Intelligent PoE monitoring and remote port reboot.• Professional 6KV surge protection for all ports.
Ruijie RG-CS83-24GT4XS-P: Pusat Distribusi PoE+ untuk Smart Office
Optimalkan instalasi perangkat bertenaga PoE Anda dengan switch 24-port ini. RG-CS83-24GT4XS-P menyediakan daya yang cukup untuk seluruh ekosistem nirkabel dan keamanan kantor Anda, membuat manajemen kabel jauh lebih rapi dan profesional.
Kelebihan Utama:
- 24 Port PoE+ Output: Menghidupkan puluhan perangkat IP hanya melalui kabel LAN tanpa perlu stopkontak tambahan.
- Dukungan Sinyal 10G: Jalur uplink fiber 10Gbps menjamin trafik video CCTV dan data Wi-Fi tetap lancar.
- Proteksi Petir Tinggi: Melindungi investasi hardware Anda dari gangguan kelistrikan luar ruangan.
| brands |
|---|
Technical Specifications
| Type | 24-Port L3 Smart Managed PoE Switch |
| Fixed Ports | 24 x 10/100/1000Base-T (PoE+) |
| Uplink Ports | 4 x 10G SFP+ Slots |
| PoE Budget | 370W |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 96 Mpps |
| PoE Standard | IEEE 802.3af/at |
| MAC Address | 16K Entries |
| L3 Routing | Static, RIP, OSPF, BGP |
| Virtualization | VSU 2.0 (Virtual Switch Unit) |
| Management | Ruijie Cloud App, Web GUI, CLI |
| Packet Buffer | 1.5 MB |
| VLAN Support | 4K VLAN IDs, QinQ, Voice VLAN |
| ACL | Standard, Extended, Time-based |
| Security | CPP, NFPP, DHCP Snooping, DAI |
| Power Supply | Internal AC 100-240V |
| Power Consumption | < 420W (Full PoE Load) |
| Dimensions | 440 x 300 x 44 mm (1U) |
| Weight | 4.2 kg |
| Cooling | Dual Smart Fans |
| Surge Protection | 10KV (Power & Ports) |
| Operating Temp | 0°C to 50°C |
| IPv6 | Static, OSPFv3, BGP4+, MLD |
| QoS | 8 Queues per port, SP, WRR |
| Mirroring | SPAN, RSPAN, ERSPAN |
| MTBF | > 200,000 hours |
| Certification | CE, RoHS, FCC |
| Jumbo Frame | 9216 bytes |
| Warranty | 3 Years |
