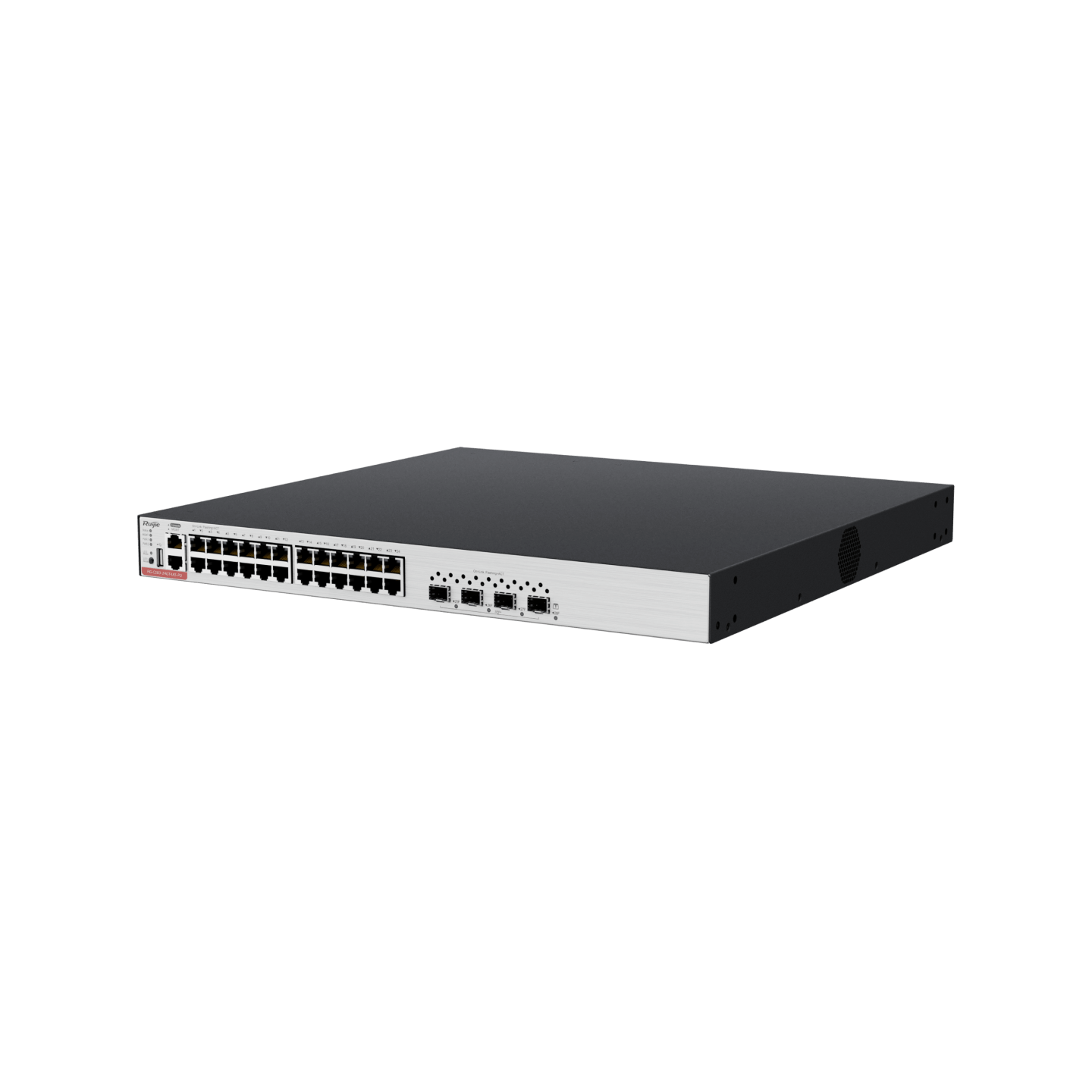

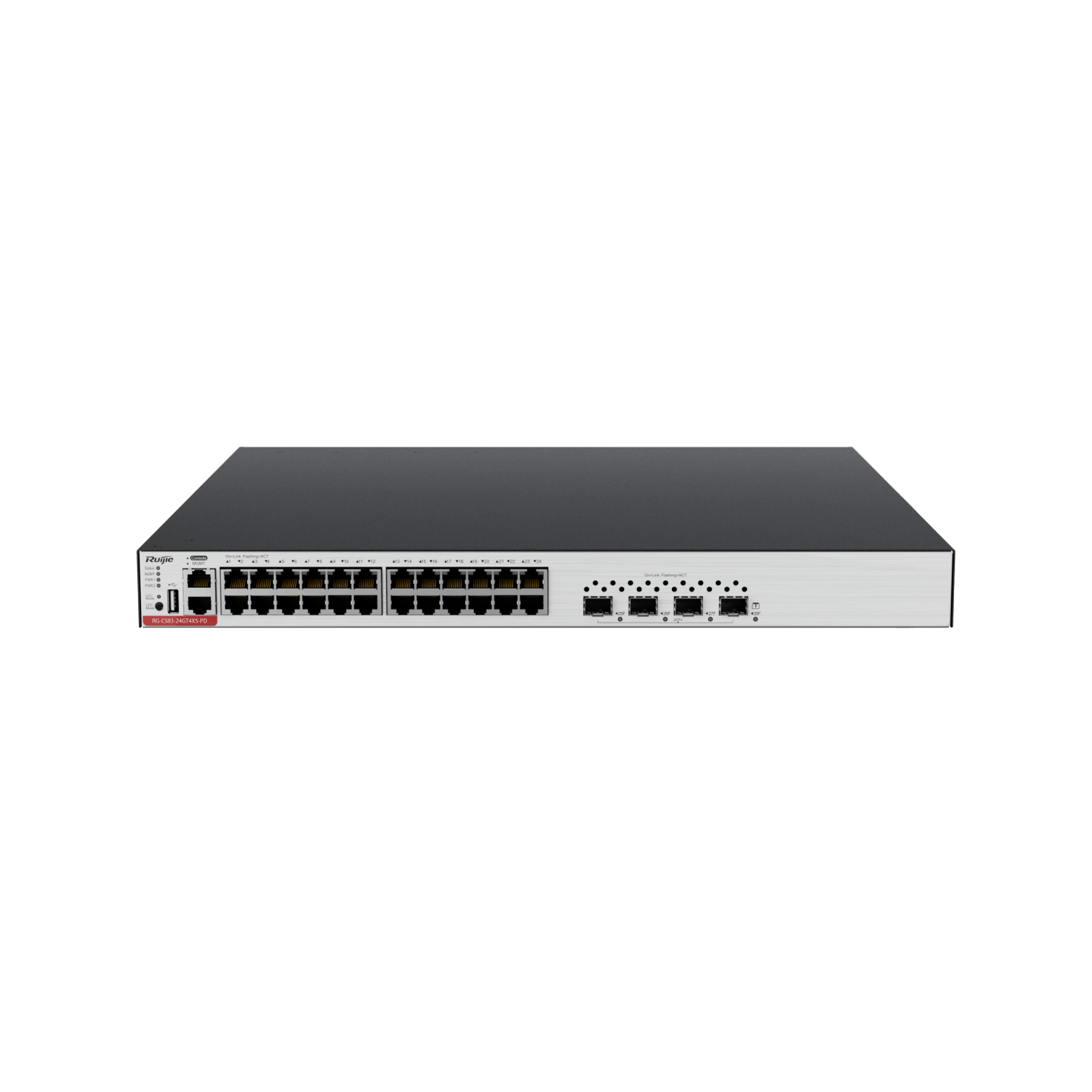

RG-CS83-24GT4XS-PD L3 Managed Switch, PD (Powered Device) Support, 24 x Gigabit
Stok 25
Highlight Features:• 24-port Gigabit switch with PD (Powered Device) support.• Can be powered by PoE without an AC outlet.• 4 x 10G SFP+ uplinks for aggregation.• Cloud-managed for easy remote site deployment.
Ruijie RG-CS83-24GT4XS-PD: Switch Akses Cerdas dengan Kemampuan Powered Device
RG-CS83-24GT4XS-PD membawa inovasi unik di mana switch ini sendiri bisa dihidupkan melalui kabel PoE (Powered Device). Sangat ideal untuk area yang sulit mendapatkan colokan listrik namun membutuhkan switch dengan fitur manajemen enterprise yang lengkap.
Fitur Unggulan:
- Fleksibilitas Daya (PoE-In): Bisa menyala hanya dengan kabel LAN dari switch PoE pusat, memudahkan penempatan di mana saja.
- Uplink 10G SFP+: Meskipun ringkas, tetap memiliki jalur uplink 10Gbps untuk menjamin akses data ke server tetap cepat.
- Manajemen Cloud Tanpa Biaya: Pantau dan kelola jaringan Anda dari mana saja secara gratis melalui aplikasi Ruijie Cloud.
- Desain Tanpa Kipas (Silent): Operasi yang sangat tenang, cocok untuk ruang meeting, perpustakaan, atau meja kerja.
| brands |
|---|
Technical Specifications
| Type | L3 Managed Switch with PoE Input (PD) |
| Fixed Ports | 24 x 10/100/1000Base-T Ports |
| Uplink Ports | 4 x 10G SFP+ Slots |
| PoE Input | Port 1 & 2 Support PoE Input (PD) |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 96 Mpps |
| MAC Address | 16K Entries |
| L3 Features | Static Routing, RIP, OSPF, BGP |
| Stacking | VSU (Virtual Switch Unit) 2.0 |
| Management | Ruijie Cloud, Web GUI, CLI |
| Security | CPP, NFPP, IP Source Guard |
| VLAN Support | 4K VLAN IDs, QinQ, Voice VLAN |
| IPv6 | Static, OSPFv3, BGP4+, MLD |
| Power Supply | AC 100-240V / PoE Input |
| Power Consumption | < 30W |
| Dimensions | 440 x 200 x 44 mm (1U) |
| Weight | 3.0 kg |
| Cooling | Fanless Design (Silent Operation) |
| Operating Temp | 0°C to 50°C |
| Surge Protection | 10KV Port Surge |
| Jumbo Frame | 9216 bytes |
| QoS | 8 Queues, SP, WRR, DRR |
| Mirroring | SPAN, RSPAN |
| Reliability | VRRP, REUP, BFD |
| ARP Table | 8K Entries |
| DHCP | Server, Client, Snooping, Relay |
| Housing | Full Metal Enclosure |
| Certification | CE, RoHS, FCC |
| MTBF | > 200,000 hours |
| Warranty | 3 Years |
