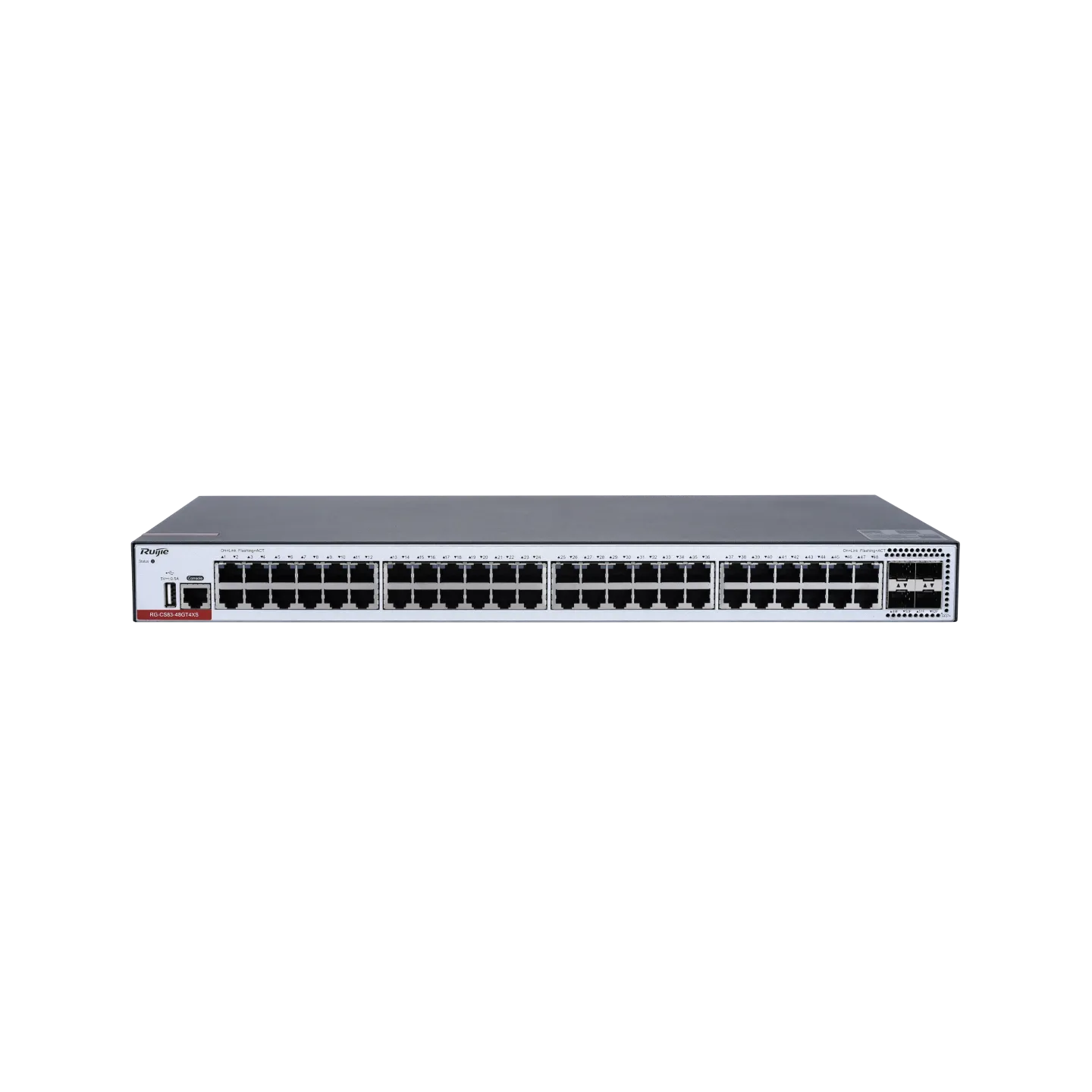

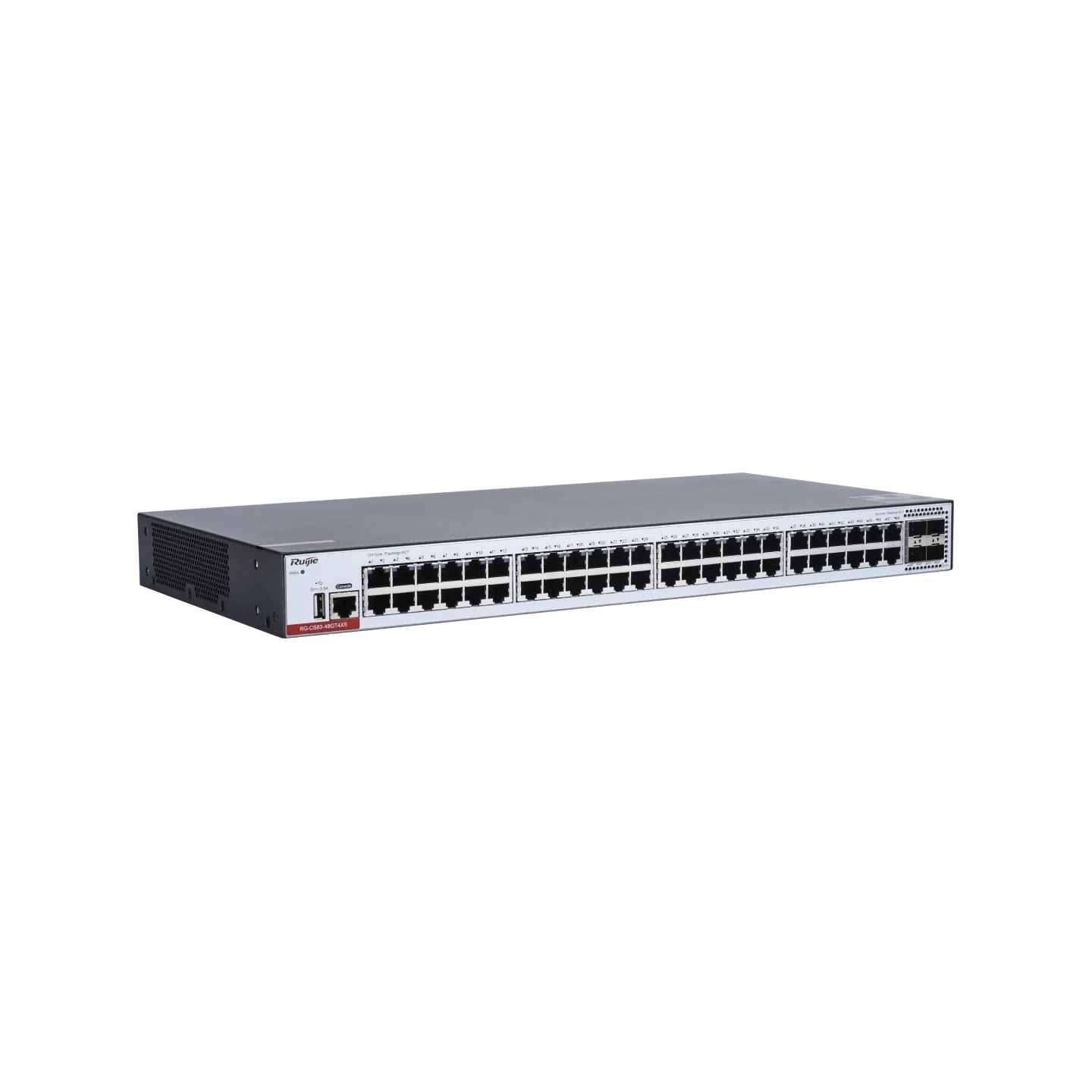

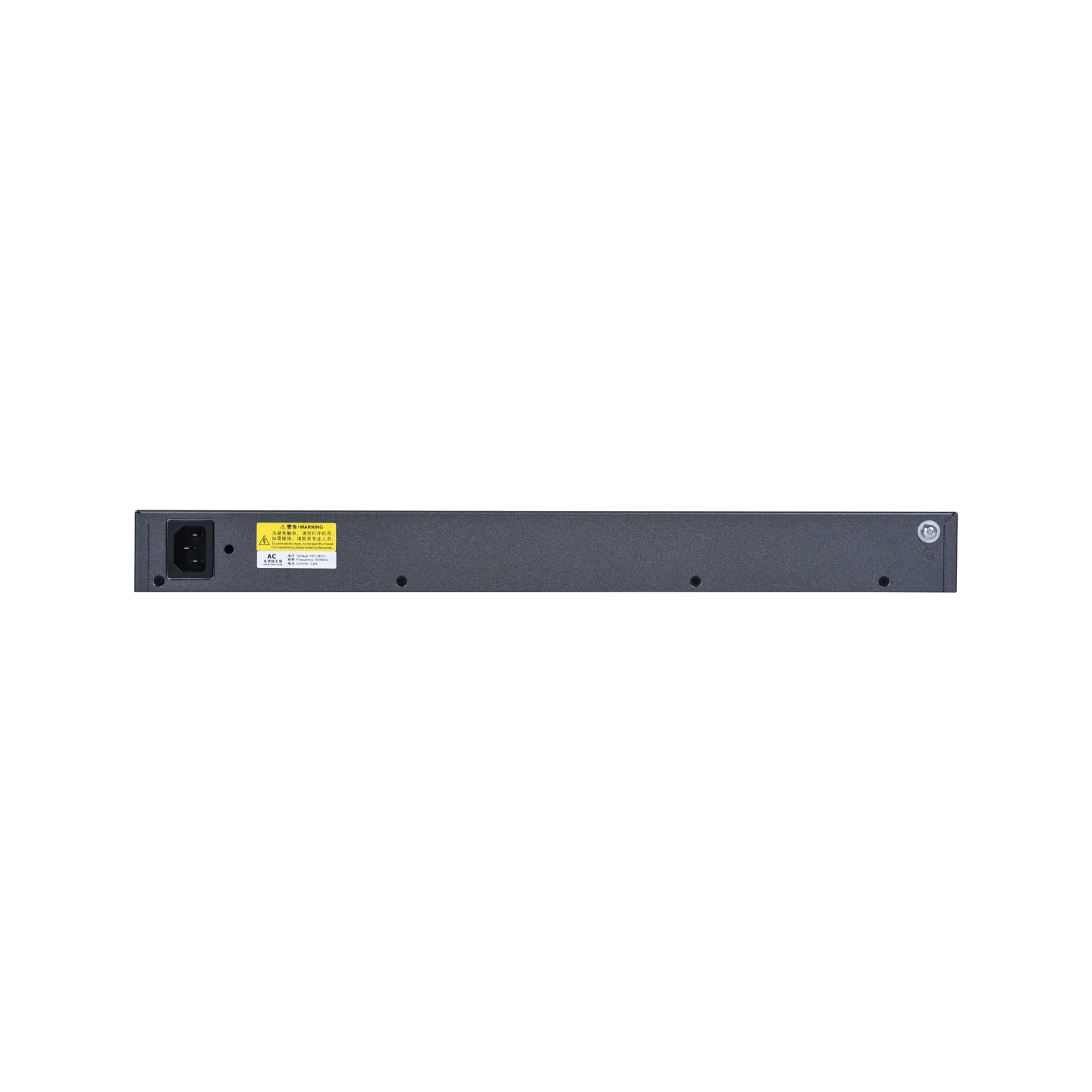

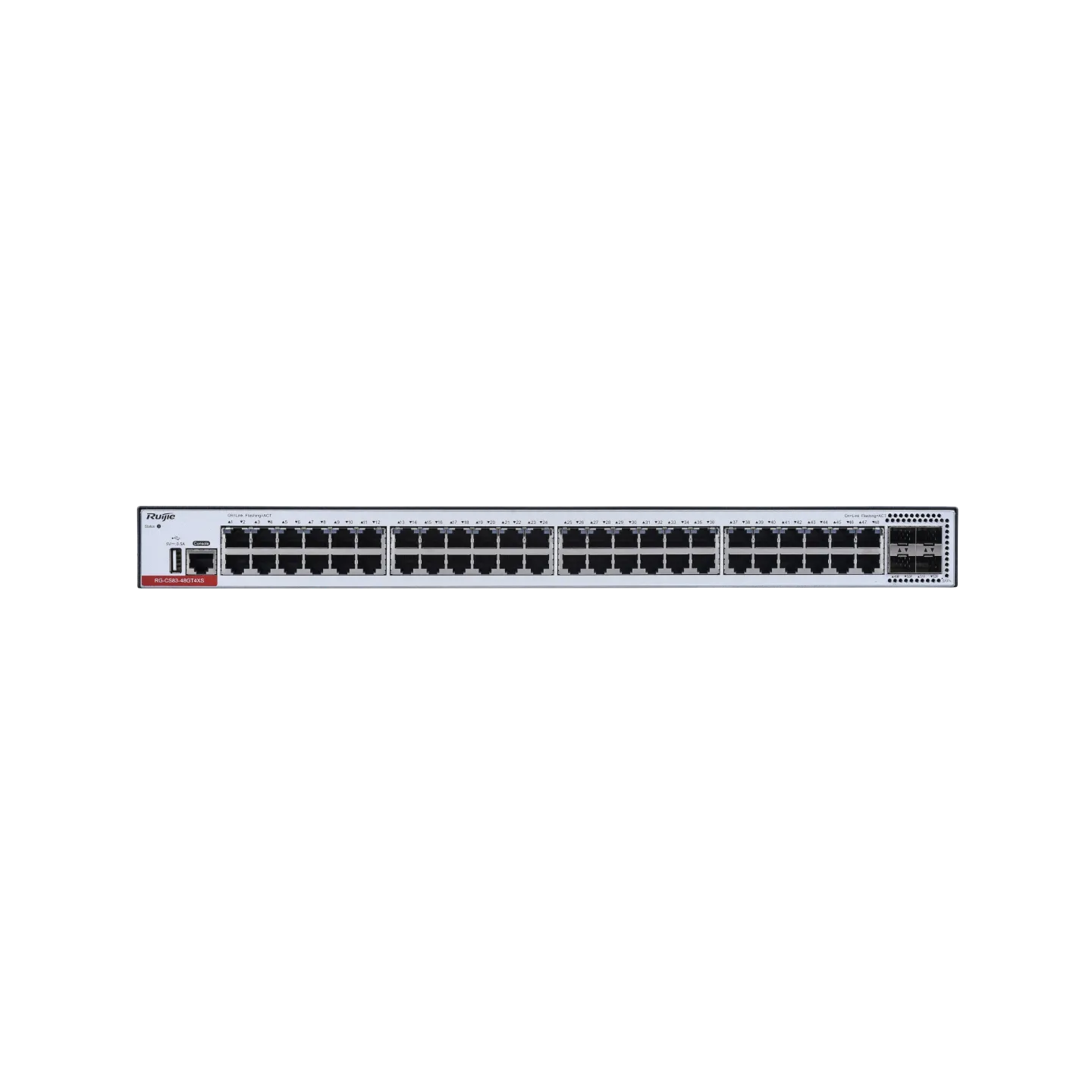

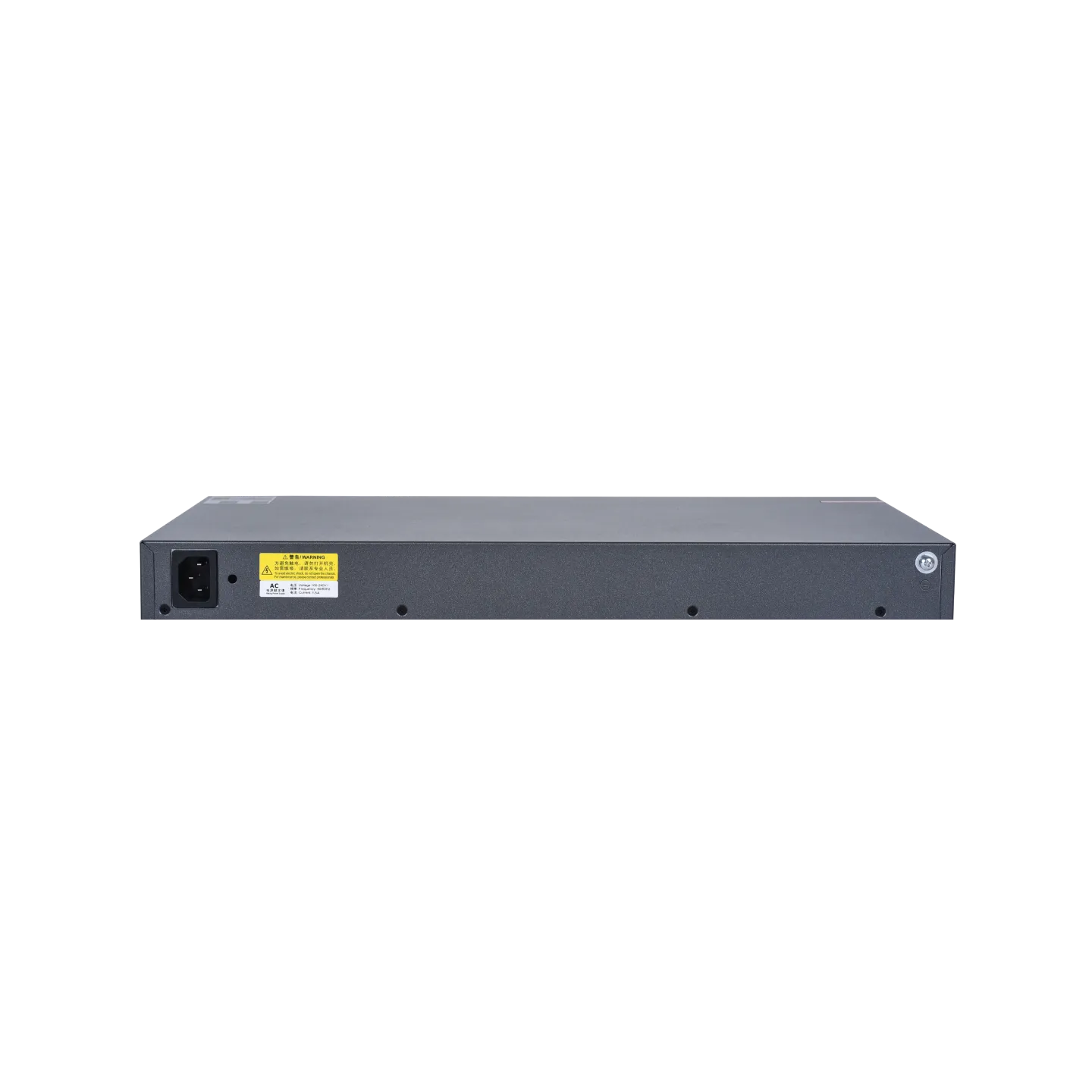

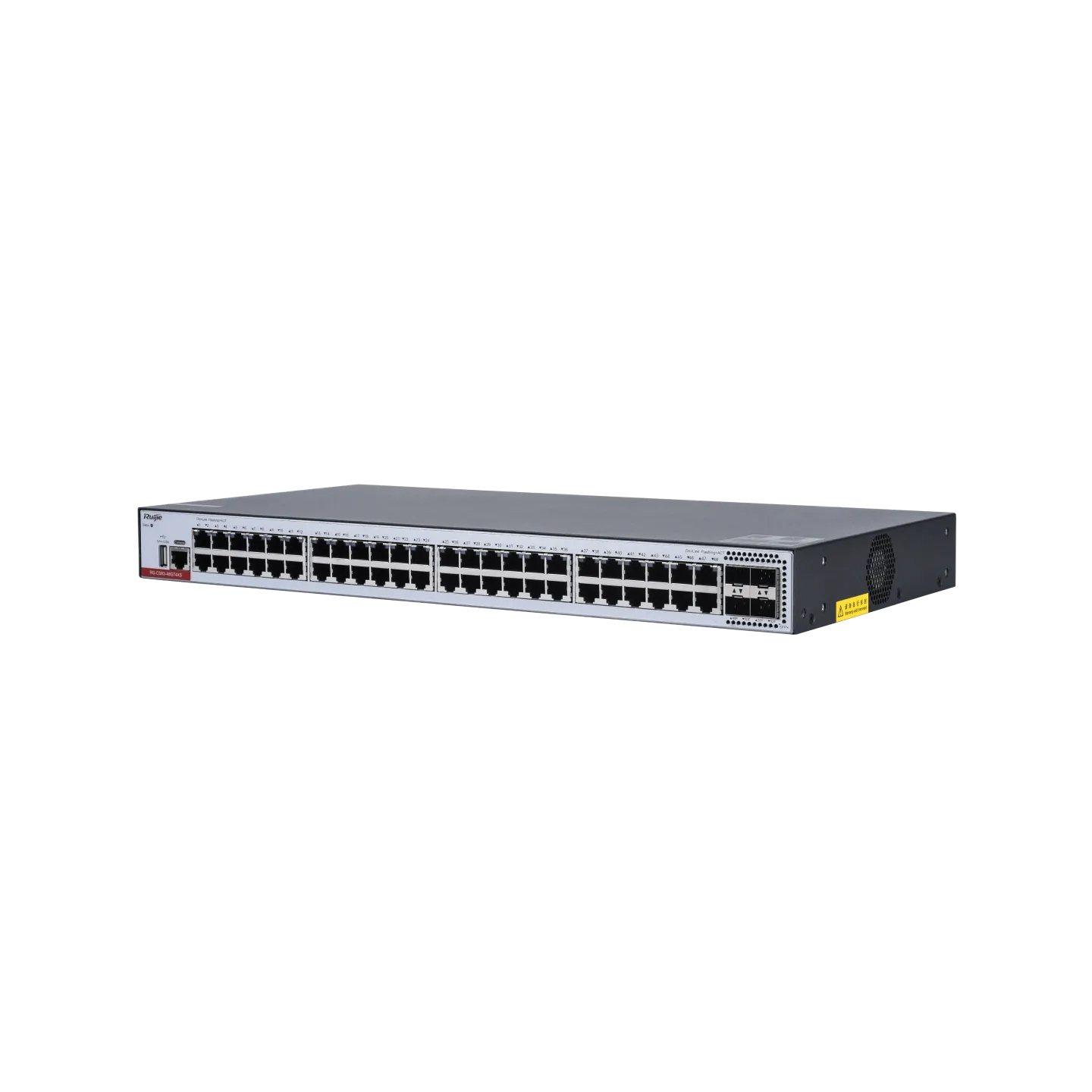

RG-CS83-48GT4XS L3 Managed Switch, 48 x Gigabit, 4 x 10G SFP+
Stok 25
Highlight Features:• 48 x Gigabit RJ45 ports and 4 x 10G SFP+ uplinks.• High-density access switch with non-blocking performance.• Supports hardware-level security and protection.• Easy deployment with Ruijie Self-Organizing Network (SON).
Ruijie RG-CS83-48GT4XS: Densitas Port Tinggi untuk Skala Enterprise
Jika Anda memiliki banyak pengguna dalam satu lantai, RG-CS83-48GT4XS adalah solusi ideal. Menawarkan 48 port Gigabit dalam satu unit rackmount, switch ini menyederhanakan topologi jaringan Anda dengan mengonsolidasikan seluruh workstation ke satu pusat kendali.
Fitur Unggulan:
- 48 Port Gigabit Ethernet: Kapasitas besar untuk menghubungkan PC, printer, dan perangkat IoT dalam jumlah masif.
- 4 Slot 10G SFP+: Jalur backbone yang luas untuk mendukung trafik data intensif ke server pusat.
- Keamanan Akses Ketat: Fitur otentikasi port untuk memastikan hanya perangkat terdaftar yang bisa mengakses jaringan perusahaan.
| brands |
|---|
Technical Specifications
| Type | L3 Managed 48-Port Switch |
| Fixed Ports | 48 x 10/100/1000Base-T Ports |
| Uplink Ports | 4 x 10G SFP+ Slots |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 132 Mpps |
| MAC Address | 16K Entries |
| L3 Protocols | OSPF, BGP, RIP, PBR |
| Stacking | VSU 2.0 Technology |
| Management | Ruijie Cloud, CLI, SNMP, Web |
| Reliability | GR, BFD, DLDP |
| Security | CPP, NFPP, DHCP Snooping |
| VLAN Support | QinQ, 4094 VLANs |
| ARP Table | 8K Entries |
| Power Supply | Built-in AC 100-240V |
| Power Consumption | < 55W |
| Dimensions | 440 x 280 x 44 mm (1U) |
| Weight | 4.5 kg |
| Cooling | Triple Intelligent Fans |
| Operating Temp | 0°C to 50°C |
| Surge Protection | 10KV |
| Jumbo Frame | 9216 bytes |
| QoS | Priority Queuing, Rate Limiting |
| Multicast | MLD Snooping, IGMP Snooping |
| ACL | Standard / Extended / IPv6 ACL |
| Housing | Galvanized Steel |
| Diagnostics | Cable Test, Log Monitoring |
| Certification | CE, FCC, RoHS |
| MTBF | > 180,000 hours |
| Warranty | 3 Years |
