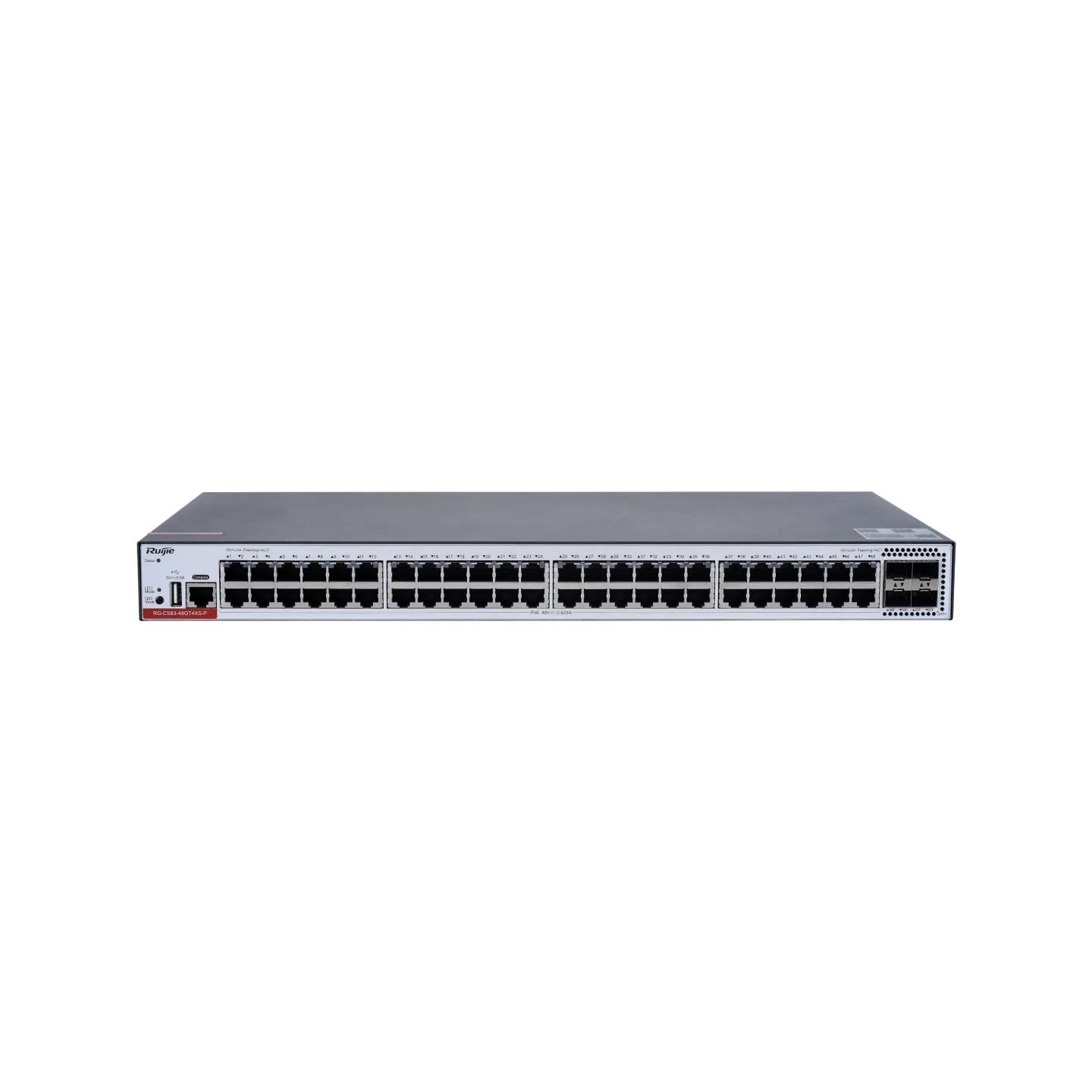

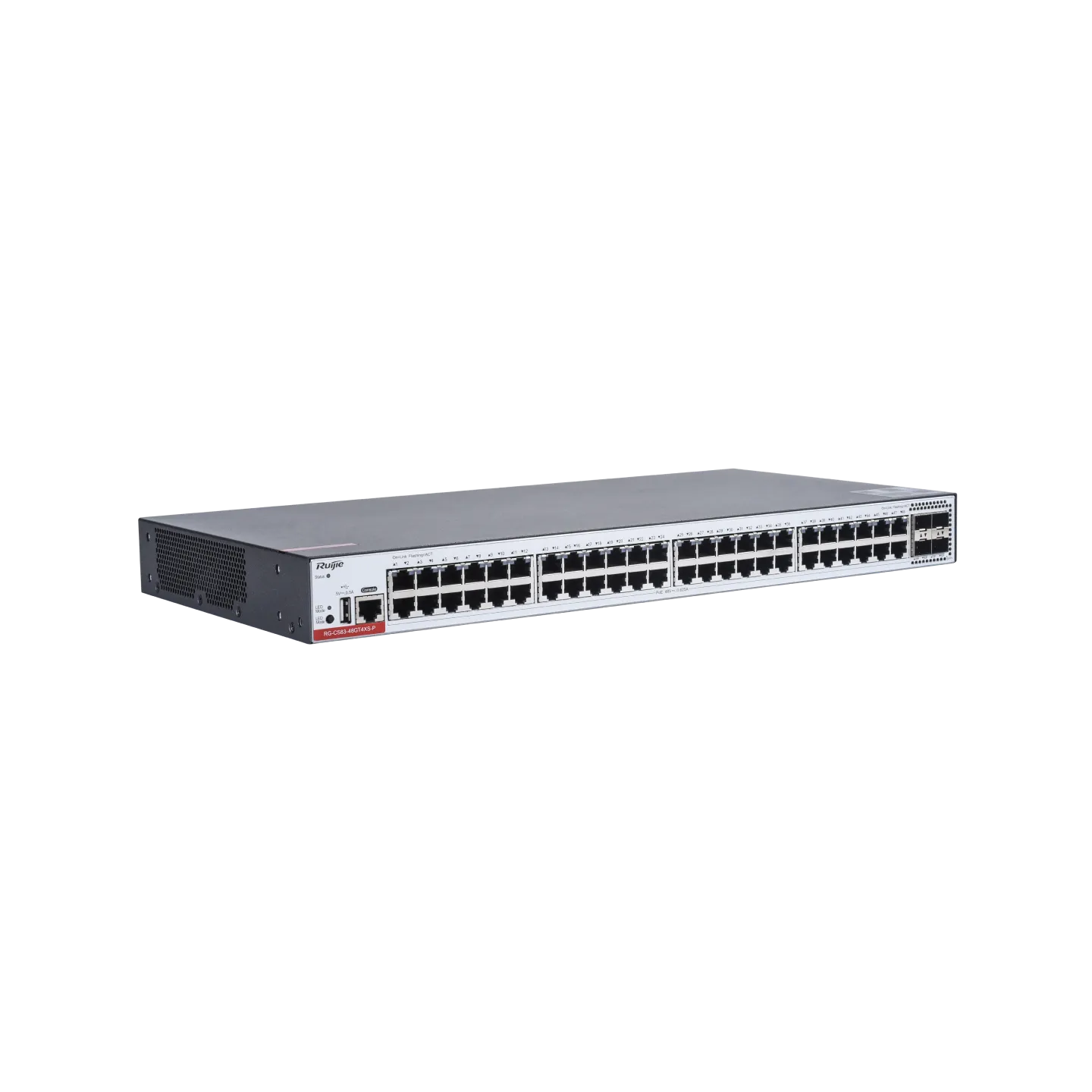

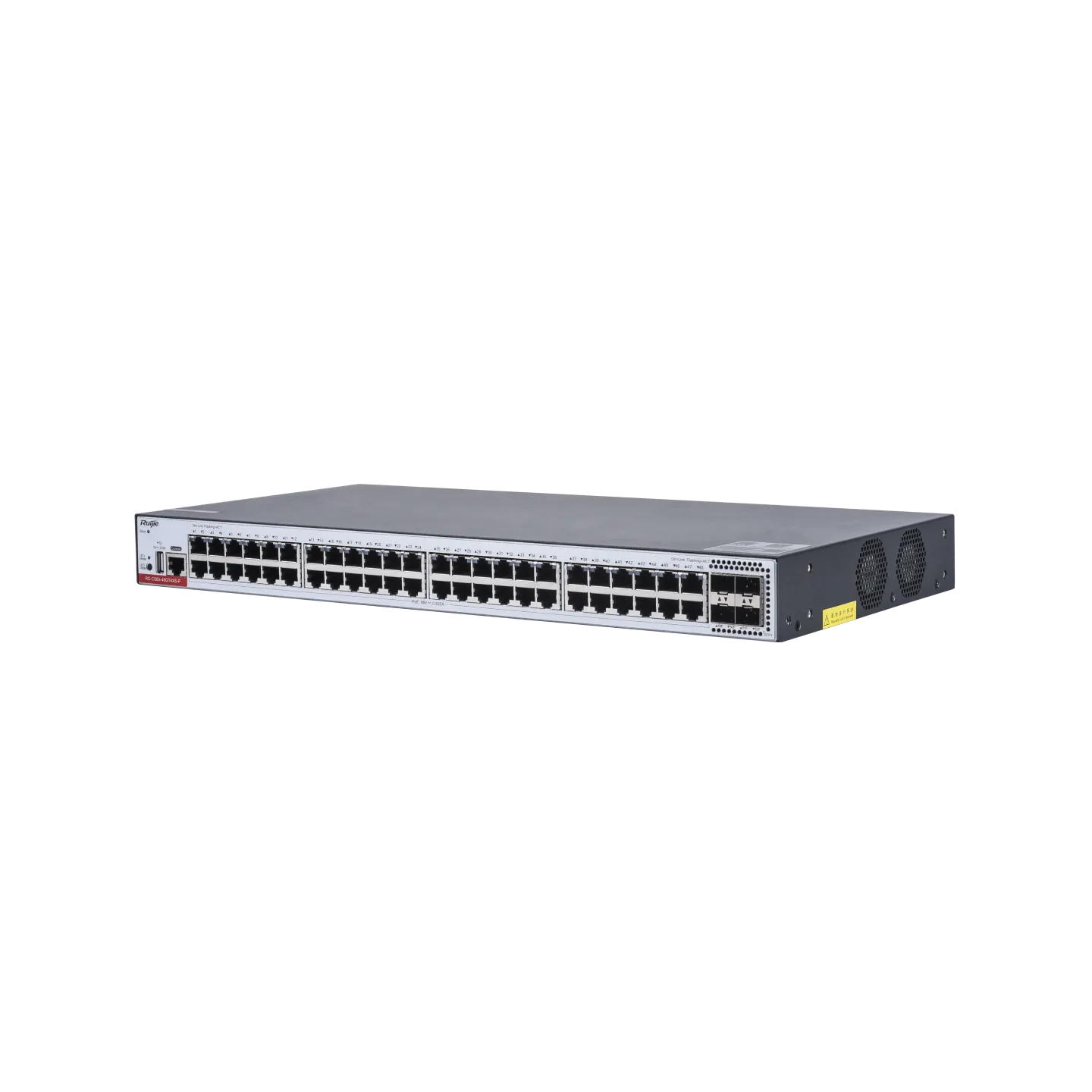

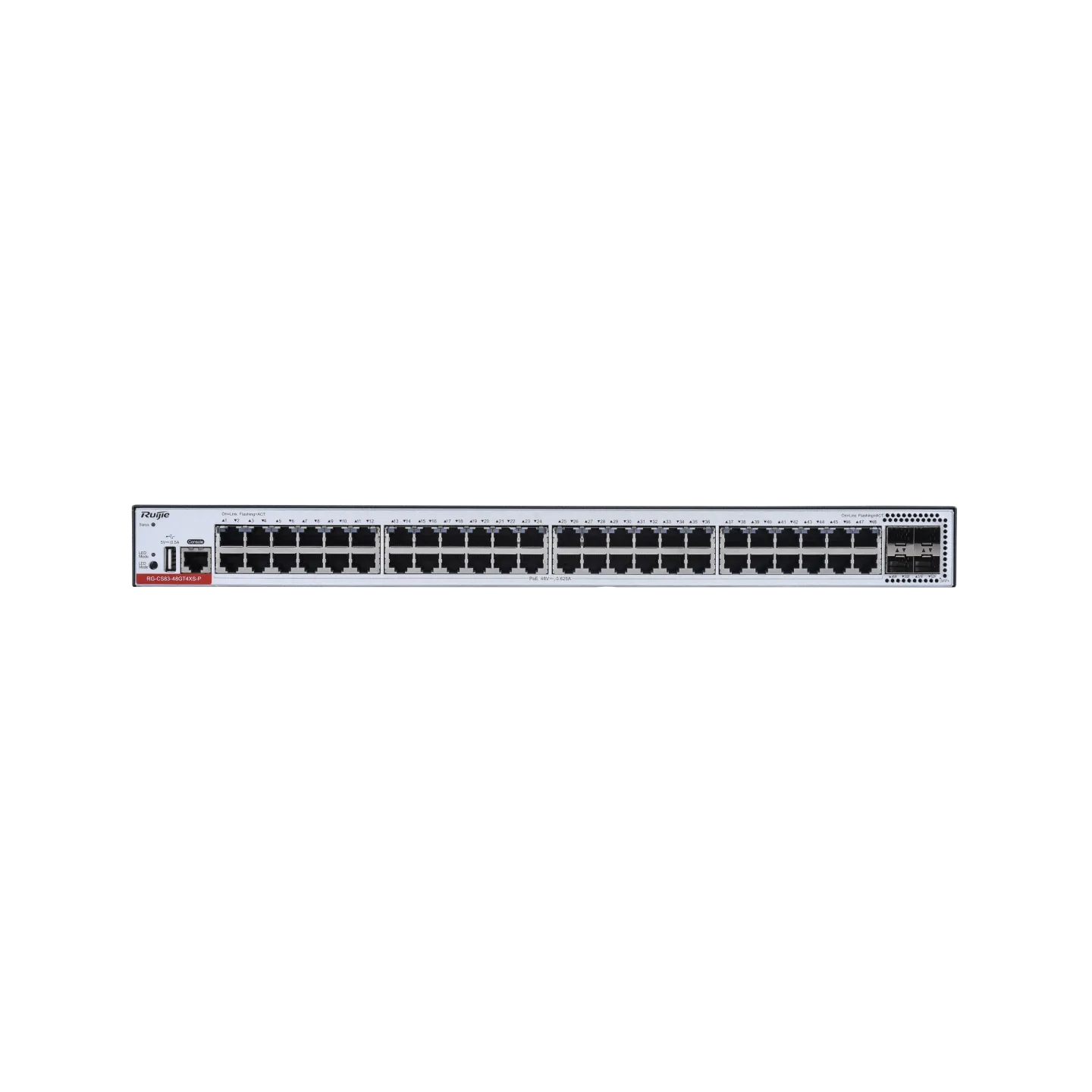

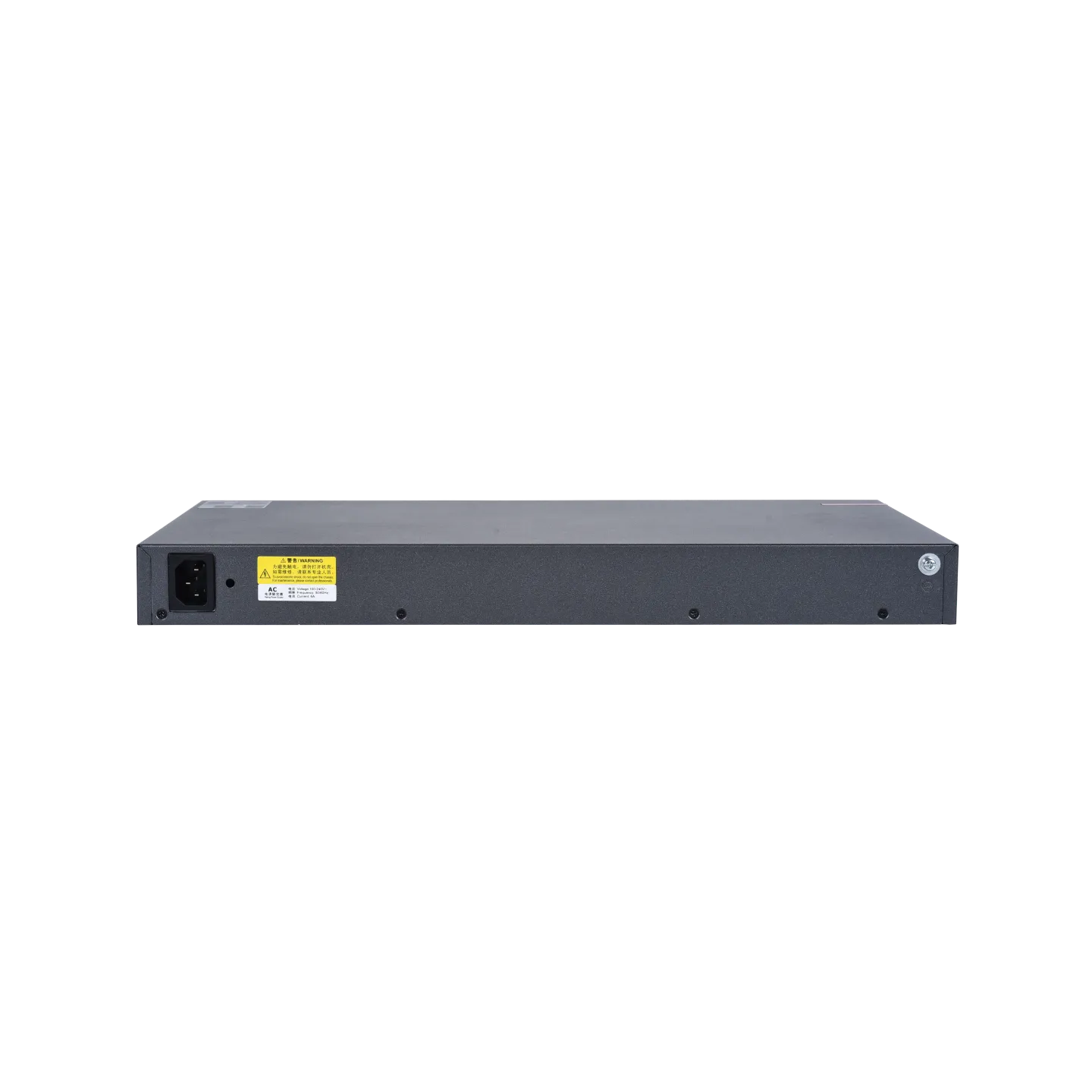

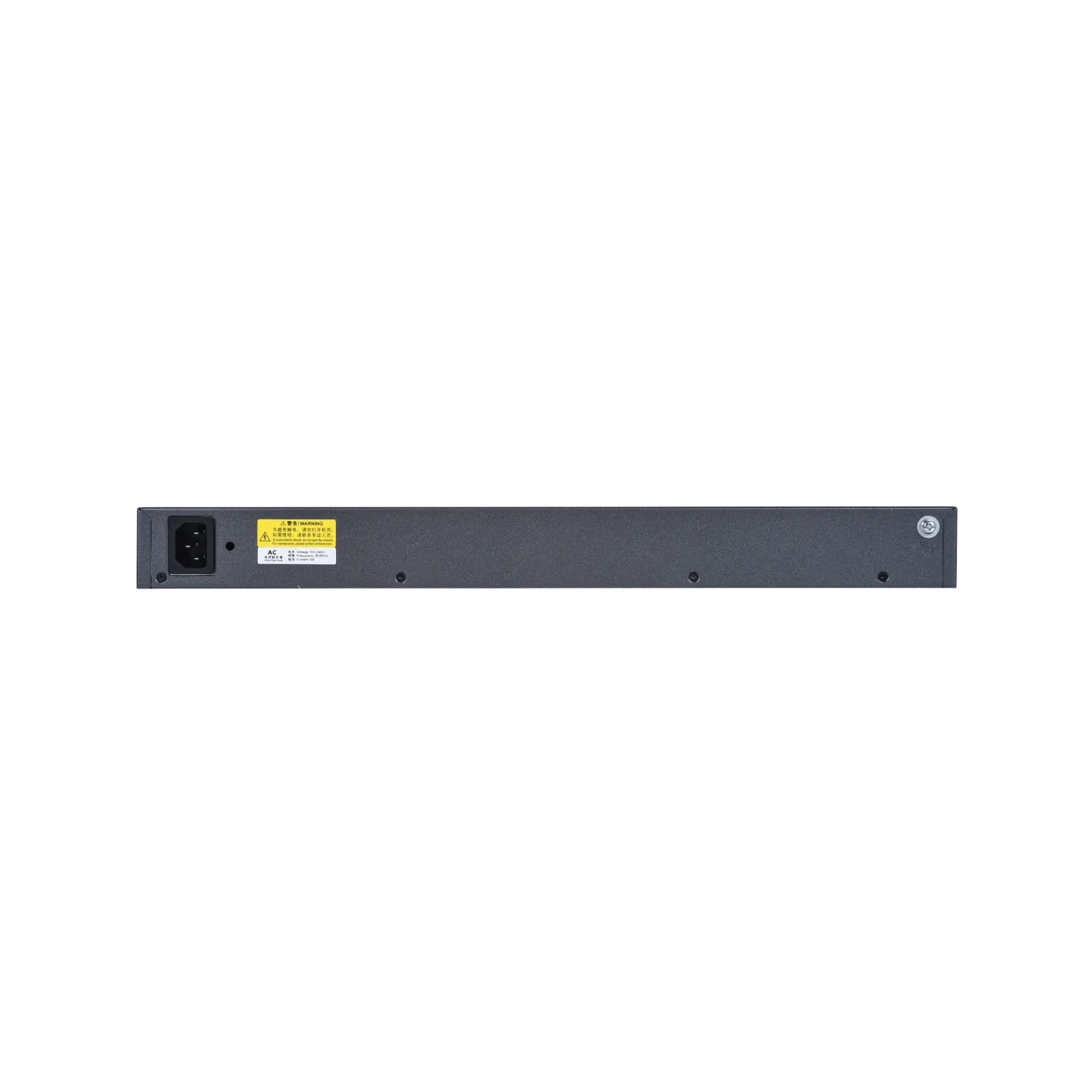

RG-CS83-48GT4XS-P L3 Managed Switch, 48 x Gigabit (PoE+), 4 x 10G SFP+
Stok 25
Highlight Features:• 48 x Gigabit PoE+ ports and 4 x 10G SFP+ uplinks.• Massive PoE capacity for large-scale deployments.• Layer 3 management for flexible network design.• Robust hardware for mission-critical applications.
Ruijie RG-CS83-48GT4XS-P: Powerhouse PoE+ 48-Port untuk Infrastruktur Besar
Produk ini adalah solusi “All-in-One” untuk gedung besar atau sekolah. Dengan 48 port PoE+ dan uplink 10G, Anda dapat mengelola seluruh sistem keamanan dan Wi-Fi satu gedung dalam satu switch yang sangat tangguh dan mudah dikelola melalui cloud.
Manfaat bagi Bisnis:
- Kapasitas PoE Masif: Menangani 48 titik perangkat bertenaga PoE sekaligus dengan manajemen daya cerdas.
- Reliabilitas Enterprise: Dirancang untuk operasional berat dengan sistem pendinginan yang sangat baik.
- Penyederhanaan Manajemen: Monitor seluruh status perangkat yang terhubung langsung dari dashboard Ruijie Cloud.
| brands |
|---|
Technical Specifications
| Type | 48-Port L3 Smart Managed PoE Switch |
| Fixed Ports | 48 x 10/100/1000Base-T (PoE+) |
| Uplink Ports | 4 x 10G SFP+ Slots |
| PoE Budget | 740W |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 132 Mpps |
| PoE Standard | IEEE 802.3af/at |
| MAC Address | 16K Entries |
| L3 Protocols | OSPF, BGP, ISIS, RIP |
| Stacking | VSU (Up to 9 units) |
| Management | Web, CLI, SNMP, Cloud |
| Security | IP Source Guard, Port Security |
| VLAN | GVRP, 4094 VLANs, Super VLAN |
| Reliability | GR, BFD, DLDP, VRRP |
| ARP Table | 8K Entries |
| Power Supply | Dual Hot-swap (Optional) / Internal AC |
| Power Consumption | < 850W (Full Load) |
| Dimensions | 440 x 420 x 44 mm (1U) |
| Weight | 6.5 kg |
| Cooling | Four Intelligent Speed Fans |
| Surge Protection | 10KV |
| Operating Temp | 0°C to 50°C |
| IPv6 Ready | IPv6 Logo Phase 2 |
| Multicast | IGMP v1/v2/v3, PIM-SM |
| QoS | WRED, Tail Drop, Traffic Shaping |
| Jumbo Frame | 9216 bytes |
| Housing | Galvanized Steel Case |
| Certification | CE, FCC, RoHS |
| MTBF | > 180,000 hours |
| Warranty | 3 Years |
