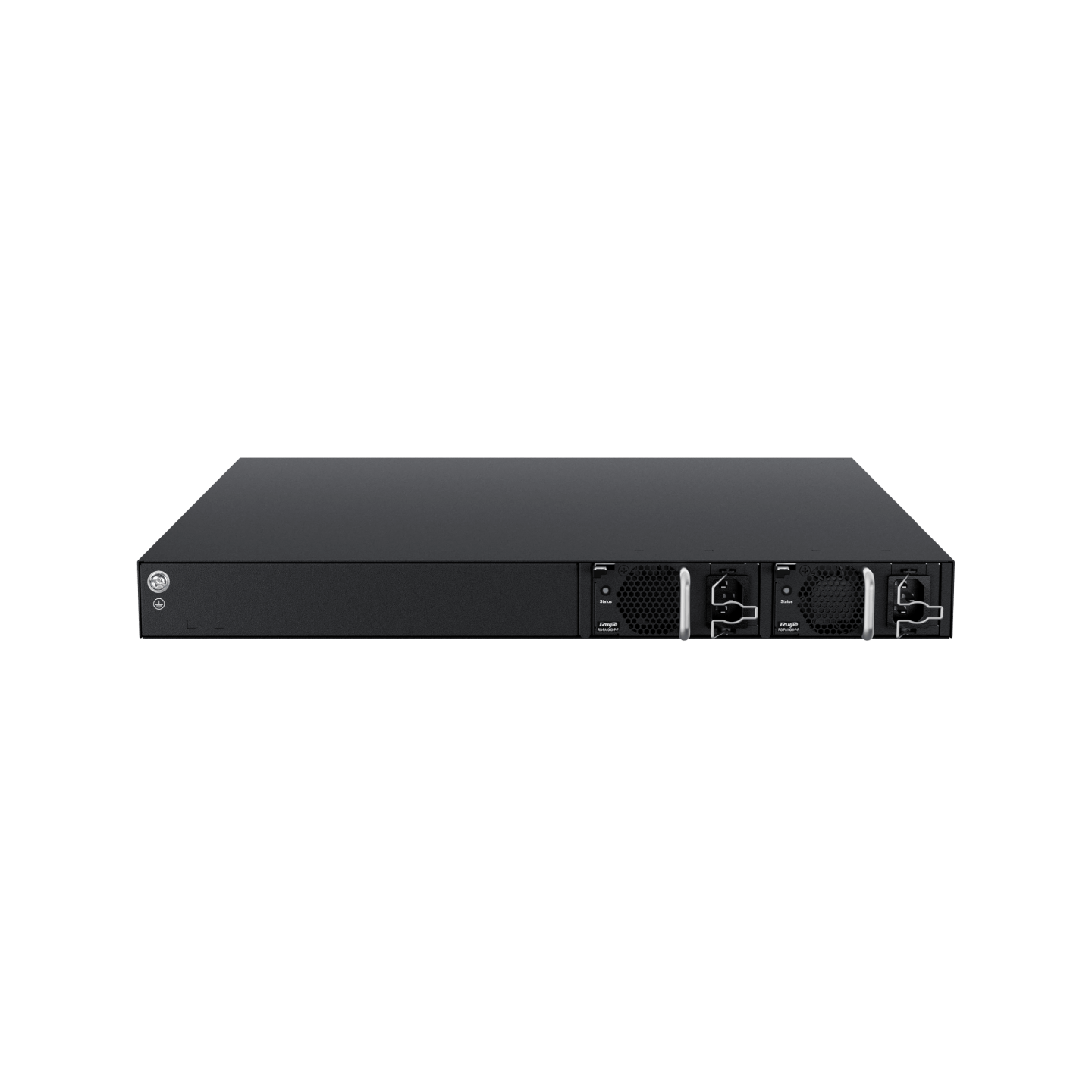

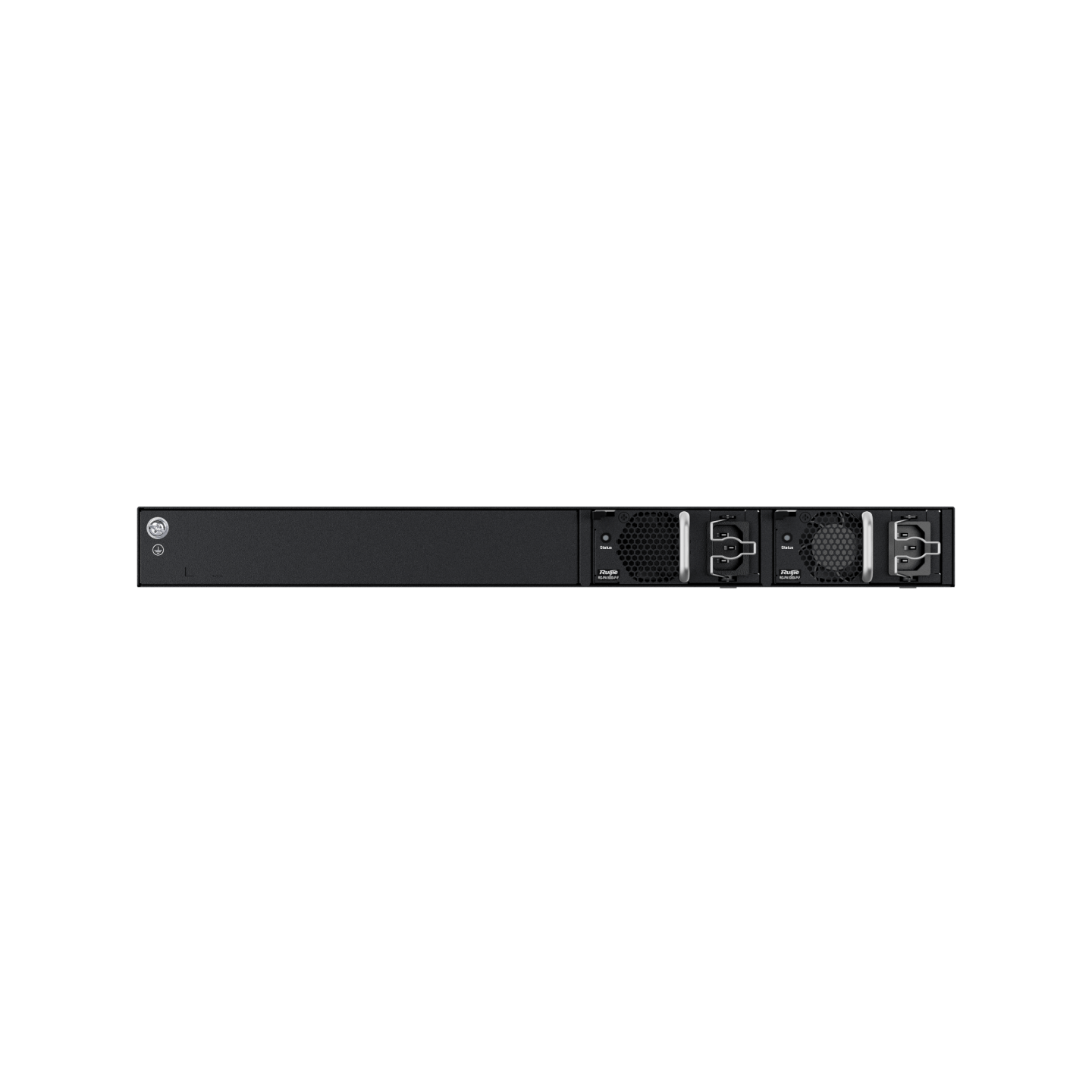

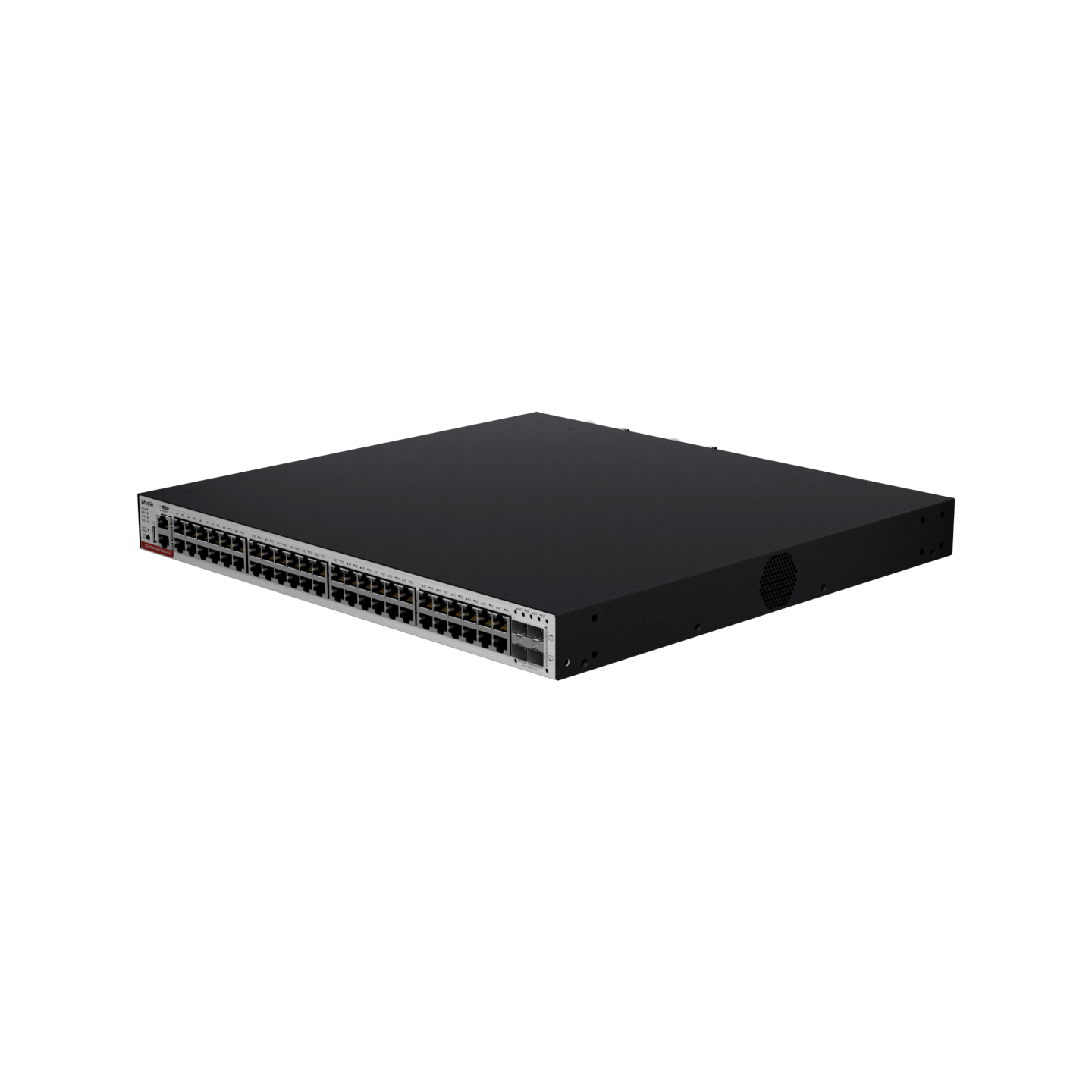

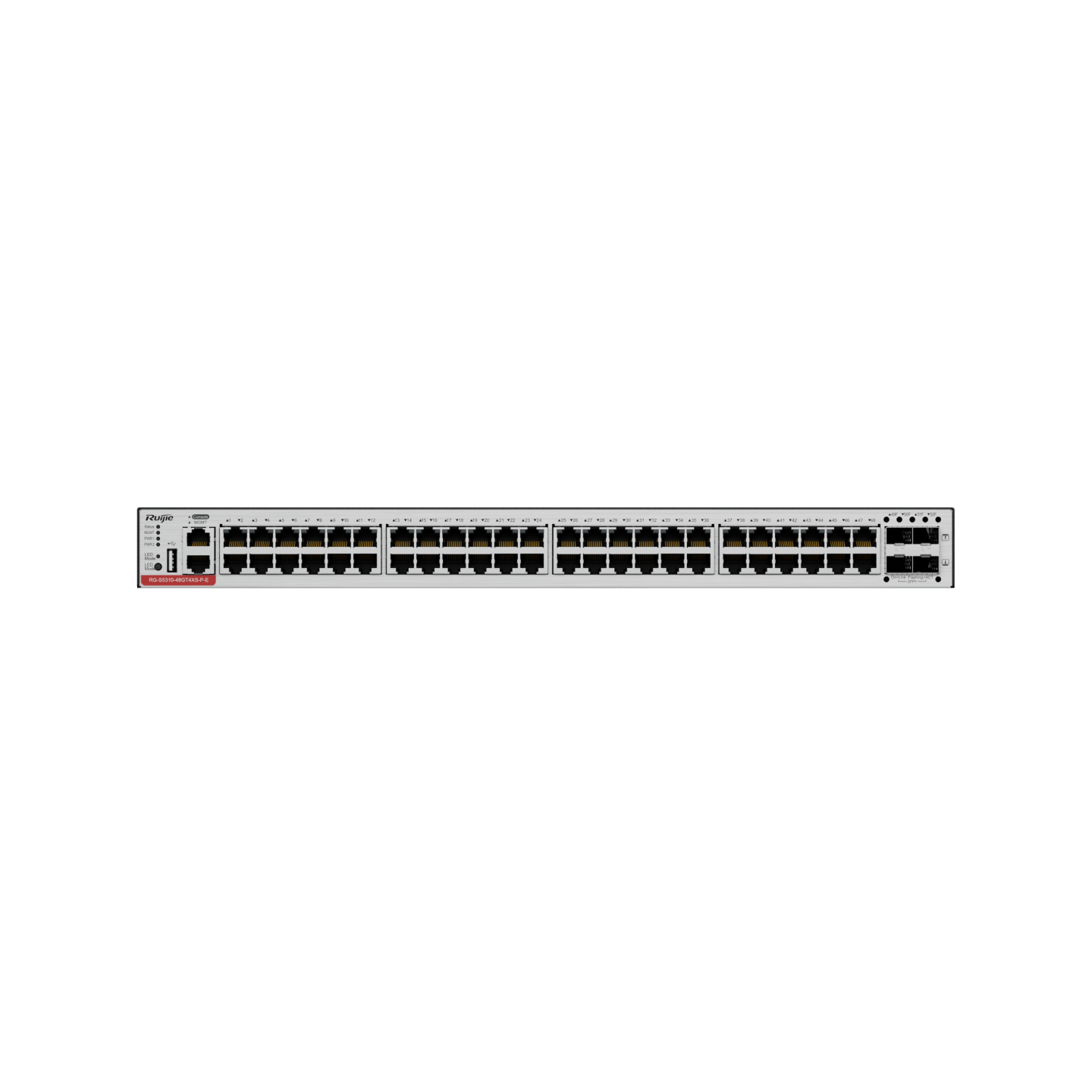

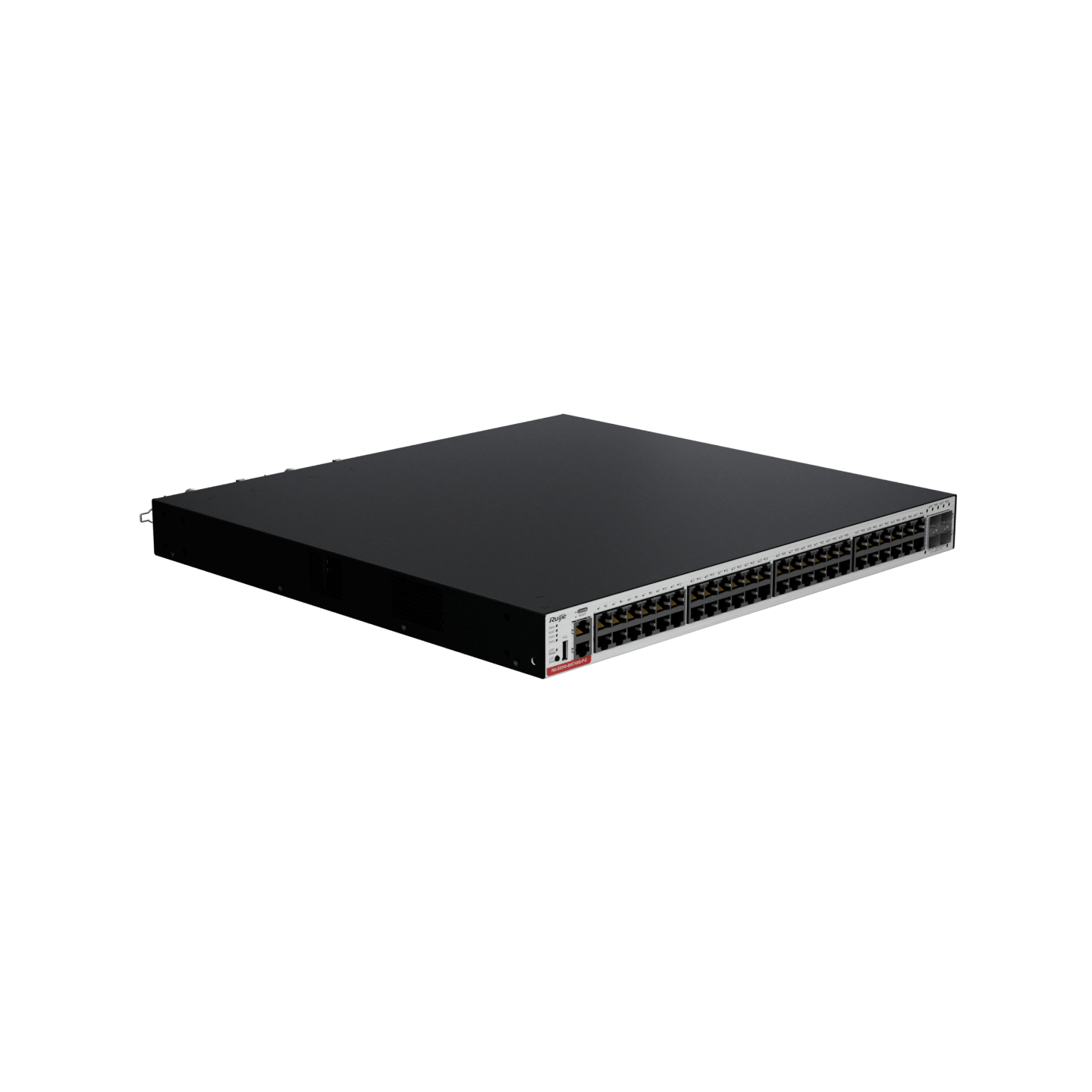

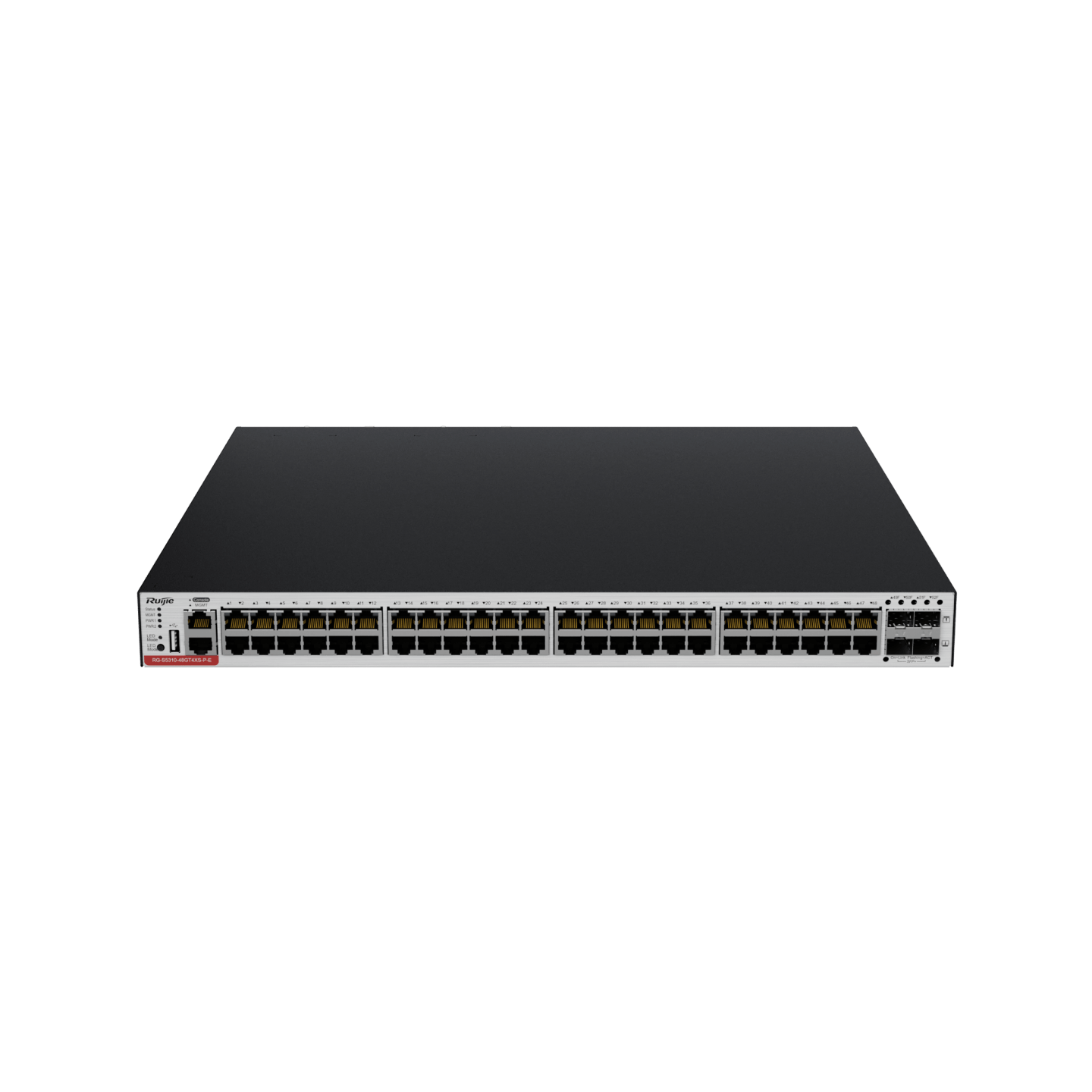

RG-CS83-48GT4XS-PD L3 Managed Switch, PD (Powered Device) Support, 48 x Gigabit
Stok 25
Highlight Features:• 48-port Gigabit PD switch for versatile installation.• Accepts PoE power for flexible placement.• 4 x 10G SFP+ uplink ports.• Compact and energy-efficient design.
Ruijie RG-CS83-48GT4XS-PD: Kapasitas 48 Port dengan Inovasi PoE Passthrough
Sempurnakan jaringan kantor Anda dengan 48 port Gigabit yang cerdas. Seri CS83 ini menawarkan densitas port tinggi dengan kemudahan instalasi unik, menjadikannya switch akses paling fleksibel untuk gedung perkantoran atau sekolah.
Kenapa Memilih Perangkat Ini?
- 48 Port Gigabit Full-Speed: Menghubungkan seluruh perangkat di satu lantai kantor dalam satu manajemen terpusat.
- Uplink Super Cepat: 4 slot 10G SFP+ untuk koneksi backbone yang bebas hambatan.
- Fitur Loop Prevention: Menjaga stabilitas jaringan dari kesalahan pengabelan yang tidak disengaja oleh pengguna.
- Keamanan Akses Tingkat Enterprise: Melindungi data internal perusahaan dengan fitur otentikasi port yang ketat.
| brands |
|---|
Technical Specifications
| Type | 48-Port L3 Managed Switch with PD |
| Fixed Ports | 48 x 10/100/1000Base-T Ports |
| Uplink Ports | 4 x 10G SFP+ Slots |
| PoE Input | Dual Port PoE Input Support |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 132 Mpps |
| MAC Address | 16K Entries |
| L3 Protocols | OSPF, BGP, ISIS, Static Routing |
| Virtualization | VSU Stacking Support |
| Management | Ruijie Cloud, Web, CLI, SNMP |
| Packet Buffer | 1.5 MB |
| VLAN | 4094 VLANs, Super VLAN |
| Security | CPP, NFPP, DHCP Snooping |
| ARP Table | Up to 8K |
| IPv6 Features | Dual Stack IPv4/IPv6 |
| Power Supply | Built-in AC + PoE PD Support |
| Power Consumption | < 50W |
| Dimensions | 440 x 280 x 44 mm (1U) |
| Weight | 4.5 kg |
| Cooling | Intelligent Smart Fans |
| Operating Temp | 0°C to 50°C |
| Surge Protection | 10KV |
| Multicast | IGMP v1/v2/v3, MLD Snooping |
| QoS | Priority Queuing, Rate Limiting |
| Mirroring | SPAN, RSPAN |
| Reliability | REUP, VRRP, BFD |
| Jumbo Frame | 9216 bytes |
| Certification | CE, FCC, RoHS |
| MTBF | > 180,000 hours |
| Warranty | 3 Years |
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
