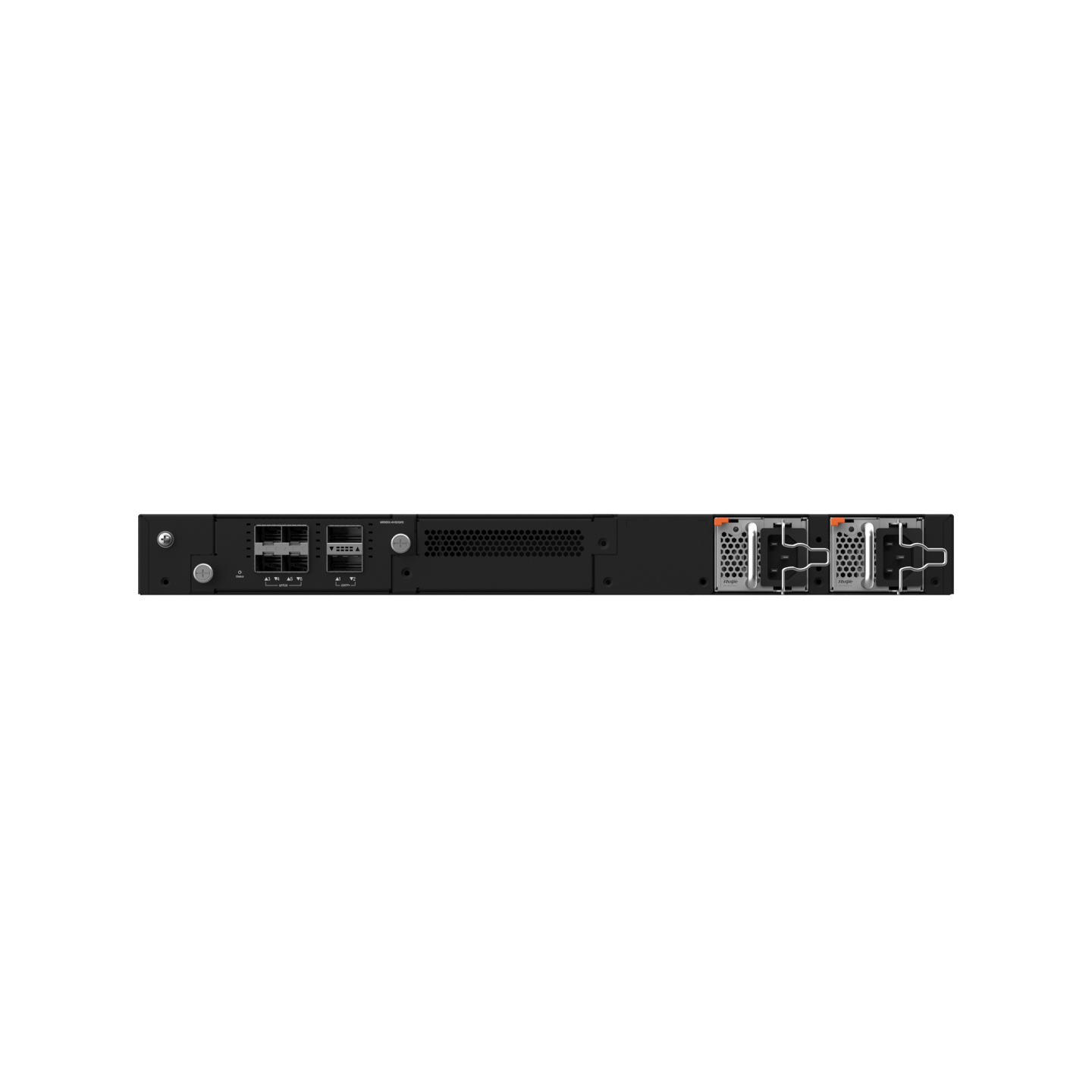

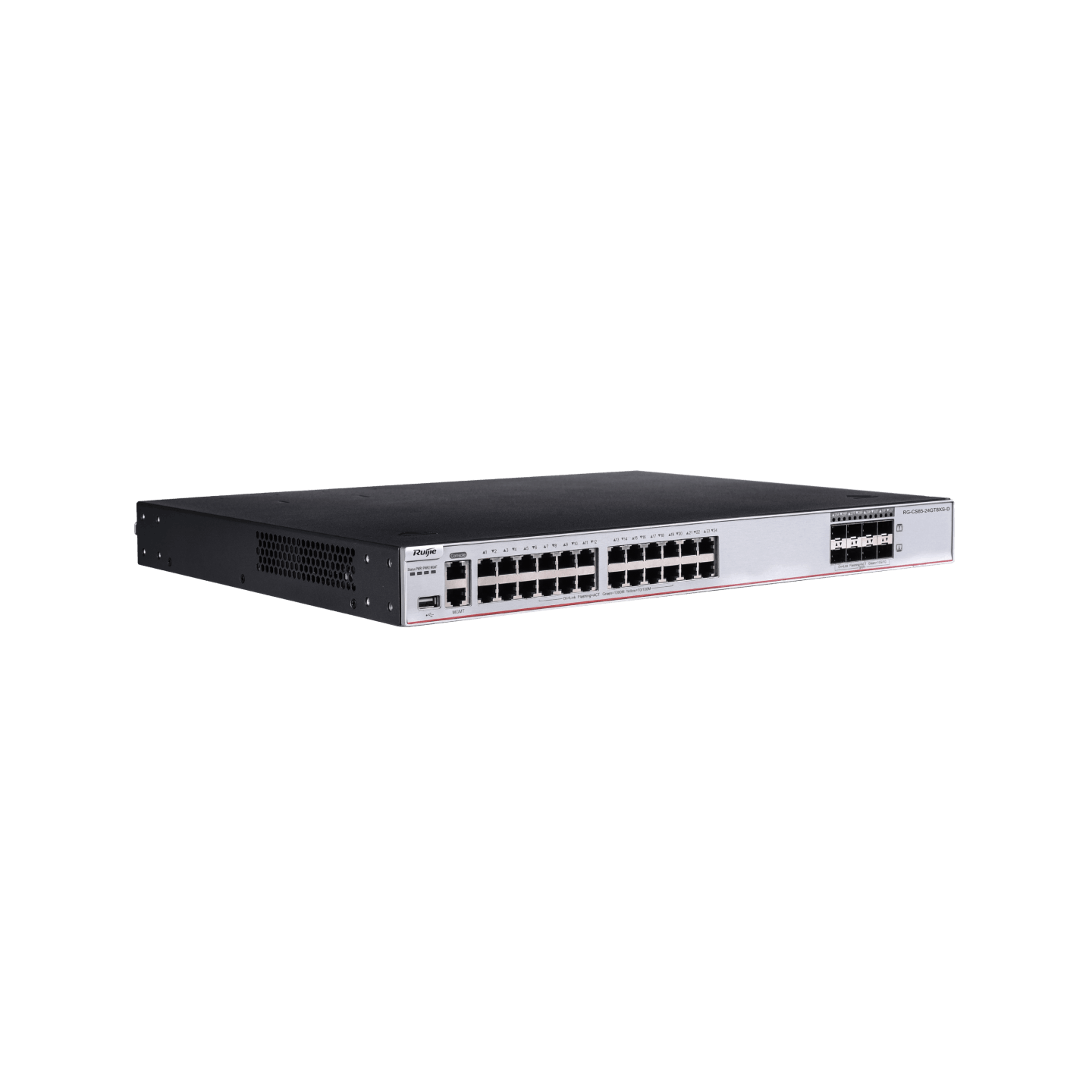

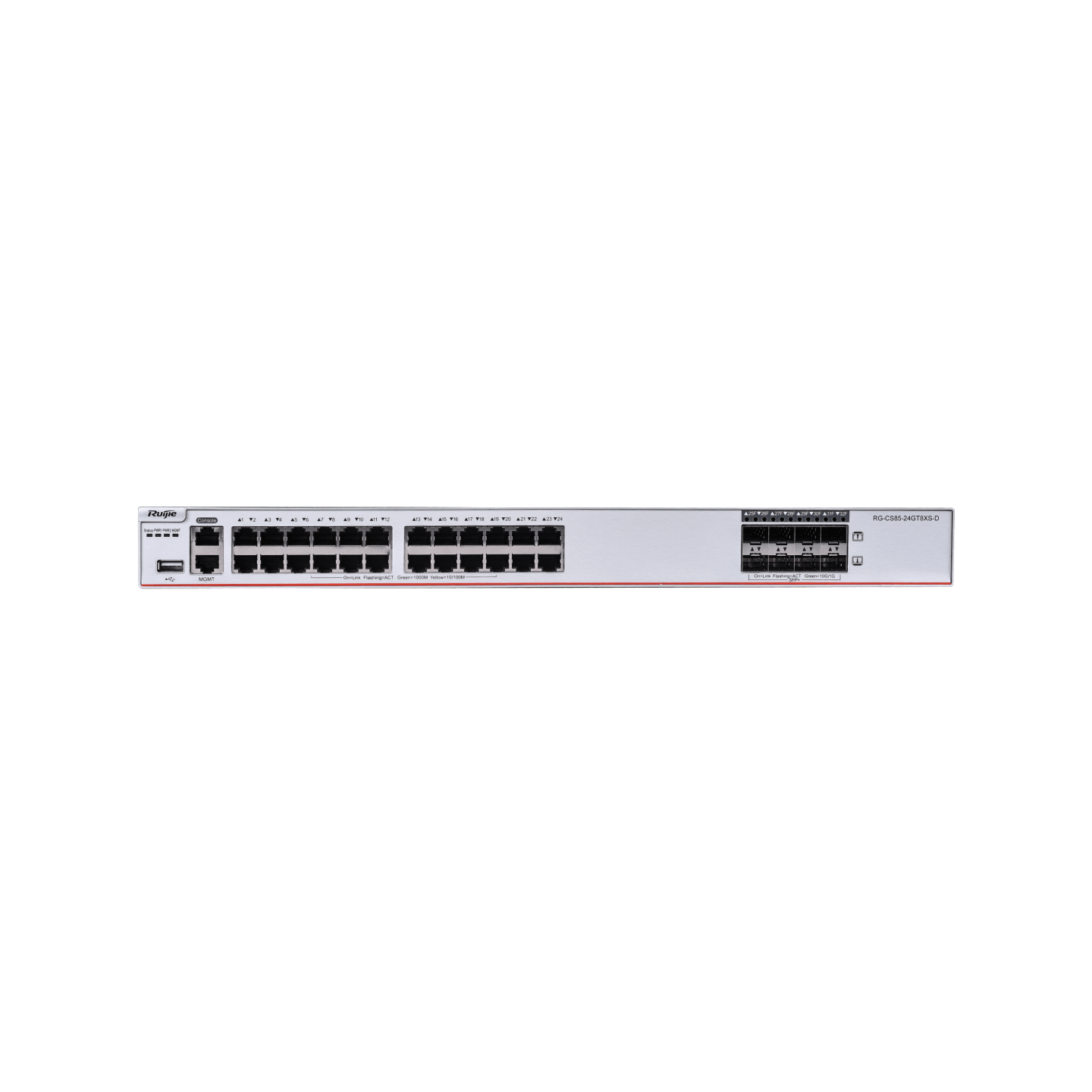

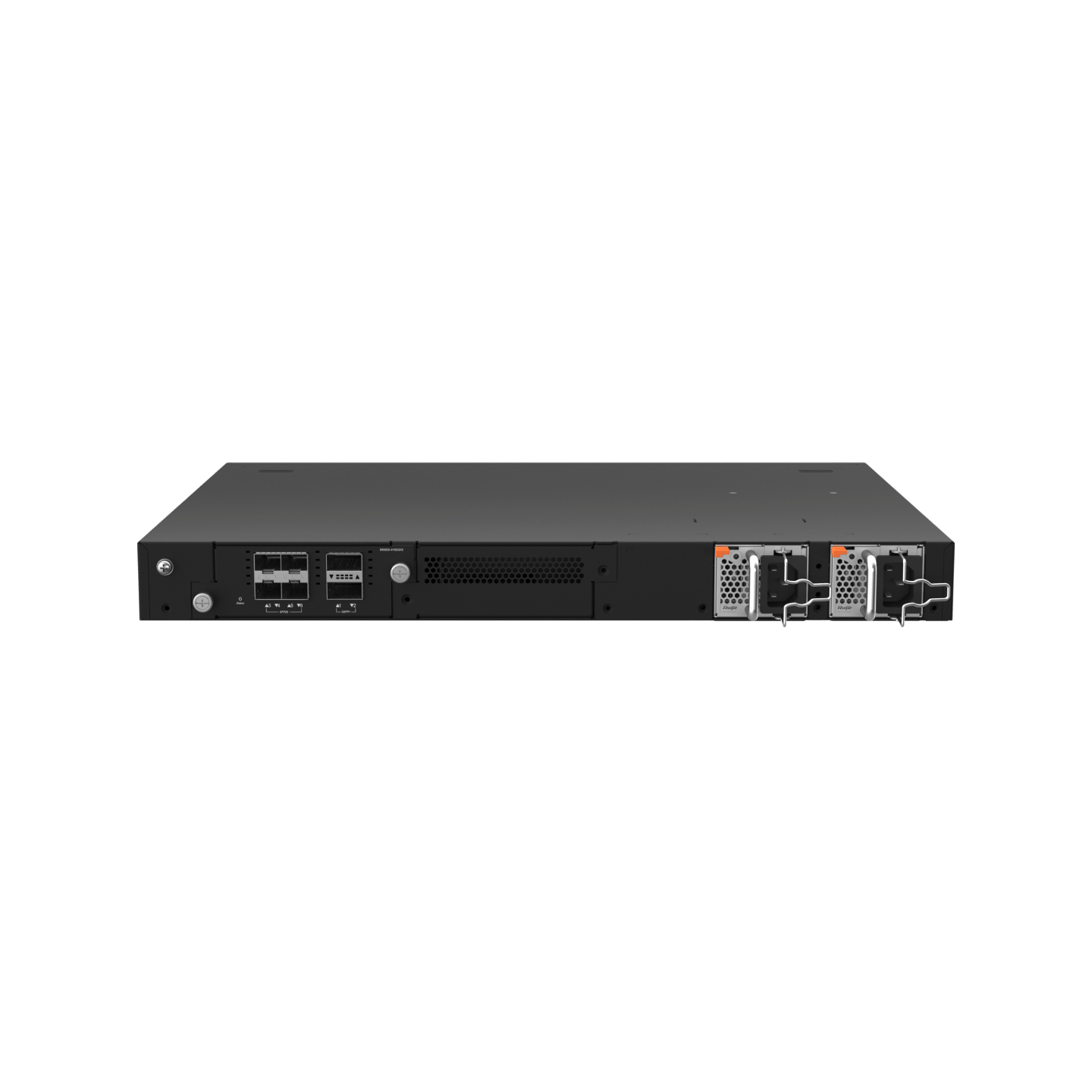

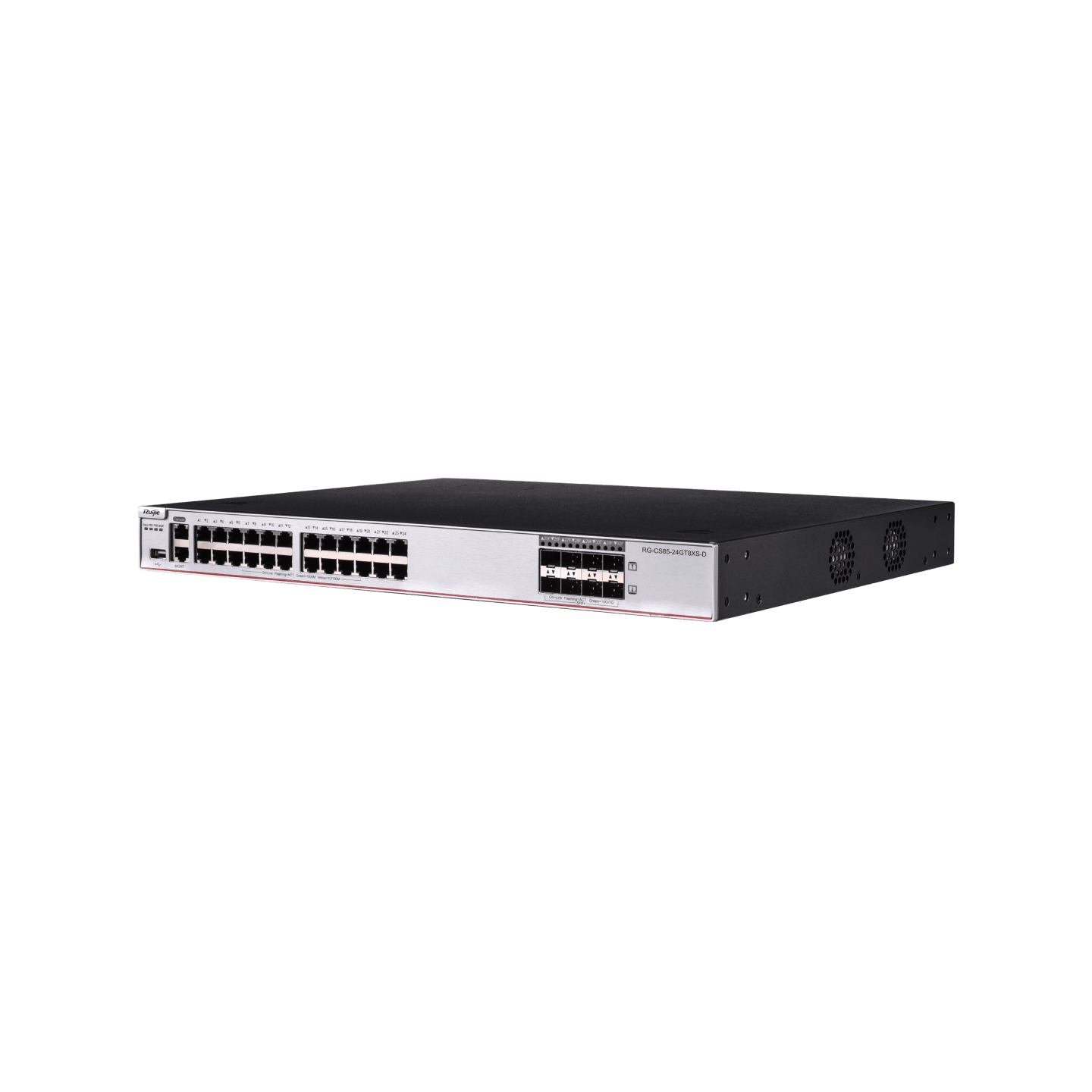

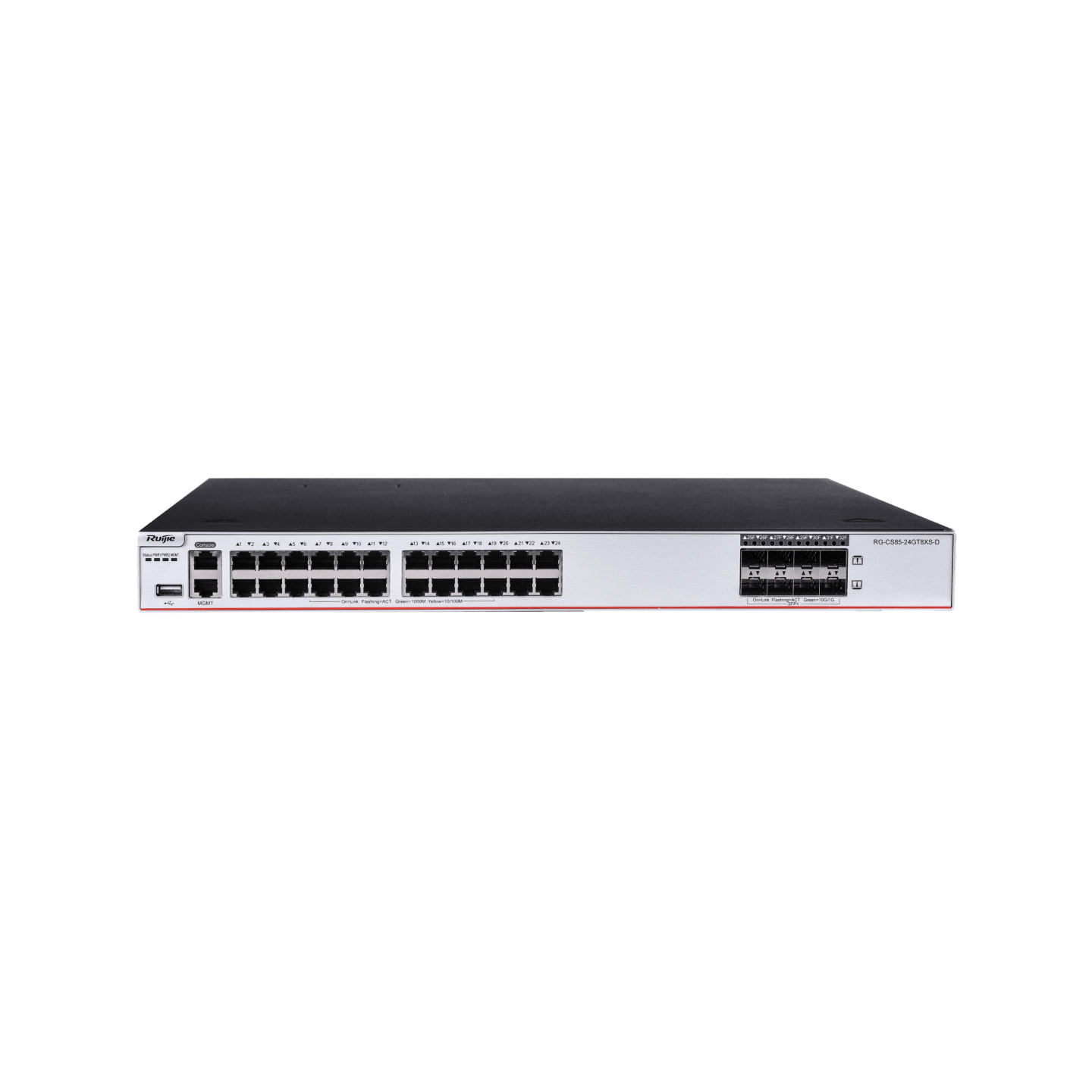

RG-CS85-24GT8XS-D L3 Managed Switch, 24 x Gigabit, 8 x 10G SFP+, Dual Power
Stok 25
Highlight Features:• 24 x Gigabit and 8 x 10G SFP+ uplink ports.• Dual power supply support for core redundancy.• Full Layer 3 routing capabilities.• High-performance campus distribution switch.
Ruijie RG-CS85-24GT8XS-D: Switch Aggregation Campus dengan Performa Tinggi
RG-CS85-24GT8XS-D dirancang sebagai titik temu antar switch akses di jaringan kampus. Dengan jumlah port uplink 10G yang lebih banyak (8 port SFP+), switch ini menjamin distribusi data antar lantai atau antar gedung berjalan dengan efisiensi maksimal.
Manfaat Utama:
- 8 Port 10G SFP+ Uplink: Memberikan kapasitas agregasi yang jauh lebih besar dibanding switch standar, siap untuk trafik data intensif.
- Hardware Stacking: Memungkinkan penggabungan unit untuk manajemen satu pintu dan redundansi jalur data.
- Fitur Routing Layer 3: Mengelola trafik antar VLAN secara cerdas untuk meningkatkan kecepatan akses data pengguna.
- Reliabilitas Tinggi: Komponen berkualitas industrial yang menjamin umur pakai panjang meski digunakan terus-menerus.
| brands |
|---|
Technical Specifications
| Type | High-Performance L3 Managed Switch |
| Fixed Ports | 24 x 10/100/1000Base-T Ports |
| Uplink Ports | 8 x 10G SFP+ Slots |
| Switching Capacity | 208 Gbps |
| Forwarding Rate | 156 Mpps |
| MAC Address | 32K Entries |
| L3 Routing | Static, RIP, OSPF, BGP, ISIS, PBR |
| Virtualization | VSU 2.0 (Virtual Switch Unit) |
| Management | Web GUI, CLI, Cloud, SNMP v3 |
| Power Supply | Dual Hot-swap Redundant AC/DC |
| Power Consumption | < 45W |
| Dimensions | 440 x 330 x 44 mm (1U) |
| Weight | 5.0 kg |
| Operating Temp | 0°C to 50°C |
| Cooling | Front-to-Rear Smart Fans |
| Security | CPP, NFPP, IP Source Guard, DAI |
| VLAN | 4K VLAN IDs, Voice VLAN, QinQ |
| ARP Table | Up to 16K |
| ACL | L2/L3/L4 ACL Support |
| IPv6 | Static, OSPFv3, BGP4+, MLD |
| Multicast | IGMP v1/v2/v3, PIM-SM/DM |
| QoS | 8 Queues, SP, WRR, DRR, WRED |
| Reliability | VRRP, REUP, BFD, GR |
| Jumbo Frame | 9216 bytes |
| Surge Protection | 10KV |
| Housing | Galvanized Steel Case |
| Mirroring | SPAN, RSPAN, ERSPAN |
| Certification | CE, RoHS, FCC |
| MTBF | > 200,000 hours |
| Warranty | 3 Years |
