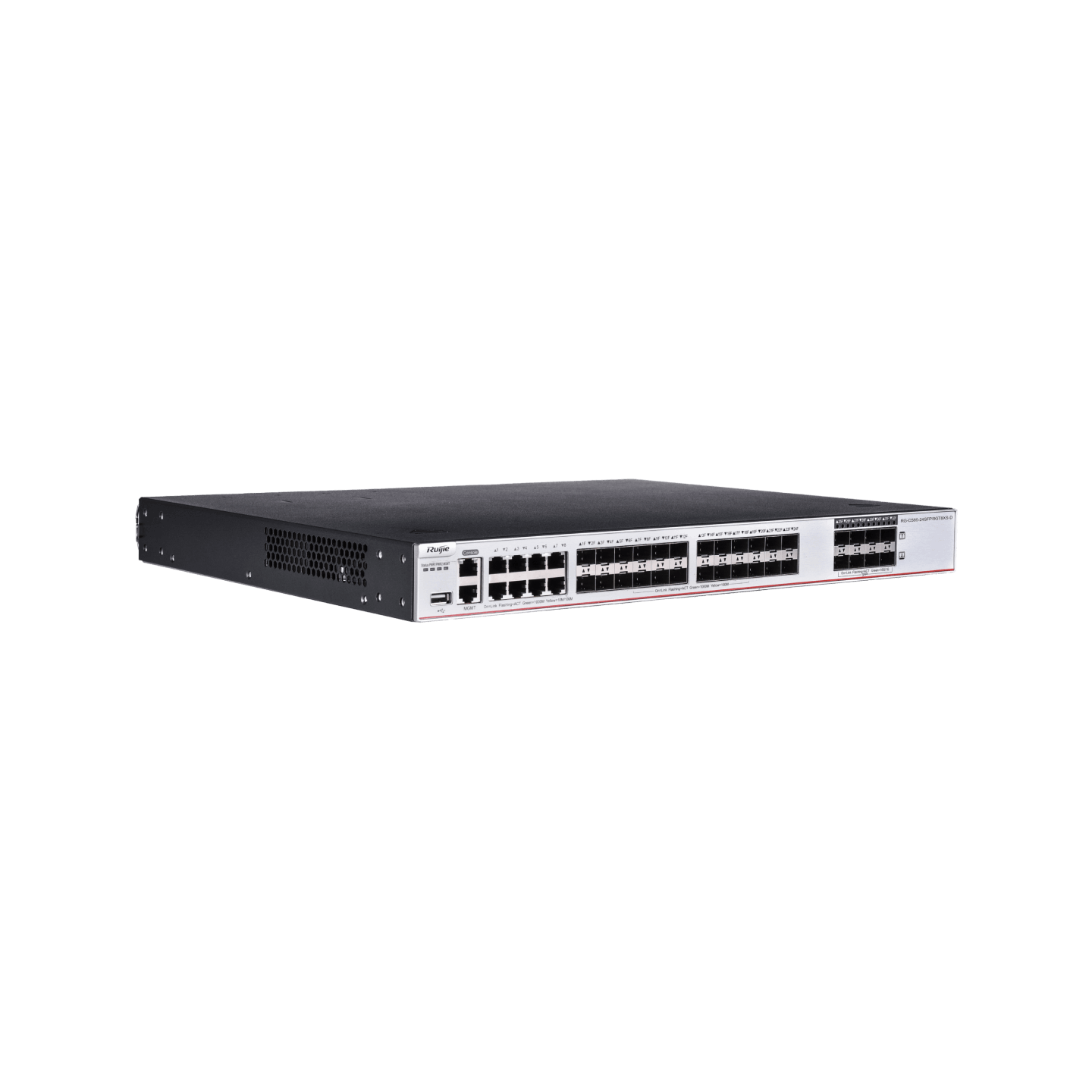

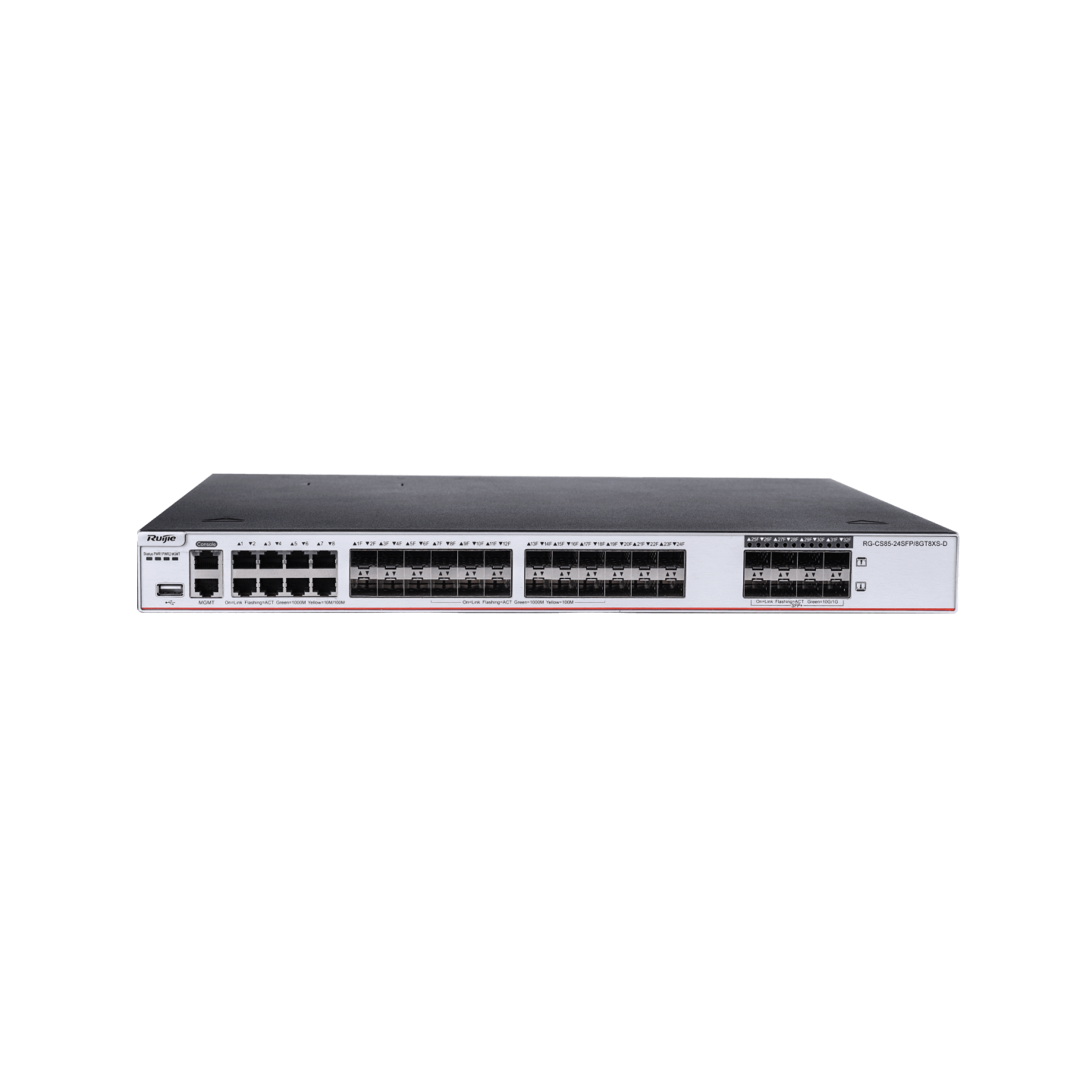

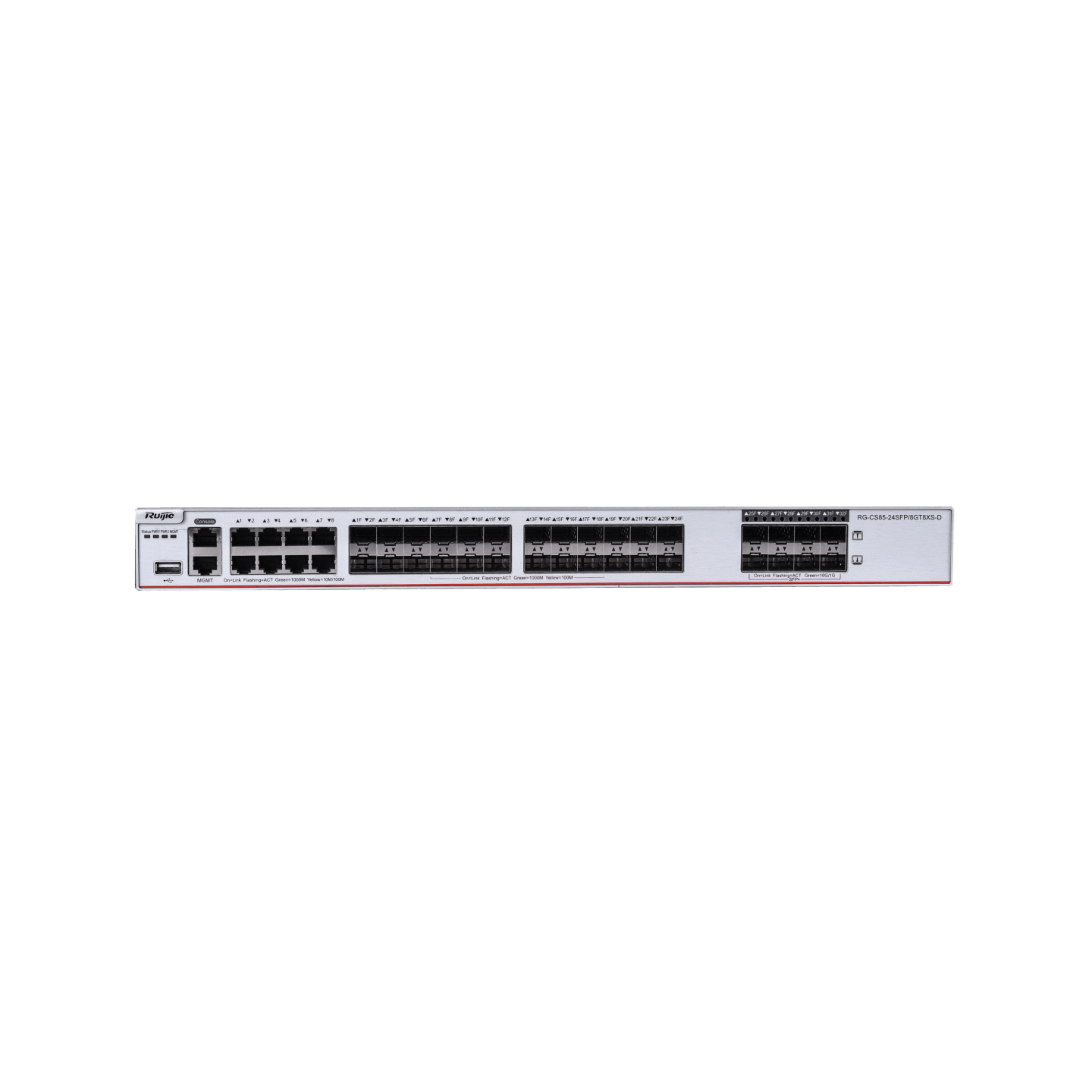

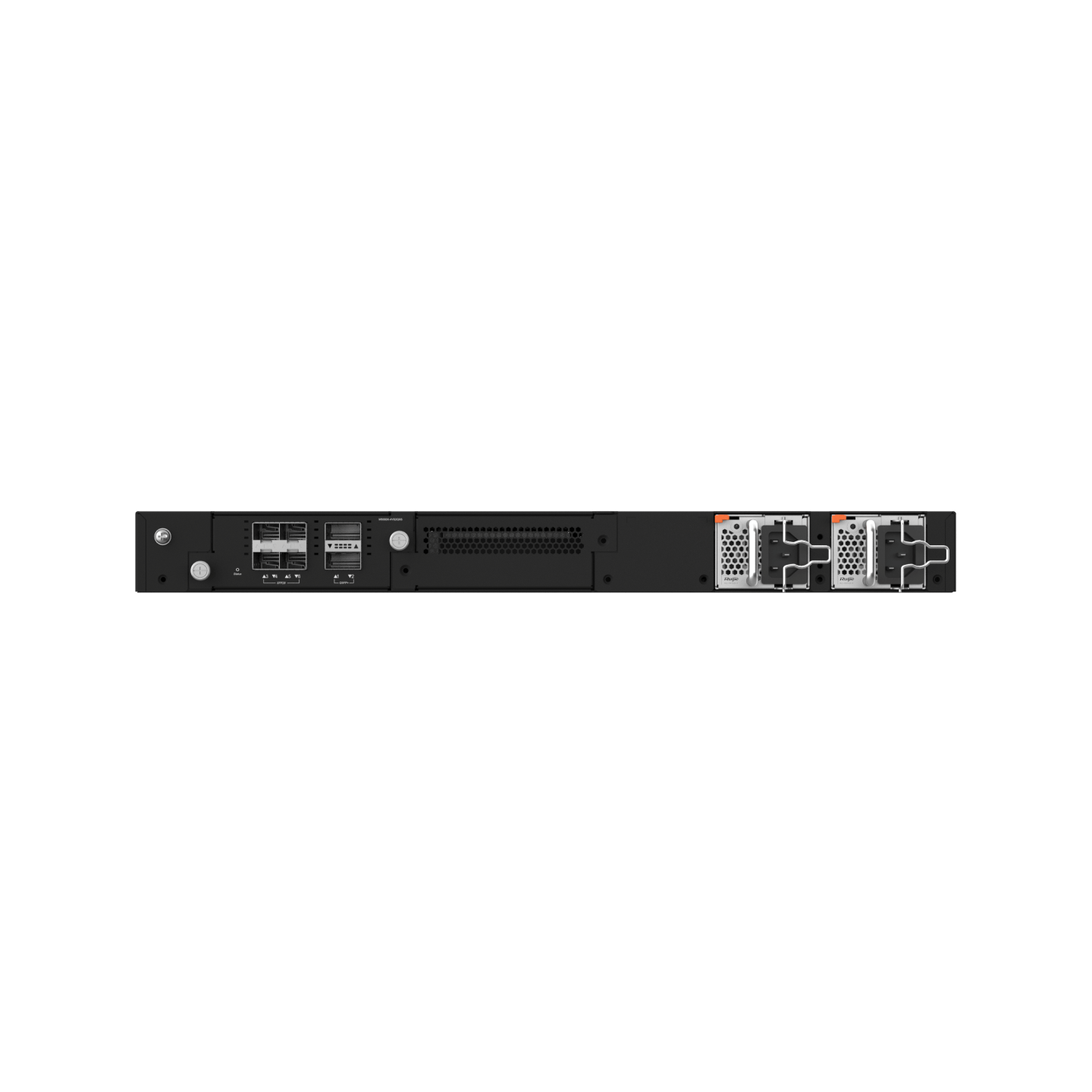

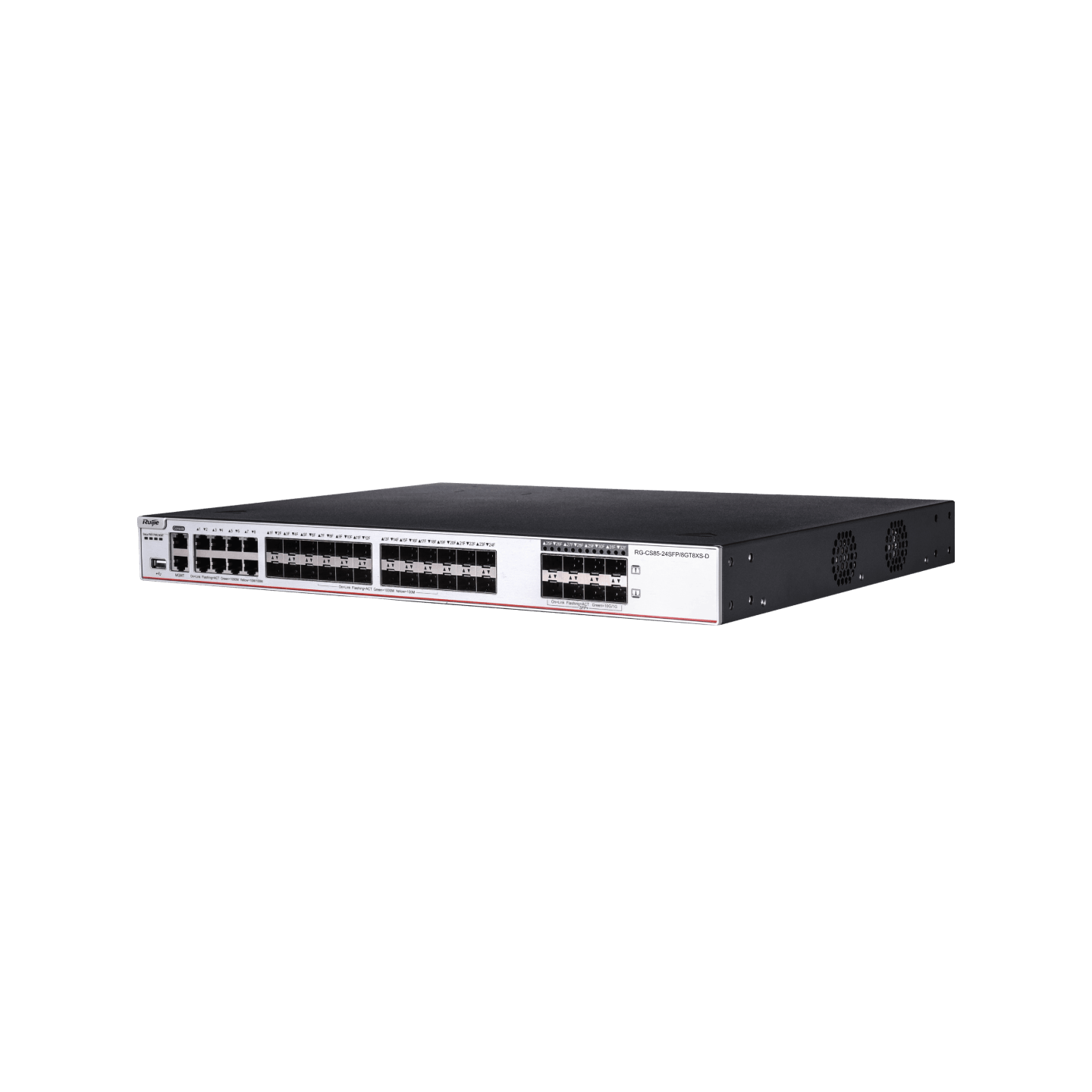

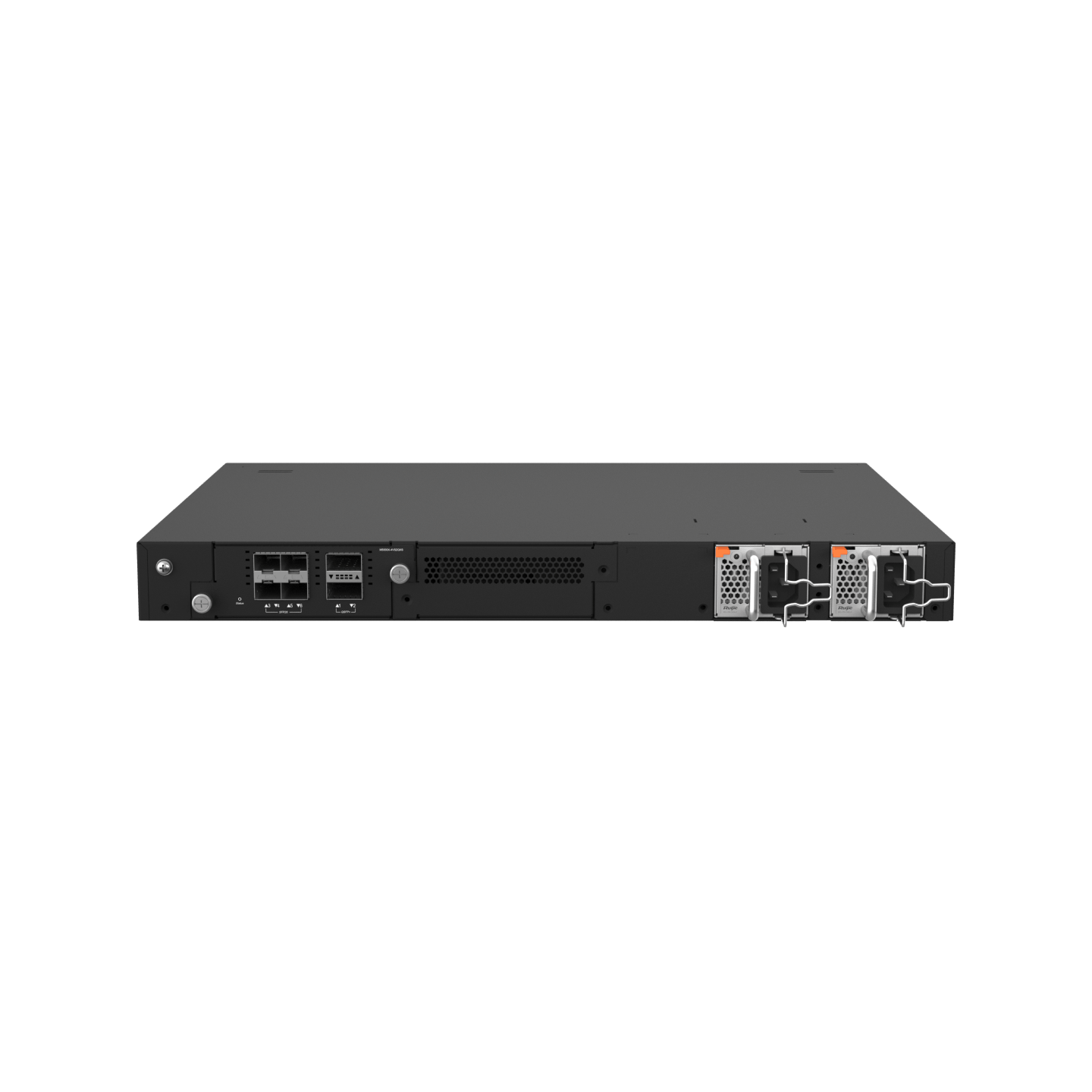

RG-CS85-24SFP-8GT8XS-D L3 Managed Switch, 24 x SFP, 8 x Gigabit Combo, 8 x 10G SFP+

Ruijie
Availability:

Stok 25


Highlight Features:• 24 x SFP fiber ports with 8 x Combo RJ45 ports.• 8 x 10G SFP+ uplinks for massive bandwidth.• Redundant DC/AC power supply options.• Advanced network virtualization (VSU) support.

Ruijie RG-CS85-24SFP: Pusat Agregasi Fiber untuk Jaringan Kampus Modern

Maksimalkan jangkauan jaringan Anda dengan koneksi fiber optik. Dengan 24 port SFP, switch ini adalah pilihan sempurna untuk menjadi pusat agregasi yang menghubungkan berbagai switch akses di lokasi berjauhan melalui kabel fiber.

Fitur Kunci:

  • Konektivitas Fiber Dominan: 24 port SFP memberikan fleksibilitas koneksi jarak jauh tanpa gangguan interferensi listrik.
  • Dual Media Uplink: Kombinasi port Gigabit Tembaga dan 10G SFP+ memberikan pilihan fleksibel untuk koneksi ke core network.
  • Optimasi Trafik Video: Sangat handal dalam menangani lalu lintas data CCTV atau video streaming tanpa buffering.
  • Manajemen Cloud yang Powerfull: Kontrol seluruh jaringan fiber Anda dalam satu tampilan dashboard yang intuitif dan mudah dipahami.
SKU: RG-CS85-24SFP-8GT8XS-D Kategori: Brand:
brands

Technical Specifications

Type L3 Aggregation Fiber Switch
Fixed Ports 24 x 100/1000Base-X SFP Slots
Combo Ports 8 x 10/100/1000Base-T Ports (Combo)
Uplink Ports 8 x 10G SFP+ Slots
Switching Capacity 208 Gbps
Forwarding Rate 156 Mpps
MAC Address 32K Entries
L3 Routing Full L3 Stack (OSPF, BGP, ISIS)
Stacking VSU 2.0 Support
Management Web, CLI, SNMP, Ruijie Cloud
Reliability Dual Hot-swap Power Supply
Power Supply AC 100-240V / DC -48V Modules
Power Consumption < 65W
Dimensions 440 x 330 x 44 mm (1U)
Weight 5.5 kg
Cooling Hot-swap Fan Tray (N+1)
Operating Temp 0°C to 50°C
Security CPP, NFPP, DHCP Snooping
VLAN 4K VLANs, Super VLAN, Private VLAN
ARP Table 16K Entries
IPv6 Dual Stack Ready
Multicast IGMP v1/v2/v3, MLD Snooping
QoS Strict Priority, WRR, Traffic Shaping
Mirroring Many-to-One SPAN
Jumbo Frame 9216 bytes
Surge Protection 10KV
Housing Full Metal Industrial Design
Certification CE, FCC, RoHS
MTBF > 180,000 hours
Warranty 3 Years
