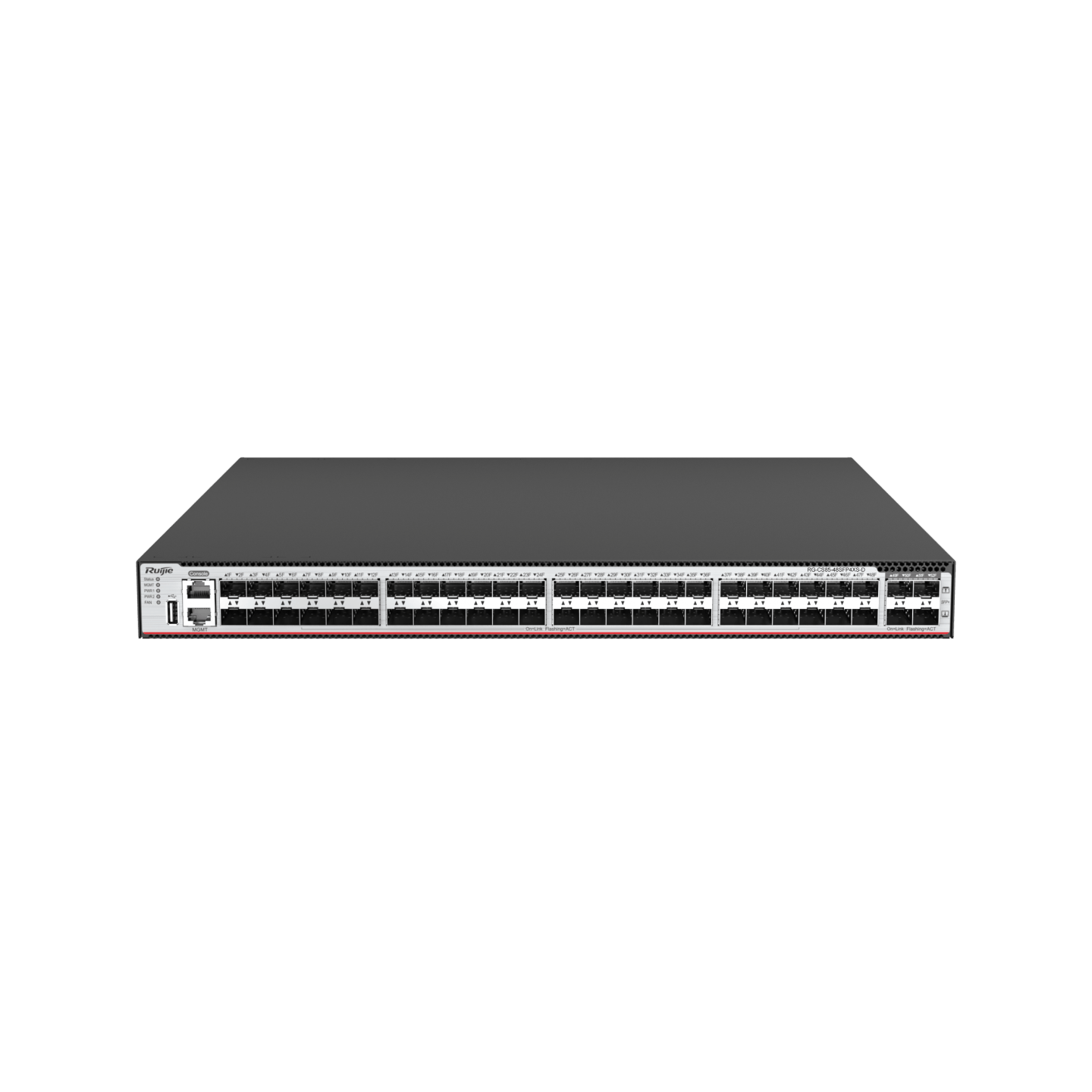

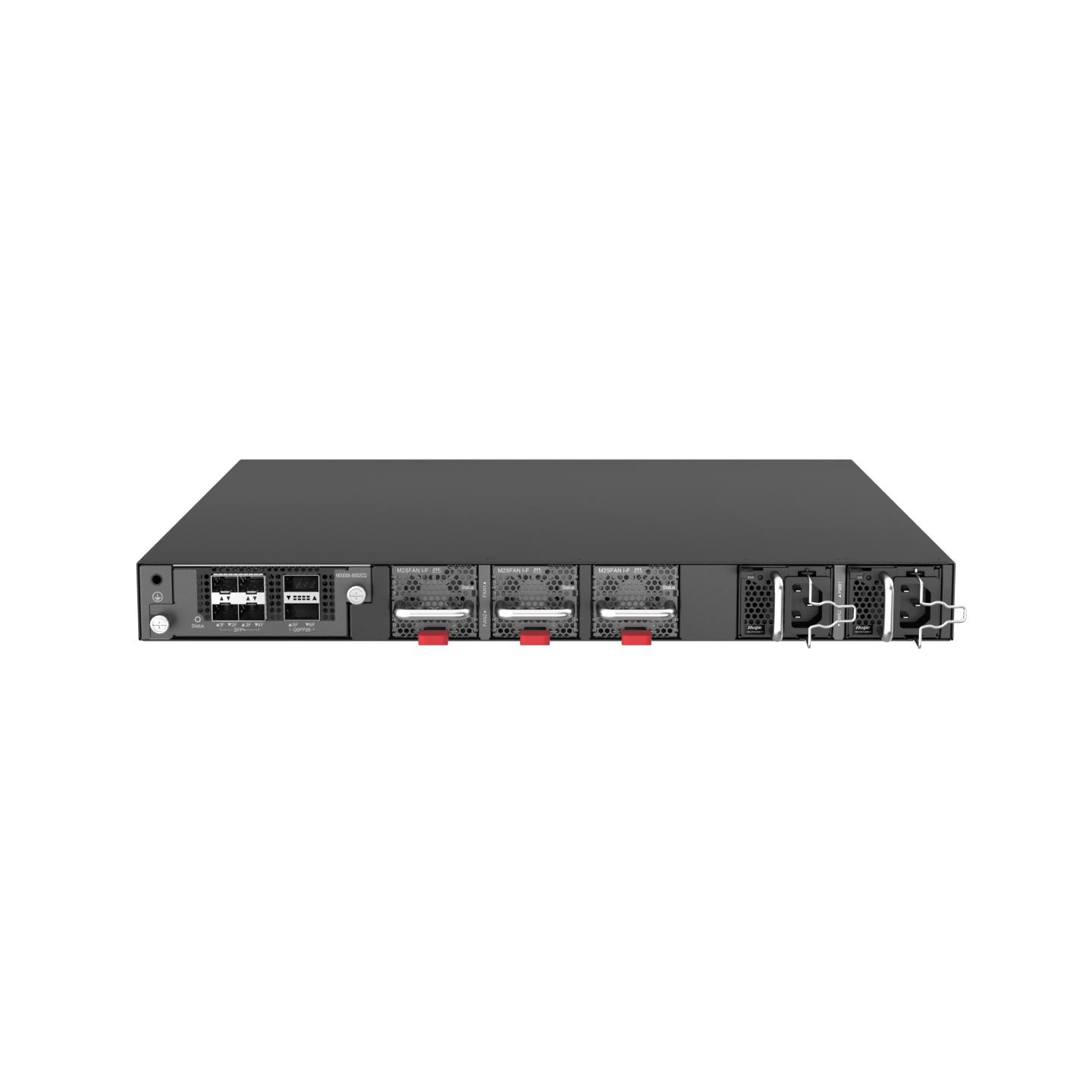

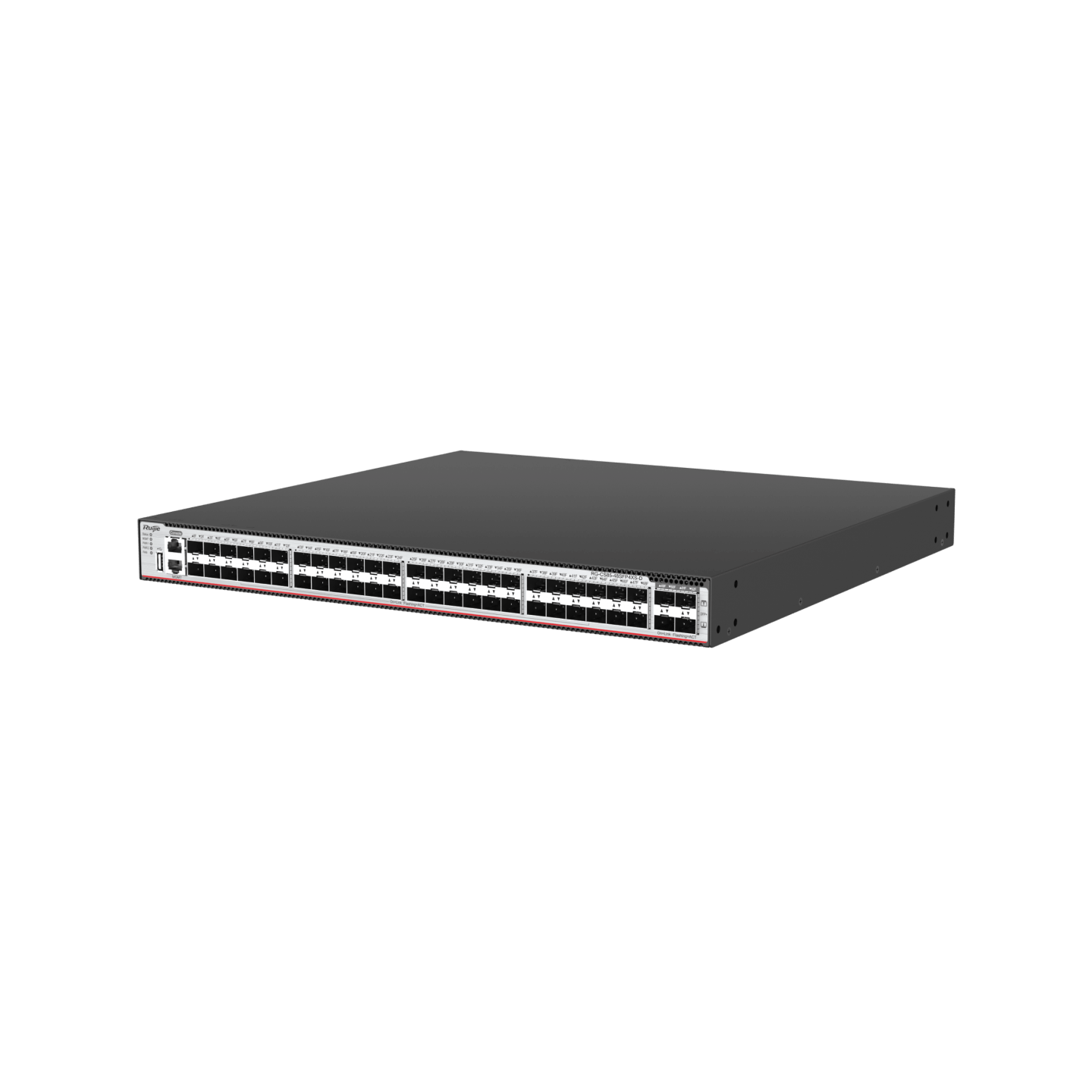

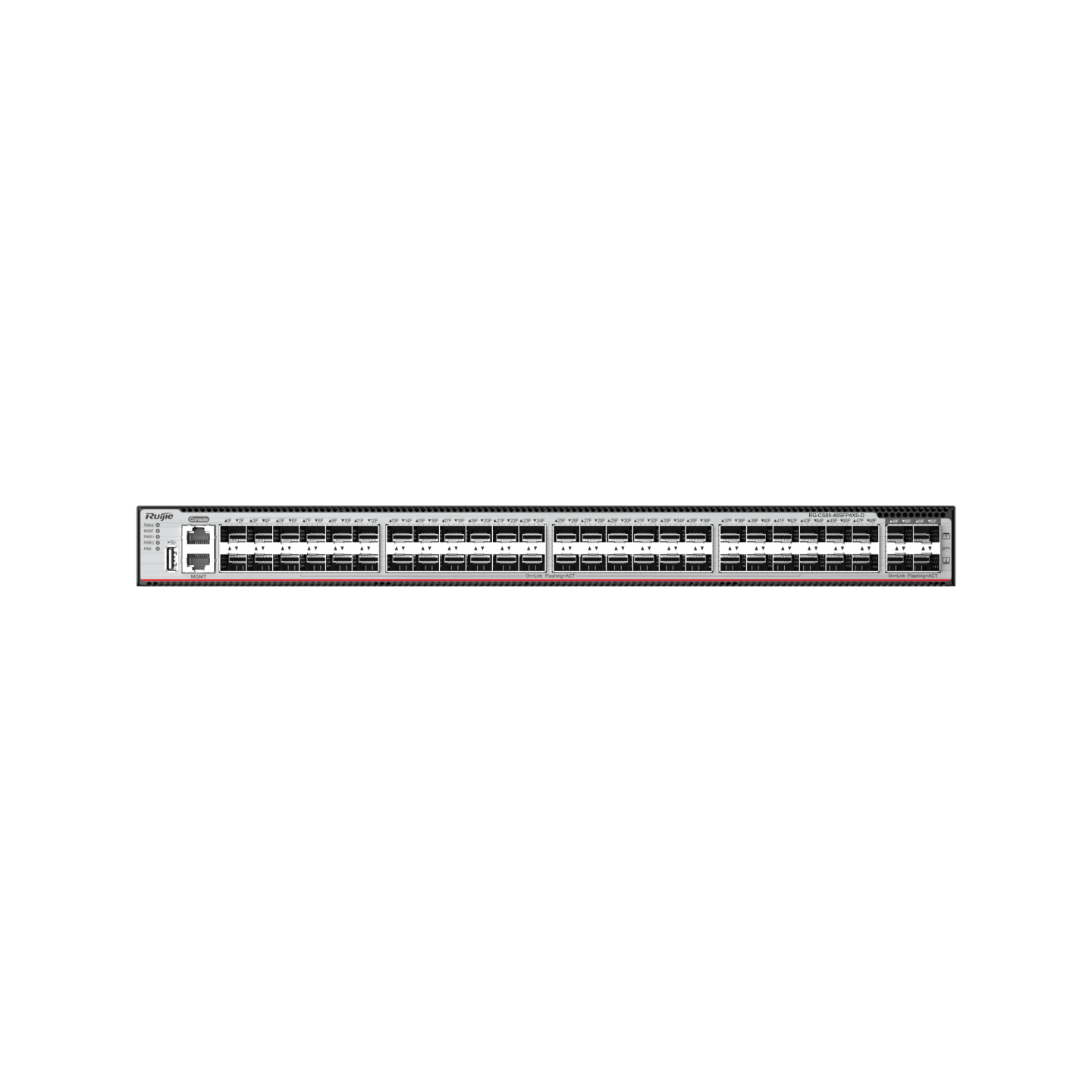

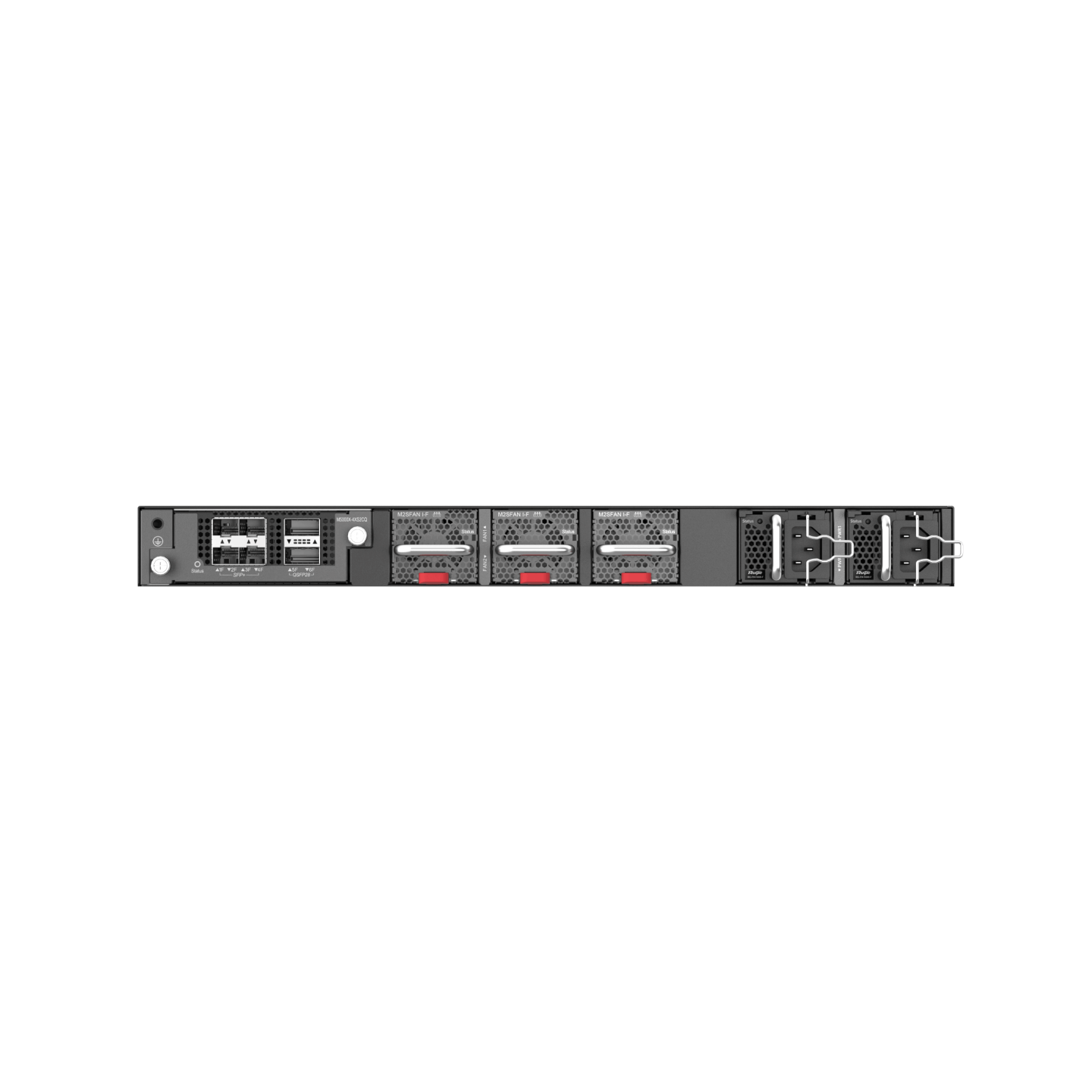

RG-CS85-48SFP4XS-D L3 Managed Switch, 48 x 100/1000M SFP Ports, 4 x 1G/10G SFP+ Ports
Stok 25
Highlight Features:• 48 x 100/1000M SFP fiber ports and 4 x 10G SFP+ uplinks.• Ideal for high-density fiber aggregation in campus networks.• Supports VSU (Virtual Switching Unit) virtualization.• Professional hardware design for stable long-term operation.
Ruijie RG-CS85-48SFP4XS-D: Master Agregasi Fiber untuk Infrastruktur Jarak Jauh
Didesain khusus untuk jaringan yang tersebar luas, RG-CS85-48SFP4XS-D menawarkan 48 port SFP untuk konektivitas fiber optik murni. Switch ini adalah solusi terbaik untuk menghubungkan switch akses di berbagai gedung atau lantai melalui kabel fiber, menjamin transmisi data bebas gangguan interferensi listrik.
Keunggulan Strategis:
- Konektivitas Fiber Luar Biasa: 48 port SFP memberikan fleksibilitas total untuk memperluas jangkauan jaringan hingga ribuan meter tanpa kehilangan kualitas sinyal.
- Uplink Super Cepat: Dilengkapi 4 slot 10G SFP+ untuk koneksi tulang punggung (backbone) jaringan yang sangat stabil dan bertenaga.
- Desain Modular & Rapi: Memudahkan pengaturan kabel fiber di rak server pusat, memberikan tampilan yang lebih profesional dan terorganisir.
- Manajemen Cloud Terpadu: Pantau seluruh koneksi fiber Anda secara real-time melalui dashboard Ruijie Cloud yang intuitif.
| brands |
|---|
Technical Specifications
| Type | L3 Managed High-Density Fiber Switch |
| Fixed Ports | 48 x 100/1000Base-X SFP Slots |
| Uplink Ports | 4 x 10G SFP+ Slots |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 132 Mpps |
| MAC Address | 32K Entries |
| L3 Routing | Full L3 Stack (OSPF, BGP, ISIS) |
| Stacking | VSU 2.0 Virtualization |
| Management | Web, CLI, SNMP, Ruijie Cloud |
| Reliability | Dual Hot-swap Power Supply Support |
| Power Supply | AC 100-240V / DC -48V Modules |
| Power Consumption | < 85W |
| Dimensions | 440 x 330 x 44 mm (1U) |
| Weight | 6.2 kg |
| Cooling | Hot-swap Fan Tray (N+1) |
| Operating Temp | 0°C to 50°C |
| Security | CPP, NFPP, DHCP Snooping |
| VLAN | 4K VLANs, Super VLAN, Private VLAN |
| ARP Table | 16K Entries |
| IPv6 | Dual Stack IPv4/IPv6 Ready |
| Multicast | IGMP v1/v2/v3, MLD Snooping |
| QoS | Strict Priority, WRR, Traffic Shaping |
| Mirroring | Many-to-One SPAN |
| Jumbo Frame | 9216 bytes |
| Surge Protection | 10KV Surge Protection |
| Housing | Full Metal Industrial Design |
| Airflow | Front-to-Rear Optimized |
| Certification | CE, FCC, RoHS |
| MTBF | > 180,000 hours |
| Warranty | 3 Years |
