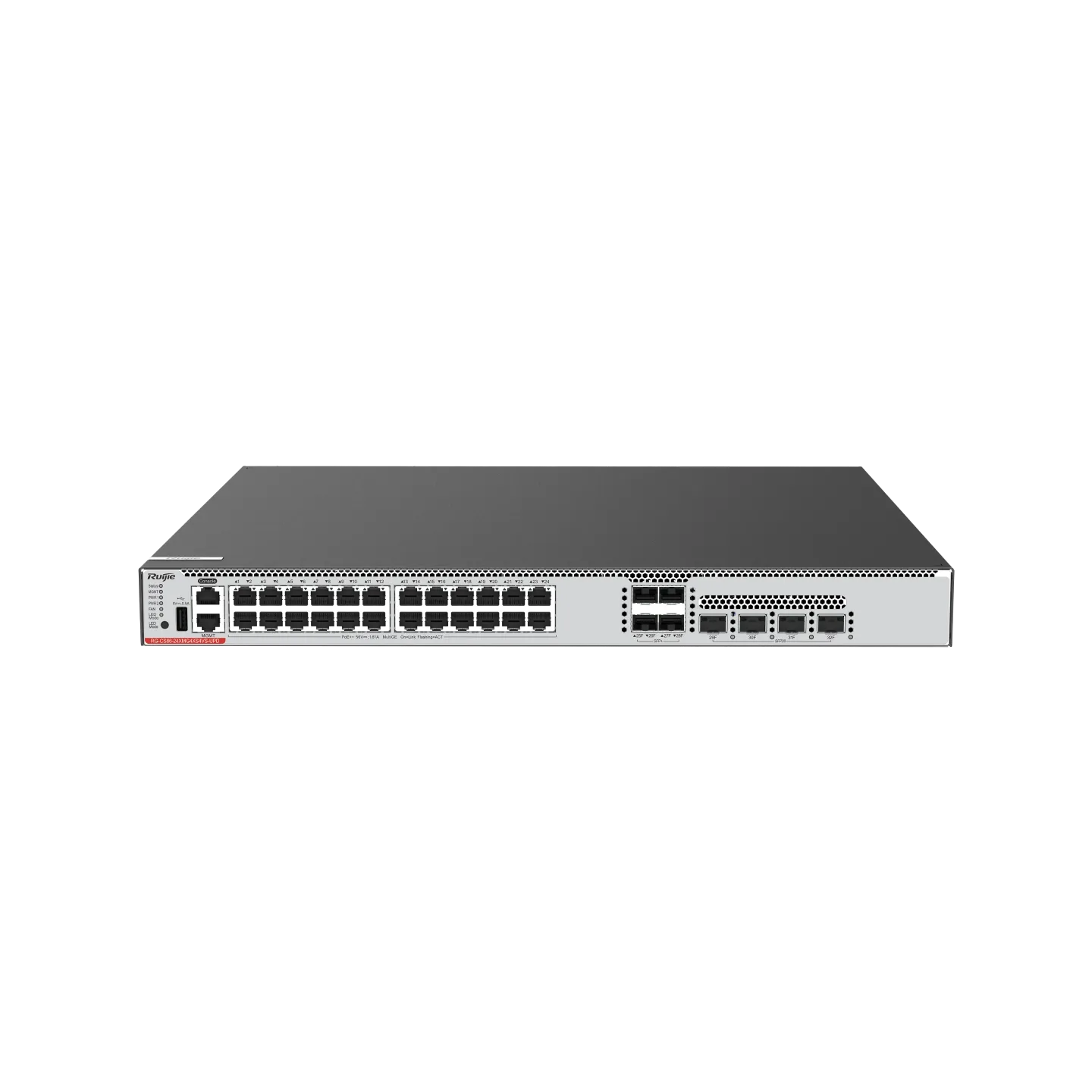

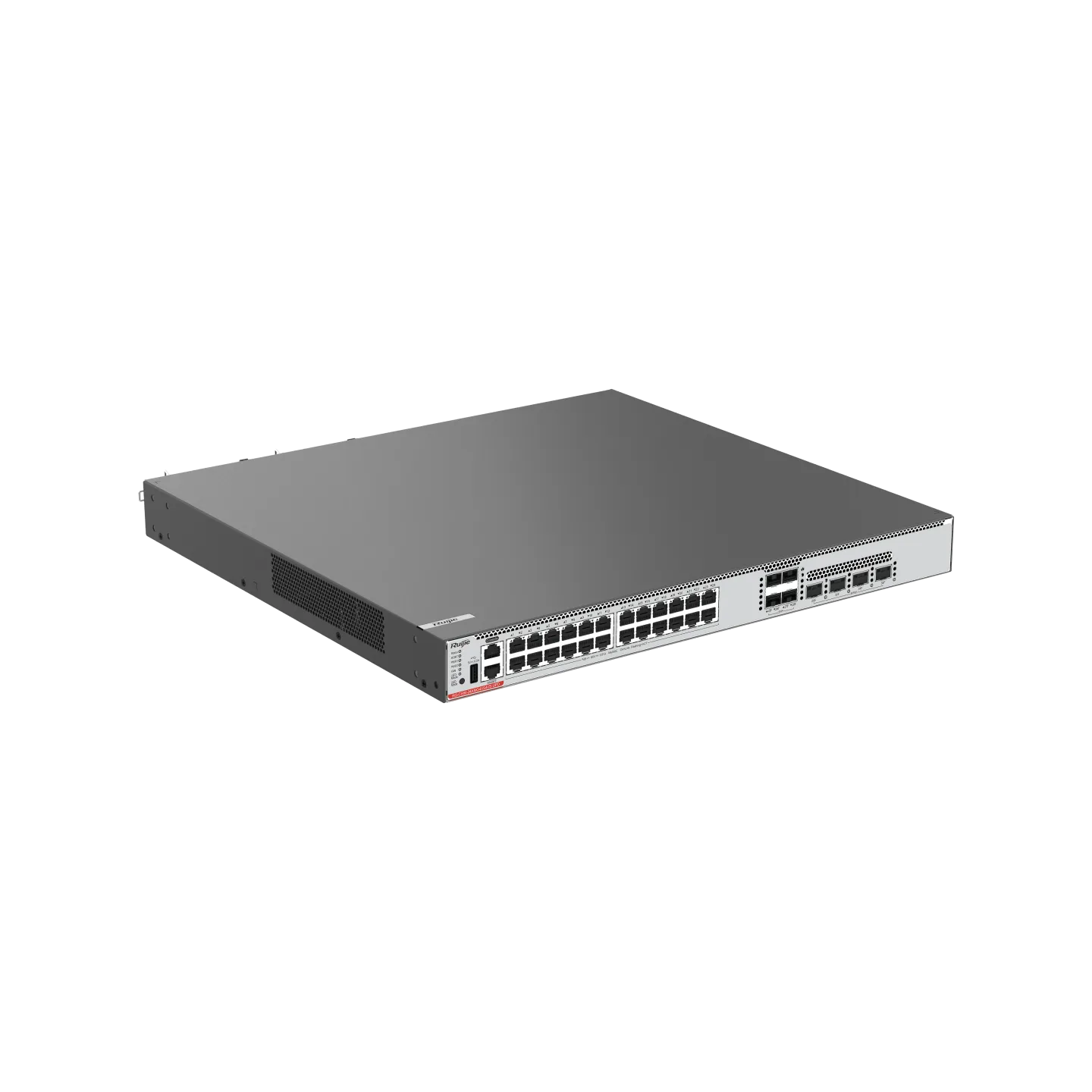

RG-CS86-24XMG4XS4VS-UPD L3 Managed Switch, 24 x 10G Multi-G, 4 x 10G, 4 x 25G SFP28
Stok 25
Highlight Features:• 24 x 10G Multi-Gigabit ports with 4 x 10G SFP+ and 4 x 25G SFP28.• High-density 90W PoE (Ultra PoE) support for IoT and APs.• Future-proof 10G access for high-performance campus networks.• Dual modular power supplies for mission-critical reliability.
Ruijie RG-CS86-24XMG: Powerhouse 10G Multi-Gigabit untuk Kinerja Ekstrim
Tingkatkan jaringan akses Anda ke level tertinggi dengan dukungan port 10G Multi-Gigabit di setiap channel. RG-CS86-24XMG adalah solusi untuk workstation kreator konten, server lokal berkecepatan tinggi, dan infrastruktur IT yang tidak mengenal kompromi.
Kenapa Produk Ini Luar Biasa?
- Kecepatan 10G pada Kabel Tembaga: Dapatkan kecepatan fiber pada kabel LAN standar untuk efisiensi biaya dan performa maksimal.
- Dukungan Daya 90W: Siap menyuplai daya ke perangkat IoT masa depan yang paling haus energi sekalipun.
- Desain Hardware Tangguh: Komponen berkualitas tinggi dengan manajemen panas yang sangat baik untuk operasional 24/7.
| brands |
|---|
Technical Specifications
| Type | Ultra High-Performance Multi-Gig Switch |

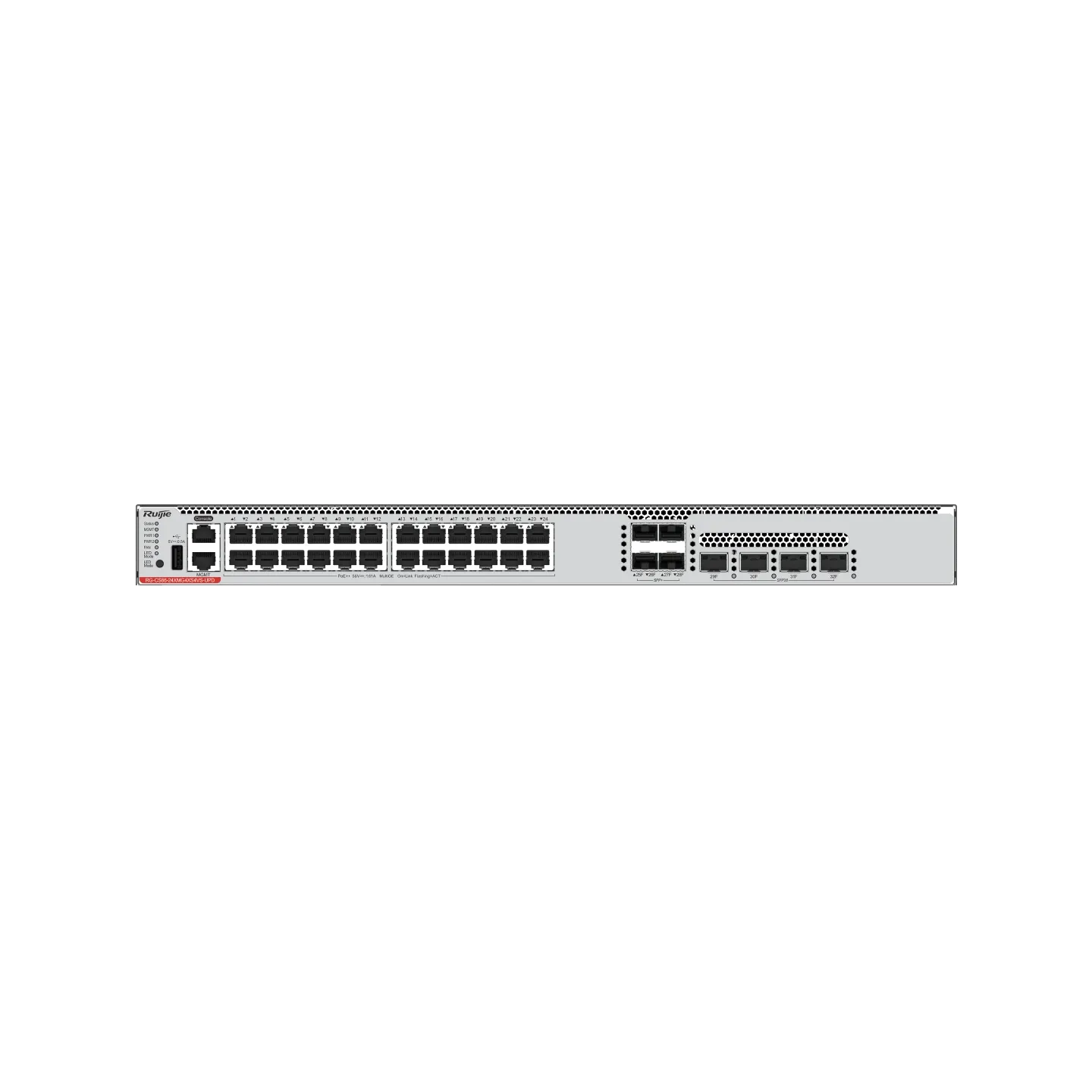

| Fixed Ports | 24 x 1G/2.5G/5G/10G Base-T (PoE++) |
| Uplink Ports | 4 x 10G SFP+, 4 x 25G SFP28 |
| PoE Standard | 802.3bt (90W HPoE) on all ports |
| PoE Budget | Up to 1440W (with Dual PSU) |
| Switching Capacity | 680 Gbps |
| Forwarding Rate | 510 Mpps |
| Architecture | Non-blocking Wire-speed |
| MAC Address | 64K Entries |
| L3 Routing | Static, RIP, OSPF, BGP, ISIS, PBR |
| VXLAN Gateway | Supported (Hardware) |
| SDN Support | NetConf, gRPC, OpenFlow |
| Virtualization | VSU 2.0, VSD |

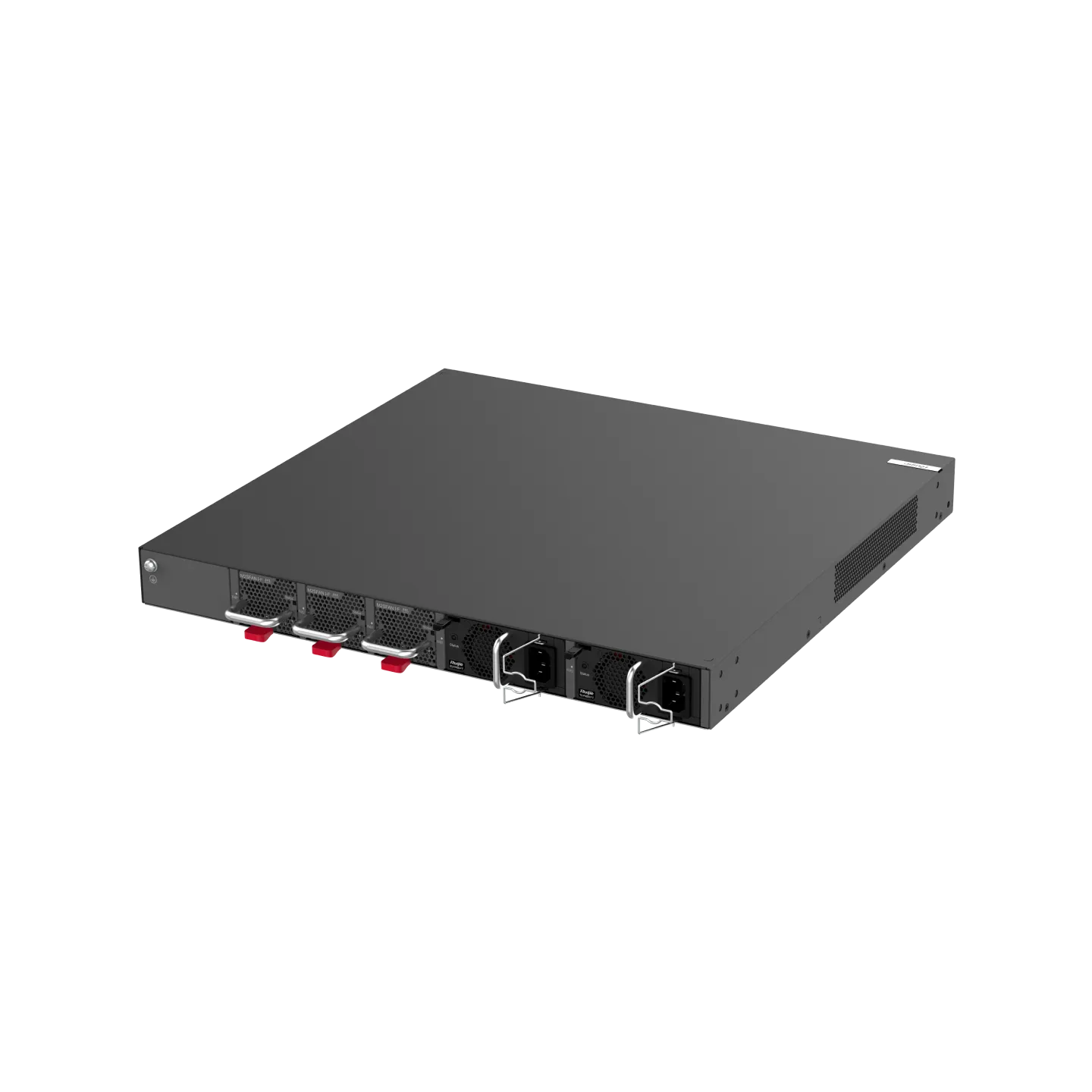

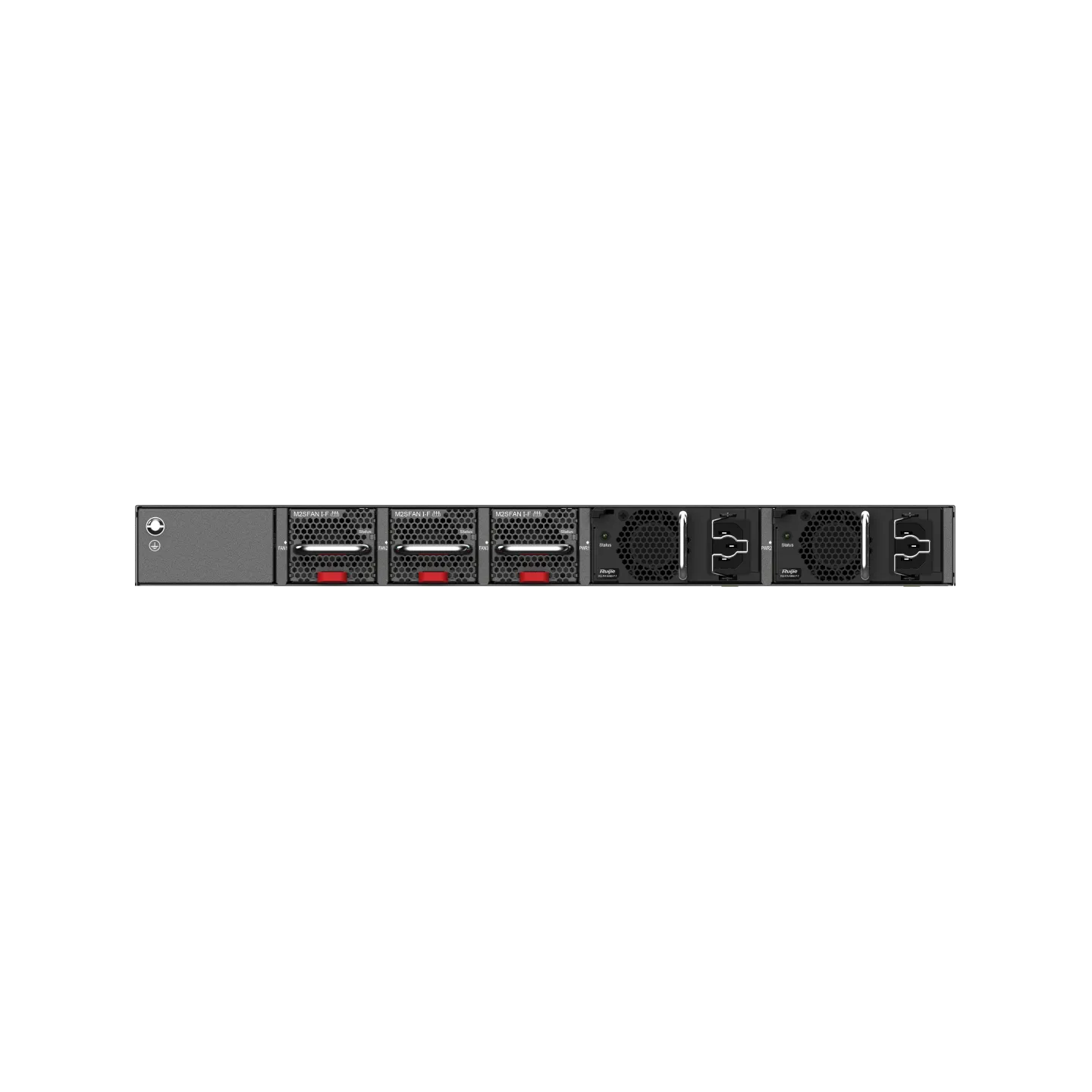

| Power Supply | Redundant Hot-swap AC/DC |
| Power Consumption | < 1800W (Full Load) |
| Dimensions | 442 x 450 x 44 mm |
| Weight | 10.5 kg |
| Operating Temp | 0°C to 50°C |
| Cooling | Variable Speed Redundant Fans |
| Security | CPP, NFPP, Anti-DDoS Architecture |
| VLAN | 4K VLANs, Voice VLAN, Private VLAN |
| IPv6 Ready | Phase 2 Gold Certified |
| Reliability | 99.999% Design, BFD, VRRP |
| Multicast | PIM-SM/SSM, IGMP v1/v2/v3 |
| QoS | H-QoS, 8 Priority Queues |
| Jumbo Frame | 9216 bytes |
| Mirroring | SPAN, RSPAN, ERSPAN |
| Certification | CE, RoHS, FCC |
| MTBF | > 200,000 hours |
| Warranty | 3 Years |
