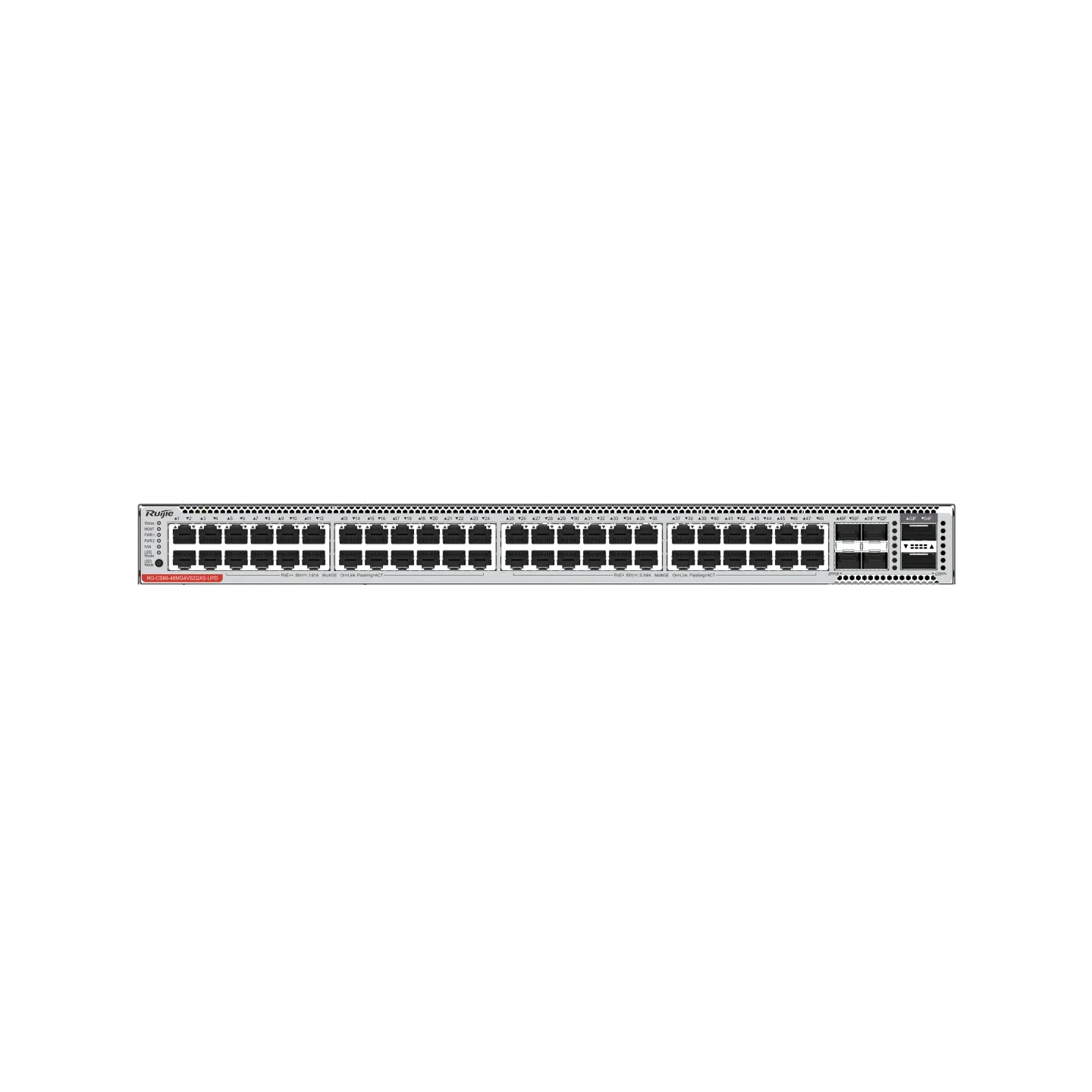

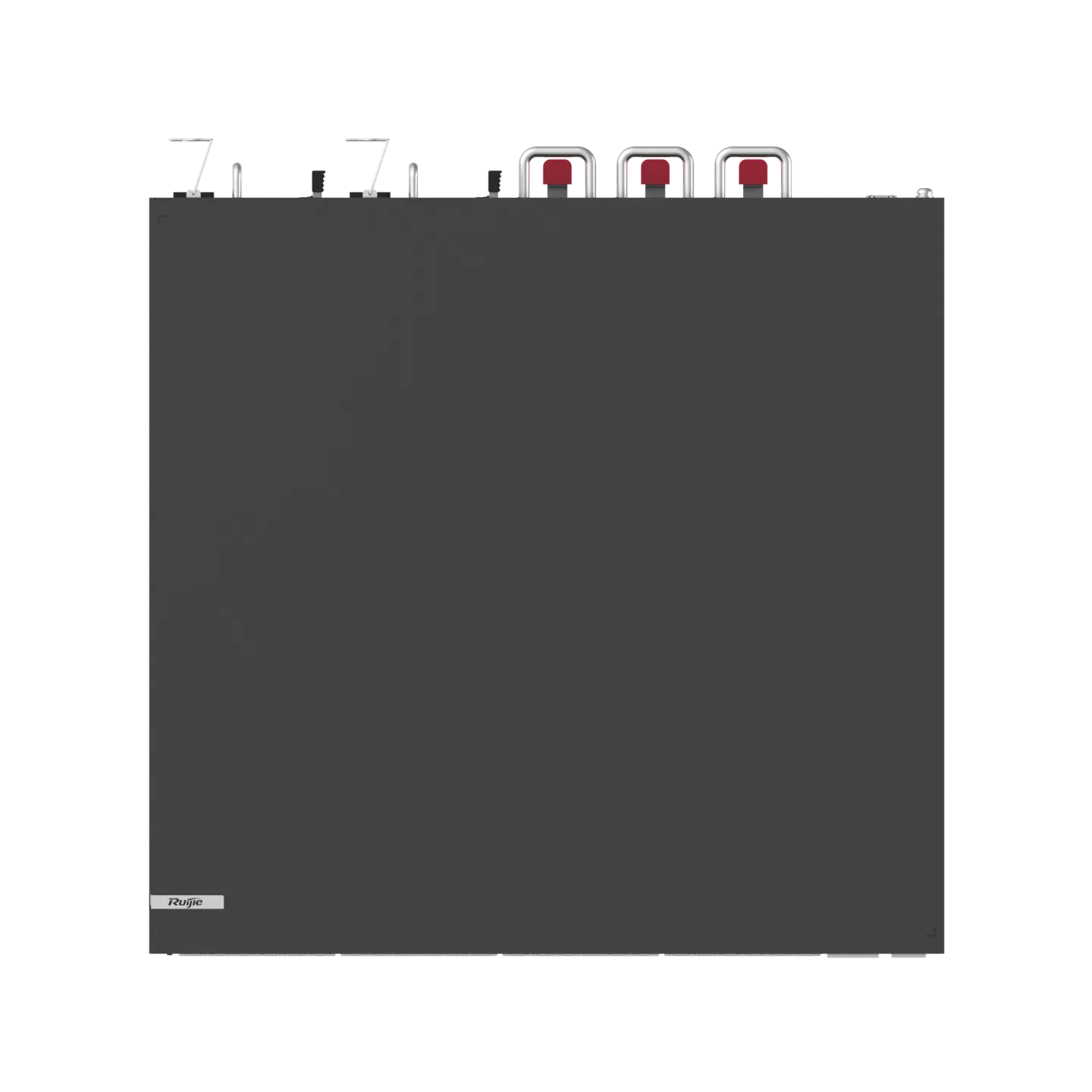

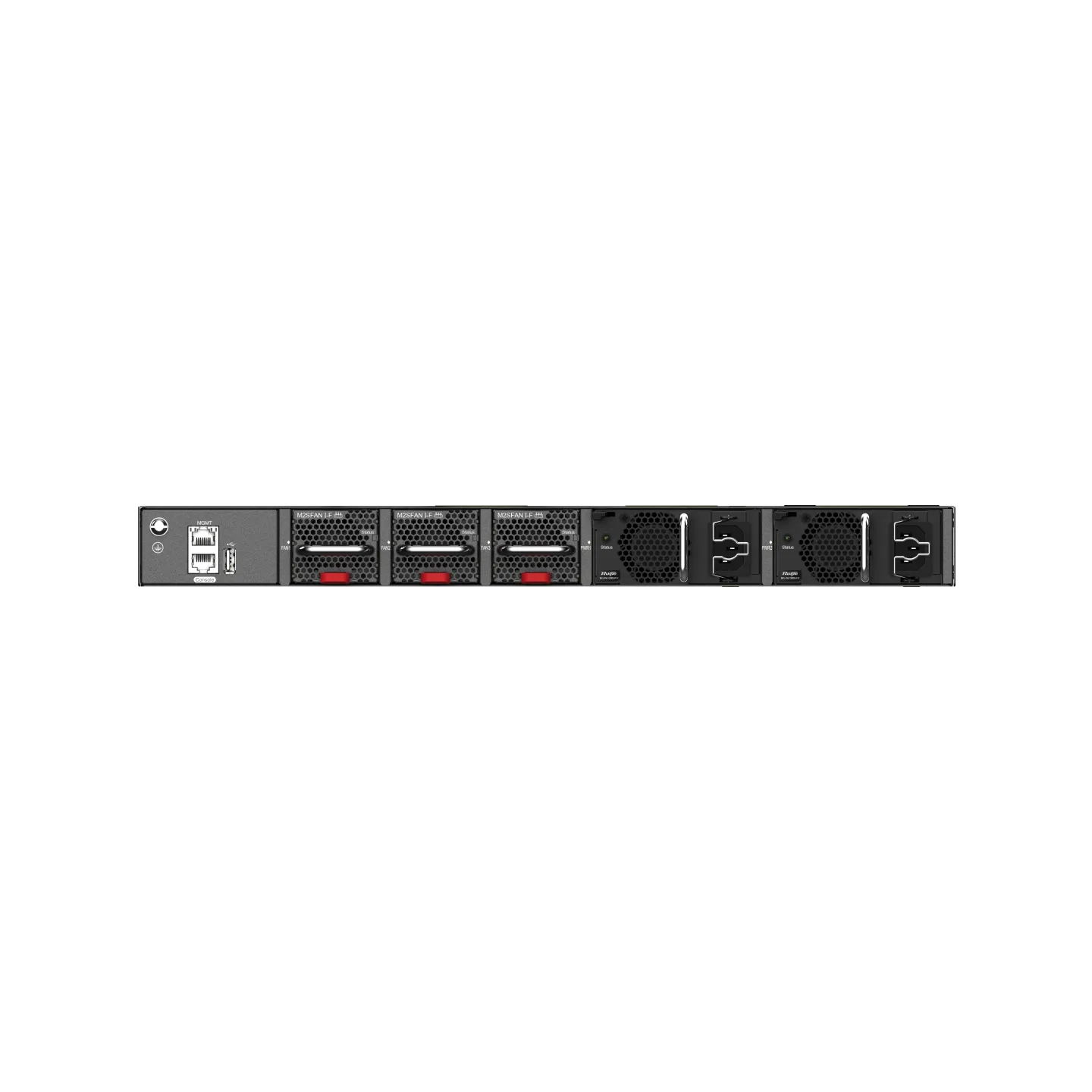

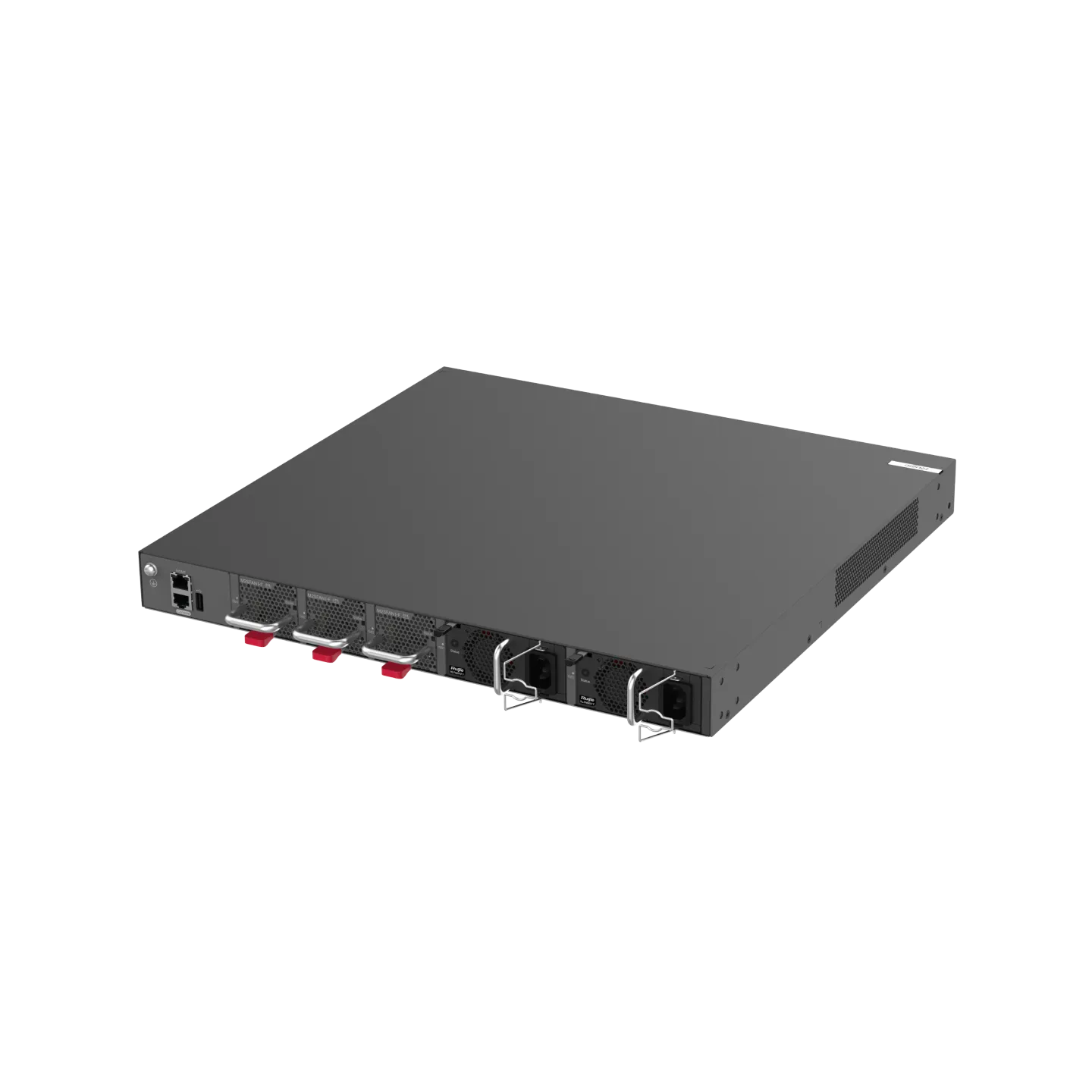

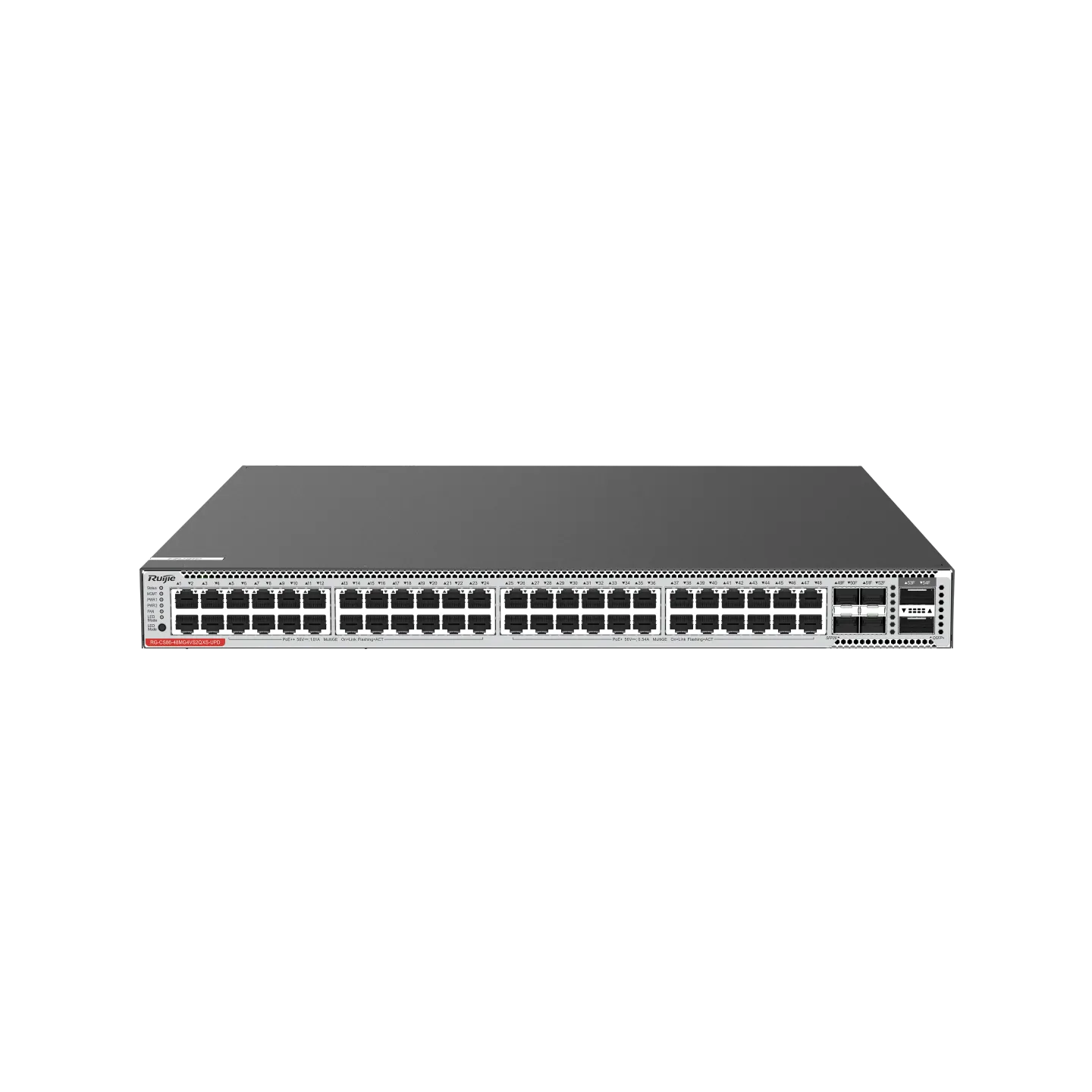

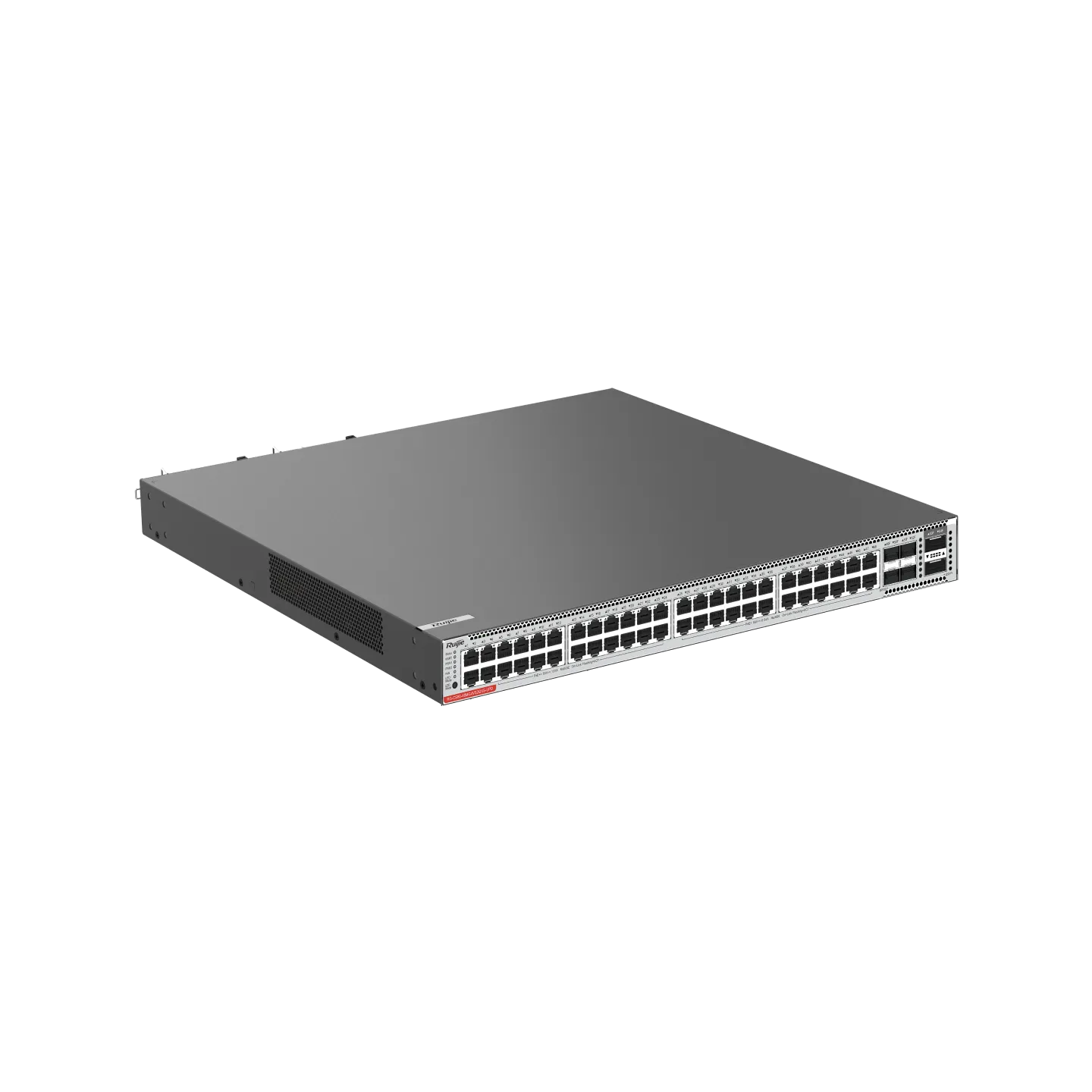

RG-CS86-48MG4VS2QXS-UPD L3 Managed Switch, 48 x 2.5G Multi-G, 4 x 25G, 2 x 40G

Ruijie
Availability:

Stok 25


Highlight Features:• 48 x 2.5G Multi-Gigabit ports and 4 x 25G SFP28 + 2 x 40G QSFP+.• Ultra-high-density PoE++ (90W) for large-scale device deployments.• Intelligent power management and energy-saving technology.• Advanced L3 features including OSPF and BGP.

Ruijie RG-CS86-48MG: Densitas Port 2.5G Tertinggi untuk Smart Building

Mengelola 48 port Multi-Gigabit dalam satu unit kini bukan lagi impian. Switch ini memberikan kapasitas 2.5G masif untuk seluruh gedung, memastikan setiap Access Point dan komputer mendapatkan bandwidth maksimal secara bersamaan.

Manfaat Utama:

  • 48 Port Multi-Gigabit 2.5G: Kapasitas raksasa untuk menghubungkan seluruh infrastruktur smart office dalam satu kendali.
  • Uplink 40G QSFP+: Jalur menuju core network yang super lebar untuk menjamin tidak ada kemacetan data di tingkat agregasi.
  • Manajemen Cloud Profesional: Kontrol penuh atas penggunaan daya PoE dan trafik data langsung dari genggaman Anda.
SKU: RG-CS86-48MG4VS2QXS-UPD Kategori: Brand:
brands

Technical Specifications

Type High-Density L3 Multi-Gigabit Switch
Fixed Ports 48 x 100M/1G/2.5G Base-T (PoE++)
Uplink Ports 4 x 25G SFP28, 2 x 40G QSFP+
PoE Standard 802.3bt (PoE++ 90W)
PoE Budget 1440W (Redundant PSU)
Switching Capacity 560 Gbps
Forwarding Rate 420 Mpps
MAC Address 64K Entries
L3 Routing Full L3 Stack (OSPF, BGP, ISIS)
Stacking VSU 2.0 Support
Management Cloud, Web, CLI, SNMP
Reliability Dual Hot-swap PSU & Fans
VXLAN Supported
Security CPP, NFPP, DHCP Snooping, ACL
ARP Table Up to 32K
IPv6 Dual Stack Ready
Multicast IGMP Snooping, PIM-SM/SSM
QoS Strict Priority, WRR, Traffic Shaping
Dimensions 442 x 450 x 44 mm
Weight 11.2 kg
Cooling Hot-swap Fan Tray (N+1)
Surge Protection 10KV Surge Protection
Housing Full Metal Enclosure
Mirroring Many-to-One SPAN, RSPAN
Jumbo Frame 9216 bytes
Status LEDs Power, System, PoE, Link/ACT
Certification CE, FCC, RoHS
MTBF > 180,000 hours
Warranty 3 Years
