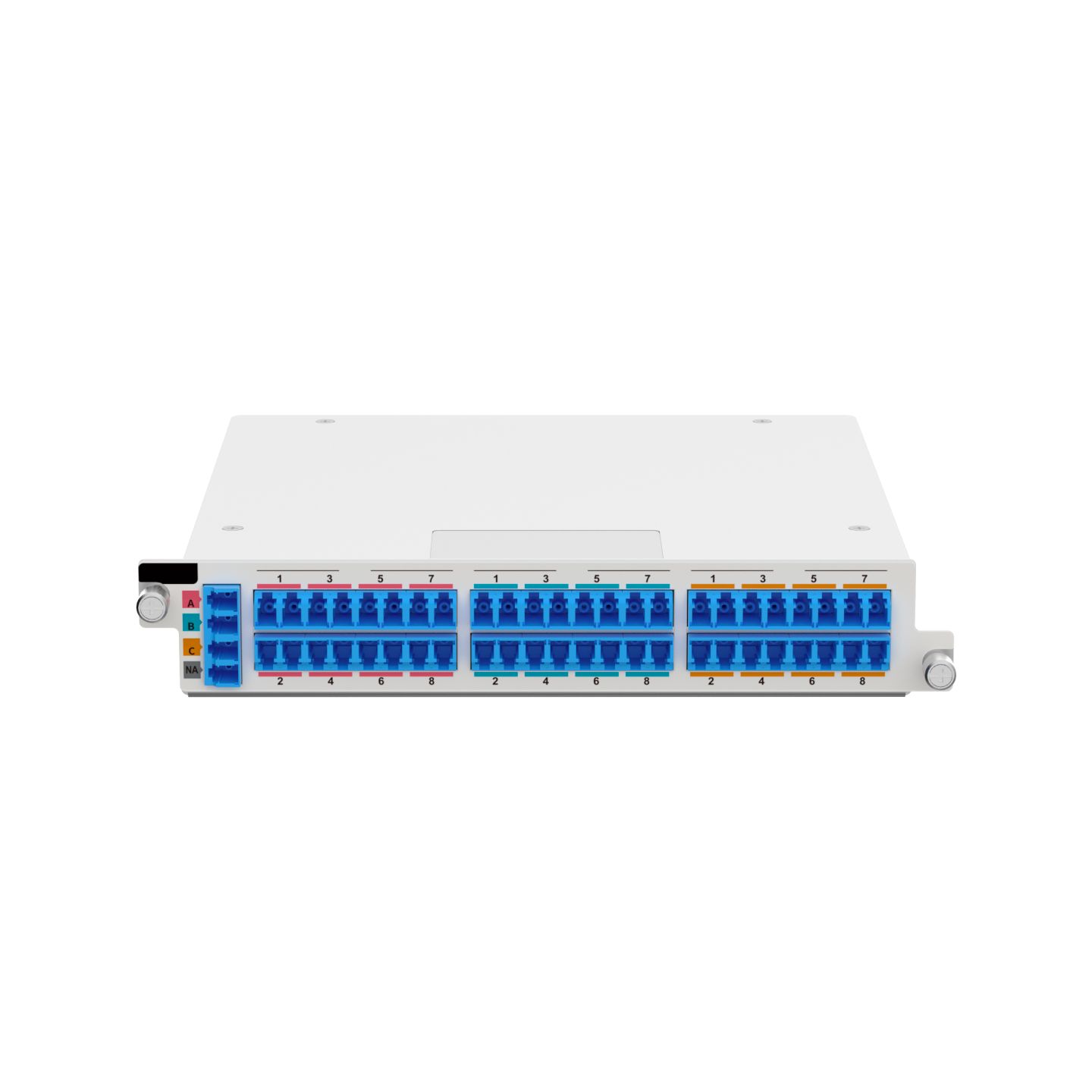

RG-DEMUX-C-24LC-LC Passive CWDM Multiplexer/Demultiplexer, 24 Channels
Stok 25
Highlight Features:• 24-channel DWDM Multiplexer/Demultiplexer.• Optimized for long-distance fiber transmission.• Transparent to all protocols and bit rates.• Maintenance-free passive operation.
Ruijie RG-DEMUX-C-24LC-LC: Manajemen Spektrum Fiber untuk Konektivitas Efisien
Sempurnakan manajemen jaringan fiber optik Anda dengan RG-DEMUX-C-24LC-LC. Perangkat demultiplexer ini dirancang untuk memisahkan sinyal optik menjadi 24 channel yang berbeda, memungkinkan distribusi data yang lebih terorganisir di pusat data Anda.
Keunggulan Utama:
- 24 Channel Demultiplexing: Solusi tepat untuk membagi trafik data besar menjadi beberapa jalur distribusi yang lebih kecil dan terarah.
- Akurasi Sinyal Tinggi: Memastikan setiap channel data tetap bersih dan bebas dari gangguan antar frekuensi (crosstalk).
- Desain Modular & Rapi: Membantu merapikan tumpukan kabel fiber di rak server Anda dengan sistem manajemen yang teratur.
- Plug & Play: Instalasi yang sangat mudah tanpa perlu konfigurasi software yang rumit, langsung siap digunakan untuk ekspansi jaringan.
| brands |
|---|
Technical Specifications
| Type | Passive 24-Channel MUX/DEMUX |
| Connector | LC/UPC to LC/UPC |
| Wavelength | DWDM C-Band |
| Grid Spacing | 100 GHz |
| Insertion Loss | < 4.5 dB |
| Isolation (Adjacent) | > 25 dB |
| Isolation (Non-adj) | > 35 dB |
| PDL | < 0.2 dB |
| Ripple | < 0.5 dB |
| Directivity | > 45 dB |
| Max Optical Power | 500 mW |
| Fiber Mode | Single-mode (G.652D) |
| Passive Operation | Supported (No PSU) |
| Form Factor | 1U Chassis / Blade |
| Operating Temp | -10°C to 70°C |
| Storage Temp | -40°C to 85°C |
| Operating Humidity | 5% to 95% |
| MTBF | > 1,000,000 hours |
| Environmental | RoHS, REACH Compliant |
| Reliability | Telcordia GR-1221-CORE |
| Wavelength Stability | ± 0.05 nm |
| Dimensions | 482.6 x 250 x 44 mm |
| Weight | ± 1.8 kg |
| Housing Material | Metal Chassis |
| Expandability | Supported via Upgrade Port |
| Link Budget Support | Dependent on Transceiver |
| Application | Campus Backbone / Metro Area |
| Maintenance | Zero-touch maintenance |
| Port Density | High-density LC Simplex |
| Warranty | 1 Year |
