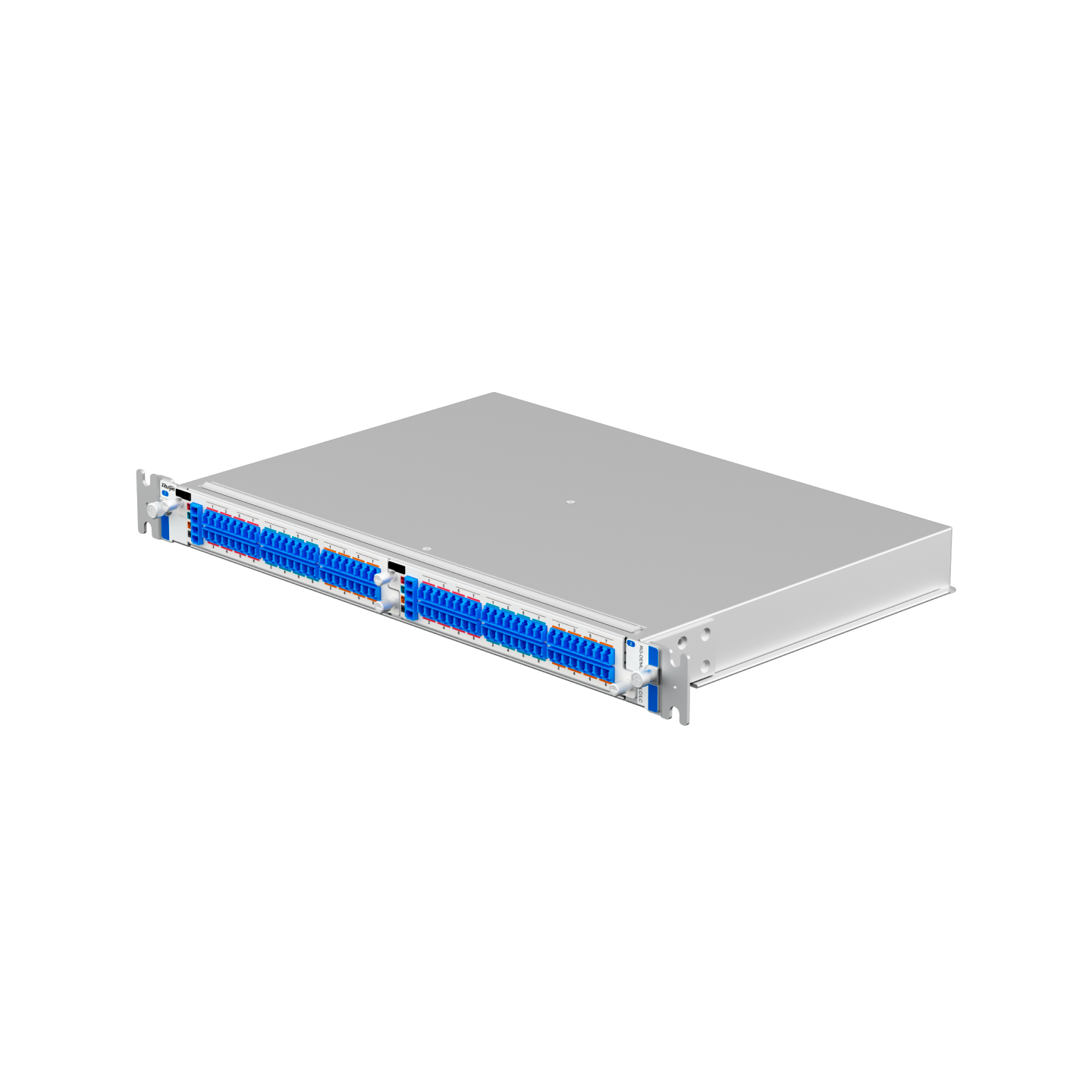

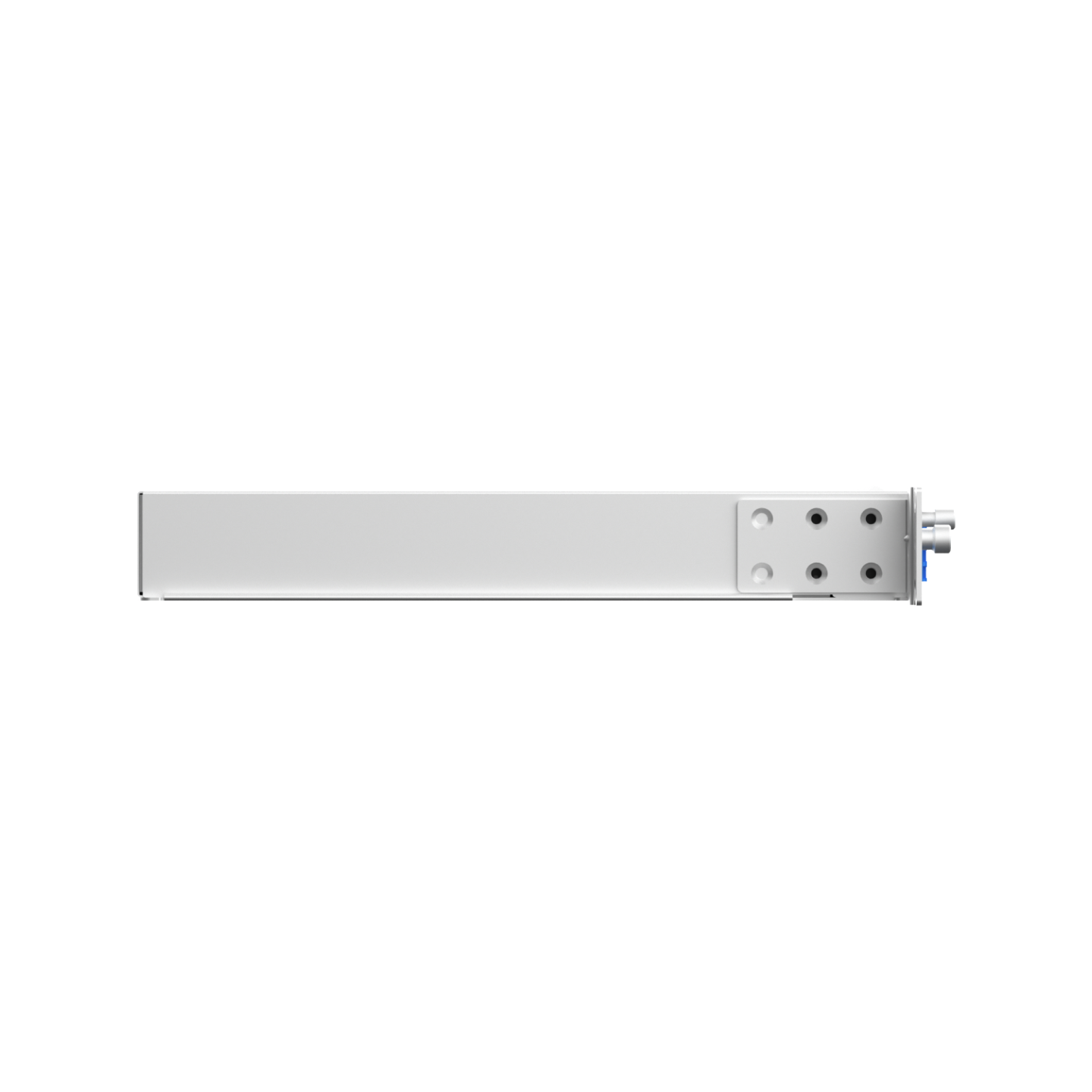

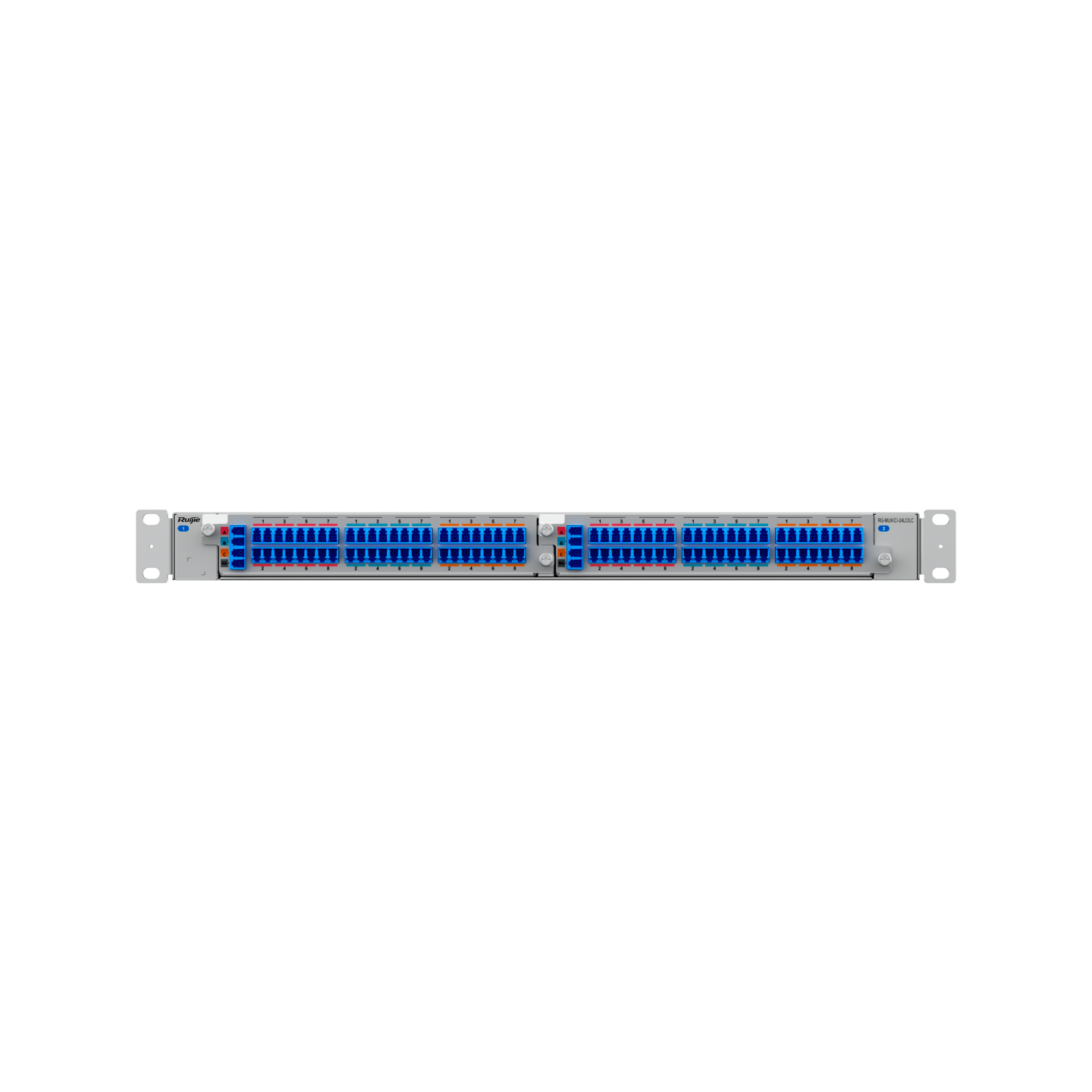

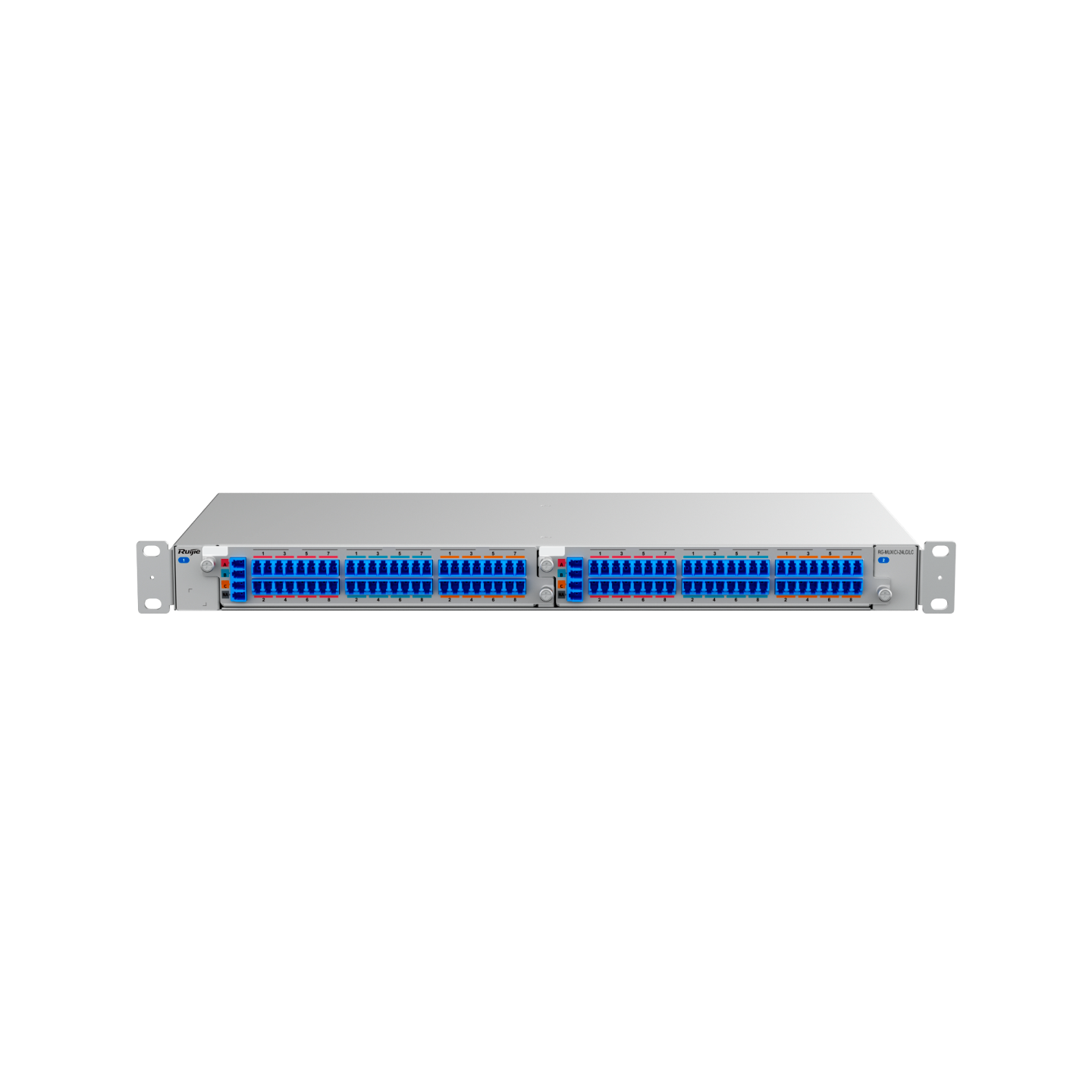

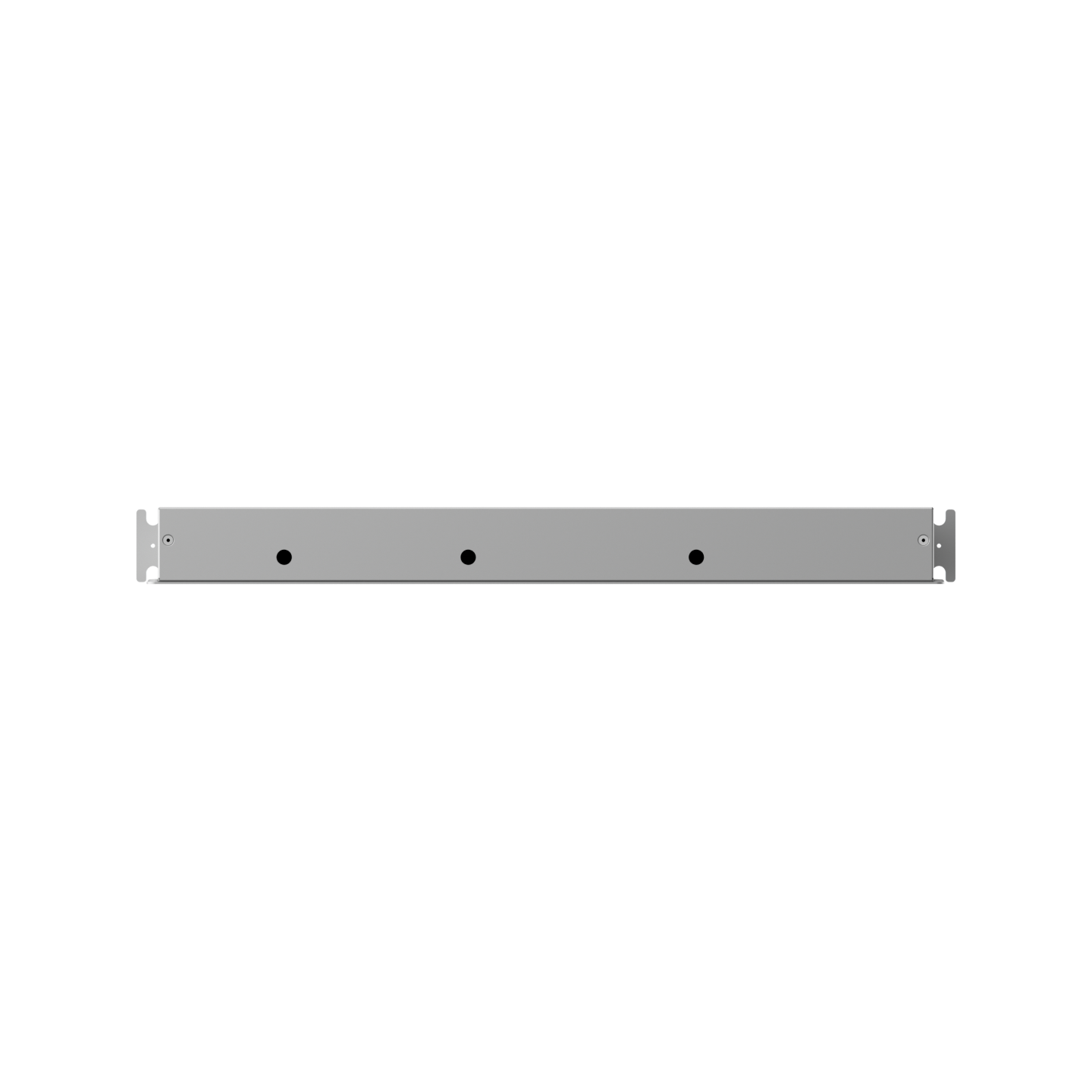

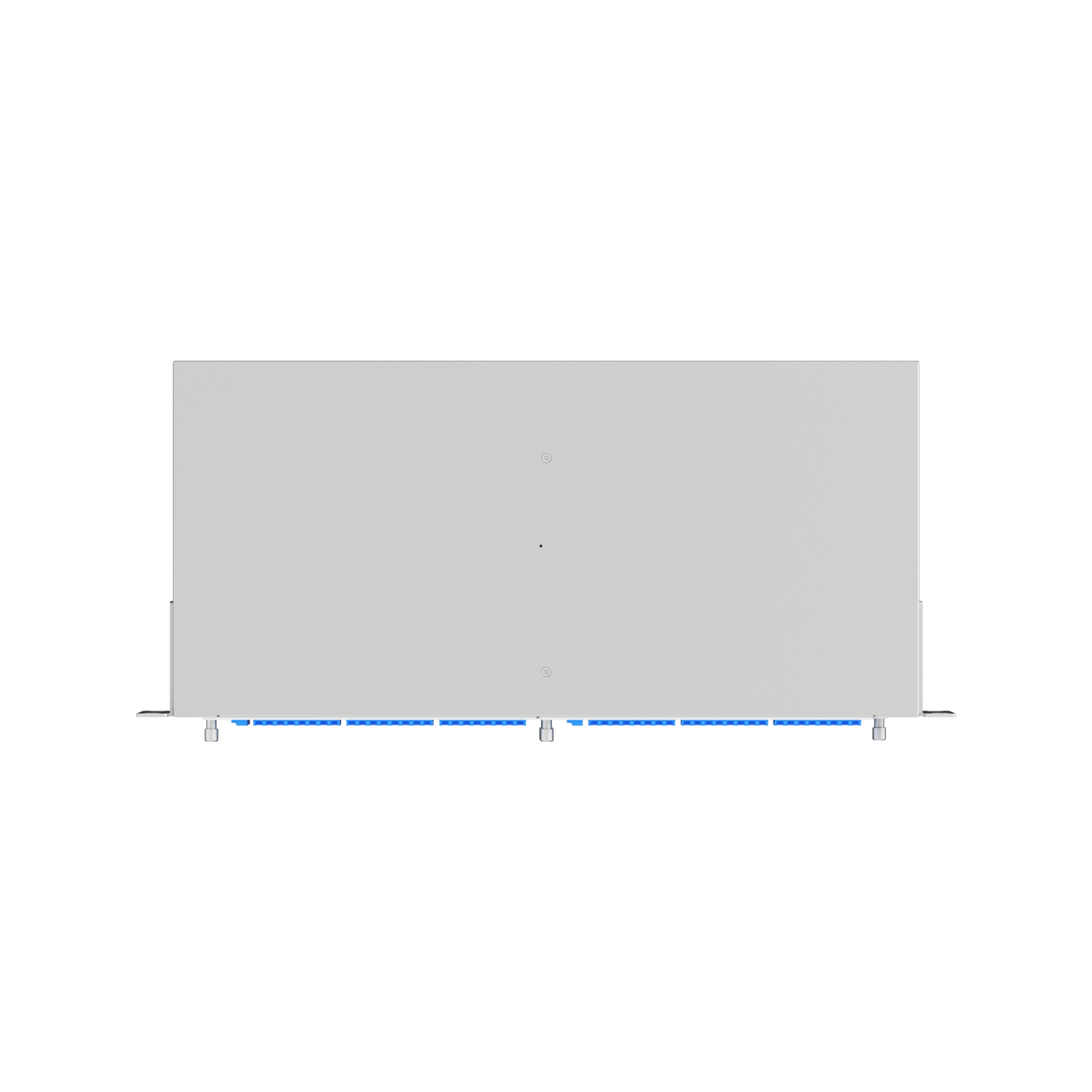

RG-DEMUX-MUX-48LC-LC Passive CWDM Multiplexer/Demultiplexer, 48 Channels
Stok 25
Highlight Features:• 48-channel CWDM Multiplexer/Demultiplexer.• Passive fiber solution for capacity expansion.• Low insertion loss and high reliability.• Standard 19-inch rack-mount design.
Ruijie RG-DEMUX-MUX-48LC-LC: Optimalkan Infrastruktur Fiber dengan Teknologi WDM
Menambah kapasitas fiber optik tidak harus selalu dengan menarik kabel baru. RG-DEMUX-MUX-48LC-LC memungkinkan Anda mengirimkan beberapa sinyal data secara bersamaan melalui satu core fiber tunggal, meningkatkan kapasitas jaringan Anda secara instan tanpa biaya konstruksi mahal.
Fitur Unggulan:
- Efisiensi Kabel Luar Biasa: Memungkinkan transmisi data densitas tinggi (hingga 48 channel) melalui infrastruktur kabel fiber yang sudah ada.
- Konektor LC-LC Standar: Mempermudah integrasi dengan perangkat fiber optik lainnya tanpa perlu adaptor khusus.
- Passive Device: Tidak membutuhkan daya listrik, menjadikannya perangkat yang sangat awet, minim perawatan, dan tahan lama.
- Solusi Hemat Biaya: Alternatif terbaik daripada melakukan penarikan kabel fiber optik baru yang memakan biaya besar dan waktu lama.
| brands |
|---|
Technical Specifications
| Product Type | Passive DWDM MUX/DEMUX Module |
| Channel Capacity | 48 Channels |
| Connector Type | LC/UPC |
| Wavelength Range | C-Band (ITU-T G.694.1) |
| Channel Spacing | 100 GHz |
| Insertion Loss | < 6.5 dB (Module Only) |
| Return Loss | > 45 dB |
| Directivity | > 50 dB |
| Polarization Loss | < 0.2 dB |
| Operating Temp | -5°C to 65°C |
| Storage Temp | -40°C to 85°C |
| Humidity | 5% to 95% RH |
| Passive Design | No Power Required |
| Fiber Type | Single-mode Fiber (SMF) |
| Form Factor | 1U Rack-mount / Modular Insert |
| MTBF | > 1,000,000 hours |
| Compliance | Telcordia GR-1209, GR-1221 |
| Optical Power | Max 300 mW per channel |
| Monitoring Port | Available (1% Tap optional) |
| Application | Fiber resource optimization |
| Crosstalk (Adjacent) | > 25 dB |
| Crosstalk (Non-adj) | > 40 dB |
| Uniformity | < 1.5 dB |
| Safety Cert | RoHS Compliant |
| Dimensions | Standard 19-inch compatibility |
| Weight | < 2.5 kg |
| Durability | > 500 mating cycles |
| Environment | Indoor/Outdoor Cabinet suitable |
| Package Type | Box/Module |
| Warranty | 1 Year |
