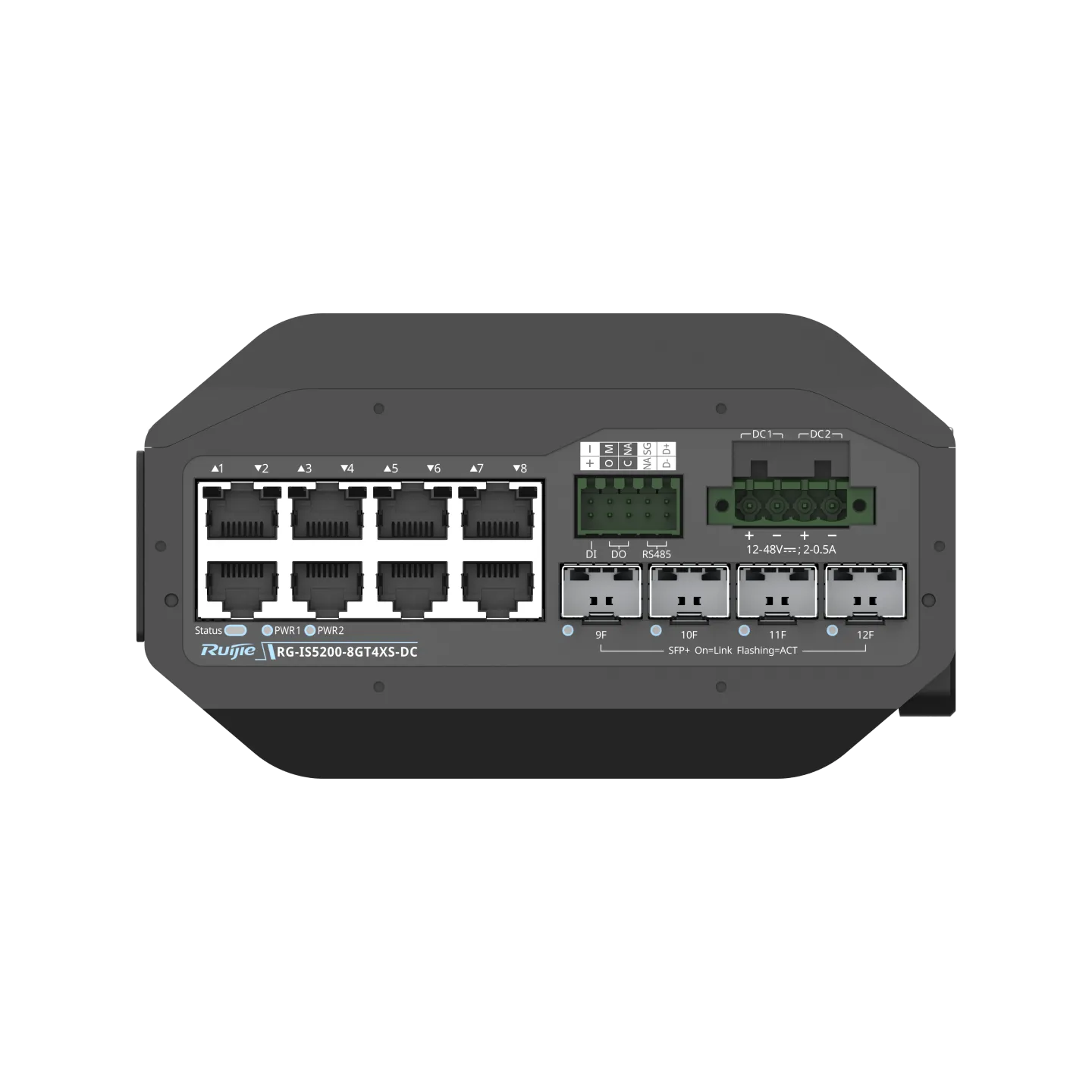

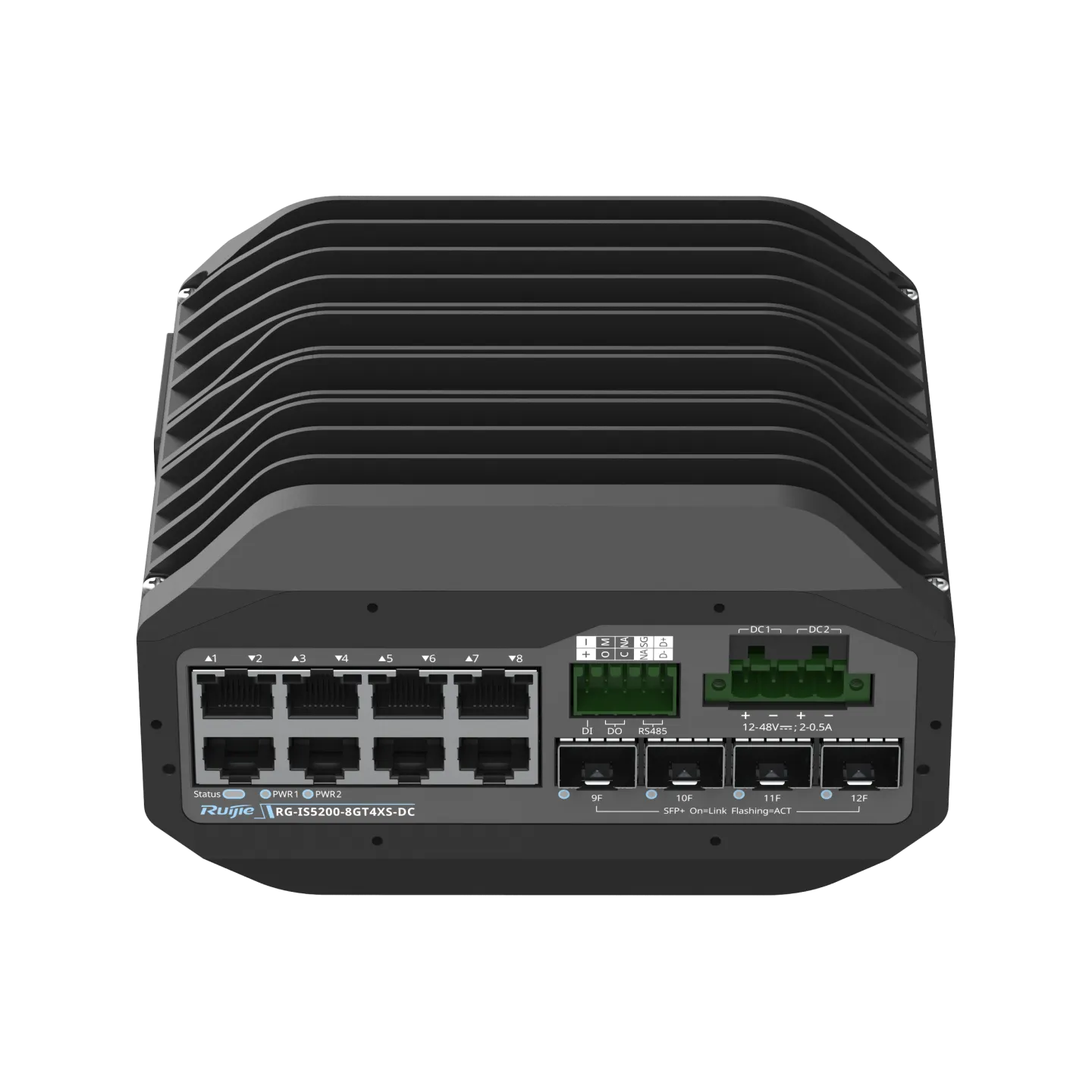

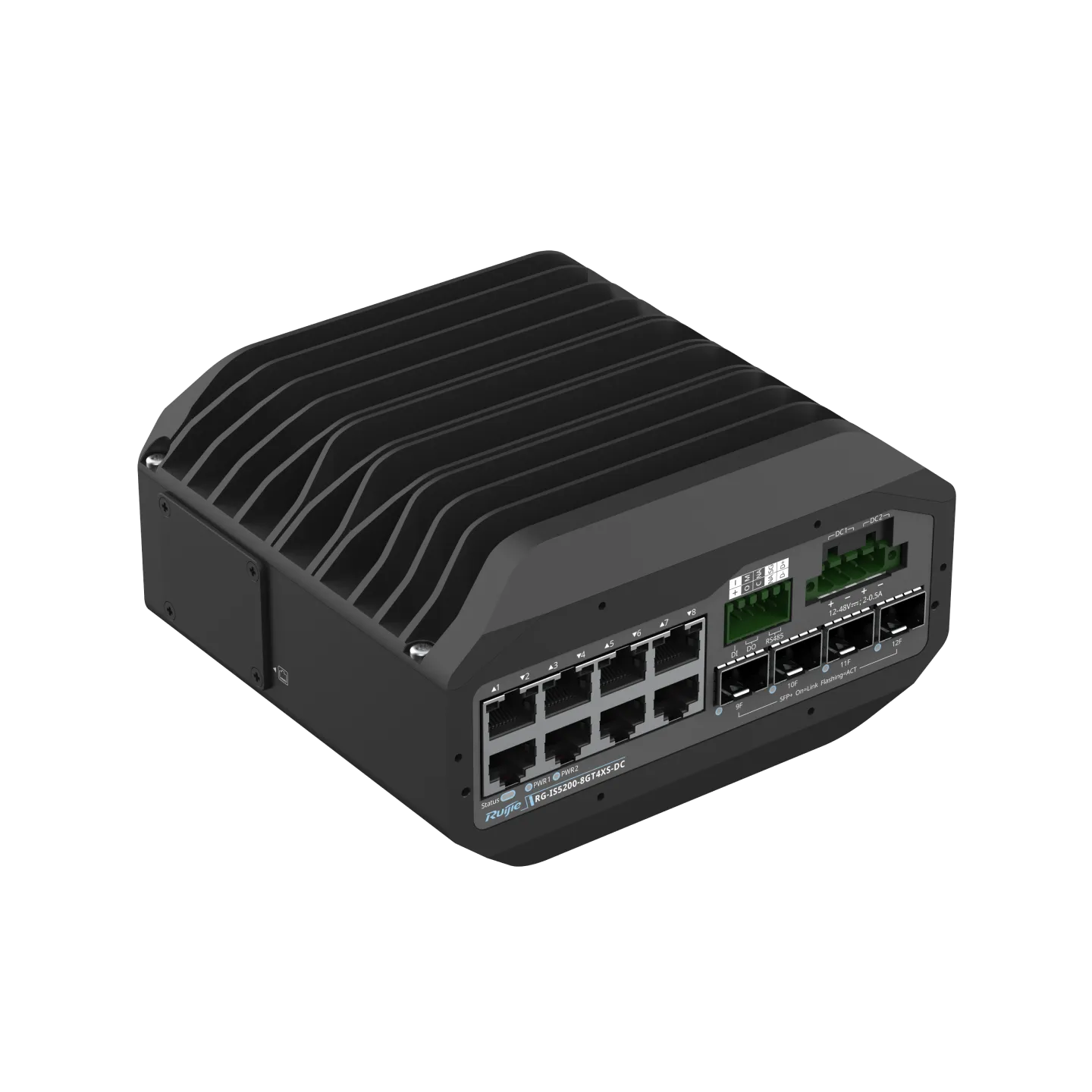

RG-IS5200-8GT4XS-DC Industrial Managed Switch, DC Power Support
Stok 25
Highlight Features:• Industrial switch with DC power input support.• 8 x Gigabit and 4 x 10G SFP+ uplink ports.• Redundant DC power inputs for industrial reliability.• IP40-rated metal housing for superior durability.
Ruijie RG-IS5200-8GT4XS-DC: Switch Industrial dengan Input Daya DC
Varian dari seri IS5200 ini dirancang khusus untuk infrastruktur yang menggunakan sistem daya DC terpusat. Dengan fitur manajemen Layer 2/Layer 3 yang lengkap, switch ini memberikan kontrol jaringan yang cerdas di lingkungan industri yang paling menantang.
Fitur Utama:
- Dual Power Input DC: Mendukung redundansi catu daya untuk memastikan switch tetap aktif jika salah satu sumber daya gagal.
- Proteksi Terhadap Getaran & Goncangan: Sertifikasi standar industrial untuk pemasangan di area dengan getaran mesin tinggi.
- Fitur Ring Recovery Cepat: Menjamin pemulihan jaringan dalam hitungan milidetik jika terjadi putus kabel di jalur ring.
| brands |
|---|
Technical Specifications
| Type | Industrial L3 Switch (DC Version) |

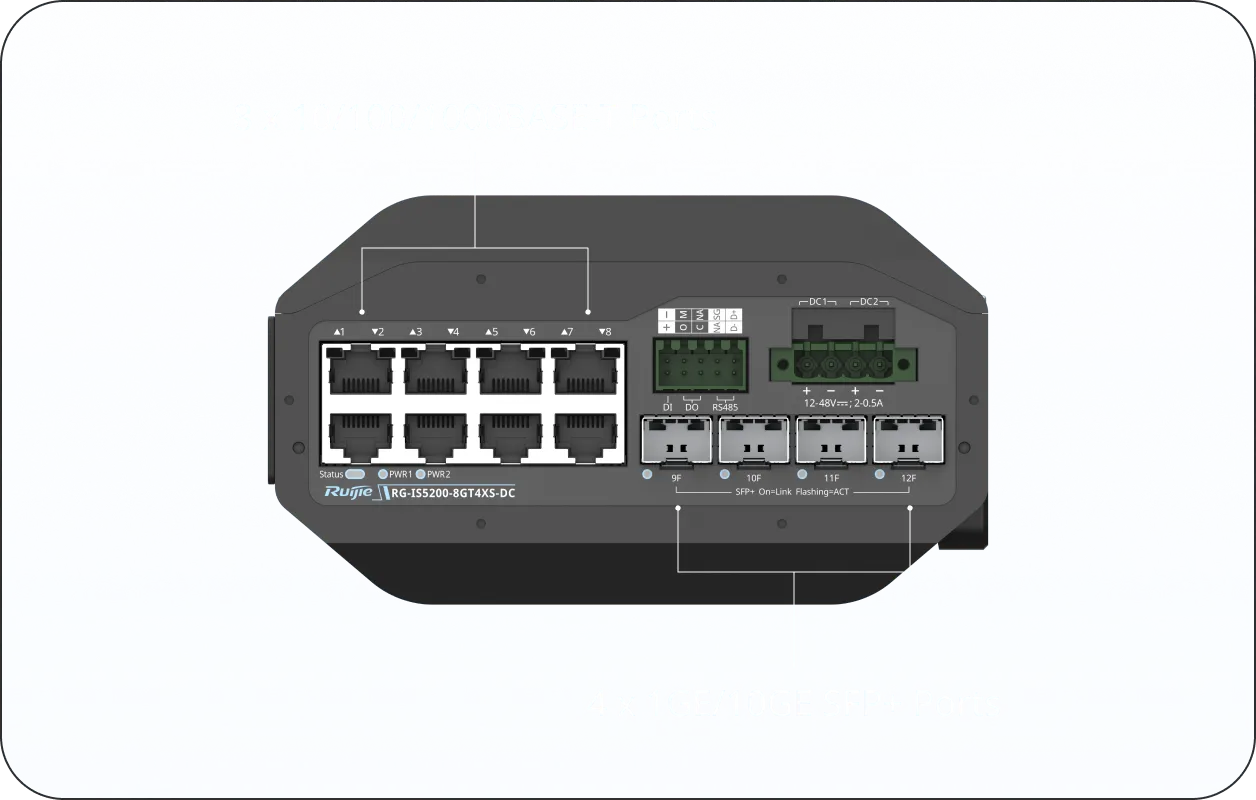

| Ports | 8 x 10/100/1000Base-T, 4 x 10G SFP+ |
| Power Input | Dual Redundant DC 12V-48V |
| Operating Temp | -40°C to 75°C |
| Switching Capacity | 96 Gbps |
| ERPS Support | Ring Recovery < 20ms |
| Management | Ruijie Cloud Managed, SNMP v3 |
| Industrial Standard | EMC Level 4 Protection |
| VLAN | 4K VLAN, QinQ Support |
| Routing Table | Up to 2K IPv4 Entries |
| Dimensions | 160 x 135 x 54 mm |
| MTBF | > 350,000 hours |
| Certification | CE, RoHS, EN 50121-4 |
| Warranty | 3 Years |
