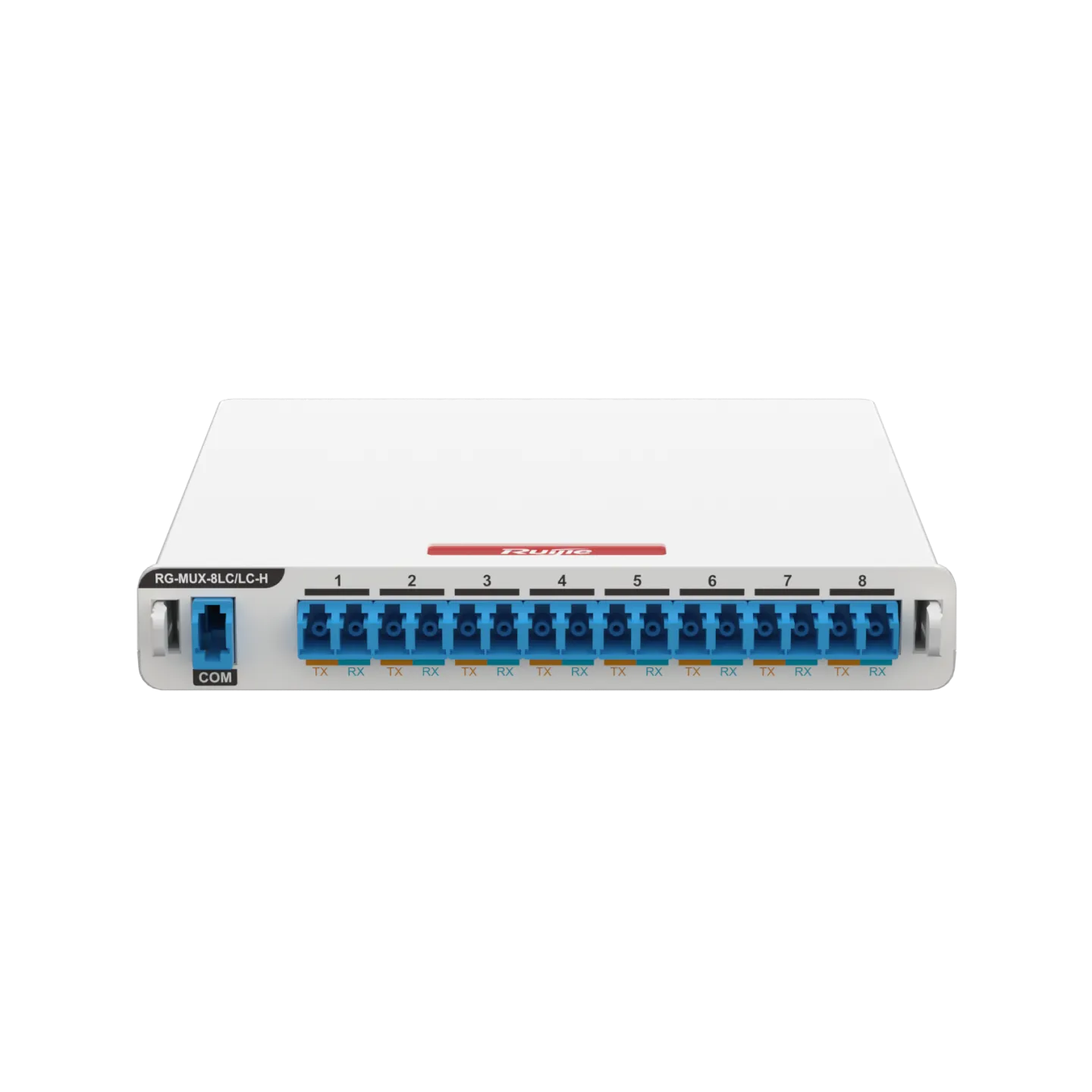

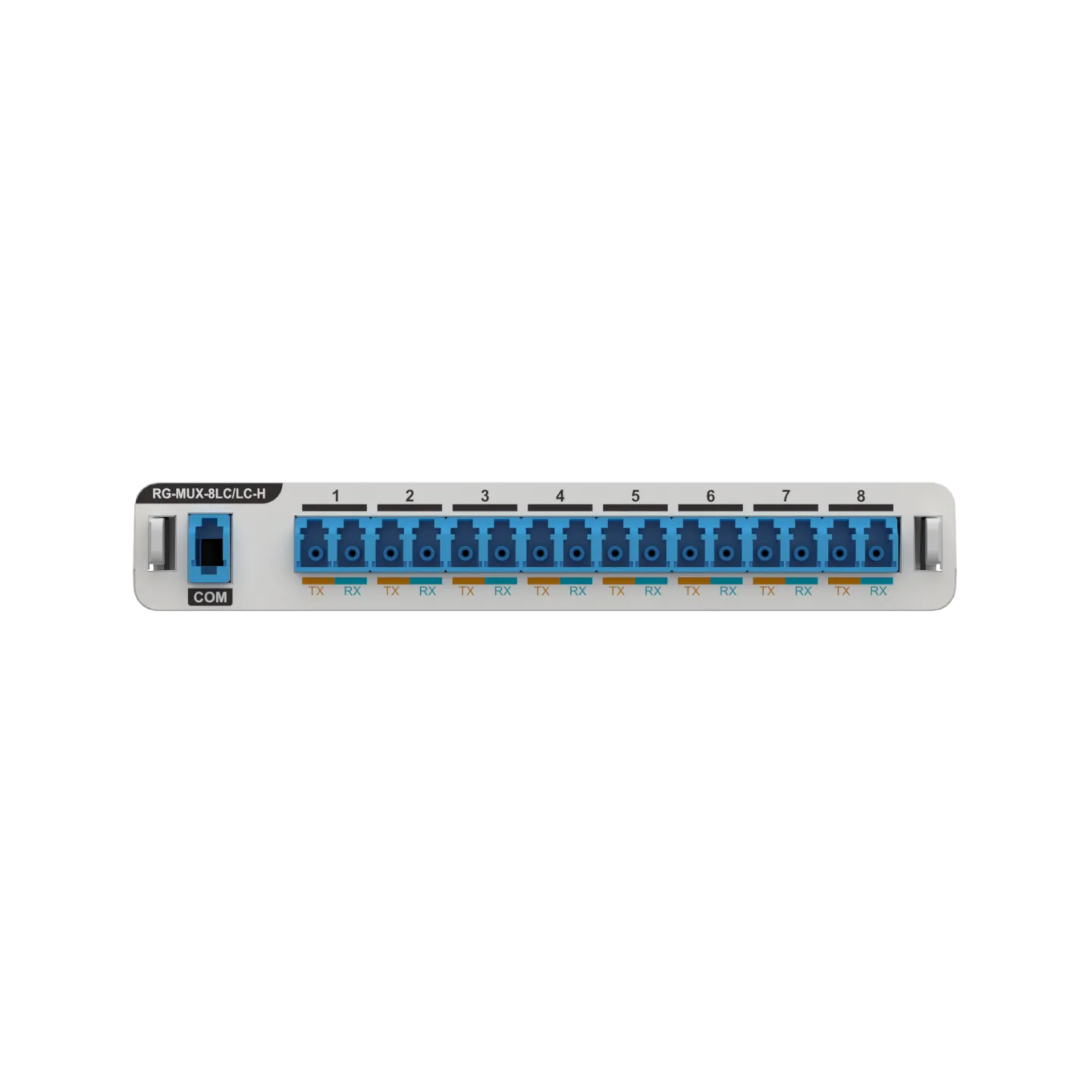

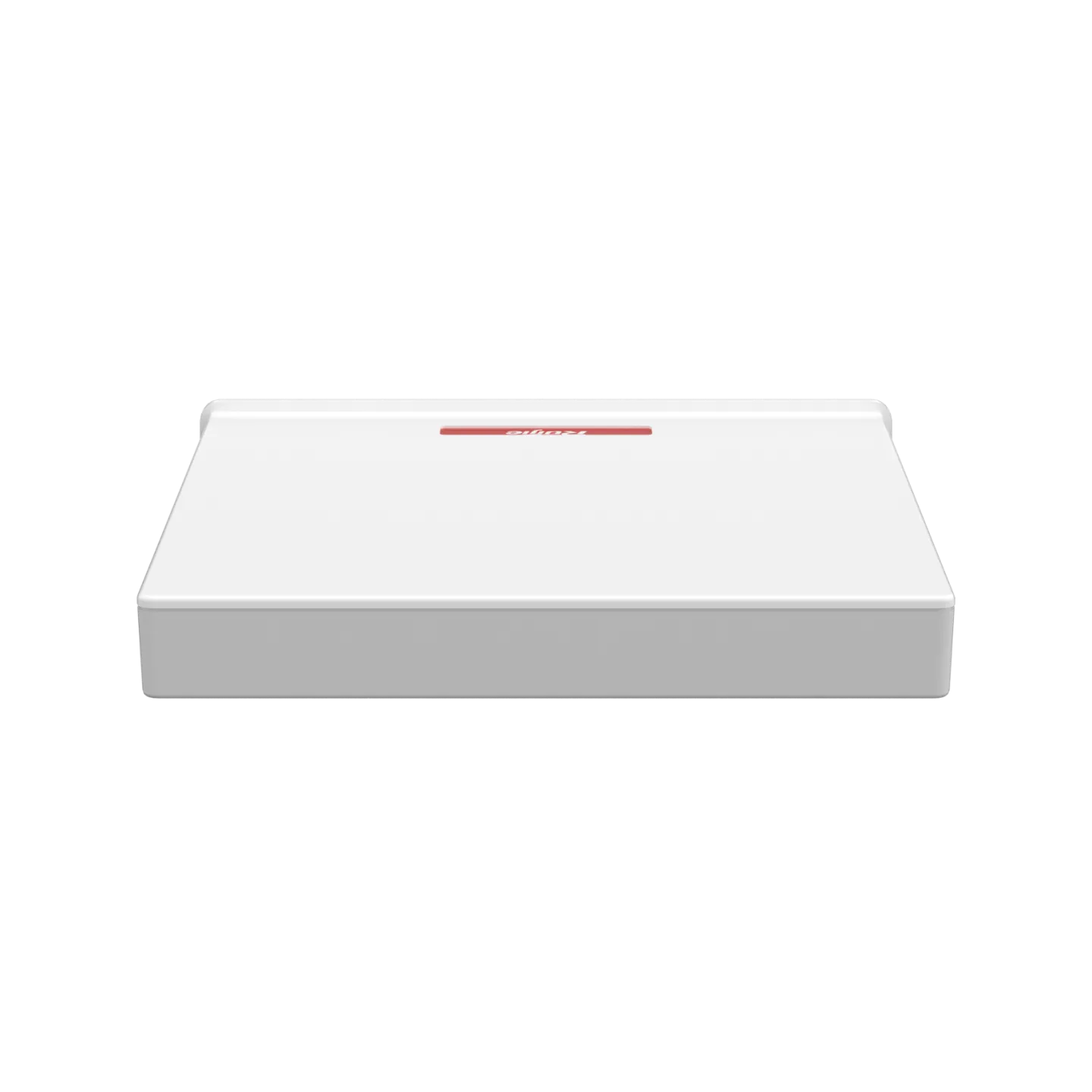

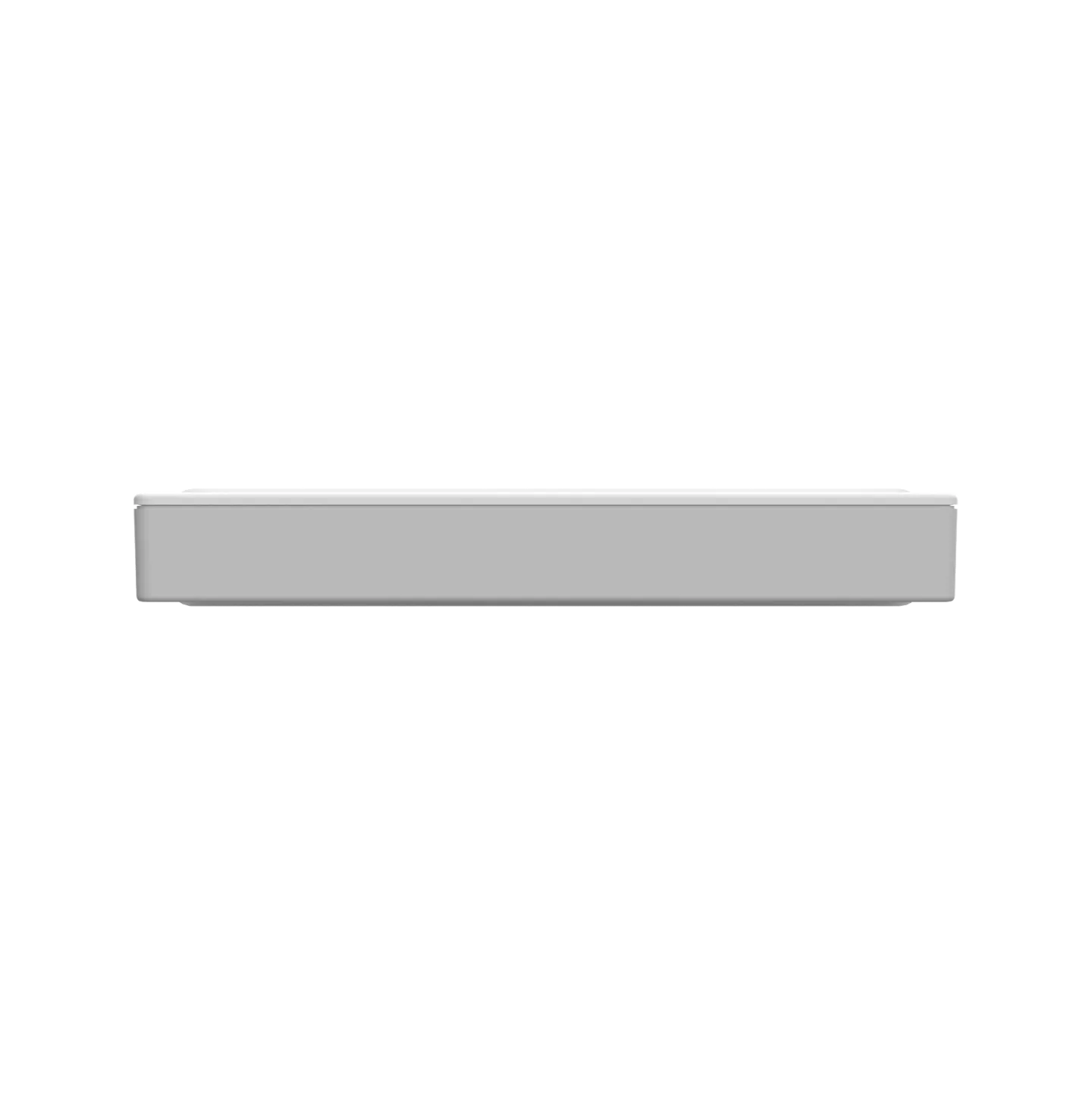

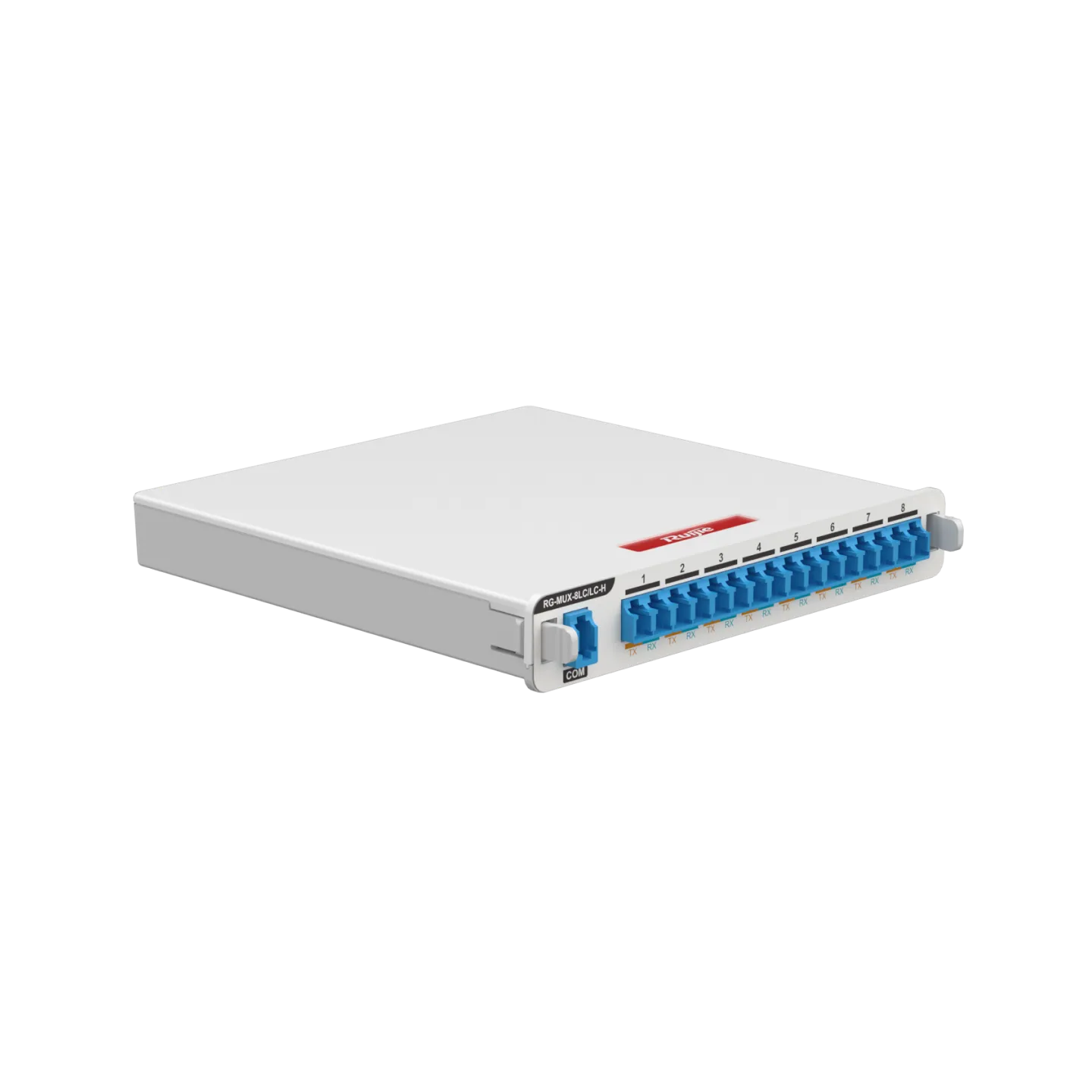

RG-MUX-8LC-LC-H Passive 8-Channel CWDM Mux/Demux (High Loss Budget)
Stok 25
Highlight Features:• High-performance CWDM Multiplexer/Demultiplexer module.• Supports 8-channel LC-LC fiber connections.• Low insertion loss and high isolation between channels.• Passive design requiring no external power supply.
Ruijie RG-MUX-8LC-LC-H: Multiplexer Pasif untuk Optimasi Fiber High-Density
RG-MUX-8LC-LC-H adalah solusi cerdas untuk mengonsolidasikan hingga 8 channel transmisi data melalui infrastruktur fiber yang ada. Sebagai perangkat pasif, Multiplexer ini tidak membutuhkan daya listrik, menjadikannya sangat andal dan tahan lama untuk jangka panjang.
Manfaat bagi Infrastruktur:
- Konsolidasi Jalur Data: Mengirimkan hingga 8 sinyal berbeda melalui satu pasang kabel fiber optik.
- Tanpa Listrik (Passive): Meminimalisir risiko kegagalan perangkat dan menghemat biaya operasional listrik.
- Desain Modular LC-LC: Mempermudah koneksi dengan patch cord fiber standar di rak server Anda.
- Efisiensi Ruang: Mengurangi kekacauan kabel di dalam lemari kabel (MDF/IDF).
| brands |
|---|
Technical Specifications
| Type | 8-Channel Passive CWDM Multiplexer |
| Connector Type | LC/UPC |
| Wavelengths | 1471nm to 1611nm (20nm spacing) |
| Insertion Loss | < 3.5 dB |
| Passband Ripple | < 0.5 dB |
| Isolation (Adjacent) | > 30 dB |
| Isolation (Non-adjacent) | > 45 dB |
| Return Loss | > 45 dB |
| Polarization Loss | < 0.1 dB |
| Max Power Handling | 300 mW |
| Operating Temp | -20°C to 75°C |
| Storage Temp | -40°C to 85°C |
| Housing | Half-Width Rackmount Module |
| Technology | Passive Optical (No Power Required) |
| Fiber Mode | Single-mode (9/125μm) |
| Directivity | > 50 dB |
| Application | Fiber Capacity Expansion |
| MTBF | > 5,000,000 hours |
| Dimensions | Standard Ruijie MUX Slot |
| Certification | RoHS, Telcordia GR-1221 |
| Warranty | 3 Years |
