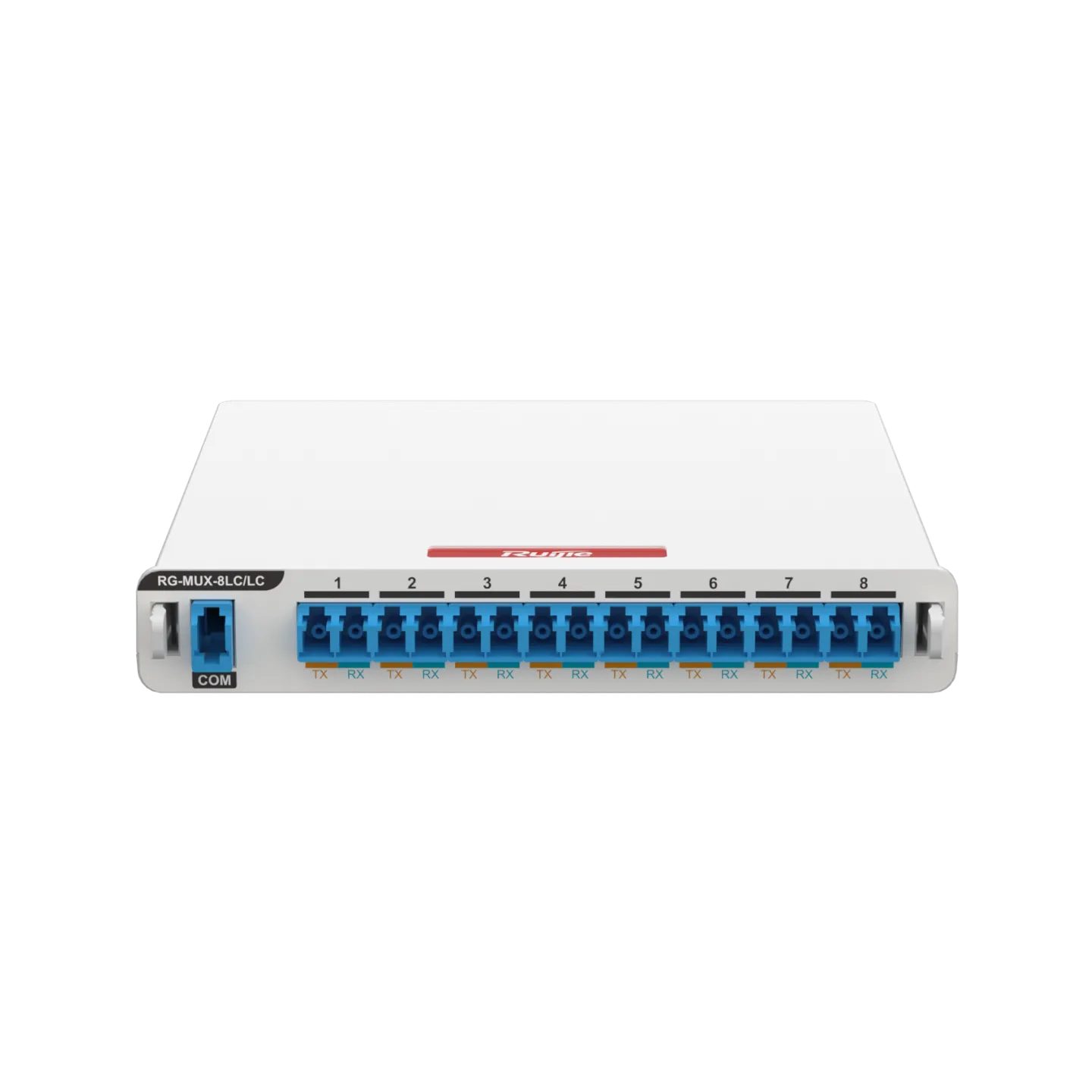

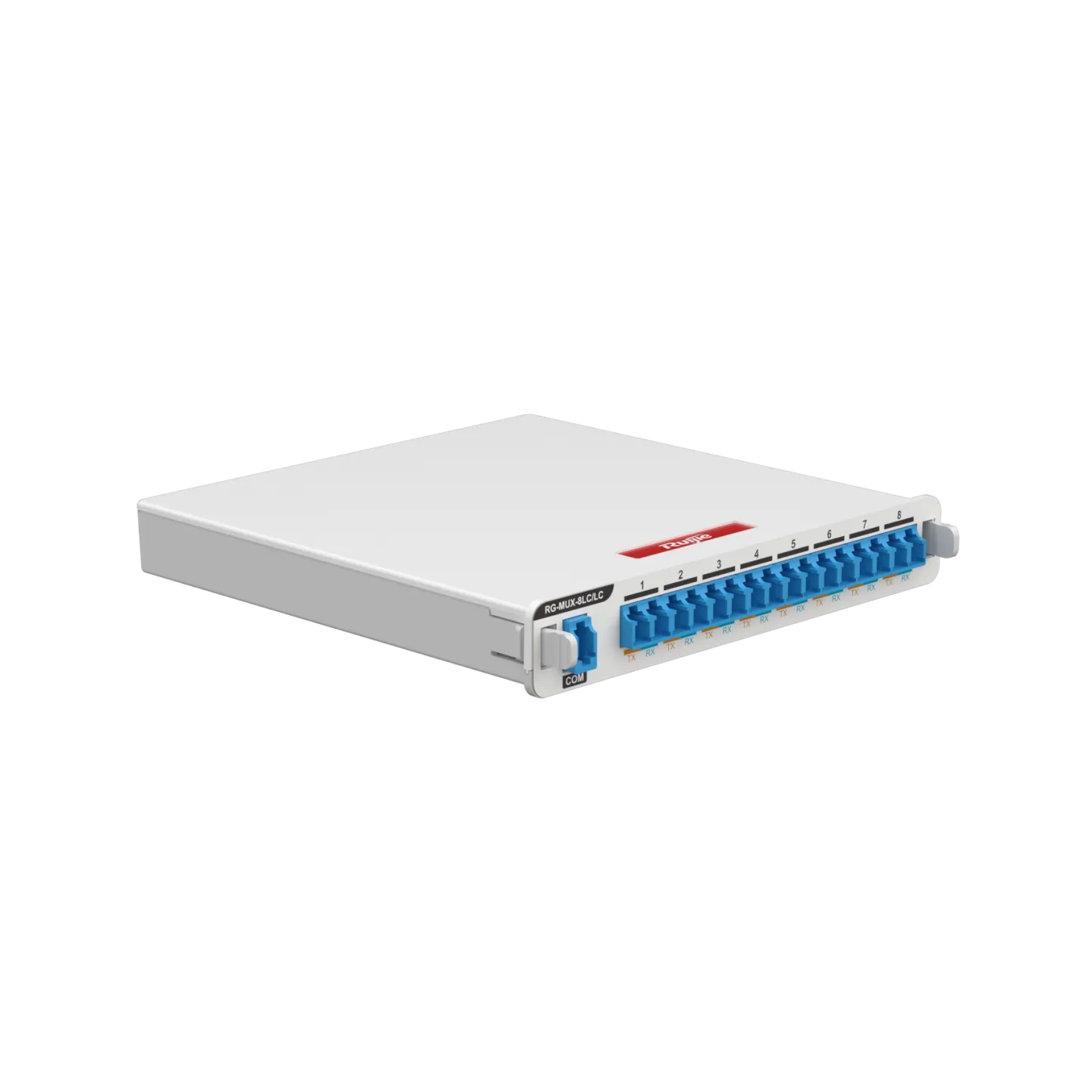

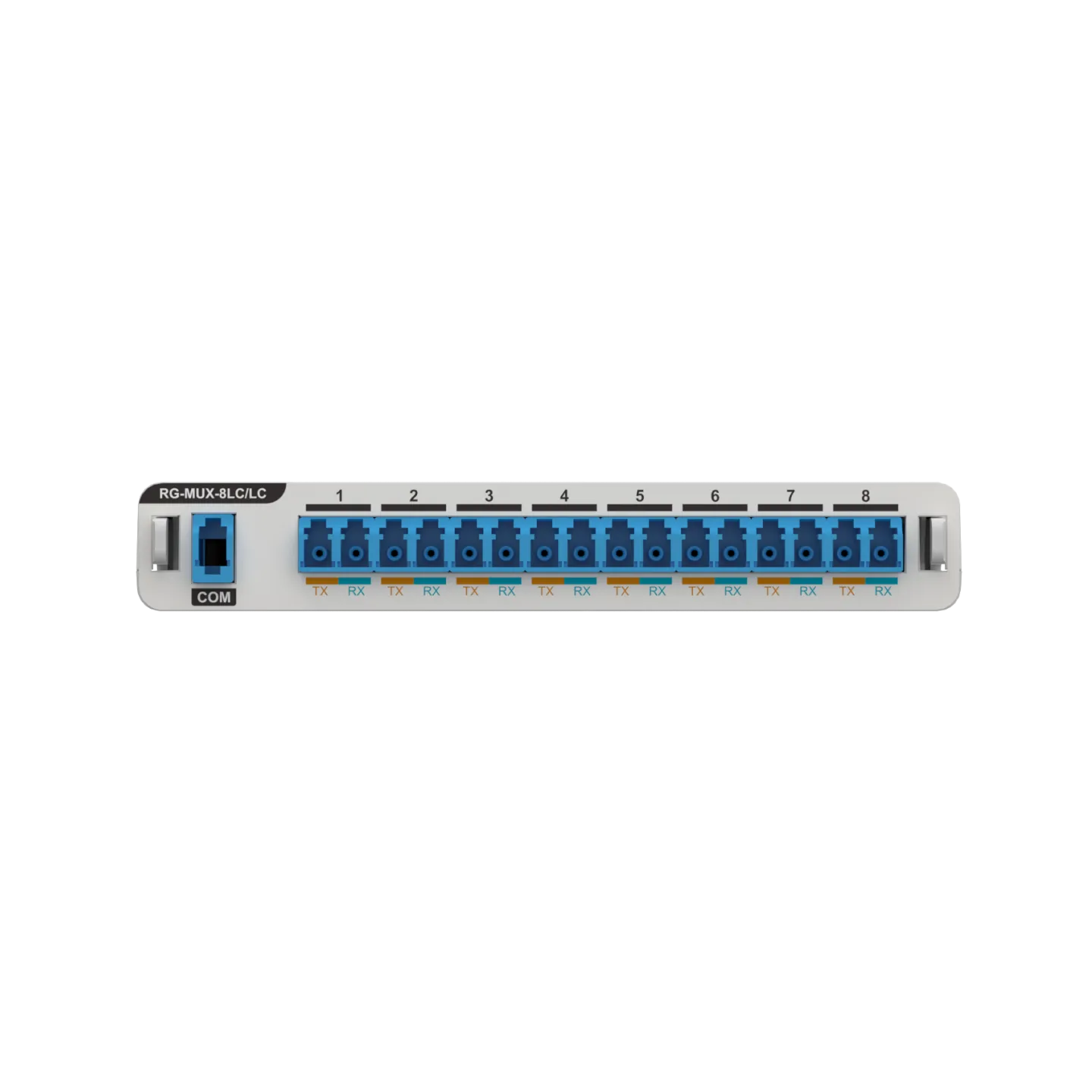

RG-MUX-8LC-LC Passive 8-Channel CWDM Mux/Demux
Stok 25
Highlight Features:• Standard 8-channel CWDM MUX/DEMUX module.• Cost-effective solution for fiber capacity expansion.• Easy to install and maintenance-free operation.• Compatible with all CWDM-rated optical transceivers.
Ruijie RG-MUX-8LC-LC: Pengelola Spektrum Fiber yang Efisien dan Ekonomis
Optimalkan penggunaan serat optik Anda dengan RG-MUX-8LC-LC. Perangkat ini memungkinkan pembagian kapasitas fiber menjadi 8 channel yang teratur, ideal untuk menghubungkan beberapa gedung sekaligus dengan satu jalur kabel utama.
Kelebihan Utama:
- Efisiensi Kabel Maksimal: Hindari biaya tinggi penarikan kabel fiber baru dengan mengoptimalkan kabel yang sudah terpasang.
- Akurasi Transmisi Tinggi: Memastikan tiap channel data tidak saling mengganggu (Crosstalk) untuk stabilitas jaringan.
- Build Quality Premium: Casing yang kokoh dan tahan lama untuk penggunaan industrial.
| brands |
|---|
Technical Specifications
| Type | Standard 8-Channel CWDM MUX/DEMUX |
| Channels | 8 Channels |
| Connector | LC/UPC |
| Insertion Loss | < 3.0 dB |
| Operating Wavelength | 1270nm – 1610nm |
| Channel Spacing | 20 nm |
| Return Loss | > 45 dB |
| Thermal Stability | < 0.005 dB/°C |
| Operating Temp | -5°C to 65°C |
| Passive Design | Maintenance Free |
| Compatibility | All Ruijie CWDM Transceivers |
| Mounting | Chassis-based / Standalone |
| Dimensions | 130 x 100 x 25 mm |
| Application | Campus Backbone Optimization |
| Fiber Count | Simplex / Duplex Options |
| Certification | CE, RoHS |
| MTBF | > 5,000,000 hours |
| Warranty | 3 Years |
