RG-MUX-EXT Expansion Module for Passive CWDM Systems

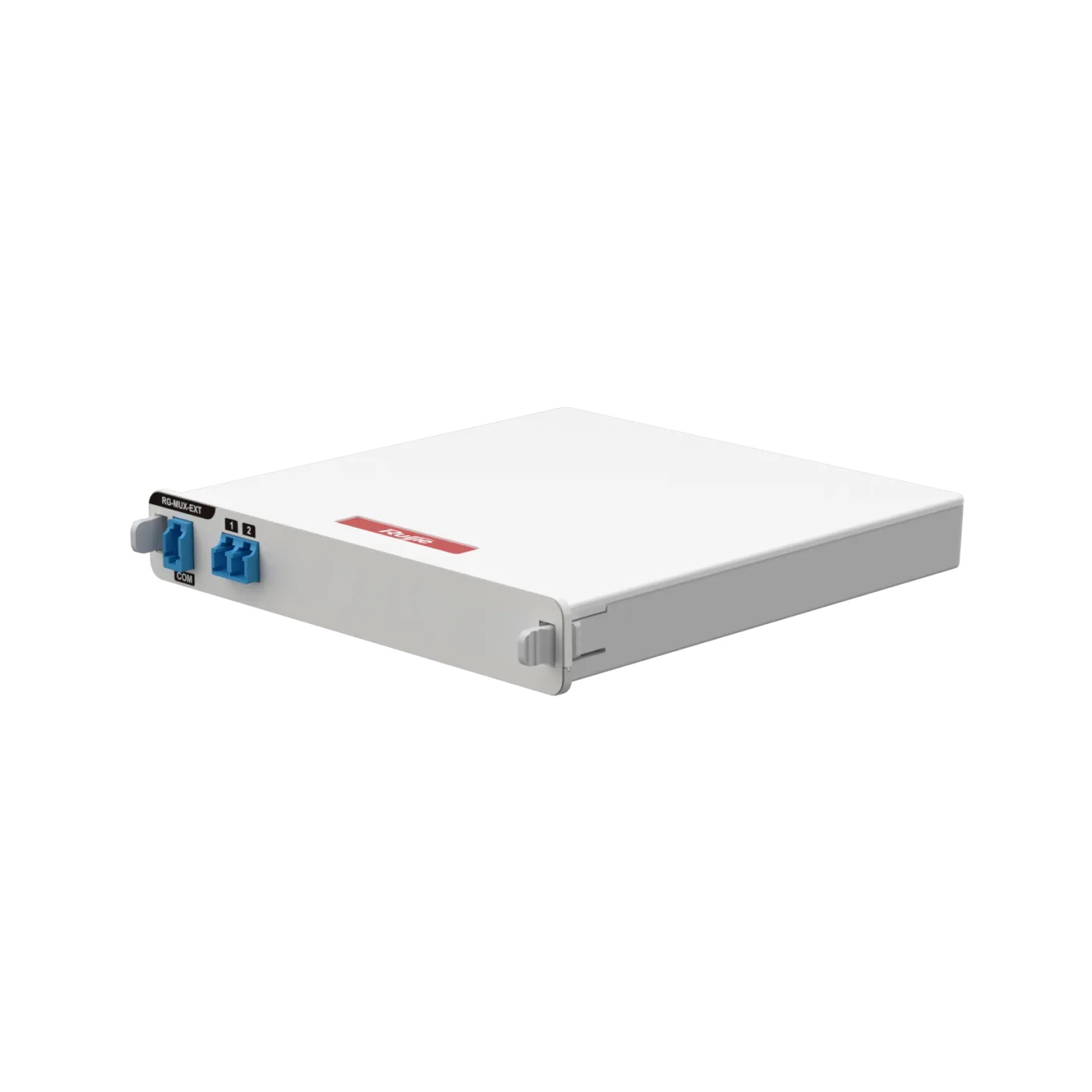

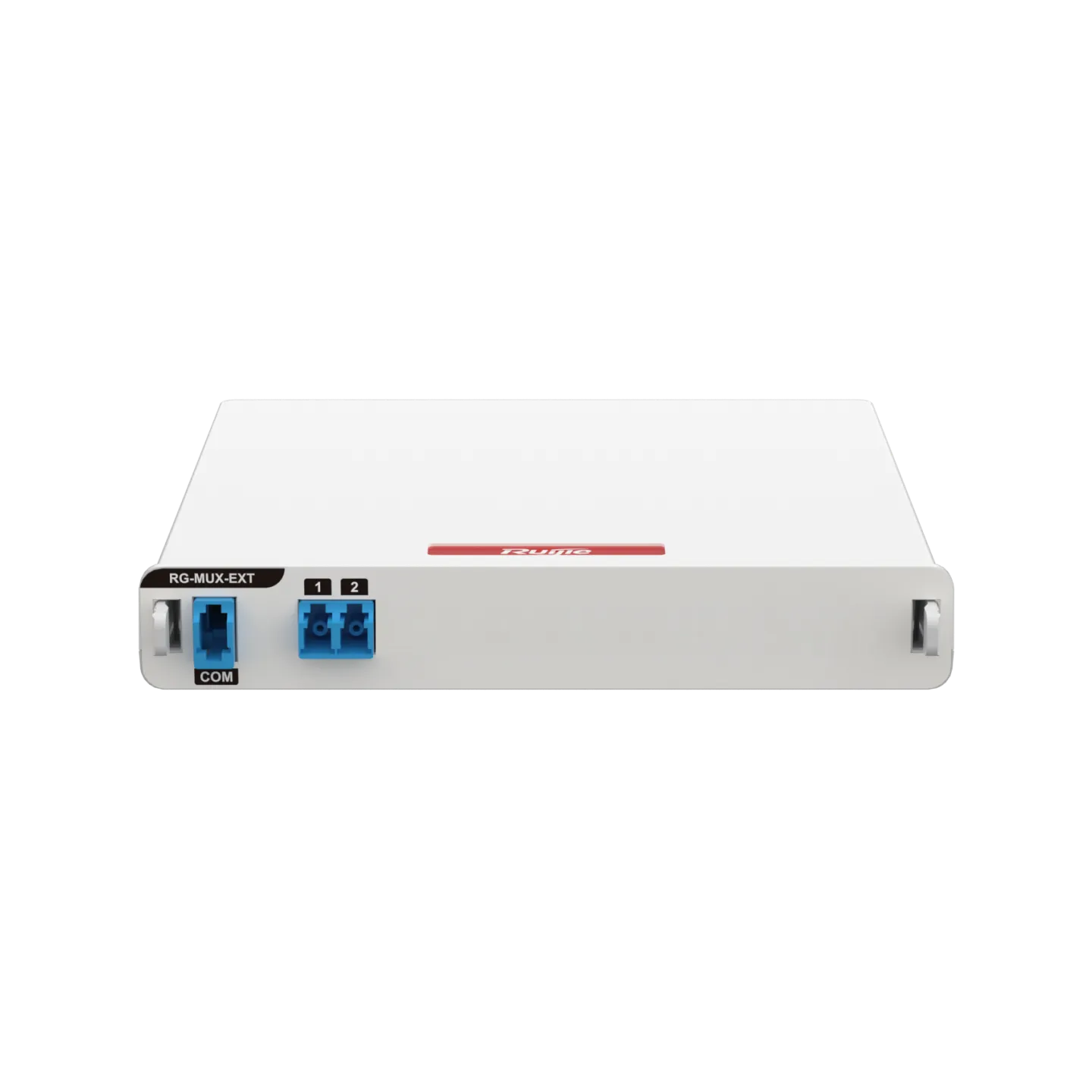

RG-MUX-EXT Expansion Module for Passive CWDM Systems - Gambar 2

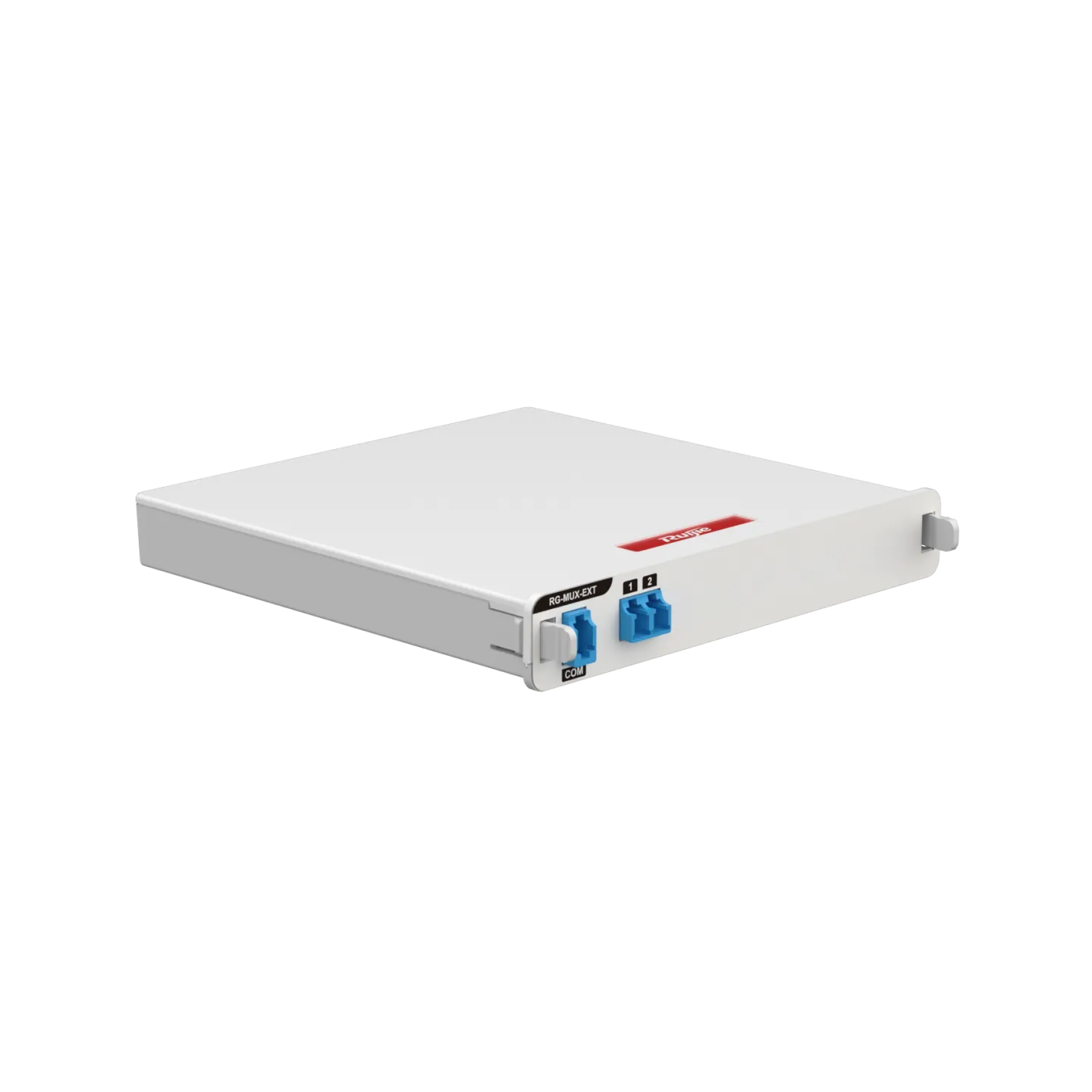

RG-MUX-EXT Expansion Module for Passive CWDM Systems - Gambar 3

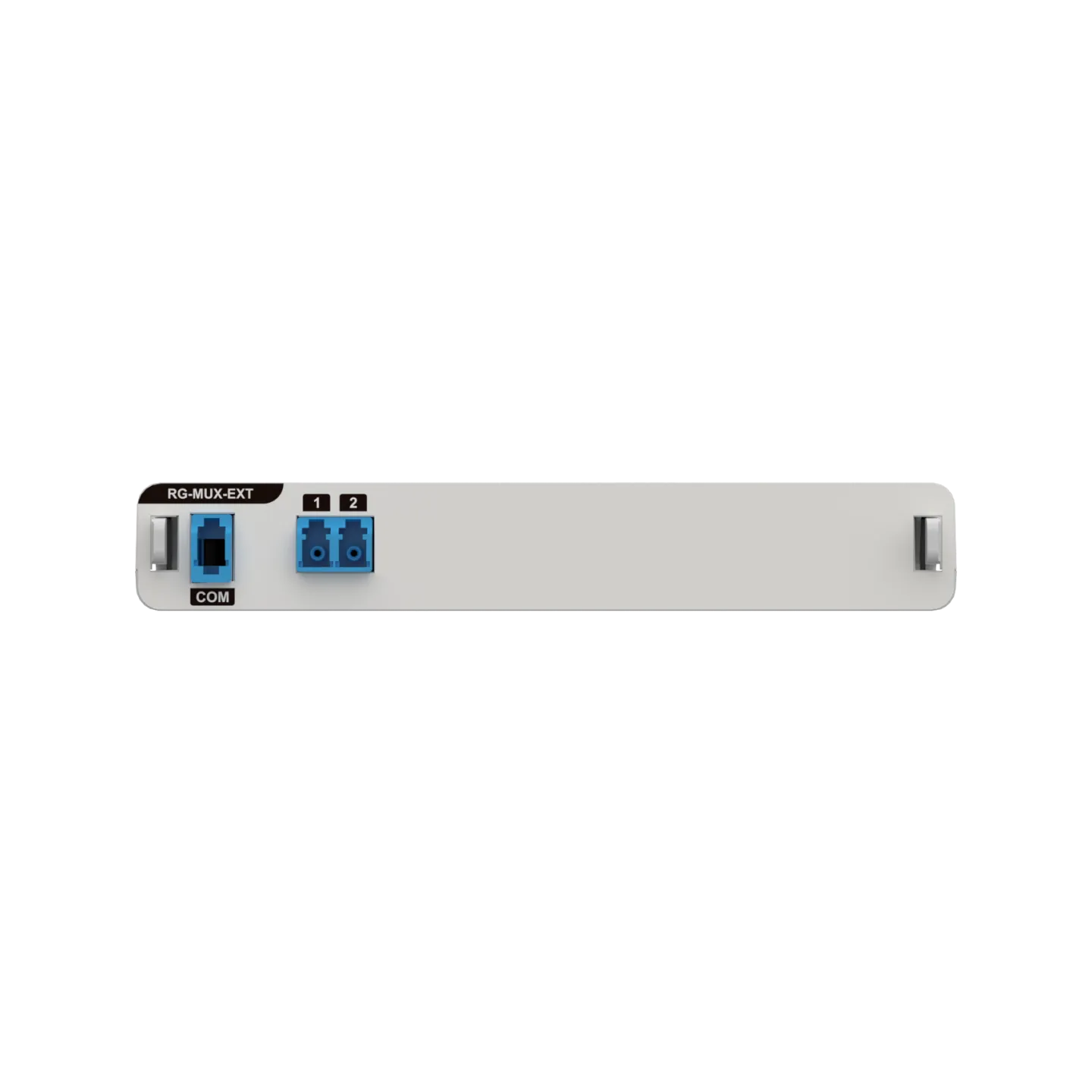

RG-MUX-EXT Expansion Module for Passive CWDM Systems - Gambar 4

RG-MUX-EXT Expansion Module for Passive CWDM Systems

Ruijie
Availability:

Stok 25

Highlight Features:• Extension module for Ruijie fiber multiplexer series.• Allows for further scalability of fiber channels.• High-quality optical components for minimal signal loss.• Seamless integration with existing MUX/DEMUX setups.

Ruijie RG-MUX-EXT: Modul Ekspansi untuk Kapasitas Fiber Tanpa Batas

Tingkatkan kapasitas sistem Multiplexer Anda dengan RG-MUX-EXT. Modul ekstensi ini dirancang untuk menambah fleksibilitas channel pada jaringan fiber optik Anda, memungkinkan pertumbuhan infrastruktur yang lebih skalabel tanpa gangguan layanan.

Fitur Unggulan:

  • Skalabilitas Instan: Tambahkan lebih banyak channel transmisi sesuai dengan pertumbuhan kebutuhan data perusahaan.
  • Integrasi Mulus: Dirancang untuk bekerja selaras dengan seri RG-MUX lainnya dari Ruijie.
  • Desain Kompak: Memudahkan penempatan di rak server yang sudah padat sekalipun.
SKU: RG-MUX-EXT Kategori: Brand:
brands

Technical Specifications

Type CWDM Extension Module
Function Wavelength Expansion / Add-Drop
Ports COM, Upgrade, Express Ports
Insertion Loss < 1.0 dB (Express Port)
Operating Temp -20°C to 75°C
Wavelength Range 1260nm to 1620nm
Connector LC/UPC High Precision
Housing Material Metal Shielded Case
Reliability Passive, No Electronic Failure
Fiber Support G.652D Single-mode
Mounting Modular Plug-in
Directivity > 50 dB
Application Scalable Fiber Networks
MTBF > 5,000,000 hours
Certification RoHS Compliant
Warranty 3 Years
