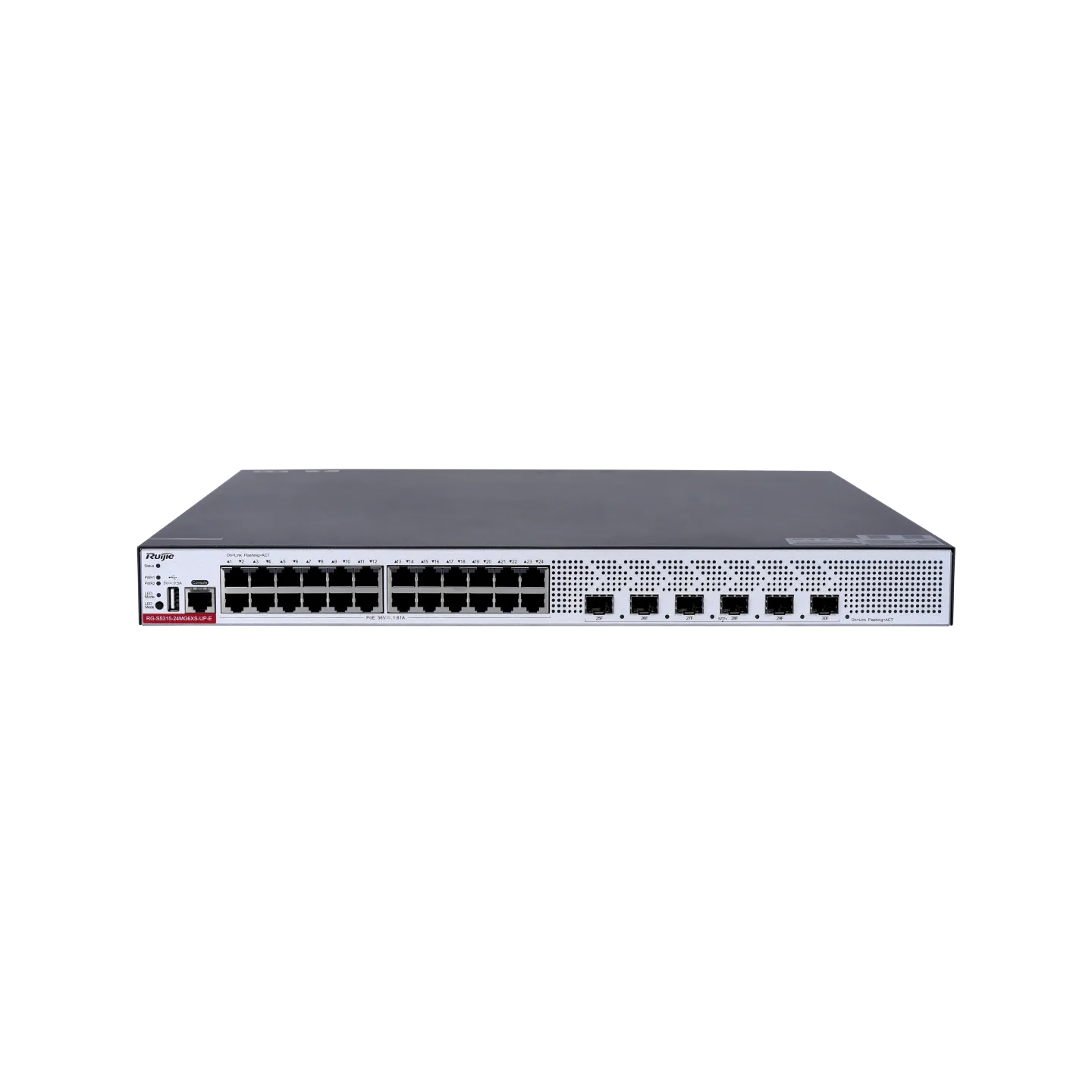

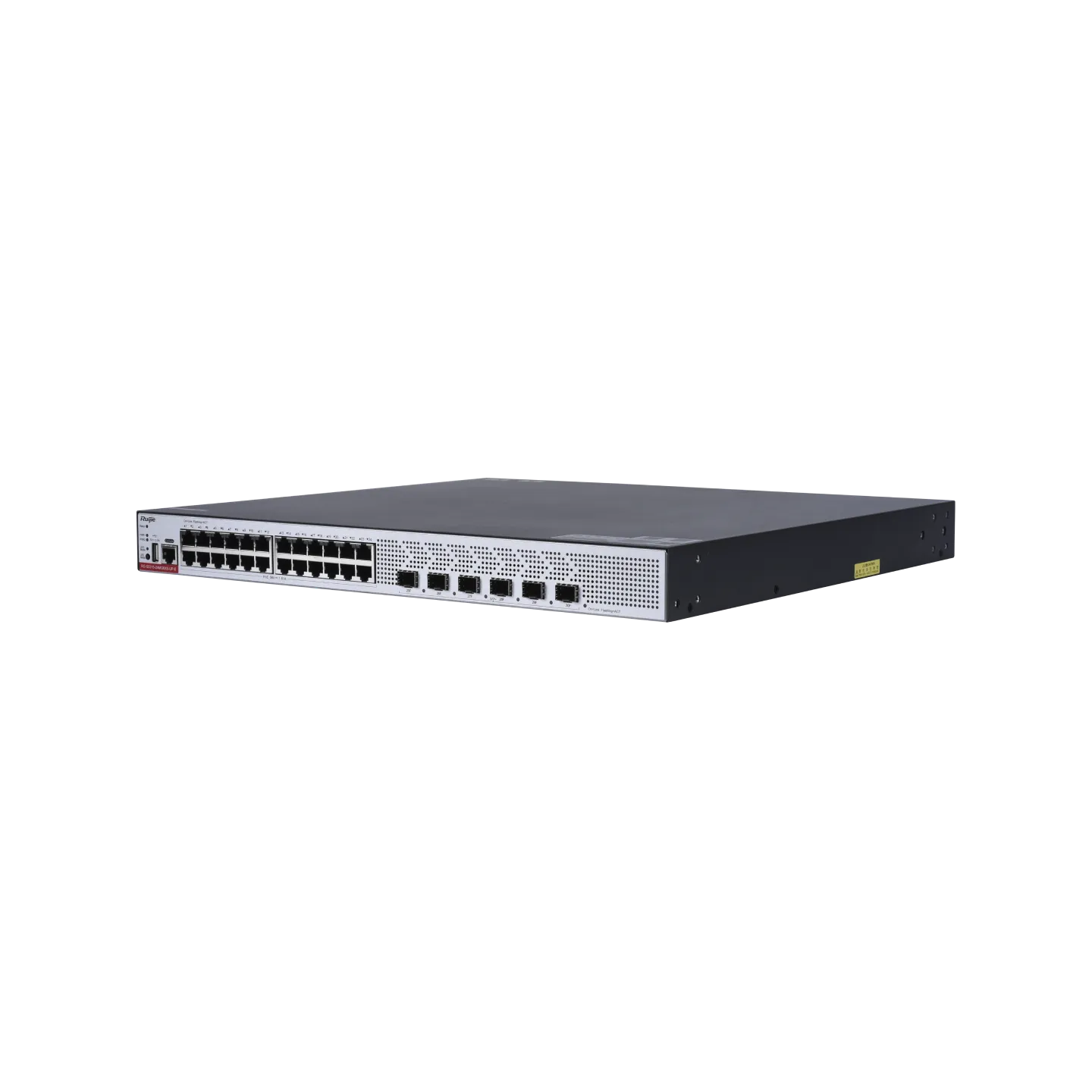

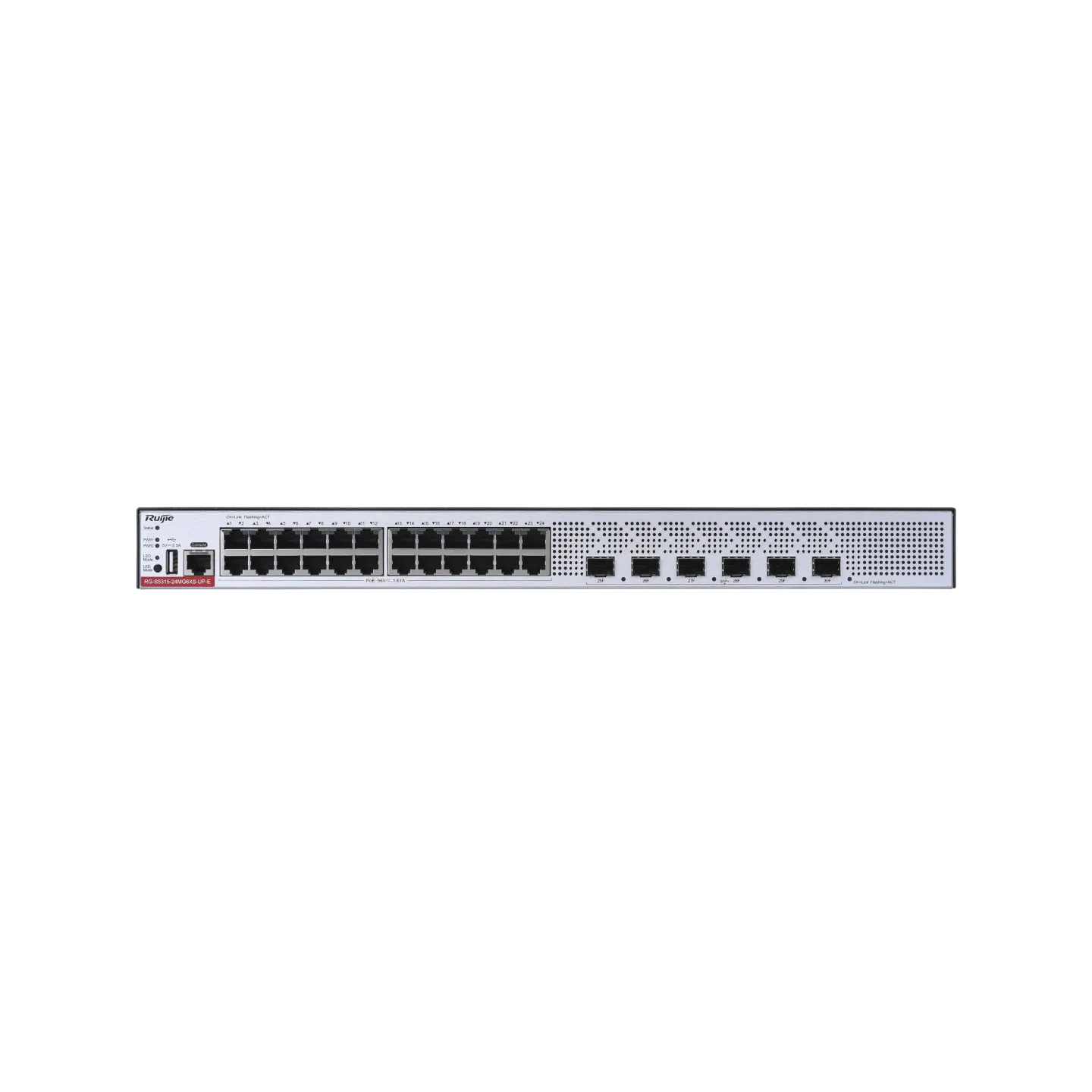

RG-S5315-24MG6XS-UP-E L3 Managed Switch, 24 x 2.5G (UPoE), 6 x 10G
Stok 25
Highlight Features:• 24 x 2.5G Multi-Gigabit ports with 90W PoE++ support.• 6 x 10G SFP+ uplink ports for high-speed connectivity.• Advanced Layer 3 routing and hardware-level security.• Ideal for high-density Wi-Fi 6/7 and IoT deployments.
Ruijie RG-S5315-24MG: Multi-Gigabit 2.5G dengan Ultra-PoE 90W
Switch ini adalah jembatan menuju teknologi masa depan. Dilengkapi dengan port 2.5G Multi-Gigabit dan daya 90W Ultra-PoE, perangkat ini siap mendukung Access Point Wi-Fi 7 dan perangkat IoT modern yang haus akan bandwidth dan daya.
Fitur Unggulan:
- 24 Port 2.5G Multi-Gigabit: Menghilangkan bottleneck jaringan nirkabel dengan kecepatan kabel yang lebih tinggi.
- Dukungan Ultra-PoE 90W: Sanggup menghidupkan smart lighting dan monitor pintar melalui kabel LAN.
- 6 Uplink 10G SFP+: Jalur backbone yang sangat luas untuk memastikan trafik data lancar ke pusat jaringan.
| brands |
|---|
Technical Specifications
| Type | L3 Managed Multi-Gigabit Ultra PoE Switch |
| Fixed Ports | 24 x 100M/1G/2.5G Base-T (PoE/PoE+/bt) |
| Uplink Ports | 6 x 10G SFP+ Slots |
| PoE Standard | IEEE 802.3af/at/bt (Up to 90W per port) |
| PoE Budget | 740W (Standard) / 1440W (Dual PSU) |
| Switching Capacity | 240 Gbps |
| Forwarding Rate | 180 Mpps |
| MAC Address | 32K Entries |
| L3 Routing | Static, RIP, OSPF, BGP, ISIS, PBR |
| Virtualization | VSU 2.0 (Up to 9 Units) |
| Management | CLI, Web, SNMP, Ruijie Cloud |
| Security | CPP, NFPP, DHCP Snooping, ACL |
| VLAN | 4K VLAN IDs, QinQ, Voice VLAN |
| IPv6 | Full Dual Stack IPv4/IPv6 Support |
| Reliability | RLDP, ERPS (G.8032), VRRP |
| QoS | 8 Queues, SP, WRR, DRR |
| Dimensions | 442 x 420 x 44 mm (1U) |
| Weight | 8.5 kg |

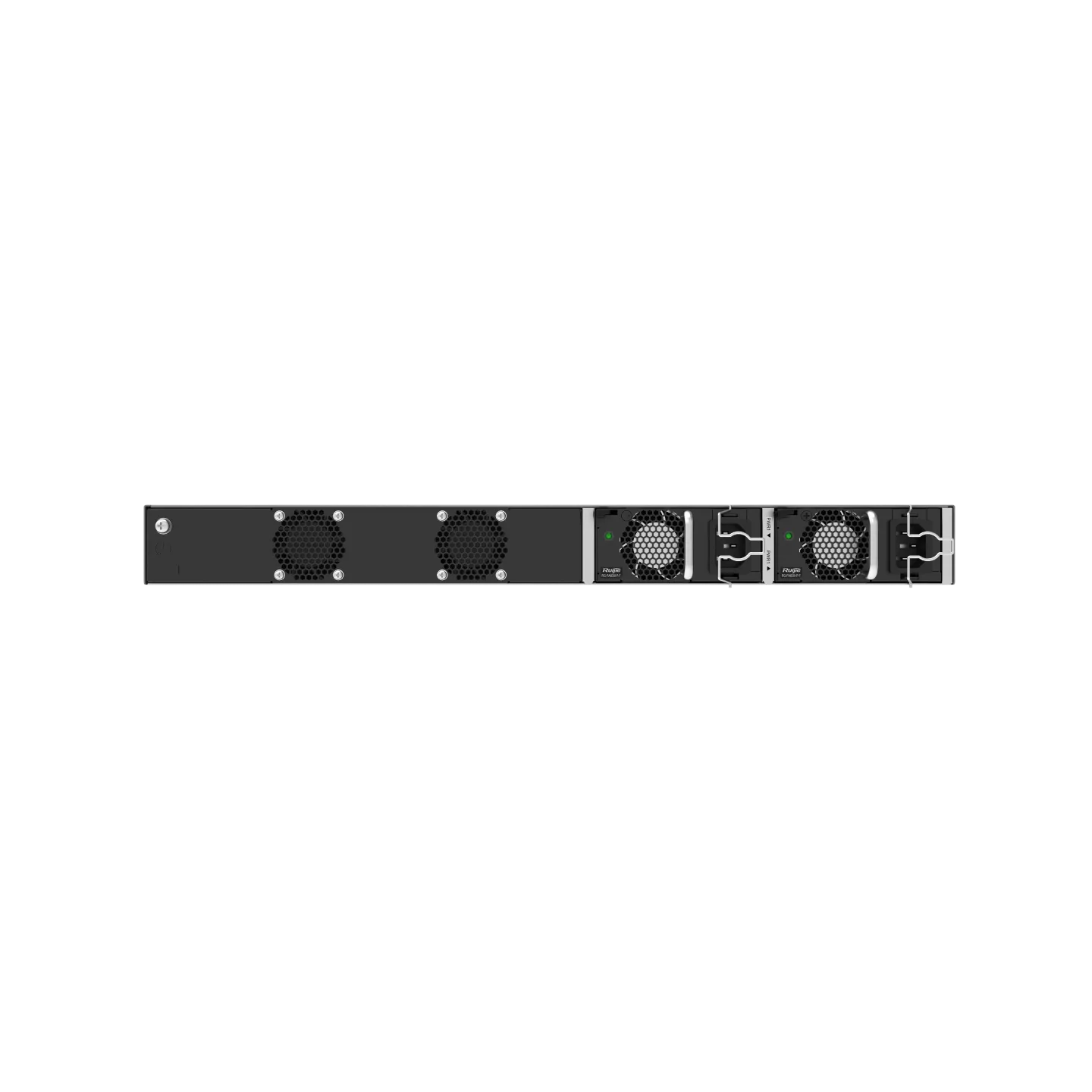

| Power Supply | Dual Hot-swap Modular Power Slots |
| Cooling | N+1 Redundant Hot-swap Fans |
| Surge Protection | 10KV Surge Protection |
| Jumbo Frame | 9216 bytes |
| Packet Buffer | 4 MB |
| Certification | CE, RoHS, FCC |
| MTBF | > 200,000 hours |
| Warranty | 3 Years |
