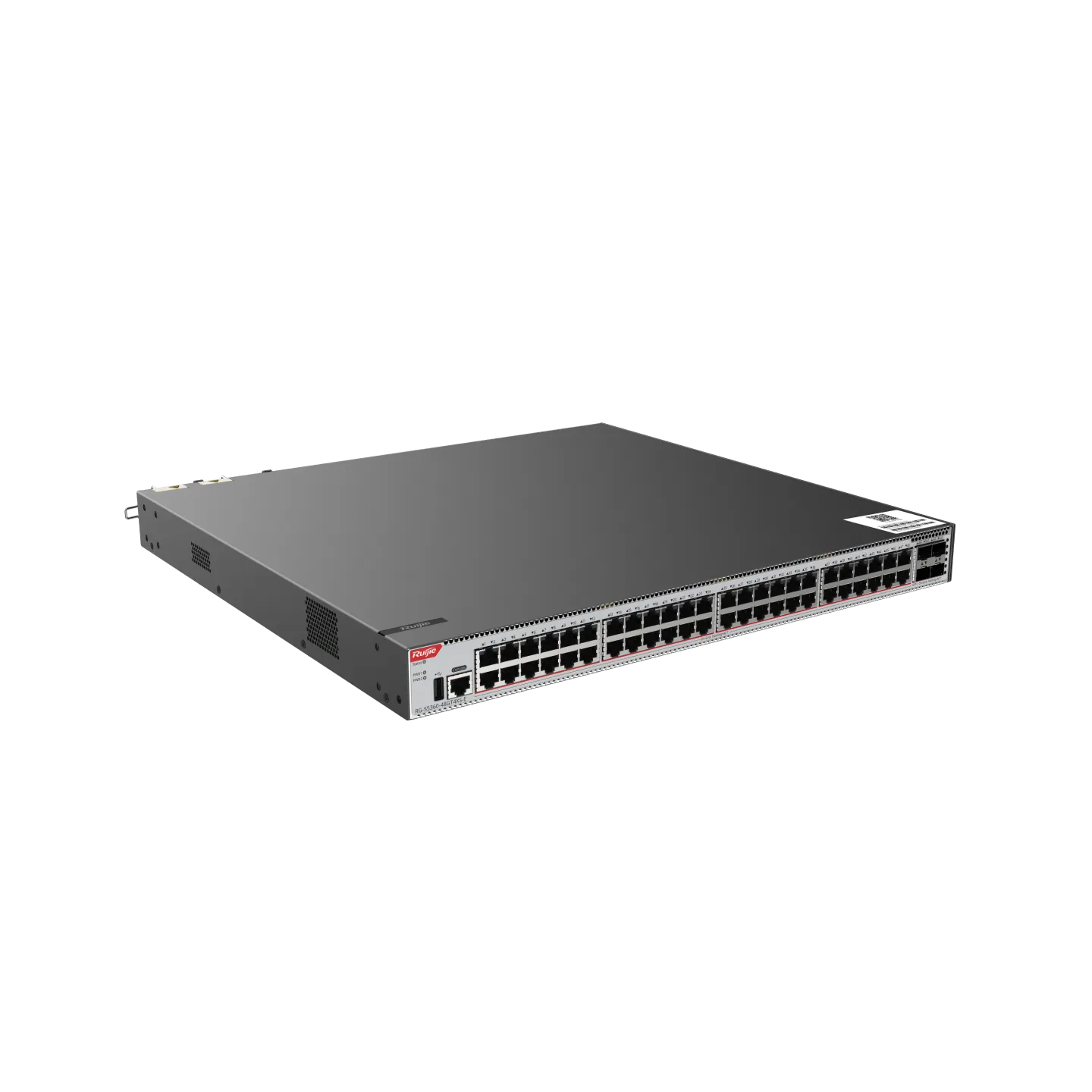

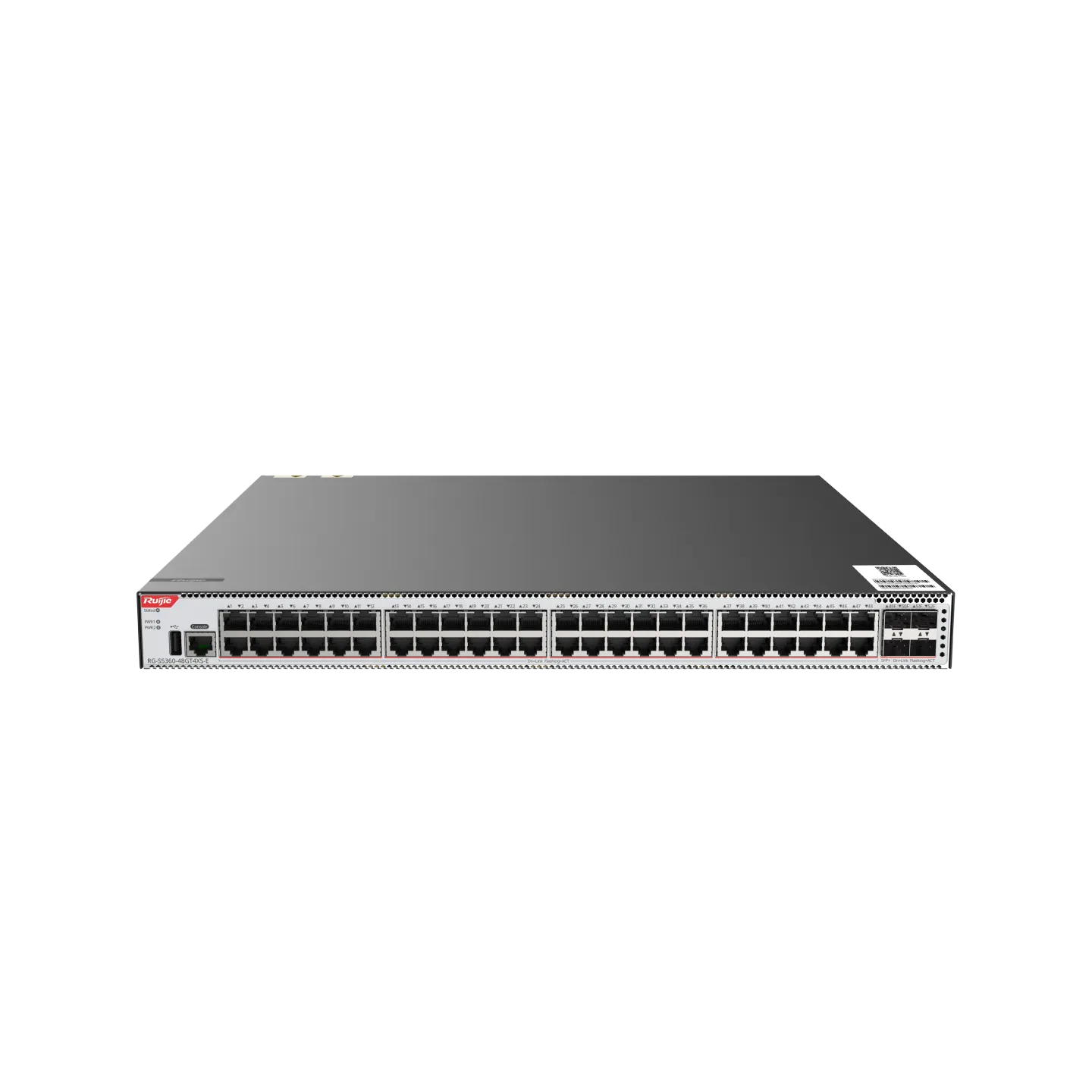

RG-S5360-48GT4XS-E L3 Managed Switch, Enhanced Security 48-Port
Stok 25
Highlight Features:• 48 x Gigabit RJ45 ports and 4 x 10G SFP+ uplinks.• High switching capacity for campus distribution layers.• Advanced routing protocols (OSPF, BGP, PBR).• Energy-saving design and intelligent fan control.
Ruijie RG-S5360-48GT4XS-E: Kapasitas 48 Port untuk Efisiensi Masif
Switch ini menawarkan densitas port Gigabit tertinggi untuk seri S5360. Sangat ideal untuk mengonsolidasikan trafik dari banyak pengguna dalam satu lantai gedung ke dalam jalur uplink 10G yang sangat cepat dan andal.
Fitur Utama:
- 48 Port Gigabit Ethernet: Menghubungkan seluruh perangkat kantor dalam satu manajemen unit yang tangguh.
- High Availability: Mendukung fitur redundansi untuk memastikan jaringan tetap aktif meski terjadi gangguan pada jalur utama.
- Desain Ramah Lingkungan: Konsumsi daya yang dioptimalkan sesuai dengan beban trafik port yang aktif.
| brands |
|---|
Technical Specifications
| Type | Enhanced 48-Port L3 Managed Switch |
| Fixed Ports | 48 x 10/100/1000Base-T |
| Uplink Ports | 4 x 10G SFP+ Slots |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 132 Mpps |
| MAC Address | 32K Entries |
| Routing Table | Up to 12K IPv4 / 6K IPv6 Entries |
| ARP Table | Up to 4K Entries |
| Stacking | VSU 2.0 Support |
| Power Supply | Dual Hot-swap Power Slots |
| Power Consumption | < 55W |
| Dimensions | 440 x 300 x 44 mm (1U) |
| Weight | 4.8 kg |
| Operating Temp | 0°C to 50°C |
| Cooling | N+1 Redundant Fan Trays |
| Security | CPP, NFPP, ACL, IP Source Guard |
| VLAN Support | Voice VLAN, GVRP, Port-based |
| IPv6 Ready | IPv6 Static, OSPFv3, MLD Snooping |
| Reliability | ERPS, RLDP, BFD |
| Jumbo Frame | 9216 bytes |
| Housing | Industrial Grade Steel |
| Management | Console, MGMT, USB, Cloud |
| Certification | CE, RoHS, FCC |
| MTBF | > 180,000 hours |
| Warranty | 3 Years |
