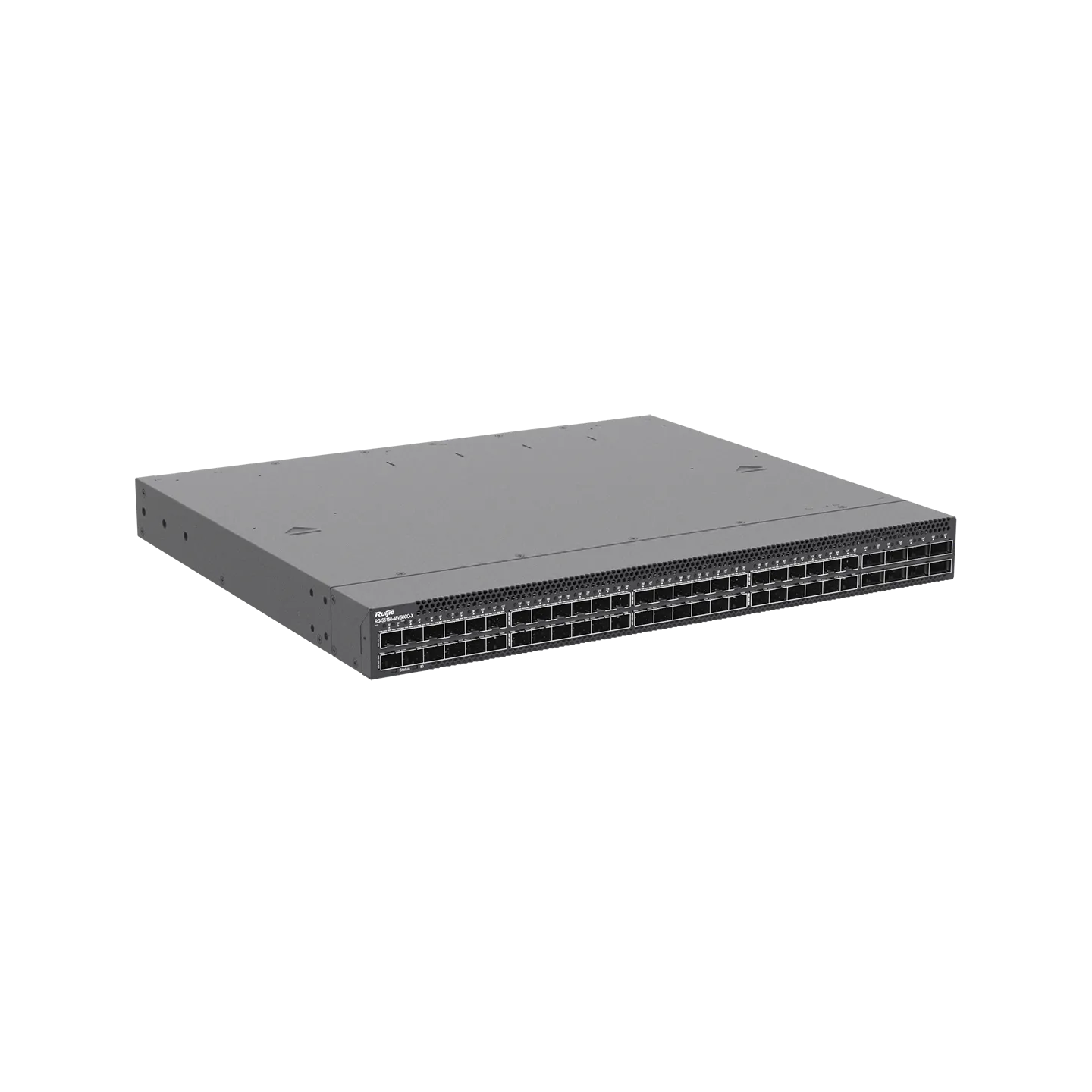

RG-S6150-48VS8CQ-X L3 Managed Switch, 48 x 25G SFP28 Ports, 8 x 100G QSFP28 Ports
Stok 25
Highlight Features:• 48 x 25G SFP28 and 8 x 100G QSFP28 ports.• Designed for next-gen campus and small DC cores.• Intelligent telemetry and automated O&M.• Robust IPv4/IPv6 dual-stack support.
Ruijie RG-S6150-48VS8CQ-X: Densitas 25G Tertinggi untuk Pusat Data Perusahaan
Membutuhkan koneksi 25G dalam jumlah banyak? Seri ini menyediakan 48 port SFP28 untuk kebutuhan skalabilitas tingkat tinggi. RG-S6150-48VS8CQ-X adalah workstation bagi data center yang mengelola trafik sangat padat dari berbagai departemen sekaligus.
Manfaat Strategis:
- 48 Port 25G SFP28: Kapasitas luar biasa untuk mengonsolidasikan server-server modern berkecepatan tinggi dalam satu unit switch.
- Backplane Bandwidth Super Besar: Menjamin seluruh port dapat beroperasi pada kecepatan maksimal secara bersamaan tanpa degradasi performa.
- Manajemen Energi Cerdas: Meskipun bertenaga monster, perangkat ini memiliki efisiensi pendinginan yang optimal untuk menjaga suhu operasional tetap stabil.
- Analitik Jaringan Mendalam: Fitur monitoring canggih yang membantu tim IT mendeteksi anomali trafik dalam hitungan detik.
| brands |
|---|
Technical Specifications
| Ports | 48 x 10G/25G SFP28, 8 x 40G/100G QSFP28 |
| Switching Capacity | 4.0 Tbps / 40 Tbps |
| Forwarding Rate | 2,800 Mpps |
| MAC Address | 64,000 |
| VLAN IDs | 4,094 |
| Routing Protocols | OSPF v2/v3, BGP4+, ISIS, RIP, PBR |
| VXLAN Support | Hardware L2/L3 VXLAN, EVPN |
| Virtualization | VSU (Virtual Switch Unit) |
| Packet Buffer | 16 MB |
| ARP Entries | 20,000 |
| Multicast | IGMP v1/v2/v3, PIM-SM, PIM-DM, SSM |
| ACL | Standard, Extended, Layer 2/3/4 |
| QoS Scheduling | SP, WRR, DRR, SP+WRR |
| Security | CPP, NFPP, Anti-DDoS, 802.1x, Port Security |
| Management | Console, MGMT, SNMP, SSH v2, Web |

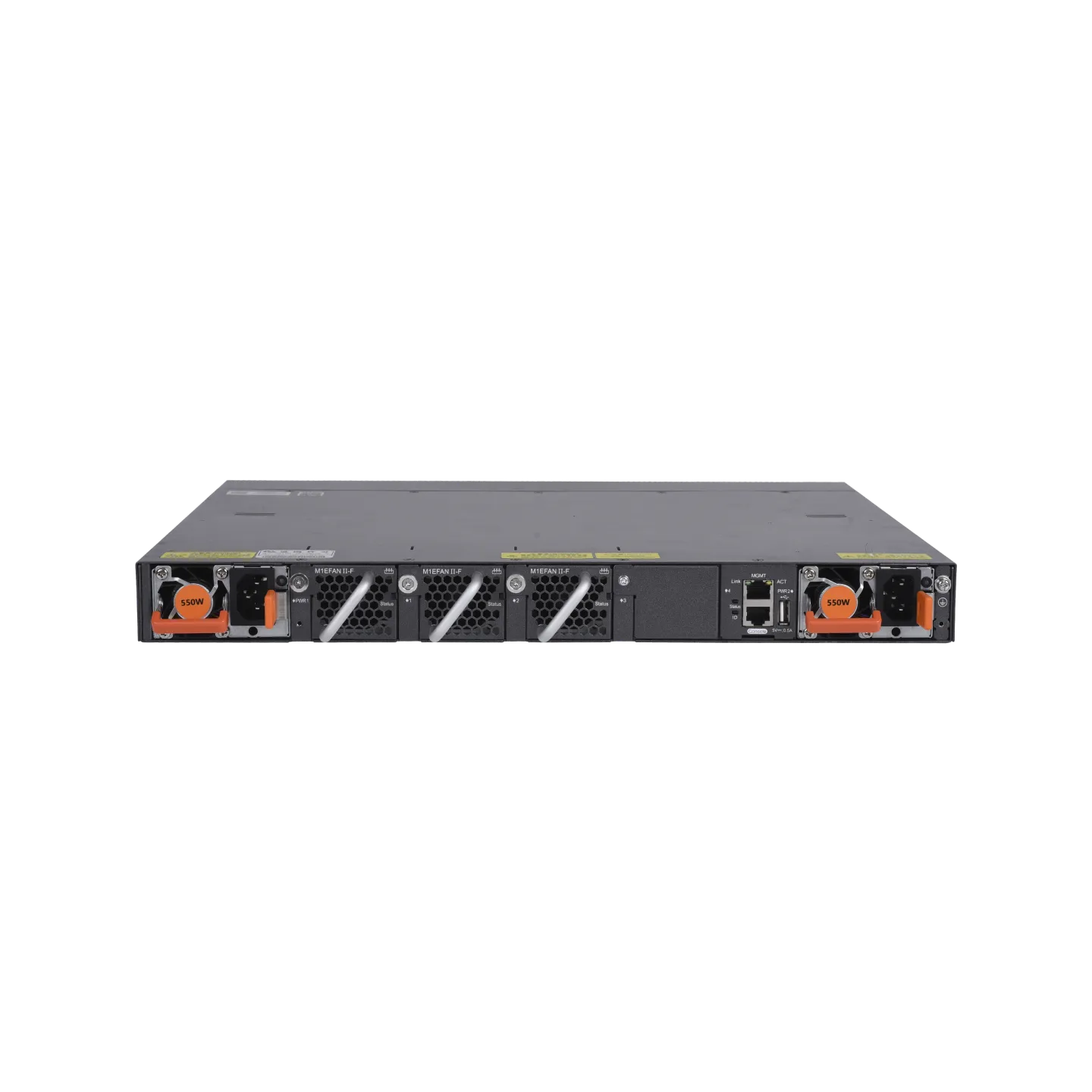

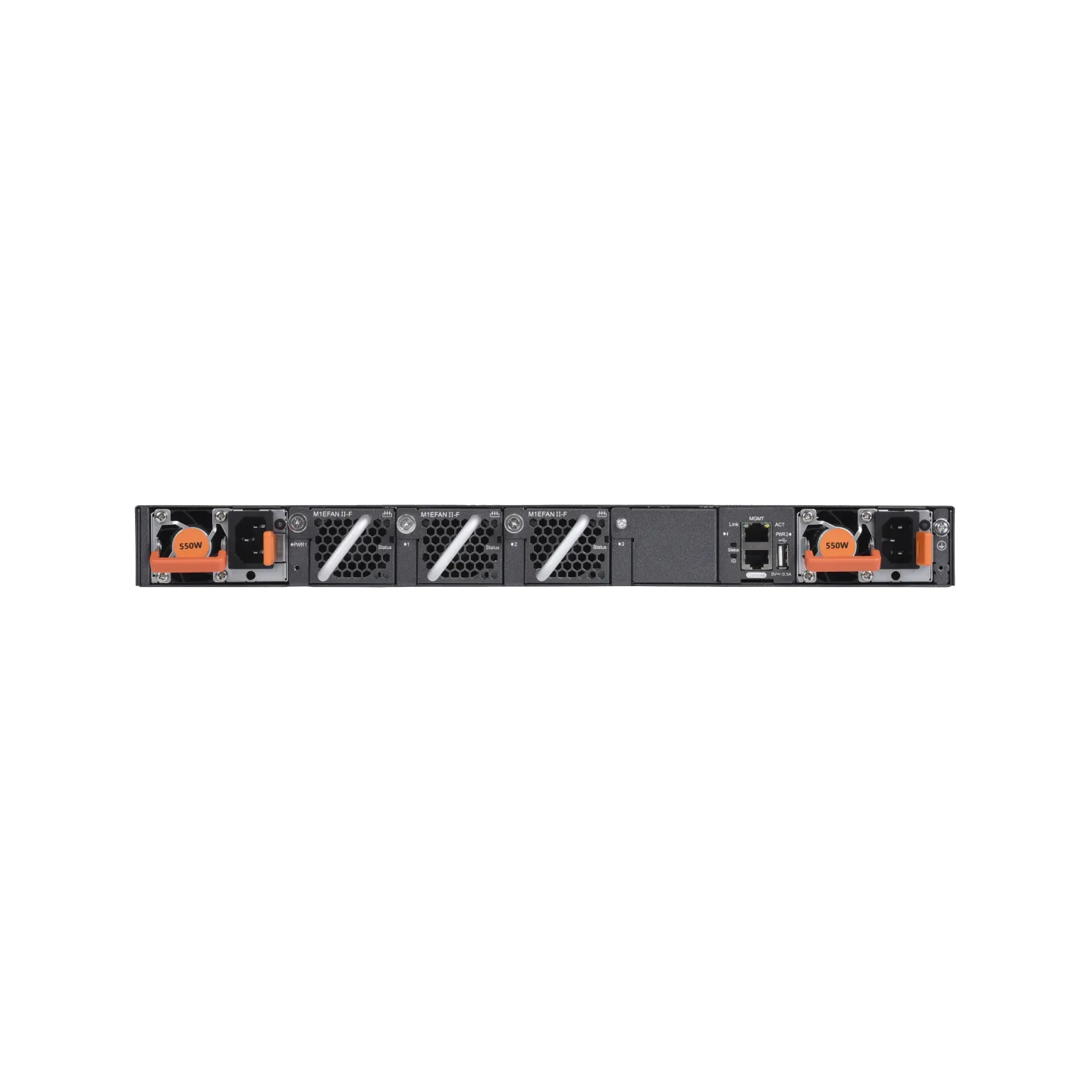

| Power Supply | Dual Hot-swap (N+N) |
| Fan Module | Hot-swap (N+1) |
| Airflow Direction | Front-to-Rear |
| Max Power | < 350W |
| Dimensions | 442 x 500 x 44 mm |
| Weight | ± 11.5 kg |
| Operating Temp | 0°C to 45°C |
| Storage Temp | -40°C to 70°C |
| Humidity | 10% to 90% RH |
| RAM / Flash | 4 GB / 8 GB |
| In-band Telemetry | Supported |
| MTBF | > 200,000 hours |
| Certifications | CE, FCC, RoHS |
| Warranty | 3 Years |
| Layer 3 ECMP | Up to 64-way |
| Energy Saving | EEE Supported |
