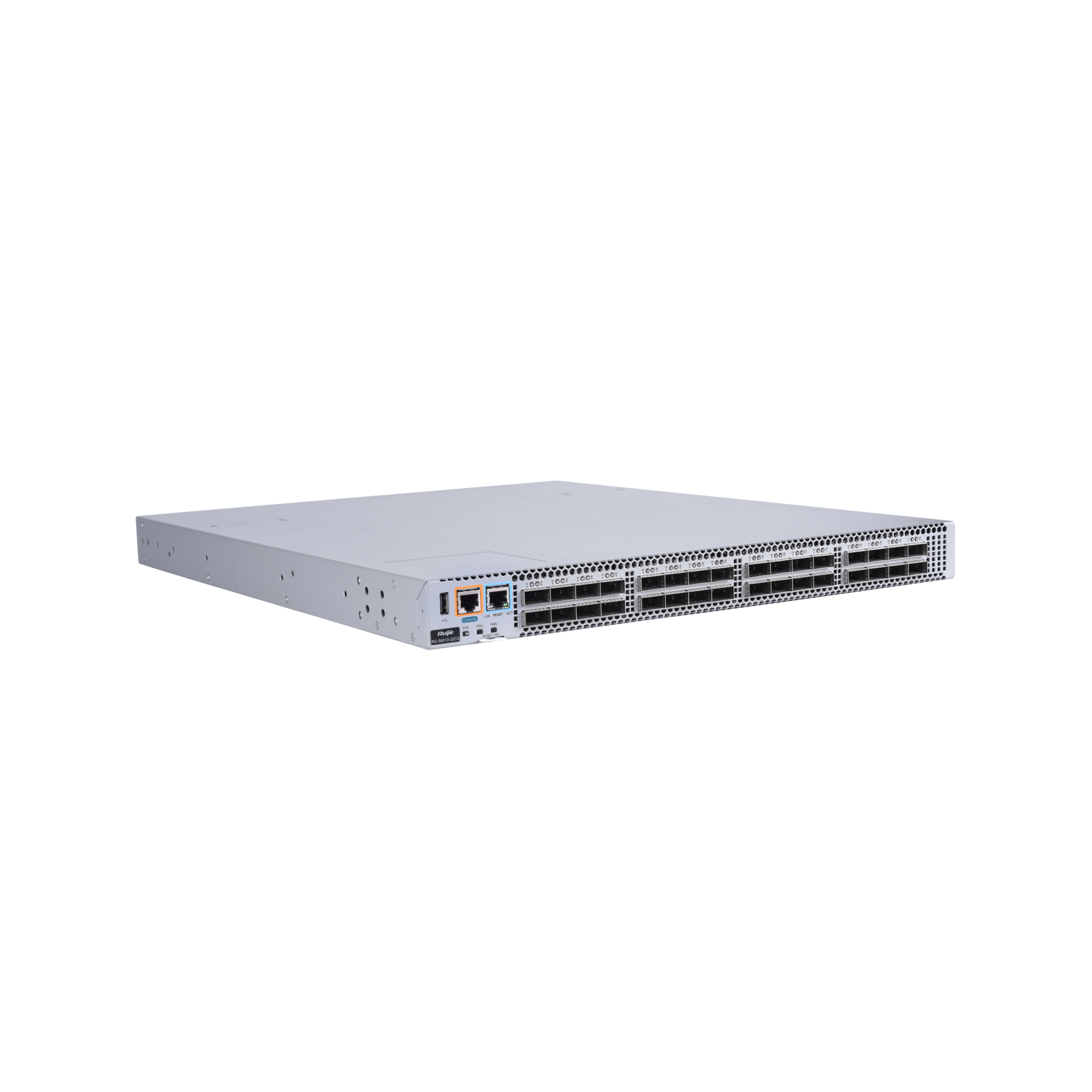

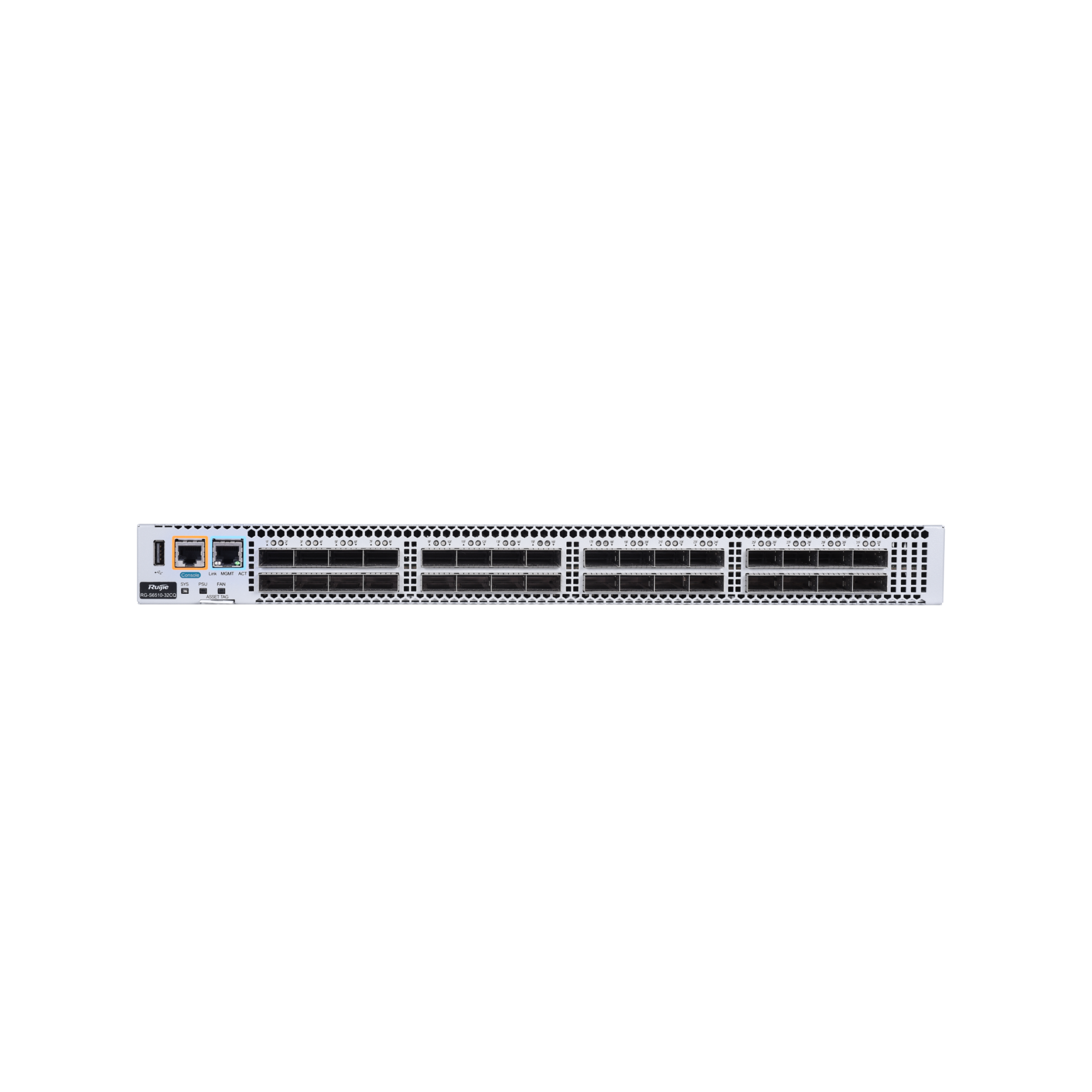

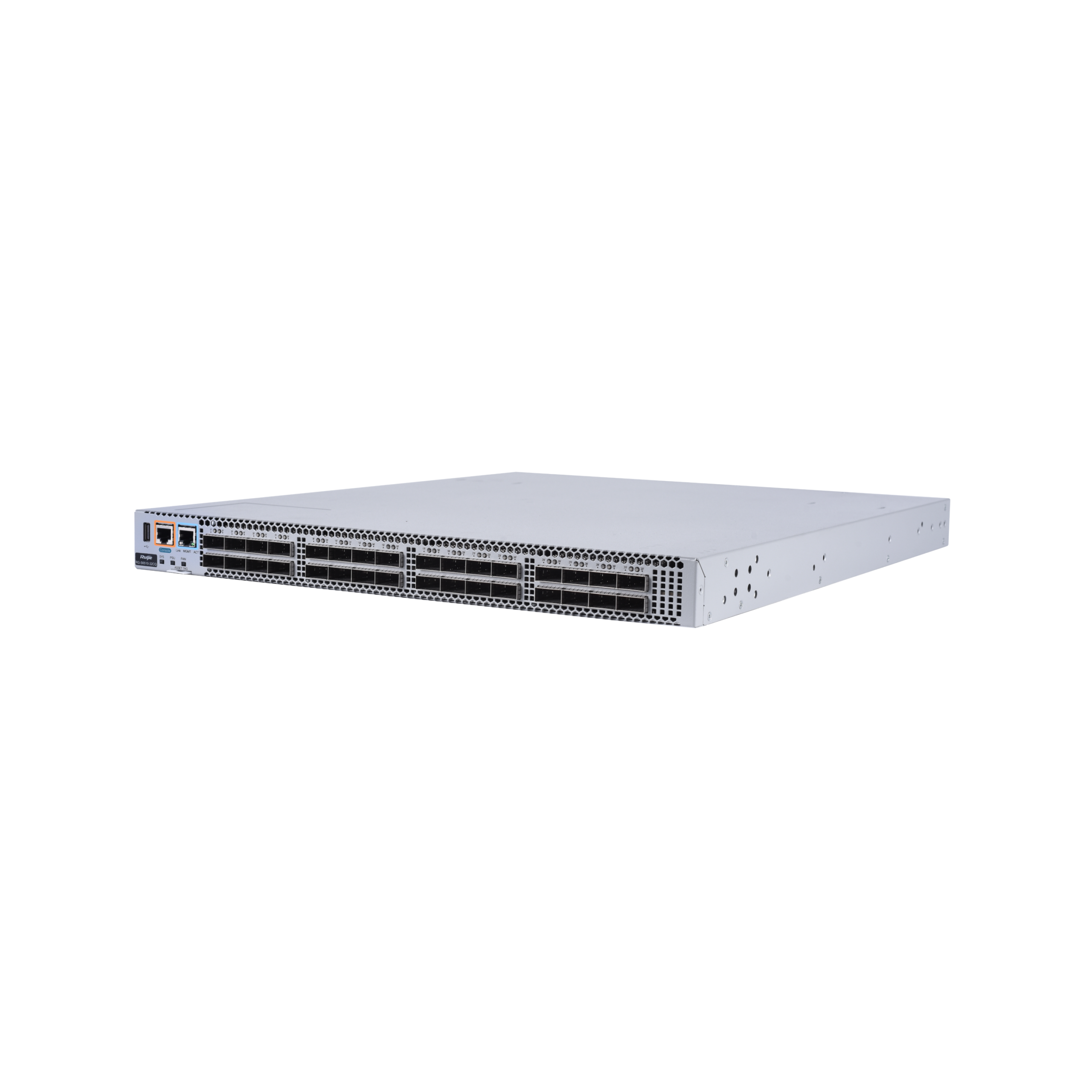

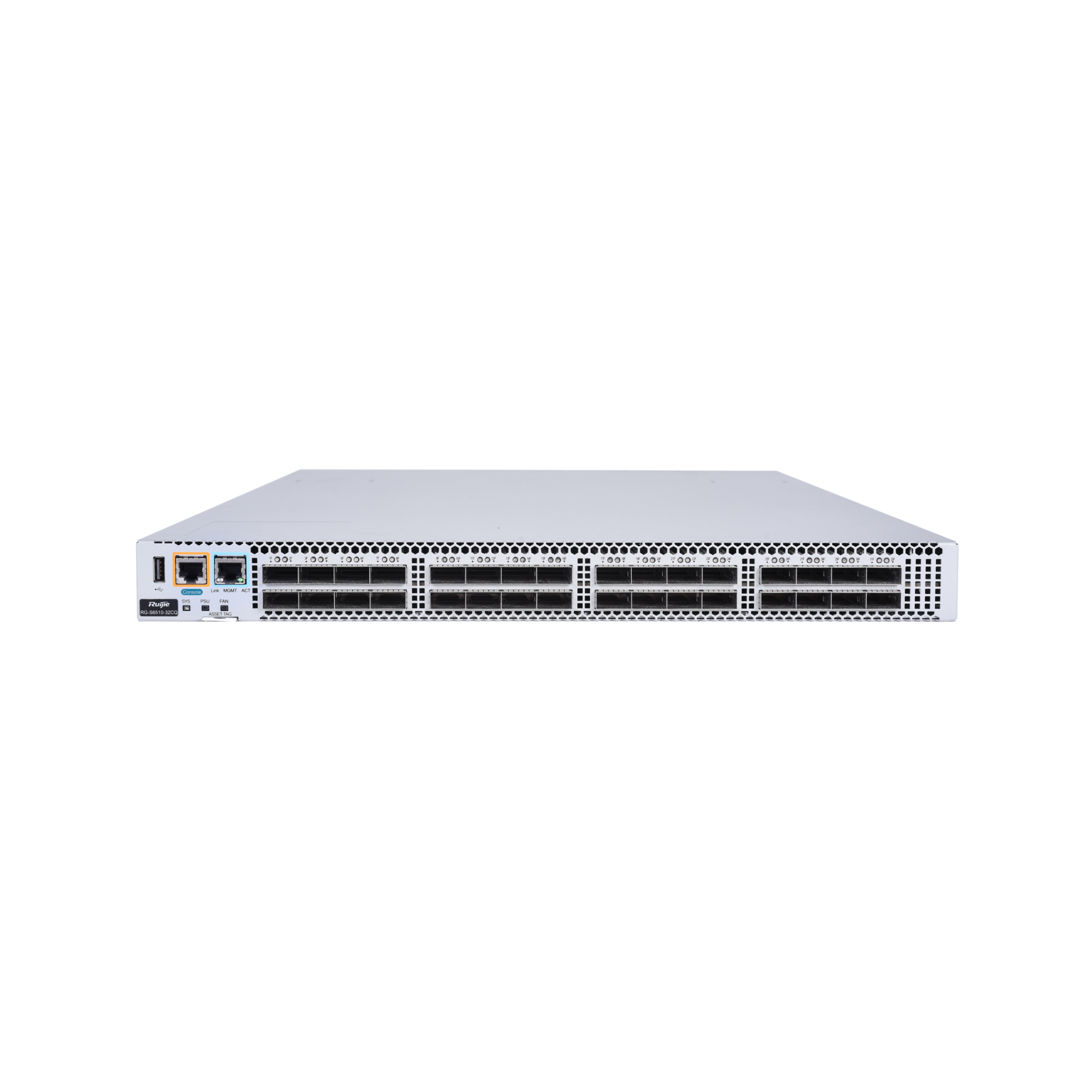

RG-S6510-32CQ Data Center Switch, 32 x 100G QSFP28 Ports
Stok 25
Highlight Features:• 32 x 100G QSFP28 high-density ports.• Data center grade switching with non-blocking architecture.• Supports advanced RoCEv2 for low-latency AI clusters.• Redundant hot-swappable power and cooling modules.
Ruijie RG-S6510-32CQ: Agregasi Core Data Center 100G yang Masif
Switch core ini adalah impian bagi pengelola pusat data yang membutuhkan bandwidth tanpa batas. Dengan densitas port 100G yang tinggi, RG-S6510-32CQ dirancang untuk menjadi tulang punggung (backbone) bagi jaringan virtualisasi dan cloud computing tingkat tinggi.
Fitur Kunci:
- 32 Port 100G QSFP28: Kapasitas transmisi data yang luar biasa besar untuk menghubungkan ribuan server dalam satu jaringan yang solid.
- Latensi Ultra-Rendah: Menghilangkan jeda waktu pada aplikasi kritis, sangat ideal untuk pasar keuangan dan pengolahan data AI.
- Efisiensi Pendinginan Superior: Aliran udara yang dioptimalkan untuk menjaga suhu rak data center tetap stabil meski beban kerja sedang maksimal.

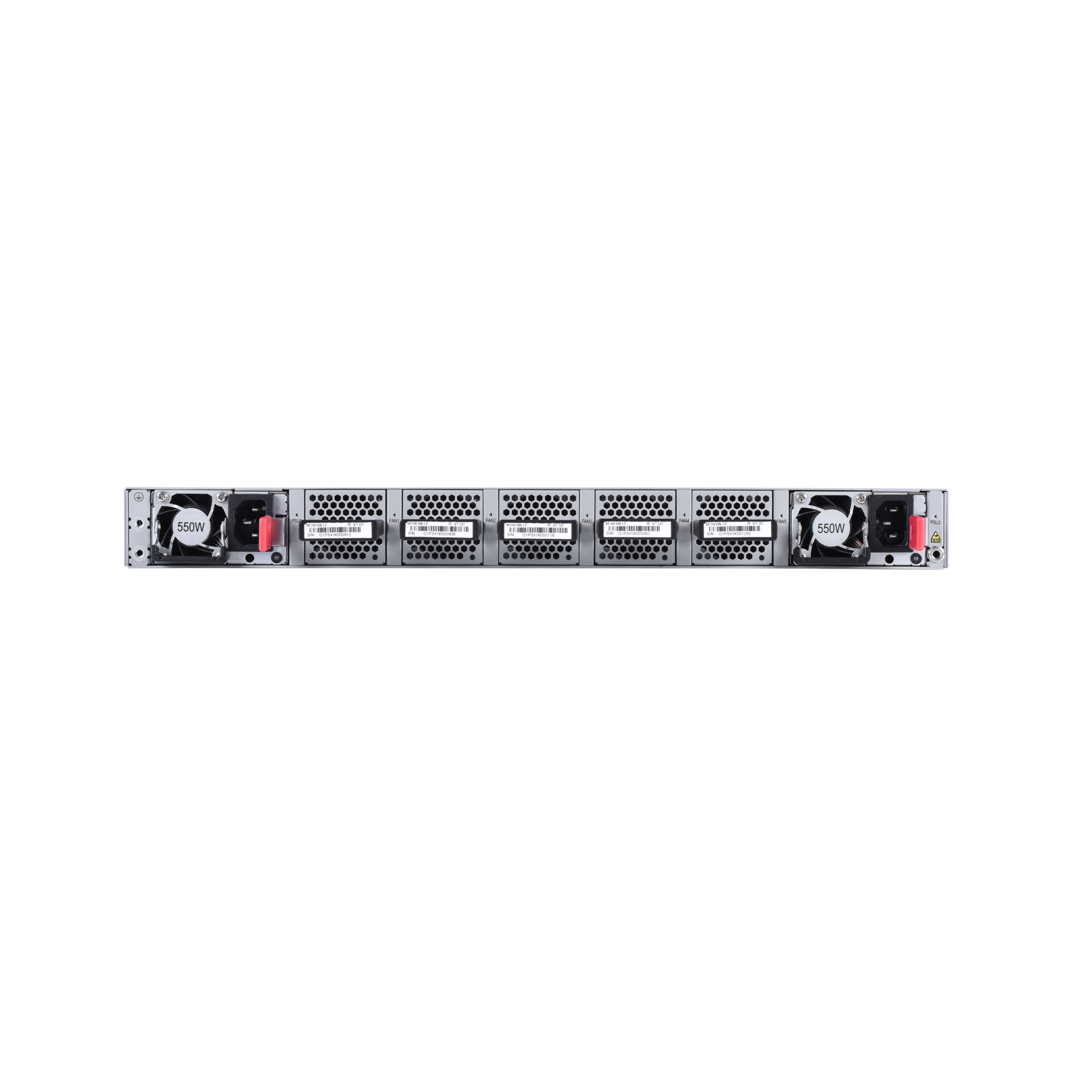

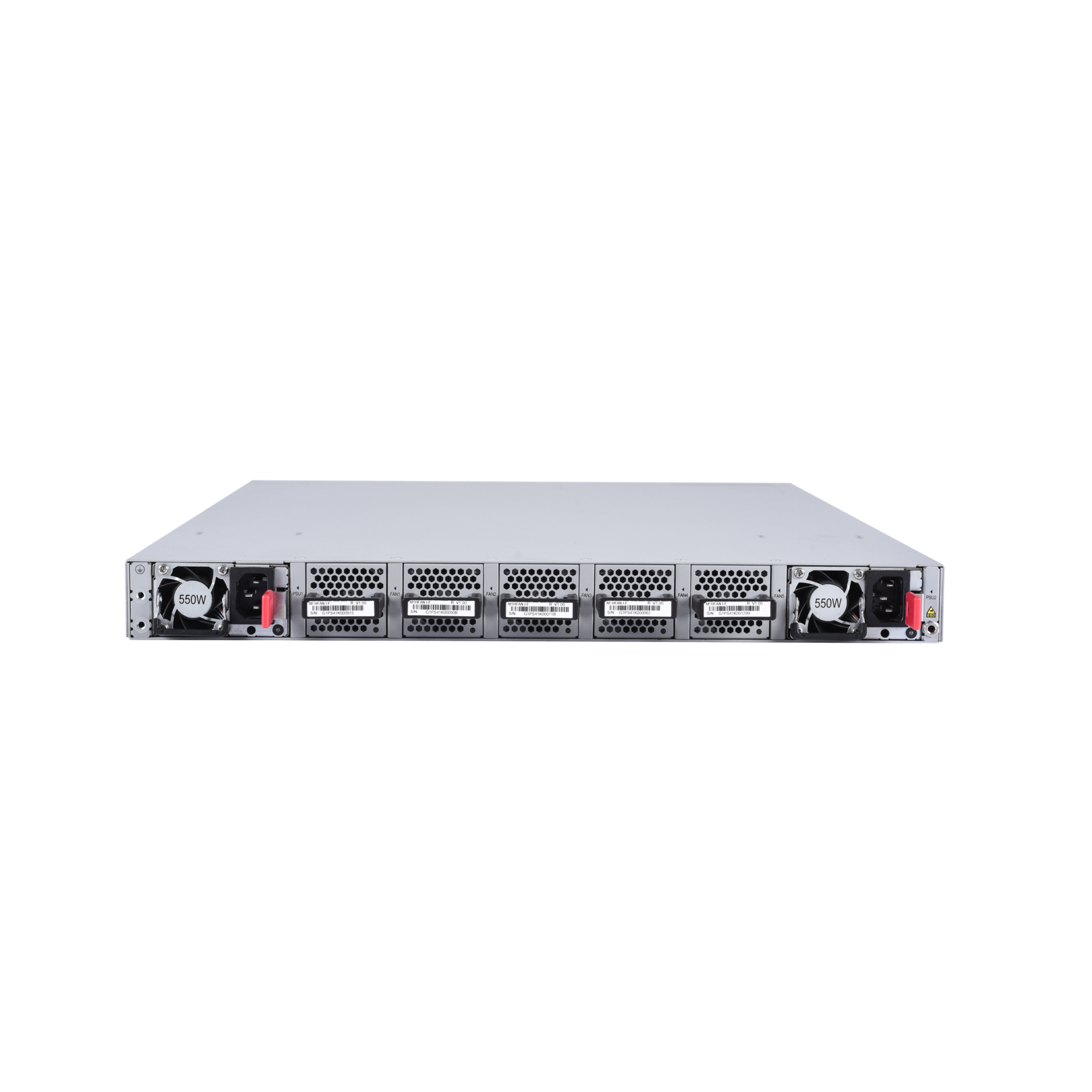

- Redundansi Power & Fan: Sistem hot-swappable yang menjamin jaringan tidak pernah mati meskipun terjadi gangguan komponen fisik.
| brands |
|---|
Technical Specifications
| Type | High-Density 100G Data Center Switch |
| Fixed Ports | 32 x 100G QSFP28 Slots |
| Switching Capacity | 6.4 Tbps |
| Forwarding Rate | 2400 Mpps |
| Architecture | Non-blocking Distributed Switching |
| MAC Address | 128K Entries |
| ARP Table | 64K Entries |
| VXLAN | Hardware VXLAN Gateway L2/L3 |
| DC Features | RoCE v2, PFC, ETS, ECN |
| L3 Protocols | BGP4+, OSPFv3, ISIS, PBR |
| Buffer | 32MB Shared Buffer |
| Power Supply | Dual Hot-swap Redundant (AC/DC) |
| Power Consumption | < 400W |
| Fans | 5 x Hot-swap (N+1 Redundant) |
| Airflow | Front-to-Rear / Rear-to-Front |
| Dimensions | 442 x 420 x 44 mm (1U) |
| Weight | 11 kg |
| SDN Support | OpenFlow 1.3, NetConf, gRPC |
| Telemetry | Streaming Telemetry, sFlow |
| Reliability | GR, BFD, VRRP, VSU 2.0 |
| IPv6 | Full Dual Stack Support |
| Security | CPP, NFPP, L2-L4 ACL |
| Multicast | PIM-SM, IGMP v1/v2/v3 |
| QoS | 8 Queues per Port, WRED |
| Jumbo Frame | 9600 bytes |
| Mirroring | ERSPAN, RSPAN |
| Management | Console, MGMT, SNMP, SSH |
| Certification | CE, RoHS, FCC |
| MTBF | > 180,000 hours |
| Warranty | 3 Years |
