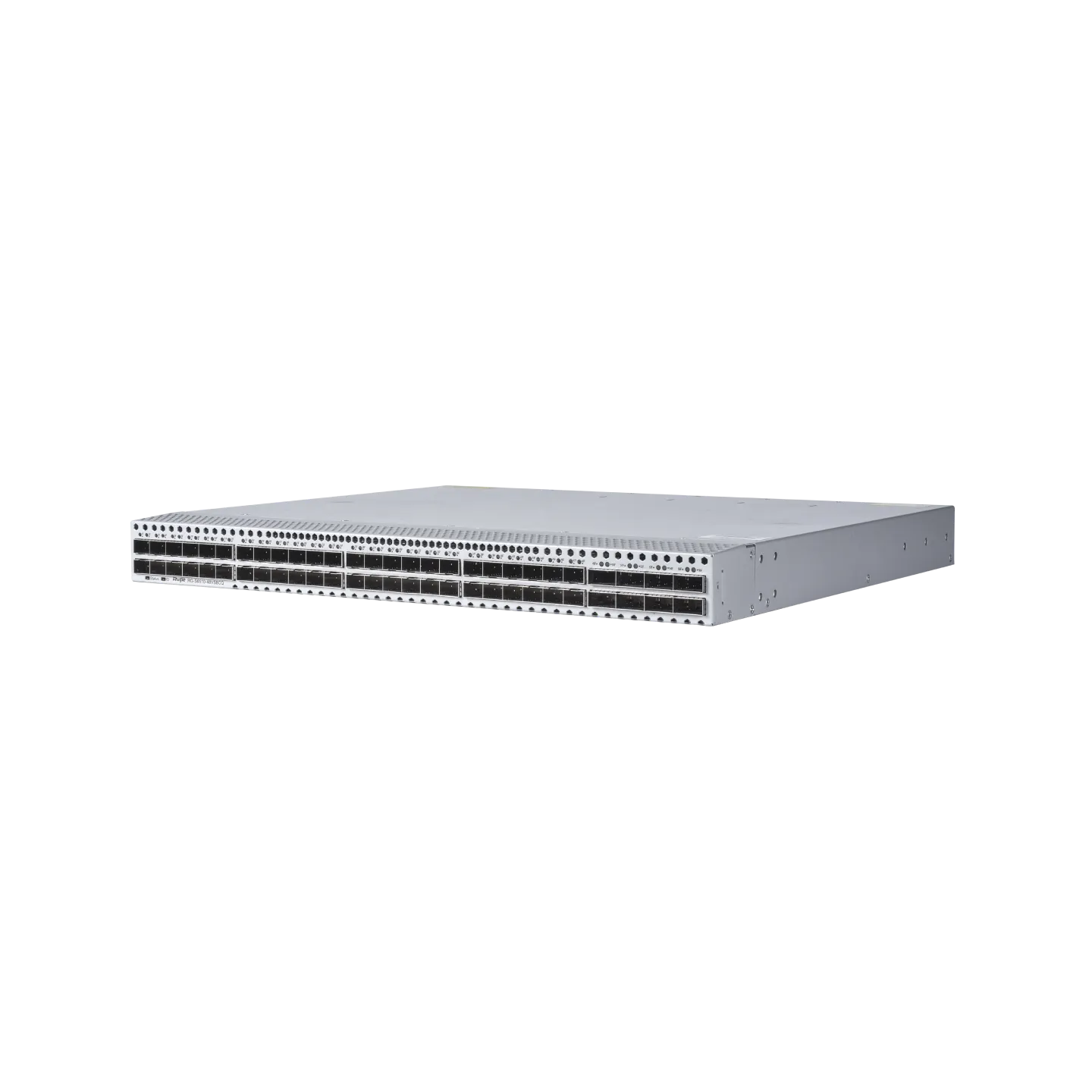

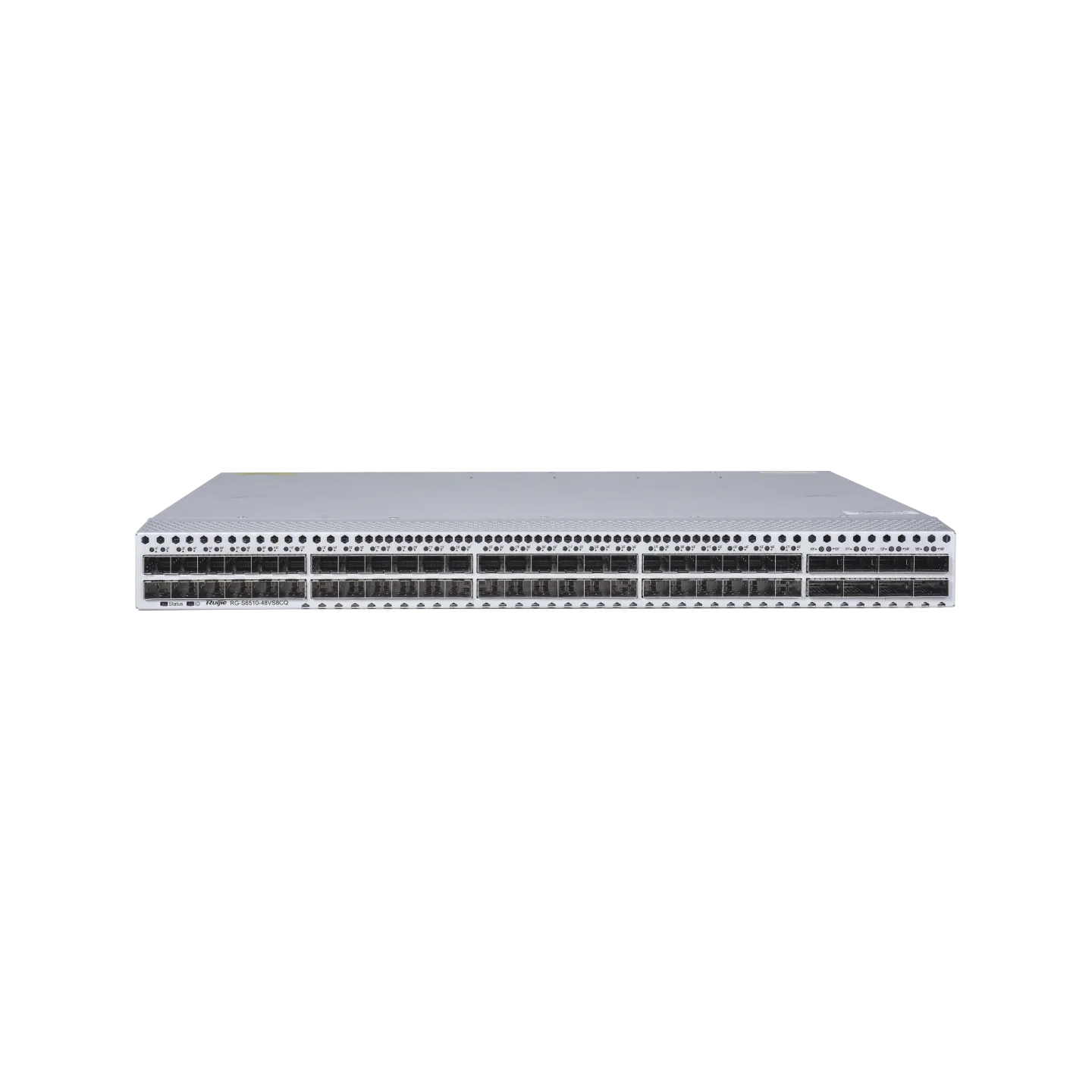

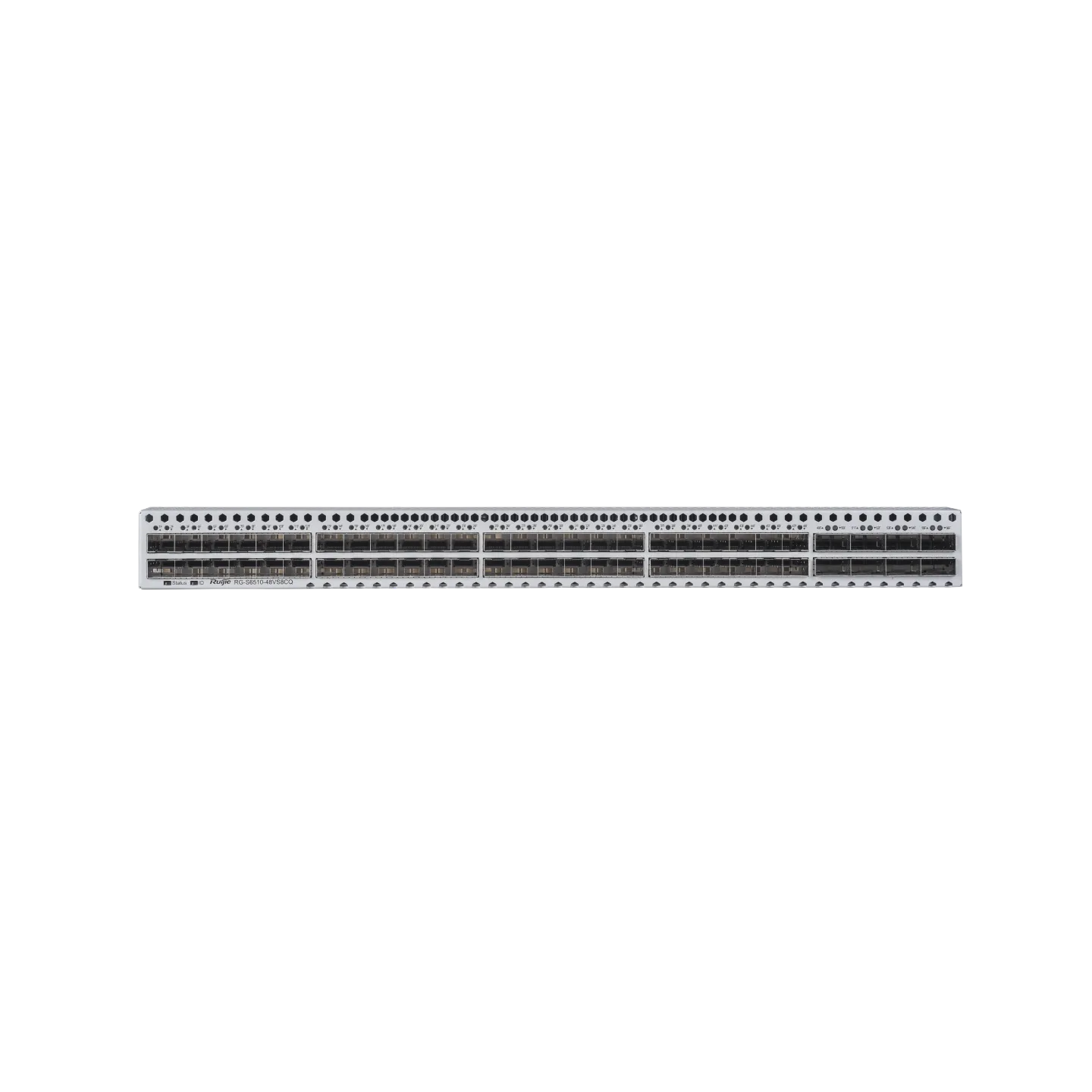

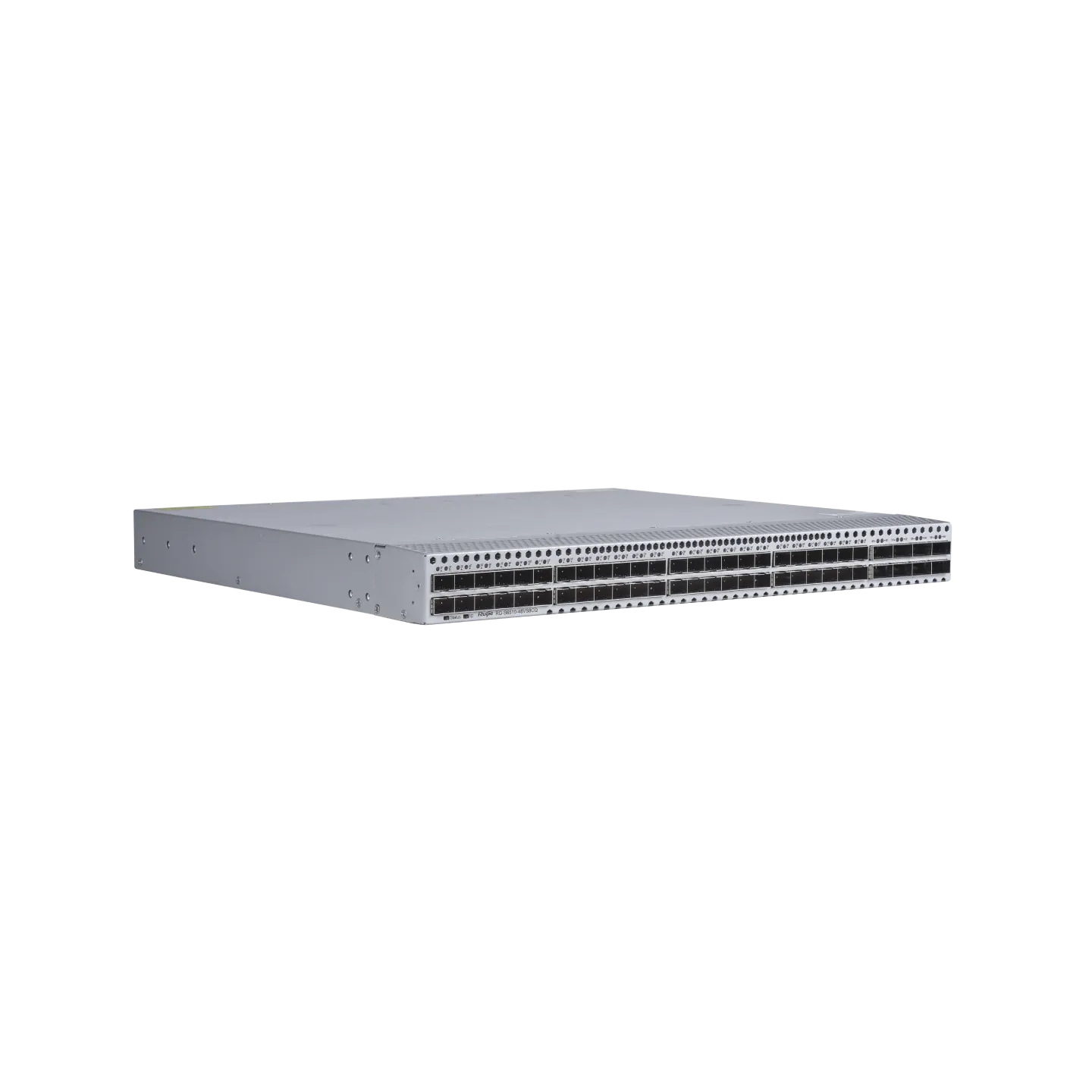

RG-S6510-48VS8CQ Data Center Switch, 48 x 25G SFP28, 8 x 100G QSFP28

Ruijie
Availability:

Stok 25


Highlight Features:• 48 x 25G SFP28 and 8 x 100G QSFP28 high-speed ports.• Designed for data center leaf-spine architectures and AI clusters.• Supports RoCEv2 (RDMA over Converged Ethernet) for low latency.• Fully redundant design with front-to-back airflow.

Ruijie RG-S6510-48VS8CQ: Switch Data Center 25G/100G untuk Era Cloud

Menghadapi tuntutan virtualisasi dan komputasi awan? RG-S6510-48VS8CQ adalah jawabannya. Dengan 48 port 25G SFP28 dan 8 port 100G QSFP28, switch ini memberikan bandwidth masif dan latensi ultra-rendah yang dibutuhkan oleh server modern dan aplikasi AI.

Manfaat bagi Data Center:

  • Konektivitas 25Gbps Masif: 48 port berkecepatan tinggi untuk memaksimalkan throughput server generasi terbaru.
  • 8 Port 100G Uplink: Jalur keluar yang sangat lebar untuk mencegah bottleneck pada trafik antar rak server.
  • Arsitektur Non-Blocking: Menjamin pengiriman data wire-speed pada seluruh port secara bersamaan tanpa paket loss.

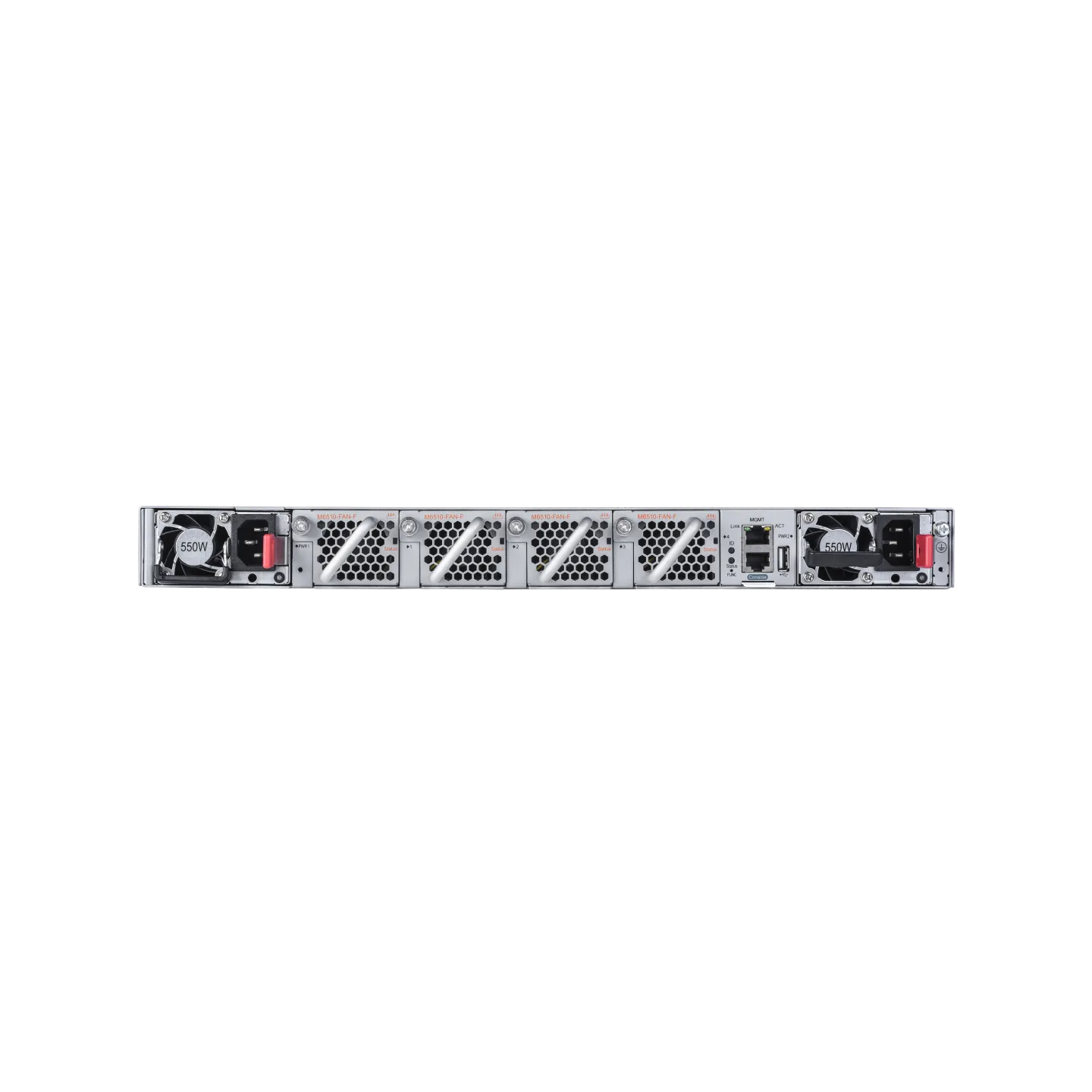

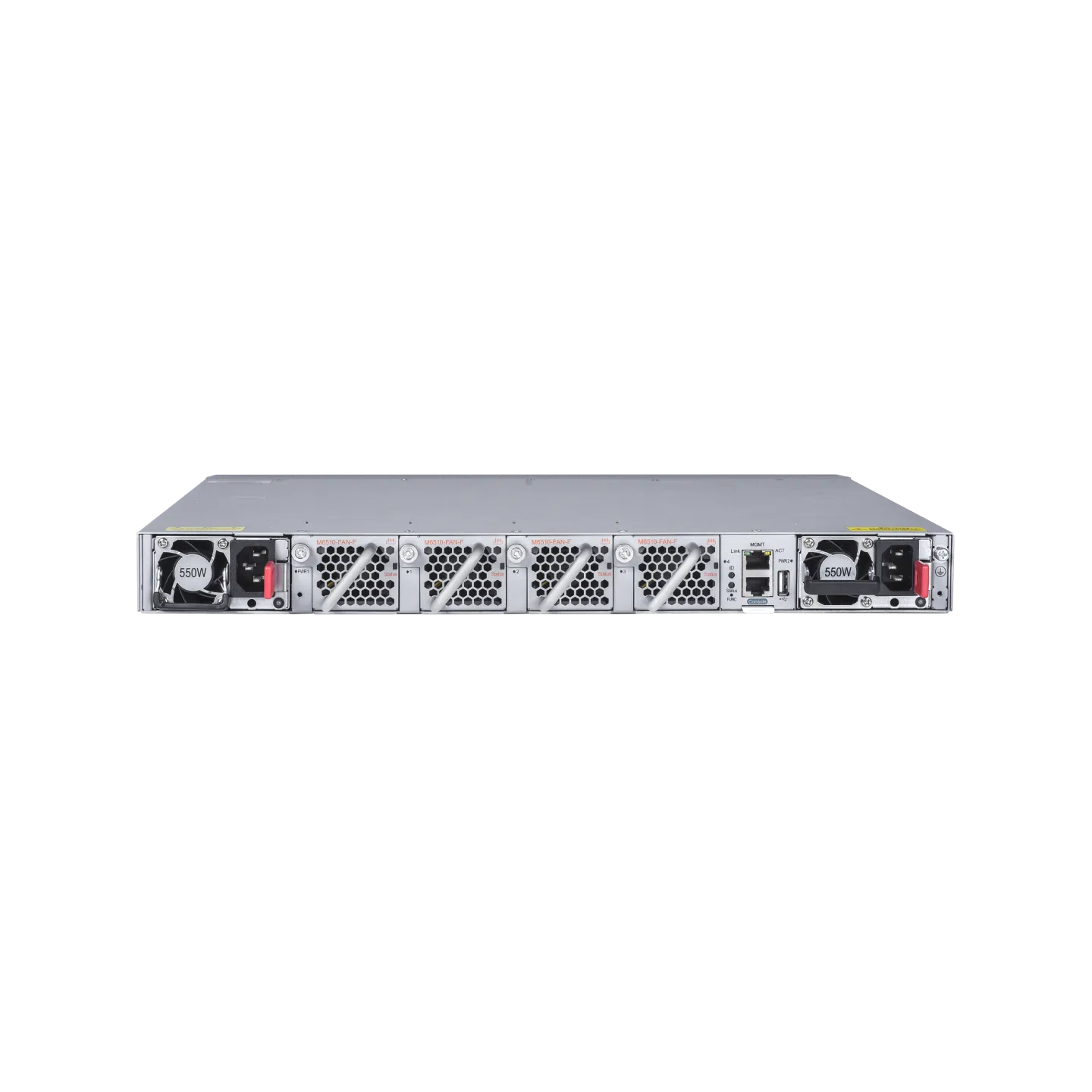

  • Desain Hot-Swappable: Modul power dan kipas yang dapat diganti tanpa mematikan perangkat untuk pemeliharaan yang aman.
SKU: RG-S6510-48VS8CQ Kategori: Brand:
brands

Technical Specifications

Type 25G Data Center Leaf Switch
Fixed Ports 48 x 25G SFP28, 8 x 100G QSFP28
Switching Capacity 4 Tbps
Forwarding Rate 2000 Mpps
MAC Address 128K
ARP Table 64K
Buffer Size 32 MB Intelligent Buffer
L3 Protocols BGP, OSPF, ISIS, Static, RIP
VXLAN Supported (Hardware Layer)
Stacking VSU (Virtual Switch Unit)
SDN OpenFlow, NetConf, Ansible
Power Supply Dual Hot-swap Redundant AC/DC
Power Consumption < 450W
Fans 5 x Hot-swap Fans (4+1 Redundancy)
Airflow Front-to-Rear or Rear-to-Front
Dimensions 442 x 560 x 44 mm (1U)
Weight 12 kg
Latency < 1μs (Cut-through)
Security NFPP, CPP, ACL, SSH v2
IPv6 Full IPv4/IPv6 Dual Stack
Monitoring gRPC, sFlow, Telemetry
Management Console, MGMT Port, SNMP
RDMA RoCE v2 Support
ACL Ingress/Egress ACL
Multicast MLD Snooping, PIM-SM
Operating Temp 0°C to 45°C
Jumbo Frame 9,600 bytes
Certification CE, FCC, RoHS
MTBF > 150,000 hours
Warranty 3 Years
