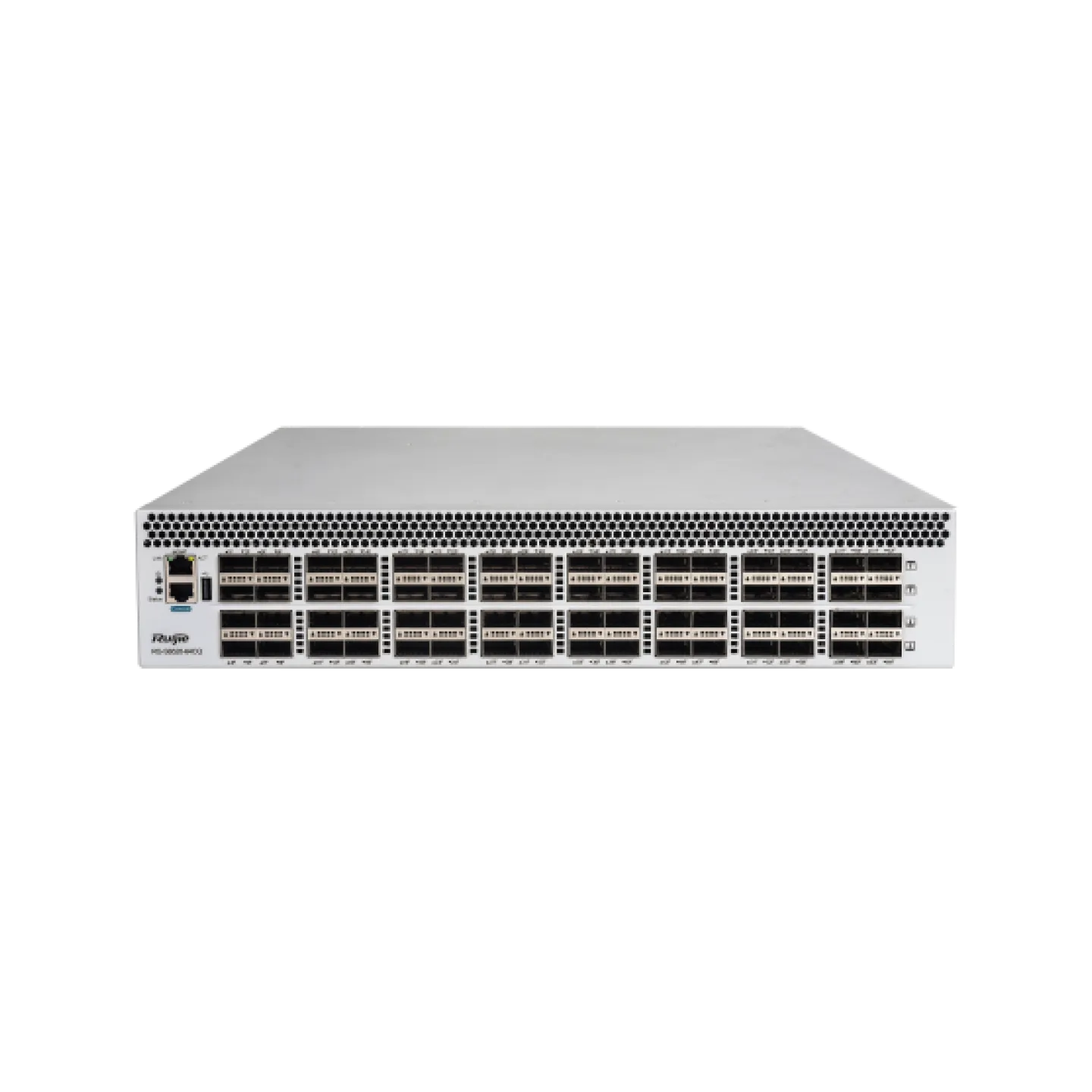

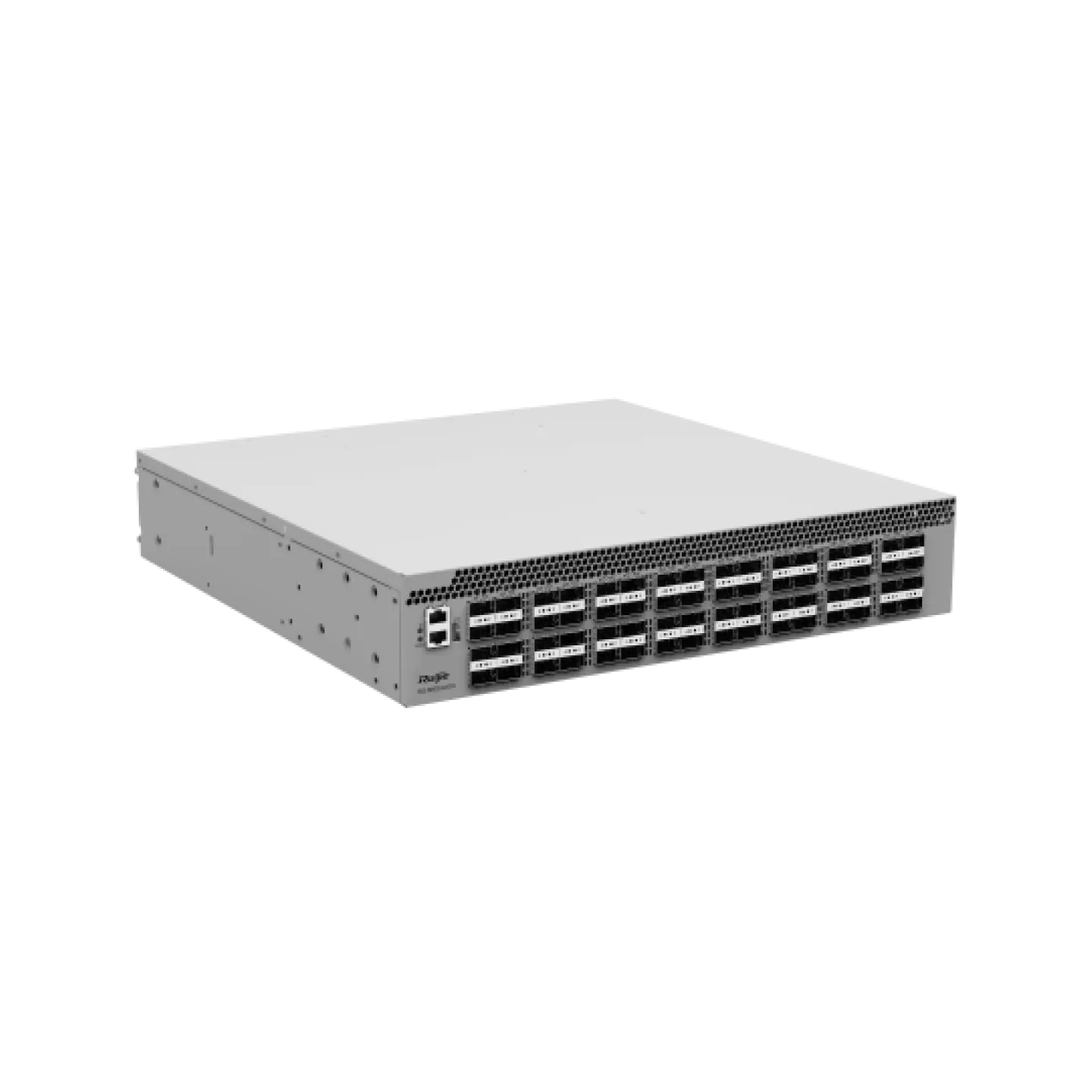

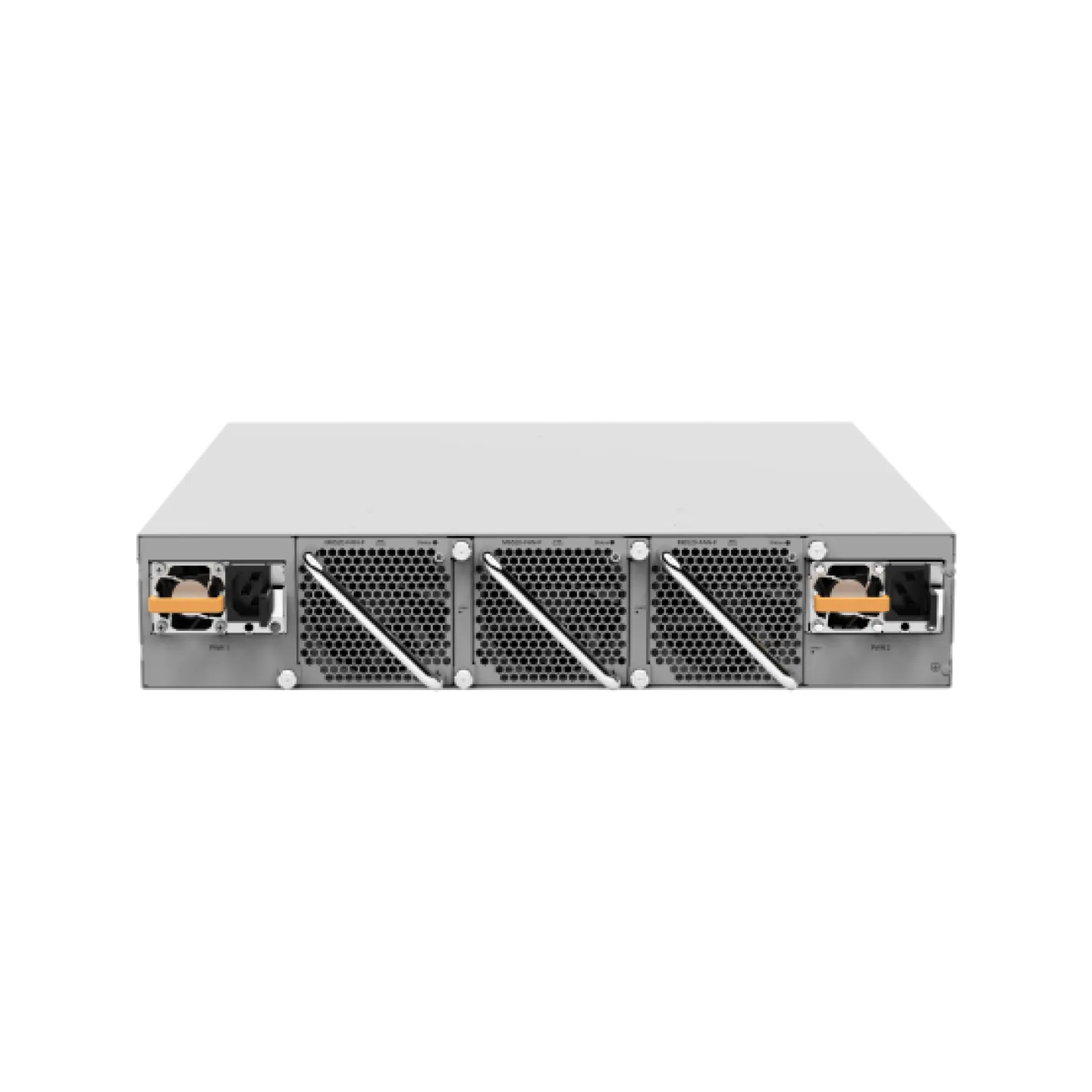

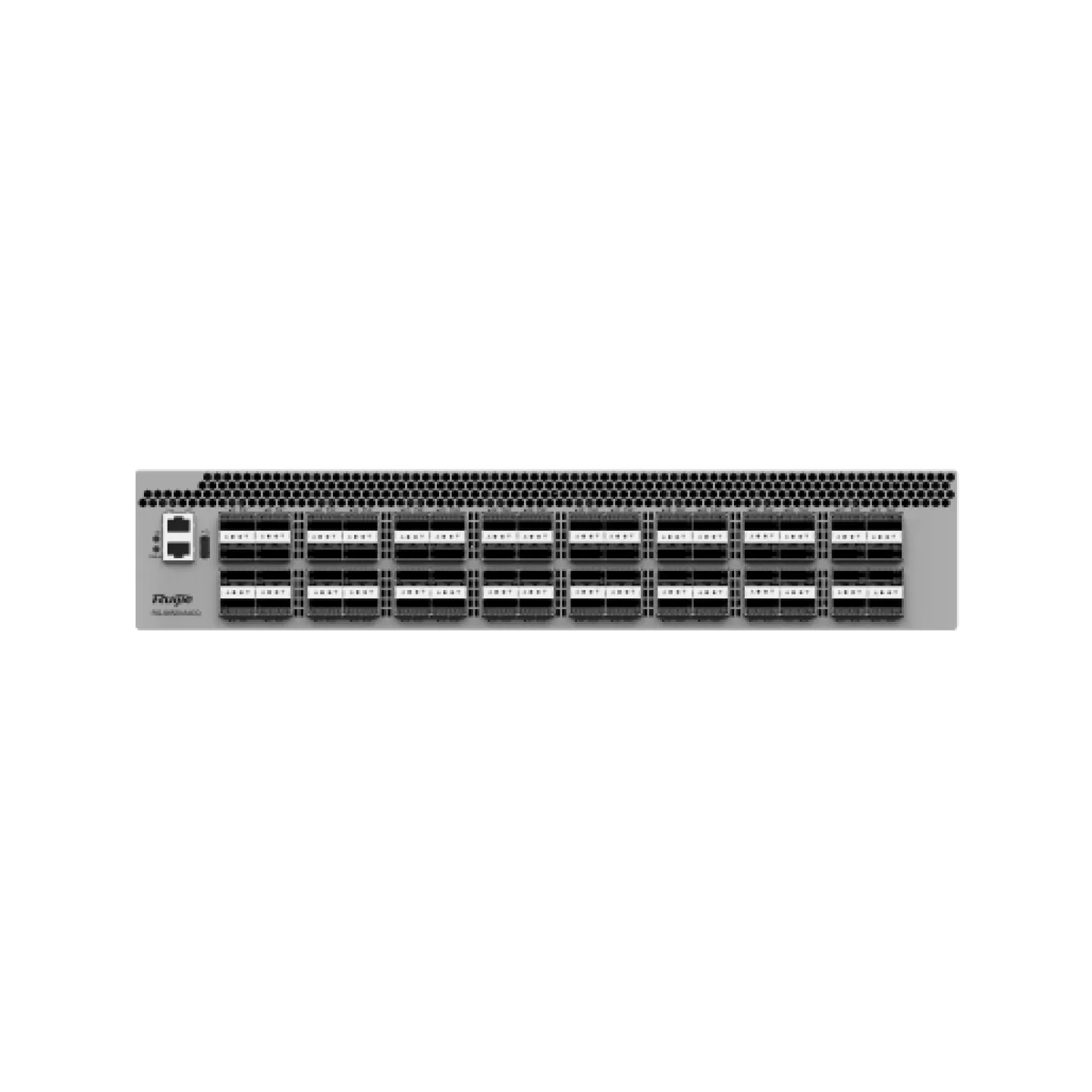

RG-S6520-64CQ Data Center Switch, 64 x 100G QSFP28
Stok 25
Highlight Features:• 64 x 100G QSFP28 ports in a compact 2U form factor.• High-density 100G for data center and AI applications.• Supports VXLAN and large-scale Layer 2 networks.• Redundant hot-swappable power and cooling modules.
Ruijie RG-S6520-64CQ: Powerhouse 100G untuk Data Center Modern
Switch ini adalah monster performa untuk lapisan Spine di pusat data. Dengan 64 port 100G QSFP28, RG-S6520-64CQ memberikan bandwidth yang sangat besar untuk mendukung aplikasi AI, Big Data, dan komputasi awan yang sangat intensif.
Kelebihan Utama:
- Densitas 100G Tertinggi: Memberikan 64 port 100G dalam form factor yang efisien untuk menghemat ruang rak.
- Latensi Ultra-Rendah: Mengoptimalkan waktu respon antar server untuk aplikasi finansial dan database real-time.
- Sistem Operasi Stabil: Berjalan pada platform perangkat lunak yang dirancang khusus untuk reliabilitas data center 24/7.
| brands |
|---|
Technical Specifications
| Type | 100G Data Center Core Switch |
| Fixed Ports | 64 x 100G QSFP28 Slots |
| Switching Capacity | 12.8 Tbps |
| Forwarding Rate | 4800 Mpps |
| MAC Address | 128K |
| ARP Table | 64K |
| L3 Protocols | BGP, OSPF, ISIS, Static, RIP |
| Data Center Feature | VXLAN, RoCE v2, PFC, ETS |
| Buffer Size | 64 MB Intelligent Shared Buffer |
| Management | Console, MGMT, SNMP, NetConf |
| SDN Support | OpenFlow 1.3 |
| Power Supply | Dual Hot-swap Redundant AC/DC |
| Fans | 5 x Hot-swap (N+1 Redundancy) |
| Airflow | Front-to-Rear / Rear-to-Front |
| Dimensions | 442 x 600 x 88 mm (2U) |
| Weight | 22 kg |
| Latency | < 800ns |
| Security | CPP, NFPP, L2-L4 ACL |
| IPv6 Ready | Full Dual Stack |
| Telemetry | gRPC, sFlow, INT |
| Mirroring | ERSPAN, RSPAN |
| Multicast | PIM-SM, IGMP v1/v2/v3 |
| QoS | SP, WRR, ECN |
| Jumbo Frame | 9600 bytes |
| VLAN | 4K VLANs, QinQ |
| Operating Temp | 0°C to 45°C |
| Certification | CE, RoHS, FCC |
| MTBF | > 150,000 hours |
| Reliability | GR, BFD, VRRP |
| Warranty | 3 Years |
