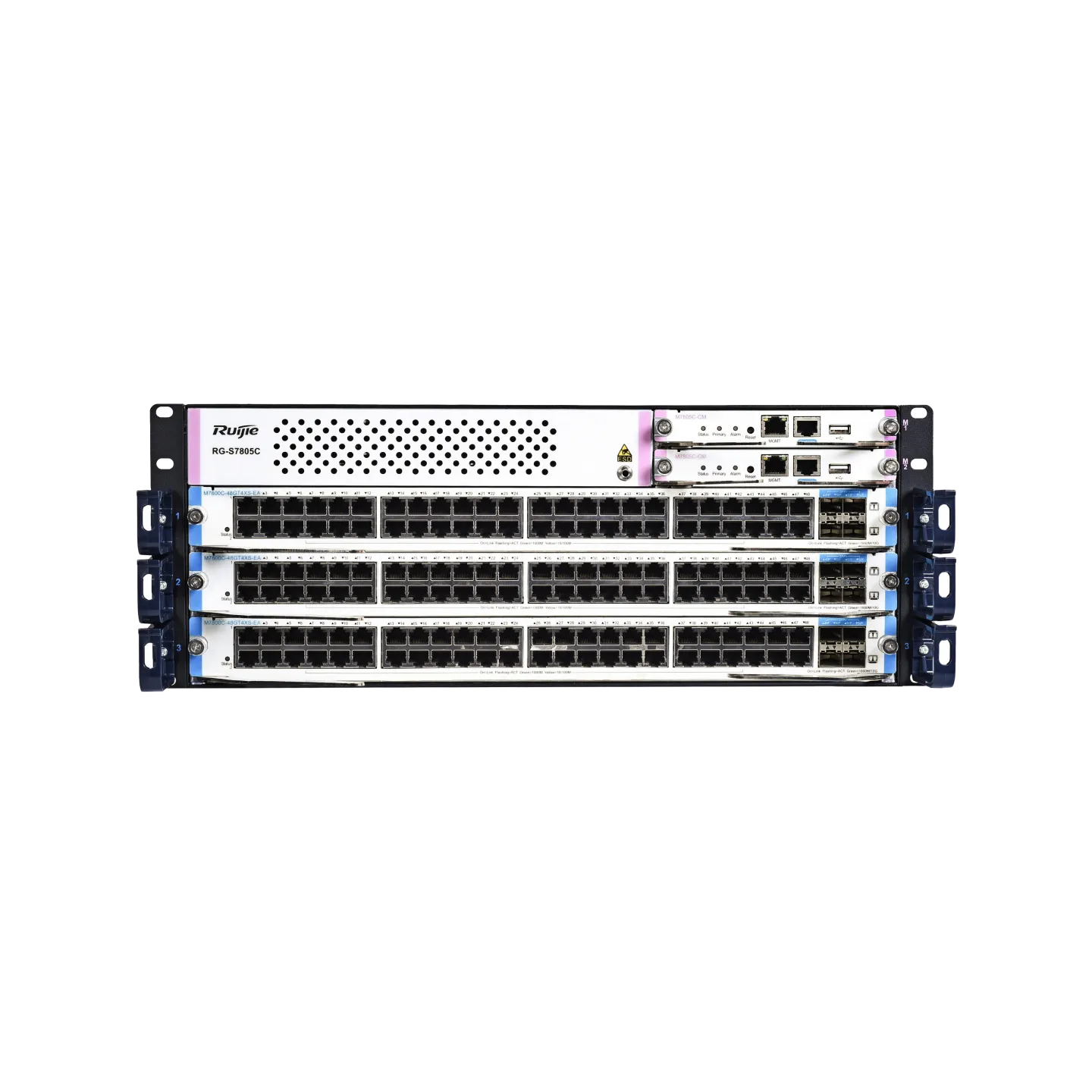

RG-S7805C Next-Gen Core Switch for Campus Networks, 5 Slots

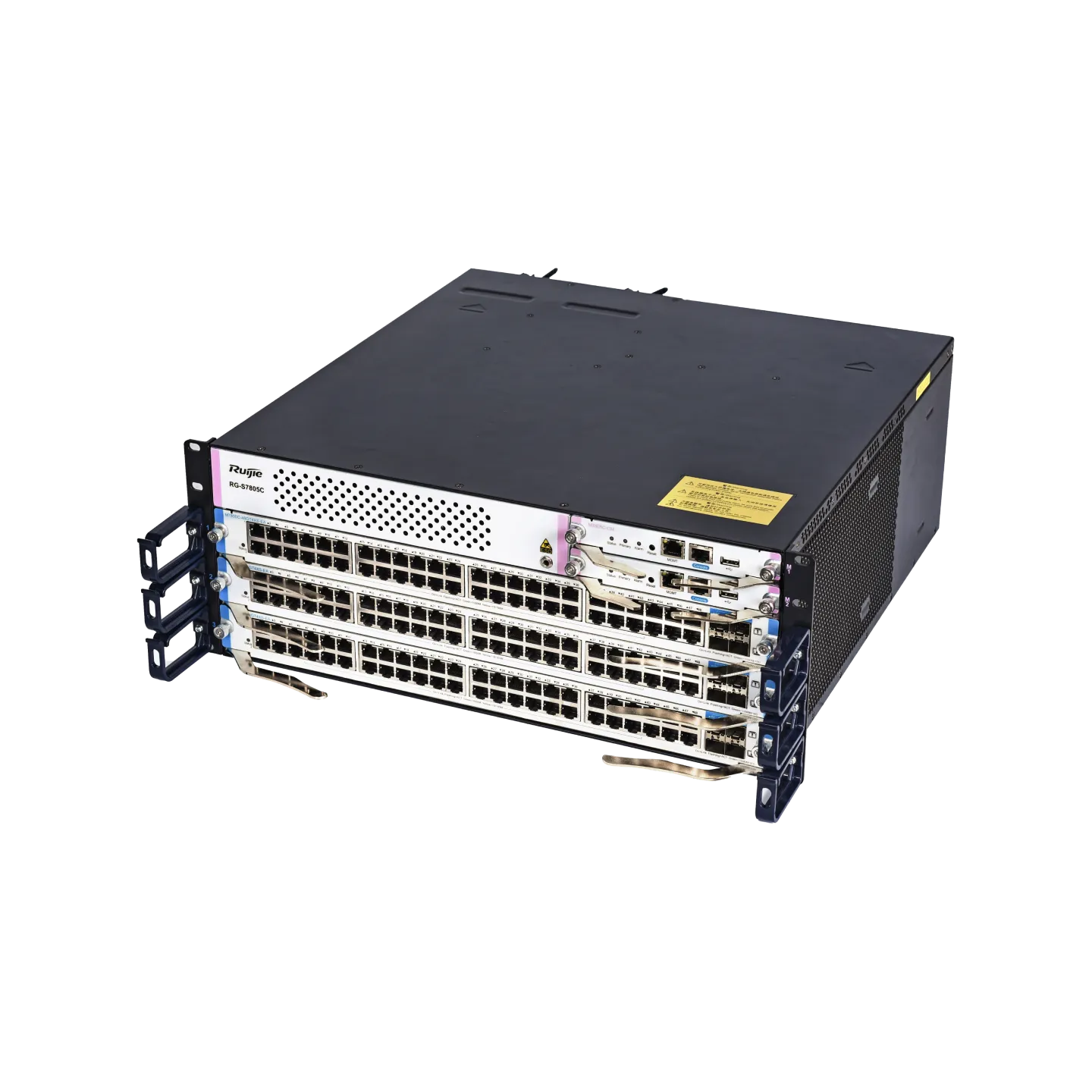

RG-S7805C Next-Gen Core Switch for Campus Networks, 5 Slots - Gambar 2

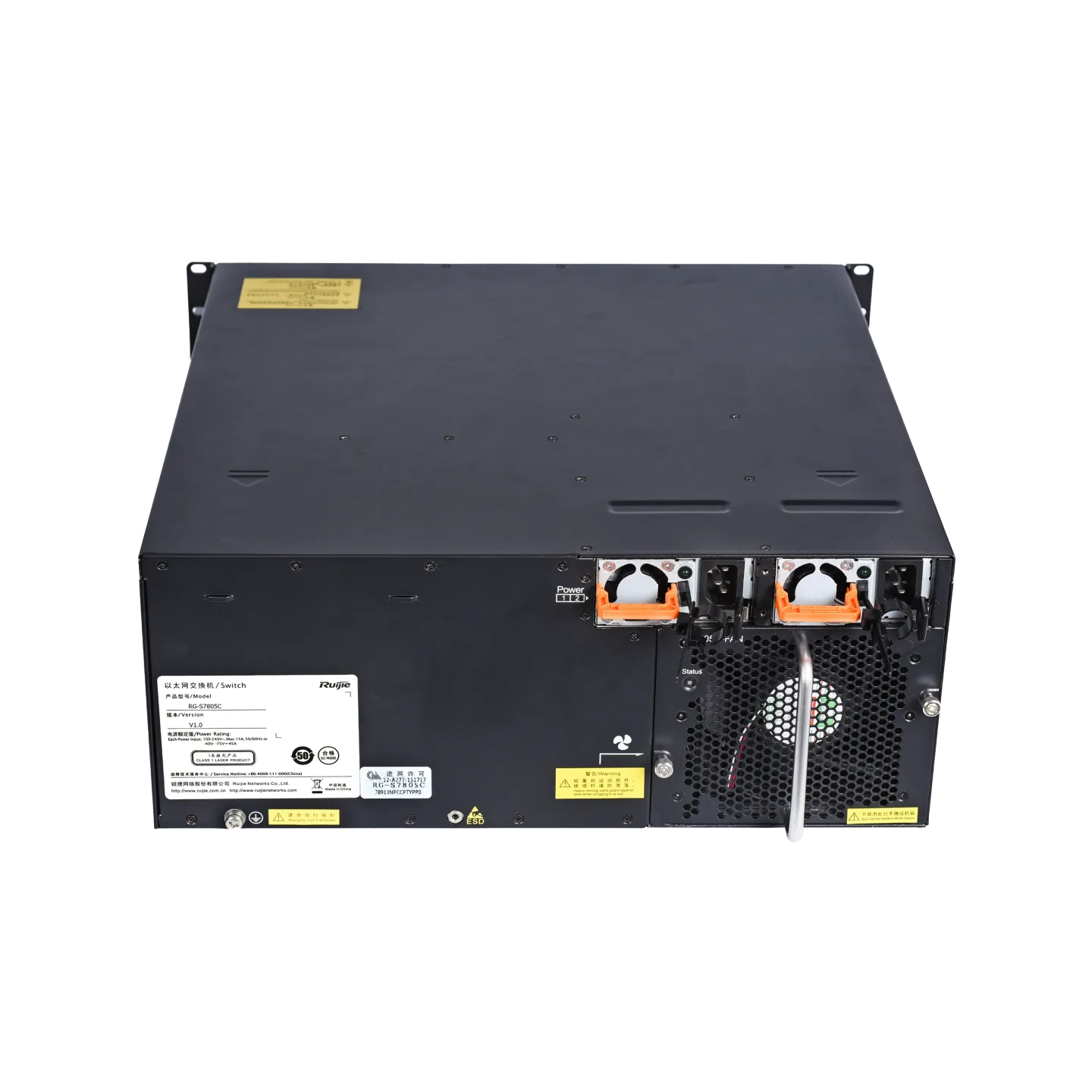

RG-S7805C Next-Gen Core Switch for Campus Networks, 5 Slots - Gambar 3

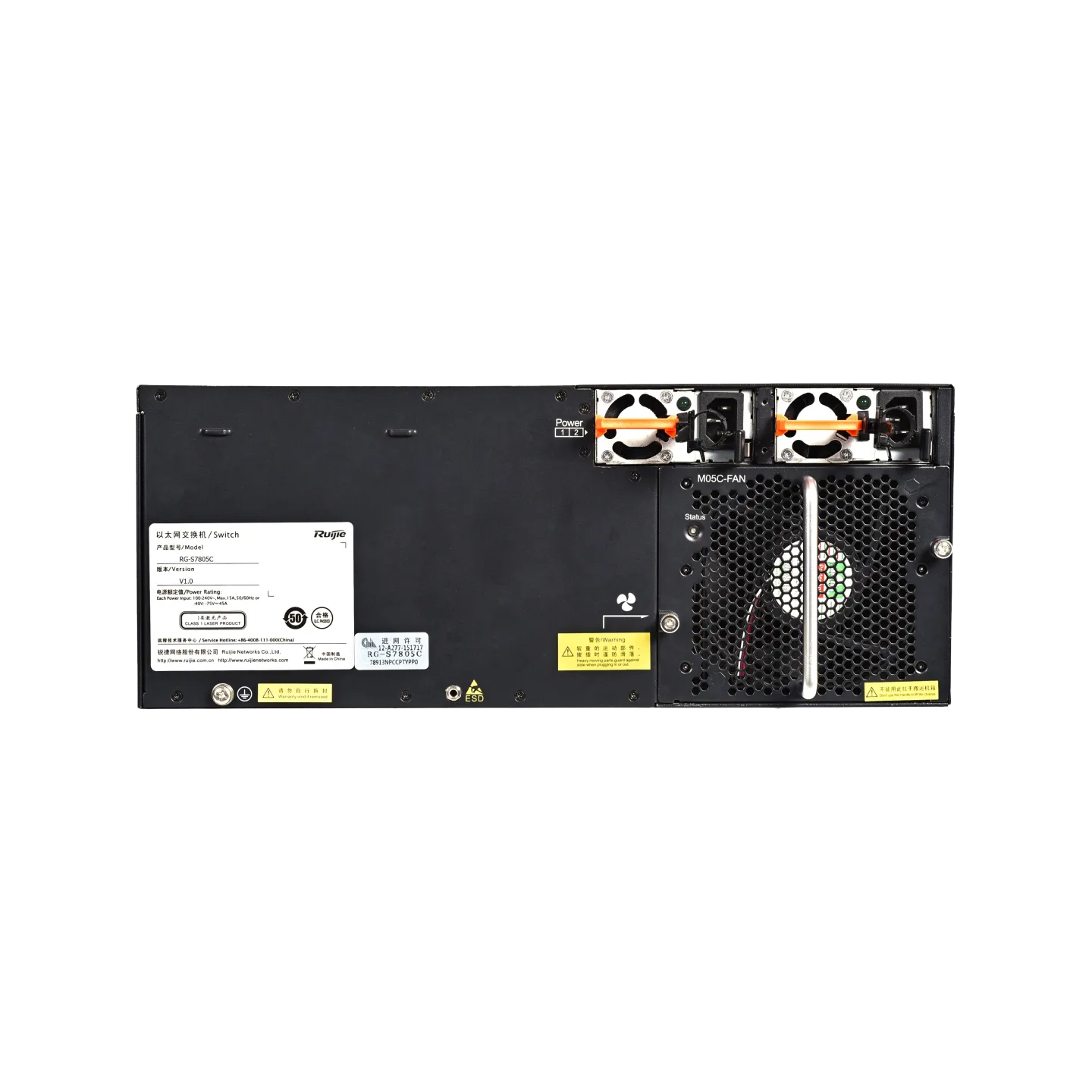

RG-S7805C Next-Gen Core Switch for Campus Networks, 5 Slots - Gambar 4

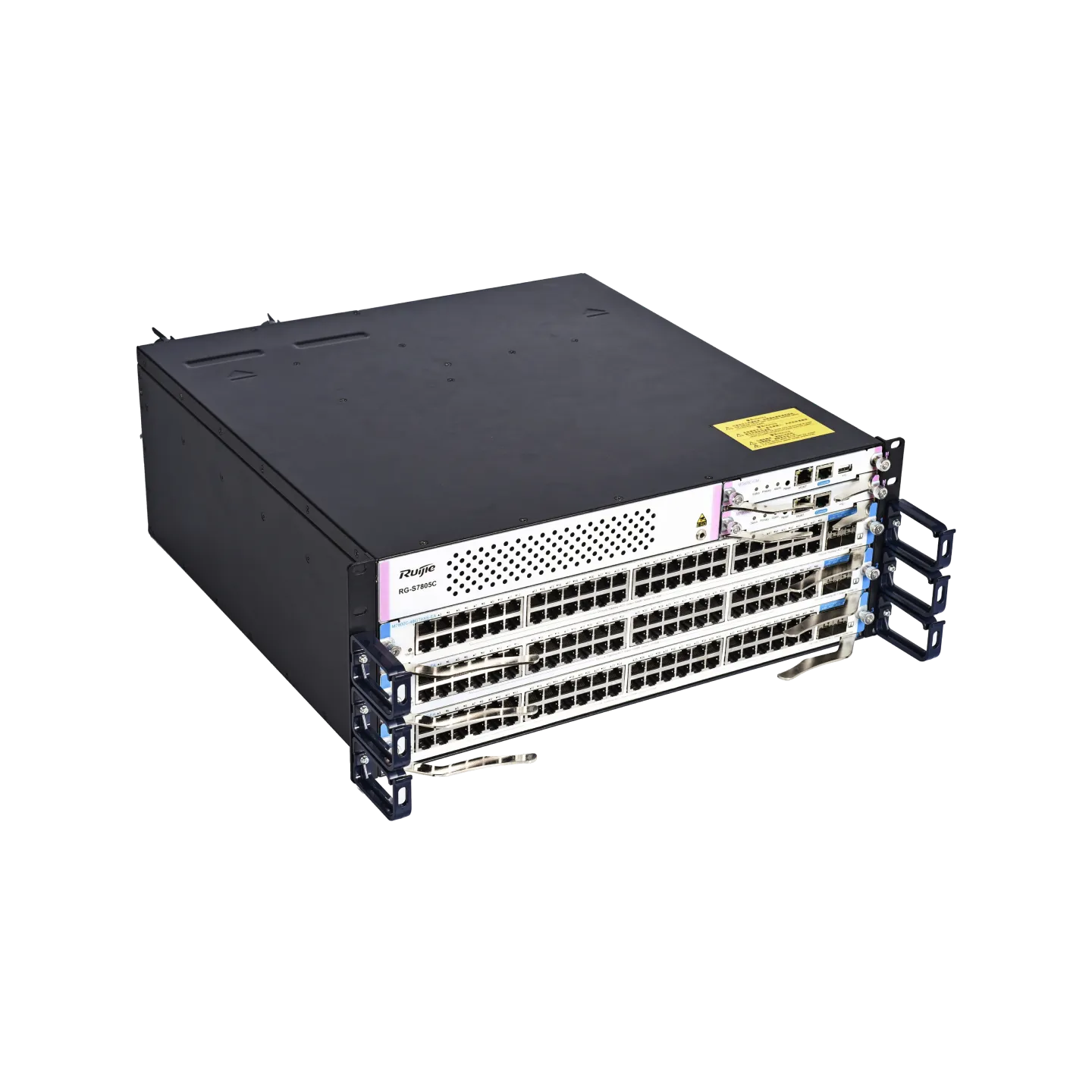

RG-S7805C Next-Gen Core Switch for Campus Networks, 5 Slots - Gambar 5

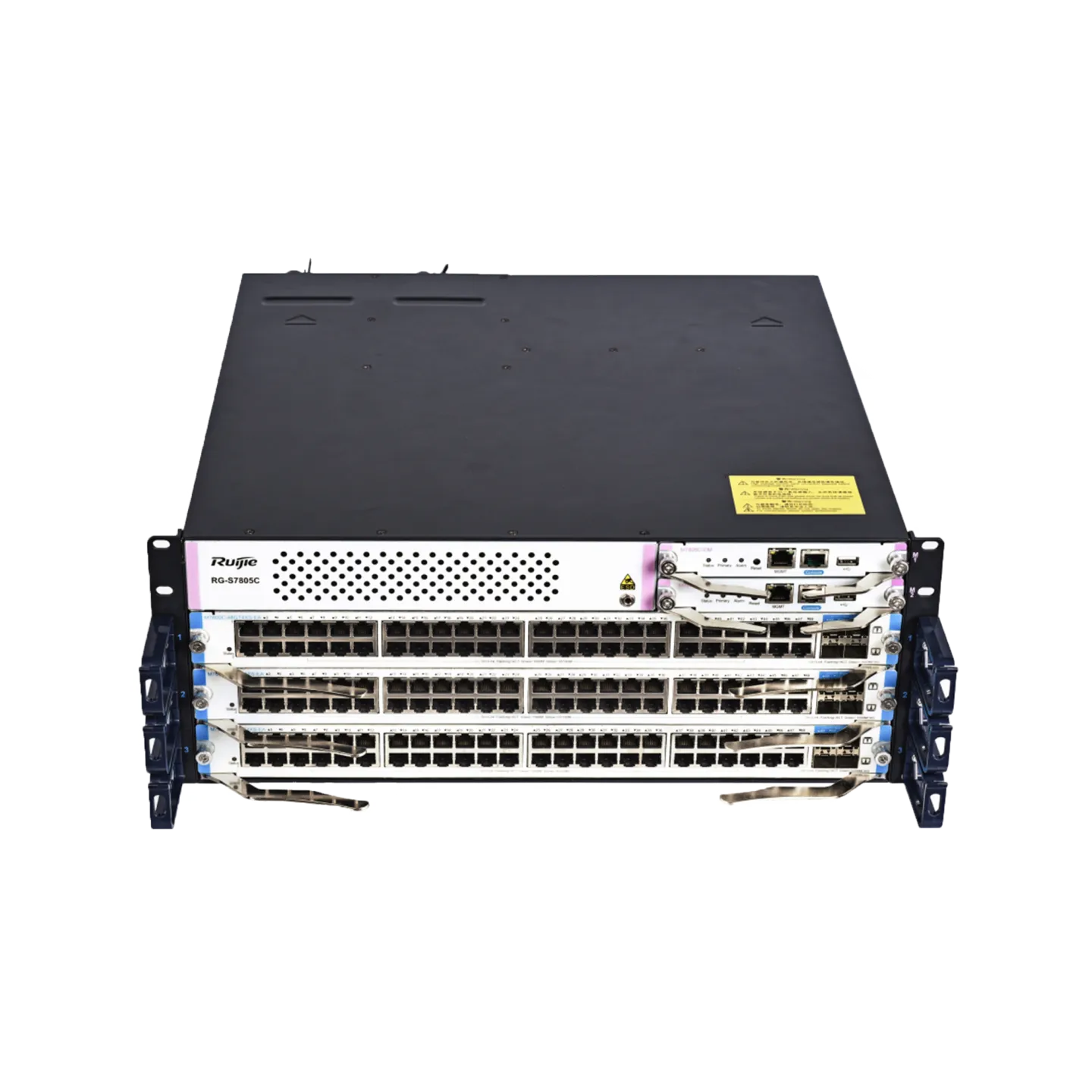

RG-S7805C Next-Gen Core Switch for Campus Networks, 5 Slots - Gambar 6

RG-S7805C Next-Gen Core Switch for Campus Networks, 5 Slots

Ruijie
Availability:

Stok 25

Highlight Features:• 5-slot modular core switch for medium to large enterprises.• Flexible configuration for 1G, 10G, and 40G interfaces.• Robust control plane protection (CPP) for security.• Silent design and energy-efficient cooling.

Ruijie RG-S7805C: Core Switch Modular Kompak untuk Bisnis Menengah-Besar

Meskipun lebih kompak dengan 5 slot ekspansi, RG-S7805C tetap membawa seluruh fitur kelas atas seri S7800. Pilihan tepat bagi organisasi yang membutuhkan core switch modular yang handal namun memiliki keterbatasan ruang di rak server mereka.

Fitur Kunci:

  • Slot Ekspansi Fleksibel: Mendukung berbagai kombinasi modul port untuk agregasi data yang efisien.
  • Keamanan Tingkat Tinggi: Fitur proteksi hardware untuk mencegah serangan siber di tingkat core jaringan.
  • Manajemen Cloud Profesional: Visibilitas penuh terhadap performa seluruh jaringan kampus dari satu dashboard pusat.
SKU: RG-S7805C Kategori: Brand:
brands

Technical Specifications

Type Modular Core Chassis Switch
Chassis Slots 7 Slots (2 Management, 5 Service)
Switching Capacity Up to 9.6 Tbps
Forwarding Rate Up to 2880 Mpps
Architecture Clos Architecture (Modular)
L3 Features Full Layer 3, Policy Based Routing
Stacking VSU Virtualization Support
Reliability Hot-swappable Supervisor & Power
MAC Address Table Up to 256K
VLAN IDs 4094
IPv6 Ready Dual Stack, RIPng, OSPFv3
Management Console, MGMT, SNMP, Cloud
Security CPP, NFPP, Port Security
ACL L2/L3/L4 ACL, User-defined ACL
SDN OpenFlow Support
Power Supply Modular AC/DC Redundancy
Dimensions 442 x 450 x 442 mm (10U)
Weight ~30 kg (Empty)
Airflow Left-to-Right / Front-to-Rear options
ARP Table Up to 64K
Multicast IGMP v1/v2/v3, PIM-SM/DM
QoS SP, WRR, DRR, H-QoS
Packet Buffer Dynamic Distributed Buffer
Mirroring Port Mirroring, Flow Mirroring
Status LEDs System, Management, Fan, Power
Housing Industrial Grade Steel Chassis
Certification CE, FCC, RoHS
MTBF > 150,000 hours
Latency < 3μs
Warranty 3 Years
