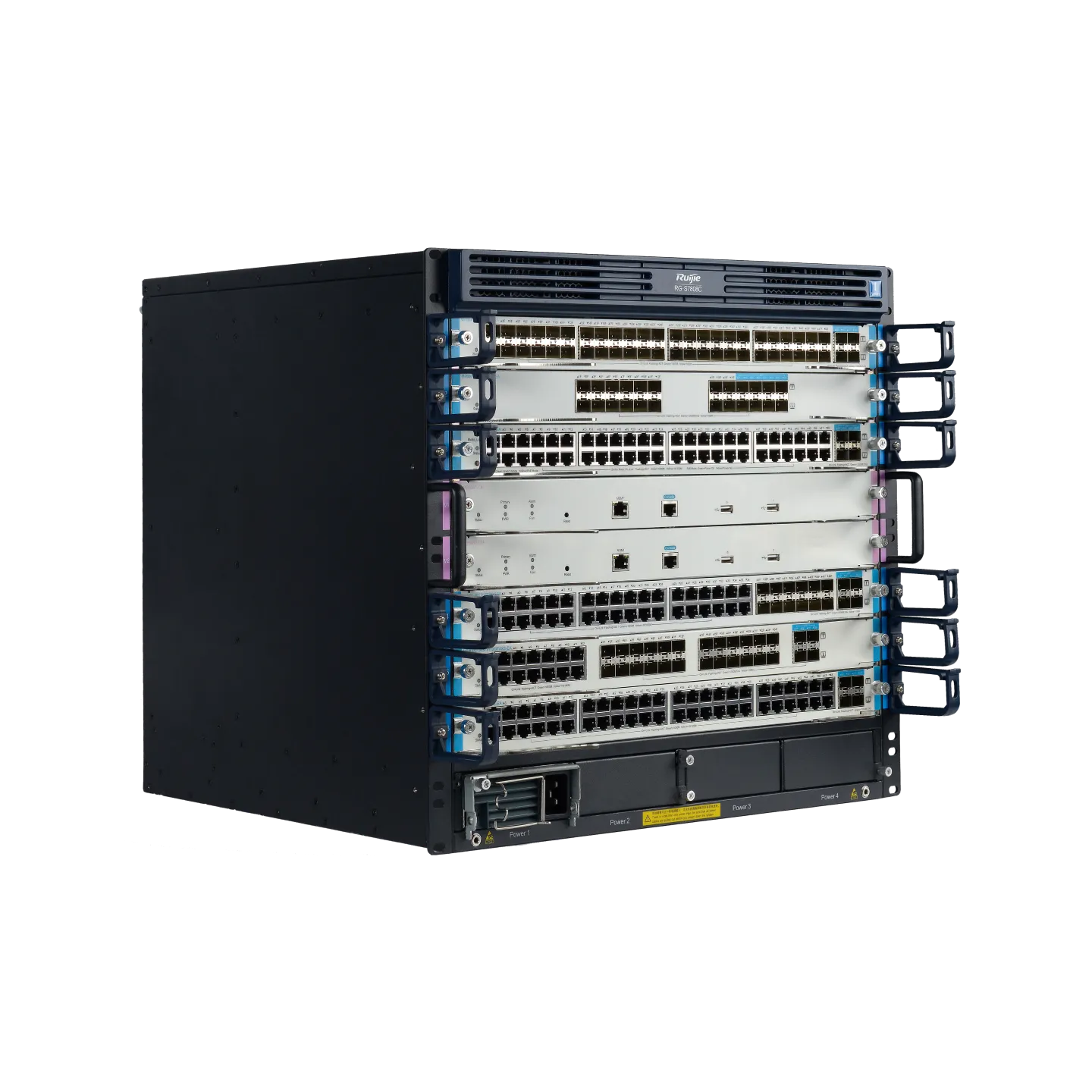

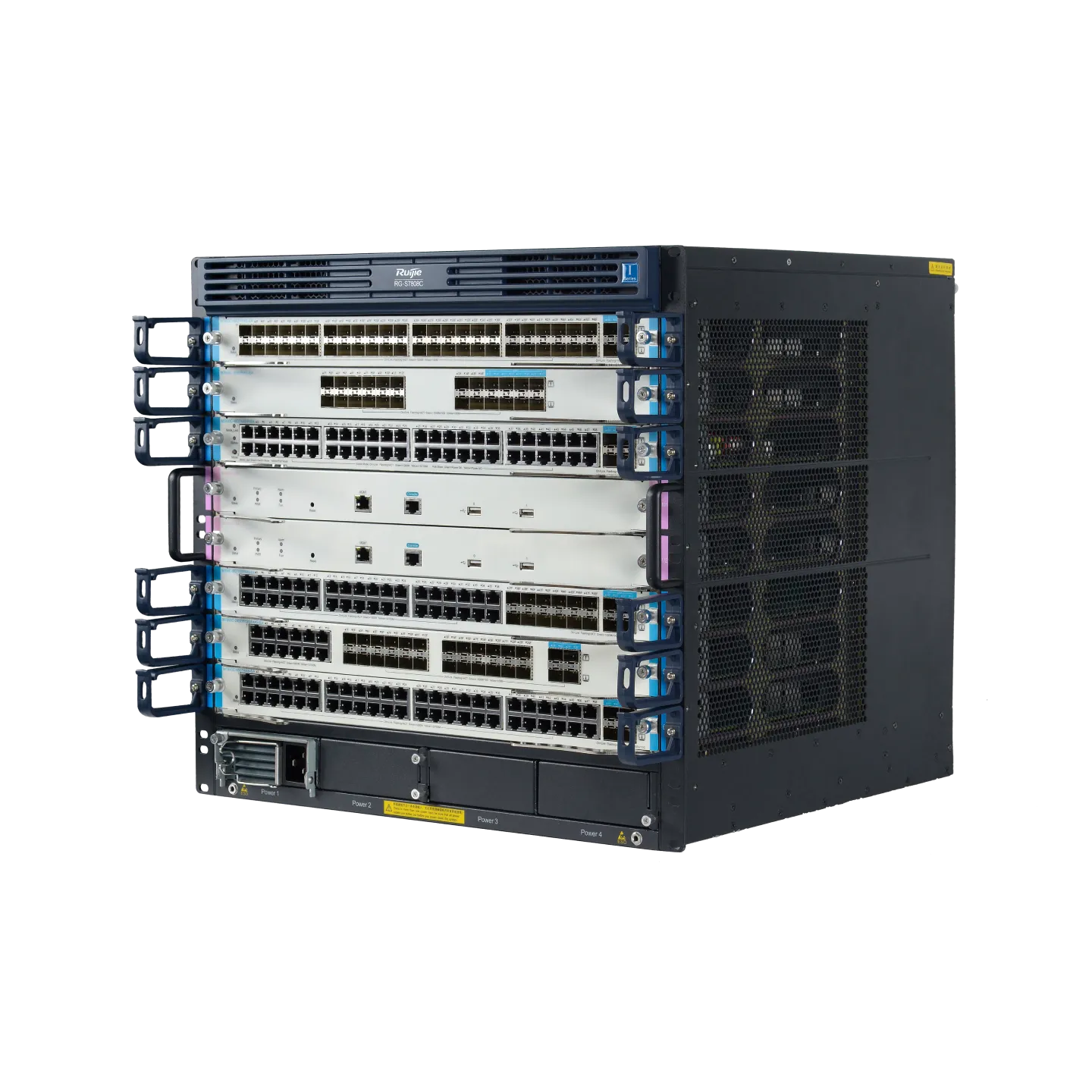

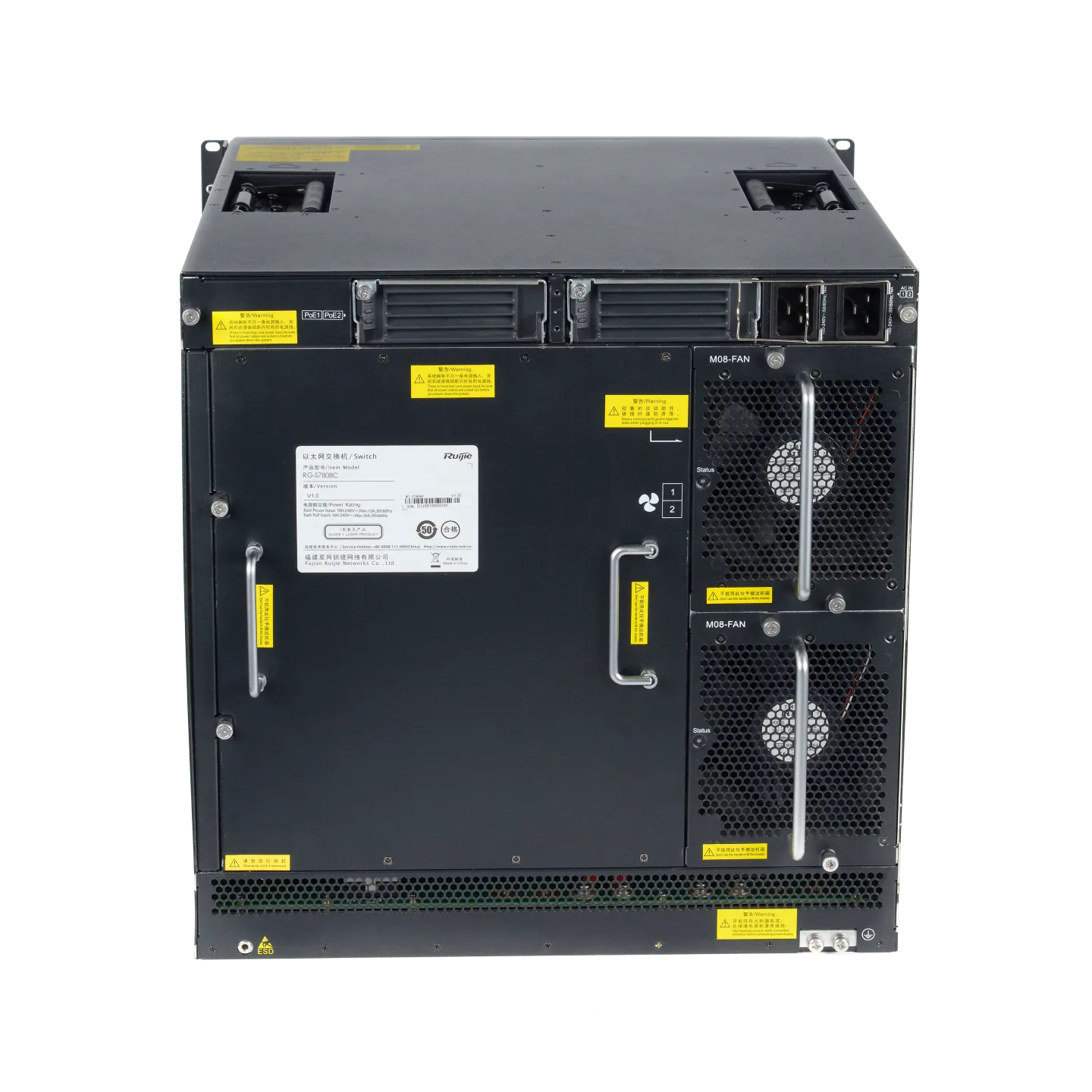

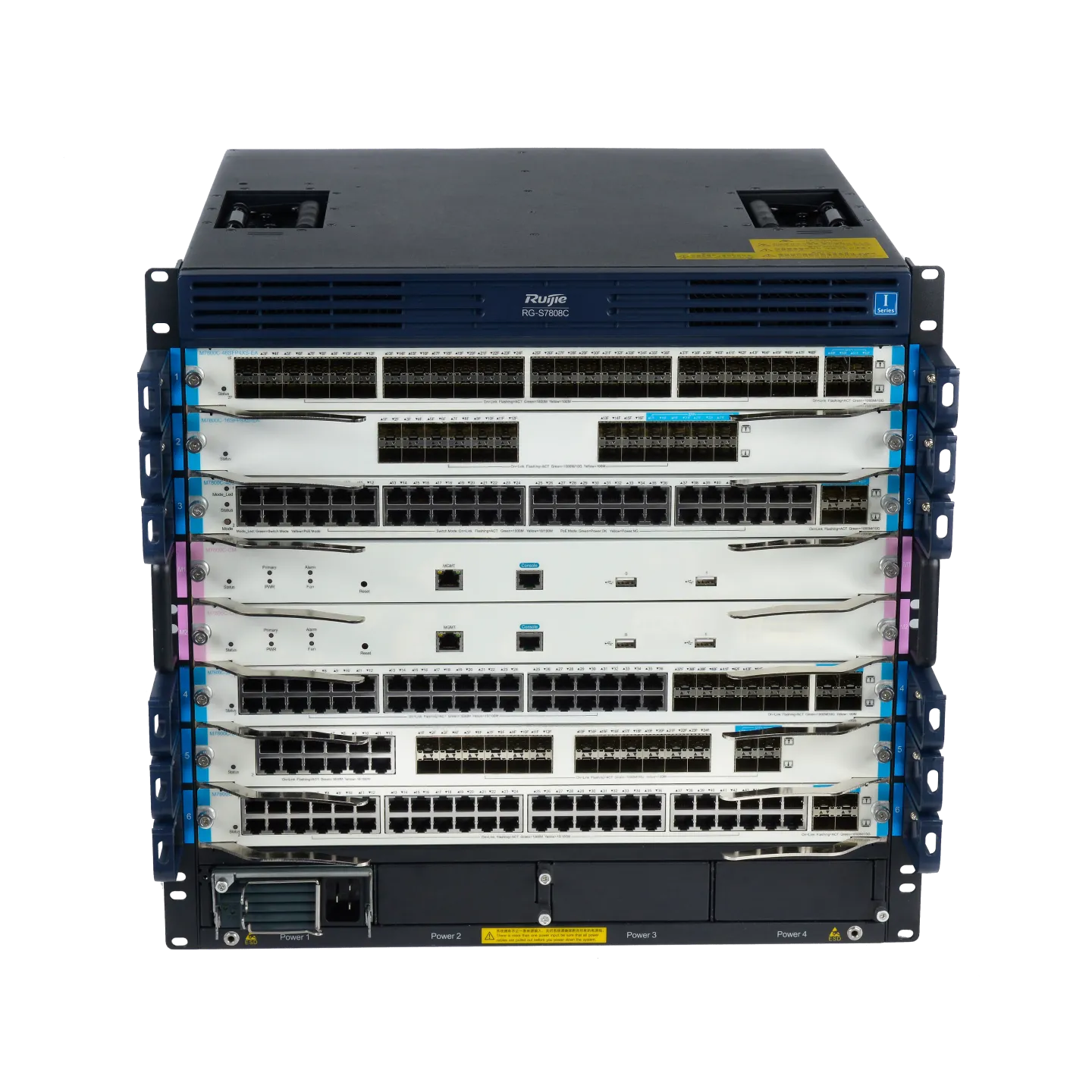

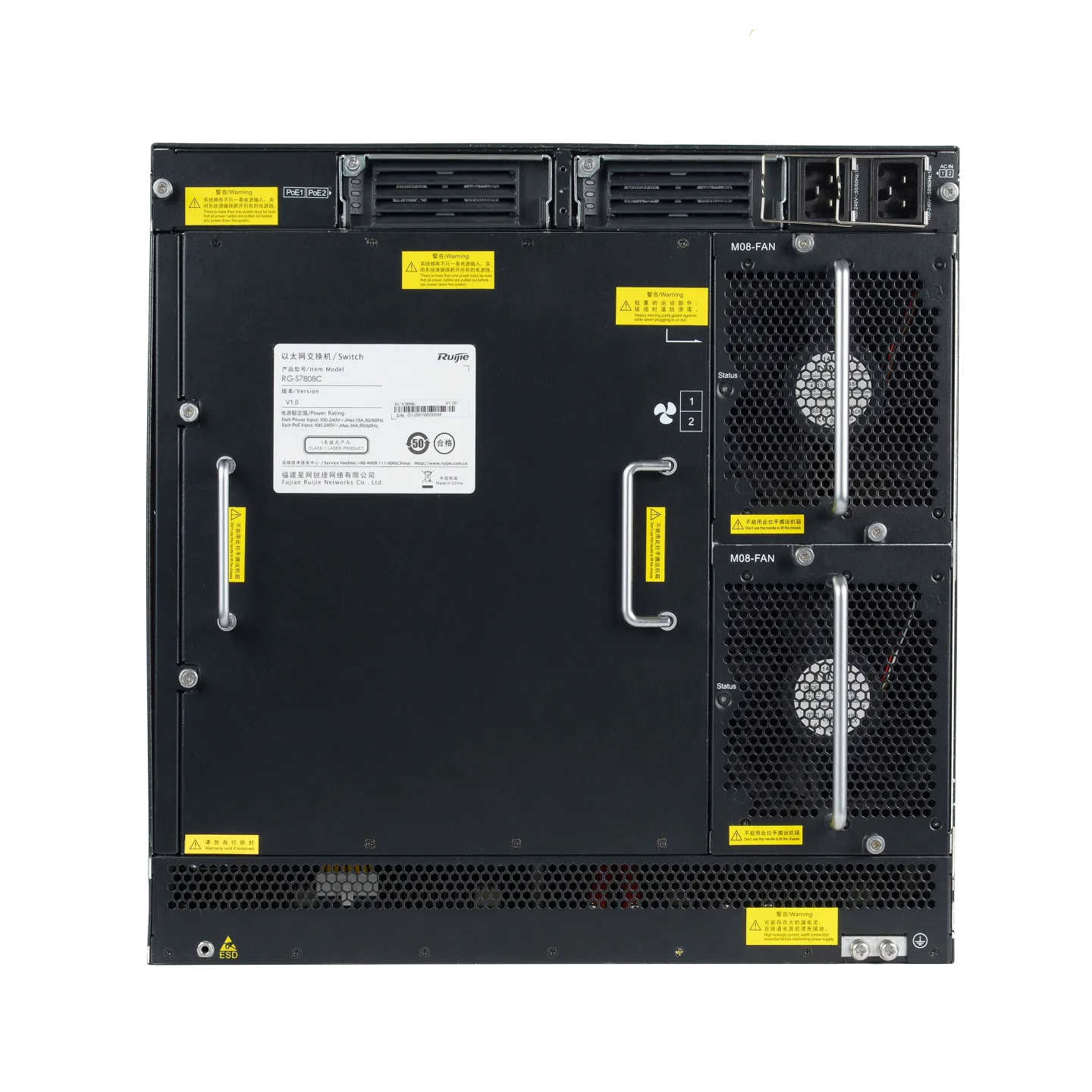

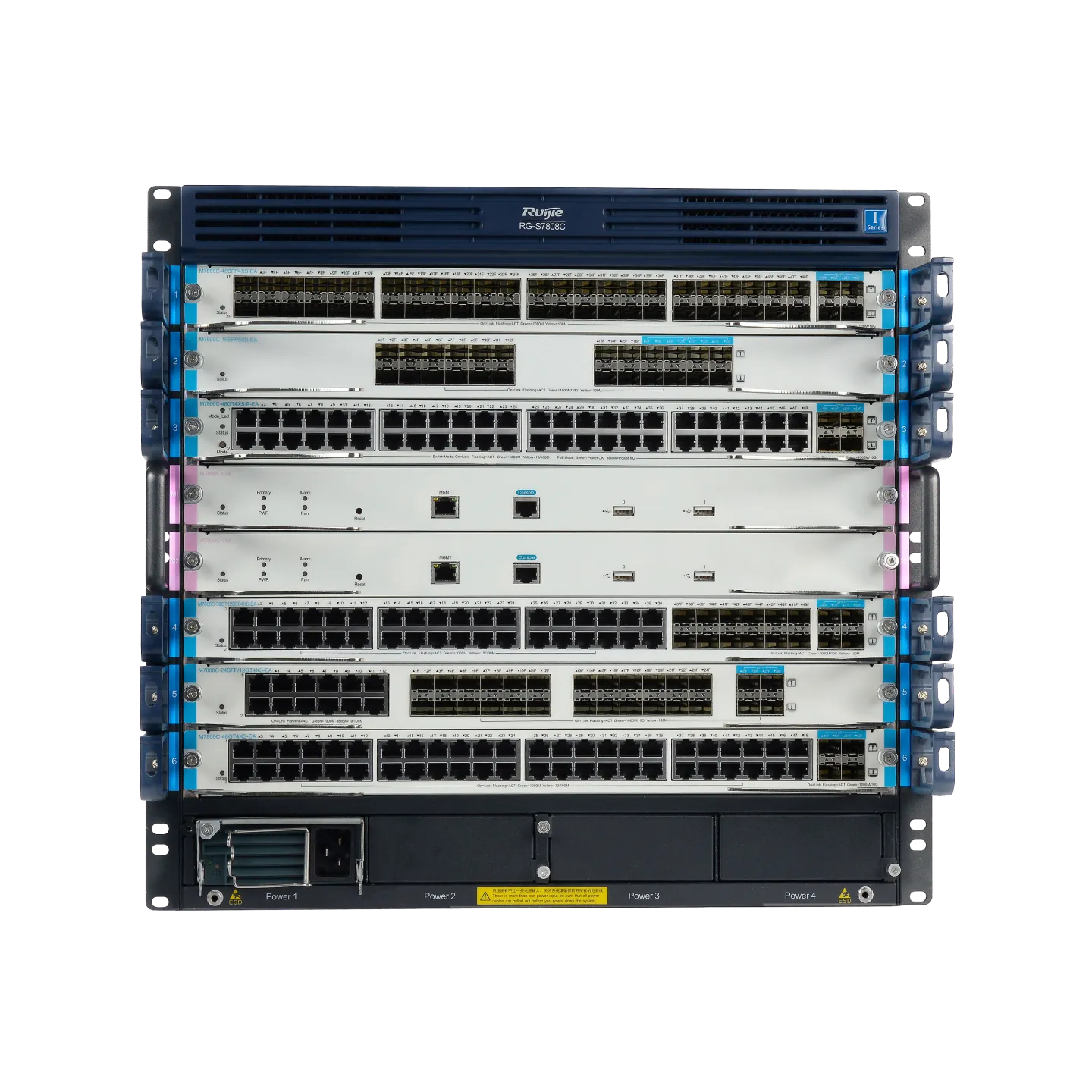

RG-S7808C Next-Gen Core Switch for Campus Networks, 8 Slots
Stok 25
Highlight Features:• Modular core switch with 8 slots for high-speed fiber cards.• Ideal for university and hospital campus backbones.• Advanced traffic management and QoS policies.• Comprehensive IPv4/IPv6 dual-stack support.
Ruijie RG-S7808C: Backbone Modular yang Tangguh untuk Efisiensi Core
RG-S7808C memberikan keseimbangan antara ukuran chassis dan kapasitas slot. Dengan 8 slot modular, switch ini sangat ideal untuk menjadi inti jaringan pada gedung perkantoran bertingkat atau rumah sakit yang membutuhkan uptime jaringan 99.99%.
Manfaat Strategis:
- Virtualisasi VSU 2.0: Gabungkan beberapa chassis menjadi satu unit virtual untuk manajemen yang lebih sederhana dan tangguh.
- Optimasi Trafik Video: Sangat handal dalam menangani data video streaming dan IP Surveillance skala besar tanpa lag.
- Investasi Jangka Panjang: Cukup ganti modul port jika ada kebutuhan teknologi baru di masa depan tanpa mengganti seluruh unit.
| brands |
|---|
Technical Specifications
| Type | Modular Core Chassis Switch |
| Chassis Slots | 10 Slots (2 Management, 8 Service) |
| Switching Capacity | Up to 15.36 Tbps |
| Forwarding Rate | Up to 4608 Mpps |
| Redundancy | Management, Power, Fan Redundancy |
| Architecture | Distributed Switching Architecture |
| L3 Protocols | OSPF, ISIS, BGP4+, MPLS, VPLS |
| Virtualization | VSU (Virtual Switch Unit) 2.0 |
| MAC Address | 256K / 512K |
| VLAN | 802.1Q, Super VLAN, PVLAN |
| Security | SSH v2, CPP, NFPP, ACL |
| Management | CLI, Web, SNMP v1/v2/v3, RMON |
| IPv6 | Static, OSPFv3, BGP4+, MLD Snooping |
| Reliability | GR for OSPF/BGP, BFD, VRRP |
| Power Supply | AC 100-240V / DC -48V Modules |
| Max Power | Configurable by Power Modules |
| Dimensions | 442 x 450 x 575 mm (13U) |
| Weight | ~38 kg (Empty) |
| Fan Module | Front-to-Rear Airflow |
| SDN Support | OpenFlow 1.0/1.3 |
| Multicast | IGMP Snooping, MSDP, PIM |
| QoS | 8 Queues per port, Congestion Avoidance |
| ARP Table | Up to 80K |
| Operating Temp | 0°C to 45°C |
| Interface Density | High Density 10G/40G/100G |
| Safety | IEC 60950-1, EN 60825-1 |
| Certification | CE, RoHS |
| Storage Temp | -40°C to 70°C |
| Software | RGOS Operating System |
| Warranty | 3 Years |
