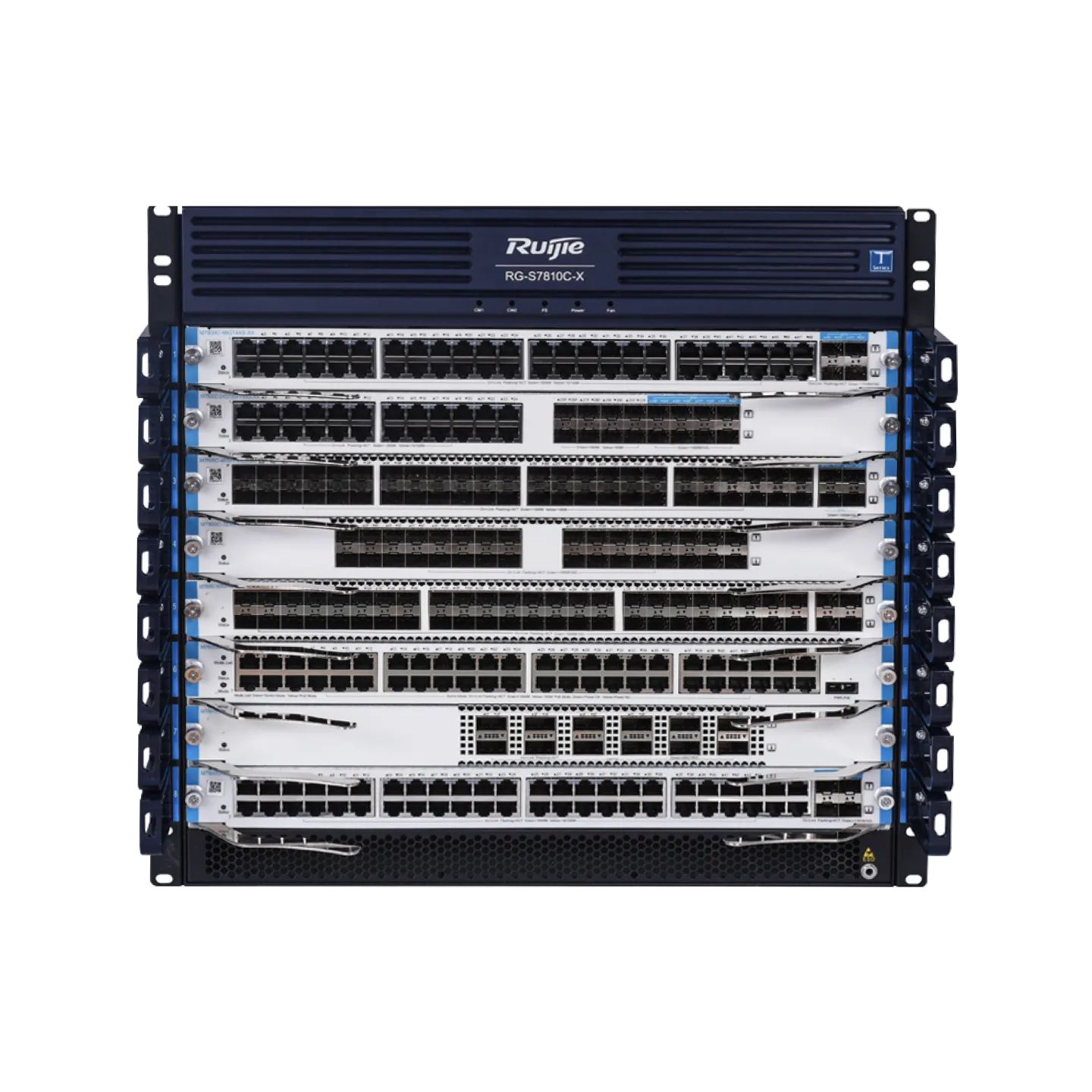

RG-S7810C-X Next-Generation High-Performance Campus Core Switch
Stok 25
Highlight Features:• Next-gen modular core switch with 10 slots.• Enhanced architecture for 400G-ready networks.• High-reliability with redundant engine and power.• Intelligent management and automation via SDN.
Ruijie RG-S7810C-X: Next-Gen Core Chassis Switch untuk Kampus Pintar
RG-S7810C-X adalah seri chassis core yang membawa performa seri Newton ke dalam arsitektur yang lebih fleksibel. Dengan dukungan modul 100G dan sistem operasi RGOS terbaru, switch ini adalah otak yang sempurna untuk infrastruktur smart campus dan pemerintahan.
Fitur Unggulan:
- Arsitektur Non-Blocking: Transmisi data masif antar modul tanpa kehilangan paket data (packet loss).
- High Availability: Redundansi penuh pada level modul kontrol dan power supply untuk menjamin uptime 99.999%.
- Siap untuk IoT & Cloud: Kapasitas switching yang dirancang untuk menangani jutaan sesi data dari perangkat IoT dan aplikasi cloud.
| brands |
|---|
Technical Specifications
| Type | Advanced Modular Core Chassis Switch |
| Slots | 12 Slots (2 Management, 10 Service) |
| Switching Capacity | Up to 38.4 Tbps (Next-Gen Fabric) |
| Forwarding Rate | Up to 11520 Mpps |
| Architecture | Orthogonal Non-blocking Design |
| L3 Routing | OSPF, BGP, ISIS, MPLS, VPLS, EVPN |
| Virtualization | VSU 2.0 / VSD Support |
| MAC Address | Up to 512K Entries |
| Redundancy | 1+1 Supervisor, N+M Power, Fan Redundancy |
| SDN Support | OpenFlow 1.3, NetConf, gRPC |
| Reliability | 99.999% High Availability |
| IPv6 Ready | Phase 2 Gold Certified |
| Power Supply | Hot-swappable AC/DC Modules |
| Cooling | Variable Speed Hot-swap Fan Trays |
| Dimensions | 442 x 450 x 664 mm (15U) |
| Weight | ~48 kg (Empty) |
| ARP Table | Up to 128K |
| ACL Entries | Up to 128K |
| Security | CPP, NFPP, Anti-DDoS Architecture |
| Multicast | PIM-SM/DM/SSM, MSDP |
| QoS | H-QoS, 8 Queues, WRED, ECN |
| Management Port | RJ45 Console, MGMT, USB 2.0 |
| Interface Support | 1G / 10G / 25G / 40G / 100G |
| Operating Temp | 0°C to 45°C |
| Airflow | Front-to-Rear Optimized |
| Jumbo Frame | 9216 bytes |
| Certification | CE, RoHS, FCC |
| MTBF | > 250,000 hours |
| Software | RGOS Advanced Enterprise Edition |
| Warranty | 3 Years |
