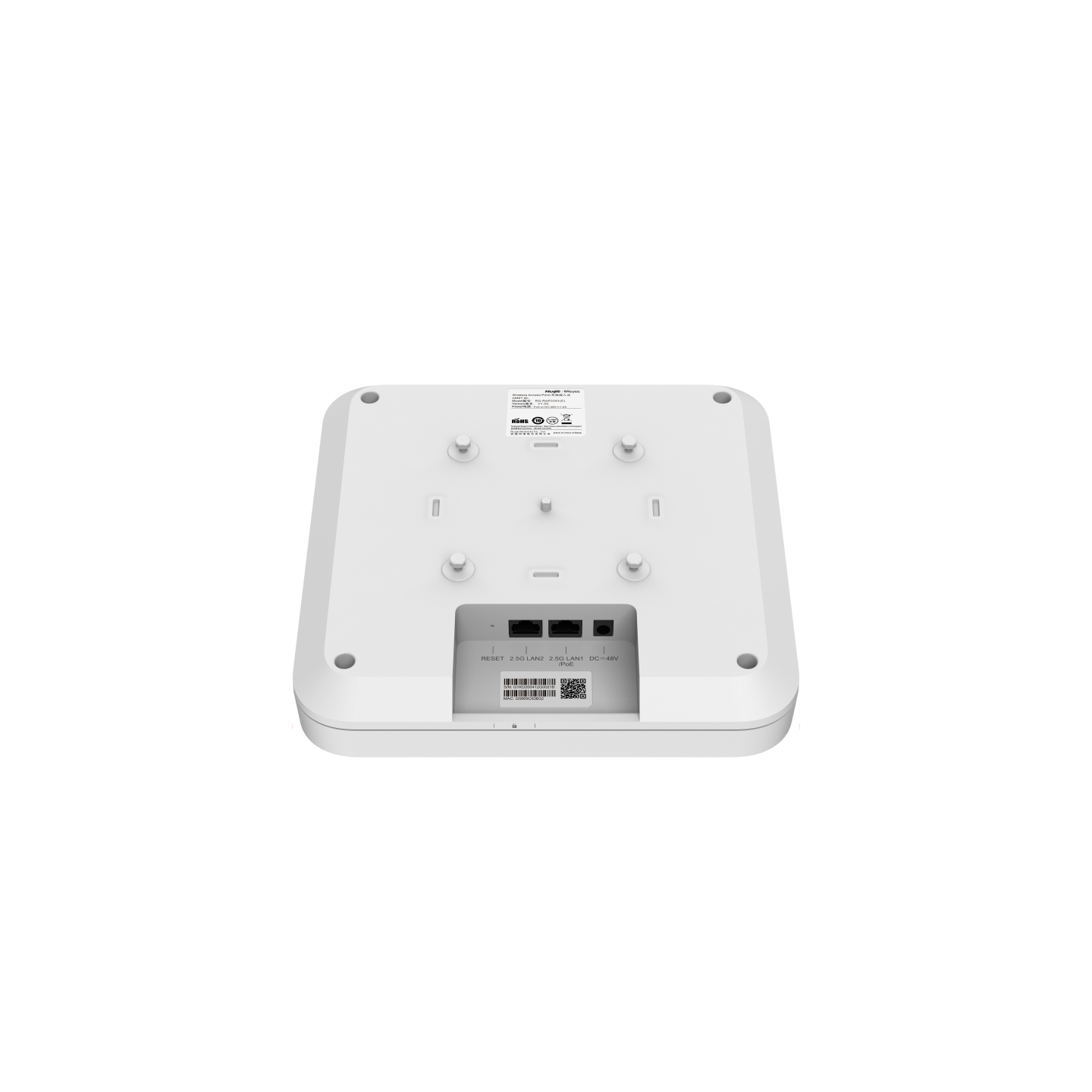

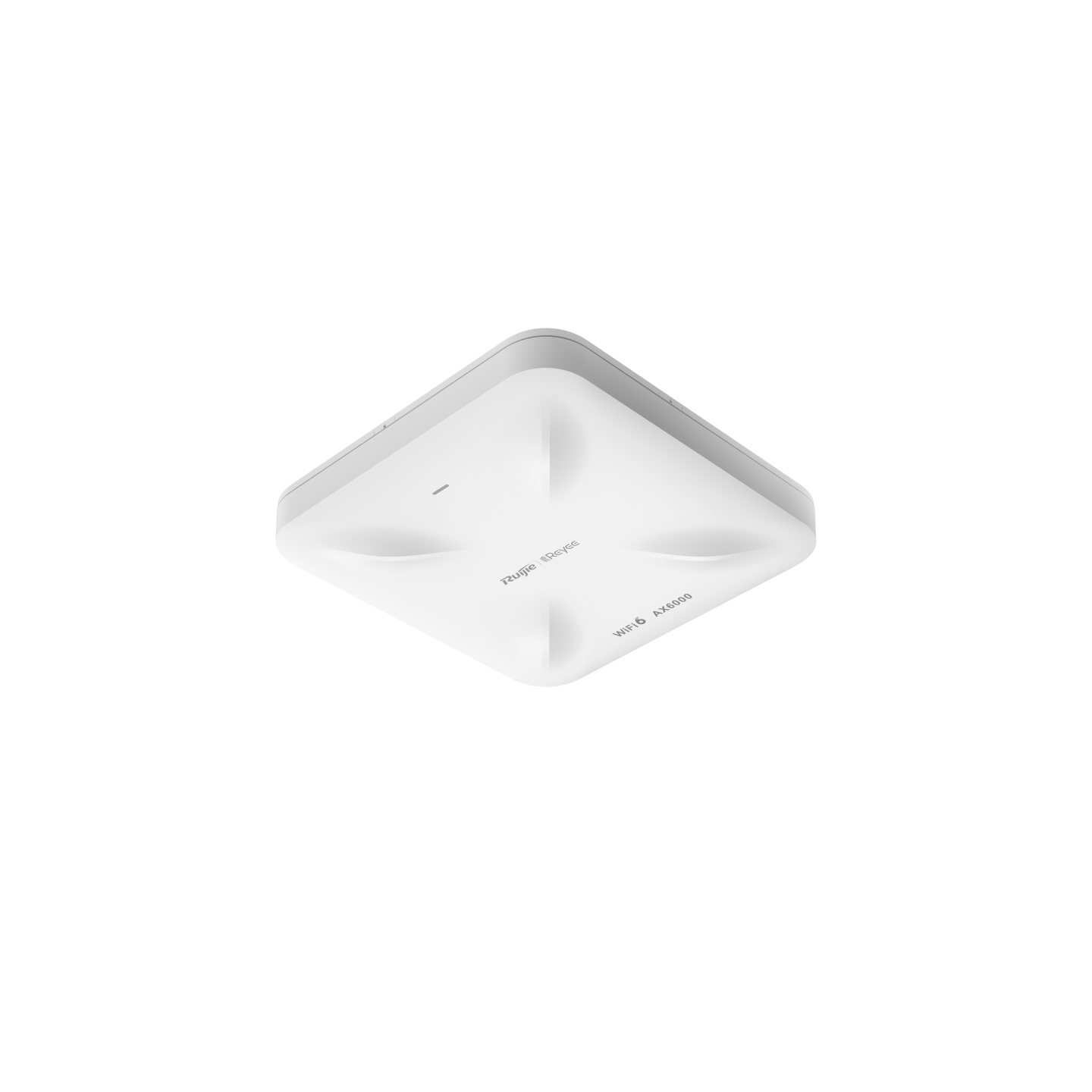

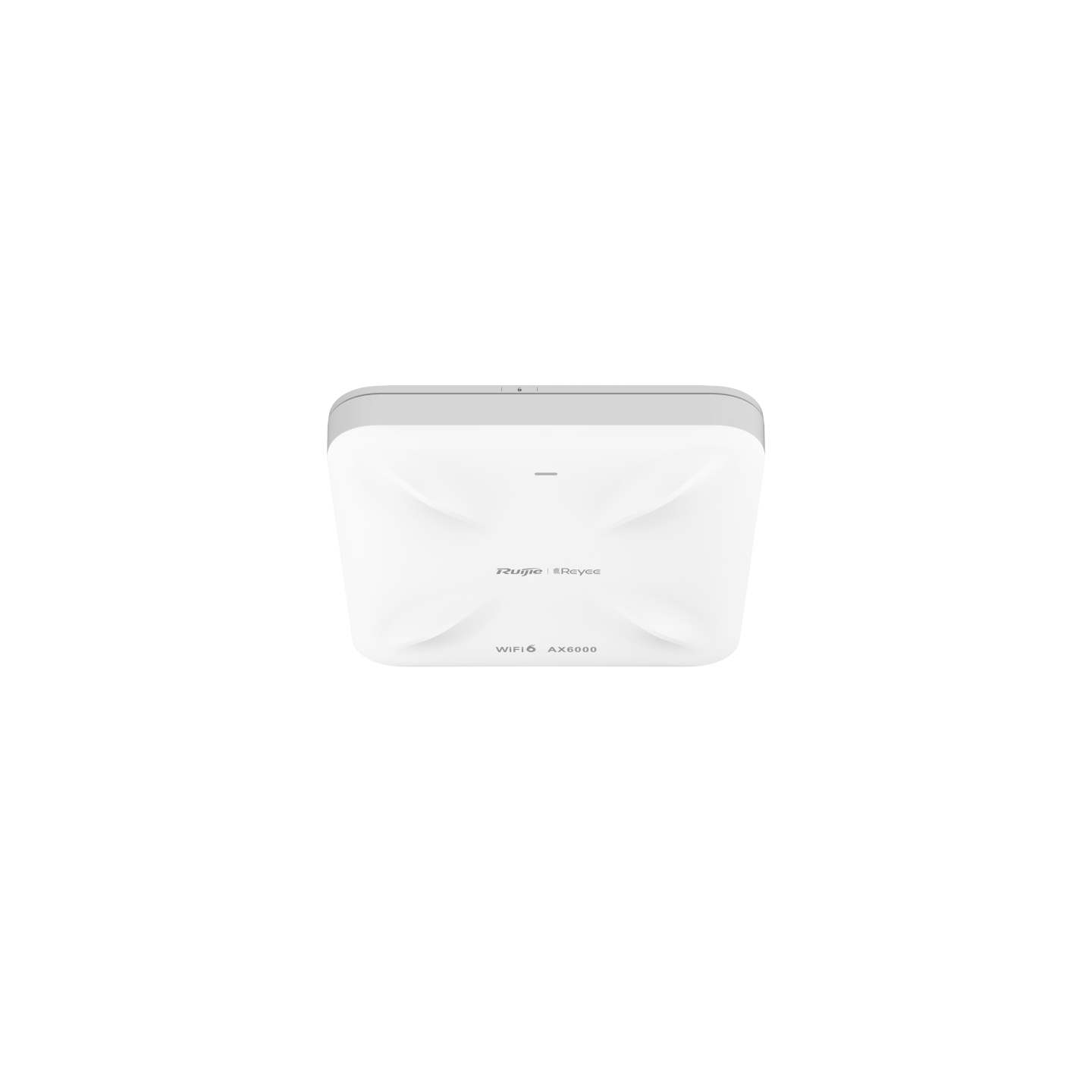

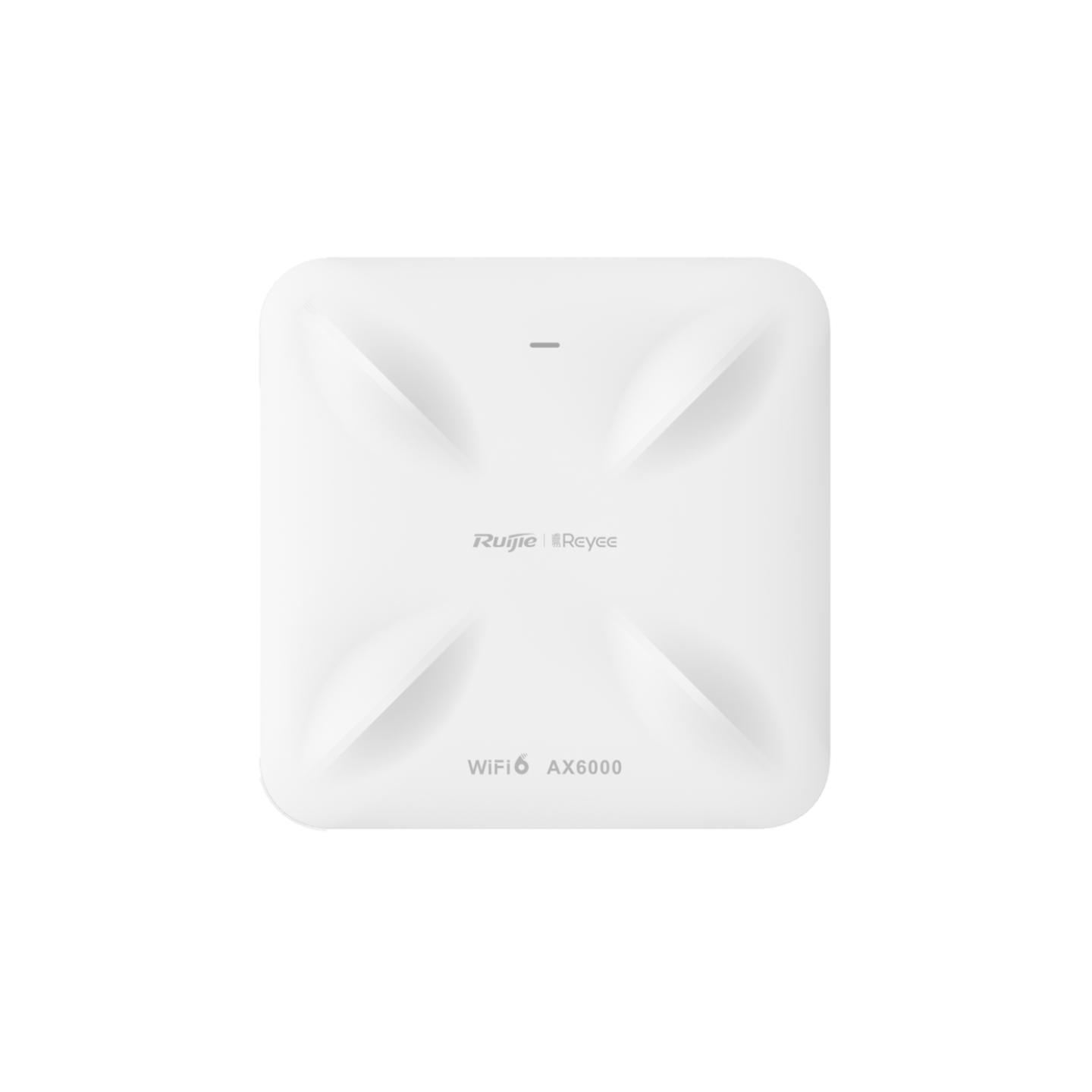

Ruijie High Density AP RG-RAP2260(H)
Stok 30
AX6000 Wi-Fi 6 dual-band Gigabit ceiling mount Indoor AP, 2× 2.5 Gigabit LAN uplink ports, built-in antennas, dual-band 2.4GHz/5GHz, 802.11ax, up to 5952 Mbps access rate per AP; support AP and routing mode, Layer 3 roaming, Reyee unified networking and Ruijie Cloud app management; Local power supply, DC 48V/1A (Note: The power adapter is sold as an optional accessory), 802.3bt PoE.Max power consumption ＜40W. The power supply output should higher than AP max power consumption. Support 802.3bt PoE in and 48V DC power supply. (Reyee 802.3bt PoE injector model: RG-POE-50-60W-MG is sold separately)(Reyee 802.3bt PoE injector model: RG-POE-50-60W-MG is sold separately)
Rp5.985.000
Stok 30
AX6000 Wi-Fi 6 dual-band Gigabit ceiling mount Indoor AP, 2× 2.5 Gigabit LAN uplink ports, built-in antennas, dual-band 2.4GHz/5GHz, 802.11ax, up to 5952 Mbps access rate per AP; support AP and routing mode, Layer 3 roaming, Reyee unified networking and Ruijie Cloud app management; Local power supply, DC 48V/1A (Note: The power adapter is sold as an optional accessory), 802.3bt PoE.Max power consumption ＜40W. The power supply output should higher than AP max power consumption. Support 802.3bt PoE in and 48V DC power supply. (Reyee 802.3bt PoE injector model: RG-POE-50-60W-MG is sold separately)(Reyee 802.3bt PoE injector model: RG-POE-50-60W-MG is sold separately)
| brands |
|---|
Product Overview
AX6000 High-Density Wi-Fi 6 Indoor Ceiling Access Point. Engineered for ultra-high concurrency environments such as offices, schools, and large conference halls with 2.5G backhaul.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-RAP2260(H) |
| Product Type | Indoor Ceiling Access Point |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), 802.11ac Wave2, 802.11n |
| Frequency Band | Dual-Band (2.4 GHz + 5 GHz) |
| Spatial Streams | 8 Streams (4×4 MU-MIMO) |
| 2.4 GHz Speed | Up to 1148 Mbps |
| 5 GHz Speed | Up to 4804 Mbps |
| Maximum Data Rate | 5952 Mbps |
| Wireless Technology | MU-MIMO, OFDMA, 1024-QAM, 160MHz |
| Ethernet Port | 1 x 100/1000/2500Base-T, 1 x 10/100/1000Base-T |
| Power Supply | 802.3at PoE+ or DC 12V/2A |
| Maximum Power Consumption | ≤ 25.4 W |
| Maximum Clients | Up to 1024 Clients (512 recommended) |
| Dimensions | 230 x 230 x 49.5 mm |
| Weight | ≤ 1.0 kg |
| Mounting | Ceiling / Wall Mount |
| Operating Temperature | 0°C – 40°C |
| Protection Rating | IP41 |
| Management | Ruijie Reyee Cloud Management |
