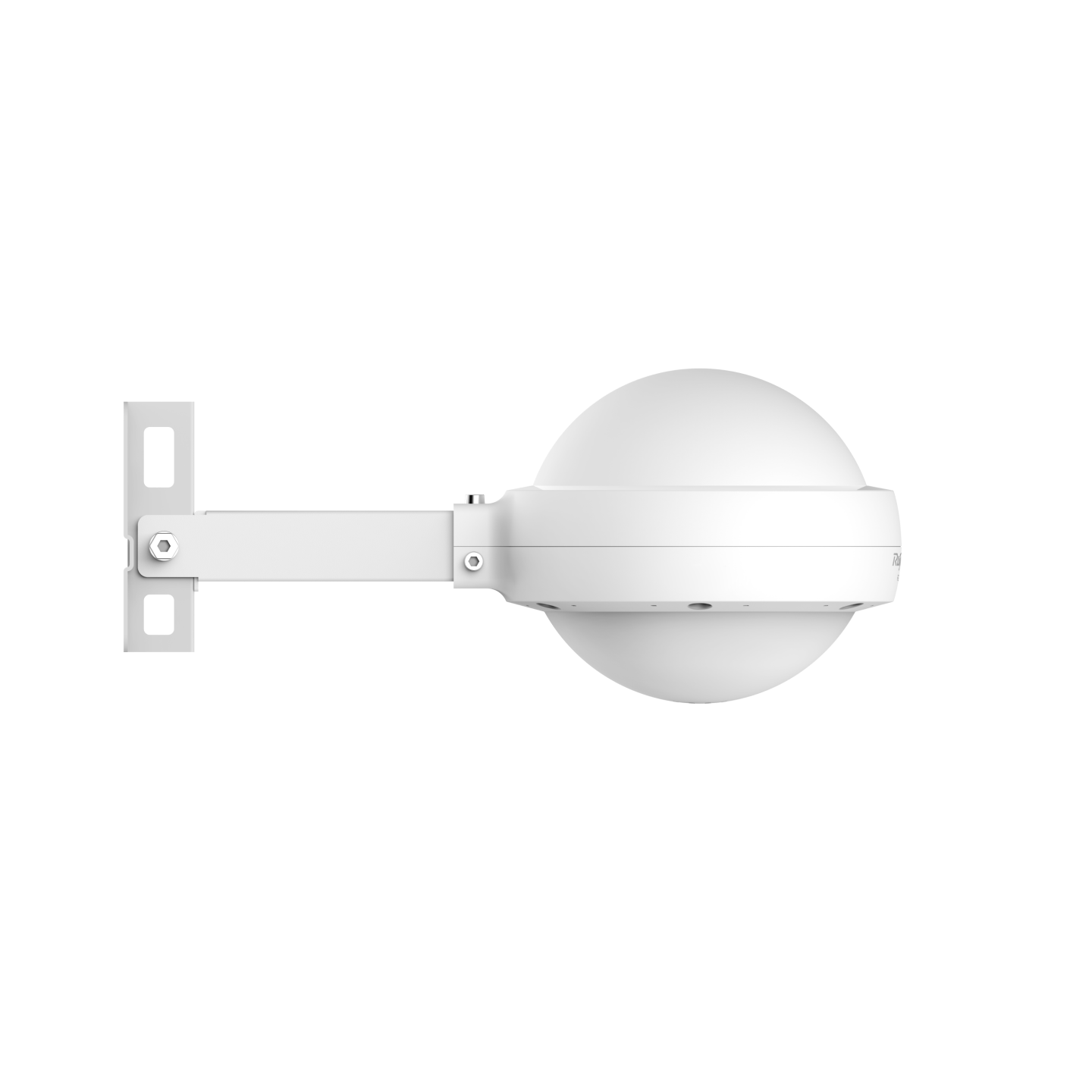

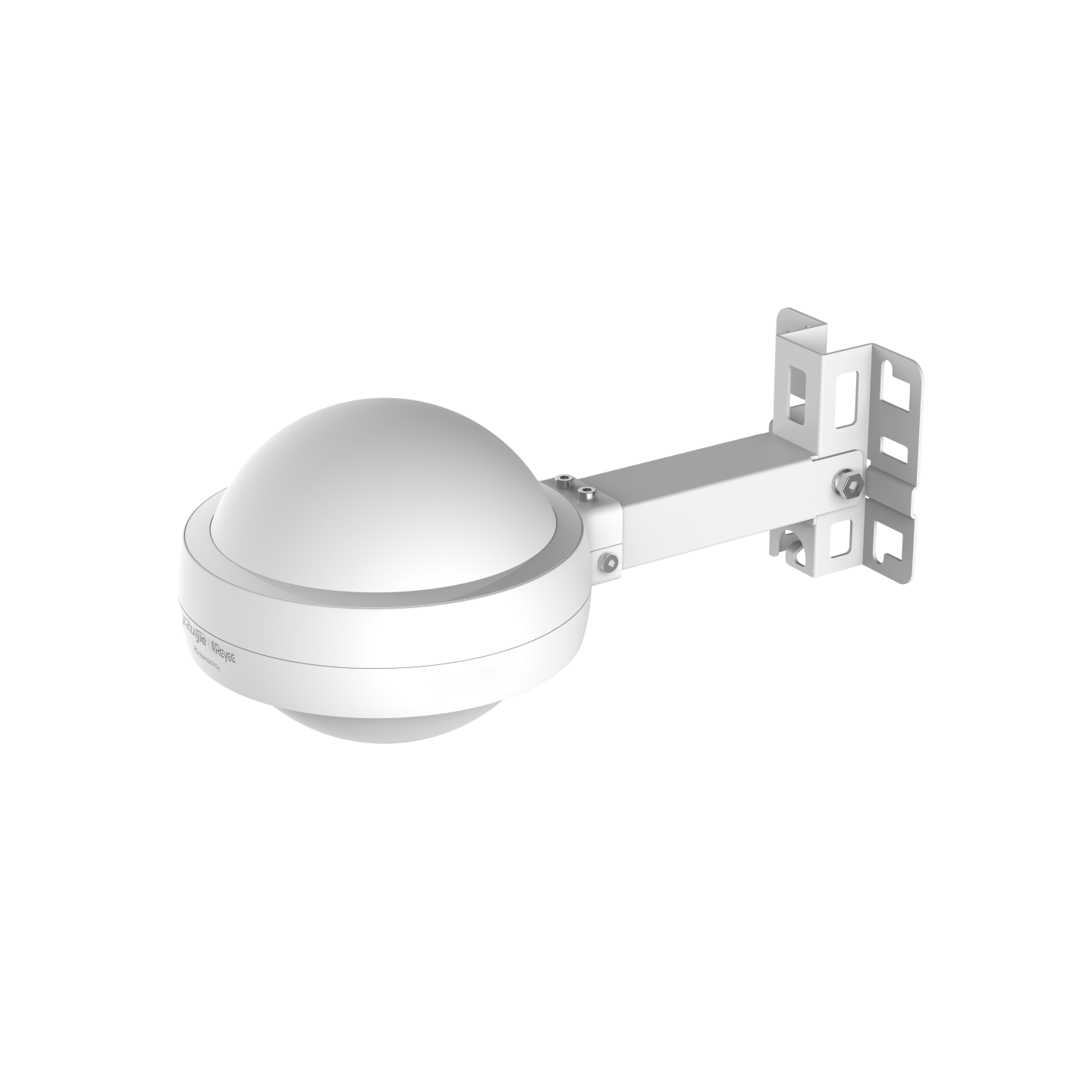

Ruijie Outdoor AP RG-RAP6202(G)
Stok 20
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2×2 MU-MIMO, IP68
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, DC 12V/1.5A , power consumption< 13.5W
TX power: 2.4GHz @26dBm, 5GHz @27dBm
Max. STAs: 110, recommended STAs: 96 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Router mode, Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Rp3.132.000
Stok 20
AC1300 Dual band (2.4GHz&5GHz) outdoor access points, 2×2 MU-MIMO, IP68
2.4 GHz: 3dBi @400Mbps, 5 GHz: 4dBi @867Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803at/802.3af PoE, DC 12V/1.5A , power consumption< 13.5W
TX power: 2.4GHz @26dBm, 5GHz @27dBm
Max. STAs: 110, recommended STAs: 96 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, Router mode, Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
| brands |
|---|
Product Overview
AC1300 Outdoor Omnidirectional Access Point. Provides cost-effective and reliable Wi-Fi 5 coverage for large outdoor areas with rugged industrial design and easy mesh setup.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-RAP6202(G) |
| Product Type | Outdoor Access Point (Omni) |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac Wave2), 802.11n, 802.11g |
| Frequency Band | Dual-Band (2.4 GHz + 5 GHz) |
| Spatial Streams | 4 Streams (2×2 MU-MIMO) |
| 2.4 GHz Speed | Up to 400 Mbps |
| 5 GHz Speed | Up to 867 Mbps |
| Maximum Data Rate | 1267 Mbps |
| Wireless Technology | MU-MIMO, Beamforming |
| Ethernet Port | 2 x 10/100/1000Base-T (PoE In) |
| Power Supply | 802.3at PoE |
| IP Rating | IP68 Weatherproof |
| Operating Temperature | -30°C – 65°C |
| Dimensions | 200 x 200 x 166 mm |
| Management | Ruijie Reyee Cloud Management |
