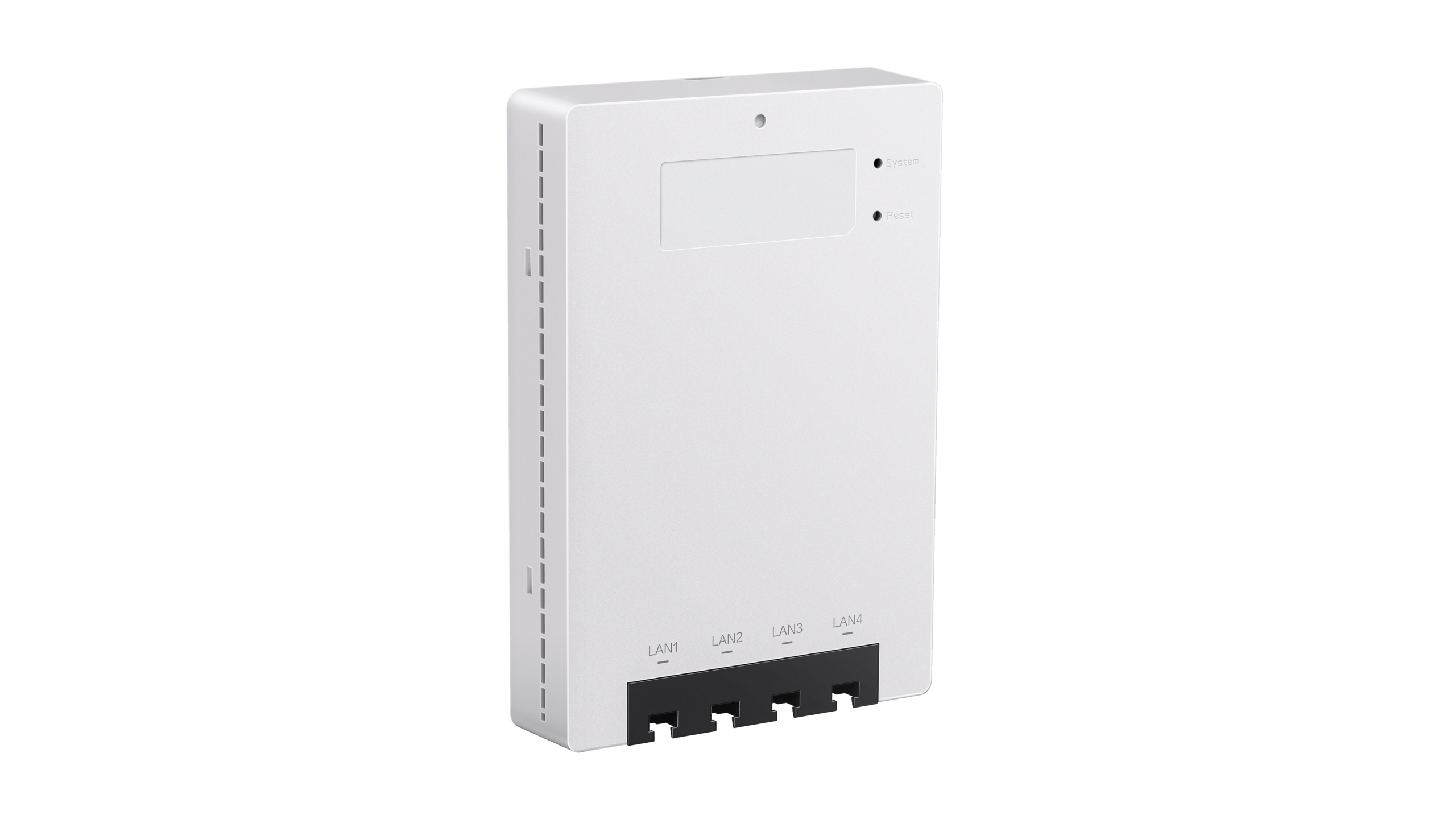

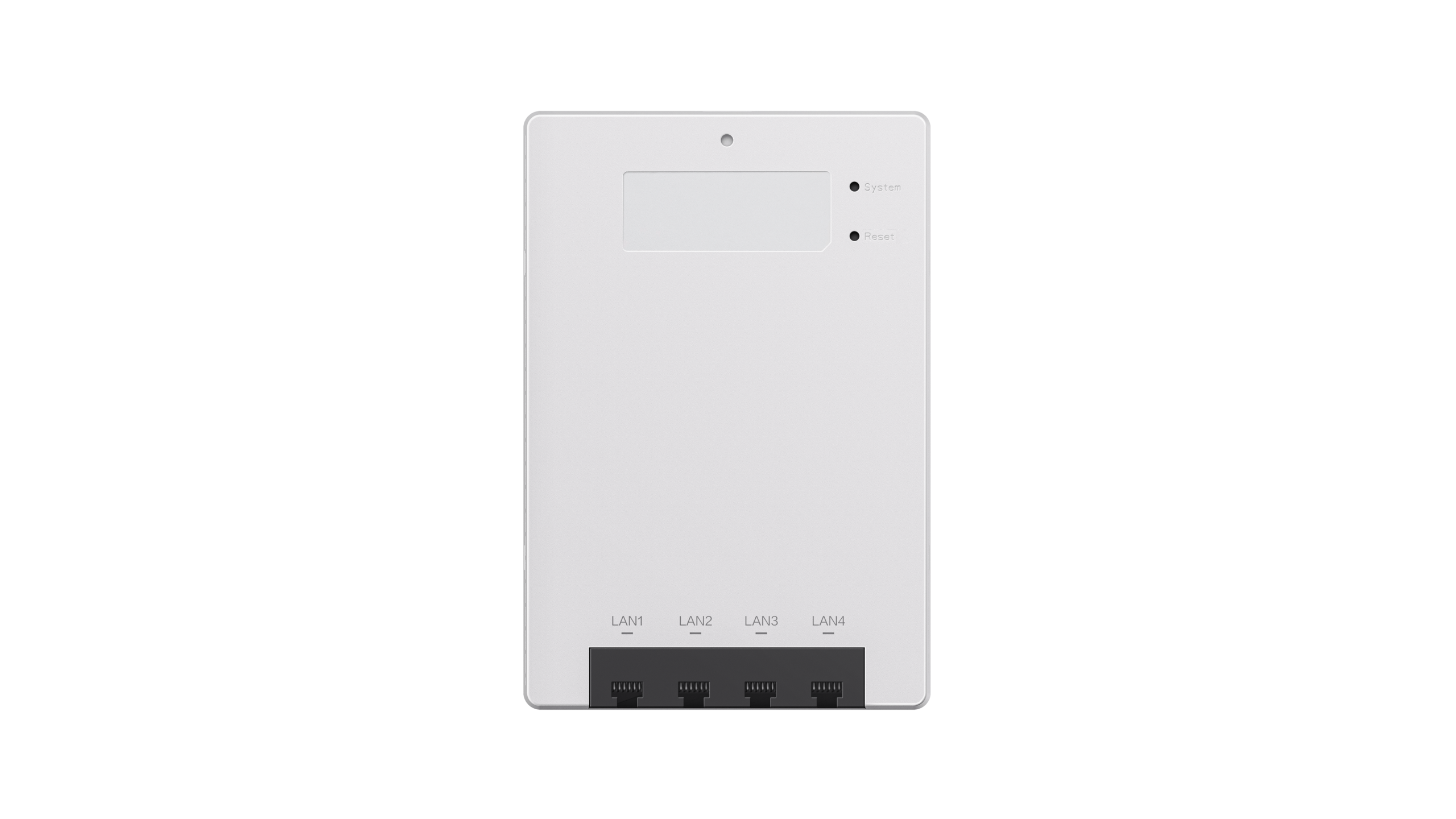

Ruijie Wall AP RG-RAP1260
Stok 11
AX3000 Wi-Fi 6 dual-band Gigabit wall plate AP Specifications: Built-in antennas, 2.4GHz/5GHz dual-radio, 802.11a/b/g/n/ac Wave1/Wave2/ax protocol;4×10/100/1000 Base-T portSupport AP and routing mode, layer 2 and layer 3 roaming, Reyee unified networking and Ruijie Cloud app management. Support 802.3at PoE-in, max power ＜18W. The power supply output should be higher than AP max power consumption. If supplied by non-standard PoE adapter, config the “PoE settings“——“PoE mode” in website to “IEEE 802.3at“
Rp3.215.000
Stok 11
AX3000 Wi-Fi 6 dual-band Gigabit wall plate AP Specifications: Built-in antennas, 2.4GHz/5GHz dual-radio, 802.11a/b/g/n/ac Wave1/Wave2/ax protocol;4×10/100/1000 Base-T portSupport AP and routing mode, layer 2 and layer 3 roaming, Reyee unified networking and Ruijie Cloud app management. Support 802.3at PoE-in, max power ＜18W. The power supply output should be higher than AP max power consumption. If supplied by non-standard PoE adapter, config the “PoE settings“——“PoE mode” in website to “IEEE 802.3at“
| brands |
|---|
Product Overview
AX3000 Wi-Fi 6 Wall-plate Access Point. High-speed Gigabit wall-mounted solution with 160MHz bandwidth support, perfect for hotel rooms and high-end dormitories.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-RAP1260 |
| Product Type | Wall-plate Access Point |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), 802.11ac Wave2, 802.11n |
| Frequency Band | Dual-Band (2.4 GHz + 5 GHz) |
| Spatial Streams | 4 Streams (2×2 MU-MIMO) |
| 2.4 GHz Speed | Up to 574 Mbps |
| 5 GHz Speed | Up to 2402 Mbps |
| Maximum Data Rate | 2976 Mbps |
| Wireless Technology | MU-MIMO, OFDMA, 1024-QAM, 160MHz |
| Ethernet Port | 1 x 10/100/1000Base-T (Front), 1 x GE (Rear Uplink) |
| Power Supply | 802.3af/at PoE |
| Maximum Power Consumption | ≤ 12 W |
| Maximum Clients | Up to 512 Clients (100 recommended) |
| Dimensions | 86 x 86 x 42.4 mm |
| Weight | ≤ 0.25 kg |
| Mounting | Compatible with Standard 86mm Junction Box |
| Operating Temperature | 0°C – 40°C |
| Protection Rating | IP41 |
| Management | Ruijie Reyee Cloud Management |
