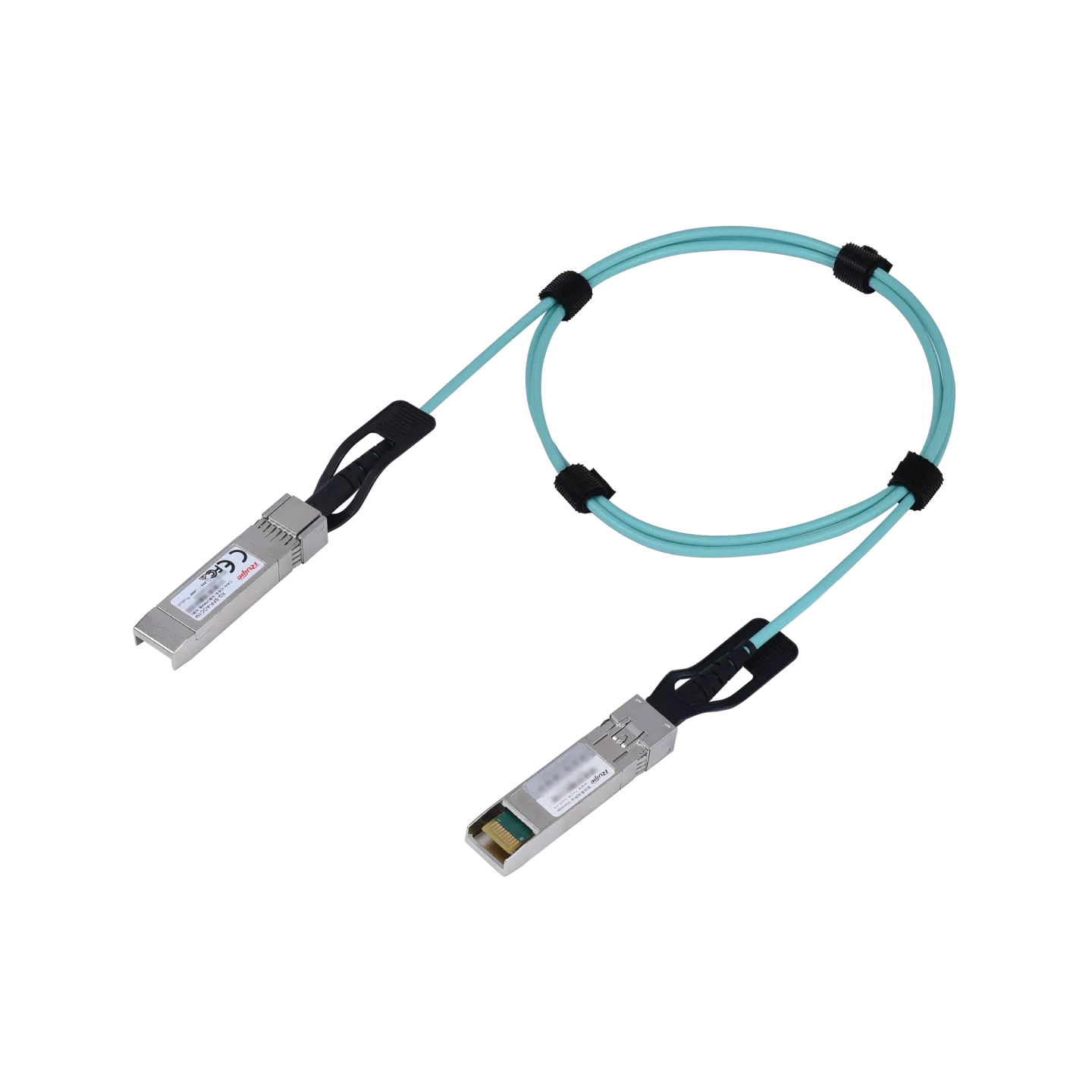

XG-SFP-AOC1M 10G SFP+ Active Optical Cable, 1m
Stok 25
Highlight Features:• 10G SFP+ Active Optical Cable (AOC), 1 meter.• Integrated transceiver modules for easy plug-and-play.• Lower power consumption and weight than copper cables.• Ideal for high-density rack-to-rack interconnects.
Ruijie XG-SFP-AOC1M: Kabel Fiber Aktif 10G untuk Konektivitas Rak
XG-SFP-AOC1M adalah solusi kabel fiber aktif (Active Optical Cable) sepanjang 1 meter yang dirancang untuk menghubungkan switch core ke server atau switch agregasi dalam satu rak. Menawarkan latensi yang jauh lebih rendah dan berat yang lebih ringan dibandingkan kabel tembaga DAC standar.
Kelebihan Produk:
- Kecepatan 10Gbps SFP+: Menghilangkan bottleneck data antar perangkat di pusat data Anda.
- Desain Tipis & Fleksibel: Memudahkan manajemen kabel di area rak server yang padat, meningkatkan sirkulasi udara.
- Tanpa Gangguan Elektromagnetik: Berbasis fiber optik sehingga aman dari gangguan listrik atau petir antar perangkat.
- Solusi Hemat Biaya: Tidak perlu membeli modul transceiver terpisah karena konektor sudah terintegrasi secara permanen.
| brands |
|---|
Technical Specifications
| Type | 10G SFP+ Active Optical Cable (AOC) |
| Length | 1 Meter |
| Connector Type | SFP+ to SFP+ |
| Data Rate | 10 Gbps (10GBASE-AOC) |
| Cable Jacket | LSZH (Low Smoke Zero Halogen) |
| Wavelength | 850nm |
| Power Supply | 3.3V |
| Power Consumption | < 1W per end |
| Operating Temp | 0°C to 70°C |
| Hot Swappable | Yes |
| Bit Error Rate (BER) | < 10^-12 |
| Compliance | SFF-8431, SFF-8432 |
| Latency | Ultra-low Latency |
| EMI | Excellent Electromagnetic Immunity |
| Application | Data Center Stack, Storage SAN |
| Material | Multi-mode Fiber Core (Internal) |
| Reliability | Telcordia GR-468 compliant |
| Bending Radius | Min. 30mm |
| Weight | 0.08 kg |
| DDM Support | Yes |
| Pull Tab | Integrated for easy removal |
| Interface | SFP+ MSA |
| Protocols | 10G Ethernet, CPRI |
| Storage Temp | -40°C to 85°C |
| Humidity | 5% to 95% RH |
| Certification | CE, RoHS, FCC |
| Durability | > 500 mating cycles |
| Housing | Zinc Alloy End-shells |
| Warranty | 3 Years |
