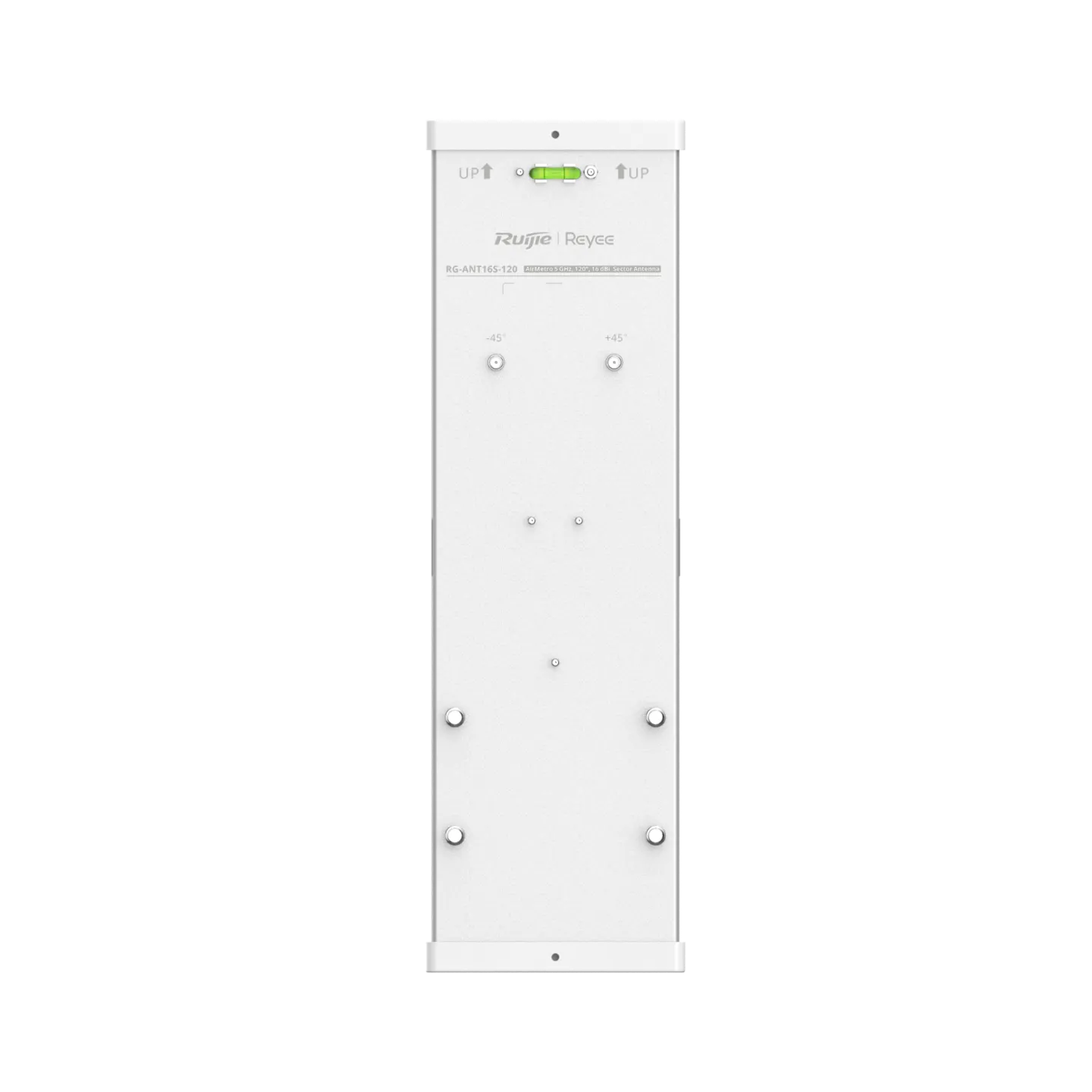

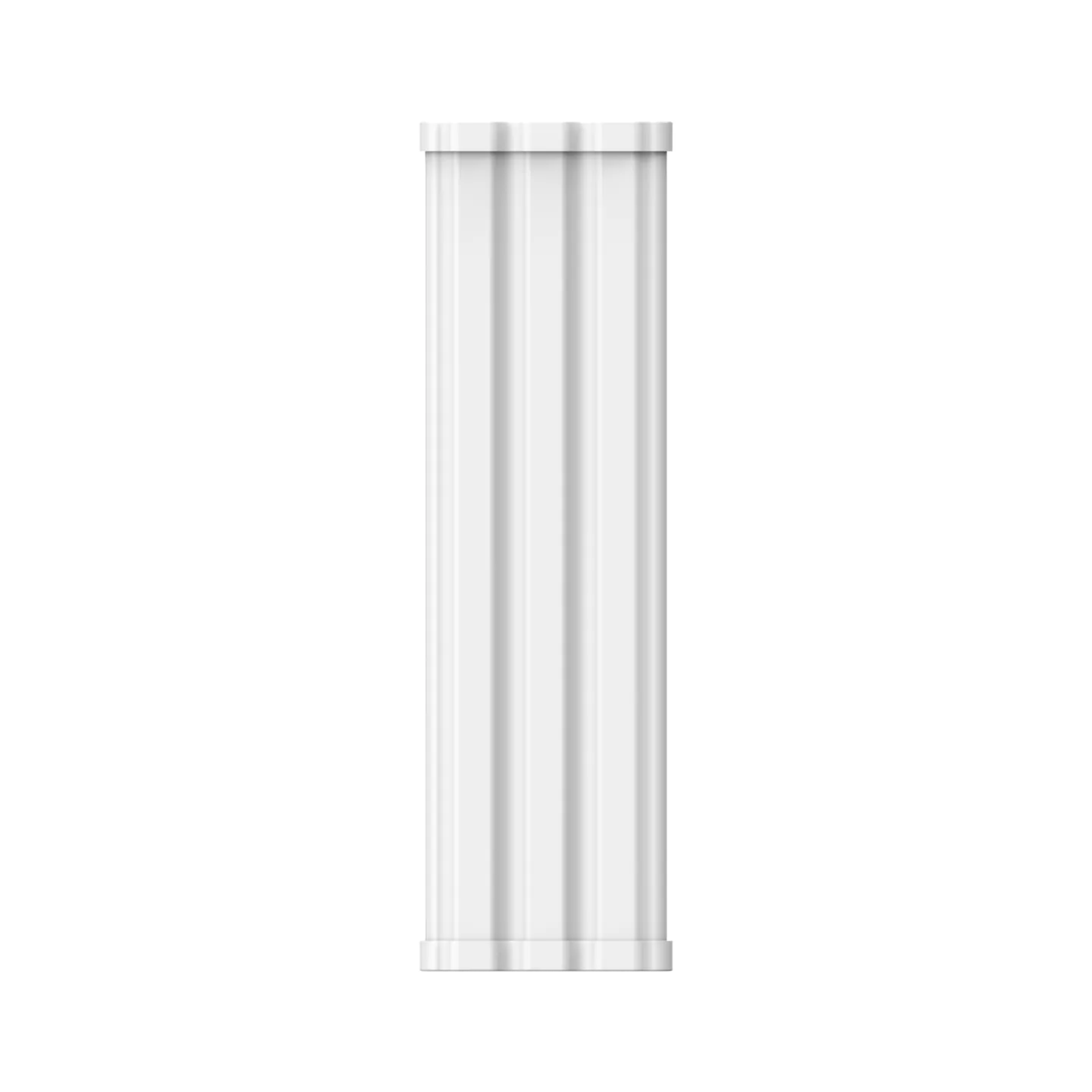

Ruijie Antenna RG-ANT16S-120
Stok 8
A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2×2 two-space stream technology, antenna gain is 16dBi, antenna horizontal angle is 120 °, vertical angle is 10°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 5KM.
Rp1.574.000
Stok 8
A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2×2 two-space stream technology, antenna gain is 16dBi, antenna horizontal angle is 120 °, vertical angle is 10°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 5KM.
Product Overview
5GHz 16dBi Dual-Polarization Sector Antenna. Features a wide 120-degree beamwidth, making it the ideal choice for cost-effective wide-area outdoor wireless coverage and PtMP base station deployments.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-ANT16S-120 |
| Frequency Range | 5150 MHz – 5850 MHz |
| Gain | 16 dBi |
| Polarization | Dual-Linear |
| Horizontal Beamwidth | 120° (6dB) |
| Vertical Beamwidth | 8° (6dB) |
| Isolation | ≥ 25 dB |
| Connector Type | 2 x RP-SMA Female |
| Mounting | Pole Mount (Included) |
| Operating Temp | -40°C to 70°C |
| Application | Outdoor PtMP Base Station |
