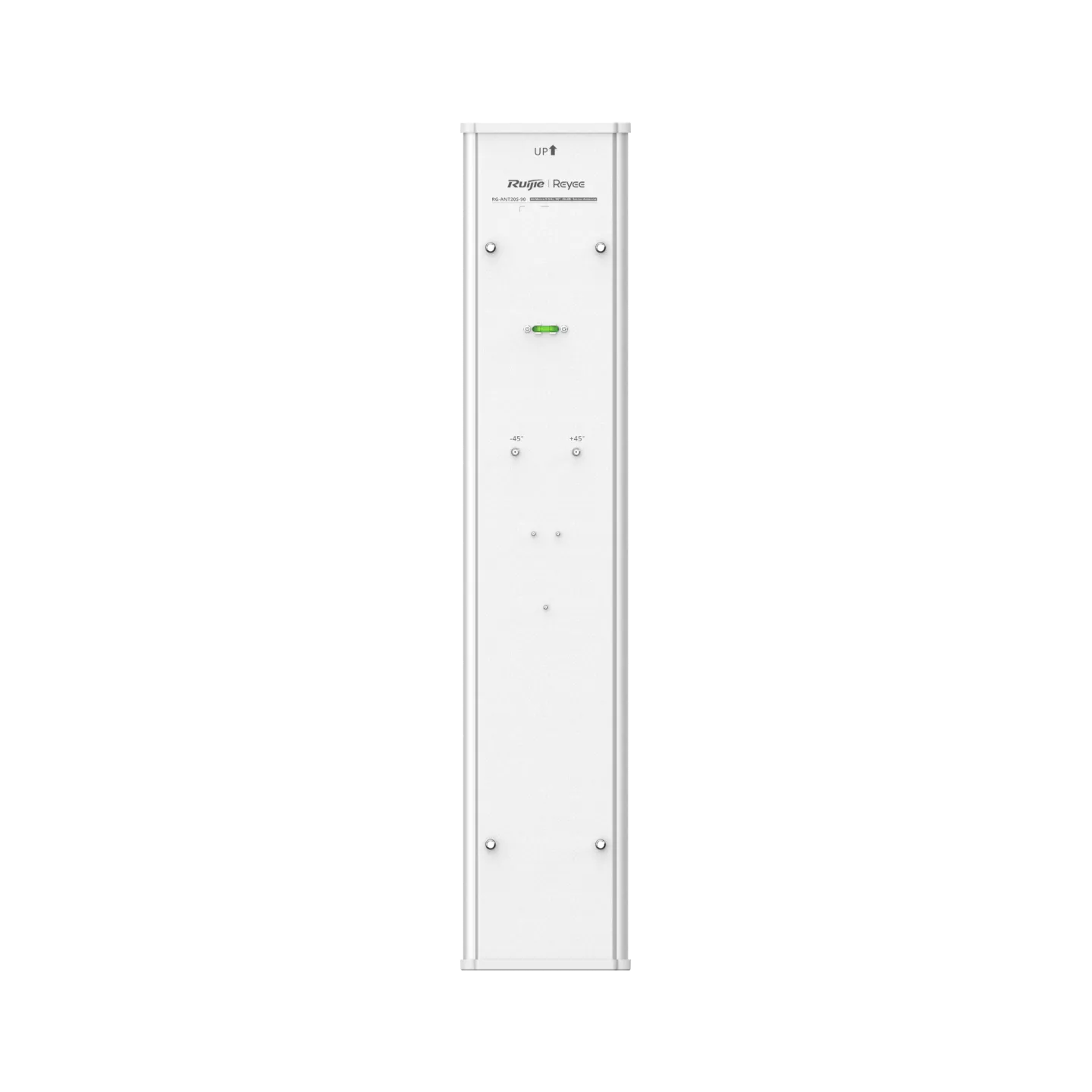

Ruijie Antenna RG-ANT20S-90
Stok 6
A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2×2 two-space stream technology, antenna gain is 20dBi, antenna horizontal angle is 90 °, vertical angle is 7°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 10KM.
Rp2.433.000
Stok 6
A supporting Sector external antenna product for an outdoor wireless bridge base station, with 5GHz dual-stream 2×2 two-space stream technology, antenna gain is 20dBi, antenna horizontal angle is 90 °, vertical angle is 7°, it can be used with the bridge base station RG-AirMetro550G-B, recommended for PTMP scenarios with a distance of less than 10KM.
Product Overview
Professional 5GHz 20dBi Dual-Polarization Sector Antenna. Designed for high-density point-to-multipoint (PtMP) base station applications, offering a 90-degree horizontal beamwidth for extensive outdoor coverage.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-ANT20S-90 |
| Frequency Range | 5150 MHz – 5850 MHz |
| Gain | 20 dBi |
| Polarization | Dual-Linear (Vertical & Horizontal) |
| Horizontal Beamwidth | 90° (6dB) |
| Vertical Beamwidth | 7° (6dB) |
| F/B Ratio | ≥ 25 dB |

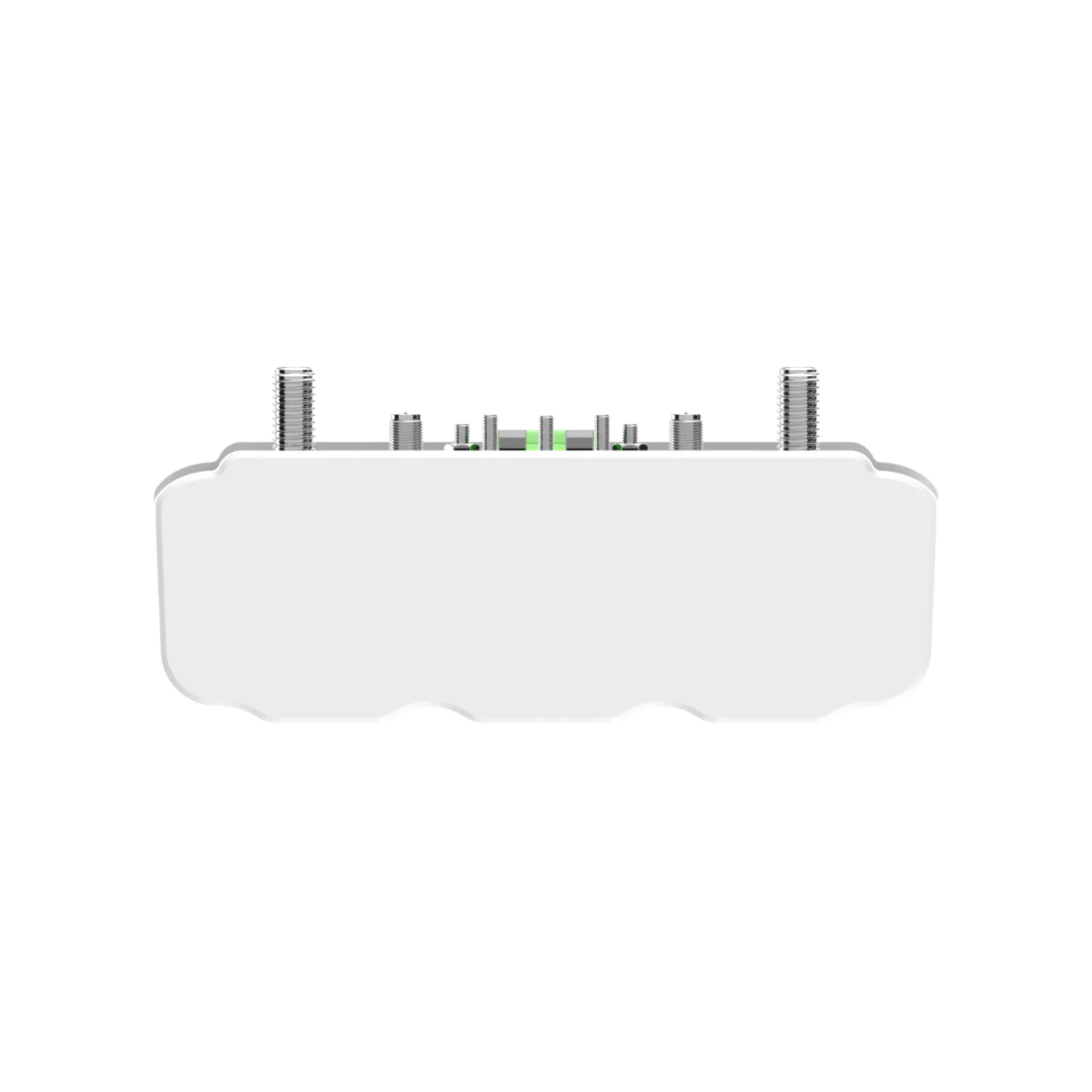

| Connector Type | 2 x RP-SMA Female |
| Wind Velocity | Up to 200 km/h |
| Dimensions | 700 x 140 x 50 mm |
| Weight | 3.5 kg |
