Ruijie Ceiling AP RG-RAP2260(E)
Stok 28
AX3200 Dual band (2.4GHz&5GHz) access points, 4×4 MU-MIMO
2.4 GHz: 3dBi @800Mbps, 5 GHz: 3dBi @2402Mbps, Max. 8 SSID, 160MHz
1× 2.5/1 Gigabit Ports (PoE-In), 803at/802.3af PoE, DC 12V/1.5A, power consumption < 25.4 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 120 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Rp3.602.000
Stok 28
AX3200 Dual band (2.4GHz&5GHz) access points, 4×4 MU-MIMO
2.4 GHz: 3dBi @800Mbps, 5 GHz: 3dBi @2402Mbps, Max. 8 SSID, 160MHz
1× 2.5/1 Gigabit Ports (PoE-In), 803at/802.3af PoE, DC 12V/1.5A, power consumption < 25.4 Watts
TX power: 2.4GHz @27dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 120 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
| brands |
|---|
Product Overview

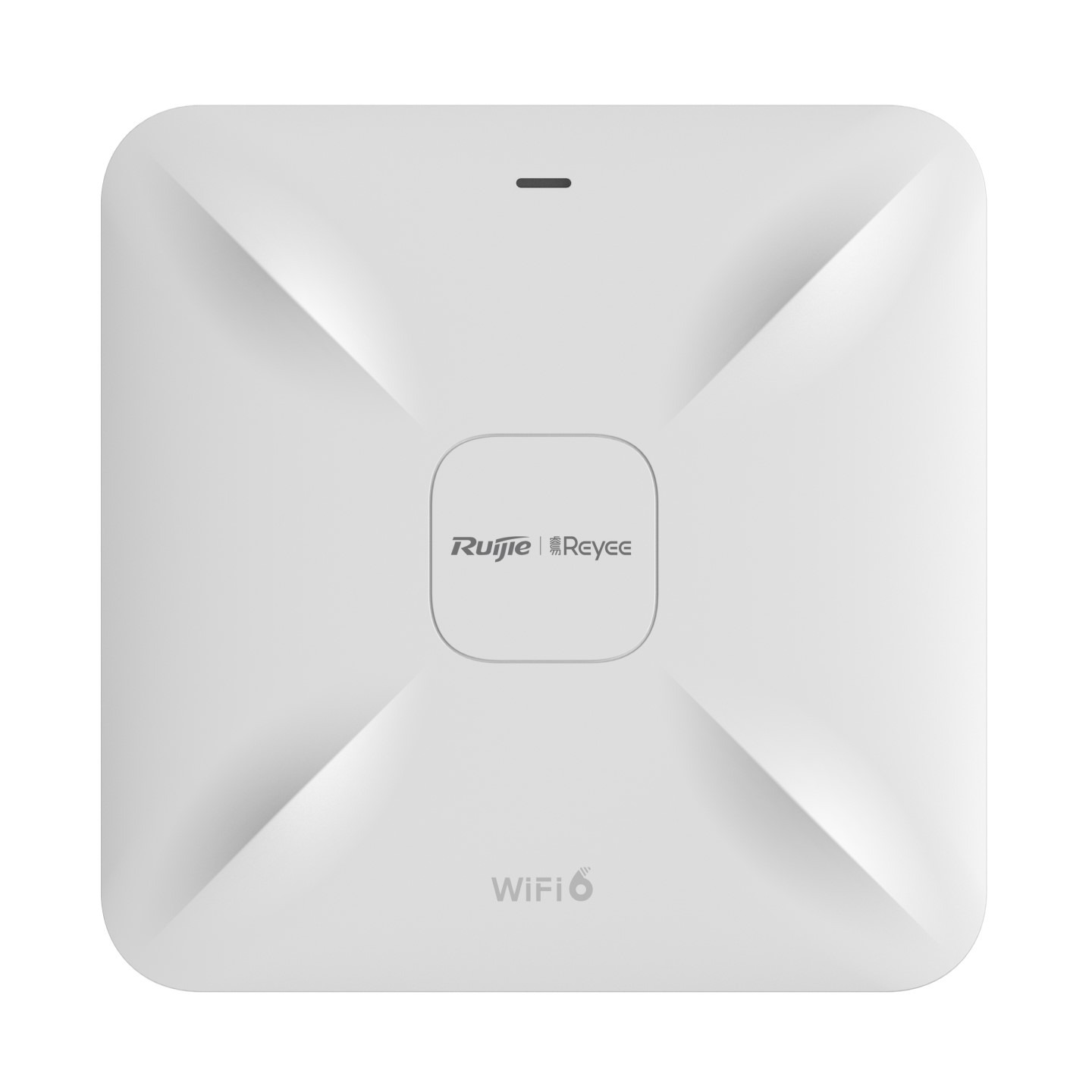

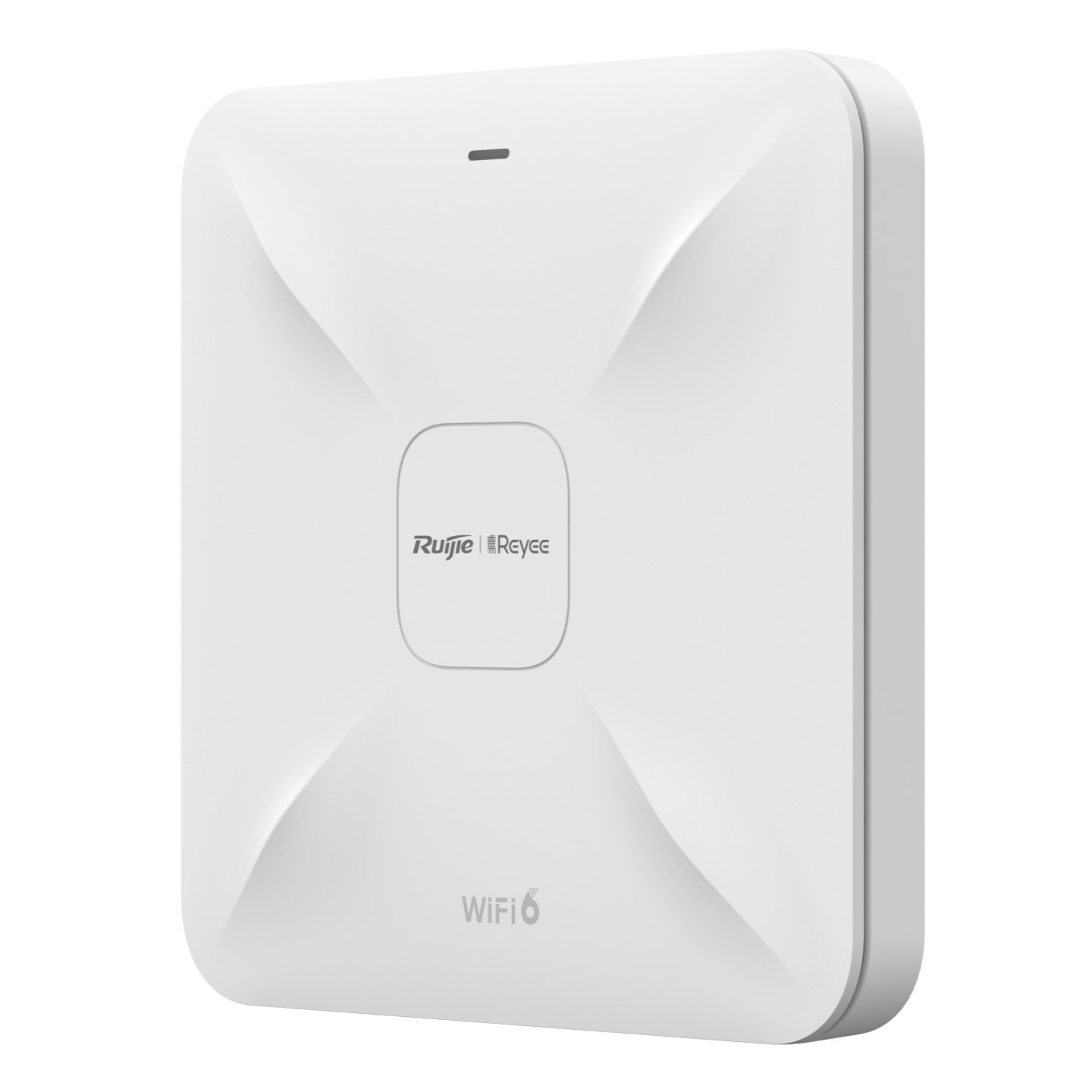

AX3200 High-Speed Wi-Fi 6 Indoor Access Point. Features 2.5G uplink and 4×4 MIMO on 5GHz band to provide superior throughput for bandwidth-intensive applications.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-RAP2260(E) |
| Product Type | Indoor Ceiling Access Point |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), 802.11ac Wave2, 802.11n |
| Frequency Band | Dual-Band (2.4 GHz + 5 GHz) |
| Spatial Streams | 6 Streams (2×2 @2.4G, 4×4 @5G) |
| 2.4 GHz Speed | Up to 800 Mbps |
| 5 GHz Speed | Up to 2402 Mbps |
| Maximum Data Rate | 3202 Mbps |
| Wireless Technology | MU-MIMO, OFDMA, 1024-QAM |
| Ethernet Port | 1 x 100/1000/2500Base-T, 1 x 10/100/1000Base-T |
| Power Supply | 802.3at PoE+ or DC 12V/2A |
| Maximum Power Consumption | ≤ 25.4 W |
| Maximum Clients | Up to 512 Clients (120 recommended) |
| Dimensions | 220 x 220 x 35 mm |
| Weight | ≤ 1.05 kg |
| Mounting | Ceiling / Wall Mount |
| Operating Temperature | 0°C – 40°C |
| Protection Rating | IP41 |
| Management | Ruijie Reyee Cloud Management |
