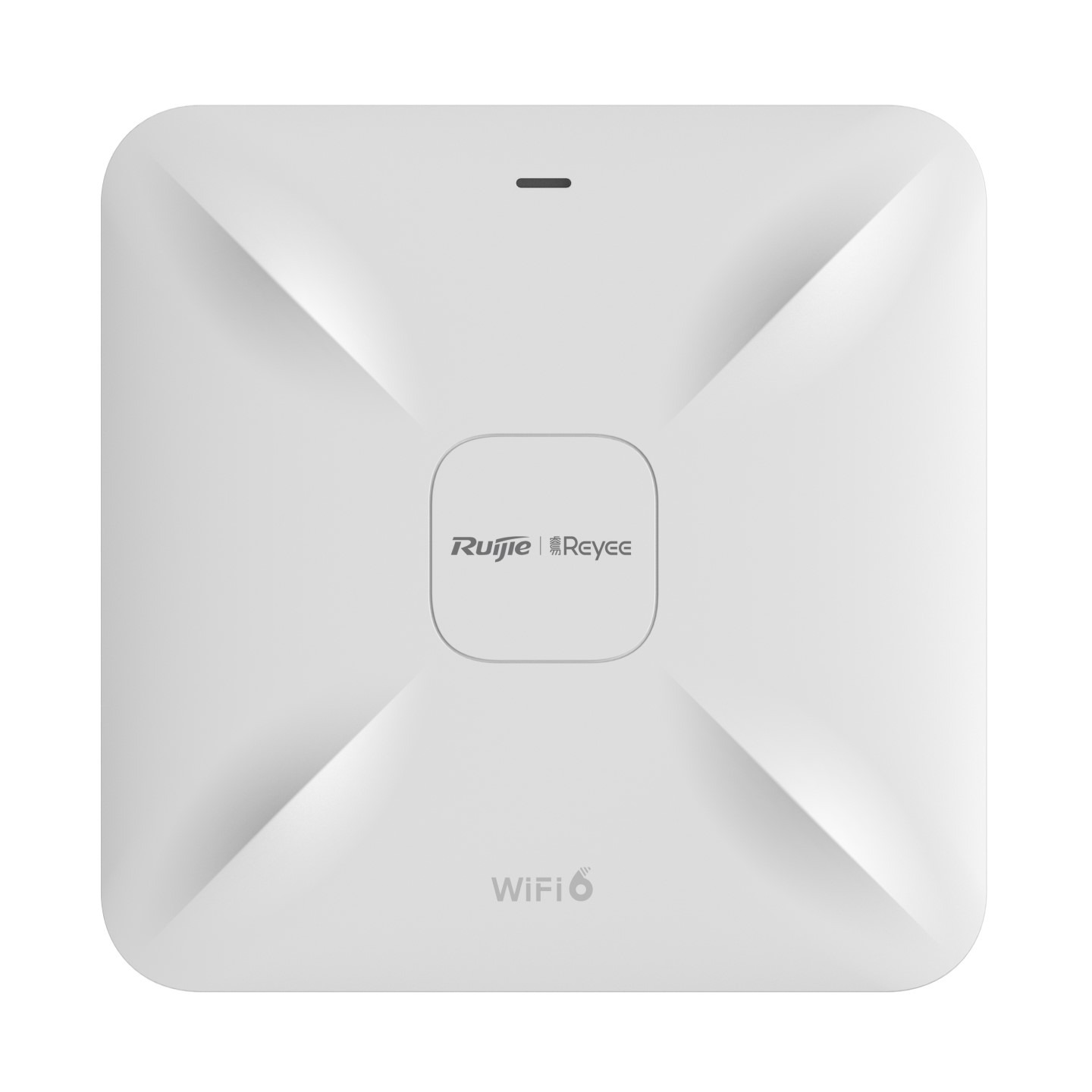

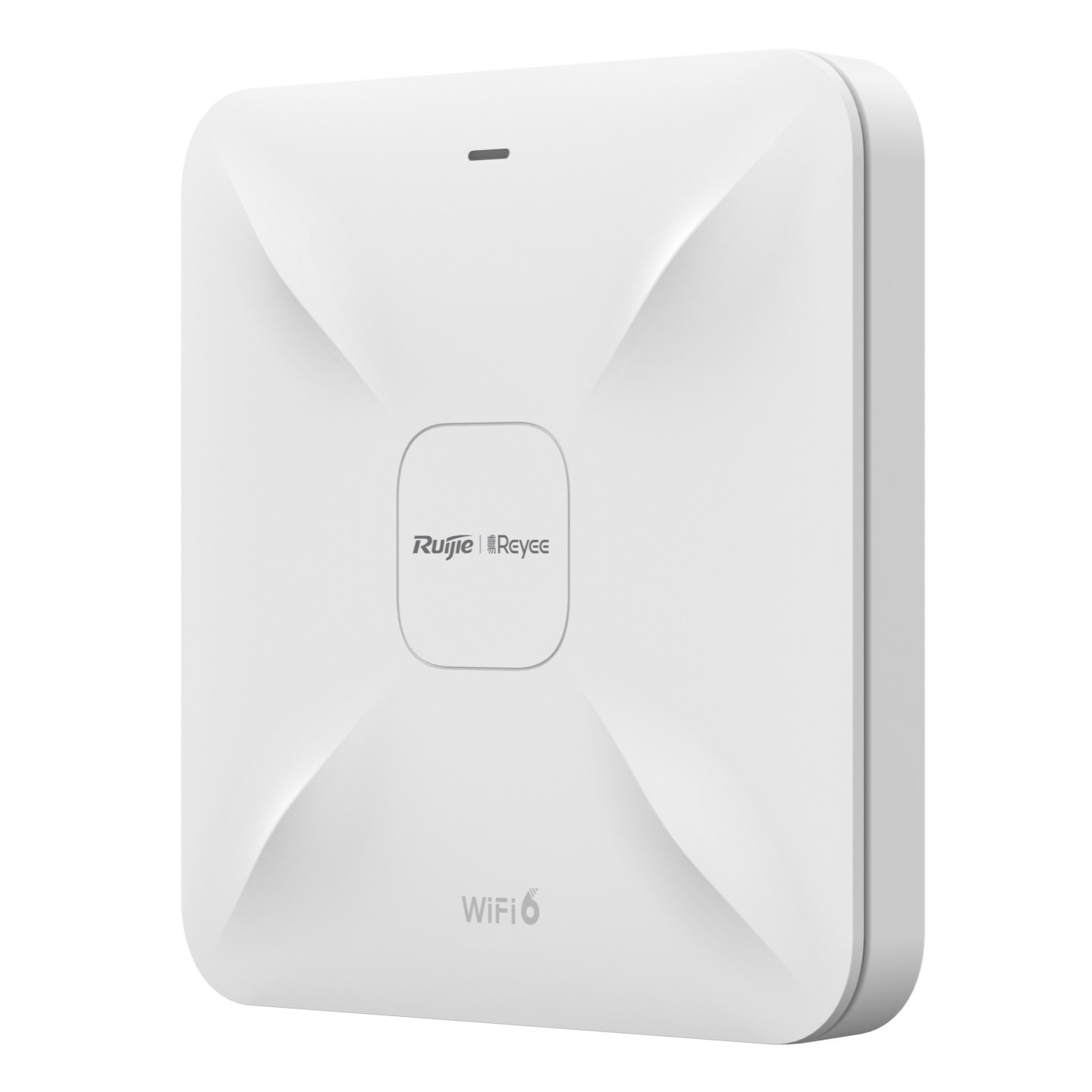

Ruijie Ceiling AP RG-RAP2260(G)
Stok 16
AX1800 Dual band (2.4GHz&5GHz) access points, 2×2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 15.5 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Rp1.785.000
Stok 16
AX1800 Dual band (2.4GHz&5GHz) access points, 2×2 MU-MIMO
2.4 GHz: 3dBi @573Mbps, 5 GHz: 3dBi @1201Mbps, Max. 8 SSID
2× Gigabit LAN Ports (1 PoE-In), 803af PoE, DC 12V/1.5A, power consumption < 15.5 Watts
TX power: 2.4GHz @23dBm, 5GHz @23dBm
Max. STAs: 512, recommended STAs: 100 STAs
Support Beamforming, Layer2/3/AI/802.11k/v/r roaming, WPA3, 802.1x, SNMP, Router mode, Standalone Captive portal,, Mesh, Master AP in Self-organizing Network , Cloud/Eweb/APP management
| brands |
|---|
Product Overview
AX1800 Dual-Band Gigabit Wi-Fi 6 Indoor Access Point. The standard enterprise choice for entry-level Wi-Fi 6 deployments with high reliability and mesh support.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-RAP2260(G) |
| Product Type | Indoor Ceiling Access Point |
| Wi-Fi Standard | Wi-Fi 6 (802.11ax), 802.11ac Wave2, 802.11n |
| Frequency Band | Dual-Band (2.4 GHz + 5 GHz) |
| Spatial Streams | 4 Streams (2×2 MU-MIMO) |
| 2.4 GHz Speed | Up to 574 Mbps |
| 5 GHz Speed | Up to 1201 Mbps |
| Maximum Data Rate | 1775 Mbps |
| Wireless Technology | MU-MIMO, OFDMA, 1024-QAM |

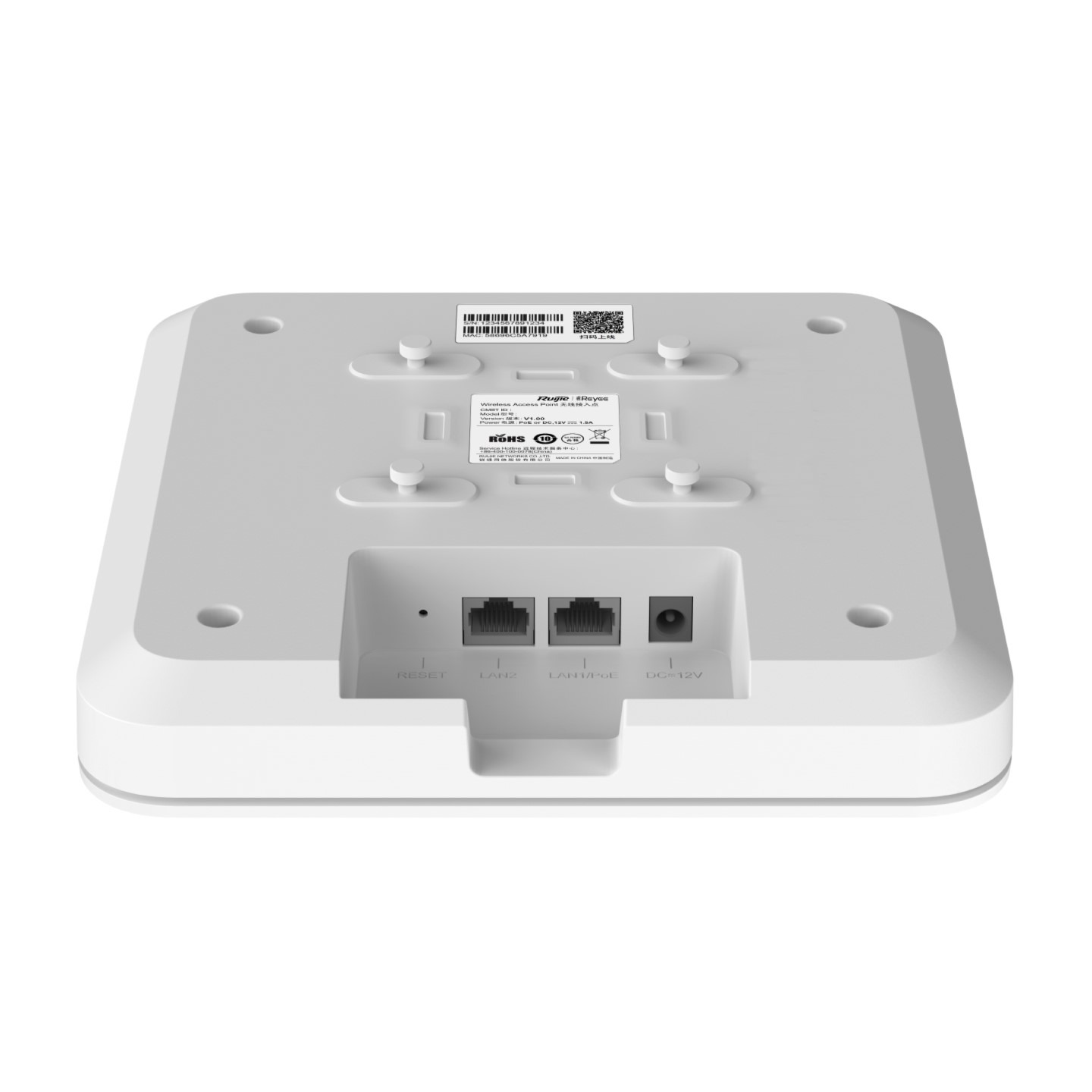

| Ethernet Port | 2 x 10/100/1000Base-T (PoE In supported) |
| Power Supply | 802.3af/at PoE or DC 12V/1.5A |
| Maximum Power Consumption | ≤ 15.3 W |
| Maximum Clients | Up to 512 Clients (100 recommended) |
| Dimensions | 194 x 194 x 35 mm |
| Weight | ≤ 0.56 kg |
| Mounting | Ceiling / Wall Mount |
| Operating Temperature | 0°C – 40°C |
| Protection Rating | IP41 |
| Management | Ruijie Reyee Cloud Management |
