Ruijie Splitter RG-SPL2016-SC
Availability:
Stok 3

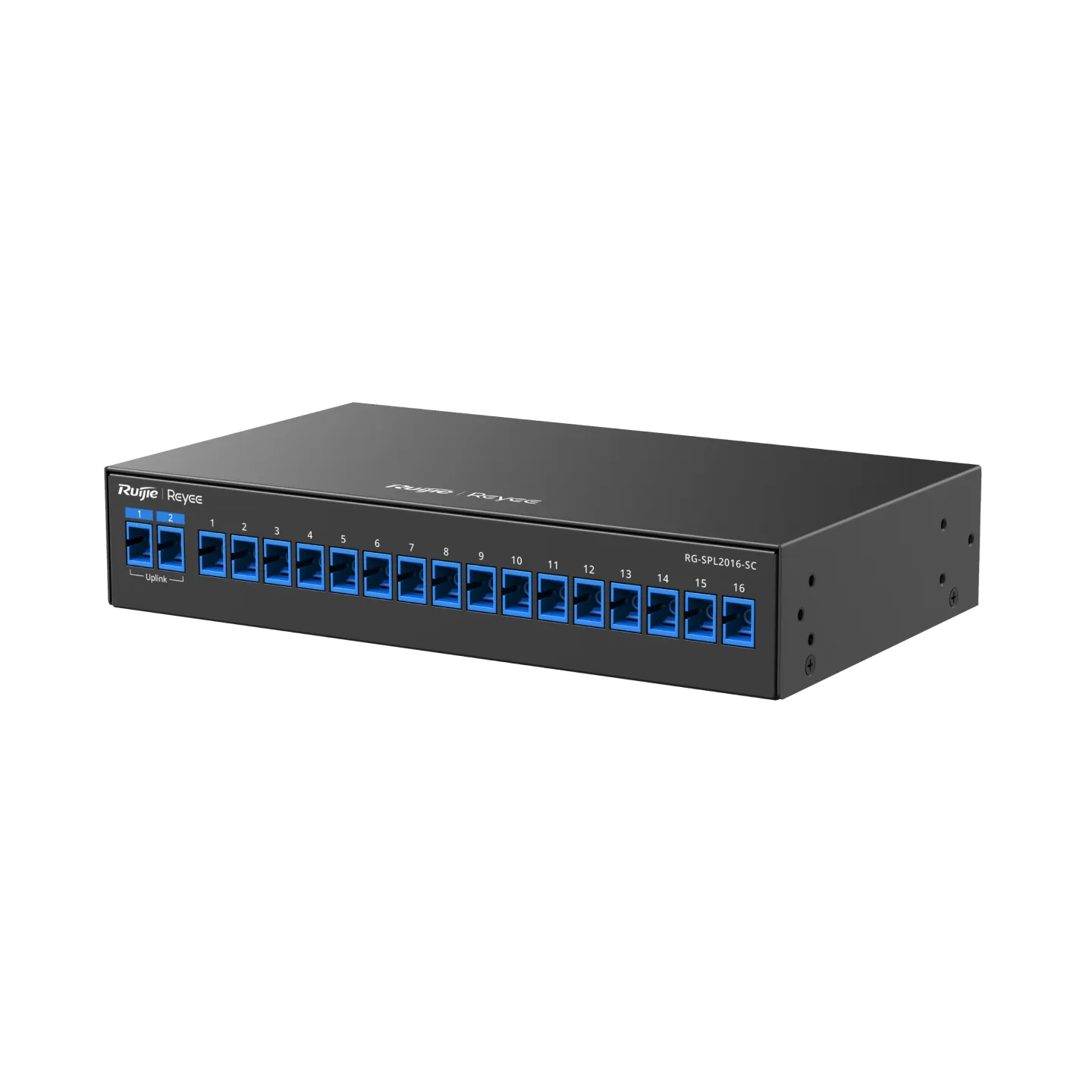

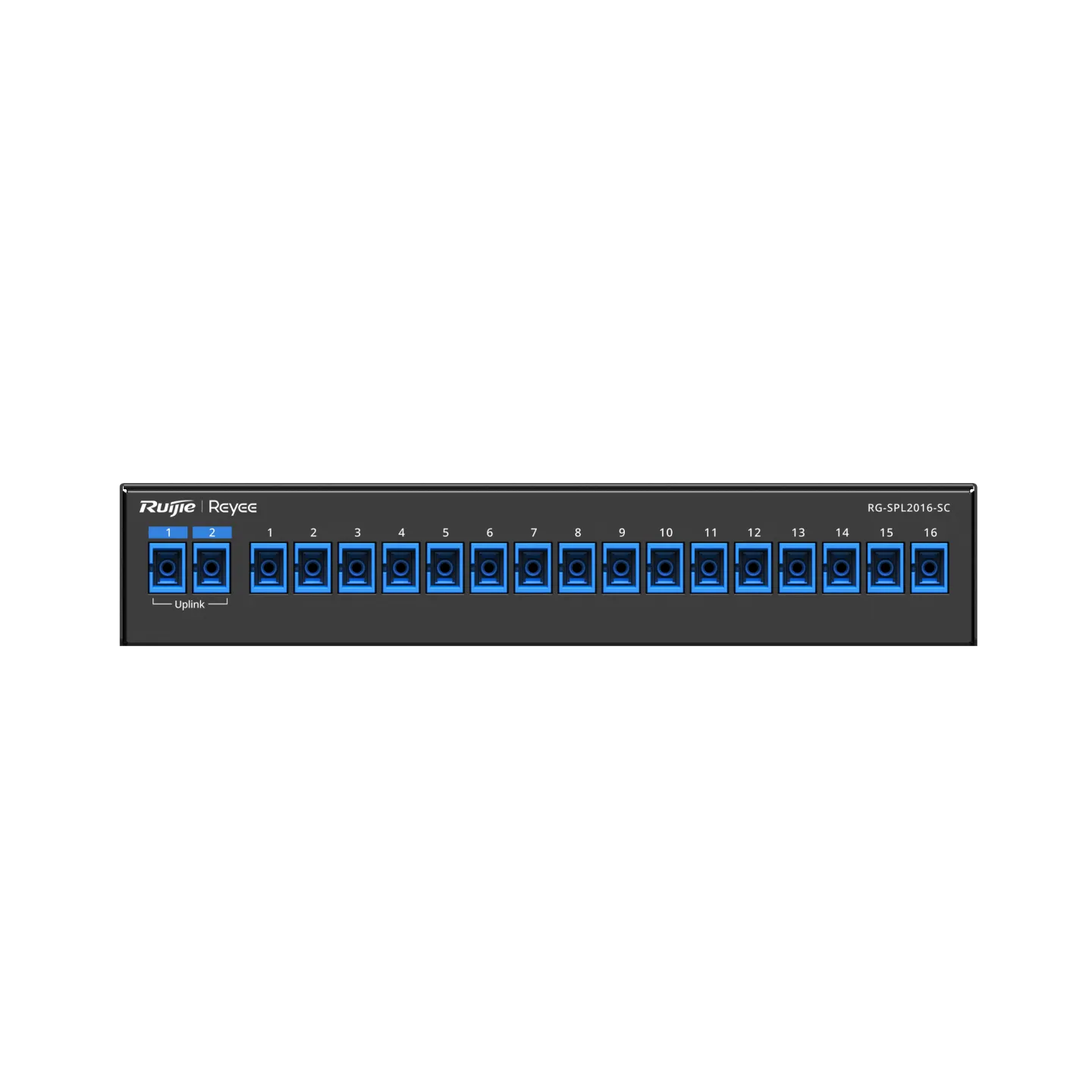

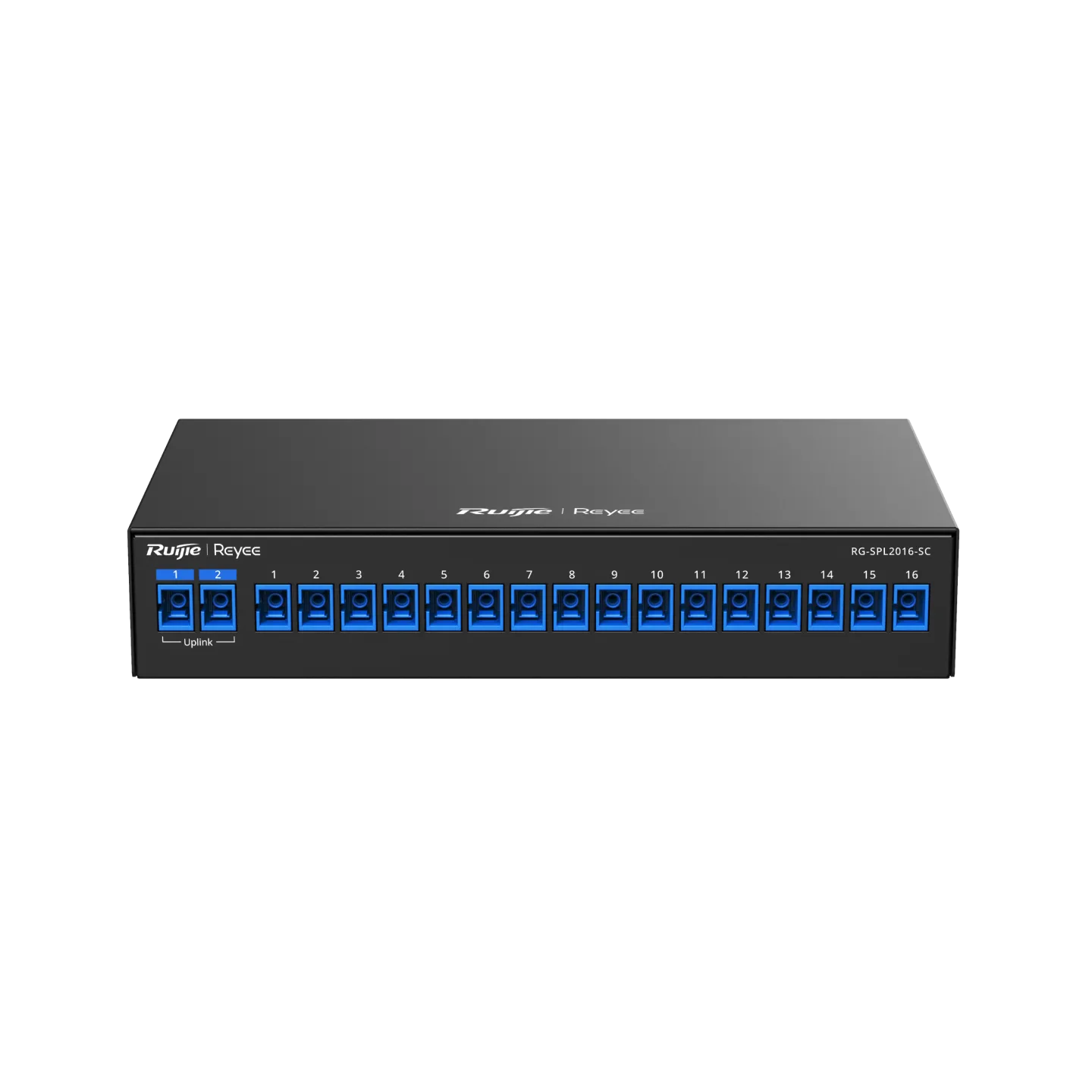

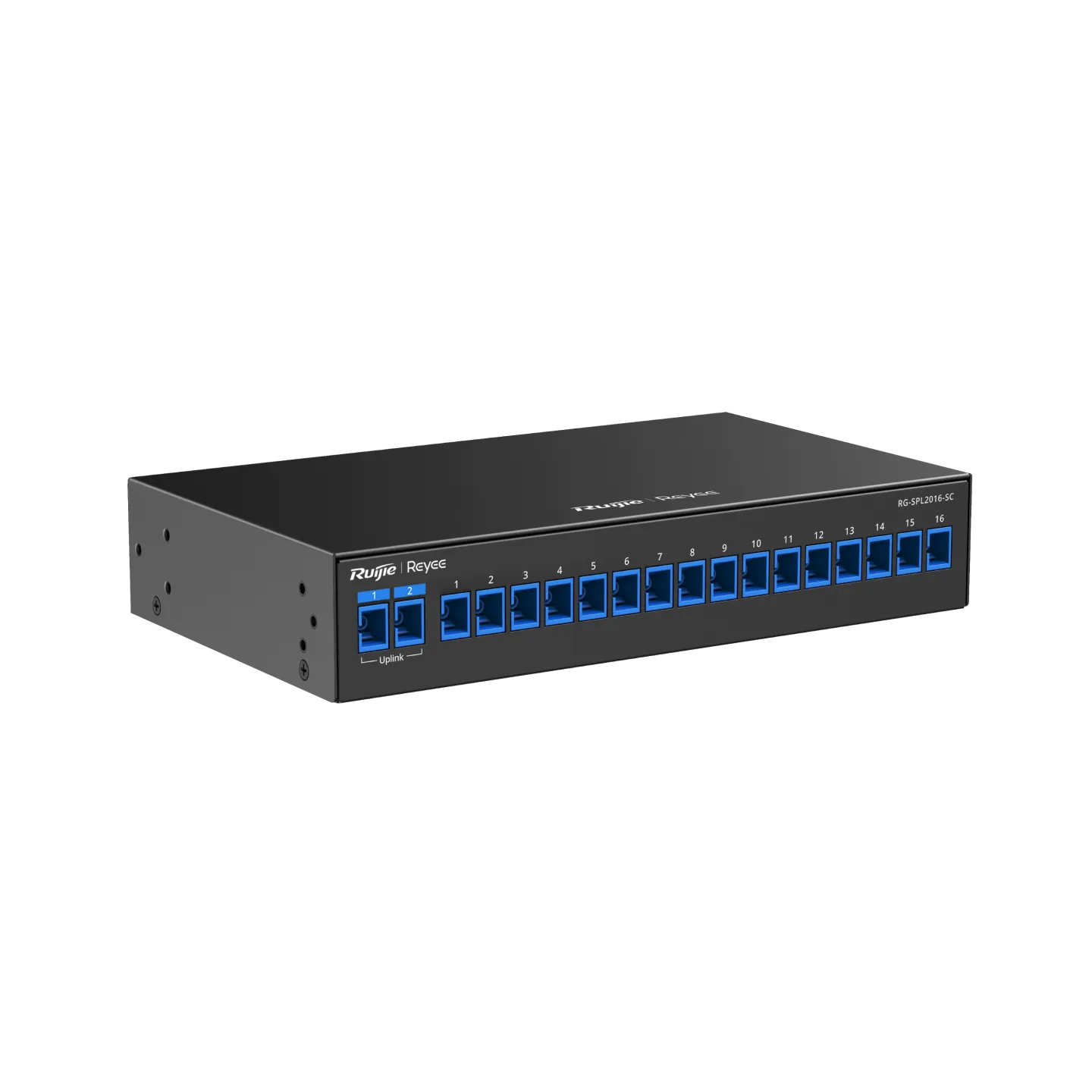

2 in 16 out even optical splitter. SC type with iron shell, can be held on a single rack, or combined with multiple units on a rack
Rp1.475.000
Stok 3
2 in 16 out even optical splitter. SC type with iron shell, can be held on a single rack, or combined with multiple units on a rack
Product Overview
1:16 PLC Fiber Optic Splitter. High-performance optical passive component used in FTTH and PON networks to distribute optical signals from one input to 16 outputs with minimal loss.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-SPL2016-SC |
| Split Ratio | 1:16 |
| Technology | PLC (Planar Lightwave Circuit) |
| Connector Type | SC/UPC or SC/APC (Optional) |
| Operating Wavelength | 1260 nm – 1650 nm |
| Insertion Loss | ≤ 13.5 dB |
| Return Loss | ≥ 50 dB |
| Uniformity | ≤ 1.2 dB |
| Directivity | ≥ 55 dB |
| Operating Temp | -40°C to 85°C |
| Dimensions | Standard Cassette / LGX Box type |
