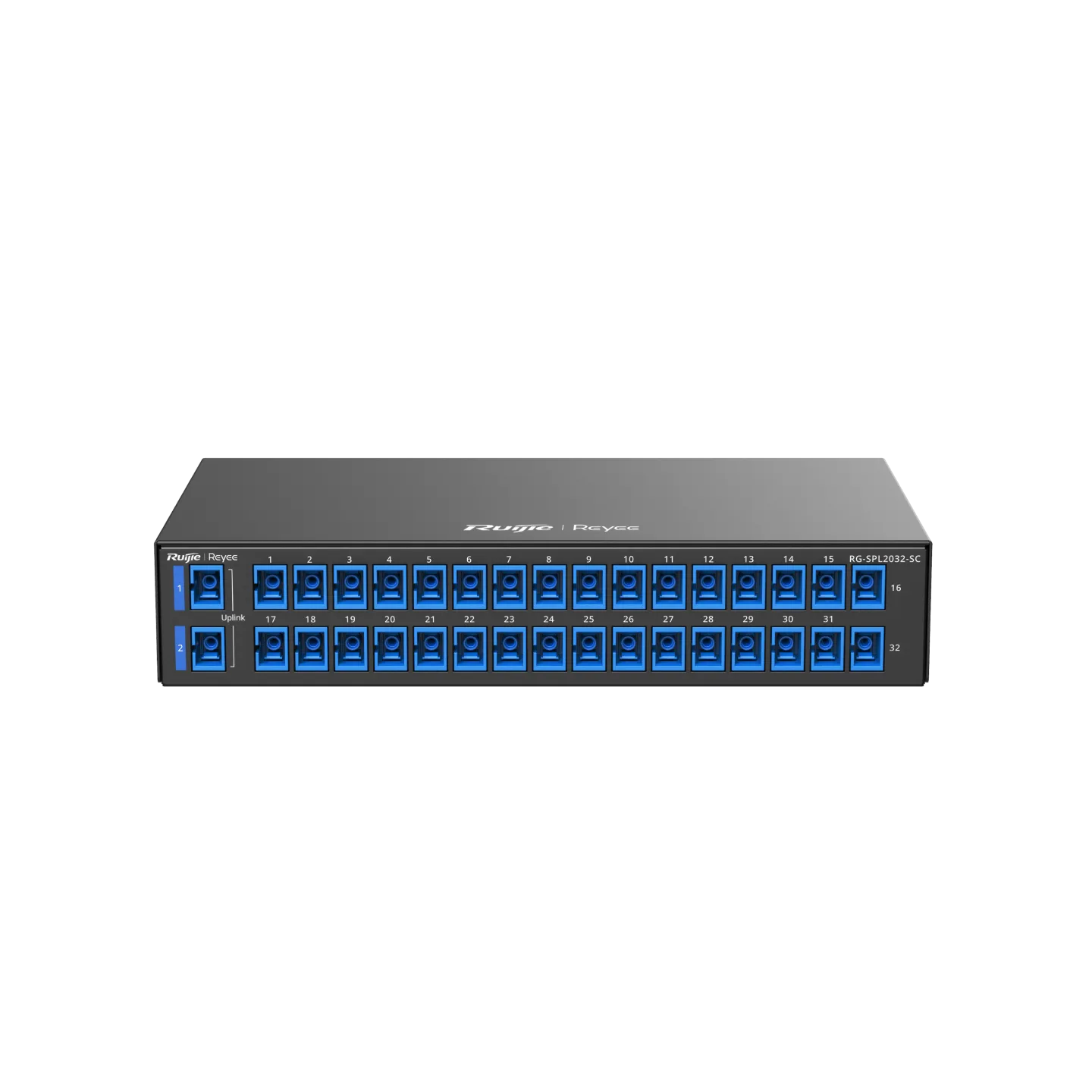

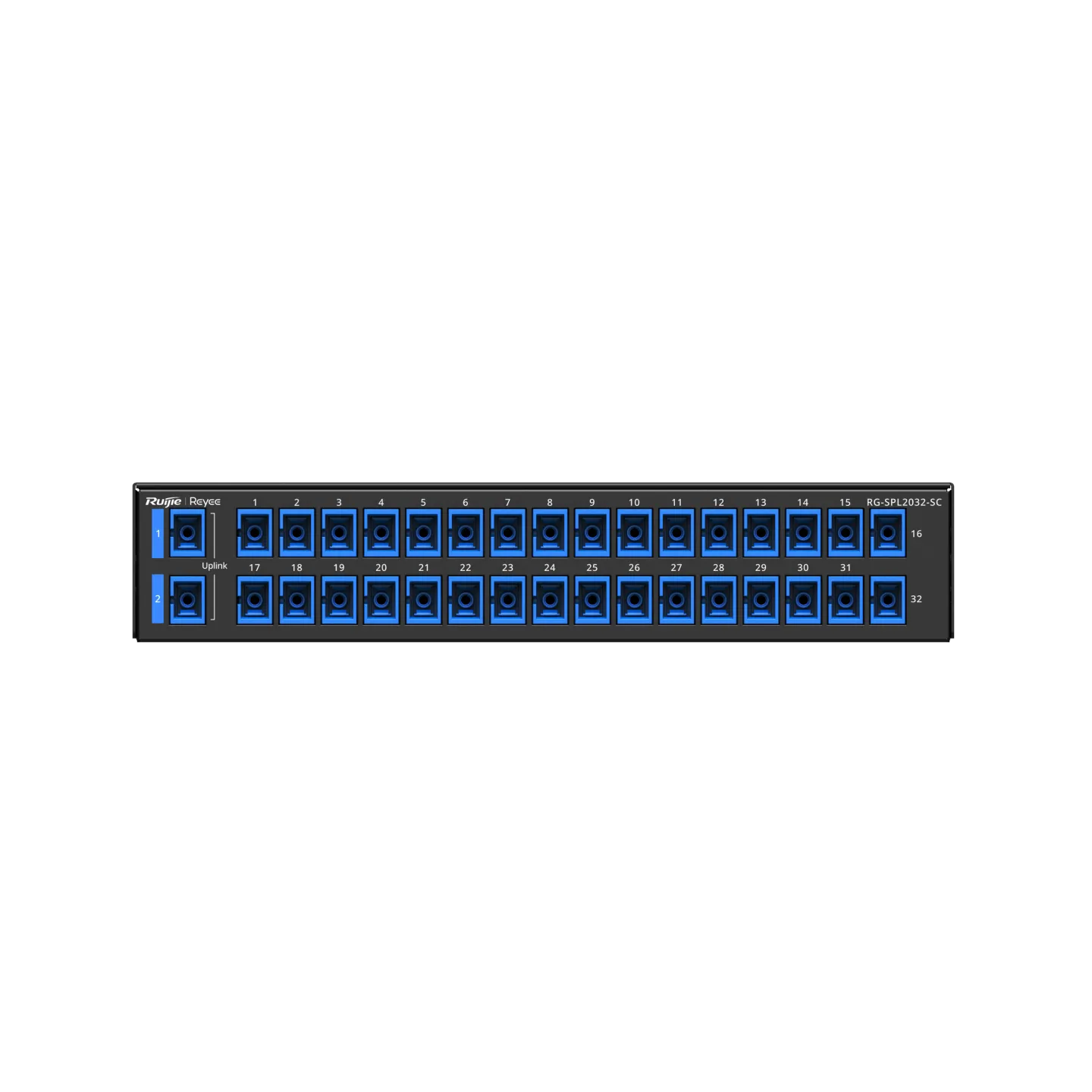

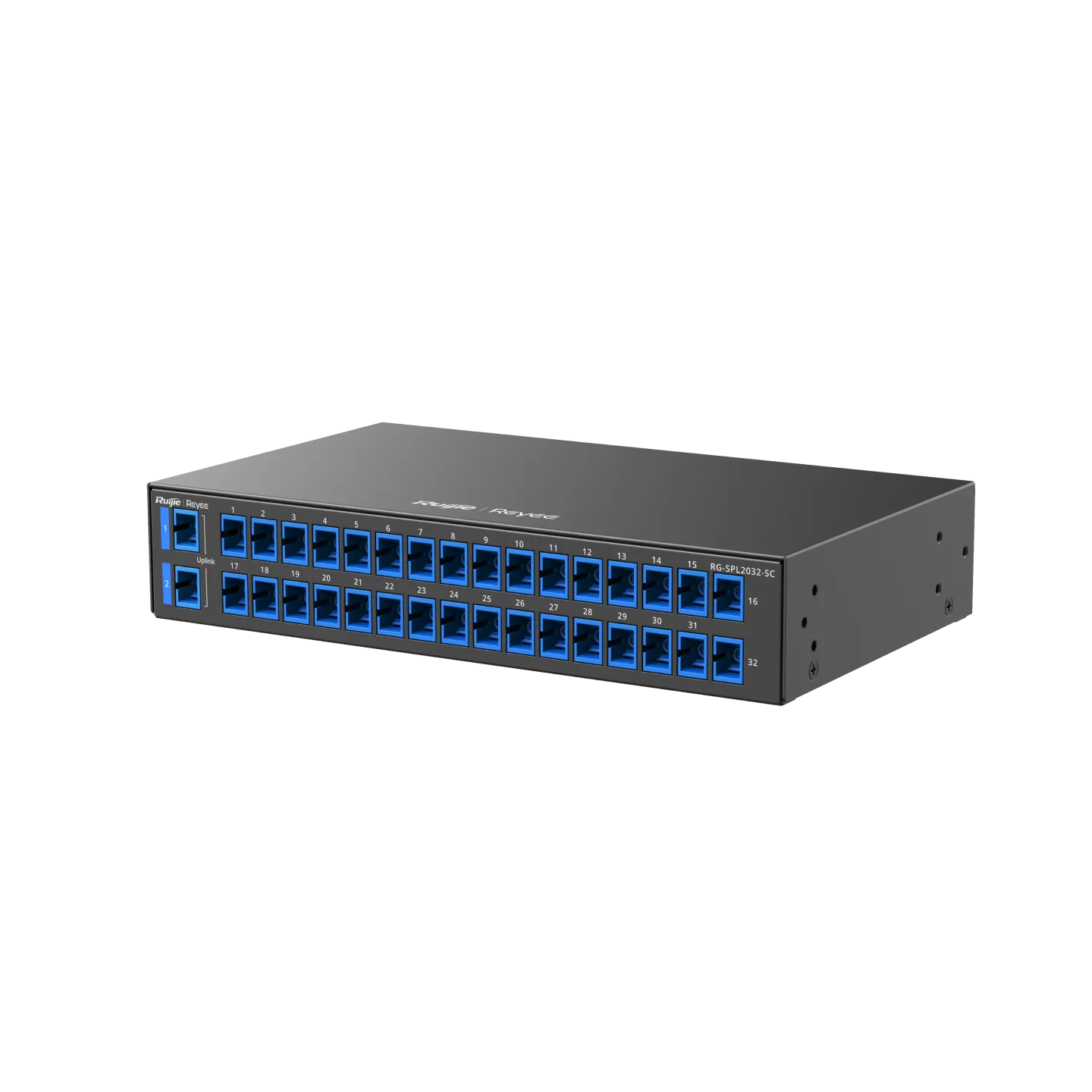

Ruijie Splitter RG-SPL2032-SC
Availability:
Stok 19
2 in 32 out even optical splitter. SC type with iron shell, can be held on a single rack, or combined with multiple units on a rack
Rp2.353.000
Stok 19
2 in 32 out even optical splitter. SC type with iron shell, can be held on a single rack, or combined with multiple units on a rack
Product Overview
1:32 PLC Fiber Optic Splitter. Designed for high-density optical distribution, providing reliable signal splitting for large-scale fiber-to-the-home (FTTH) deployments.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-SPL2032-SC |
| Split Ratio | 1:32 |
| Technology | PLC (Planar Lightwave Circuit) |
| Connector Type | SC/UPC or SC/APC |
| Operating Wavelength | 1260 nm – 1650 nm |
| Insertion Loss | ≤ 16.8 dB |
| Return Loss | ≥ 50 dB |
| Uniformity | ≤ 1.5 dB |
| Polarization Loss | ≤ 0.3 dB |
| Operating Temp | -40°C to 85°C |
| Application | FTTH, PON, CATV Systems |
