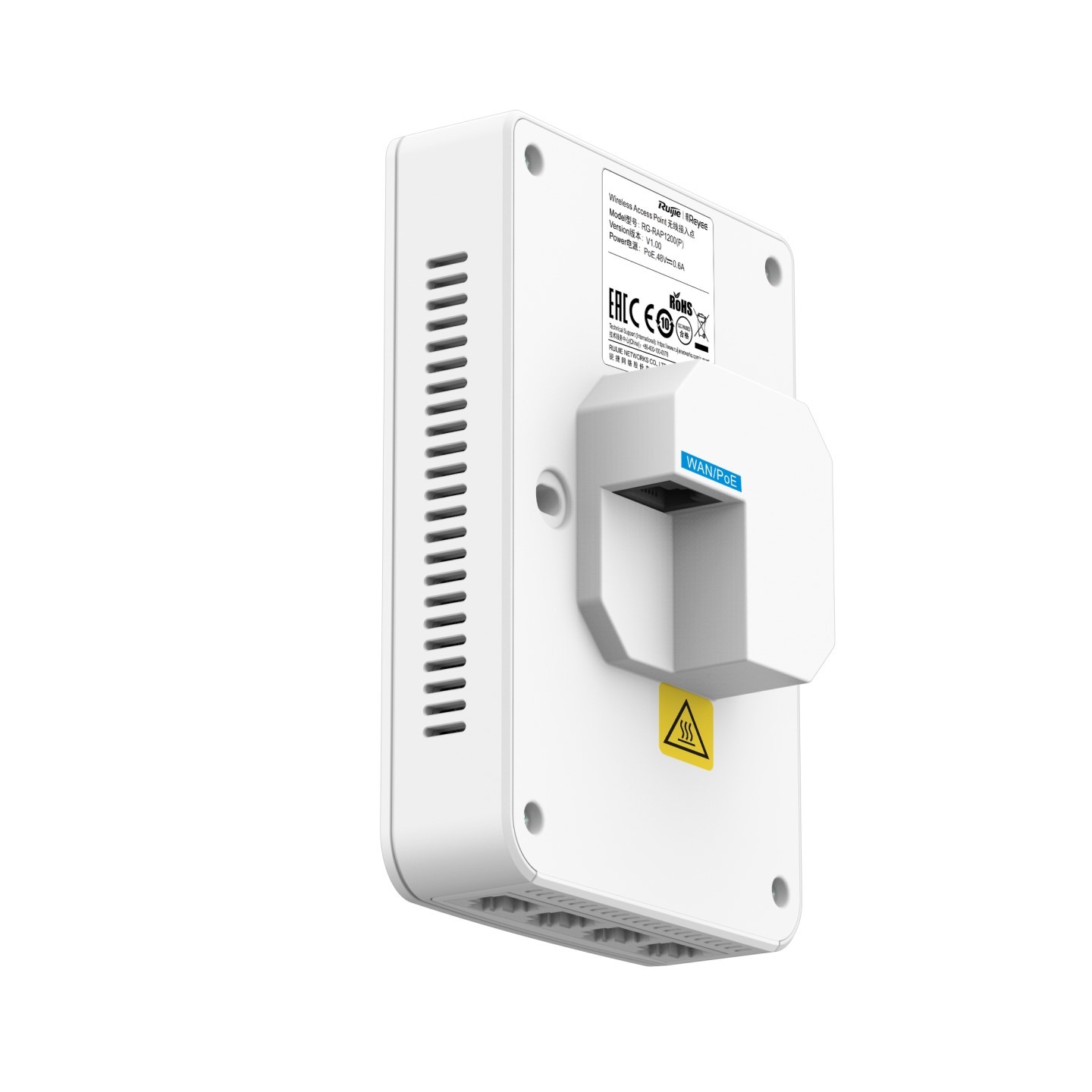

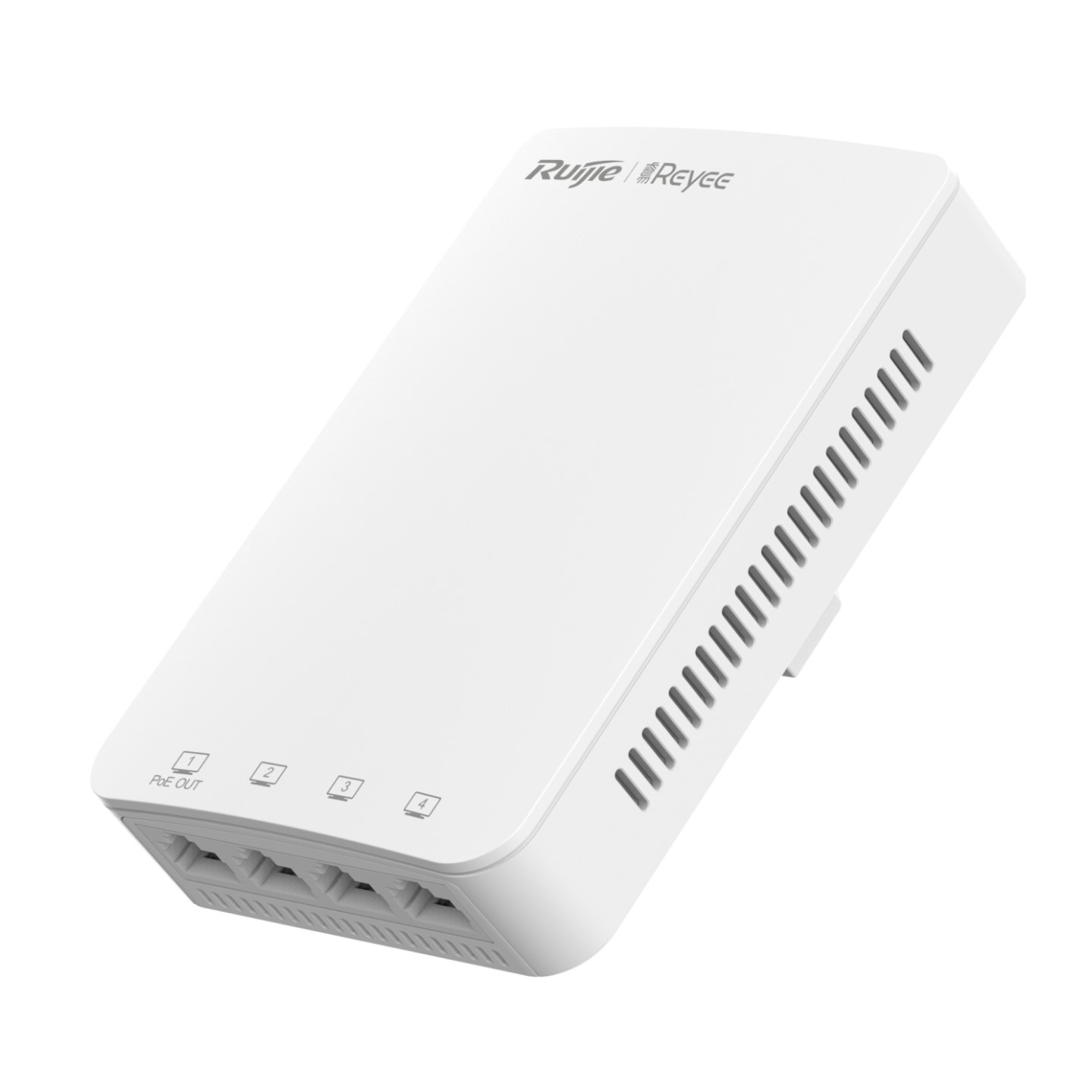

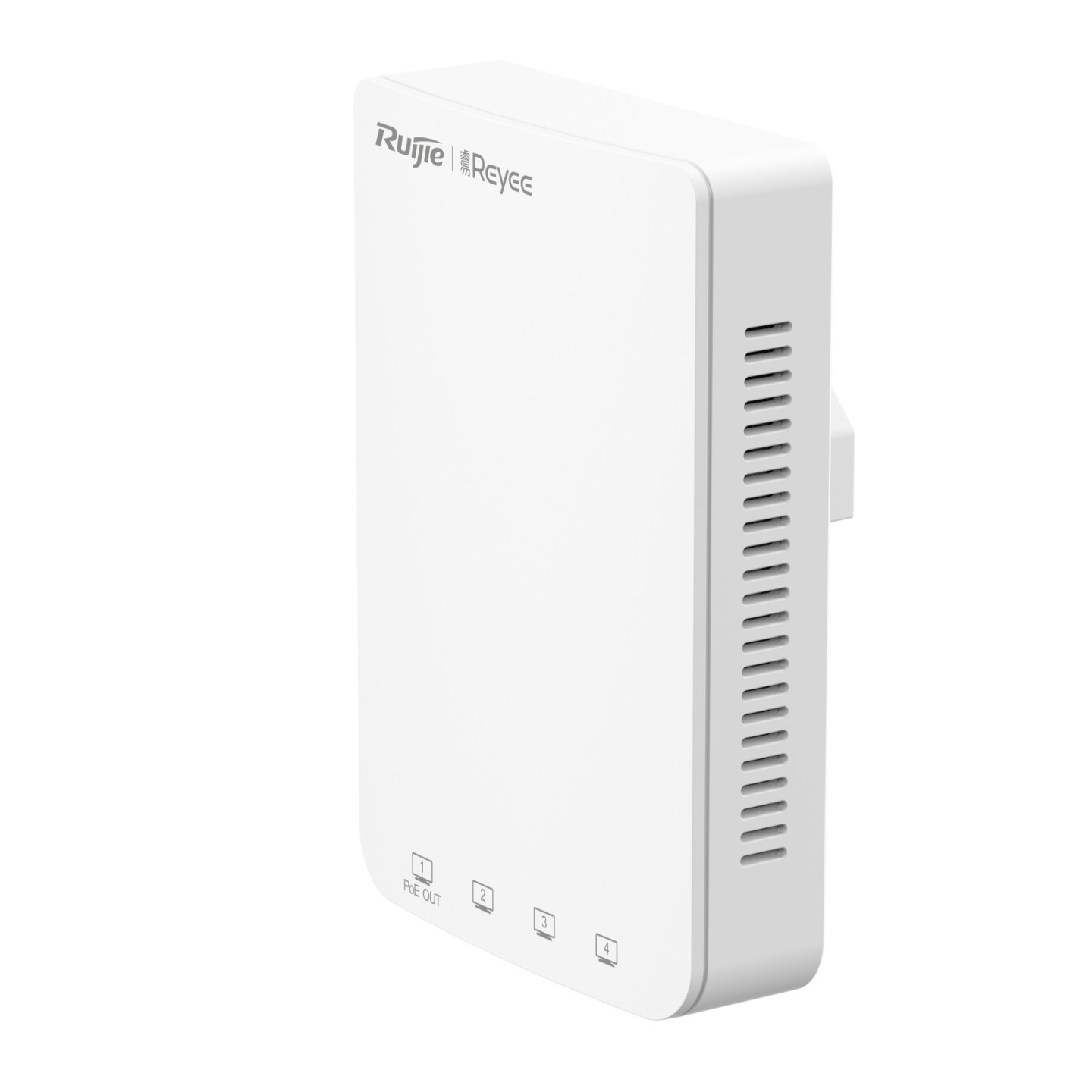

Ruijie Wall AP RG-RAP1200(P)
Stok 6
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2×2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 4 × 10/100/1000Mbps LAN Ports (1 PoE-Out)
803af PoE, power consumption < 8 Watts
TX power: 2.4GHz @19dBm, 5GHz @18dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network , Cloud/Eweb/APP management
Rp1.919.000
Stok 6
AC1300 Wave 2 Dual band (2.4GHz&5GHz) wall-mount access points, 2×2 MU-MIMO
2.4 GHz: 2dBi @400Mbps, 5 GHz: 2dBi @867Mbps, Max. 8 SSID
1× 10/100/1000Mbps WAN Ports (PoE-In), 4 × 10/100/1000Mbps LAN Ports (1 PoE-Out)
803af PoE, power consumption < 8 Watts
TX power: 2.4GHz @19dBm, 5GHz @18dBm
Max. STAs: 110, recommended STAs: 80 STAs
Support Beamforming, Layer2/3/AI roaming, WPA2, Router mode, Captive portal, Master AP in Self-organizing Network , Cloud/Eweb/APP management
| brands |
|---|
Product Overview
AC1300 Wall-plate Access Point with PoE Passthrough. Features a built-in PoE output port to power an additional IP phone or camera directly from the AP.
Technical Specifications
| Brand | Ruijie Reyee |
| Product Model | RG-RAP1200(P) |
| Product Type | Wall-plate Access Point with PoE Out |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac Wave2), 802.11n |
| Frequency Band | Dual-Band (2.4 GHz + 5 GHz) |
| Spatial Streams | 4 Streams (2×2 MU-MIMO) |
| 2.4 GHz Speed | Up to 400 Mbps |
| 5 GHz Speed | Up to 867 Mbps |
| Maximum Data Rate | 1267 Mbps |
| Wireless Technology | MU-MIMO, Beamforming |
| Ethernet Port | 1 x 10/100/1000M (Rear), 4 x 10/100/1000M (Front) |
| PoE Passthrough | 1 x PoE Out (Supports IEEE 802.3af output) |
| Power Supply | 802.3at PoE+ (Required for PoE Out) |
| Maximum Power Consumption | ≤ 18 W (with PoE output load) |
| Dimensions | 126 x 86 x 50 mm |
| Weight | 0.3 kg |
| Operating Temperature | 0°C – 40°C |
| Management | Ruijie Reyee Cloud Management |
Based on 0 reviews
Only logged in customers who have purchased this product may leave a review.
Produk Terkait
-
AP Dinding
Ruijie Wall AP RG-RAP1261
AX3000 Wi-Fi 6 dual-band Gigabit in-wall AP Specifications: Built-in antennas, 2.4GHz/5GHz dual-radio, 802.11a/b/g/n/ac Wave1/Wave2/ax protocol;1×10/100/1000 Base-T portSupport AP and routing mode, layer 2 and layer 3 roaming, Reyee unified networking and Ruijie Cloud app management. Support 802.3at PoE-in, max power ＜18W. The power supply output should be higher than AP max power consumption. If supplied by non-standard PoE adapter, config the “PoE settings“——“PoE mode” in website to “IEEE 802.3at“
SKU: RG-RAP1261 -
AP Dinding

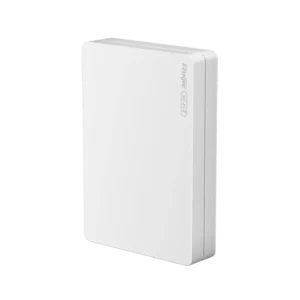

Ruijie Wall AP RG-RAP72-Wall
